M4Y-XG-6002.4 GHz 802.11g WLAN Mini PCI Card

Z Com Inc
2.4 GHz 802.11g WLAN Mini PCI Card - FCC ID M4Y-XG-600 - Z Com Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Feb 11, 2003
Application Purpose
Original Equipment
Date of Application
Feb 11, 2003
Equipment Note
2.4 GHz 802.11g WLAN Mini PCI Card
Frequency Range
2412.00000000 - 2462.00000000
Company
Z Com Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

1 XG-600 MiniPCI Wireless Adapter Quick Installation Guide I. Network Configuration The XG-600 MiniPCI Wireless Adapter is an IEEE802.11g-compliant PCI Type DSSS wireless LAN adapter. It fully supports wireless networking under Windows XP/2000/98SE/ME. … The XG-600 MiniPCI Wireless Adapter can be operated in Infrastructure and Ad-Hoc network configurations. Infrastructure mode allows XG-600 MiniPCI Wireless Adapter users to join an Extended Basic Service Set (i.e., connect to access point). Ad-Hoc mode allows XG-600 MiniPCI Wireless Adapter users to join a Basic Service Set (i.e., peer-to-peer mode, without access point). II. Package Content The XG-600 MiniPCI Wireless Adapter x 1 Quick Installation Guide x 1 Product CD-ROM x 1 III. Installation of the XG-600 MiniPCI Wireless Adapter under Windows XP 1. Insert the XG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect the MiniPCI Wireless Adapter and a “Found New Hardware Wizard” window will show up. 2. Select “Install from a list or specific (Advanced)” and insert the Product CD-ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniPCI Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Infrastructure Ad-hoc Wired Wireless Access Point 2 Installation of the XG-600 MiniPCI Wireless Adapter under Windows 2000 1. Insert the XG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect the MiniPCI Wireless Adapter and a “Found New Hardware Wizard” window will show up. Click Next to proceed. 2. Select “Search for a suitable driver for my device (recommended)”. Insert the Product CD-ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The windows will find “ MiniPCI Wireless Adapter”. Click on Next to continue. 4. Click Finish to complete the installation. Installaton of the XG-600 MiniPCI Wireless Adapter under Windows 98SE/ME 1. Insert the XG-600 MiniPCI Wireless Adapter into the MiniPCI slot in your notebook and start Windows. Windows will auto-detect new hardware and will display a “Add New Hardware Wizard” window. 2. Select “Search for a best driver for your device (recommended)”. Insert the Product CD- ROM into the appropriate drive. Specify the location where the driver is placed. Click on Next to install the driver. 3. The Windows will find “MiniPCI Wireless Adapter”. Click on Next to continue. 4. Once the [Please insert the disk labeled “Windows 98SE/ME CD-ROM”, and then click OK] window appears, enter the path corresponding to the appropriate drives and click OK. 5. Click Finish to complete the installation. Restart Windows. IV. Installation of the Wireless LAN Utility 1. Insert the Product CD-ROM again. 2. Go the utility folder and run setup.exe. 3. Follow the on-screen instructions to install the Wireless LAN Utility. 4. Upon completion, go to Program Files and run the Wireless LAN Utility. The utility interface will then appear and at the same time its icon appears in the System Tray in the bottom right corner of your task bar. V. Usage of the Wireless LAN Utility The Wireless LAN Utility consists of window with 5 items for you to monitor and configure the XG-600 MiniPCI Wireless Adapter: Configuration, Loop Back, AP Browser, Site Survey and About. 3 Configuration: The Configuration item allows you to modify the configuration parameters for the XG-600 MiniPCI Wireless Adapter such as Profile, Network Type, Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the MiniPCI Wireless Adapter such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength. Look Back: The Look Back tool helps you examine point-to-point data transmission quality between the your MiniPCI Wireless Adapter and any work station on the network. By entering IP address of the remote station, set ping interval and packet size, you may know whether communication has been made successfully or not. Additionally, if you use the infrastructure wireless LAN configuration, you may run the loopback test by click the Look back button to verify the communication quality between your wireless station and Access Point. 4 AP Browser: By clicking the Rescan button, the AP Browser can display all the Access Points around working environment. Besides showing the ESSID of each Access Point, it also display BSSID, Channel, Signal, Quality and Supported Rates. To join any of the displayed Access Point, highlight the Access Point you desire to connect and then click the Join BSS or Join ESS to join the group. Site Survey: When the Site Survey screen is displayed, the channel quality of all 14 radio channels will be displayed. These channel quality measurements are shown on each gauge for the 14 radio channels. The blue bar indicated the channel quality is clear and good. The higher the blue bar is, the better quality you have (i.e., less interference). The yellow bar indicates the channel quality is fair and the red bar indicates the channel is busy or having severe interference. 5 About: The About item shows the versions the Wireless LAN Utility, driver, firmware and utility of the XG-600 MiniPCI Wireless Adapter. Also, the MAC address and frequency domain is displayed. Technical Support You can find the most recent software and user documentation will be updated periodically on the supplier Web site. If you have difficulty resolving the problem while installing or using the XG-600 MiniPCI Wireless Adapter, please contact the supplier for support. 6 Limited Warranty Statement This Warranty constitutes the sole and exclusive remedy of any buyer or reseller’s equipment and the sole and exclusive liability of the supplier in connection with the products and is i…

Text truncated - open the document above for the full version.

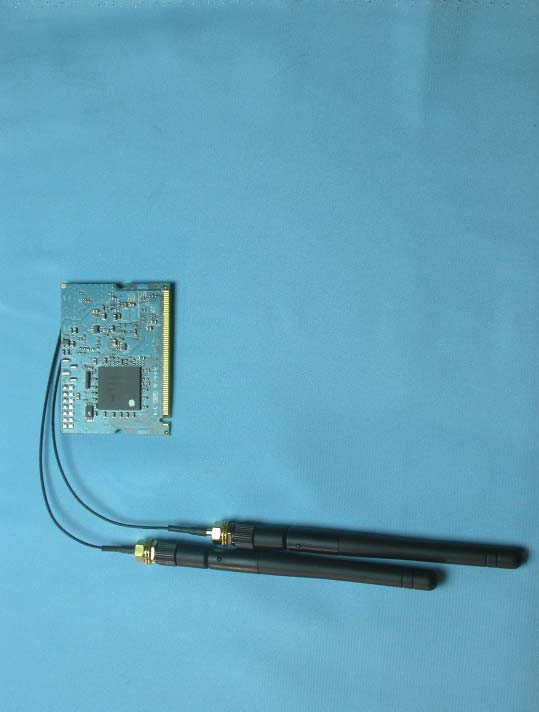

External Photos

Company: Z-Com, Inc.Page : 1 of 5 Product : 2.4GHz 802.11g WLAN Mini PCI CardModel : XG-600 Company: Z-Com, Inc.Page : 2 of 5 Product : 2.4GHz 802.11g WLAN Mini PCI CardModel : XG-600

ID Label/Location Info

Company : Z-Com, Inc.Model : XG-600 Product : 2.4GHz 802.11g WLAN Mini PCI Card 2.4GHz 802.11g WLAN Mini PCI Card Model No: XG-600 FCC IDM4Y-XG-600 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: [1] this device may not cause harmful interference and [2] this device must accept any interference received, including interference that may cause undesired operation. S/N Made in Taiwan

Internal Photos

Company: Z-Com, Inc.Page : 3 of 5 Product : 2.4GHz 802.11g WLAN Mini PCI CardModel : XG-600 Company: Z-Com, Inc.Page : 4 of 5 Product : 2.4GHz 802.11g WLAN Mini PCI CardModel : XG-600 Company: Z-Com, Inc.Page : 5 of 5 Product : 2.4GHz 802.11g WLAN Mini PCI CardModel : XG-600

Operational Description

Description of Operation EUT is a 2.4GHz 802.11g WLAN Mini PCI Card with 11 channels. This device provided four kind of transmitting speed 1,2,5.5 and 11Mbps. The device of RF carrier is DQPSK,DB PSK and CCK. The device adapts direct sequence spread spectrum modulation. The Connector antenna was scolded on PCB provided diversity function to improve the receiving function. This 2.4GHz 802.11g WLAN Mini PCI Card is an IEEE 802.11b Wireless LAN adapter. It allows your computer to connect to a wireless network and to share resources, such as files or printers without being bound to the network wires. Operation in 2.4GHz Direct Sequence Spread Spectrum (DSSS) radio transmission, the 2.4GHz 802.11g WLAN Mini PCI Card transfers data at speeds up to 64/128-bit Wired Equivalent Protection(WEP) algorithm is used. In addition, its standard compliance ensures that it can communicate with any 802.11b network.

RF Exposure Info

FCC ID M4Y-XG-600 Report No.510-9112-058F Page 38 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 9. RF EXPOSURE EVALUATION According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500----F/3006 1,500-100,000----56 (B) Limits for General Population / Uncontrol Exposures 300-1,500----F/15006 1,500-100,000----130 9.1 FRIIS FORMULA Friis transmission formula : Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 Pout = output power to antenna in mW G = gain of antenna in linear scale Pi = 3.1416 R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm2. If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. 9.2 EUT OPERATING CONDITION A software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID M4Y-XG-600 Report No.510-9112-058F Page 39 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 9.3 TEST RESULT OF RF EXPOSURE EVALUATION Test ItemRF Exposure Evaluation Data Test ModeNormal Operation 9.3.1 ANTENNA GAIN Antenna GainThe maximum Gain measured in fully anechoic chamber is 2dBi linear scale. 9.3.2 OUTPUT POWER INTO ANTENNA & RF EXPOSURE EVALUATION DISTANCE ChannelChannel Frequency (MHz) Output Power to Antenna (dBm) Minimum Allowable Distance  From Skin(cm) CH12412.0017.46 CH62437.0017.38 CH112462.0017.35

Test Setup Photos

FCC ID M4Y-XG-600 Report No.510-9112-058F Page 11 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 2.7 PHOTOS OF CONDUCTION TEST FCC ID M4Y-XG-600 Report No.510-9112-058F Page 24 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 3.7 PHOTOS OF OPEN SITE FCC ID M4Y-XG-600 Report No.510-9112-058F Page 25 of 39 Industrial Technology Research Institute Electronics Research & Service Organization Bldg. 17, 195-4 Sec. 4, Chung Hsing Rd., Chutung,Hsinchu, 310 Taiwan,Republic Of China TEL : 886-3-5917069 FAX : 886-3-5825720 3.7 PHOTOS OF OPEN SITE

Contact Information

Applicant

Jeff jiang(R&D DIV Director)
[email protected]886 3 577-7364Fax: 886 3 578-3583

Test Firm

Compliance Certification Services Inc.Paul Liau
[email protected]886-3-5915994Fax: 886-3-5825720

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz56.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Power Output listed is Conducted. Modular Approval. This device is intended only for OEM integrators under the following conditions: The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
