M4Y-XG-623802.11b/g Wireless mini-PCI Module

Z Com Inc
802.11b/g Wireless mini-PCI Module - FCC ID M4Y-XG-623 - Z Com Inc
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jul 12, 2006
Application Purpose
Original Equipment
Date of Application
Jul 12, 2006
Equipment Note
802.11b/g Wireless mini-PCI Module
Frequency Range
2412.00000000 - 2462.00000000
Company
Z Com Inc
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

FCC Statement Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. 54Mbps IEEE802.11g Wireless Network Mini PCI Adapter complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The user’s manual or instruction manual for an intentional or unintentional radiator shall caution the user that changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is needed. Consult the dealer or an experienced radio/TV technician for help. CAUTION: To comply with FCC RF exposure compliance requirements, a separation distance of at least 20 cm must be maintained between the antenna of this device and all persons. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter This device is intended only for OEM integrators under the following conditions: The antenna must be installed such that 20 cm is maintained between the antenna and users. For laptop installations, the antenna must be installed to ensure that the proper spacing is maintained in the event the users places the device in their lap during use (i.e. positioning of antennas must be placed in the upper portion of the LCD panel only to ensure 20 cm will be maintained if the user places the device in their lap for use) and The transmitter module may not be co-located with any other transmitter or antenna. As long as the 2 conditions above are met, further transmitter testing will not be required. However, the OEM integrator is still responsible for testing their end-product for any additional compliance requirements required with this module installed (for example, digital device emissions, PC peripheral requirements, etc.). IMPORTANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in devices where the antenna may be installed such that 20 cm may be maintained between the antenna and users (for example access points, routers, wireless ASDL modems, certain laptop configurations, and similar equipment). The final end product must be labeled in a visible area with the following: "Contains TX FCC ID:M4Y- XG-623 ". RF Exposure Manual Information That Must be Included The users manual for end users must include the following information in a prominent location "IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter." Additional Information That Must be Provided to OEM Integrators The end user should NOT be provided any instructions on how to remove or install the device. Service Center in U.S.A Company Name : Zcomax. Company Address:14545 Valley View Ave., Suite S Santa Fe Springs, CA 90670 Tel:562-926-4588 1. Introduction 54Mbps IEEE802.11g Wireless Network Mini PCI Adapter is the perfect solution for your wireless network applications based on the IEEE 802.11g standard offering a data rate of 54Mbps in a wireless LAN environment. XG-623 is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. XG-623 provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. XG-623 allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature Complies with IEEE 802.11b/g Standard for 2.4GHz Wireless LAN. Works with All Existing Network Infrastructures. Compatible with Wi-Fi Wireless Products and Services Capable of up to 256-Bit WEP Encryption. Freedom to Roam While staying Connected 54 Mbps High-Speed Transfer Rate Two UF-L Connectors for External Antenna Support Antenna diversity for Better Sensitivity Lower Power Consumption. 3. Specification Hardw…

Text truncated - open the document above for the full version.

Cover Letter(s)

Page No. : 7 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2206/7/7 FCC ID: M4Y-XG-623 Dear Reviewer, We, Sporton International Inc., are authorized by Z-Com, Inc. to have their state-of-the-art 802.11b/g Wireless mini-PCI Module approved under limited module approval authorization. The application of this module is specified to Mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip IPC2120. 3. The requirement of power supply regulation: The part number of the power regulator is NF/REF3012AIDBZT. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: Please refer exhibition RF Exposure for the compliance of RF exposure rule. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Wayne Hsu Job Title : Supervisor

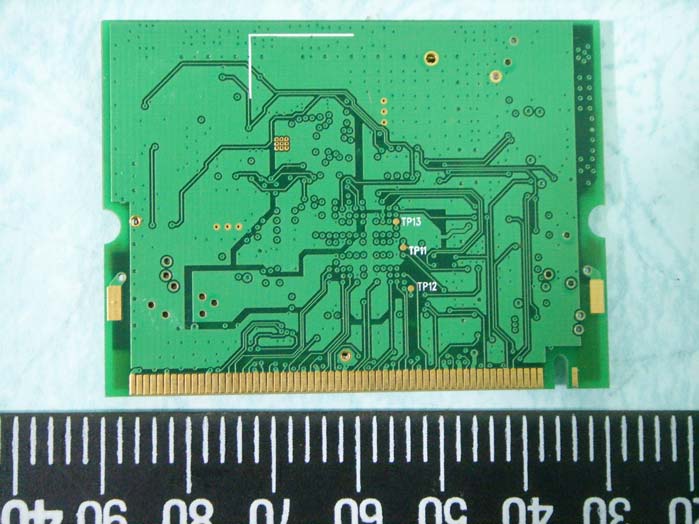

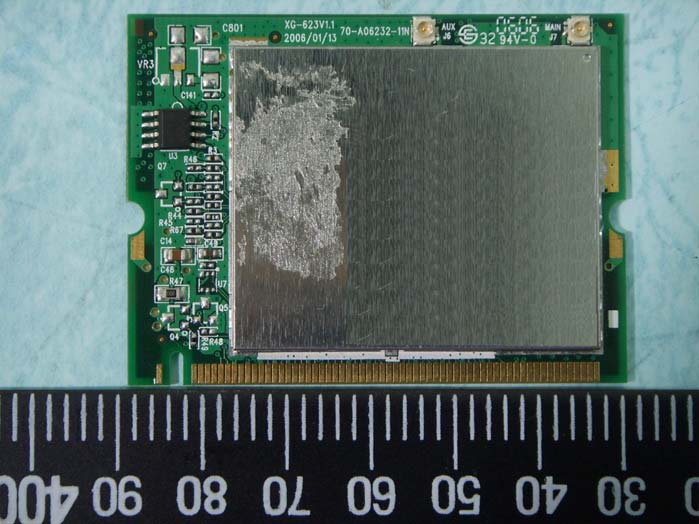

External Photos

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255

ID Label/Location Info

SCALE ECONO.REVISIONAPP.DES.DATE TOLERANCEGRADE() GRADE ABC LENGTH 60.050.080.20 0.080.100.30 0.100.150.40 0.200.300.80 6618 1850 50180 ~ ~ ~ ~ DRW.DES.CKD.RECKD.APP. MODELSHEET D W G N O . V A 1 1 Z-Com,Inc. NAME PART NO. 1 UNITS GRADEANGLE M.M. TOLERANCE 1 1 N P B 0 0 0 . 1 S/NLabel2923 1. 2. 3. 4.+/-0.5mm 5. Z-COM SN: IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII MAC: IIIIIIIIIIIIIIIIIIIIIIIIIIIIIII b:brand c:Theplaceofproduction d:Domain(ex.E=ETSI,U=FCC,T=ARIB) m:month y:year *:Serial# D:Domain(ex.ETSI,FCC,ARIB) B:TradeName m m 0 0 . 3 2 29.00mm R1.5mm 0060B3-****** XG623Hymbd***** 白色特多龍貼紙 XG-623 H/W: DOMAIN:DDDD MADEIN ccccc V1.1 FCC ID : M4Y-XG-623

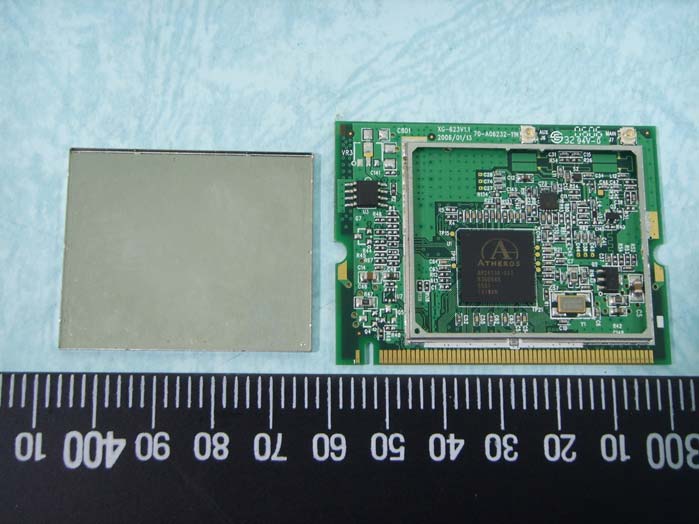

Internal Photos

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Jul. 8, 2006 FAX : 886-2-2696-2255

Test Report

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company Z-com,. Inc Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-XG-623 Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name 802.11b/g Wireless mini-PCI Module Brand Name ZCOM Model Name XG-623 Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Receive Date Jun. 13, 2006 Final Test Date Jul. 8, 2006 Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. 1190 ILAC MRA Report No.: FR661307 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: M4Y-XG-623 Issued Date : Jul. 8, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................4 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................5 3.7. Table for Supporting Units ...................................................................................................................................................................5 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................12 4.3. Power Spectral Density Measurement ..............................................................................................................................................14 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................19 4.5. Radiated Emissions Measurement ....................................................................................................................................................24 4.6. Band Edge Emissions Measurement .................................................................................................................................................42 4.7. Antenna Requirements .....................................................................................................................................................................49 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 50 6. SPORTON COMPANY PROFILE ........................................................................................................................ 52 6.1. Test Location.....................................................................................................................................................................................52 7. CNLA CERTIFICATE OF ACCREDITATION .......................................................................................................... 53 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A4 APPENDIX B. TEST PHOTOS................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B1 ofB 7 Appendix B. Test Photos Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B2 ofB 7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B3 ofB 7 SIDE VIEW Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B4 ofB 7 2. Photographs of Radiated Emissions Test Configuration Below 30MHz FRONT VIEW REAR VIEW Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B5 ofB 7 Test Configuration: 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B6 ofB 7 Test Configuration: above 1GHz FRONT VIEW REAR VIEW Report No.: FR661307 FCC ID: M4Y-XG-623 Page No. : B7 ofB 7 SIDE VIEW

Contact Information

Applicant

Jeff jiang(R&D DIV Director)
[email protected]886 3 577-7364Fax: 886 3 578-3583

Technical Contact

Sporton International Inc.Wayne Hsu
[email protected]

No 52. Hwa Ya 1st Rd., Hwa ya Technology Park · Tao Yuan · Taiwan

Test Firm

Sporton International Inc.W Huang
[email protected]886-2-2696-2468Fax: 886-2-2696-2255

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.41 GHz - 2.46 GHz94.80 mW
Modular Type
Limited Single Modular Approval
Confidentiality
Long Term
Grant Notes
Limited Modular Approval. Power Output listed is conducted. Approval is limited to OEM installation only. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. OEM integrators must be provided with antenna installation instructions. OEM integrators and end-users must be provided with transmitter operation conditions for satisfying RF exposure compliance. This grant is valid only when the device is sold to OEM integrators and the OEM integrators are instructed to ensure that the end user has no manual instructions to remove or install the device.
