M4Y-XG-623G802.11b/g Wireless mini PCI module

Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end prouduct which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M4Y-XG-623G ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Antenna Requirement: 1. Introduction 108Mbps IEEE802.11g Wireless Network Mini PCI card with Super G is the perfect solution for your wireless network applications based on the IEEE 802.11g standard offering a data rate of 108Mbps in a wireless LAN environment. XG-623G is designed for Access Point, Router, ATUR, Printer Server series, IP Camera series and Internet Video Server gives you wireless access the web and network resource without the wire. XG-623 G provides high-speed access to network resources and has built-in 40/64-bit, 128 bit and 256 bit of WEP (Wired Equivalent Privacy) data encryption. With Direct Spread Spectrum Signaling (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM), domain access control, WEP encryption and group security, the modules will safeguard all your wireless data transmissions from your nosy neighbors. XG-623G allows you to take full advantage of your devices mobility with access to real-time information and online services anytime and anywhere. 2. Feature Complies with IEEE 802.11b/g Standard for 2.4GHz Wireless LAN with Super G. Works with All Existing Network Infrastructures. Compatible with Wi-Fi Wireless Products and Services Capable of up to 256-Bit WEP Encryption. Freedom to Roam While staying Connected Mbps High-Speed Transfer Rate Two UF-L Connectors for External Antenna Support Antenna diversity for Better Sensitivity Lower Power Consumption. 3. Specification Hardware Version: V1.1 Updated Date: 2005/ 10/06 Product Description IEEE 802.11g compliant 2.4 GHz WLAN miniPCI card with Super G Host Interface 32-bit miniPCI, Type III B Operating Voltage DC3.3V ± 5% Chipset Atheros AR2414 (Single chip) Power Consumption 11b TX: RX: 11g TX: RX: Radio Antenna two U.FL-R-SMT connectors IEEE 802.11b: 17dBm @ 1/2/5.5/11Mbps Output Power (Average Power) IEEE 802.11g: 16dBm @ 54Mbps 16dBm @108Mbps (Super G ) IEEE 802.11g / Super G Sensitivity @ Packet Error Rate 10% IEEE 802.11b Sensitivity @ Packet Error Rate 8% Sensitivity ♦ 54 / 108 Mbps:-65dBm ♦ 48 / 96 Mbps:-66dBm ♦ 36 / 72 Mbps:-70dBm ♦ 24 / 48 Mbps: -74dBm ♦ 18 36 Mbps:-77dBm ♦ 12 / 24 Mbps:-79dBm ♦ 9 / 18 Mbps:-81dBm ♦ 6 / 12Mbps:-82dBm ♦ 11Mbps:-80dBm ♦ 5.5Mbps:-83dBm ♦ 2Mbps:-84dBm ♦ 1Mbps: -87dBm IEEE 802.11g (OFDM/DSSS) ♦ 48/54 Mbps (QAM-64) ♦ 24/36 Mbps (QAM-16) ♦ 12/18 Mbps (QPSK) ♦ 6/9 Mbps (BPSK) Modulation IEEE 802.11b (DSSS) ♦ 5.5/11 Mbps (CCK) ♦ 2 Mbps (DQPSK) ♦ 1 Mbps (DBPSK) Range Coverage (Typical range in open environment with 0 dBi Antenna) IEEE 802.11g ♦ 54Mbps: 60 meter ♦ 48Mbps: 70 meter ♦ 36Mbps: 80 meter ♦ 24/18Mbps: 120 meter ♦ 12/9/6Mbps:120 meter ♦ 11Mbps: 80 meter IEEE 802.11b ♦ 11Mbps: 8…

Text truncated - open the document above for the full version.

Page No. : 6 Confidential Letter Date: 2006/10/19 Federal Communications Commission Authorization and Evaluation Division FCC IDΚM4Y-XG-623G Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant Hereby requests confidential treatment of information accomparting this Application As outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Applicant’s company name : Z-Com, Inc. Applicant’s company address : 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Signature : _________________________________ Job Title and Dept. : Ann Su / EMC Engineer Ann Su 2006.10.19 15:26:54 +08'00'

Page No. : 8 Limited Module Approval Request Letter Subject: Limited Module Approval Date: 2006/10/24 FCC ID: M4Y-XG-623G Dear Reviewer, We, Sporton International Inc., are authorized by Z-Com, Inc. to have their state-of-the-art 802.11b/g Wireless mini PCI module approved under limited module approval authorization. The application of this module is specified to mobile host equipment. The requirements regulated in Public Notice DA00-1407 have been fulfilled and clearly explained below. 1. The requirement of RF shielding: The shielding of the radio portion can be demonstrated in exhibition External Photo. 2. The requirement of buffered inputs: Buffered data inputs stage has been integrated in chip AR2414-00. 3. The requirement of power supply regulation: The part number of the power regulator is M24C32WMN6. 4. The requirements of section 15.203 and 15.204(C): The requirements of antenna connector and spurious emission have been fulfilled. Please reference the exhibition Test Report. 5. The requirement of stand-alone test configuration: Please reference exhibition Test Configuration Photo for the stand-alone test configuration. 6. The requirement of labeling: The instruction on the labeling rule of the end product has been stated in the users manual of this module. Please also see the exhibition Label Sample. 7. The requirement of compliance on specific rule or operating requirements: The required FCC rule has been fulfilled and all the instructions for maintaining compliance has been clearly stated in the Users Manual. 8. The requirement of RF exposure: RF exposure requirement can be fulfilled only for mobile configuration. Please do not hesitate to contact me for any questions of this request letter. Thank you. Company name : Sporton International Inc. Company Address : No. 52, Hwa Ya 1st Road., Kwei-Shan Hsiang, TaoYuan Hsien Taiwan R.O.C. Signature : Name : Roger Sheng Job Title : Manager

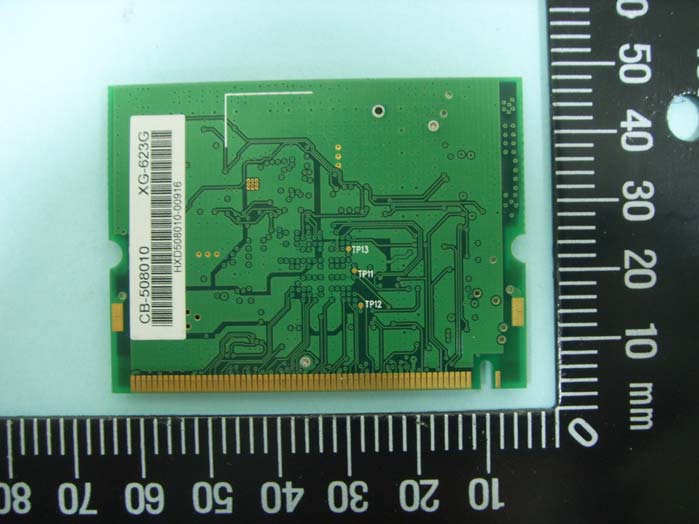

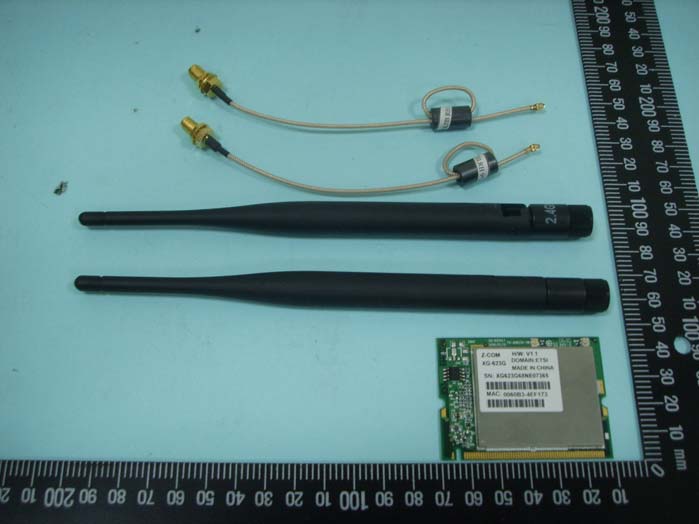

SPORTON International Inc. PAGE NUMBER : A1 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A3 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255 SPORTON International Inc. PAGE NUMBER : A4 OF A4 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255

SPORTON International Inc. PAGE NUMBER : A1 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255 APPENDIX A. Photographs of EUT SPORTON International Inc. PAGE NUMBER : A2 OF A2 TEL : 886-2-2696-2468 ISSUED DATE : Oct. 24, 2006 FAX : 886-2-2696-2255

Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : C1 of C3 Appendix C. Maximum Permissible Exposure Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : C2 of C3 1. Maximum Permissible Exposure 1.1. Applicable Standard Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 0.2 m normally can be maintained between the user and the device. (A) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 (B) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm²) Averaging Time |E|²,|H|² or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz ; *Plane-wave equivalent power density 1.2. MPE Calculation Method E (V/m) ＝ d GP××30 Power Density: Pd (W/m²) ＝ 377 2 E E ＝ Electric field (V/m) P ＝ Peak RF output power (W) G ＝ EUT Antenna numeric gain (numeric) d ＝ Separation distance between radiator and human body (m) The formula can be changed to Pd ＝ 2 377 30 d GP × ×× From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : C3 of C3 1.3. Calculated Result and Limit Antenna Type : Dipole antenna Max Conducted Power for IEEE 802.11b/g : 20.56dBm Antenna Gain (dBi) Antenna Gain (numeric) Peak Output Power (dBm) Peak Output Power ( mW ) Power Density (S) (mW/cm²) Limit of Power Density (S) (mW/cm²) Test Result 4.62 2.8973 20.5600 113.7627 0.065607 1 Complies

SPORTON International Inc. No. 52, Hwa Ya 1st Rd., Kwei-Shan Hsiang, TaoYuan Hsien, Taiwan, R.O.C. Ph: 886-3-327-3456 / FAX: 886-3-327-0973 / www.sporton.com.tw Report Format Version: RF-15.247-2006-6-16-e FCC RADIO TEST REPORT Applicant’s company Z-Com, Inc. Applicant Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan FCC ID M4Y-XG-623G Manufacturer’s company Z-Com, Inc. Manufacturer Address 7F-2, No. 9. Prosperity RD.I Science-Based Industrial, Park Hsinchu, 300 Taiwan Product Name 802.11b/g Wireless mini PCI module Brand Name ZCOM Model Name XG-623G Test Rule 47 CFR FCC Part 15 Subpart C § 15.247 Test Freq. Range 2400 ~ 2483.5MHz Received Date Oct. 13, 2006 Final Test Date Oct. 23, 2006 Submission Type Original Equipment Statement Test result included is only for the 802.11b/g part of the product. The test result in this report refers exclusively to the presented test model / sample. Without written approval of SPORTON International Inc., the test report shall not be reproduced except in full. The measurements and test results shown in this test report were made in accordance with the procedures and found in compliance with the limit given in ANSI C63.4-2003 and 47 CFR FCC Part 15 Subpart C. The test equipment used to perform the test is calibrated and traceable to NML/ROC. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-2-17-d Page No. : i of ii FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Table of Contents 1. CERTIFICATE OF COMPLIANCE ......................................................................................................................... 1 2. SUMMARY OF THE TEST RESULT .......................................................................................................................... 2 3. GENERAL INFORMATION .................................................................................................................................. 3 3.1. Product Details....................................................................................................................................................................................3 3.2. Accessories .........................................................................................................................................................................................3 3.3. Table for Filed Antenna.......................................................................................................................................................................3 3.4. Table for Carrier Frequencies .............................................................................................................................................................3 3.5. Table for Test Modes ...........................................................................................................................................................................4 3.6. Table for Testing Locations..................................................................................................................................................................4 3.7. Table for Supporting Units ...................................................................................................................................................................4 3.8. Table for Parameters of Test Software Setting .....................................................................................................................................5 3.9. Test Configurations .............................................................................................................................................................................6 4. TEST RESULT ..................................................................................................................................................... 8 4.1. AC Power Line Conducted Emissions Measurement...........................................................................................................................8 4.2. Maximum Peak Output Power Measurement ...................................................................................................................................13 4.3. Power Spectral Density Measurement ..............................................................................................................................................15 4.4. 6dB Spectrum Bandwidth Measurement ..........................................................................................................................................21 4.5. Radiated Emissions Measurement ....................................................................................................................................................27 4.6. Band Edge Emissions Measurement .................................................................................................................................................47 4.7. Antenna Requirements .....................................................................................................................................................................56 5. LIST OF MEASURING EQUIPMENTS ................................................................................................................... 57 6. TEST LOCATION.............................................................................................................................................. 59 APPENDIX A. PHOTOGRAPHS OF EUT.......................................................................................................... A1 ~ A6 APPENDIX B. TEST PHOTOS.......................................................................................................................... B1 ~ B 7 APPENDIX C. MAXIMUM PERMISSIBLE EXPOSURE......................................................................................... C1 ~C3 Report No.: FR6O1322 Report Format Version: RF-15.247-2006-2-17-d Page No.…

Text truncated - open the document above for the full version.

Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 38 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Horizontal Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 39 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g CH 1 Vertical Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 40 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Horizontal Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 41 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g CH 6 Vertical Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 42 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Horizontal Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 43 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g CH 11 Vertical Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 44 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Horizontal Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 45 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g Turbo CH 6 Vertical Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 46 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Horizontal Note: The amplitude of spurious emissions that are attenuated by more than 20dB below the permissible value has no need to be reported. Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 47 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 4.6. Band Edge Emissions Measurement 4.6.1. Limit 20dBc in any 100 kHz bandwidth outside the operating frequency band. In case the emission fall within the restricted band specified on 15.205(a), then the 15.209(a) limit in the table below has to be followed. Frequencies (MHz) Field Strength (micorvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 Above 960 500 3 4.6.2. Measuring Instruments and Setting Please refer to section 5 of equipments list in this report. The following table is the setting of the spectrum analyzer. Spectrum Parameter Setting Attenuation Auto Span Frequency 100 MHz RB / VB (Emission in restricted band) 1MHz / 1MHz for Peak, 1 MHz / 10Hz for Average RB / VB (Emission in non-restricted band) 100 KHz /100 KHz for Peak 4.6.3. Test Procedures 1. The test procedure is the same as section 4.5.3, only the frequency range investigated is limited to 100MHz around bandedges. 2. In case the emission is fail due to the used RB/VB is too wide, marker-delta method of FCC Public Notice DA00-705 will be followed. 4.6.4. Test Setup Layout This test setup layout is the same as that shown in section 4.5.4. 4.6.5. Test Deviation There is no deviation with the original standard. 4.6.6. EUT Operation during Test The EUT was programmed to be in continuously transmitting mode. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 48 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 4.6.7. Test Result of Band Edge and Fundamental Emissions Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11b CH 1, 11 Channel 1 Item 3, 4 are the fundamental frequency at 2412 MHz. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 49 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Channel 11 Item 1, 2 are the fundamental frequency at 2462 MHz. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 50 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g CH 1, 11 Channel 1 Item 3, 4 are the fundamental frequency at 2412 MHz. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 51 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Channel 11 Item 1, 2 are the fundamental frequency at 2462 MHz. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 52 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Temperature 24°C Humidity 62% Test Engineer Jordan Hsiao Configurations 802.11g Turbo CH 6 Turbo Channel 6 Item 3, 4 are the fundamental frequency at 2437 MHz. Note: Emission level (dBuV/m) = 20 log Emission level (uV/m). Corrected Reading: Antenna Factor + Cable Loss + Read Level - Preamp Factor = Level. Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 53 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 For Emission not in Restricted Band Low Band Edge Plot on Configuration IEEE 802.11b / 2412 MHz Ref 20 dBmAtt 30 dB * * * 1 PK VIEW A RBW 100 kHz VBW 100 kHz SWT 1 s * Start 2.32 GHzStop 2.42 GHz10 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -45.97 dBm 2.320000000 GHz 1 Delta 1 [T1 ] 50.59 dB 93.000000000 MHz D1 4.624 dBm D2 -15.376 dBm F1 F2 Date: 23.OCT.2006 12:09:02 High Band Edge Plot on Configuration IEEE 802.11b / 2462 MHz Ref 20 dBmAtt 30 dB * * * 1 PK VIEW A RBW 100 kHz VBW 100 kHz SWT 1 s * Start 2.454 GHzStop 2.554 GHz10 MHz/ -80 -70 -60 -50 -40 -30 -20 -10 0 10 20 1 Marker 1 [T1 ] -48.10 dBm 2.499600000 GHz 1 Delta 1 [T1 ] 51.89 dB -37.200000000 MHz D1 3.784 dBm D2 -16.216 dBm F1 F2 Date: 23.OCT.2006 12:10:23 Report No.: FR6O1322 Report Format Version: RF-15.247-2006-6-16-e Page No. : 54 of 59 FCC ID: M4Y-XG-623G Issued Date : Oct. 24, 2006 Low Band Edge Plot on Configuration IEEE 802.11g / 2412 MHz R…

Text truncated - open the document above for the full version.

Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B1 of B7 Appendix B. Test Photos Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B2 of B7 1. Photographs of Conducted Emissions Test Configuration FRONT VIEW REAR VIEW Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B3 of B7 SIDE VIEW Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B4 of B7 2. Photographs of Radiated Emissions Test Configuration 9kHz ~30MHz FRONT VIEW REAR VIEW Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B5 of B7 30MHz~1GHz FRONT VIEW REAR VIEW Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B6 of B7 Above 1GHz FRONT VIEW REAR VIEW Report No.: FR6O1322 FCC ID: M4Y-XG-623G Page No. : B7 of B7 SIDE VIEW
