M4Y-XI330HP11Mbps High Speed Wireless LAN PC Card

11Mbps High Speed Wireless LAN PC Card Date of Issue: Jan. 16th, 2002 Technical Support The firmware version of the 11Mbps Wireless LAN PC Card is displayed on the utility main window. Users could download and upgrade the most recent software version from the supplier’s web site or refer to the selling contact for the latest software information. If you have difficulty resolving the problem while installing or using the 11Mbps Wireless LAN PC Card, please contact the supplier for support. About This Manual 11Mbps Wireless LAN PC Card User’s Manual is first published on January, 2002. The manual includes procedures for the setup of the 11Mbps Wireless LAN PC Card under Windows XP, Windows 2000, Windows NT, Windows 98 or Windows ME. Take a moment to read through this manual and familiarize yourself with wireless technology. FCC Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received; including interference that may cause undesired operation. Federal Communications Commission (FCC) Statement This Equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment, under 47 CFR 2.1093 paragraph (d)(2)" Table of Contents Chapter 1 About Wireless LAN PC Card...........................................................1 1-1 Features and Benefits........................................................................................................1 1-2 Applications.......................................................................................................................2 1-3 Product Kit........................................................................................................................3 1-4 About Wireless LAN PC Card LED Indicators..................................................................3 Chpater 2 Getting Started..................................................................................4 2-1 Before Installation..............................................................................................................4 2-2 Insert the 11Mbps Wireless LAN PC Card........................................................................4 Chapter 3 Install Driver for Windows.................................................................6 3-1 Set up Wireless LAN PC Card for Windows XP................................................................6 3-2 Set up Wireless LAN PC Card for Windows 2000...........................................................11 3-3 Set up Wireless LAN PC Card for Windows NT..............................................................14 3-4 Set up Wireless LAN PC Card for Windows 98/ ME.......................................................17 3-5 Remove the Wireless LAN PC Card................................................................................20 Chpater 4 Configure the Wireless LAN PC Card..............................................22 4-1 Install the WLAN Utility..................................................................................................22 4-2 Use the WLAN Utility......................................................................................................24 Limited Warranty.............................................................................................34 -1- About Wireless LAN PC Card 1 The 11Mbps IEEE 802.11b Wireless LAN PC Card is a standard PCMCIA adapter that fits into any standard PCMCIA Type II slot in a notebook computer. Its 11Mbps data rate gives equivalent Ethernet speed to access corporate network or the Internet in a wireless environment. In addition, a detachable antenna version is specifically designed for system integrator application. When installed, 11Mbps Wireless LAN PC Card is able to communicate with any 802.11 and 802.11b compliant products. 1-1 Features and Benefits 1. Fully IEEE 802.11b compatible. 2. Direct Sequence Spread Spectrum (DSSS) technology provides robust, interference-resistant and secure wireless connection. 3. Supports 1, 2, 5.5 and 11 Mbps data rate. 4. Working range up to 800 ft. in an open environment. 5. Seamless connectivity to wired Ethernet and PC network LAN’s augments existing networks quickly and easily. 6. Greater flexibility to locate or move networked PCs. 7. Wireless connection without the cost of cabling. 8. Easy to install and user friendly, just Plug and Play. 9. Low power consumption. 10. Supports a variety of operating systems (Win98/ME/NT/2000/XP) 11. 64-bit and 128-bits WEP encryption capable. 12. Provides Window-based Diagnostic Tools, most notably, Site Survey, Link Quality Test and Access Point Browser. -2- 1…

Text truncated - open the document above for the full version.

-17- 3-4 Set up Wireless LAN PC Card for Windows 98/ ME Step 1: After inserting the 11Mbps Wireless LAN PC Card into the PCMCIA slot on your notebook, Windows will auto-detect new hardware and will display an “Add New Hardware Wizard” window. Click Next to continue. Step 2: Select “Search for the best driver for your device (Recommended)” and click Next. -18- Step 3: Insert the Product CD-ROM into the CD-ROM drive. Select the “CD-ROM drive” check box and click on Next to install the driver. Step 4: The Windows will find “IEEE 802.11 Wireless LAN/PC Card”. Click Next to continue. -19- Step 5: Once the [Please insert the disk labeled ‘Windows 98 Second Edition CD-ROM/ME CD-ROM”, and then click OK] window appears, inset enter the path corresponding to the appropriate drives and click OK. Usually these files can be found at C:Windows or C:Windows\system. Step 6: Click Finish to complete the software installation. Step 7: Restart the computer. -20- Step 8: Open Control Panel/System/Device Manager, and check Network Adapters to see if any error icon appears next to the IEEE 802.11 Wireless LAN PC Card. If no, your 11Mbps Wireless LAN PC Card is working well. 3-5 Remove the Wireless LAN PC Card If you do not need the wireless connectivity of your 11Mbps Wireless LAN PC Card, it is advised that you remove the card from its slot as described below: Note: When removing the 11Mbps Wireless LAN PC Card, you will lose your connection to the network. Prior to removing the PC Card, make sure you have closed all files and network applications (such as e-mail). Check if there is any error icon next to the 11Mbps Wireless LAN PC Card -21- You are advised to always disable the PC Card prior to removing the card from the PC Card slot. This will allow the Windows operating system to: n Log off from the network server. n Disable the 11Mbps Wireless LAN PC Card driver. n Disconnect power to the PC Card slot (which will extend battery life for mobile computers) To stop using the 11Mbps Wireless LAN PC Card, do the following steps: 1. Click once on the PC Card icon on the right side of the Windows task bar. 2. Select the option “Stop IEEE 802.11 Wireless LAN/PC Card (5V)”. 3. Wait a few seconds until the operating system displays a pop-up message to indicate you can safely remove the PC Card. Click OK and you may then take out the 11Mbps Wireless LAN PC Card. -22- Configure the Wireless LAN PC Card 4 This chapter gives you assistance with detailed configuration for the 11Mbps Wireless LAN PC Card under Windows XP/2000/NT/98/ME. 4-1 Install the WLAN Utility To install the WLAN Utility, follow these steps: Step 1: Insert the Product CD-ROM or floppy disk again. Step 2: Go to the utility folder and run setup.exe. Step 3: The InstallShield Wizard will show up and guide you through the rest of the setup process. Run the Setup Utility Choose Destination Location and click Next to continue -23- Select a program folder and click Next You may add a shortcut in the startup folder as desired Upon completion, go to Program Files and run the WLAN Utility and its icon will appear in the System Tray in the bottom right corner of your task bar. Clicking on the icon will open the configuration window. When you minimize the window, the system tray icon will be loaded in the System Tray again. The color behind the system tray icon indicates the link status: Blue indicates a good or excellent link. Yellow indicates a usable but weak link. Red indicates no or very poor link quality. When you minimize the window, the system tray icon will be loaded in the System Tray again. -24- 4-2 Use the WLAN Utility The WLAN Utility enables you to make configuration changes and perform user-level diagnostics on your 11Mbps Wireless LAN PC Card in the Windows XP/2000/NT/98/ME operating system environments. The WLAN Utility consists of window with 5 items for you to monitor and configure the 11Mbps Wireless LAN PC Card: Configuration, Link Test, AP Browser, Site Survey and About. Configuration: The Configuration item allows you to modify the configuration parameters for the 11Mbps Wireless LAN PC Card such as Profile, Network Type, Ad-Hoc Channel, Transmit Rate, ESSID, WEP, RTS/CTS, Fragment Threshold, and Power Save mode. Furthermore, you may monitor the current status of the Wireless LAN PC Card such as State, Current Channel, Current Tx Rate, Throughput, Link Quality and Signal Strength. -25- Profile The Profile field allows you to set values for all parameters by selecting a previously defined profile. To create the profile, go to the Profile field, type a profile name and set the corresponding parameters. If one of the profiles is no longer used, you may remove it by clicking the Delete button. After changing parameters, save the profile and click the Apply button to take effect. You can have multiple profiles and modify the profile at any time. Alternatively, you may choose the profile by right clicking the system tray icon on the task bar, making the configuration more friendly and efficient. Network Type There are 3 network types for the 11Mbps Wireless LAN PC Card to operate. If you need to access company network or Internet via Access Point, select “Infrastructure”. To set up a group of wireless stations for file and printer sharing, select “Pseudo AdHoc” or “802.11 AdHoc” (without Access Point). If Pseudo Ad-Hoc (without access point) is selected, you need to set wireless stations with the same channel. For 802.11 AdHoc, the same ESS ID is required to the wireless stations. You may right click the WLAN system tray icon to choose the pre-set profiles -26- ESSID The ESS ID is the unique ID used by Access Points and stations to identify a wireless LAN. Wireless clients associating to any Access Point must have the same ESSID. The default setting is ANY, which allows your Wireless LAN PC Card to automatically associate to any Access Point (Infrastructure mode) in the vicinity of your wireless adapter. Alternatively, you may check the ESS ID …

Text truncated - open the document above for the full version.

[email protected] www.adt.com.tw ADVANCE DATA TECHNOLOGY CORPORATION FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) FOR THE FOLLOWING EQUIPMENT: PRODUCT NAME: 11Mbps High Speed Wireless LAN PC Card MODEL NO.: XI-330HP, XI-330H TRADE NAME: Z-Com IS HEREWITH CONFIRMED AND FOUND TO COMPLY WITH THE REQUIREMENTS OF CFR 47 PART 15 REGULATION. THE RESULTS OF ELECTROMAGNETIC EMISSION EVALUATION ARE SHOWN IN THE REPORT NO.: D921014H03 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. THE FOLLOWING LOCAL MANUFACTURER/IMPORTER IS RESPONSIBLE FOR THIS DECLARATION Manufacturer USA Local Representative Company name: Z-COM,INC. To Be Determined. Address: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan Contact Person: Robert Lee Title: Product Manager Tel/Fax: 03- 577-7364 ext. 202 / 03- 577-3359

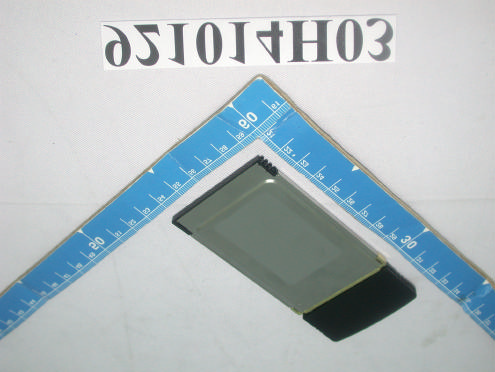

Page 1 CONSTRUCTION PHOTOS OF EUT

(Fig. 1) FCC ID: M4Y-XI330HP FCC LABEL LOCATION The label will be permanently affixed at a conspicuous location on the device. Label

: 1.: 75# 2.: 3. 4.: 5.:+/- 0.25mm 6.0.15mm 7.NPA0049 SCALE ECO NO.REVISIONAPP.DES.DATE TOLERANCE GRADE ( ) GRADE ABC LENGTH 60.050.080.20 0.080.100.30 0.100.150.40 0.200.300.80 6618 1850 50180 ~ ~ ~ ~ DRW.DES.CKD.RECKD.APP. MODELSHEET D W G N O . V A 1 1 Z-Com, Inc. NAME PART NO. 1 UNITS GRADEANGLE M.M. TOLERANCE 1 1 N P A 0 1 2 4 0 . 1 XI-330HP Label FCC NB XI-330HP 4-R1.5 11Mbps Wireless LAN PC Card This device complies with Part 15 of FCC Rules. Operation is Subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. FCC ID: M4Y-XI330HP MADE IN TAIWAN 56- !! MODEL: XI-330HP 4 0 . 0 0 m m 64.00 mm 31.5~32.5 mm Winda 921014 56- : 1.Label Material:#75 SILVER POLYESTER 2.Glue Material:PET MAT POLYPROPYLENE 3.Label Color:SILVER 4.Font Color;BLACK

Page 2 Page 3 Page 4 Page 5 Page 6 Page 7 Page 8 Page 9 Page 10

FCC ID: M4Y-XI330HP ADT No. 921014H03 Operational Description The transmitter of the EUT is powered by host equipment. The antenna is Detachable patch Antenna without connector. The other instruction, please have a look at the users manual. DSSS Information This device is Direct Sequence Spread Spectrum, the data is mixed by pseudorandom code which is an orthogonal code. The mixed data is digital modulated by BPSK and QPSK technique depends on the data rates. The CCK coding is applied for increasing the data rate, and also the processing gain will be increased. The bit rates are 1,2,5.5,11Mbps, the symbol rates are 1,1,1.375,1.375Mbps, the chip rates are always 11Mbps. So, the Chip/symbol is 11,11,8 and 8 respectively. Although is higher bit rate, the processing gain is lower than 10, but the CCK coding used in higher bit rate will provide 2.2dB coding gain.

FCC ID: M4Y-XI330HP Report No.: SA921014H03 1 Issued: October 27, 2003 SAR TEST REPORT REPORT NO.: 921014H03 MODEL NO.: XI-330HP RECEIVED: Oct. 23, 2003 TESTED: Oct. 24, 2003 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: 47 14th Lin, Chiapau Tsun, Linko, Taipei, Taiwan, R.O.C. This test report consists of 35 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA or any government agencies. The test results in the report only apply to the tested sample. 0528 ILAC MRA FCC ID: M4Y-XI330HP Report No.: SA921014H03 2 Issued: October 27, 2003 Table of Contents 1. CERTIFICATION.......................................................................................................................3 2. GENERAL INFORMATION.......................................................................................................4 2.1 GENERAL DESCRIPTION OF EUT.........................................................................................4 2.2 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................................5 2.3 GENERAL INOFRMATION OF THE SAR SYSTEM.................................................................5 2.4 GENERAL DESCRIPTION OF THE SPATIAL PEAK SAR EVALUATION ...............................9 3. DESCRIPTION OF TEST MODES AND CONFIGURATIONS................................................13 4. DESCRIPTION OF SUPPORT UNITS...................................................................................14 5. TEST RESULTS......................................................................................................................15 5.1 TEST PROCEDURES.............................................................................................................15 5.2 MEASURED SAR RESULT....................................................................................................16 5.3 SAR LIMITS............................................................................................................................18 5.4 RECIPES FOR TISSUE SIMULATING LIQUIDS....................................................................22 5.5 TEST EQUIPMENT FOR TISSUE PROPERTY.....................................................................24 6. SYSTEM VALIDATION...........................................................................................................25 6.1 TEST EQUIPMENT.................................................................................................................25 6.2 TEST PROCEDURE...............................................................................................................25 6.3 VALIDATION RESULT............................................................................................................27 6.4 SYSTEM VALIDATION UNCERTAINTIES..............................................................................28 7. MEASUREMENT SAR PROCEDURE UNCERTAINTIES......................................................29 7.1 PROBE CALIBRATION UNCERTAINTY.................................................................................29 7.2 ISOTROPY UNCERTAINTY...................................................................................................29 7.3 BOUNDARY EFFECT UNCERTAINTY...................................................................................30 7.4 PROBE LINEARITY UNCERTAINTY......................................................................................30 7.5 READOUT ELECTRONICS UNCERTAINTY..........................................................................30 7.6 RESPONSE TIME UNCERTAINTY........................................................................................31 7.7 INTEGRATION TIME UNCERTAINTY....................................................................................32 7.8 PROBE POSITIONER MECHANICAL TOLERANCE.............................................................32 7.9 PROBE POSITIONING...........................................................................................................33 7.10 PHANTOM UNCERTAINTY....................................................................................................33 7.11 DASY4 UNCERTAINTY BUDGET..........................................................................................34 8. INFORMATION ON THE TESTING LABORATORIES...........................................................35 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION FCC ID: M4Y-XI330HP Report No.: SA921014H03 3 Issued: October 27, 2003 1. CERTIFICATION PRODUCT : 11Mbps High Speed Wireless LAN PC Card MODEL NO. : XI-330HP BRAND NAME : Z-Com APPLICANT : Z-COM, INC. TEST ITEM : Engineering sample STANDARDS : 47 CFR Part 2 (Section 2.1093), FCC OET Bulletin 65, Supplement C (01-01), RSS-102 We, Advance Data Technology Corporation, hereby certify that one sample of the designation has been tested in our facility on October 24, 2003. The test record, data evaluation and Equipment Under Test (EUT) configurations represented herein are true and accurate, and it was tested according to the standards listed above. This device was found to be in compliance with the Specific Absorption Rate (SAR) requirement specified in FCC part 2.1093 under General Population / Uncontrolled Exposure condition. FCC ID: M4Y-XI330HP Report No.: SA921014H03 4 Issued: October 27, 2003 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT PRODUCT 11Mbps High Speed Wireless LAN PC Card MODEL NO. XI-330HP POWER SUPPLY 3.3VDC powered by host equipment CLASSIFICATION Portable device, productio…

Text truncated - open the document above for the full version.

APPENDIX B: ADT SAR MEASUREMENT SYSTEM APPENDIX C: PHOTOGRAPHS OF SYSTEM VALIDATION

Page 1 APPENDIX A: TEST CONFIGURATIONS AND TEST DATA A1: TEST CONFIGURATION Mode 1 (Notebook : DELL C600) Bottom of the EUT to the flat phantom distance 11mm Page 2 Mode 2 (Notebook : DELL C600) Front of the EUT to the flat phantom distance 10mm Page 3 Mode 3 (Notebook : DELL C600) Tip of the EUT to the flat phantom distance 15mm Page 4 Mode 4 (Notebook :DELL INSPIRON 3800) Bottom of the EUT to the flat phantom distance 11mm Page 5 Mode 5 (Notebook : DELL INSPIRON 3800) Front of the EUT to the flat phantom distance 10mm Page 6 Mode 6 (Notebook : DELL INSPIRON 3800) Tip of the EUT to the flat phantom distance 15mm Page 7 Mode 7 (Notebook : EVO N800C) Bottom of the EUT to the flat phantom distance 11mm Page 8 Mode 8 (Notebook : EVO N800C) Front of the EUT to the flat phantom distance 10mm Page 9 Mode 9 (Notebook : EVO N800C) Tip of the EUT to the flat phantom distance 15mm Page 10 EUT Photo Page 11 Liquid Level Photo 2450MHz D=155mm Date/Time: 10/24/03 12:16:28 Test Laboratory: Advance Data Technology XI-330HP 11.b DELL C600 Mode 1 DUT: WLAN HP Card ; Type: XI-330HP ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.932 mho/m, ε r = 52.72, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 17.3 V/m Power Drift = -0.3 dB Maximum value of SAR = 1.14 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.28 W/kg SAR(1 g) = 1.05 mW/g; SAR(10 g) = 0.539 mW/g Reference Value = 17.3 V/m Power Drift = -0.3 dB Maximum value of SAR = 1.11 mW/g Date/Time: 10/24/03 12:44:12 Test Laboratory: Advance Data Technology XI-330HP 11.b DELL C600Mode 1 DUT: WLAN HP Card ; Type: XI-330HP ; Test Channel Frequency: 2437 MHz Communication System: 802.11b ; Frequency: 2437 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.938 mho/m, ε r = 52.68, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 6/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 15.8 V/m Power Drift = -0.08 dB Maximum value of SAR = 1.01 mW/g Channel 6/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 2.06 W/kg SAR(1 g) = 0.947 mW/g; SAR(10 g) = 0.489 mW/g Reference Value = 15.8 V/m Power Drift = -0.08 dB Maximum value of SAR = 0.999 mW/g Date/Time: 10/24/03 13:06:08 Test Laboratory: Advance Data Technology XI-330HP 11.b DELL C600 Mode 1 DUT: WLAN HP Card ; Type: XI-330HP ; Test Channel Frequency: 2462 MHz Communication System: 802.11b ; Frequency: 2462 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.948 mho/m, ε r = 52.58, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 11mm(The bottom of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22.0 degrees ; Liquid temp. : 21.0 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 11/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 14.8 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.925 mW/g Channel 11/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 1.86 W/kg SAR(1 g) = 0.861 mW/g; SAR(10 g) = 0.445 mW/g Reference Value = 14.8 V/m Power Drift = -0.1 dB Maximum value of SAR = 0.887 mW/g Date/Time: 10/24/03 13:54:22 Test Laboratory: Advance Data Technology XI-330HP 11.b DELL C600 Mode 2 DUT: WLAN HP Card ; Type: XI-330HP ; Test Channel Frequency: 2412 MHz Communication System: 802.11b ; Frequency: 2412 MHz; Duty Cycle: 1:1; Modulation type: CCK Medium: MSL2450 (σ = 1.932 mho/m, ε r = 52.72, ρ = 1000 kg/m 3 ) ; Liquid level : 155mm Phantom section: Flat Section ; Separation distance : 10 mm(The front of the EUT to the Phantom) Antenna type : Internal Antenna ; Air temp. : 22 degrees ; Liquid temp. : 21 degrees DASY4 Configuration: - Probe: ET3DV6 - SN1686; ConvF(4.5, 4.5, 4.5); Calibrated: 2003/6/18 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn510; Calibrated: 2003/6/2 - Phantom: SAM Twin Phantom V4.0; Type: QD 000 P40 CA; Serial: TP-1150 - Measurement SW: DASY4, V4.1 Build 47; Postprocessing SW: SEMCAD, V1.6 Build 115 Channel 1/Area Scan (51x101x1): Measurement grid: dx=15mm, dy=15mm Reference Value = 26.3 V/m Power Drift = -0.2 dB Maximum value of SAR = 1.64 mW/g Channel 1/Zoon Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Peak SAR (extrapolated) = 3.15 W/kg SAR(1 g) = 1.49 mW/g; SAR(10 g) = 0.756 mW/g Reference Value = 26.3 V/m Power Drift = -0.2 dB Maximum value of SAR = 1.56 mW/g Date/Time: 10/24/03 14:13:58 Test …

Text truncated - open the document above for the full version.

APPENDIX D: SYSTEM CERTIFICATE & CALIBRATION D1: SAM PHANTOM D2: 2450MHZ SYSTEM VALIDATION DIPOLE D3: DOSIMETRIC E-FIELD PROBE

FCC ID: M4Y-XI330HP Report No.: RF921014H03 1 Issued: Oct. 23, 2003 ADT No. 921014H03 FCC TEST REPORT REPORT NO.: RF921014H03 MODEL NO.: XI-330HP, XI-330H RECEIVED: Oct. 14, 2003 TESTED: Oct. 20, 2003 APPLICANT: Z-COM, INC. ADDRESS: 7F-2, No.9. Prosperity RD. I , Science-Based Industrial Park Hsinchu, 300 Taiwan ISSUED BY: Advance Data Technology Corporation LAB LOCATION: No. 81-1, Lu Liao Keng, 9 Ling, Wu Lung Tsuen, Chiung Lin Hsiang, Hsin Chu Hsien, Taiwan, R.O.C. This test report consists of 44 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CNLA, NVLAP or any government agencies. The test results in the report only apply to the tested sample. 0536 ILAC MRA Lab Code: 200376-0 FCC ID: M4Y-XI330HP Report No.: RF921014H03 2 Issued: Oct. 23, 2003 ADT No. 921014H03 Table of Contents 1 CERTIFICATION........................................................................................................4 2 SUMMARY OF TEST RESULTS...............................................................................5 3 GENERAL INFORMATION........................................................................................6 3.1 GENERAL DESCRIPTION OF EUT..........................................................................6 3.2 DESCRIPTION OF TEST MODES............................................................................7 3.3 GENERAL DESCRIPTION OF APPLIED STANDARDS...........................................7 3.4 DESCRIPTION OF SUPPORT UNITS......................................................................8 4 TEST TYPES AND RESULTS...................................................................................9 4.1 CONDUCTED EMISSION MEASUREMENT............................................................9 4.1.1 TEST INSTRUMENTS...............................................................................................9 4.1.2 TEST PROCEDURES..............................................................................................10 4.1.3 DEVIATION FROM TEST STANDARD...................................................................10 4.1.4 TEST SETUP............................................................................................................11 4.1.5 EUT OPERATING CONDITIONS.............................................................................11 4.1.6 TEST RESULTS.......................................................................................................12 4.2 Radiated Emission Measurement.....................................................................…

Text truncated - open the document above for the full version.
