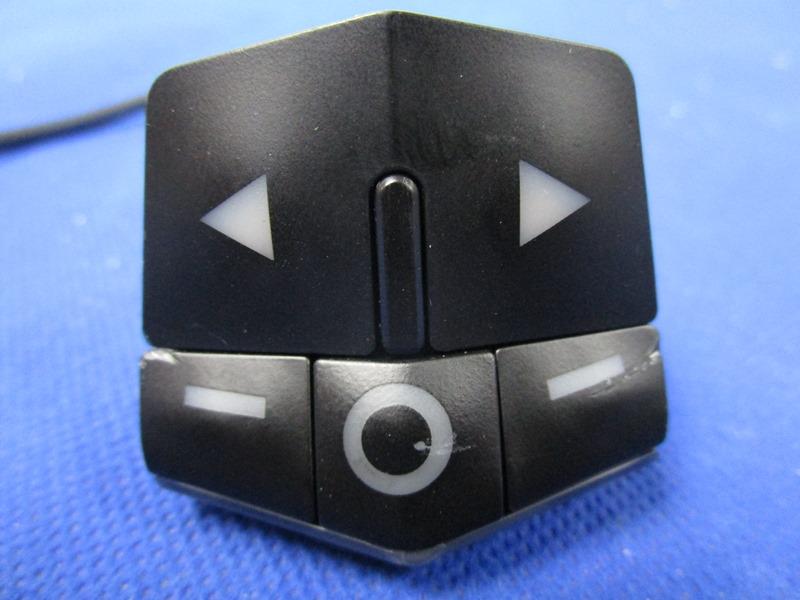

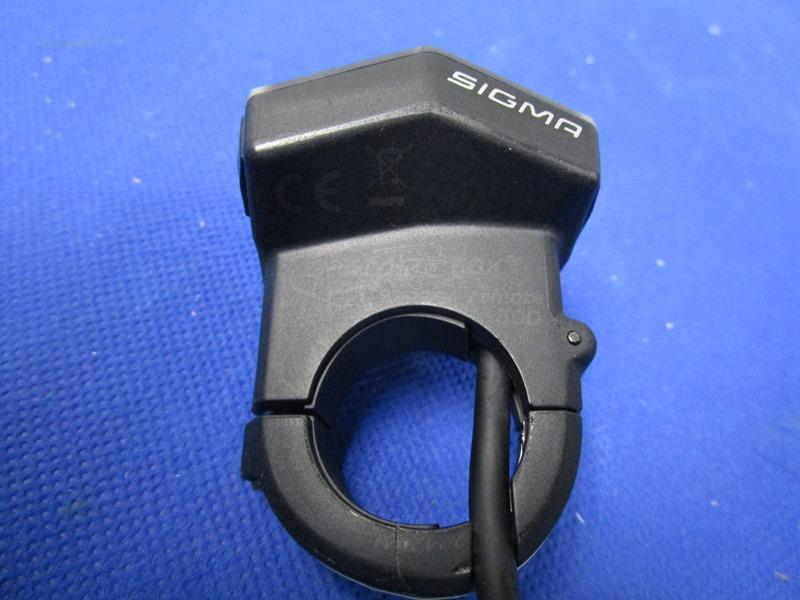

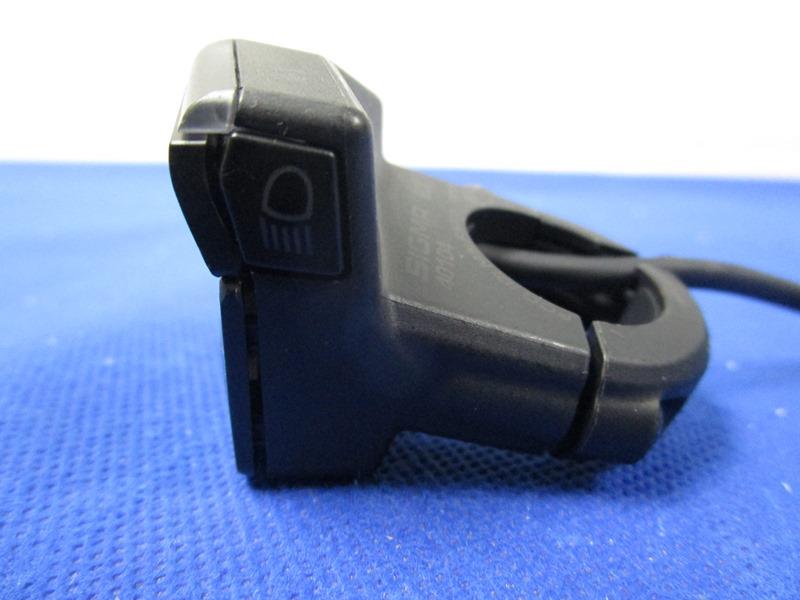

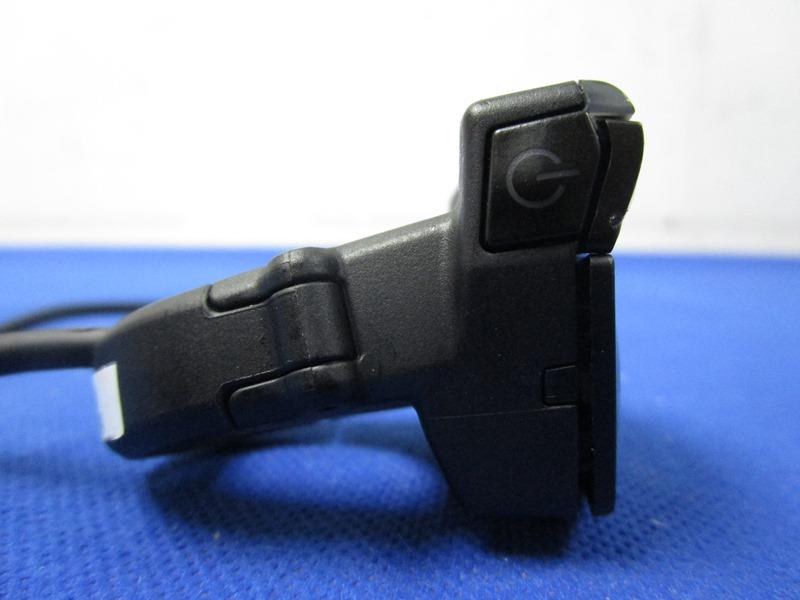

M5LR500E-bike Remote with Bluetooth

TECHNICAL CUSTOMER DOCUMENTATION / TECHNISCHE KUNDENUNTERLAGE Version: SACHS 1.00 1Changelog/Änderungsverfolgung2 2EOX ® REMOTE 5003 2.1General product information / Allgemeine Produktinformationen3 2.2Dimensions / Abmessungen3 2.3Cable options / Kabeloptionen4 2.4Assembly / Montage4 2.5Technical details / Technische Details4 2.6Operation and display elements / Bedien- und Anzeigeelemente5 2.7Operation and display manual / Bedien- und Anzeigeanleitung6 2.8Declerations / Deklarationen8 3EOX ® VIEW 120010 3.1General product information / Allgemeine Produktinformationen10 3.2Dimensions / Abmessungen11 3.3Cable options / Kabeloptionen12 3.4Assembly / Montage13 3.5Technical details / Technische Details13 3.6Operation and display elements / Bedien- und Anzeigeelemente14 3.7Operation and display manual / Bedien- und Anzeigeanleitung15 3.8Declerations / Deklarationen17 4EOX ® App18 4.1Installation and start of the EOX ® App / Installation und Start der EOX ® App18 4.2Connect EOX ® REMOTE 500 with EOX ® App / EOX ® REMOTE 500 mit der EOX ® App verbinden18 4.3Menu “Trip recording” / Menü „Trip aufzeichnen“19 4.4Menu “My trips” / Menü „Meine Trips“19 4.5Menu “Trip” / Menü „Trip“20 4.6Menu “Settings” / Menü „Einstellungen“21 Table of contents / Inhaltsverzeichnis 1. Changelog /Änderungsverfolgung RevisionDateHandled byChanges 1.0022.07.20LL Tremper- Initial version The EOX ® REMOTE 500 (R500) will be installed fixed to the handlebar. It is connected with the e-system by fixed wire. The cable is fixed to the R500 and cannot be replaced. The R500 integrates control and display elements. To control the e-system 7 buttons are available. The display consists of a 9 RGB LED indicator bar. Die EOX ® REMOTE 500 (R500) wird fest am Fahrradlenker verbaut. Die R500 wird per Kabel mit dem E-System gesteckt verbunden. Das Kabel ist fest mit der R500 ver- bunden und ein Austausch des Kabels ist nicht vorgesehen. Die R500 integriert Bedien- und Anzeigeelemente. Zur Bedienung stehen 7 Tasten zur Verfügung. Die Anzeige besteht aus einem 9 RGB LED umfassenden Indikator. 2. EOX ® REMOTE 500 2.1. General product information / Allgemeine Produktinformationen 2.2. Dimensions / Abmessungen 7,36 23,11 55,73 48,07 12,00 38,75 28,47 8,11 39,35 − Loosen the screw (Allen Key, 3mm) of the R500 clamp − Open the clamp and position the R500 at the handlebar (22.2 mm) − Close the clamp of R500 and orientate ergonomically − The cable must run through the groove inside the clamp − Tighten the screw of R500 clamp with 0.40 Nm − If an EOX ® VIEW 1200 is used connect the plug of R500 with the plug of EOX ® VIEW 1200 − If no EOX ® VIEW 1200 is used connect the plug of R500 with the plug of the e-system − Schraube (Innensechskant, 3mm) der R500 Schelle lösen − Schelle der R500 öffnen und am Lenker positionieren (22.2 mm) − Schelle der R500 schließen und ergonomisch ausrichten − Kabel muss in vorgesehener Führung innerhalb der Schelle verlaufen − Schraube der R500 Schelle mit 0.40 Nm festziehen − Wenn ein EOX ® VIEW 1200 verwendet wird, den Stecker der R500 mit dem Stecker des EOX ® VIEW 1200 verbinden − Wenn kein EOX ® VIEW 1200 verwendet wird, den Stecker der R500 mit Stecker des E-Systems verbinden 2.4. Assembly / Montage 2.5. Technical details / Technische Details 2.3. Cable options / Kabeloptionen 23 cm Specifications Color (housing)Black Material (housing)PC + GF Weight33.8 g Mounting optionsHandlebar (left) Handlebar diameter22.2 mm Communication interfacesCAN, BLE CAN communication baudrate 250 / 250 / 1000 Kbps (min / typ / max) FW updateCAN, BLE Usabilitystand-alone Power supplyby E-Bike Operating voltage6 / 12 / 16 V (min / typ / max) Operating power consumption< 50 mA DisplayLED indicator (9 x RGB) Backlight  (buttons) SensorsAmbient Light, RTC RTC accuracy+/- 1 sec/day @ 25 °C Operating temperature-10 / 25 / 60 °C (min / typ / max) Storage temperature-20 / 25 / 70 °C (min / typ / max) IP ratingIPX6K, IPX7 CertificationCE, FCC, ROHS, REACH, EN15194 2.6. Operation and display elements / Bedien- und Anzeigeelemente ASSIST MODE HOCH ASSIST MODE RUNTER LICHTMODI LED-LEISTE REMOTE-BEDIENUNG REMOTE-BEDIENUNG REMOTE-BEDIENUNG A POWER B C UP DOWN LIGHT The R500 integrates 7 buttons. The R500 provides feedback about the currently selected assist mode (indicated by color), the battery status of the e-system (5-step scale) and error messages of the e-system. Die R500 integriert 7 Tasten. Die R500 gibt über die LED-Leiste Auskunft über den aktuellen Assist Mode (farbig codier), den Batterieladezustand (5 Levels) und Fehlermeldungen des E-Systems. ASSIST MODE UP ASSIST MODE DOWN LIGHT MODES LED BAR REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL 2.7. Operation and display manual FunctionOperationDisplayComment Turn e-system on[POWER]LED animation > LEDs ONR500 turns on the e-system (if e-system is turned on by battery, R500 turns on automatically). Turn e-system offHold down [POWER] button (2s) LED animation > LEDs OFFR500 turns off the e-system (if e-system is turned on by battery, R500 turns off automatically). Increase assist mode[UP]OFF > BLUE > GREEN > PINK > RED Shown on upper four LEDs Decrease assist mode[DOWN]RED > PINK > GREEN > BLUE > OFF Shown on upper four LEDs Turn light on[LIGHT]---Manually activating the light disables the automatic light feature temporarily. Change light mode[LIGHT]---Light mode switches between low beam and high beam (if supported by e-system) Turn light offHold down [LIGHT] button (2s) ---Manually deactivating the light disables the automatic light feature temporarily. Automatic lightautomatic---If automatic light feature is enabled the R500 automa- tically turns the light on in dark conditions and turns the light off in bright conditions. Trigger start-up assistanceHold down [DOWN] + [C] button White (flashing)Shown on upper four LEDs EOX ® VIEW 1200 remote control [A], [B], [C]See chapter 3.8If an EOX ® VIEW 1200 is used the R500 controls it by remote. EOX ® APP and EOX ® VIEW 1300 remote control [A], [B]…
