M5LR500BE-bike Remote with Bluetooth Low Energy

40101 Version: BAFANG 1.0 TECHNICAL CUSTOMER DOCUMENTATION / TECHNISCHE KUNDENUNTERLAGE E-bike Remote 1Changelog/Änderungsverfolgung2 2EOX ® REMOTE 5003 2.1General product information / Allgemeine Produktinformationen3 2.2Dimensions / Abmessungen3 2.3Cable options / Kabeloptionen4 2.4Assembly / Montage4 2.5Technical details / Technische Details4 2.6Operation and display elements / Bedien- und Anzeigeelemente5 2.7Operation and display manual / Bedien- und Anzeigeanleitung6 2.8Declerations / Deklarationen8 3EOX ® App8 3.1Installation and start of the EOX ® App / Installation und Start der EOX ® App10 3.2Connect EOX ® REMOTE 500 with EOX ® App / EOX ® REMOTE 500 mit der EOX ® App verbinden10 3.3Menu “Trip recording” / Menü „Trip aufzeichnen“11 3.4Menu “My trips” / Menü „Meine Trips“11 3.5Menu “Trip” / Menü „Trip“12 3.6Menu “Settings” / Menü „Einstellungen“13 Table of contents / Inhaltsverzeichnis 1. Changelog /Änderungsverfolgung RevisionDateHandled byChanges 1.002.02.21LL Tremper- Initial version The EOX ® REMOTE 500 (R500) will be installed fixed to the handlebar. It is connected with the e-system by fixed wire. The cable is fixed to the R500 and cannot be replaced. The R500 integrates control and display elements. To control the e-system 7 buttons are available. The display consists of a 9 RGB LED indicator bar. Die EOX ® REMOTE 500 (R500) wird fest am Fahrradlenker verbaut. Die R500 wird per Kabel mit dem E-System gesteckt verbunden. Das Kabel ist fest mit der R500 ver- bunden und ein Austausch des Kabels ist nicht vorgesehen. Die R500 integriert Bedien- und Anzeigeelemente. Zur Bedienung stehen 7 Tasten zur Verfügung. Die Anzeige besteht aus einem 9 RGB LED umfassenden Indikator. 2. EOX ® REMOTE 500 2.1. General product information / Allgemeine Produktinformationen 2.2. Dimensions / Abmessungen 7,36 23,11 55,73 48,07 12,00 38,75 28,47 8,11 39,35 − Loosen the screw (Allen Key, 3mm) of the R500 clamp − Open the clamp and position the R500 at the handlebar (22.2 mm) − Close the clamp of R500 and orientate ergonomically − The cable must run through the groove inside the clamp − Tighten the screw of R500 clamp with 0.40 Nm − Connect the plug of R500 with the plug of the e-system − Schraube (Innensechskant, 3mm) der R500 Schelle lösen − Schelle der R500 öffnen und am Lenker positionieren (22.2 mm) − Schelle der R500 schließen und ergonomisch ausrichten − Kabel muss in vorgesehener Führung innerhalb der Schelle verlaufen − Schraube der R500 Schelle mit 0.40 Nm festziehen − Den Stecker der R500 mit Stecker des E-Systems verbinden 2.4. Assembly / Montage 2.5. Technical details / Technische Details 2.3. Cable options / Kabeloptionen 23 cm Specifications Color (housing)Black Material (housing)ABS (Housing), PA+GF (Arm), TPU (Pads) Weight33.8 g Mounting optionsHandlebar (left) Handlebar diameter22.2 mm Communication interfacesCAN, BLE CAN communication baudrate 250 / 250 / 1000 Kbps (min / typ / max) FW updateCAN, BLE Usabilitystand-alone Power supplyby E-Bike Operating voltage36 / 48 / 53.3 V (min / typ / max) Operating power consumption< 50 mA DisplayLED indicator (9 x RGB) Backlight  (buttons) SensorsAmbient Light, RTC RTC accuracy+/- 1 sec/day @ 25 °C Operating temperature-10 / 25 / 60 °C (min / typ / max) Storage temperature-20 / 25 / 70 °C (min / typ / max) IP ratingIPX6K, IPX7 CertificationCE, FCC, ROHS, REACH 2.6. Operation and display elements / Bedien- und Anzeigeelemente ASSIST MODE HOCH ASSIST MODE RUNTER LICHTMODI LED-LEISTE REMOTE-BEDIENUNG REMOTE-BEDIENUNG REMOTE-BEDIENUNG A POWER B C UP DOWN LIGHT The R500 integrates 7 buttons. The R500 provides feedback about the currently selected assist mode (indicated by color), the battery status of the e-system (5-step scale) and error messages of the e-system. Die R500 integriert 7 Tasten. Die R500 gibt über die LED-Leiste Auskunft über den aktuellen Assist Mode (farbig codier), den Batterieladezustand (5 Levels) und Fehlermeldungen des E-Systems. ASSIST MODE UP ASSIST MODE DOWN LIGHT MODES LED BAR REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL 2.7. Operation and display manual FunctionOperationDisplayComment Turn e-system onHold down [POWER] button (2s) LED animation > LEDs ONR500 turns on the e-system (if e-system is turned on by battery, R500 turns on automatically). Turn e-system offHold down [POWER] button (2s) LED animation > LEDs OFFR500 turns off the e-system (if e-system is turned on by battery, R500 turns off automatically). Increase assist mode[UP]WHITE (FLASHING) > OFF > LIGHT BLUE > DARK BLUE > GREEN > PINK > RED Shown on upper four LEDs Decrease assist mode[DOWN]RED > PINK > GREEN > DARK BLUE > LIGHT BLUE > WHITE (FLASHING) Shown on upper four LEDs Turn light on[LIGHT]---Manually activating the light disables the automatic light feature temporarily. Change light mode[LIGHT]---Light mode switches between low beam and high beam (if supported by e-system) Turn light offHold down [LIGHT] button (2s) ---Manually deactivating the light disables the automatic light feature temporarily. Automatic lightautomatic---If automatic light feature is enabled the R500 automa- tically turns the light on in dark conditions and turns the light off in bright conditions. Trigger start-up assistanceDecrease assist mode until upper four LEDs start flashing white. Hold down [DOWN] button. White (flashing)Shown on upper four LEDs EOX ® APP and EOX ® VIEW 1300 remote control [A], [B], [C]If connected the R500 controls the EOX ® App or EOX ® VIEW 1300 by remote. Battery levelautomaticShown on lower 5 LEDs Error messagesautomatic Red (flashing)Shown on LED indicator. 2.7. Bedien- und Anzeigeanleitung FunktionOperationAnzeigeKommentar E-System einschalten[POWER] gedrückt halten (2s) LED-Animation > LEDs ONDie R500 schaltet das E-System an (wenn das E-System über die Batterie angeschaltet wird, schaltet die R500 automatisch an). E-System ausschalten[POWER] gedrückt halten (2s) LED-Animation > LEDs OFFDie R500 schaltet das E-System aus (wird das E-System über …

Text truncated - open the document above for the full version.

40105 TECHNICAL CUSTOMER DOCUMENTATION / TECHNISCHE KUNDENUNTERLAGE Version: HEINZMANN 1.0 (Draft) E-bike Remote 1Changelog/Änderungsverfolgung2 2EOX ® REMOTE 5003 2.1General product information / Allgemeine Produktinformationen3 2.2Dimensions / Abmessungen3 2.3Cable options / Kabeloptionen4 2.4Assembly / Montage4 2.5Technical details / Technische Details4 2.6Operation and display elements / Bedien- und Anzeigeelemente5 2.7Operation and display manual / Bedien- und Anzeigeanleitung6 2.8Declerations / Deklarationen8 3EOX ® VIEW 120010 3.1General product information / Allgemeine Produktinformationen10 3.2Dimensions / Abmessungen11 3.3Cable options / Kabeloptionen12 3.4Assembly / Montage13 3.5Technical details / Technische Details13 3.6Operation and display elements / Bedien- und Anzeigeelemente14 3.7Operation and display manual / Bedien- und Anzeigeanleitung15 3.8Declerations / Deklarationen17 4EOX ® App18 4.1Installation and start of the EOX ® App / Installation und Start der EOX ® App18 4.2Connect EOX ® REMOTE 500 with EOX ® App / EOX ® REMOTE 500 mit der EOX ® App verbinden18 4.3Menu “Trip recording” / Menü „Trip aufzeichnen“19 4.4Menu “My trips” / Menü „Meine Trips“19 4.5Menu “Trip” / Menü „Trip“20 4.6Menu “Settings” / Menü „Einstellungen“21 Table of contents / Inhaltsverzeichnis 1. Changelog /Änderungsverfolgung RevisionDateHandled byChanges 1.002.02.2021LL Tremper- Initial version The EOX ® REMOTE 500 (R500) will be installed fixed to the handlebar. It is connected with the e-system by fixed wire. The cable is fixed to the R500 and cannot be replaced. The R500 integrates control and display elements. To control the e-system 7 buttons are available. The display consists of a 9 RGB LED indicator bar. Die EOX ® REMOTE 500 (R500) wird fest am Fahrradlenker verbaut. Die R500 wird per Kabel mit dem E-System gesteckt verbunden. Das Kabel ist fest mit der R500 ver- bunden und ein Austausch des Kabels ist nicht vorgesehen. Die R500 integriert Bedien- und Anzeigeelemente. Zur Bedienung stehen 7 Tasten zur Verfügung. Die Anzeige besteht aus einem 9 RGB LED umfassenden Indikator. 2. EOX ® REMOTE 500 2.1. General product information / Allgemeine Produktinformationen 2.2. Dimensions / Abmessungen 7,36 23,11 55,73 48,07 12,00 38,75 28,47 8,11 39,35 − Loosen the screw (Allen Key, 3mm) of the R500 clamp − Open the clamp and position the R500 at the handlebar (22.2 mm) − Close the clamp of R500 and orientate ergonomically − The cable must run through the groove inside the clamp − Tighten the screw of R500 clamp with 0.40 Nm − If an EOX ® VIEW 1200 is used connect the plug of R500 with the plug of EOX ® VIEW 1200 − If no EOX ® VIEW 1200 is used connect the plug of R500 with the plug of the e-system − Schraube (Innensechskant, 3mm) der R500 Schelle lösen − Schelle der R500 öffnen und am Lenker positionieren (22.2 mm) − Schelle der R500 schließen und ergonomisch ausrichten − Kabel muss in vorgesehener Führung innerhalb der Schelle verlaufen − Schraube der R500 Schelle mit 0.40 Nm festziehen − Wenn ein EOX ® VIEW 1200 verwendet wird, den Stecker der R500 mit dem Stecker des EOX ® VIEW 1200 verbinden − Wenn kein EOX ® VIEW 1200 verwendet wird, den Stecker der R500 mit Stecker des E-Systems verbinden 2.4. Assembly / Montage 2.5. Technical details / Technische Details 2.3. Cable options / Kabeloptionen 23 cm Specifications Color (housing)Black MaterialABS (Housing), PA+GF (Arm), TPU (Pads) Weight33.8 g Mounting optionsHandlebar (left) Handlebar diameter22.2 mm Communication interfacesCAN, BLE CAN communication baudrate 250 / 250 / 1000 Kbps (min / typ / max) FW updateCAN, BLE Usabilitystand-alone Power supplyby E-Bike Operating voltage6 / 12 / 16 V (min / typ / max) Operating power consumption< 50 mA DisplayLED indicator (9 x RGB) Backlight  (buttons) SensorsAmbient Light, RTC RTC accuracy+/- 1 sec/day @ 25 °C Operating temperature-10 / 25 / 60 °C (min / typ / max) Storage temperature-20 / 25 / 70 °C (min / typ / max) IP ratingIPX6K, IPX7 CertificationCE, FCC, ROHS, REACH 2.6. Operation and display elements / Bedien- und Anzeigeelemente ASSIST MODE HOCH ASSIST MODE RUNTER LICHTMODI LED-LEISTE REMOTE-BEDIENUNG REMOTE-BEDIENUNG REMOTE-BEDIENUNG A POWER B C UP DOWN LIGHT The R500 integrates 7 buttons. The R500 provides feedback about the currently selected assist mode (indicated by color), the battery status of the e-system (5-step scale) and error messages of the e-system. Die R500 integriert 7 Tasten. Die R500 gibt über die LED-Leiste Auskunft über den aktuellen Assist Mode (farbig codier), den Batterieladezustand (5 Levels) und Fehlermeldungen des E-Systems. ASSIST MODE UP ASSIST MODE DOWN LIGHT MODES LED BAR REMOTE CONTROL REMOTE CONTROL REMOTE CONTROL 2.7. Operation and display manual FunctionOperationDisplayComment Turn e-system on[POWER]LED animation > LEDs ONR500 turns on the e-system (if e-system is turned on by battery, R500 turns on automatically). Turn e-system offHold down [POWER] button (2s) LED animation > LEDs OFFR500 turns off the e-system (if e-system is turned on by battery, R500 turns off automatically). Increase assist mode[UP]OFF > LIGHT BLUE > DARK BLUE > GREEN > PINK > RED Shown on upper four LEDs Decrease assist mode[DOWN]RED > PINK > GREEN > DARK BLUE > LIGHT BLUE Shown on upper four LEDs Turn light on[LIGHT]---Manually activating the light disables the automatic light feature temporarily. Change light mode[LIGHT]---Light mode switches between low beam and high beam (if supported by e-system) Turn light offHold down [LIGHT] button (2s) ---Manually deactivating the light disables the automatic light feature temporarily. Automatic lightautomatic---If automatic light feature is enabled the R500 automa- tically turns the light on in dark conditions and turns the light off in bright conditions. EOX ® VIEW 1200 remote control [A], [B], [C]See chapter 3.6If an EOX ® VIEW 1200 is used the R500 controls it by remote. EOX ® APP and EOX ® VIEW 1300 remote control [A], [B], [C]If no EOX ® VIEW 12…

Text truncated - open the document above for the full version.

Date (2021-04-31) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Confidentiality Request FCC ID: M5LR500B Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, ZEITBIKE LLC hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics PCB & Components list Block Diagrams operational description Specification The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Fritz Bohl Telephone Number: 01 805 850 32758 Email: [email protected]

Date (2021-04-31) TUV SUD BABT UNLIMITED TCB Octagon House, Segensworth North, Fareham, Hampshire, PO15 5RL, United Kingdom Dear Sir or Madam, We, ZEITBIKE LLC 298 Dalton Street, Ventura, California, United States hereby decleared Type of equipment: E-bike Remote Model name: EOX® Remote 500(40101), EOX® Remote 500(40105) FCC ID: M5LR500B EOX® Remote 500(40101) and EOX® Remote 500(40105) are identical in critical components, only different in RTC circuit part, which will not affect RF & EMC performance. Model EOX® Remote 500 (40101) EOX® Remote 500 (40105) Supply voltage 48Vdc <50mA 12Vdc <50mA RTC part and CR1025 No Yes Wake up circuit The resistance tolerance of Wake up circuit is different Size Same PCB layout Same Sincerely, Company Officer: Fritz Bohl Telephone Number: 93003 1539 Email: [email protected]

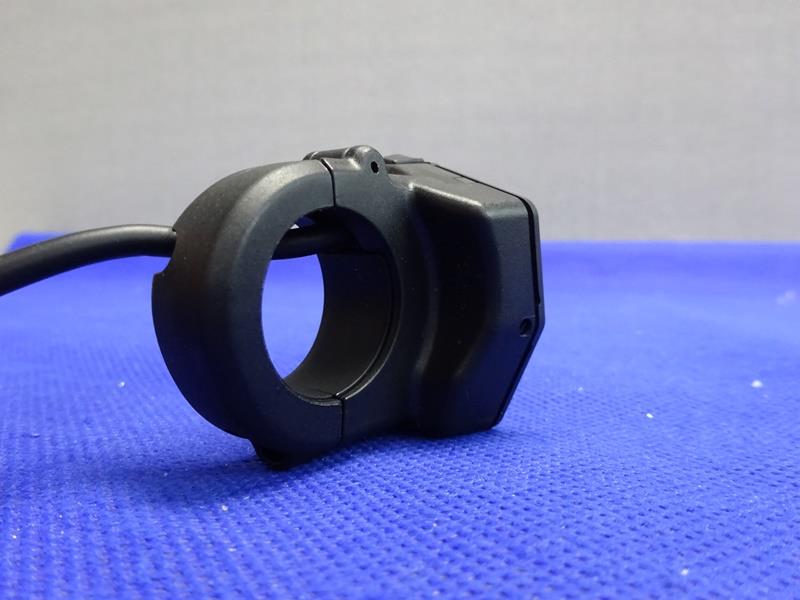

Project No: Rev.: 00 Date: Page: 1 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Photo Documentation Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 2 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 3 of 3 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: General view of product View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom

Format for Serial number: WWDYYSXXXXX WW(week of the year d(day of the week) yy(year) S(Supplier letter) XXXXX (production number on this day

Project No: Rev.: 00 Date: Page: 1 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Photo Documentation Details of: Main board of EOX® Remote 500 (40101) View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 2 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom EOX® Remote 500 (40101) ANT

Project No: Rev.: 00 Date: Page: 1 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Photo Documentation Details of: Main board of EOX® Remote 500 (40105) View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Project No: Rev.: 00 Date: Page: 2 of 2 Telephone : +86 20 38320668 Telefax : +86 20 38320478 http://www.tuv-sud.cn TÜ V SÜ D Certification and Testing (China) Co., Ltd. Guangzhou Branch, TÜ V SÜ D Group 5F, Communication Building, 163 Pingyun Rd, Huangpu Ave. West, Guangzhou, 501656, P.R.China Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom Details of: View: [ ] general [ ] front [ ] rear [ ] right [ ] left [ ] top [ ] bottom EOX® Remote 500 (40105) ANT

Page 1 of 1 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF exposure Estimation Applicant: ZEITBIKE LLC Address: 298 Dalton Street, Ventura, California, United States , 93003 1539 FCC ID:M5LR500B Model: EOX® Remote 500 (40101), EOX® Remote 500 (40105) 1. Product information EUT is a E-bike Remote, Bluetooth 4.0 BLE technology was used for communicating. 2. Limit and Guidelines on Exposure to Electromagnetic Fields According to§15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensure that the public is not exposed to radio frequency energy level in excess of the Commission’s guideline. According to KDB 447498 D01 Mobile Portable RF Exposure v06, no SAR required if power is lower than the flowing threshold: The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where • f(GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation25 • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 3. Calculation method [(max. power of` channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 Maximum output power: -5.73dBm = 0.267 mW Distance = 5 mm f = 2.402 GHz [0.267/5] * SQRT(2.402) = 0.083 0.083 ≤ 3.0 Therefore, excluded from SAR testing. TUV SUD China, Guangzhou Branch Reviewed by: Prepared By: Tony Liu Samuel Zhang Date: 2021-02-02 Date: 2021-02-02
