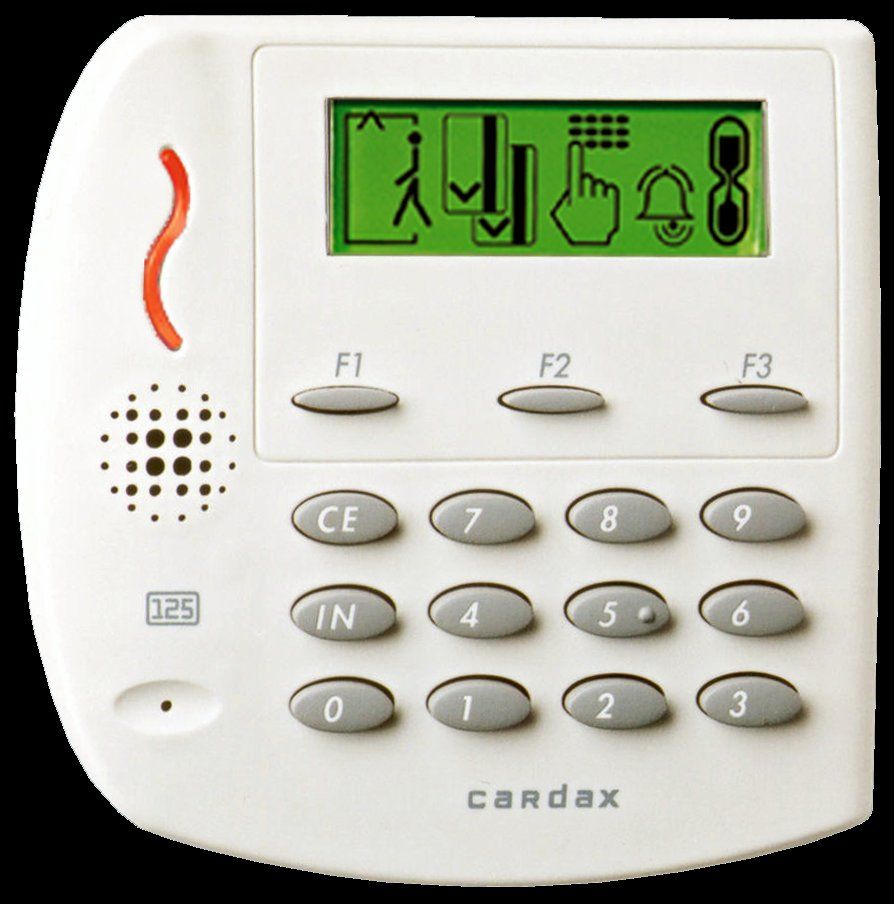

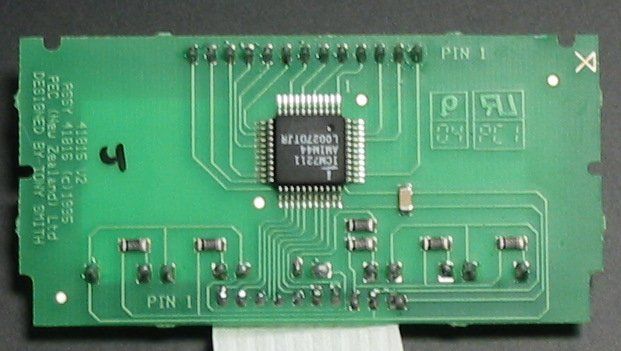

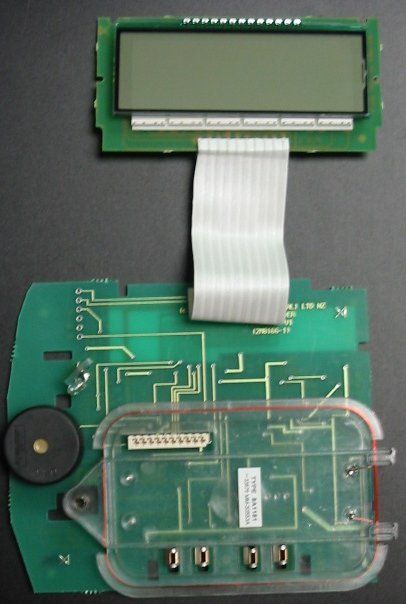

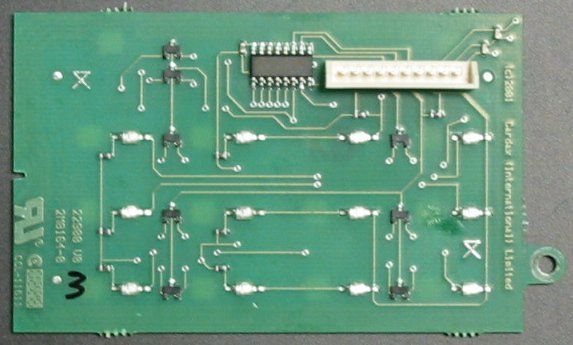

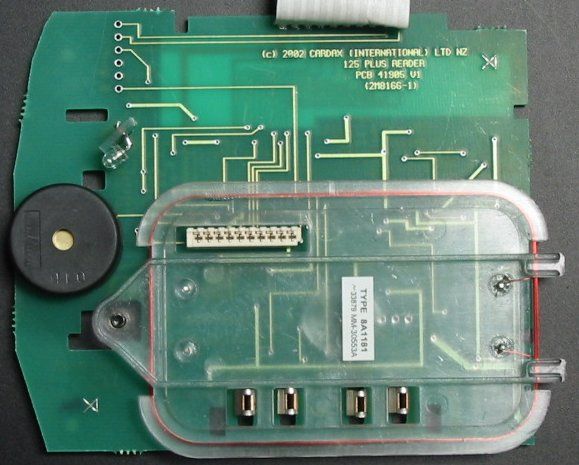

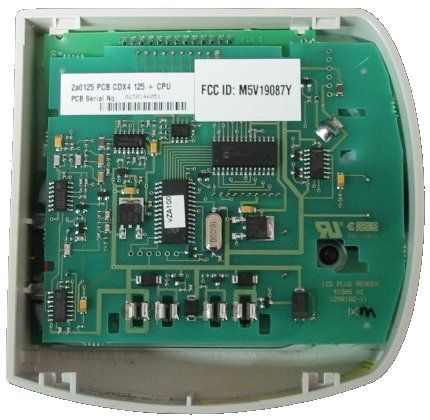

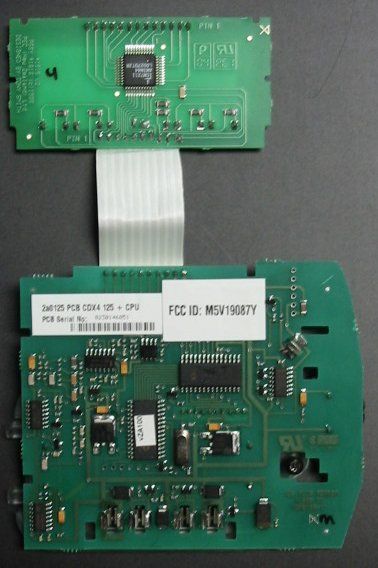

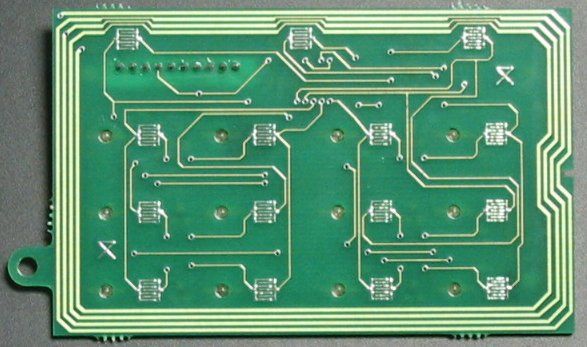

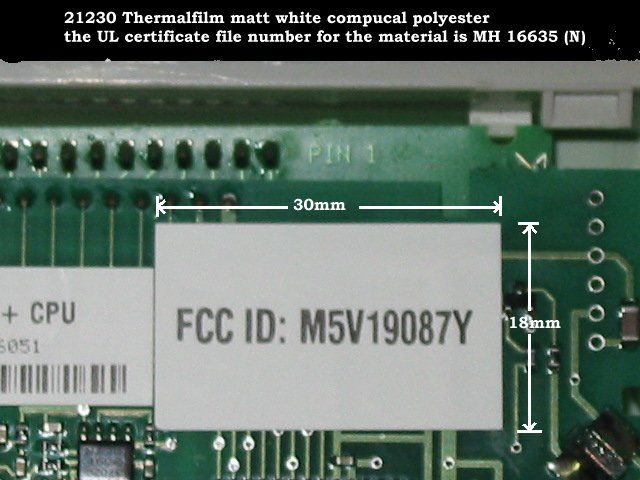

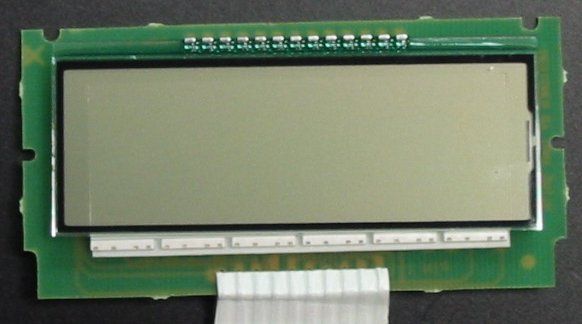

M5V19087YCardax IV 125 Series Prox Plus Reader

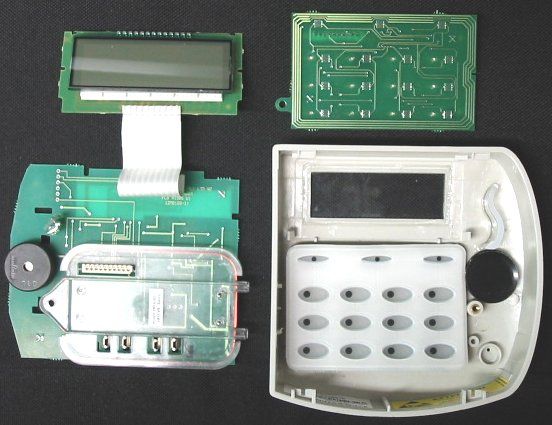

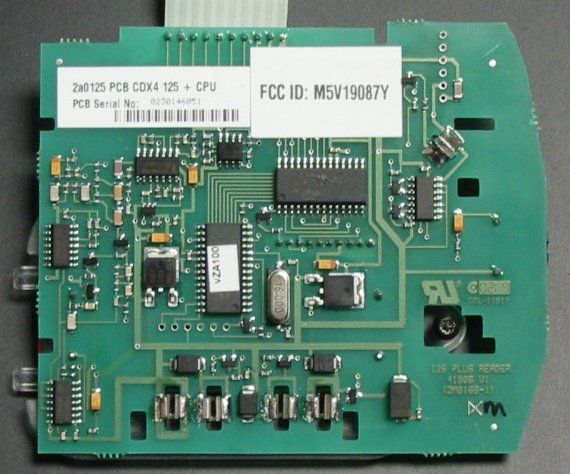

Part Number 3E1086 R2 1 September 2002 Installation Note Cardax Prox Plus 125 Reader CAUTION This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. Before you Begin Unpack the Cardax Prox Plus 125 reader and check the shipment contains the following items: •1 x Cardax Prox Plus 125 base with cable and Processor Box attached •1 x Cardax Prox Plus 125 facia •1 x printed circuit board (PCB) assembly •1 x dispatch kit containing the following; 1 x 4-way IDC connector 1 x grommet plug 4 x self tapper pan head screws 4 x plastic caps 2 Part Number 3E1086 R2 September 2002 Power Supply Requirements The Prox Plus 125 reader requires a supply of 13.6 V DC +/- 15% at 200 mA. Prox Plus 125 readers require a good quality linear power source. Note: Switch mode power supplies are not recommended as they may reduce the read range of the Prox Plus 125 reader. Cabling Use 4 core, 0.2 mm 2 (AWG 24) cabling with a maximum, nominal capacitance of 120 pf/m. The maximum external diameter of the cable must not exceed 5mm ( 1 / 5 inch). The maximum distance between the URI and the Prox Plus 125 reader with this cable is 200m (650ft). Note:You need a special cable terminating tool to connect the building cabling to the Prox Plus 125. The tool has a head (Part No. C861145) and handle (Part No. C861115). Part Number 3E1086 R2 3 September 2002 Mounting Distance Between Proximity Readers The distance between any 2 proximity readers must be greater than 200mm in all directions. Please note that 200mm in all directions includes the distance through walls.
               4 Part Number 3E1086 R2 September 2002 Mounting Note: The Prox Plus 125 reader has been designed to metric specifications therefore any imperial measurements provided are approximate only. The Prox Plus 125 reader is designed to be mounted on any solid flat surface including metal surfaces. The recommended mounting height for the Prox Plus 125 reader is 1100mm from floor level to the centre of the reader unit. However this may vary in some countries and you should check local regulations for variations to this height. Note: The grommet through which the cables feed into the base of the Prox Plus 125 reader helps to keep the unit waterproof. Drill a 20mm ( 3 / 4 inch) diameter hole for the base extrusion through or into the mounting surface to a minimum depth of 40mm (1 1 / 2 inch). Run the building cabling through the base and grommet. Fit the base to the 20mm ( 3 / 4 inch) hole and secure it to the mounting surface using the four fixing screws. Fit the screw caps over each fixing screw. The screw caps prevent water from entering the reader via the fixing holes. The caps must be installed for the Prox Plus 125 reader to comply with the environmental specification. Note: It is very important that the base of the reader is flush with and tight against the mounting surface. If you are mounting the Prox Plus 125 reader on a rough surface you should make the surface as smooth as possible under the reader and up to 25mm (1 inch) around the reader. Part Number 3E1086 R2 5 September 2002 Removing the Facia To remove the facia from the Prox Plus 125 base you need the plastic de-latching tool (Part No. C41612) shown below. Slide the de-latching tool firmly under the bottom of the Prox Plus 125 reader. Hold the top of the reader with your fingers and squeeze the de-latching tool up, towards the top of the reader with your thumb. Lift the facia away from the base. If the base is not flush to the wall, or the screws have become loose you may need to pack the space between the de-latching tool and the wall. A thin piece of cardboard is usually all that is necessary, i.e. a business card folded in two. Cut a notch in the folded edge of the card similar in shape to the notch in the de-latching tool as shown below. Slide the card under the bottom of the facia and then use the de-latching tool with the card as packing. 6 Part Number 3E1086 R2 September 2002 Connecting to the URI The Prox Plus 125 reader can connect to either a Cardax IV or CardaxFT URI. Use the cable terminating tool to connect the cables to the socket as described in the following sections. Pin number 4 of the Prox Plus 125 connector feeds into the cable terminating tool first. The pin numbers are marked on the connector. Connecting to the CardaxFT URI Connect the cables to the socket as shown. Prox Plus 125 Connector 4 3 2 1 GND OUTPUTS OUTPUTS DET COMMS COMMS 5/12V Plug P1 or P2 CardaxFT Universal Reader Interface Red White Blue Black Connect the Prox Plus 125 connector to either the P1 or P2 plug on the CardaxFT URI. Refer to the CardaxFT URI component layout diagram, below, for the location of the plugs. 1 Q31 D18 U19 T1 R7 R50 R55 R52 R51 R53 R54 JP2 D13 C30 D23 D24 D1 D2 D3 D4 D6 D5 D11 D10 D25 D20 D19 D17 D15 Q7 Q2 P3 D12 D16 D14 Q30 Q29 9 210 1 P8 JP1 0 SW1 E Q26 1 P7 1 Q27 1 P6 COMM NC NO COIL RLY2 COMM NC NO COIL RLY1 D28 D27 D26 R80 R79 R95 R96 R81 R94 D21 Q28 D22 1 P4 Q41 1 P5 (c)1999 PEC(New Zealand) Ltd REV[A][B][C] 22825V2 Assy 22826 5V 12V + + GND GND IN6 IN5 IN4 OUTPUTS OUTPUTS 5/12V 5/12V DET DET COMMS COMMS GND GND COM COM NO NO NC NC GND GND IN3 IN2 IN1 COMMS P4 Balanced Inputs pin 1 = Input1 pin 2 = Input 2 pin 3 = Input 3 pin 4 = Input 4 pin 5 = Input 5 pin 6 = Input 6 pin 7 = Ground P7 Relay Outputs pin 1 = R1 Normally closed pin 2 = R1 Normally open pin 3 = R1 Common pin 4 = R2 Normally closed pin 5 = R2 Normally open pin 6 = R2 Common pin 7 = Ground P5 Power & Comms pins 1 & 2 = RS485 pin 3 = 13.6 V ± 15% pin 4 = 0V SW1 Unit address Set unit number P8 Diagnostic port P6 13.6 V ± 15%out pin 1 = 13.6 V ± 15% pin 2 = Ground 3A fused P3 Keypad pin 1 = Row1 pin 2 = Row 2 pin 3 = Row 3 pin 4 = Row 4 pin 5 = Column1 pin 6 = Column2 pin 7 = Column3 pin 8 = Ground P2 Non-CardaxFT Reader 2 pin 1 = 5/12 V power pin 2 = DataA pin 3 = DataB pin 4 =…

Text truncated - open the document above for the full version.

Gallagher Group Ltd 181 Kahikatea Drive Private Bag 3026 Hamilton, New Zealand Tel: +64-7-838-9800 Fax: +64-7-838-9801 Email: [email protected] www.gallaghergroup.co.nz Companies Gallagher Group Ltd – NZ Sunplas Engineering (82) Ltd – NZ Gallagher Security (int) Ltd – NZ Gallagher Power Fence (SA) Pty – Sth Africa Gallagher Security (UK) Ltd – UK Gallagher Security (USA) Inc – USA Franklin Machinery – New Zealand PEC Pumps PEC Fuel Pumps Ltd Cardax (International) Ltd Gallagher Finance & Management Ltd Gallagher IT Solutions Ltd Reach Global Ltd Associate Companies Gallagher Europe Veldman & Djikstra Gallagher Australia Pty Ltd – Australia Gallagher Insultimber – Australia Gallagher Power Fence Inc – USA Gallagher Power Fencing Systems Inc – Canada Gallagher Power Fence (IRL) Ltd – Ireland Ibex Gallagher – India A/S Poda Hegn – Denmark NZ Producciones S.A – Argentina International Scales Pty Ltd - Australia Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 September 18, 2002 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act,Gallagher Group Ltdrequests confidentiality for the following products: FCC ID Number ProductTitle/Model M5V19087YCardax IV 125 Series Prox Plus Reader For the product stated above, we request that the following information be held confidential: Electrical Schematics of the Circuitry Block Diagram Operational Description No other items submitted as part of the equipment authorisation filing process are deemed confidential. The above exhibits containGallagher Group Ltdtrade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Reader. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dave Grant Test Engineer Gallagher Group Ltd Kahikatea Drive Hamilton New Zealand Phone:64 7 838-9829 Fax:64 7 838-9801

EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 1 of 17This report may not be reproduced except in full TEST REPORT Cardax Prox Plus Reader 125 Series Grey Card Reader tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators for Gallagher Group Ltd This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager Prepared By: _____________________________________ Karen Miller - Office Administrator EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 2 of 17This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE3 2. RESULTS SUMMARY3 3. INTRODUCTION4 4. CLIENT INFORMATION4 5. DESCRIPTION OF TEST SAMPLE5 6. RESULTS5 7. TEST EQUIPMENT USED14 8. ACCREDITATIONS14 10.PHOTOGRAPHS15 EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 3 of 17This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Gallagher Prox Plus Reader 125 Series Grey Card Reader complies with FCC Part 15 Subpart C as an Intentional Radiator when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY The results from testing are summarised in the following table: ClauseParameterResult 15.201Equipment authorisation requirement. Certification required. 15.203Antenna requirementComplies. Antenna integral. 15.204External PA and antenna modifications Not applicable. No external devices. 15.205Restricted bands of operationComplies. Device transmits on 125 kHz. 15.207Conducted limitsComplies with a 12.9 dB margin at 475 kHz. 15.209Radiated emission limits - Fundamental Complies with a 22.9 dB margin. 15.209Radiated emission limits - Spurious emissions <30 MHz Complies with a 33.6 dB margin at 1250 kHz. 15.209Radiated emission limits – Spurious emissions >30 MHz Complies with a 14.5 dB margin at 67.580 MHz. EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 4 of 17This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements for the purpose of determining compliance with the specification under the following conditions: The test sample was selected by the client. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company NameGallagher Group Ltd AddressPrivate Bag 3026 CityHamilton CountryNew Zealand ContactMr Dave Grant EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 5 of 17This report may not be reproduced except in full 5. DESCRIPTION OF TEST SAMPLE Brand Name Gallagher Model Number Prox Plus Reader 125 Series Product Card Reader ManufacturerGallagher Group Country of Origin New Zealand Serial Number 0230145053 6.RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 1992 were used. EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Pag…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 16 of 17This report may not be reproduced except in full EMC Technologies (NZ) Ltd Test Report No 20802.1 Report date: 16 August 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 17 of 17This report may not be reproduced except in full
