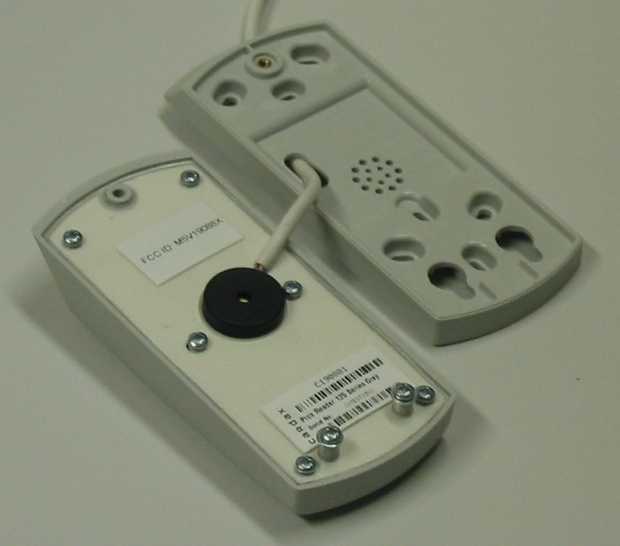

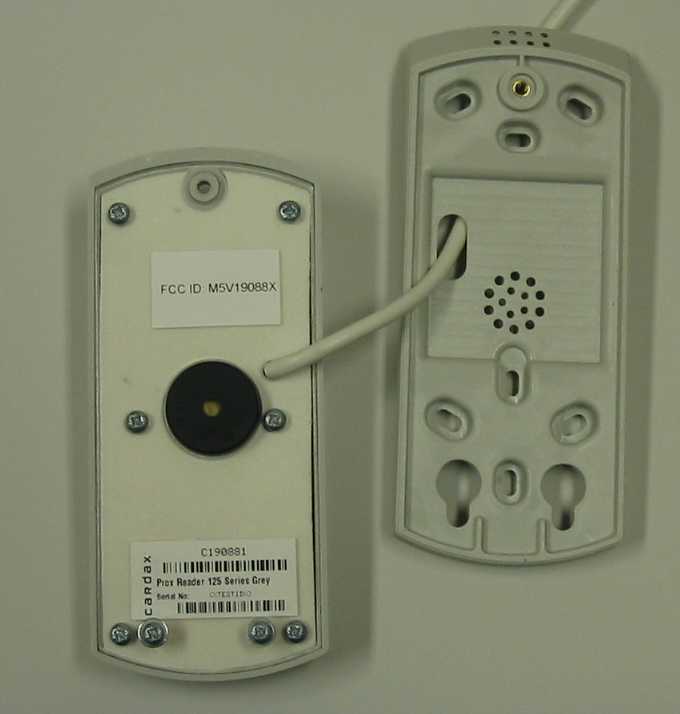

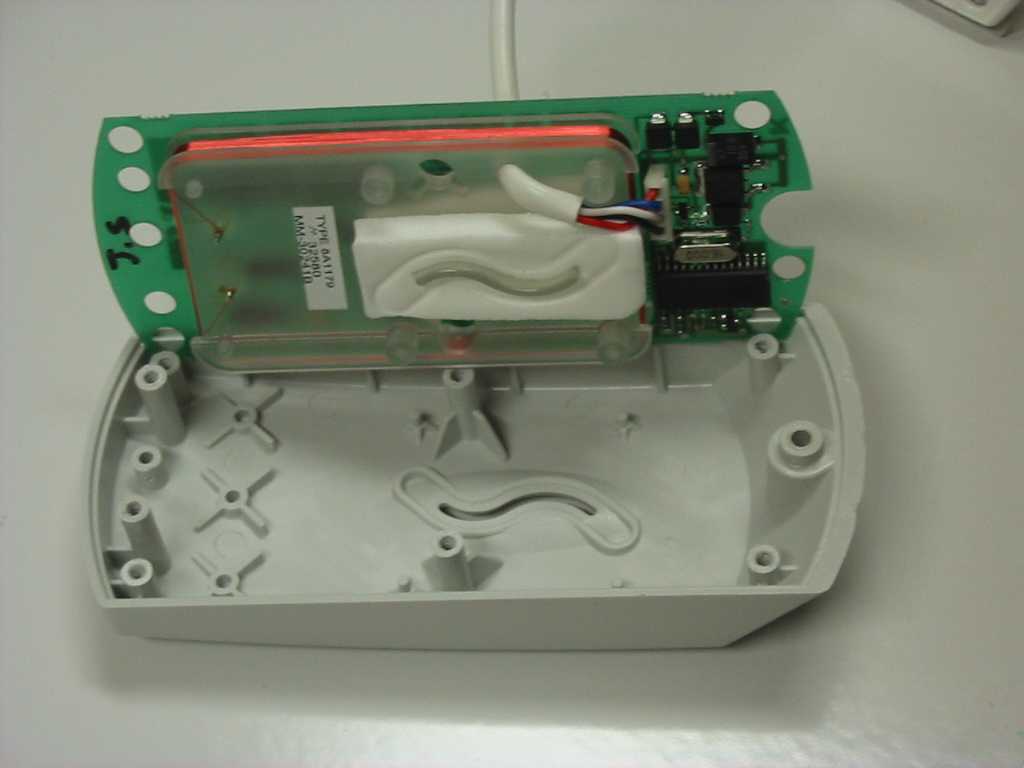

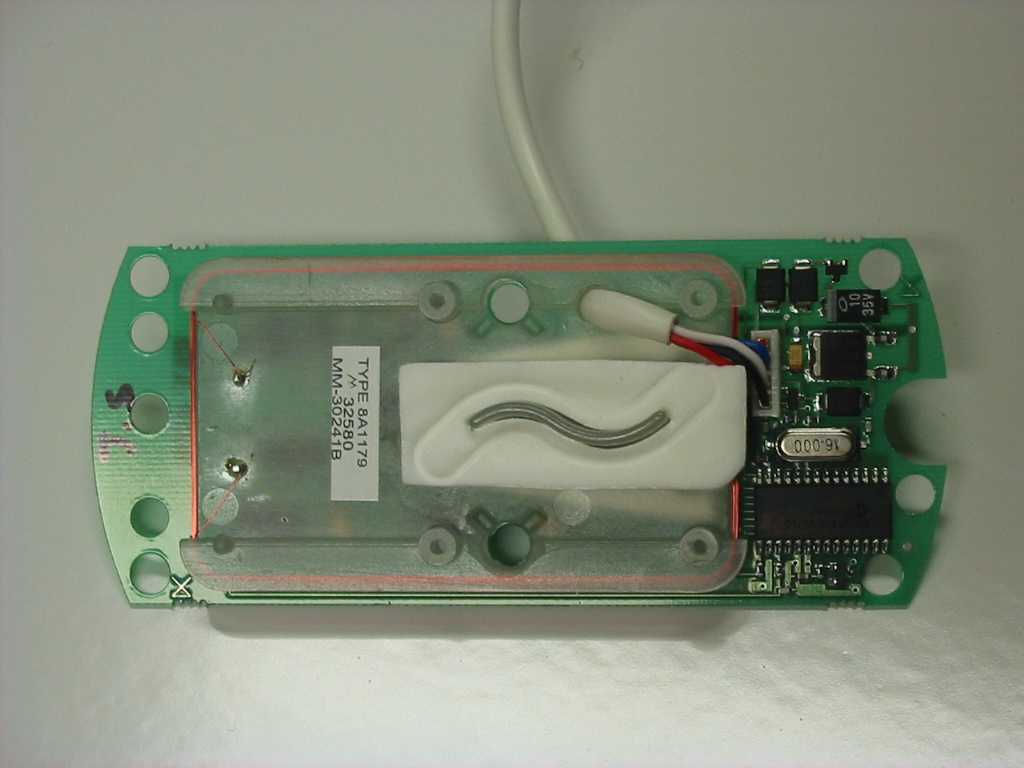

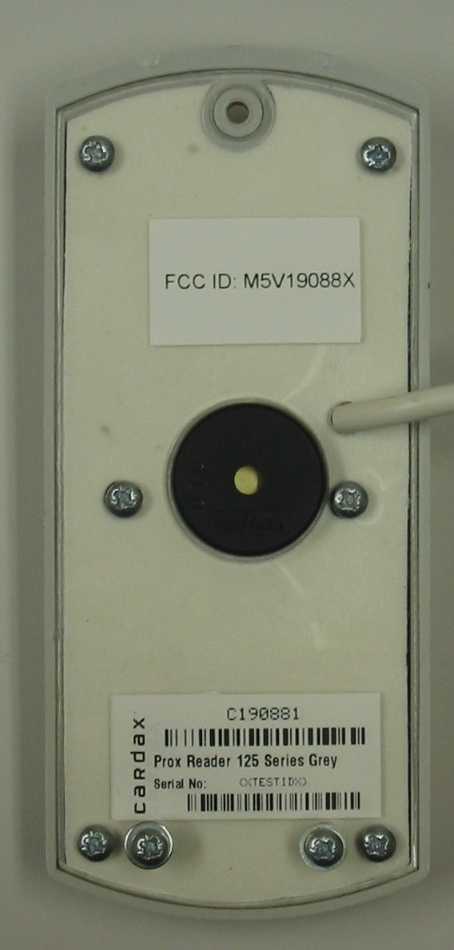

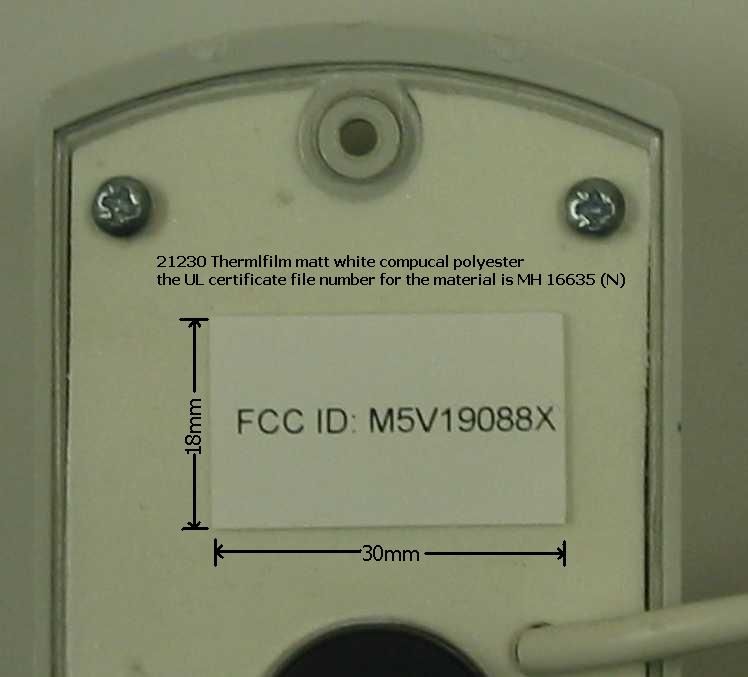

M5V19088XCDX IV 125 Un-Potted Prox Reader

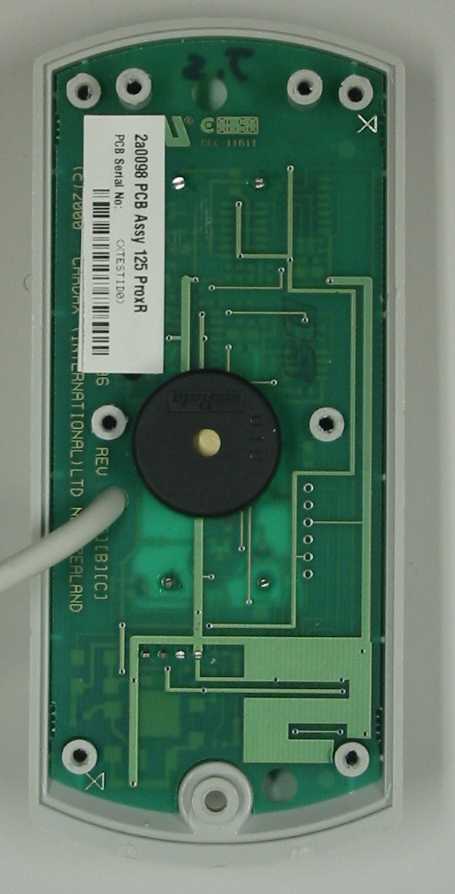

1 Part number 3E0000 R3 April 2002 Installation Note Cardax Prox 125 Reader CAUTION This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. Before you Begin Unpack the Prox 125 reader and check the shipment contains the following items: •1 x Prox 125 base with printed circuit board (PCB) assembly already installed •1 x Prox 125 facia Power Supply Requirements The Prox 125 reader requires a supply of 13.6 V DC ± 15% at 200 mA. Prox 125 readers require a good quality power source. Part number 3E0000 R3 April 2002 2 Cabling Use 4 core, 0.2 mm 2 (AWG 24) cabling with a maximum, nominal capacitance of 120 pf/m. Maximum distance between the URI and the Prox 125 reader with this type of cable is 200m (650ft). Note:You need a special cable terminating tool to connect the building cabling to the Prox 125. The tool has a head (Part No. C861145) and handle (Part No. C861115). Removing the Facia To remove the facia from the Prox 125 base you need a T10 Torx driver. Use the driver to loosen the screw at the bottom of the facia. Remove the screw. Gently pull the lower end of the facia away from the base and then slide the facia down and off the base. Mounting Distance Between Proximity Readers The distance between any 2 proximity readers must be greater than 200mm in all directions. Note: Please note that 200mm in all directions includes the distance through walls.

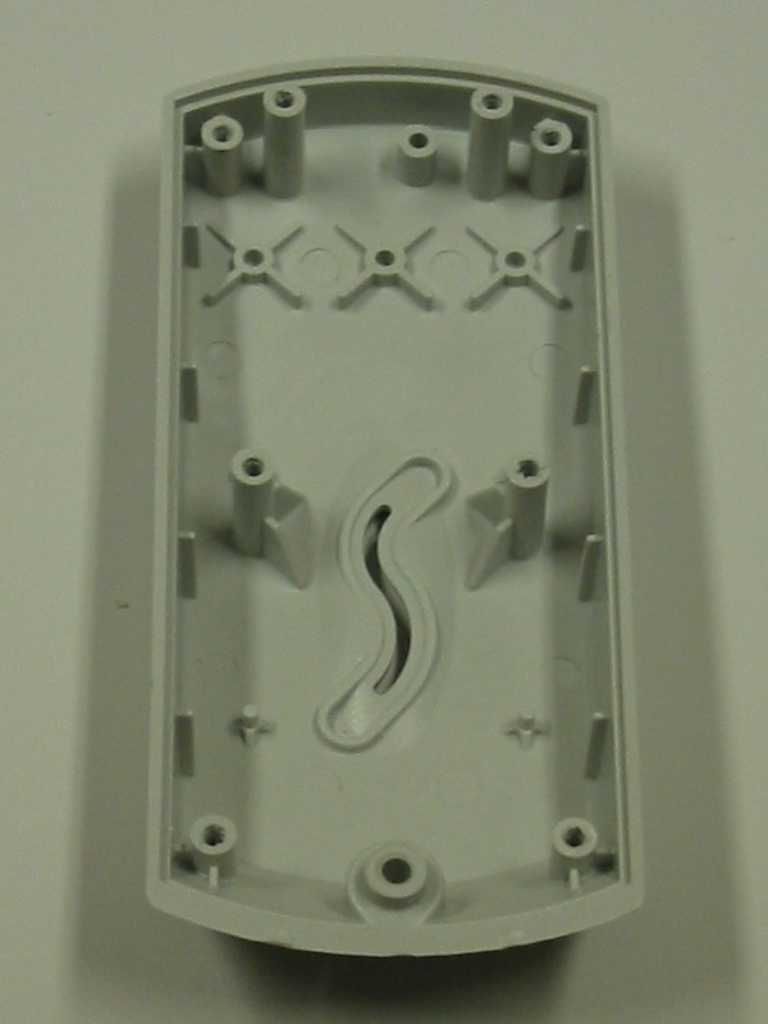

 3 Part number 3E0000 R3 April 2002 Mounting Note: The Prox 125 reader has been designed to metric specifications therefore any imperial measurements provided are approximate only. The Prox 125 reader is designed to be mounted on any solid flat surface including metal surfaces. In addition the optional cradle base allows you to mount the reader over most standard international flush boxes.                           Drill the holes for the mounting screws. Note: The recommended mounting height for the Prox 125 reader is 1100 mm from floor level to the centre of the reader unit. However this may vary in some countries and you should check local regulations for variations to this height. The type of flush box you are using, if any, will determine which mounting holes you use. Run the building cabling through the cabling hole. Fit the base to the mounting holes and secure it to the mounting surface using two fixing screws. Note: It is very important that the base of the reader is flush with and tight against the mounting surface. If you are mounting the Prox 125 reader on a rough surface you should make the surface as smooth as possible under the reader and up to 25 mm (1 in) around the reader. Part number 3E0000 R3 April 2002 4 Connecting to the URI The Prox 125 reader can connect to either a Cardax IV or CardaxFT URI. Use the cable terminating tool to connect the cables to the socket as described in the following sections. Pin number 4 of the Prox 125 connector feeds into the cable terminating tool first. The pin numbers are marked on the connector. Connecting to the CardaxFT URI Connect the cables to the socket as shown. Prox 125 Connector 4 3 2 1 GND OUTPUTS OUTPUTS DET COMMS COMMS 5/12V Plug P1 or P2 CardaxFT Universal Reader Interface Red White Blue Black Connect the Prox 125 connector to either the P1 or P2 plug on the CardaxFT URI. Refer to the CardaxFT URI component layout diagram, below, for the location of the plugs. 1 Q31 D18 U19 T1 R7 R50 R55 R52 R51 R53 R54 JP2 D13 C30 D23 D24 D1 D2 D3 D4 D6 D5 D11 D10 D25 D20 D19 D17 D15 Q7 Q2 P3 D12 D16 D14 Q30 Q29 9 210 1 P8 JP1 0 SW1 E Q26 1 P7 1 Q27 1 P6 COMM NC NO COIL RLY2 COMM NC NO COIL RLY1 D28 D27 D26 R80 R79 R95 R96 R81 R94 D21 Q28 D22 1 P4 Q41 1 P5 (c)1999 PEC(New Zealand) Ltd REV[A][B][C] 22825V2 Assy 22826 5V 12V + + GND GND IN6 IN5 IN4 OUTPUTS OUTPUTS 5/12V 5/12V DET DET COMMS COMMS GND GND COM COM NO NO NC NC GND GND IN3 IN2 IN1 COMMS P4 Balanced Inputs pin 1 = Input1 pin 2 = Input 2 pin 3 = Input 3 pin 4 = Input 4 pin 5 = Input 5 pin 6 = Input 6 pin 7 = Ground P7 Relay Outputs pin 1 = R1 Normally closed pin 2 = R1 Normally open pin 3 = R1 Common pin 4 = R2 Normally closed pin 5 = R2 Normally open pin 6 = R2 Common pin 7 = Ground P5 Power & Comms pins 1 & 2 = RS485 pin 3 = 13.6 V ± 15% pin 4 = 0V SW1 Unit address Set unit number P8 Diagnostic port P6 13.6 V ± 15%out pin 1 = 13.6 V ± 15% pin 2 = Ground 3A fused P3 Keypad pin 1 = Row1 pin 2 = Row 2 pin 3 = Row 3 pin 4 = Row 4 pin 5 = Column1 pin 6 = Column2 pin 7 = Column3 pin 8 = Ground P2 Non-CardaxFT Reader 2 pin 1 = 5/12 V power pin 2 = DataA pin 3 = DataB pin 4 = Card detect pin 5 = LED output pin 6 = Beeper output pin 7 = Ground P1 Non-CardaxFT Reader 1 pin 1 = 5/12 V power pin 2 = DataA pin 3 = DataB pin 4 = Card detect pin 5 = LED output pin 6 = Beeper output pin 7 = Ground F1 13.6 V Input Fuse Rating = 500mA F2 13.6 V Output Fuse Rating = 3A D17 and D21 Relay state indicators LED on = Energised LED off = De-energised D18 Run LED D10 Comms LED flashing = communicating with FT Controller JP1 Reader Voltage select = 5V (200mA total) = 12V (1A total) P1 P2 5 Part number 3E0000 R3 April 2002 Connecting to the Cardax IV URI Connect the cables as shown in the diagram below. Prox 125 Reader 4 3 2 1 1 2 3 4 5 6 7 GND BPR LED DET 1-CK 0-DT 5/12V Plug P4 (Exit) or P5 (Entry) Universal Reader Interface Red White Blue Black Note: Refer to Cardax IV URI Settings, later in this Installation Note, for the location of the Cardax IV URI components Replacing the Facia Fit the Prox 125 facia onto the base and tighten the screw at the bottom of the facia using a T10 Torx driver. Part number 3E0000 R3 April 2002 6 Initialisation Initialising with the CardaxFT URI The CardaxFT URI must be allocated a unique unit address which is set up at the CardaxFT URI and at the Command Centre FT Server. Refer to the CardaxFT Universal Reader Interface Installation Note and the Command Centre FT doc…

Text truncated - open the document above for the full version.

Gallagher Group Ltd 181 Kahikatea Drive Private Bag 3026 Hamilton, New Zealand Tel: +64-7-838-9800 Fax: +64-7-838-9801 Email: [email protected] www.gallaghergroup.co.nz Companies Gallagher Group Ltd – NZ Sunplas Engineering (82) Ltd – NZ Gallagher Security (int) Ltd – NZ Gallagher Power Fence (SA) Pty – Sth Africa Gallagher Security (UK) Ltd – UK Gallagher Security (USA) Inc – USA Franklin Machinery – New Zealand PEC Pumps PEC Fuel Pumps Ltd Cardax (International) Ltd Gallagher Finance & Management Ltd Gallagher IT Solutions Ltd Reach Global Ltd Associate Companies Gallagher Europe Veldman & Dj i kstra Gallagher Australia Pty Ltd – Australia Gallagher Insultimber – Australia Gallagher Power Fence Inc – USA Gallagher Power Fencing Systems Inc – Canada Gallagher Power Fence (IRL) Ltd – Ireland Ibex Gallagher – India A/S Poda Hegn – Denmark NZ Producciones S.A – Argentina International Scales Pty Ltd - Australia Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 October 16, 2000 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Gallagher Group Ltd requests confidentiality for the following products: FCC ID Number Product Title/Model M5V – 19088X CDX IV 125 Un-Potted Prox Reader For the product stated above, we request that the following information be held confidential: 1) Electrical Schematics of the Circuitry 2) Block Diagram 3) Operational Description No other items submitted as part of the equipment authorisation filing process are deemed confidential. The above exhibits contain Gallagher Group Ltd trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Prox Reader. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dave Grant Test Engineer Gallagher Group Ltd Kahikatea Drive Hamilton New Zealand Phone: 64 7 838-9829 Fax:64 7 838-9801

EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 1 of 16This report may not be reproduced except in full TEST REPORT Gallagher 125 Series Grey Prox Card Reader tested to the Specification 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators for Gallagher Group Ltd This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager Prepared By: ________________________________________ Karen Miller - Office Administrator EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 2 of 16This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE3 2. RESULTS SUMMARY3 3. CLIENT INFORMATION4 4. DESCRIPTION OF TEST SAMPLE4 5. METHODS AND PROCEDURES5 6. RESULTS5 7. TEST EQUIPMENT USED13 8. ACCREDITATIONS14 10.PHOTOGRAPHS15 EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 3 of 16This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Gallagher 125 Series Grey Prox Card Reader complies with FCC Part 15 Subpart C when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY The results from testing are summarised in the following table: ClauseParameterResult 15.201Equipment authorisation requirement. Certification required. 15.203Antenna requirementComplies. Antenna integral. 15.204External PA and antenna mods Not applicable. No external devices. 15.205Restricted bands of operationComplies. 15.207Conducted limitsComplies with a 3.2 dB margin at 496 kHz in stand by. 15.209Radiated emission limits - Fundamental Complies with a 23.8 dB margin. 15.209Radiated emission limits - Spurious emissions <30 MHz Complies with a 40.7 dB margin at 625 kHz. 15.209Radiated emission limits – Spurious emissions >30 MHz Complies with a 10.4 dB margin at 294.4 MHz (vertical). EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 4 of 16This report may not be reproduced except in full 3.CLIENT INFORMATION Company NameGallagher Group Ltd AddressPrivate Bag 3026 CityHamilton CountryNew Zealand ContactTony Smith 4.DESCRIPTION OF TEST SAMPLE Brand Name Gallagher Model Number 125 Series Grey Product Prox Card Reader ManufacturerGallagher Group Country of Origin New Zealand Serial Number 0201311257 EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 5 of 16This report may not be reproduced except in full 5.METHODS AND PROCEDURES Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 1992 were used. 6.RESULTS Section 15.201: Equipment authorisation requirement Certification as detailed in Subpart J of Part 2 is required for this device. Section 15.203: Antenna requirement. As can be seen from the attached photographs the antenna requirement does not apply to this transmitter, as the antenna is integral to the device. Result: Complies. Section 15.204: External radio frequency power amplifiers and antenna modifications. From the attached photographs it can be seen that it is not possible to attach an external power amplifier to this transmitter. In addition the antenna is integral to the device and therefore only one antenna can be used with this transmitter. Result: Complies. Section 15.205: Restricted bands of operation. The transmitter transmits on 125 kHz. This falls between the restricted bands of 90 –110 kHz and 495 – 505 kHz. Result: Complies. EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 ______________________________________________________________________________________________________________________________________…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 20229.1 Report date: 25 March 2002 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 16 of 16This report may not be reproduced except in full Radiated Emissions test set-up Conducted Emissions test set-up
