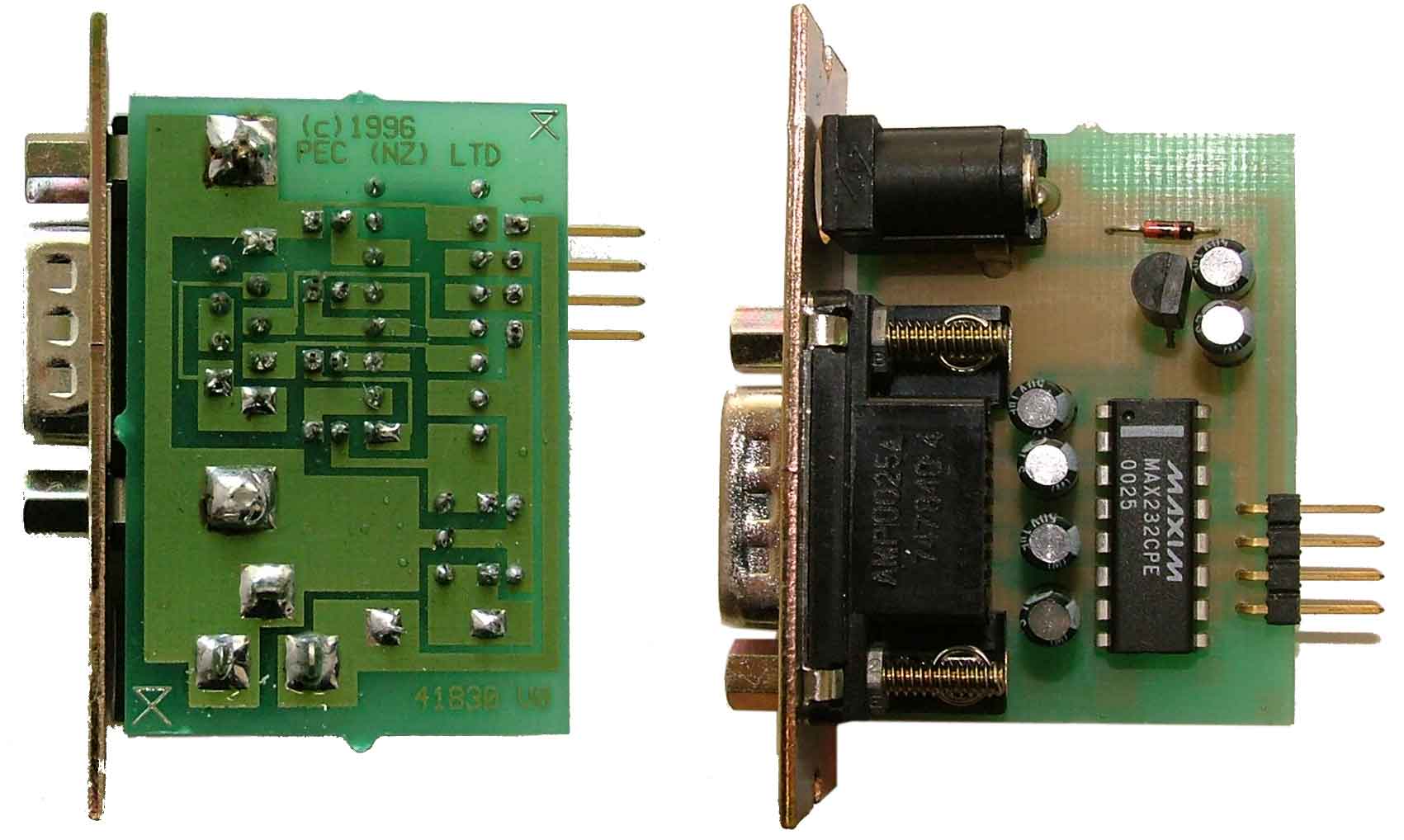

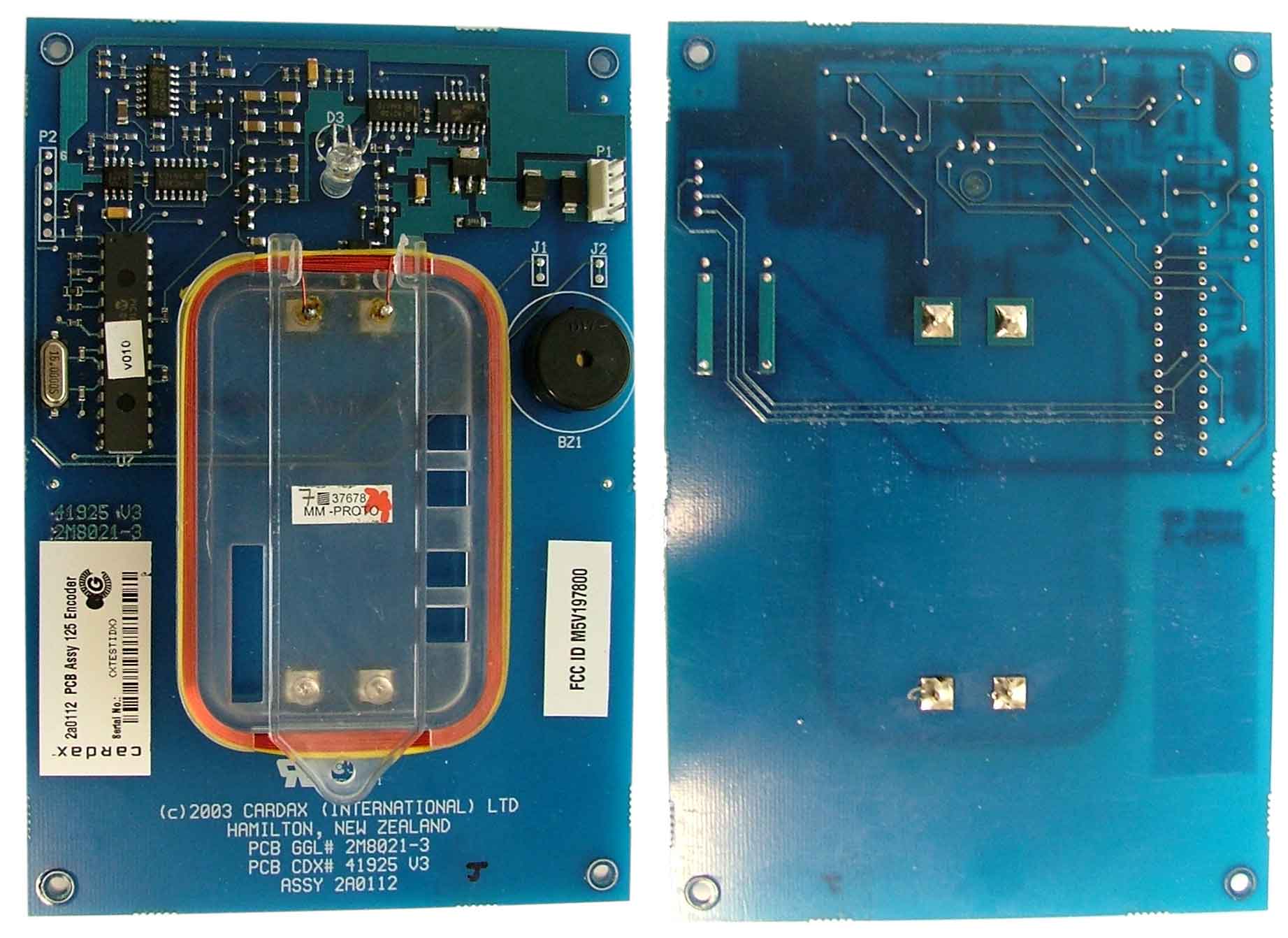

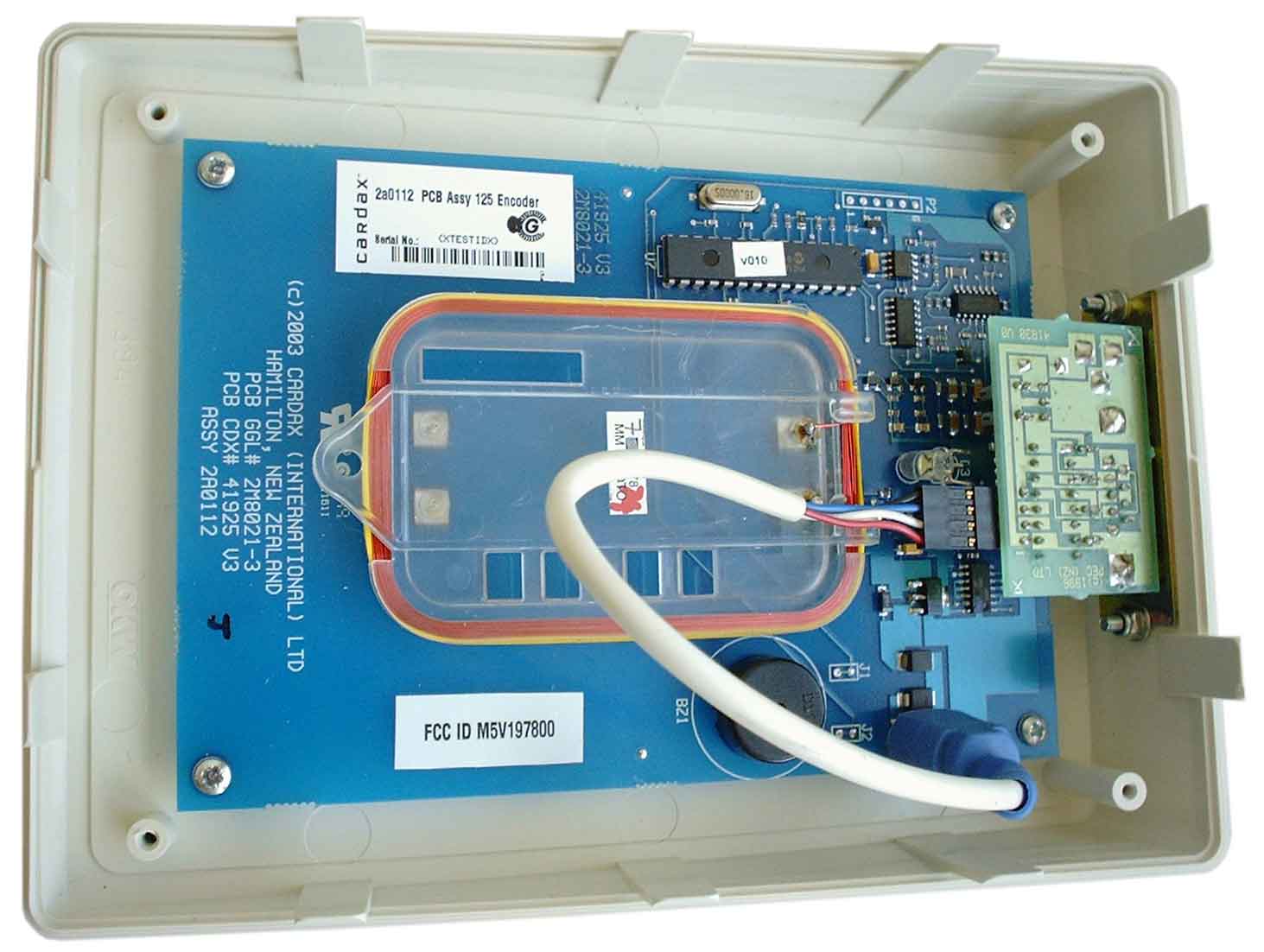

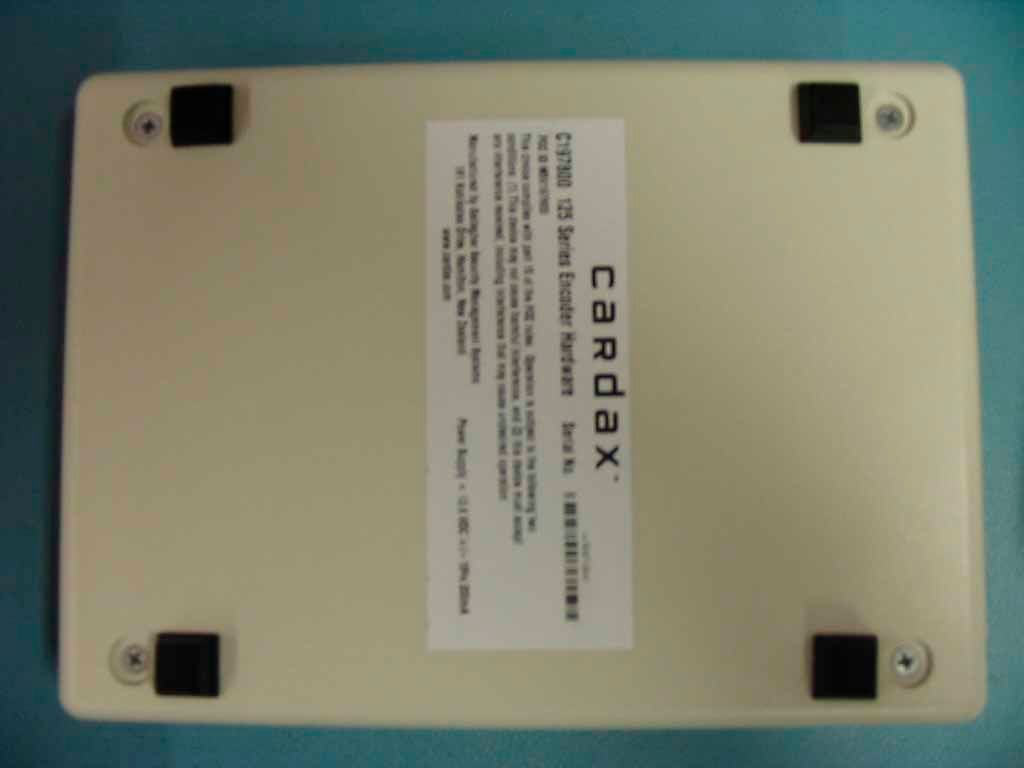

M5V197800125 Series Encoder Hardware

Gallagher Group Ltd

Click to zoom

Application Details

Equipment Class: DXT - Part 15 Low Power Transceiver, Rx Verified
Date of Grant: Mar 21, 2004
Application Purpose: Original Equipment
Date of Application: Mar 21, 2004
Equipment Note: 125 Series Encoder Hardware
Frequency Range: 0.12500000 - 0.12500000
Company: Gallagher Group Ltd
Country: New Zealand

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Installation Note Part number 3E0477 R2 1 March 2004 3E0477 R1 February 2004 Introduction The Cardax 125 Encoder is used in conjunction with the Cardax Encoder III software, for encoding and re-encoding Cardax 125 Series proximity cards. Note: The Cardax 125 Encoder will only operate correctly with the Cardax Encoder III software installed. Before you begin Unpack the Cardax 125 Encoder and check the shipment contains the following items: • 1 x Cardax 125 Encoder • 1 x Cardax 125 Encoder Installation Note (part number 3E0477) • 1 x DB9 Female / Female cable Power Supply Requirements The Cardax 125 Encoder requires a supply of 13.6 V DC ± 15% with current at 200 mA per Encoder. Cardax 125 Encoder 2 Part number 3E0477 R2 March 2004 Approvals and Standards This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Note: Changes or modifications not expressly approved by Cardax (International) Ltd could void the user's authority to operate the equipment. ACN: 002132943

Cover Letter(s)

Gallagher Group Ltd 181 Kahikatea Drive Private Bag 3026 Hamilton, New Zealand Tel: +64-7-838-9800 Fax: +64-7-838-9801 Email: [email protected] www.gallaghergroup.co.nz Companies Gallagher Group Ltd – NZ Sunplas Engineering (82) Ltd – NZ Gallagher Security (int) Ltd – NZ Gallagher Power Fence (SA) Pty – Sth Africa Gallagher Security (UK) Ltd – UK Gallagher Security (USA) Inc – USA Franklin Machinery – New Zealand PEC Pumps PEC Fuel Pumps Ltd Cardax (International) Ltd Gallagher Finance & Management Ltd Gallagher IT Solutions Ltd Reach Global Ltd Associate Companies Gallagher Europe Veldman & Djikstra Gallagher Australia Pty Ltd – Australia Gallagher Insultimber – Australia Gallagher Power Fence Inc – USA Gallagher Power Fencing Systems Inc – Canada Gallagher Power Fence (IRL) Ltd – Ireland Ibex Gallagher – India A/S Poda Hegn – Denmark NZ Producciones S.A – Argentina International Scales Pty Ltd - Australia Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 Febuary 2, 2004 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Gallagher Group Ltd requests confidentiality for the following products: FCC ID Number Product Title/Model M5V197800 Cardax Encoder (125 Series) For the product stated above, we request that the following information be held confidential: Electrical Schematics of the Circuitry Block Diagram Operational Description No other items submitted as part of the equipment authorisation filing process are deemed confidential. The above exhibits contain Gallagher Group Ltd trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our encoder. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dave Grant Test Engineer Gallagher Group Ltd Kahikatea Drive Hamilton New Zealand Phone: +64 7 838-9829 Fax: +64 7 838-9801

Test Report

EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 1 of 18 This report may not be reproduced except in full TEST REPORT Cardax 125 Encoder tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators for Gallagher Group Ltd This Test Report is issued with the authority of: ______________________________________ Andrew Cutler - General Manager Prepared By: ______________________________________ Cecilia Lam - Office Administrator EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 2 of 18 This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE 3 2. RESULTS SUMMARY 3 3. INTRODUCTION 4 4. CLIENT INFORMATION 4 5. DESCRIPTION OF TEST SAMPLE 5 6. RESULTS 5 7. TEST EQUIPMENT USED 13 8. ACCREDITATIONS 13 9. PHOTOGRAPH (S) 14 EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 3 of 18 This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Cardax 125 Encoder complies with FCC Part 15 Subpart C as an Intentional Radiator when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY Clause Parameter Result 15.201 Equipment authorisation requirement Certification required. 15.203 Antenna requirement Complies. Antenna connector unique. 15.204 External PA and antenna modifications Not applicable. No external devices. 15.205 Restricted bands of operation Complies. Device transmits on 125.0 kHz. 15.207 Conducted limits Complies with a 19.68 dB margin at 25.485 MHz (Average). 15.209 Radiated emission limits - Fundamental Complies with a 33.6 dB margin. 15.209 Radiated emission limits - Spurious emissions <30 MHz Complies with a 12.2 dB margin at 1250 kHz. 15.209 Radiated emission limits – Spurious emissions >30 MHz Complies with a 9.9 margin at 138.000 MHz. EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 4 of 18 This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements performed on the Cardax 125 Encoder for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. This report has been issued in addition to test report number 30326.3a and contains additional test results relating to tests carried out with 2 antennas attached. 4. CLIENT INFORMATION Company Name Gallagher Group Ltd Address Private Bag 3026 City Hamilton Country New Zealand Contact Mr Dave Grant EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New Zealand E-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New Zealand Web Site: www.emctech.com.au Page 5 of 18 This report may not be reproduced except in full 5. DESCRIPTION OF TEST SAMPLE Brand Name Cardax Model Number 125 Product Encoder Manufacturer Gallagher Group Ltd Country of Origin New Zealand Serial Number Not serialised 6. RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 1992 were used. Section 15.201: Equipment authorisation requirement Certification as detailed in Subpart J of Part 2 is required for this device. Section 15.203: Antenna requirement As can be seen from the attached photographs the device has an internal unique antenna that cannot be easily accessed and therefore cannot be easily modified. Result : Complies. EMC Technologies (NZ) Ltd Test Report No 40126.1 Report date: 27 January 2004 _________________…

Text truncated - open the document above for the full version.

Test Setup Photos
