M5V20025XCardax IDT (125 Series)

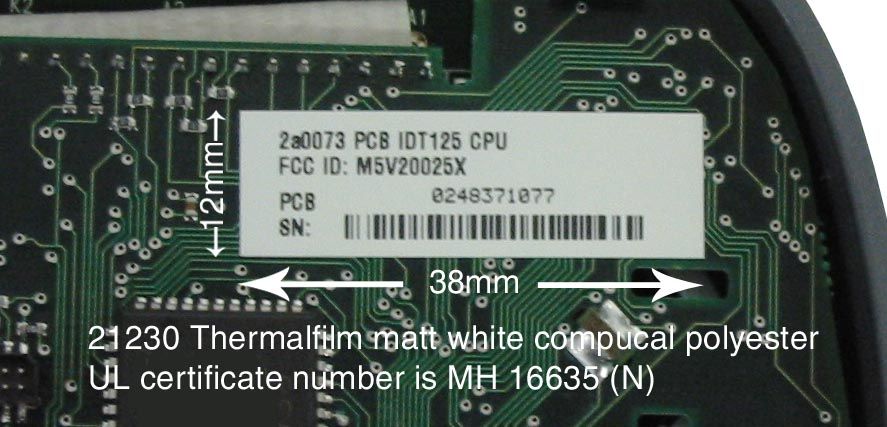

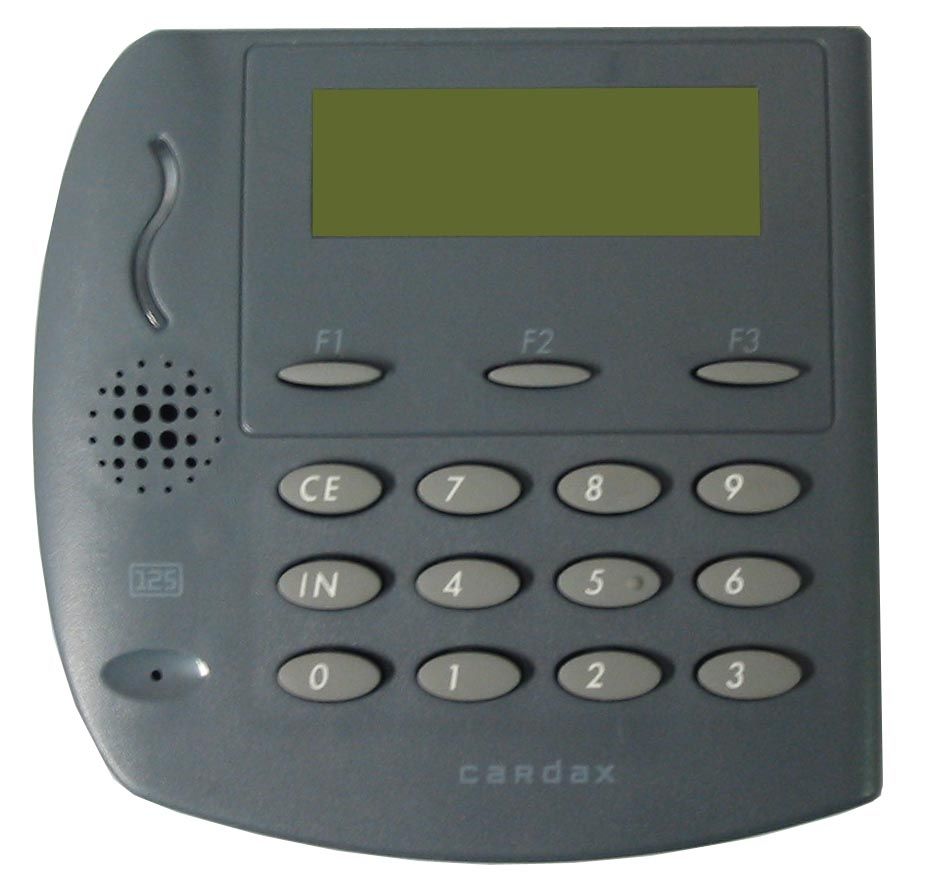

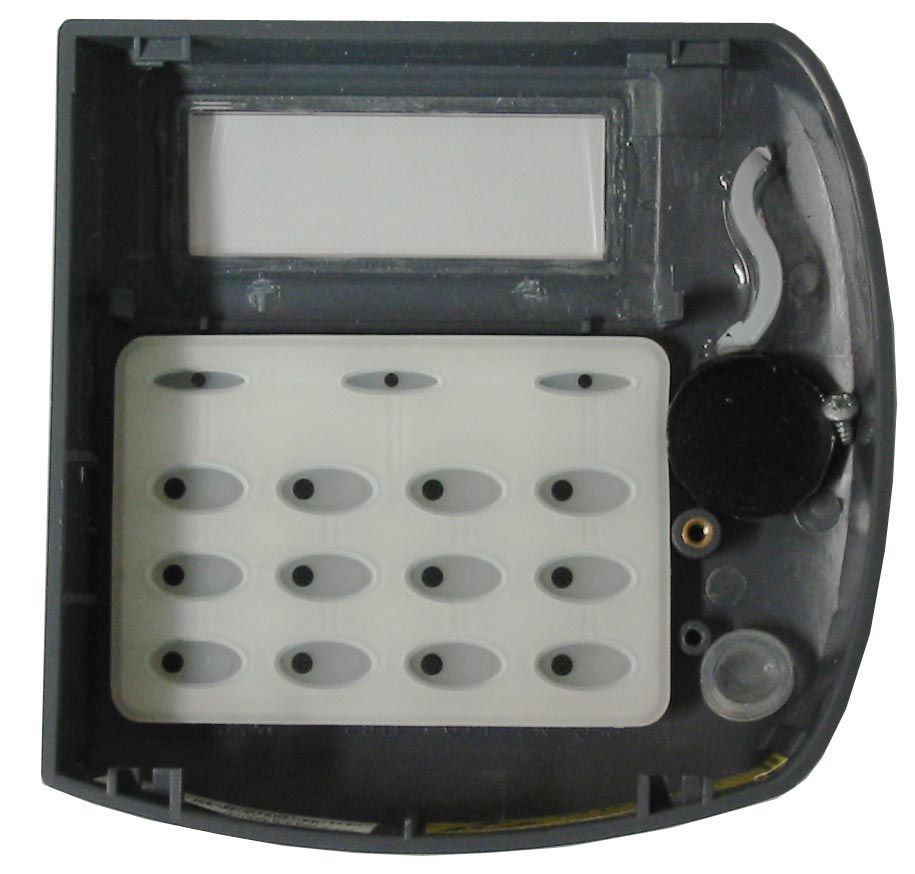

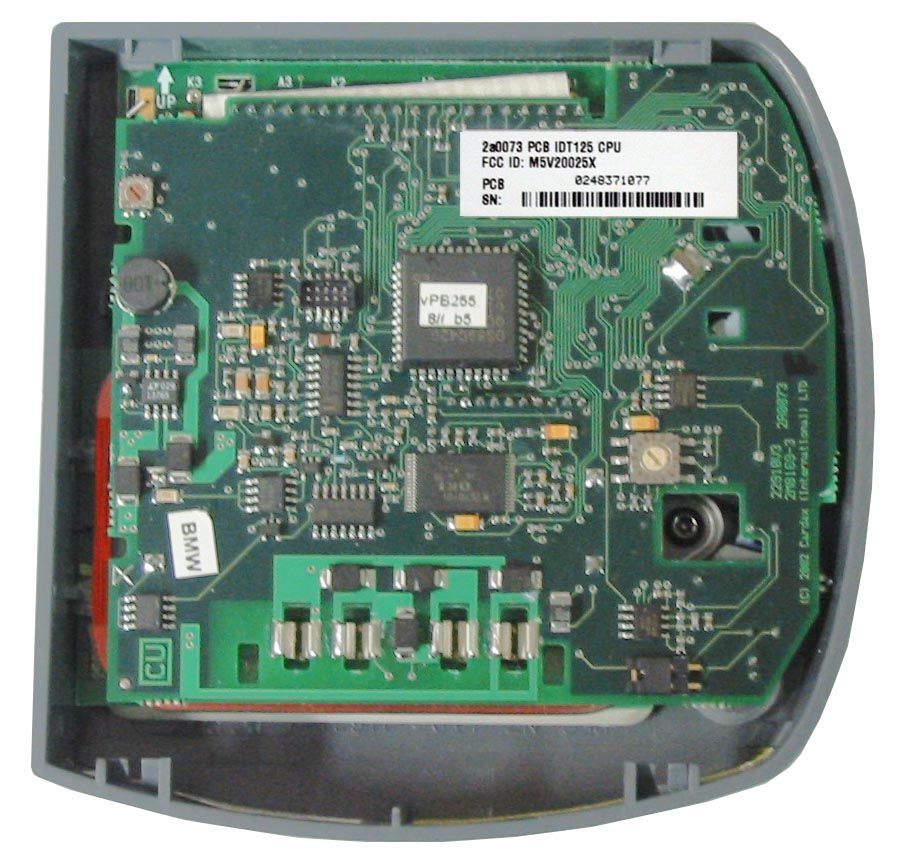

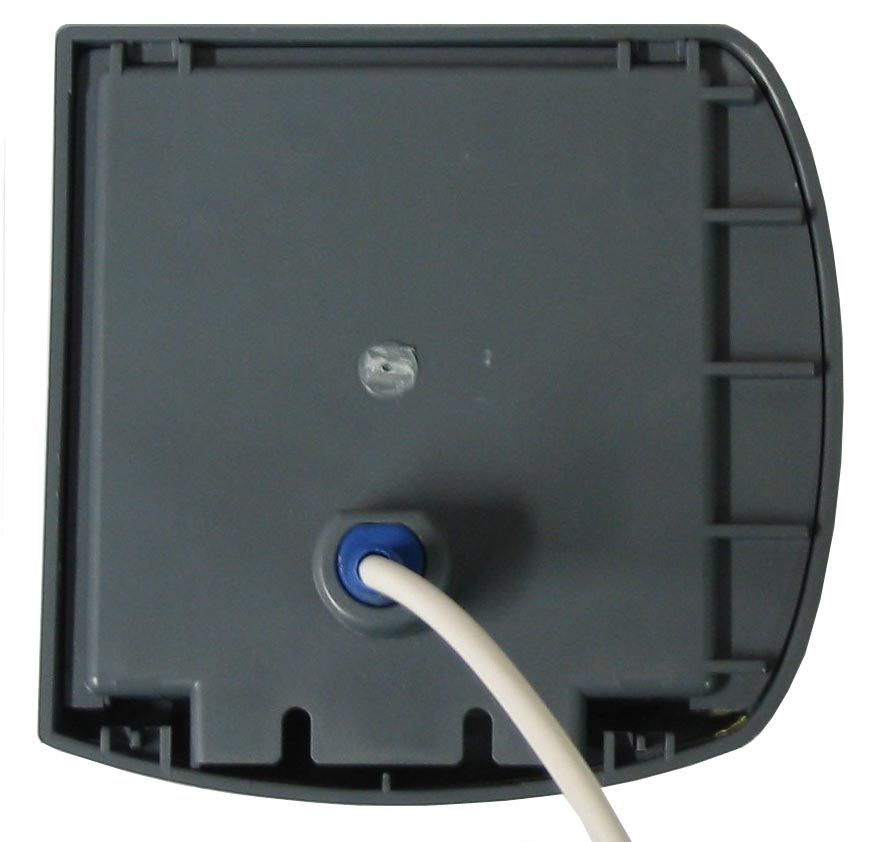

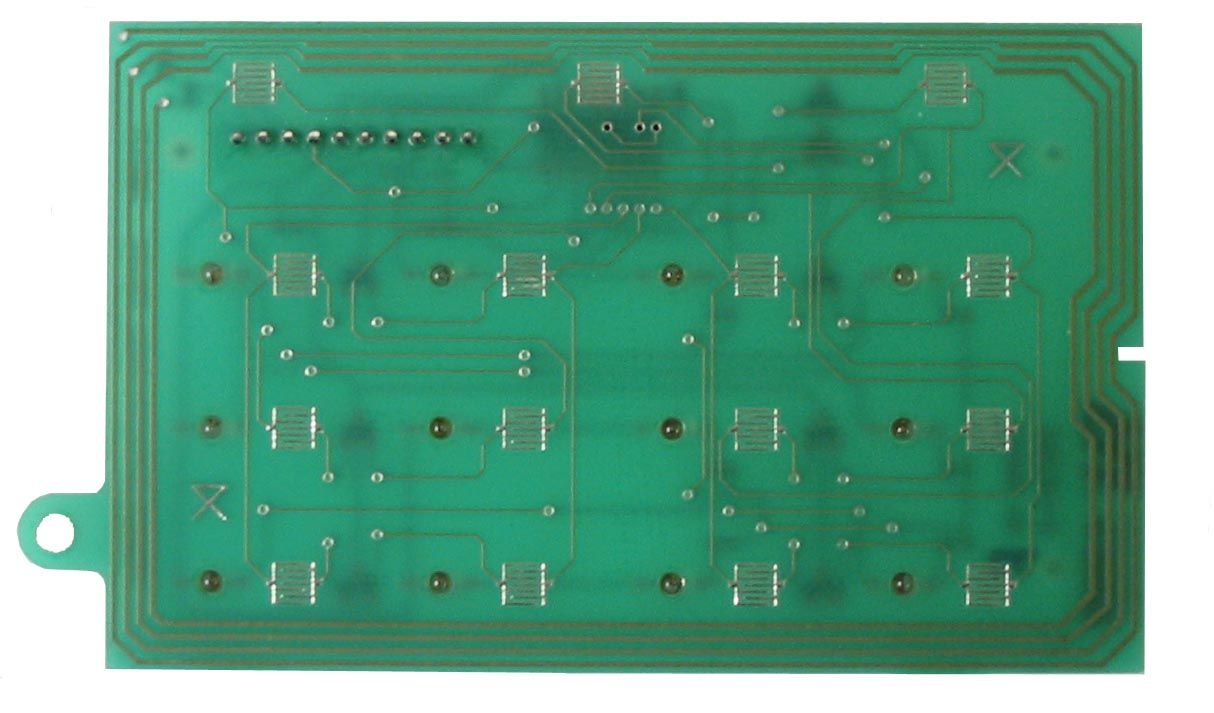

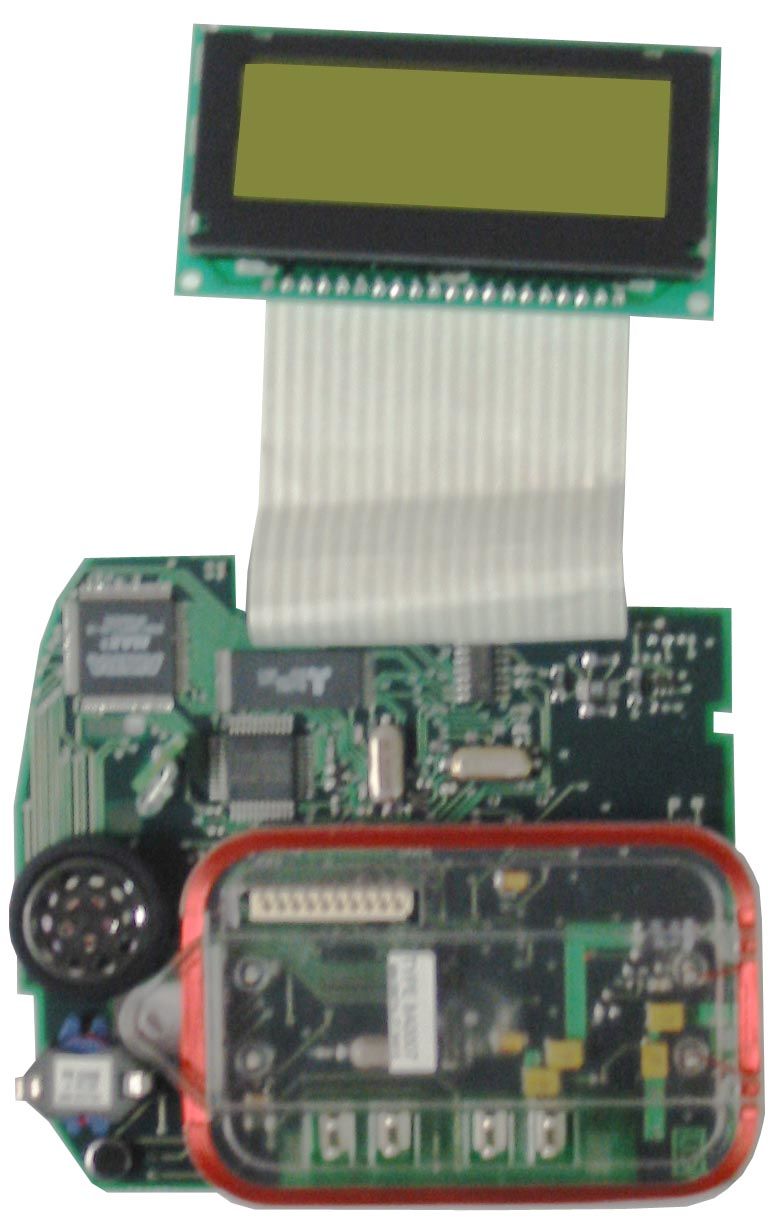

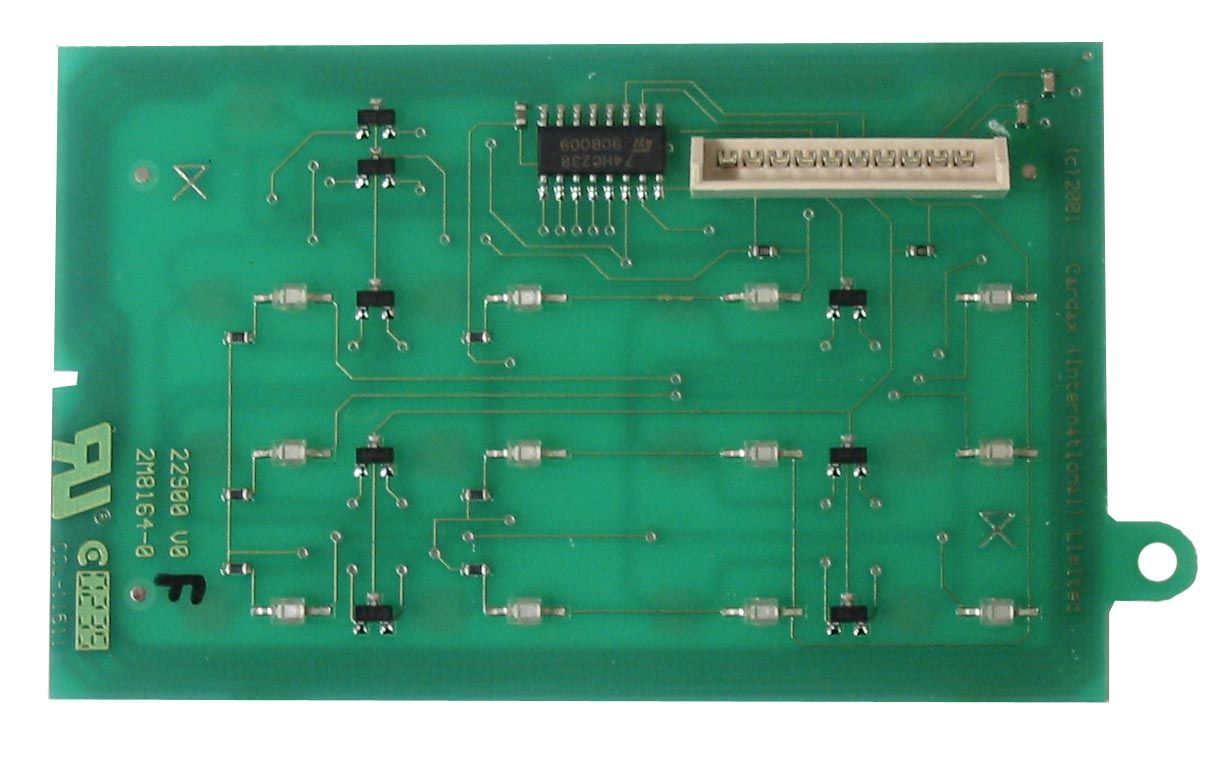

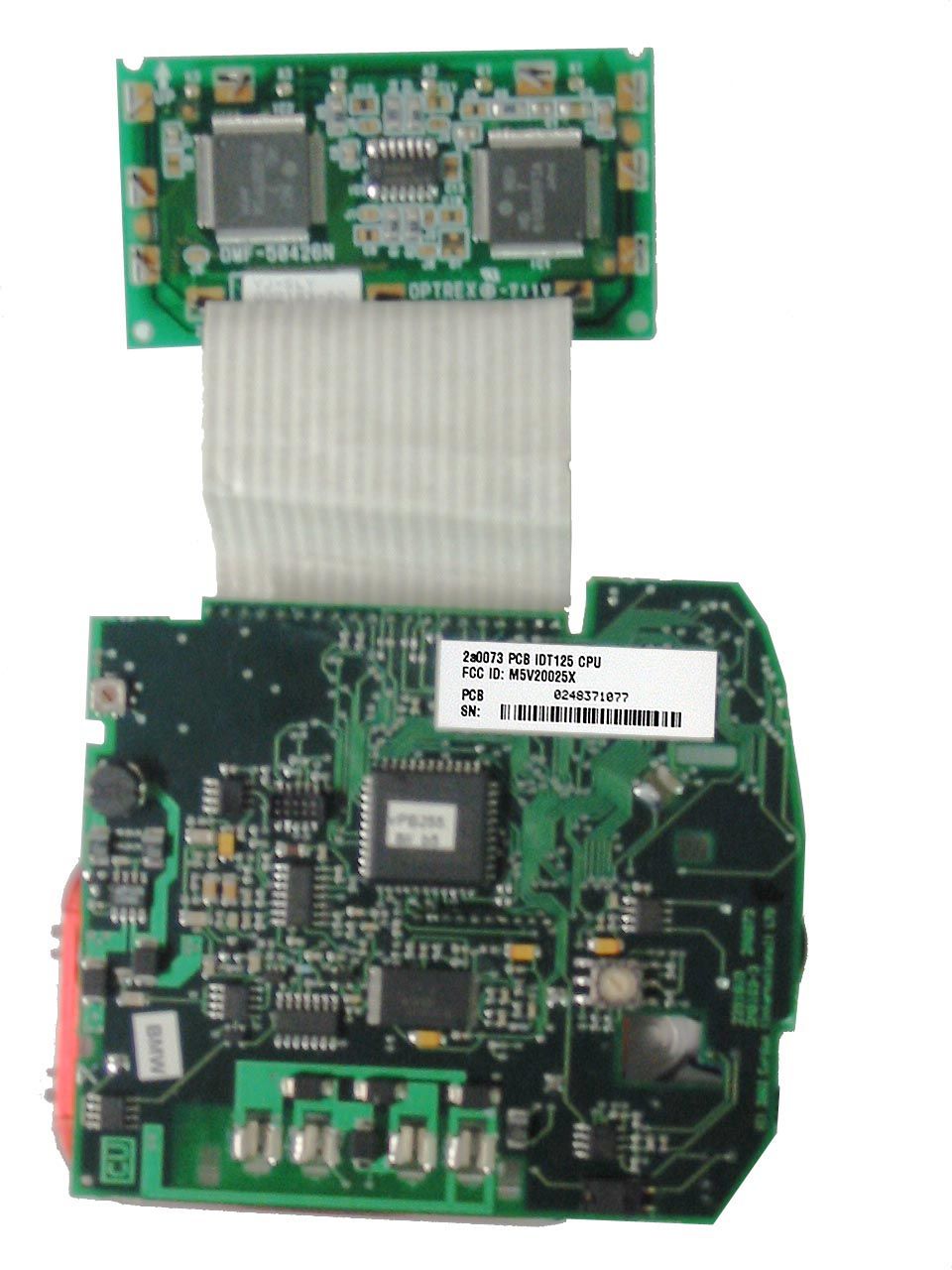

Installation Note Cardax FT Intelligent Door Terminal (125 Series) Part number 3E0054 R2 1 March 2003 CAUTION This equipment contains components that can be damaged by electrostatic discharge. Ensure both you and the equipment are earthed before beginning any servicing. 3E0054 R1 December 2002 The Cardax FT Intelligent Door Terminal (125 Series) The Cardax FT Intelligent Door Terminal (125 Series) is a "remote" proximity reader with text display and an inbuilt Intercom, designed to connect only to Cardax FT Controller 5000s. It can be installed as either an entry and/or exit reader and the Intercom enables communication with the console operator. The IDT has a back-lit keypad and an inbuilt Liquid Crystal Display (LCD). The LCD can display both text and graphics to aid the cardholder. The IDT sends information to the Cardax FT Controller and acts upon information sent from the Cardax FT Controller. The IDT itself does not make any decisions. The "Cardax FT Prox Reader and IDT Cover" can be fitted over the IDT to prevent the IDT being damaged by vandal attack and to increase protection against harsh weather. Refer to the "Prox Reader and IDT Covers" Installation Note (part number 3C4589). 2 Part number 3E0054 R2 March 2003 Before you begin Shipment contents Unpack the Cardax FT IDT (125 Series) and check the shipment contains the following items: • 1 x Cardax FT IDT (125 Series) base • 1 x Cardax FT IDT (125 Series) facia (pre-assembled with Processor, Display and Keypad PCBs) • 1 x Interconnect PCB • 1 x Cardax FT Intelligent Door Terminal (125 Series) Installation Note (part number 3E0054) • 1 x cable assembly • 4 x self tapper pan-head fixing screws • 4 x screw caps Note: Once the reader is installed, you require a special tool to open the Cardax FT IDT (125 Series). Part number C41608 is a kit containing three delatching tools, of which one is the tool required to remove the cover off the Cardax FT IDT (125 Series). Power Supply Requirements The Cardax FT IDT (125 Series) requires a well regulated power source with good output filtering. Any "noise" on the power supply may reduce card read range. Power required for the Cardax FT IDT (125 Series) is 13.6 V DC (± 15%) with current at 300mA per reader. This means that the voltage at the reader terminals, with the reader operating, should be at least 11.6 V DC. It is recommended you target a minimum of 12 V DC. Cabling Prior to installing a Cardax FT IDT (125 Series), the building cabling (RS485 and power) must have been carried out. For further cabling details, refer to Chapter 2 of the "Cardax FT Installation manual". To avoid voltage drop in cable runs, it is recommended to run separate DC power and communications cabling. However, a single cable run is possible as long as the voltage and current do not drop below the required levels. EMI Cable Shields To comply with CE, C-Tick and FCC requirements, and improve noise suppression, an EMI Cable Shield (ferrite core) should be applied to the cable, with three turns of the cable running through it. Position the EMI Cable Shield as close to the entry point of the IDT as possible. Part number 3E0054 R2 3 March 2003 RS485 Communications High quality twisted pair communications cable with low capacitance - typically Category 5 (CAT5) cable is used for communications cabling. DC Power The maximum recommended length of the DC power cable is dependant on the diameter of the conductor and the current drawn by the IDT. Mounting Note: The Cardax FT IDT (125 Series) has been designed to metric specifications therefore any imperial measurements provided are approximate only. The Cardax FT IDT (125 Series) is designed to be mounted on any solid flat surface. However, the card read range is reduced slightly when mounted on or near metal surfaces. Height The recommended mounting height (from the floor to the centre of the IDT) for the Cardax FT IDT (125 Series) is 1100mm. Check your local regulations for any variation to this recommended height. 4 Part number 3E0054 R2 March 2003 Installation Instructions 1. Considering the recommended mounting height, mark the position where the IDT is to be mounted. Note: It is very important the base of the IDT is flush with, and tight against, the mounting surface. If you are mounting the IDT on a rough surface, make the surface as smooth as possible under the IDT and up to 25mm (1 inch) around the IDT. Failure to do so may mean it could be difficult to remove the reader at a later date. 2. Drill a 20 mm ( 3 / 4 inch) diameter hole for the base extrusion through or into the mounting surface. 3. Optionally drill the four pilot holes for the fixing screws. Note: Six possible mounting points are provided on the base. Ensure the four you select will mount the IDT securely. 4. Run the building cabling through the base. 5. Fit the base to the 20 mm ( 3 / 4 inch) hole and secure it to the mounting surface using four self-tapper pan head fixing screws (supplied). 6. To comply with the environmental specification, fit the screw caps over each fixing screw. The screw caps prevent water from entering the Cardax FT IDT (125 Series) via the fixing holes. 7. Connect the cable assembly to the building cable. Red = + 12 V DC (nominal) White = Comms RS485 cable Blue = Comms RS485 cable Black = 0 V (GND) Caution The Cardax FT System does not require the RS485 cabling to be polarised but the DC power must be connected to the correct terminals. 8. Ensure the connector is pressed into grommet. 9. Plug the Interconnect PCB onto the connector and ensure it is clipped into the base. 10. Push the Interconnect PCB / Connector / grommet home into the base. Firmly clip the Interconnect PCB under the retaining clips in the base. 11. If this Cardax FT IDT (125 Series) is the last unit on this RS485 cable, connect the supplied jumper across the "RS485 Termination" link on the main board in the bottom right corner. (Refer to "Component layout" next.) 12. Set the unit address of the IDT as detailed …

Text truncated - open the document above for the full version.

Gallagher Group Ltd 181 Kahikatea Drive Private Bag 3026 Hamilton, New Zealand Tel: +64-7-838-9800 Fax: +64-7-838-9801 Email: [email protected] www.gallaghergroup.co.nz Companies Gallagher Group Ltd – NZ Sunplas Engineering (82) Ltd – NZ Gallagher Security (int) Ltd – NZ Gallagher Power Fence (SA) Pty – Sth Africa Gallagher Security (UK) Ltd – UK Gallagher Security (USA) Inc – USA Franklin Machinery – New Zealand PEC Pumps PEC Fuel Pumps Ltd Cardax (International) Ltd Gallagher Finance & Management Ltd Gallagher IT Solutions Ltd Reach Global Ltd Associate Companies Gallagher Europe Veldman & Djikstra Gallagher Australia Pty Ltd – Australia Gallagher Insultimber – Australia Gallagher Power Fence Inc – USA Gallagher Power Fencing Systems Inc – Canada Gallagher Power Fence (IRL) Ltd – Ireland Ibex Gallagher – India A/S Poda Hegn – Denmark NZ Producciones S.A – Argentina International Scales Pty Ltd - Australia Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 March 6, 2003 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, Gallagher Group Ltd requests confidentiality for the following products: FCC ID Number Product Title/Model M5V20025X Cardax IDT (125 Series) For the product stated above, we request that the following information be held confidential: Electrical Schematics of the Circuitry Block Diagram Operational Description No other items submitted as part of the equipment authorisation filing process are deemed confidential. The above exhibits contain Gallagher Group Ltd trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our Reader. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Dave Grant Test Engineer Gallagher Group Ltd Kahikatea Drive Hamilton New Zealand Phone: +64 7 838-9829 Fax: +64 7 838-9801

EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 1 of 18This report may not be reproduced except in full TEST REPORT Cardax FT 1DT 125 Series Card Reader tested to 47 Code of Federal Regulations Part 15 - Radio Frequency Devices Subpart C – Intentional Radiators for Gallagher Group Ltd This Test Report is issued with the authority of: _____________________________________ Andrew Cutler - General Manager Prepared by: _____________________________________ Karen Miller – Office Administrator EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 2 of 18This report may not be reproduced except in full Table of Contents 1. STATEMENT OF COMPLIANCE3 2. RESULTS SUMMARY3 3. INTRODUCTION4 4. CLIENT INFORMATION4 5. DESCRIPTION OF TEST SAMPLE5 6. RESULTS5 7. TEST EQUIPMENT USED14 8. ACCREDITATIONS14 9. PHOTOGRAPHS15 EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 3 of 18This report may not be reproduced except in full 1. STATEMENT OF COMPLIANCE The Cardax FT 1DT 125 Series Grey Card Reader complies with FCC Part 15 Subpart C as an Intentional Radiator when the methods, as described in ANSI C63.4 - 1992, are applied. 2. RESULTS SUMMARY The results from testing are summarised in the following table: ClauseParameterResult 15.201Equipment authorisation requirement Certification required. 15.203Antenna requirementComplies. Antenna integral. 15.204External PA and antenna modifications Not applicable. No external devices. 15.205Restricted bands of operationComplies. Device transmits on 125 kHz. 15.207Conducted limitsComplies with a 3.7 dB margin at 505 kHz. 15.209Radiated emission limits - Fundamental Complies with a 34.1 dB margin. 15.209Radiated emission limits - Spurious emissions <30 MHz Complies with a 39.8 dB margin at 625 kHz. 15.209Radiated emission limits – Spurious emissions >30 MHz Complies with a 1.7 dB margin at 64.000 MHz. Measurement falls within the window of uncertainty. EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 4 of 18This report may not be reproduced except in full 3. INTRODUCTION This report describes the tests and measurements performed on the Cardax FT 1DT 125 Series Grey Card Reader for the purpose of determining compliance with the specification. The client selected the test sample. This report relates only to the sample tested. This report contains no corrections or erasures. Measurement uncertainties with statistical confidence intervals of 95% are shown below test results. Both Class A and Class B uncertainties have been accounted for, as well as influence uncertainties where appropriate. 4. CLIENT INFORMATION Company NameGallagher Group Ltd AddressPrivate Bag 3026 CityHamilton CountryNew Zealand ContactMr Dave Grant EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 5 of 18This report may not be reproduced except in full 5. DESCRIPTION OF TEST SAMPLE Brand Name Cardax Model Number FT 1DT 125 Series Product Card Reader ManufacturerGallagher Group Country of Origin New Zealand Serial Number 0248371077 6.RESULTS Standard The sample was tested in accordance with 47 CFR Part 15 Subpart C. Methods and Procedures The measurement methods and procedures as described in ANSI C63.4 - 1992 were used. Section 15.201: Equipment authorisation requirement Certification as detailed in Subpart J of Part 2 is required for this device. Section 15.203: Antenna requirement As can be seen from the attached photographs the antenna requirement does not apply to this transmitter, as the antenna is integral to the device. Result: Complies. EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 ____________________________________________________________________________…

Text truncated - open the document above for the full version.

EMC Technologies (NZ) Ltd Test Report No 21216.2 Report date: 16 January 2003 __________________________________________________________________________________________________________________________________________________________________________________ EMC Technologies (NZ) Ltd Telephone: +64 9 360 0862 Fax: +64 9 360 0861 STREET ADDRESS - 47 MacKelvie Street, Grey Lynn, Auckland, New ZealandE-mail: [email protected] POSTAL ADDRESS - PO Box 68 307, Newton, Auckland, New ZealandWeb Site: www.emctech.com.au Page 17 of 18This report may not be reproduced except in full Radiated emissions test set up
