M5ZWOWANAPart 15.231(e) Wireless voltage sensor

FCC ID: M5ZWOWANA Installation and Operation Instructions for the Wireless Analog Sensor. Point Six, Inc. Wireless Analog Sensor Model WOWANA Installation and Operation Instructions The WOWANA wireless analog level sensor transmits a digital value representing either 0-20 MilliAmp, 0-5Volt or 0-10Volt levels and a unique serial number to a 418 MHz receiver. The WOWANA is enclosed in a high impact ABS enclosure for direct surface mounting in the environment to be measured. WOWANA is battery operated Application: Apply the sensor to a surface to with double-sided adhesive tape. Make sure that the side labeled with FCC ID is visible and away from any metal surfaces. Service Function: The wireless analog sensor has an installation mode switch. A momentary push of this switch will start the convert/transmit cycles. When new and until this button is pushed the WOWANA will not transmit. The WOWANA will transmit a special installation status mark in the data packet immediately after the installation/start switch is pushed. After the start a push of the installation switch will result in the immediate transmission of data and ID and installation status mark. Battery: A 3.0-3.6 Volt lithium battery powers the WOWANA wireless sensor. The battery will last for more than 10 years in the idle state (as shipped from the manufacturer). The WOWANA will transmit data for as long as 3 years at a rate of once each minute once started. The WOWANA is completely covered with a water resistant rubber coating to protect the electronics from the environment and condensation. The user cannot replace the battery. The WOWANA may be placed in a quiescent state (battery life greater than 10 years) by holding the installation switch closed for more than 12 seconds. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESERED OPERATION FCC ID: M5ZWOWANA MADE IN USA FCC ID: M5ZWOWANA Wireless Analog Sensor Data Format The Point Six, Inc. 418 MHz wireless sensors require a compatible receiver with the ability to receive, error check and provide RS232 and RS422/485 interface. This document describes the data format provided by the HA8-wow 418 MHz. Receiver. The transmit packet from a receiver is approximately 15 milliseconds in duration and consists of 13 bytes of data: 1-byte ID/Mode field 8-byte serial number 2-byte analog level as a 12-bit number 2-byte CRC-16 error check The HA8-wow receiver processes this packet. The receiver performs a CRC-16 error check on the packet. If the data is not accurate it is discarded. When a packet is received that is error free it is converted to a 29-character packet and transmitted out the serial port at 19,200 Baud. The data is transmitted serially in ASCII Hex format and terminated with a CR character. This format requires two bytes for each byte of data; 14 data bytes x 2=28 plus the CR is 29 characters. See the HA8-wow specification for details. The resulting binary data format of the packet is: 1-byte ID field this field will contain a byte whose LSBit indicates the service state of the transmitter, 0=normal, 1=service mode. 8-byte serial# this field contains the serial number of the 1-Wire sensor. 2-byte data this field contains the analog data as a 12-bit number stored MSB first. A value of 0FFF is a full scale reading and represents 20 milliamp. A zero input level will result in a reading of 0000. 2-byte CRC-16 this is the originally received data packet CRC as described above. 1-byte checksum the checksum is a mod 256 sum of all the ASCII character values in the response but does not include the CR FCC ID: M5ZWOWANA Example: C1 283FA60B000000EC000F8AD0AB<CR> This field is the mode indicator, the LS-bit which indicates the service state of the transmitter, C1=normal, C0=service mode. C1283FA60B000000EC 000F8AD0AB <CR> This field is the unique serial number of the 1-Wire sensor. C1283FA60B000000EC000F 8AD0AB <CR> This is analog data field stored MSByte first as a 12-bit number in a 16-bit field. The number shown is 000F (15) or 15/4096 of full scale. If this is a 0-20 milliamp input this would be .07 MilliAmp. If the input is 0-5 Volts this would be 0.0183 Volts. C1283FA60B000000EC000F8AD0 AB <CR> This field is the CRC-16 error check as was originally received and checked. This CRC is over the first 11 bytes of the packet starting with the mode flags and ending with inclusion of the temperature data. C1283FA60B000000EC000F8AD0AB <CR> This field is the mod 256 sum of all the ASCII character values in the response but does not include the <CR>. C828AE9105000000AA2D2DD474AB <CR> This is the CR terminator, 0Dhex. FCC ID: M5ZWOWANA FCC Radio Frequency Interference Statement Wireless Analog Sensor FCC ID: M5ZWOWANA NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15, Subpart B, of the FCC Rules. This equipment generates, uses, and can radiate radio frequency energy. If not installed and used in accordance with the instructions, it may cause interference to radio communications. The limits are designed to provide reasonable protection against such interference in a residential situation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: ß Reorient or relocate the receiving antenna of the affected radio or television ß Increase the separation between the equipment and the affected receiver. ß Connect the equipment and the affected receiver to power outlets on separate circuits. ß Consult the dealer or an experienced radio/TV technician for h…

Text truncated - open the document above for the full version.

dBi Corporation Point Six, Inc. 391 Codell Drive Lexington, KY. 40509, USA November 10, 2000 Federal Communications Commission Equipment Approval Services re: FCC ID: M5ZWOWANA Gentlemen: Enclosed please find the Point Six, Inc. application for FCC Certification of the Point Six Wireless Analog Sensor, Models WOW-5V, WOW-10V and WOW-20ma. The test data submitted as part of this application were prepared by the dBi Corporation located at 131 French Ave, Winchester, KY. dBi Corporation has A2LA accreditation for EMC testing. Certificate number 1012.01 is valid to October 31, 2001. The facility used for radiated measurements is owned by Lexmark International, Inc. and was recognized by the Commission as meeting the requirements of section 2.948 of the Rules via a letter dated August 20, 1998. We submit the information in this application pursuant to the requirements of section 2.1033 and Part 15 of the Federal Communications Commission Rules and Regulations. We request that the Commission grant equipment authorization as soon as it is determined that the attached Application for Equipment Authorization is acceptable. We further request that the schematics and block diagrams of the Point Six Wireless Analog Sensor, Models WOW-5V, WOW-10V and WOW-20ma, be treated as confidential information as provided for in 47 CFR Section 0.459 (d) (2). Point Six considers this information to be a trade secret. The schematics and block diagrams are in Word files (included with this application) and are listed as 00dBi025(Schematics) and 00dBi025(Block-Diag) respectively. Thank you in advance for your assistance. If further information is required concerning this application, please do not hesitate to contact me. Sincerely John I. Compton President, Point Six, Inc. dBi Corporation FCC ID: M5ZWOWANA List of Exhibits 1. Cover Letter, Word file 00dBi025(Cover-Ltr) 2. FCC 731 Form, Word file 00dBi025(731) 3. Test Report, Word file 00dBi025(Test-Report) 4. FCC Label Information, Word file 00dBi025(FCC-Label) 5. Operational Description, Word file 00dBi025(Op-Discrp) 6. Functional Block Diagram (Confidential), Word file 00dBi025(Block-Diag) 7. Schematics (Confidential), Word file 00dBi025(Schematics) 8. Transmitted Bandwidth Measurements, Word file 00dBi025(BW-Meas) 9. Users Manual, Word file 00dBi025(User's Man) 10. External Pictures, Word file 00dBi025(External-Pics) 11. Internal Pictures, Word file 00dBi025(Internal-pics) 12. Setup Pictures, Word file 00dBi025(Setup-pics)

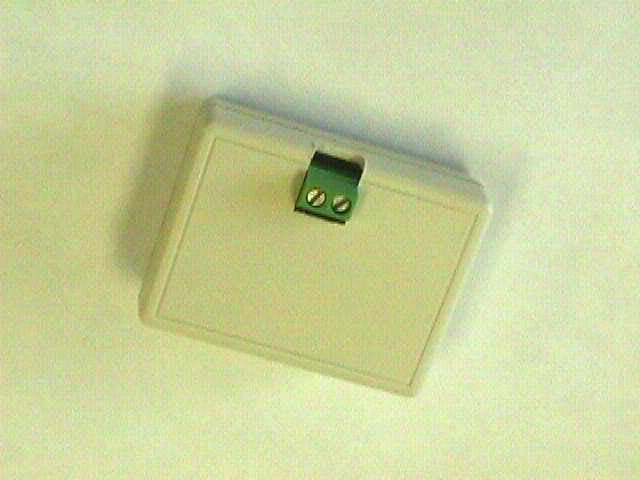

FCC ID: M5ZWOWANA Point Six Wireless Analog Sensor Exterior Overall View

FCC ID: M5ZWOWANA FCC label and location of label on the product. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES, OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESERED OPERATION FCC ID: M5ZWOWANA MADE IN USA FCC ID Label shown on the bottom of Wireless Analog Sensor, Model WOWANA

FCC ID: M5ZWOWANA Top View of the Point Six Wireless Analog Sensor Circuit Board FCC ID: M5ZWOWANA Bottom View of the Point Six Wireless Analog Sensor Circuit Board

FCC ID: M5ZWOWANA Operational description of the Wireless Analog Sensor, Model WOWANA Description of the circuit functions, ground system and antenna of the Point Six, WOWANA Wireless transmitter The WOWANA wireless analog data transmitter is a lithium battery operated, microprocessor based, 418 MHz. transmitter that transmits both analog data and a unique 64-bit serial number. The microprocessor is brought up from a power down state every 4 seconds by a DS2417 time of day clock interrupt output. Analog data are taken from a 12-bit ADC. The DS18B20 digital temperature sensor has a unique 64-bit serial number that can be read by the microprocessor. The microprocessor counts the 4-second interrupt cycles from the DS2417 clock until the transmit period has expired. The microprocessor then reads the analog value from the ADC, combines it with the serial number and transmits the entire data packet serially with a Linx Technologies TXM-418-LC-R 418 MHz. Transmitter module. The microprocessor then powers down into a quiescent state to wait for the next interrupt from the DS2417 clock. The PC board bottom layer is a ground plane and the antenna is a 1/4-wave loop that has been hot upset into the ABS cover to form a spiral. The entire electronics is coated with a rubber conformal coating to protect it from condensation. The ground plane (bottom layer) is not coated.

Test Report FCC ID: M5ZWOWANA EUT: Wireless Analog Sensor, Models WOW-5V, WOW-10V and WOW-20ma. Manufactured by: Point Six, Inc. 391 Codell Drive Lexington, KY. 40509 Measurements According to: ANSI C63.4 (1992) Measurement Date: October 16, 2000 Testing Performed at: Lexmark International, Inc. Registered Open Field Test Site Development Lab. 740 New Circle Road, NW. Lexington, KY. 40511-1876 Accreditation Status of Test Facility: The Lexmark site was recognized by the Commission as meeting the requirements of section 2.948 of the FCC Rules via a letter dated August 20, 1998 and is presently on file with the Commission. Test Report FCC ID: M5ZWOWANA Testing Results: Harmonic Freq. (MHz) Meter Peak dB Meter Average dB Ant & Cable Factors dB/uV/m Total Peak dB/uV/m Limit Peak dB/uV/m Total Average dB/uV/m Limit Average dB/uV/m 1 418 72.00 33.00 19.28 91.28 92.78 52.28 72.30 2 836 4.0 QP - 25.16 29.16 QP 46.00 QP - - 3 1254 18.32 4.17 24.60 42.92 74.00 28.77 54.00 4 1672 19.86 -2.66 26.50 46.36 74.00 23.84 54.00 5 2090 18.64 -2.31 28.10 46.74 74.00 25.79 54.00 6 2508 18.15 -1.95 29.80 47.95 74.00 27.85 54.00 7 2926 10.79 -1.55 31.50 42.29 74.00 29.95 54.00 8 3344 12.92 -1.78 31.90 44.82 74.00 30.12 54.00 9 3762 13.48 -1.55 32.40 45.88 74.00 30.85 54.00 10 4180 12.33 -1.76 32.90 45.23 74.00 31.14 54.00 Sample Calculation: From FCC Rules, Paragraph 15.231(e) Frequency: 260-470 MHz. Amplitude: 1500-5000 uV/m For 418 MHz. L(limit)=((418-260)/(470-260))(5000-1500)+1500 L = 4133 uV/m L(dB/uV/m) = 20 Log (4133) L = 72.3 dB/uV/m (AVG) L(Peak) = Avg. + 20 dB L(Peak) = 72.3 + 20 = 92.3 dB/uV/m Signed:________________________________Date:_____________ D.R. Bush, PE, NCE, President dBi Corporation

FCC ID: M5ZWOWANA The photo below indicates that the 20 dB transmitted bandwidth of the Point Six Wireless Analog Sensor is 47 kHz. This is well within the maximum bandwidth specified by 47CFR15.233(c).

Page 1 of 1 12/5/00 Barry C. Quinlan From:"john i. compton" <[email protected]> To:"'Barry C. Quinlan'" <[email protected]> Sent:Monday, December 04, 2000 9:44 AM Subject:RE: FCC ID: M5ZWOWANA Barry, I spoke with Don Bush of dBi Corp this morning to confirm that the cable used was a two conductor non- shielded cable of 1 meter length. You may communicate directly with Don Bush on this subject if you need. Thanks, John ref: Donald R. Bush tel 606-744-8695 dBi Corporation or [email protected] -----Original Message----- From: Barry C. Quinlan [mailto:[email protected]] Sent: Friday, December 01, 2000 9:10 AM To: John I Compton Subject: FCC ID: M5ZWOWANA John, I have only one issue with this application. I have noted from the test setup photo the product was tested in accordance with the FCC rules with the cable and external sensor. Please can you state the length of the cable and whether it was shielded. If the cable length is less than 1 meter please justify the reason for this length. Best regards Barry C. Quinlan Certification Manager Curtis-Straus LLC

FCC ID: M5ZWOWANA Radiated Test Setup Picture of the Point Six Wireless Analog Sensor
