M65H1AF3002-Way Car Alarm Transceiver Unit

SH5410 WIRING DIAGRAM RED (+)12 VDC BLACK GROUND YELLOW IGNITION(+) ORANGE (-)STARTER DISABLE WHITE (+)PARK LIGHT BROWN (+)SIREN BLUE HOOD INPUT(-) GREEN DOOR INPUT(-) PURPLE DOOR INPUT(+) PINK HI-JACK ENABLE (+) TO ANY (+) SWITCH OR TOGGLE SWITCH GRAY (-)500mA AUXILIARY OUTPUT”1” WHITE/RED (-)500mA AUXILIARY OUTPUT”2” BLACK/WHITE (-)500mA DOME LIGHT BLUE N/C GREEN COM UNLOCK PURPLE/WHITE N/O GRAY N/C WHITE COM LOCK PURPLE N/O (F1WE-2) (HI-JACK) (-)LOCK (-)UNLOCK FOR (-) TRIGGER DOOR LOCK PURPLE/WHIT E PURPLE WHIT E GRAY GREEN BLU E FOR (+) TRIGGER DOOR LOCK PURPLE/WHIT E PURPL E WHITE GRAY GREEN +12V (+)LOCK (+)UNLOC K BLU E FOR ACTUATOOR DRIVE DIRECTLY +12V PURPLE/WHIT E PURPL E WHITE GRAY GREEN (+)(-)LOCK (-) (+)(-)UNLOC K BLU E ( MICRO WAVE, ULTRASONIC, GLASS etc. ) SHOCK SENSOR OVERRIDE SWITCH OPTIONAL SENSOR LED (OPTIONA DAY / NIGHT SENSOR 15 Amp FUSE (CUT OFF: ENABLE CURRENT SENSOR) $ (SHOCK WITH CURRENT SENSOR OPTIONAL) When remove mini-jumper “7” to be open ” condition on Disable relay become Normal open (N/O) system” D-Connector must turn 180 for (N/O) purpose * Very Important mini-jumper “7” must in “shortage” condition D-Connector ORANGE ORANGE ORANGE N/C COM N/OC +12VDC (OPTIONAL) (OPTIONAL) STARTER KILLER STARTER SOLENOID $ KEY P4

From: S. S. Liou [[email protected]] Sent: Monday, June 23, 2003 8:47 PM To: Mike Kuo Subject: Re: SUPER NOVA CO., LTD., FCC ID:M65H1AF300, AN03T2900 Hi Mike, 1. This device is the car unit of the 2- Way System. It receive RF signal from remote controller (hand unit) and send the message via 3-pin wire to base unit which connect to car computer system. It also respond message by sending RF signal to remote controller (hand unit). This system needs professional installation. Please refer to the wiring diagram of base unit and revised user manual for professional installation ststement. 2. Please refer to revised page 1 of test report. 3. The three orthogonal axes were investigated by changing the orientation of antenna in three orthogonal direction. 4. Please refer to revised request of confidentiality letter. 5. Please refer to revised user manual. regards, S. S. Liou Engineer / EMC Dep. II ETC ----- Original Message ----- From: "Mike Kuo" <[email protected]> To: "ETC/Iris (E-mail)" <[email protected]> Cc: "Will Yauo (E-mail)" <[email protected]>; "Willyauo (E-mail)" <[email protected]> Sent: Thursday, June 12, 2003 6:00 AM Subject: FW: SUPER NOVA CO., LTD., FCC ID:M65H1AF300, AN03T2900 > > > -----Original Message----- > From: CERTADM > Sent: Wednesday, June 11, 2003 2:59 PM > To: '[email protected]' > Subject: SUPER NOVA CO., LTD., FCC ID:M65H1AF300, AN03T2900 > > > Notice_content > ------------- > Question #1: Standard RCA antenna connector is used. Per section 7.2 of > test report, the justification for allowing standard antenna connector is to > require professional installation on this device. Please provide user > manual and installation manual for this device. Make sure the professional > installation statement is included in the user manual. The user manual > submitted in this application is for the remote transmitter which provides > no description on the car unit. > > Question #2: Section 1.2 of test report provides description of this device > which does not match with the function of this device. Please make > necessary correction. > > Question #3: Section 4.2 (A) of test report with description of preliminary > radiated test procedures. It mentioned three orthogonal axes were > investigated during the preliminary radiated tests. Please explain how > three orthogonal axes were investigated and how the device was positioned. > > Question #4: In the request for confidentiality letter, it mentioned " > request for confidentiality on some of exhibits submitted ". Please be > specific on the name of exhibits. Submit revised request letter. > > Question #5: RF exposure is not required for part 15.231 device. Please > remove such statement from the user manual. > > Best Regards > > Mike Kuo > The items indicated above must be submitted before processing can continue > on the above referenced application. Failure to provide the requested > information within 60 days of the original e-mail date may result in > application dismissal and forfeiture of the filing fee. Also, please note > that partial responses increase processing time and should not be submitted. > Any questions about the content of this correspondence should be directed to > the e-mail address listed below the name of the sender.

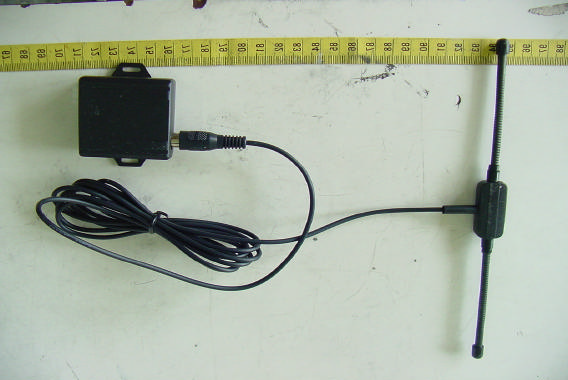

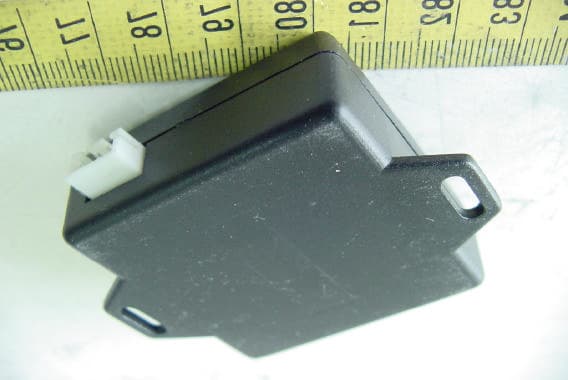

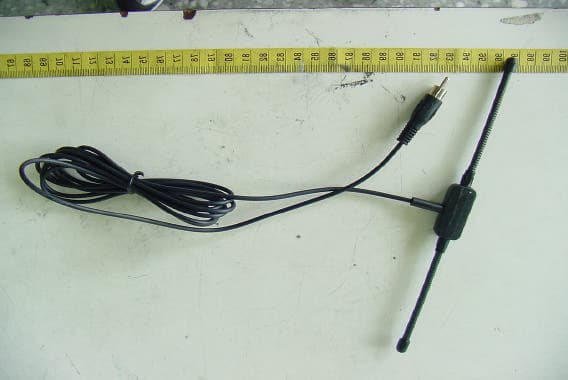

ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 CONSTRUCTED PHOTOS of EUT Front View of EUT Rear View of EUT ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 CONSTRUCTED PHOTOS of EUT Top View of EUT Top View of Anttenna

ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 CONSTRUCTED PHOTOS of EUT Internal View of EUT Component View of PCB 1 ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 CONSTRUCTED PHOTOS of EUT Solder View of PCB 1

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Transmitter Of The 2- Way System FCC ID. : M65H1AF300 MODEL : H1AF300 Working Frequency : 433.920 MHz (TX) / 433.720 MHz (RX) for APPLICANT : Super Nova CO., LTD. ADDRESS : NO. 34, WU-CHUAN RD., WU-KU IND. ZONE WU-KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052 Fax:(02)26010910 http// [email protected] Report Number : ET92R-04-090-01 ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Super Nova CO., LTD. NO. 34, WU-CHUAN RD., WU-KU IND. ZONE WU-KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Manufacturer : Super Nova CO., LTD. NO. 34, WU-CHUAN RD., WU-KU IND. ZONE WU-KU HSIANG, TAIPEI HSIEN, TAIWAN, R.O.C. Description of EUT : a) Type of EUT : Transmitter Of The 2- Way System b) Trade Name : ---- c) Model No. : H1AF300 d) FCC ID : M65H1AF300 e) Working Frequency : 433.920 MHz (TX) / 433.720 MHz (RX) f) Power Supply : DC 12V Regulation Applied : FCC Rules and Regulations Part 15 Subpart C (2002) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date : May. 25, 2003 Test Engineer : ( Falcon Shi ) Approve & Authorized Signer : Will Yauo, Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET92R-04-090-01 FCC ID.: M65H1AF300 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION.................................................................................................................................................................4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.3.1 TX Protion..........................................................................................................................................................................8 4.3.2 RX Protion........................................................................................................................................................................9 4.3.3 Other Emissions...............................................................................................................................................................9 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME......................................................................................................................................................................11 4.6 CALCULATION OF…

Text truncated - open the document above for the full version.

ETC Report No.:ET92R-04-090-01 Sheet 1 of 23 Sheets FCC ID.: M65H1AF300 Rev. No 1.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT : Transmitter Of The 2- Way System b) Trade Name : ---- c) Model No. : H1AF300 d) FCC ID : M65 H1AF300 e) Working Frequency : 433.920 MHz (TX) / 433.720 MHz (RX) f) Power Supply : DC 12V 1.2 Characteristics of Device: This device is the car unit of the 2- Way System. It receive RF signal from remote controller (hand unit) and send the message via 3-pin wire to base unit which connect to car computer system. It also respond message by sending RF signal to remote controller (hand unit). 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in chapter 13 of ANSI C63.4. The Transmitter under test was operated continuously in its normal operating mode for the purpose of the measurements. In order to secure the continuous operation of the device under test, rewiring in the circuit was done by the manufacturer so as to affect its intended operation. The receiving antenna polarized horizontally was varied from 1 to 4 meters and the wooden turntable was rotated through 360 degrees to obtain the highest reading on the field strength meter or on the display of the spectrum analyzer. And also, each emission was to be maximized by changing the orientation of the Transmitter under test. In order to determining the average value during one pulse train of the radiated power generated from the Transmitter under test, the encoded wave form in the time domain was used. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, Lin 5, Ding Fu Tsun, Linkou Hsiang, Taipei Hsien, Taiwan, R.O.C. This site has been fully described in a report submitted to your office, and accepted in a letter dated Feb. 10, 2000.

ETC Report No.:ET92R-04-090-01 Sheet 12 of 23 Sheets FCC ID.: M65H1AF300 Rev. No 1.0 4.9 Radiated Measurement Photos
