M65NVR641AUTO SECURITY SYSTEM FOR HOME OR OFFICE USE

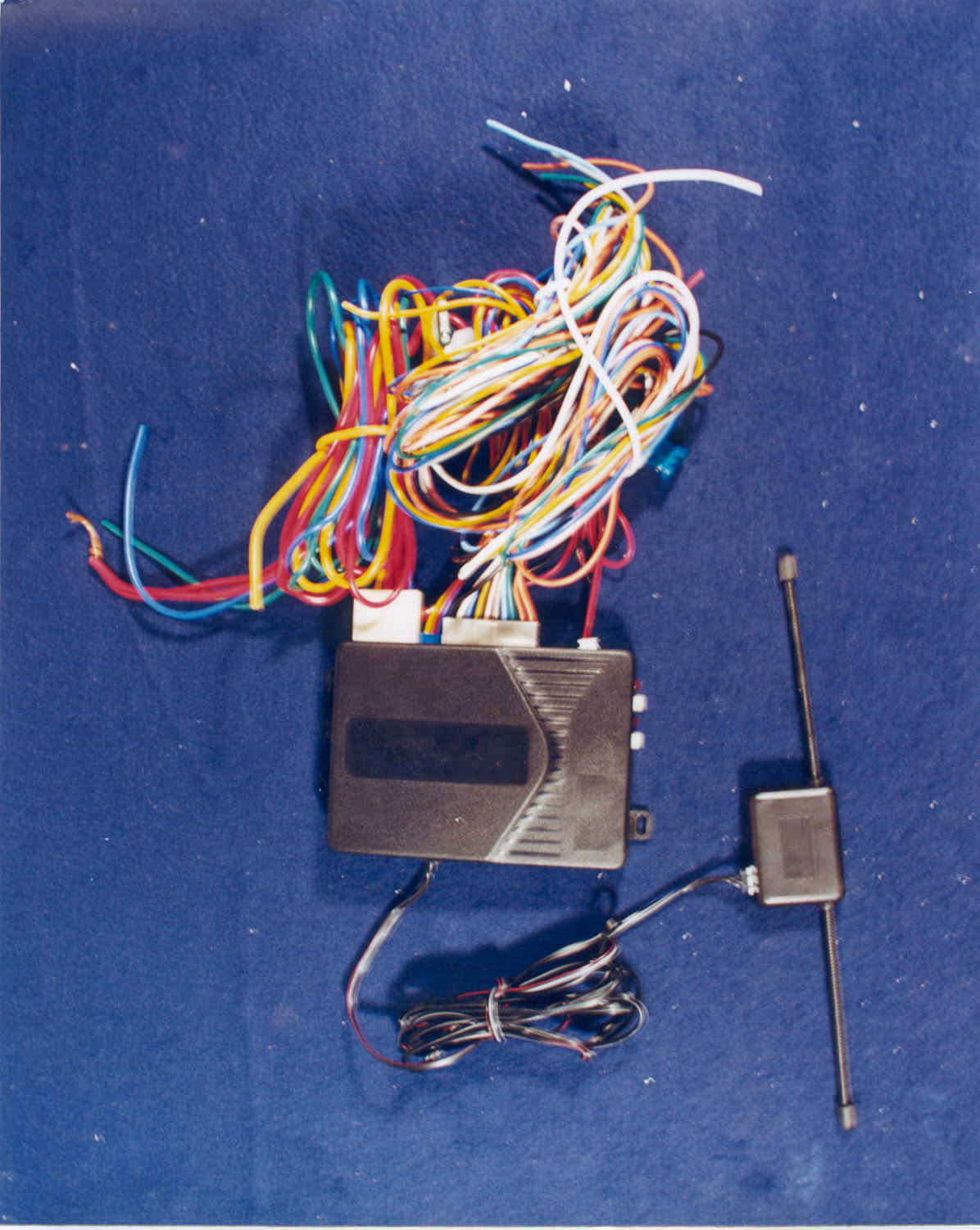

FCC ID.: M65NVR641 Rev. No 1.0 FCC Part 15 Subpart B EMI TEST REPORT of E.U.T. : CAR ALARM / RECEIVER FCC ID. : M65NVR641 MODEL : OMEGA 641 Receiving Frequency : 433 MHz for APPLICANT : SUPER NOVA CO., LTD. ADDRESS: No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang, Taipei Hsien, Taiwan, R.O.C. Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 8 LANE 29, WENMIMG ROAD, LOSHAN TSUN, KWEISHAN HSIANG, TAOYUAN, TAIWAN, R.O.C. Tel:(03)3280026-32 Fax:(03)3280034 Report Number : ET88R-09-030-02 ETC Report No.:ET88R-09-030-02FCC ID.: M65NVR641 Rev. No 1.0 TEST REPORT NOTIFICATION Applicant: SUPER NOVA CO., LTD. No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang, Taipei Hsien, Taiwan, R.O.C. Manufacturer: SUPER NOVA CO., LTD. No.34 ,WU-Chuan 6 Road , Wu-Ku Industrial Zone, Wu-Ku Hsiang , Taipei Hsien, Taiwan , R.O.C. Description of EUT: a) Type of EUT: CAR ALARM / RECEIVER b) Trade Name: ---- c) Model No.: OMEGA 641 d) Receiver Type: Super-regeneration e) FCC ID:M65NVR641 f) Receiving Frequency: 433 MHz g) Power Supply: DC 12V Battery Regulation Applied: FCC Rules and Regulations Part 15 Subpart B (1996) I HEREBY CERTIFY THAT; The data shown in this report were made in accordance with the procedures given in ANSI C63.4 and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note : 1. The results of the testing report relate only to the items tested. 2. The testing report shall not be reproduced except in full, without the written approval of ETC. Issued Date :SEP. 20, 1999 Test Engineer : ( Tien Lu Liau ) Approve & Authorized Signer : Will Yauo, Supervisor EMI Test Site of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No.:ET88R-09-030-02FCC ID.: M65NVR641 Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.......................................................................................................................................1 1.1 P RODUCT DESCRIPTION..................................................................................................................................................1 1.2 C HARACTERISTICS OF DEVICE........................................................................................................................................1 1.3 T EST METHODOLOGY.....................................................................................................................................................1 1.4 T EST FACILITY...............................................................................................................................................................1 2. DEFINITION AND LIMITS ........................................................................................................................................2 2.1 D EFINITION.....................................................................................................................................................................2 2.2 L IMITATION....................................................................................................................................................................2 2.3 L ABELING REQUIREMENT...............................................................................................................................................3 2.4 U SER INFORMATION.......................................................................................................................................................3 3. RADIATED EMISSION MEASUREMENT ..............................................................................................................4 3.1 A PPLICABLE STANDARD.................................................................................................................................................4 3.2 M EASUREMENT PROCEDURE..........................................................................................................................................4 3.3 R ADIATED EMISSION DATA............................................................................................................................................6 3.4 F IELD STRENGTH CALCULATION....................................................................................................................................7 3.5 R ADIATED EMISSION MEASURING EQUIPMENT..............................................................................................................8 3.6 R ADIATED MEASUREMENT PHOTOS...............................................................................................................................9 4. CONDUCTED EMISSION MEASUREMENT........................................................................................................10 4.1 S TANDARD APPLICABLE...............................................................................................................................................10 ETC Report No.:ET88R-09-030-02Sheet 1 of 10 Sheets FCC ID.: M65NVR641 Rev. No 1.0 1. GENERAL INFORMATION 1.1 Product Description a) Type of EUT: CAR ALARM / RECEIVER b) Trade Name: ---- c) Model No.: OMEGA 641 d) Receiver Type: Super-regeneration e) FCC ID:M65NVR641 f) Receiving Frequency: 433 MHz g) Power Supply: DC 12V Battery 1.2 Characteristics of Device The EUT is the Receiver of the Car Alarm. 1.3 Test Methodology Both conducted and radiated testing were performed according to the procedures in section 12.1 of ANSI C63.4(1992). For detail procedures, please see each measuring item. 1.4 Test Facility The open area test site and conducted measurement facility used to collect the radiated data is located on the roof top of Building at No.34, 5 Lirn, Din Fu Tsun, Lin Kou, Taipei, Taiwan, R.O.C. This site has been fully described in a report submitted to your office, and accepted in a letter dated Feb. 10 , 1997. ETC Report No.:ET88R-09-030-02Sheet 2 of 10 Sheets FCC ID.: M65NVR641 Rev…
