M65NVTR5B2-way transmitter for car alarm

Super Nova Co Ltd

Click to zoom

Application Details

Equipment Class: DSC - Part 15 Security/Remote Control Transmitter
Date of Grant: Mar 23, 2004
Application Purpose: Original Equipment
Date of Application: Mar 23, 2004

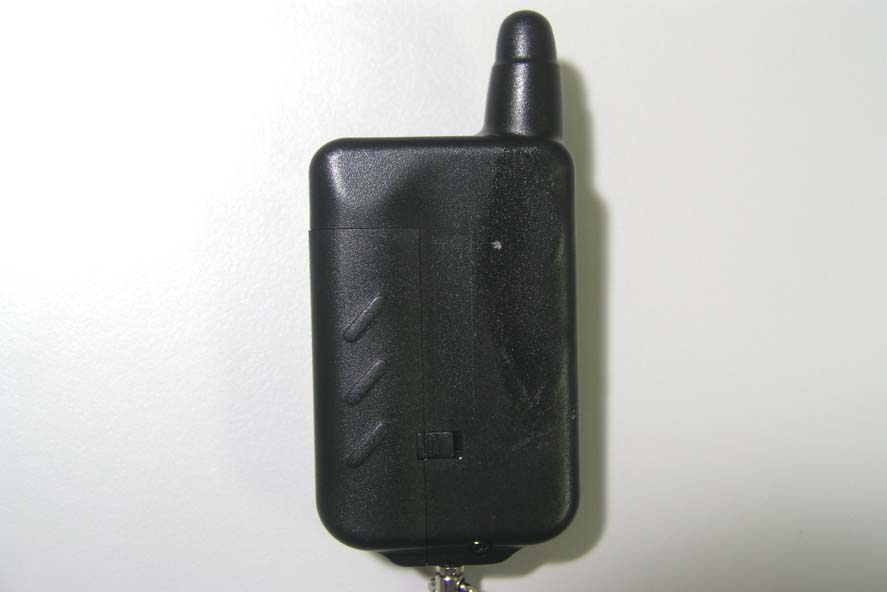

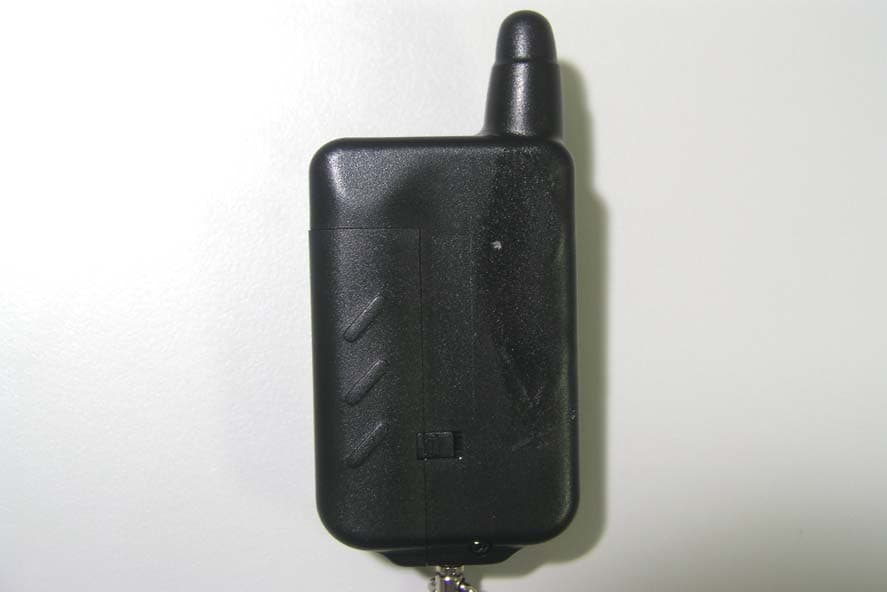

Equipment Note: 2-way transmitter for car alarm
Frequency Range: 433.92000000 - 433.92000000
Company: Super Nova Co Ltd
Country: Taiwan

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

RW6500T 2 Way Transmitter (TR5B) Operation manual LCD Panel Function Shown: Button 5 · START Basic function of button : Button 1 : a. Arm. b. Keep press 3 second to Panic. Button 2 : Disarm (and it will open the central look on driver side.) than press one more time in 5”, it will open the central lock on other doors. Button 3 : a. Remote 1 st aux. output (Trunk pop). b. Keep press 2-3” to remote 2 nd aux. output. Button 4 : Remote start --- press again to off. Button 1+2 : a. When arming --- keep press 3” to all (shock & option) sensor bypass. b. When disarm --- press 3” to valet mode, when keep 6” to valet park mode. Button 1+3 : To anti-car jacking. Button 2+4 : Chirp defeat arm / disarm TR5B La yout Description LCD Panel Button 2 Button 4 (AUX) Button 1 Button 3 Trigger Display 1. Door Open 2. Shock Sensor 3. Warm away 4. IGN Trigger Trunk Trigger Display 1 st Car or 2 nd Car ArmDisarmChirp defeat disarm Chirp defeat armPanic Door open 1 st aux. output Trunk POP (or Hood Open) Data translate..!Low battery Remote Start (Picture move) or IGN Trigger Valet Park (flash 20 times) Valet Warn away IGN VLTVLT Transmitter learning Shock Sensor (hammer move) L Central Unlock Central Lock Logo CSP P Notice 1 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. Notice 2 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. How to setup time: 1. Press 4 buttons together and monitor “minutes” will flash to confirm that meaning come into Time-Setup procedure then press “Lock Button” to increase or “Unlock Button” decrease for minutes adjust. 2. Press “Trunk” button going to “hours” setup, monitor “hours” will flash to confirm then press “Lock Button” to increase or “Unlock Button” decrease for hours adjust.. 3. Press “Trunk” again go back to “minutes” setup. 4. Transmitter will automatic exit Time-Setup procedure for Wait for 5 seconds. To Anti-Car Jacking: Main Unit Parking Flash 2 times and LED flash Quickly (Remote Start picture shown). Button 5:a. Show the company Logo or the last message. b. Keep press 3” to Change Channel I or II ( 1 st Car or 2 nd Car). c. Press 5 times to Voice or null voice prompt for button operation.

External Photos

ID Label/Location Info

FCC ID LABEL FORMAT AND LOCATION Applicant: SuperNova Co., Ltd. FCC ID: M65NVTR5B FCC ID: M65NVTR5B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC ID LABEL AREA

Internal Photos

REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA APPENDIX 3 INTERNAL PHOTOGRPHS OF EUT REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – Open Internal of EUT – 1 REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 2 Internal of EUT – 3 REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Internal of EUT – 4 Internal of EUT – 5

Operational Description

Operation Description Using transmitter to send the code to car transceiver, than car transceiver will send the code to alarm system. After alarm system receive the code it will start to work and send the code back to car transceiver. Than car transceiver will send the code to transmitter. At this time the LCD on the transmitter will show the condition of the car. The transmitter is using 1.5 V battery.

Test Report

REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 Page: 1 of 24 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 15 SUBPART C REQUIREMENT OF Product name: 2-way transmitter for car alarm Model Name: TR5B FCC ID: M65NVTR5B REPORT NO: ER/2004/20023 ISSUE DATE: Mar. 08, 2004 FCC Rule Part: §15.231 Prepared for SuperNova Co., Ltd. No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang, Taipei Hsien, Taiwan, R.O.C. Prepared by SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 Page: 2 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA VERIFICATION OF COMPLIANCE Applicant: SuperNova Co., Ltd. No. 34, Wu-Chuan 6 Rd., Wu-Ku Industrial Zone, Wu-Ku Hsiang, Taipei Hsien, Taiwan, R.O.C. Product Description: 2-way transmitter for car alarm FCC ID Number: M65NVTR5B Brand Name: N/A Model No.: TR5B Model Difference: N/A File Number: ER/2004/20023 Date of test: Feb. 20, 2004 ~ Feb 22, 2004 Date of receive: Feb. 19, 2004 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4 (1992) and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.231. The test results of this report relate only to the tested sample identified in this report. Test By: Date Mar. 08, 2004 Willis Chen Approved By Date Mar. 08, 2004 Vincent Su REPORT NO: ER/2004/20023 ID: M65NVTR5B DATE: Mar. 08, 2004 Page: 3 The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 台北縣五股工業區五工路136之1號台灣檢驗科技股份有限公司 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw 0513 ILAC MRA Table of Contents 1. GENERAL INFORMATION ........................................................................................... 5 1.1 PRODUCT DESCRIPTION................................................................................................................... 5 1.2 RELATED SUBMITTAL(S) / GRANT (S).............................................................................................. 5 1.3 TEST METHODOLOGY....................................................................................................................... 5 1.4 TEST FACILITY................................................................................................................................. 5 2. SYSTEM TEST CONFIGURATION .............................................................................. 6 2.1 EUT CONFIGURATION...................................................................................................................... 6 2.2 EUT EXERCISE................................................................................................................................. 6 2.3 TEST PROCEDURE............................................................................................................................. 6 2.4 LIMITATION...................................................................................................................................... 7 2.5 CONFIGURATION OF TESTED SYSTEM.............................................................................................. 9 3. SUMMARY OF TEST RESULTS ................................................................................. 10 4. DESCRIPTION OF TEST MODES .............................................................................. 10 5. CONDUCTED EMISSIONS TEST (NOT APPLY IN THE REPORT) ................. 11 5.1 MEASUREMENT PROCEDURE: ........................................................................................................ 11 5.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 11 5.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 11 5.4 MEASUREMENT RESULT: ............................................................................................................... 11 6. RADIATED EMISSION TEST ...................................................................................... 12 6.1 MEASUREMENT PROCEDURE.......................................................................................................... 12 6.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ................................................................ 12 6.3 MEASUREMENT EQUIPMENT USED: ............................................................................................... 13 6.4 FIELD STRENGTH CALCULATION.........................................................…
