M65NVX1201CFM 2-Way Car Alarm System

RW6400T 2 Way Transmitter (TR5) Operation manual LCD Panel Function Shown: To Anti-Car Jacking: Main Unit Parking Flash 2 times and LED flash Quickly (no picture shown). Button 5: a. Show the company Logo or the last message. b. Keep press 3” to Change Channel I or II ( 1 st Car or 2 nd Car). c. Press 5 times to Voice or null voice prompt for button operation. Button 5 ST A RT Basic function of button : Button 1 : a. Arm. b. Keep press 3 second to Panic. Button 2 : Disarm (and it will open the central look on driver side.) than press one more time in 5”, it will open the central lock on other doors. Button 3 : a. Remote 1 st aux. output (Trunk pop). b. Keep press 2-3” to remote 2 nd aux. output. Button 4 : Remote start --- press again to off. Button 1+2 : a. When arming --- keep press 3” to all (shock & option) sensor bypass. b. When disarm --- press 3” to valet mode, when keep 6” to valet park mode. Button 1+3 : To anti-car jacking. Button 2+4 : Chirp defeat arm / disarm TR5 Layout Description LCD Panel Button 2 Button 4 (AUX) Button 1 Button 3 Arm (1 st Car) Disarm (2 nd Car) Chirp defeat disarm Chirp defeat arm Panic Door open 1 st aux. output Trunk POP (or Hood Open) Data translate..! Low battery Remote Start (Picture move) Valet Park (flash 20 ti) Valet Warn away IGN VLT VLT Transmitter learning Shock Sensor (hammer move) L Central Unlock Central Lock Logo CSP USA P 6400 Updated Program Option Chart PROGRAM: RW6400C0.HEX Option Option Description Fac. Pre-set Tx Button Tx Button Tx Button Tx Button 1 Tach Learning Learning 2 Auto Lock With Ignition ON OFF ON 3 Aggressive Arm Mode OFF ON OFF 4 Active Re-Arm Mode OFF ON OFF 5 Passive Lock OFF ON OFF 6 Parking Light Illumination on Disarm ON OFF ON 7 Valet Park Protection Mode or Trunk Mode Trunk Valet Park Trunk 8 Passive Car-Jacking Mode Remote Car-Jacking Passive Car-Jacking Remote Car-Jacking 9 Siren Confirmation for Remote Start ON OFF ON 10 Aux Disarm ON OFF ON 11 5/60 Second Warning Chirps (Normal Car/Dome Light Delay Car) 60 sec. 5 sec. 60 sec. 12 Door Lock Pulse Time 0.75 sec. 3.0 sec. 0.75 sec. 13 Double Unlock Pulse 1 Pules 2 Pules 1 Pules 14 Remote Start Run Time 24 min. 12 min. 24 min. 36 min. 48 min 15 Option Reset Reset ST A RT (RS Serial ) Voltage Detect setting use two jumpers (1=short, 0=open) P 1(0), P2(0) = 91% P1(1), P2(0) = 92% P1(1), P2(1) = 93% *Default P1 P2 How to Update Program Option Function: 1) Turn ignition to the “ON” position; Hood “ON” 2) Press valet override switch 5 times 3) Press valet override switch the number of times corresponding to the “feature setting chart”. 4) Press the “Lock” button to change to feature setting Press the “Unlock” button to return to default setting N / A P3 RW6400 WIRING DIAGRAM GREEN TRIGER(-) TO START/STOP ENGIN BROWN (+)SIREN BROWN/WHITE (-)HORN BLACK/WHITE (-)500mA DOME LIGHT GREEN/RED (-)AUX 1 BLUE/BLACK (-)AUX 2 BLUE/WHITE UNLOCK 2(-) ORANGE (-)START KILL/ANTI GRIND ORANGE/BLACK OEM DISARM OVERRIDE SWITCH SHOCK SENSOR LED NPC3 Module (Optional) PINK BLACK For GLOW PLUG(-) INPUT RED +12VDC PURPLE DOOR INPUT(+) GREEN DOOR INPUT(-) BLUE HOOD INPUT (-) PINK CAR JACKING or GLOW PLUG(+) INPUT (Diesel engine only) WHITE PEDAL BRAKE(+) RESET INPUT BROWN (+) STARTER GRAY (+) ACCESSORY RED (+) 12VDC RED (+) 12VDC PINK (+) IGNITION (IN/OUT) WHITE (+) PARKING LIGHT(12 Amp) (F2WA-1) (NPC3) 30Amp FUSE 30Amp FUSE WHITE/RED TO TACHOMETER BLACK GROUND YELLOW/WHITE (-) ACC 2 YELLOW (-)IGNITION 2 GREEN LOCK(-) RED (+)12 VDC BLUE UNLOCK(-) ATT: Do not connect White/ Red wire to tachometer, if decide to use TACH less engine monitor. (smart sensor) * : Whenever connect White/ Red wire to tachometer, This system automatically turn to “TACH-Learning” mode. IGNITION COIL ＋ － (SK IN O FF TACHO METER WIRE AN D CONNECT TOGETHER) This system has TACH less engine monitor feature, even without connect any detection wire, still will have smart cranking ability, cranking time auto-adjust depends on voltage changing . How to use the “Code Learning” for RW6400 Please following step by step 1. Turn ignition (on) and turn hood (on) (waiting for 5 second for signal feed back) 2. Press the override switch 4 times (then the parking light will flashed 4 times, led steady light on) 3. Presses the button ➀ (lock) and button ➁ (unlock) at same time, for new transmitter for learning, siren chirps 2 times than waiting the LCD shows picture of “attain” it means this transmitter is completed for code learning. 4. Presses the button ➀ (lock) and button ➁ (unlock) at same time, for 2 nd new transmitter for learning siren chirp 3 times than waiting LCD shows picture of “attain” it means this transmitter is completed for code learning. 5. A main unit can at most accept for 4 transmitters code learning. How to update program option function of RW6400 Please following step by step 1. Turn ignition (on) and turn hood (on) (waiting for 5 second for signal feed back) 2. Press the override switch 5 times (then the parking light will flash 5 times, led steady light on) For example, program the option function #12 ”door luck pulse time” when finished above 2 steps, then keep following the below steps: ★ Press override switch 12 times (means program the option function #12) each time press the override switch, the Parking Light will flash once, for this #12 programming totally will be flashed 12 times by 12 times pressing the override switch. When saw the 12 th flash means the system programming mode is on the #12 option function programming status. ★ after above, press the remote “lock” button, by the mean time, the parking light will flash once for signal, that means the programming procedure for set-up the option function #12 is finished. Please reference the ”update program option chart” the system was set-up the central door lock/unlock as “3 seconds pulse”, that means every lock/unlock pulse is 3 seconds, this is for match the original setting for central door lock/unlock on the MERCEDES, BENZ. Notice: 1. The changes or …

Text truncated - open the document above for the full version.

From: willyauo [[email protected]] Sent: Friday, August 16, 2002 7:21 AM To: Mike Kuo Subject: Fw: SUPER NOVA CO., LTD., FCC ID:M65NVX1201C, AN02T2158 Subject: Re: SUPER NOVA CO., LTD., FCC ID:M65NVX1201C, AN02T2158 > Hi Mike, > > We realized the 15.203 requirement, the use of a permanently attached > antenna or of an antenna that uses a unique coupling to the intentional > radiator shall be considered. > But in this section also mentioned, this requirement does not apply to > intentional radiators that must be professional installed. > This device is professional for Car use. It must be professionally > installed. The end-user can not installed by themselves. > Although the connector is RCA Jack , the antenna component can not be > detached from the line. This also meet antenna uses a unique coupling to the > intentional radiator. > Because the antenna is permanently attached to the line., it can not be > disconnected. > The manufacture can make sure to comply this section 15.203 Antenna > requirement.. > The above statement is our explanation. > If you have any instruction , please advise us. > Thank you very much. > Best regards, > > Will Yauo > > ----- Original Message ----- > From: Mike Kuo <[email protected]> > > Sent: Saturday, August 10, 2002 8:41 AM > Subject: FW: SUPER NOVA CO., LTD., FCC ID:M65NVX1201C, AN02T2158 > > > > > > > > -----Original Message----- > > From: CERTADM > > Sent: Friday, August 09, 2002 5:41 PM > > To: '[email protected]' > > Subject: SUPER NOVA CO., LTD., FCC ID:M65NVX1201C, AN02T2158 > > > > > > Notice_content > > ------------- > > Question #1: Per 15.203 requirement, the antenna connector used by > > unlicensed low power transmitter should be unique antenna connector to > > prevent the unauthorized antenna that used by the end user. As indicated > on > > the photos, the antenna connector is a standard RCA jack connector which > > does not comply with this requirement. Please address this non-compliance > > issue. > > > > Best Regards > > > > Mike Kuo / TCB Certifier > > The items indicated above must be submitted before processing can continue > > on the above referenced application. Failure to provide the requested > > information within 60 days of the original e-mail date may result in > > application dismissal and forfeiture of the filing fee. Also, please note > > that partial responses increase processing time and should not be > submitted. > > Any questions about the content of this correspondence should be directed > to > > the e-mail address listed below the name of the sender. > > >

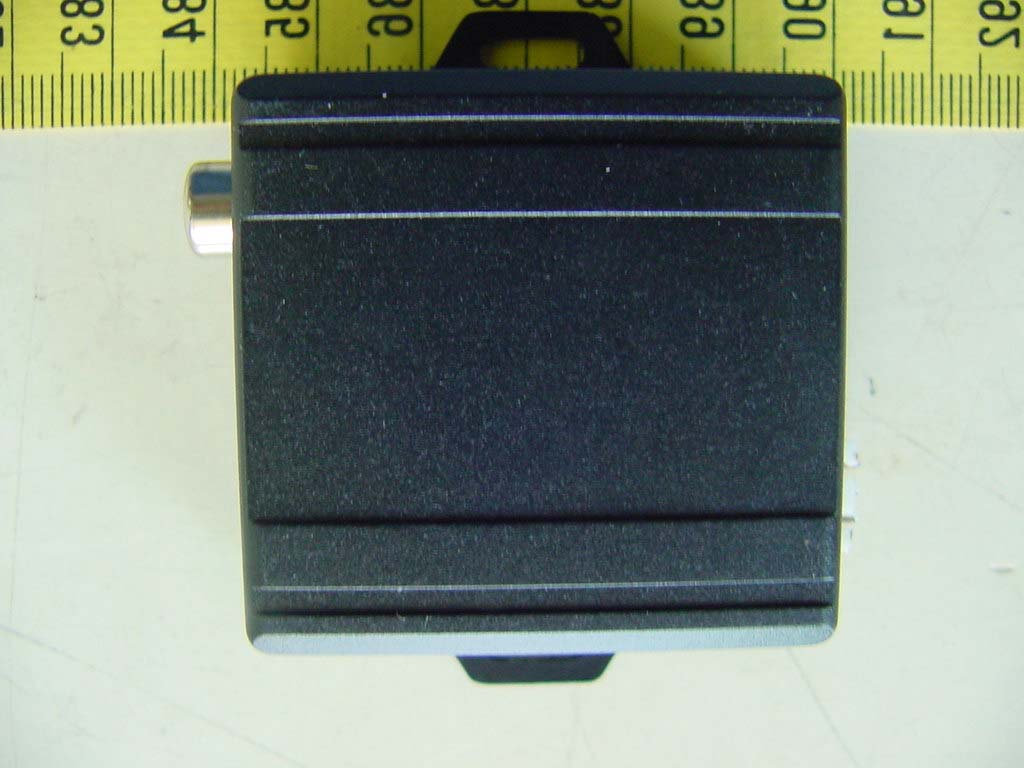

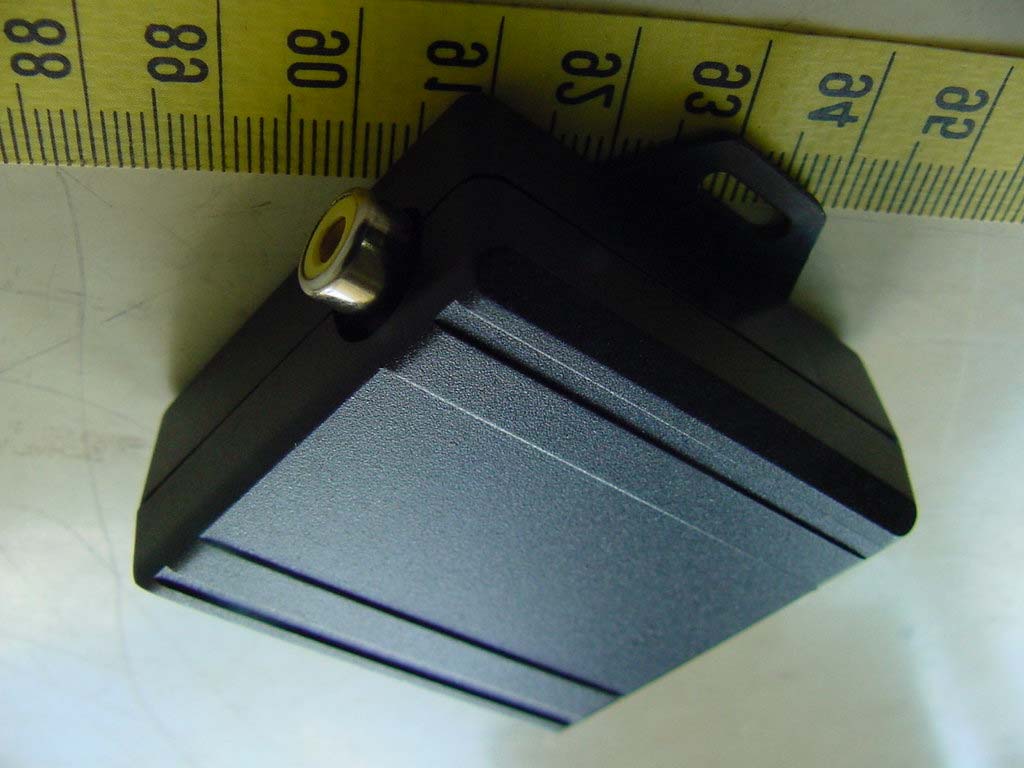

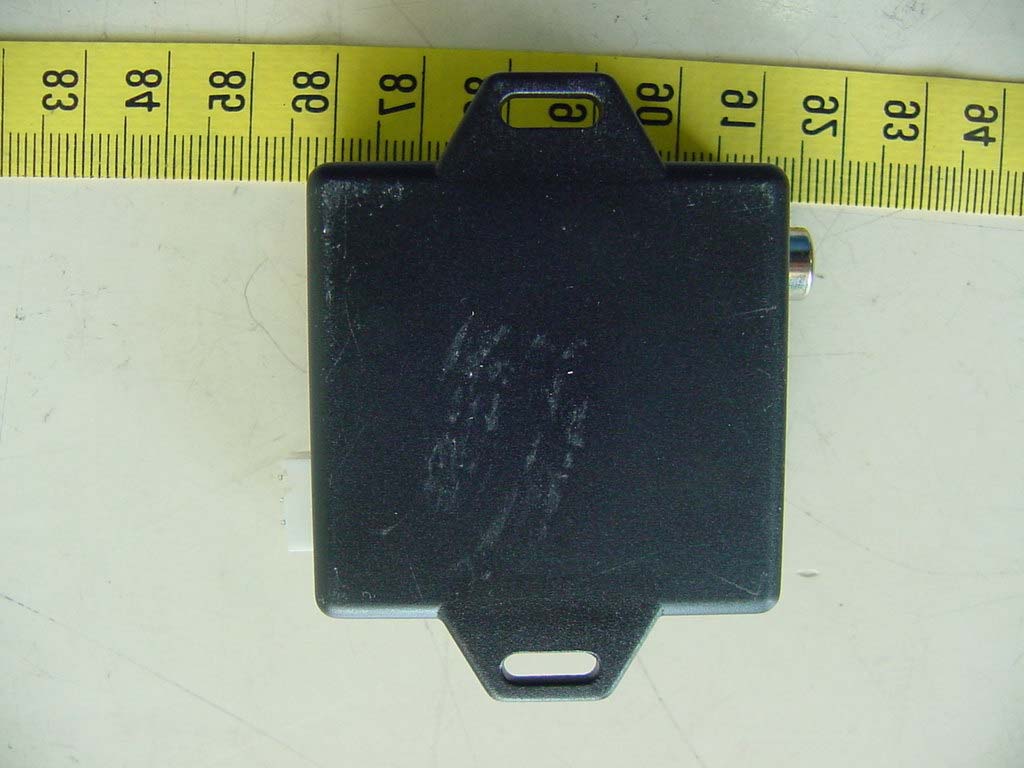

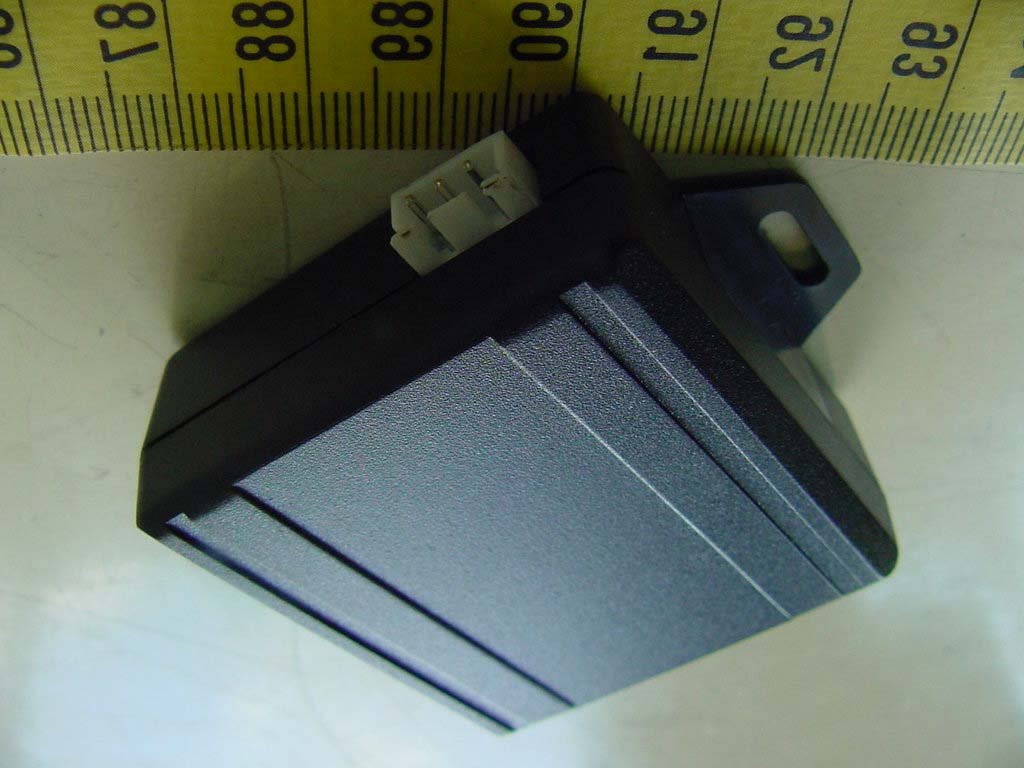

ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 C O NS TR UC TED PHO TO S o f EUT Total View of EUT Top View of EUT ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 C O NS TR UC TED PHO TO S o f EUT Bottom View of EUT Side View of EUT ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 C O NS TR UC TED PHO TO S o f EUT Side View of EUT

FCC ID Label S ize: 10mm×5mm This statement will be placed in User’s Manual This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Label Model: X1201C FCC ID: M65NVX1201C

ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 C O NS TR UC TED PHO TO S o f EUT Internal View of EUT Comp onent View of PCB ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 C O NS TR UC TED PHO TO S o f EUT Solder View of PCB

1. Button 1 : a. Arm; b. Keep p ress 3 second to Panic. 2. But t on 2 : Disarm (and it will op en t he cent ral look on driver side.) t han p ress one more t ime in 5”, it will op en t he cent ral lock on ot her doors. 3. Button 3 : a. Remote 1st aux. outp ut (Trunk p op ).; b. Keep p ress 2-3” to remote 2nd aux. outp ut. 4. Button 4 : Remote start --- p ress again to off. 5. Button 1+2: a. When arming --- keep p ress 3” to all (shock & op tion) sensor by p ass. b. When disarm --- p ress 3” to valet mode, when keep 6” to valet p ark mode. 6. Button 1+3: To anti-car jacking. 7. Button 2+4:Chirp defeat arm / disarm 8. Button 5: a. Show the comp any Logo or the last message. b. Keep p ress 3” to Change Channel I or II ( 1st Car or 2nd Car). c. Press 5 times to Voice or null voice p romp t for button op eration.

Rev. No 1.0 FCC Part 15 EMI TEST REPORT of E.U.T. : CAR SIDE FM 2-WAY SYSTEM FCC ID. : M65NVX1201C MODEL : X1201C Working Frequency : 433.920 MHz (TX) / 433.720 MHz (RX) for APPLICANT : SUPER NOVA CO., LTD. ADDRESS : No. 34, Wu-Chuan Rd., Wu-Ku Ind. Zone Wu- K u Hs ia ng, Ta ip e i Hs ie n, Ta iwa n, R. O . C . Test Performed by ELEC TR O NI C S TES TI NG C ENTER , TA I W A N NO. 34, LIN 5, DING FU TSUN, LINKOU HSIANG TAIPEI HSIEN, TAIWAN, R.O.C. Tel:(02)26023052, 26023054 Fax:(02)26010910 Rep ort Number : ET91R-07-065-02 ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : SUPER NOVA CO., LTD. No. 34, Wu-Chuan Rd., Wu-Ku Ind. Zone Wu-Ku Hsiang, Taip ei Hsien, Taiwan, R.O.C. M anufacturer : SUPER NOVA CO., LTD. No. 34, Wu-Chuan Rd., Wu-Ku Ind. Zone Wu-Ku Hsiang, Taip ei Hsien, Taiwan, R.O.C. Descrip tion of EUT : a) Ty p e of EUT : CAR SIDE FM 2-WAY SYSTEM b) Trade Name : ---- c) M odel No. : X1201C d) FCC ID : M 65NVX1201C e) Working Frequency : 433.920 M Hz (TX) / 433.720 M Hz (RX) f) Power Sup p ly : DC 12V Regulation Ap p lied : FCC Rules and Regulations Part 15 Subp art C (2001) I HEREBY CERT IFY T HAT ; T he dat a shown in t his rep ort were made in accordance wit h t he p rocedures given in ANSI C63.4 and the energy emitted by the device was founded to be within t he limit s ap p licable. I assume full resp onsibilit y for accuracy and comp let eness of t hese dat a. Note : 1. The results of the testing report relate only to the items tested. 2. The testing rep ort shall not be rep roduced excep t in full, without the written ap p roval of ETC. Issued Date : Jul. 25, 2002 Test Engineer : ( Falcon Shi ) Ap p rove & Authorized Signer : Will Yauo, M anager EM C Dep t . II of ELECT RONICS TESTING CENTER, TAIWAN ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 Table of Contents Page 1. GENERAL INFORMATION.....................................................................................................................................................1 1.1 PRODUCT DESCRIPTION...........................................................................................................................................................1 1.2 CHARACTERISTICS OF DEVICE:...............................................................................................................................................1 1.3 TEST METHODOLOGY..............................................................................................................................................................1 1.4 TEST FACILITY..........................................................................................................................................................................1 2. DEFINITION AND LIMITS.......................................................................................................................................................2 2.1 DEFINITION................................................................................................................................................................................2 2.2 RESTRICTED BANDS OF OPERATION.....................................................................................................................................2 2.3 LIMITATION...............................................................................................................................................................................2 2.4 LABELING REQUIREMENT.......................................................................................................................................................4 2.5 USER INFORMATION................................................................................................................................................................. 4 3 SYSTEM TEST CONFIGURATION.........................................................................................................................................5 3.1 JUSTIFICATION..........................................................................................................................................................................5 3.2 DEVICES FOR TESTED SYSTEM...............................................................................................................................................5 4. RADIATED EMISSION MEASUREMENT.............................................................................................................................6 4.1 APPLICABLE STANDARD.........................................................................................................................................................6 4.2 MEASUREMENT PROCEDURE..................................................................................................................................................6 4.3 TEST DATA.................................................................................................................................................................................8 4.3.1 TX Protion..........................................................................................................................................................................8 4.3.2 RX Protion ........................................................................................................................................................................9 4.3.3 Other Emissions...............................................................................................................................................................9 4.4 FIELD STRENGTH CALCULATION........................................................................................................................................10 4.5 ACTIVATE TIME................................................................................................................................................................…

Text truncated - open the document above for the full version.

ETC Report No.:ET91R-07-065-02 FCC ID.: M65NVX1201C Rev. No 1.0 Radiated Meas urement Photos
