M697300M4VGA Card

NVIDIA GeForce4 MX4408X SP7300M4A1X064DV SP7300M4A1X064DT SP7300M4A1X064TV SP7300M4A1X064PU SP7300M4A1V128DV SP7300M4A1V128DT SP7300M4A1V128TV SP7300M4A1V128PU 3D GRAPHIC ACCELERATOR MANUAL SPARKLE COMPUTER CO., LTD. 13F, NO. 2, SEC. 1, FU HSING S RD., TAIPEI, 104 TAIWAN, R.O.C. TEL: 886-2-2741-1196 FAX: 886-2-2711-7692 http://www.sparkle.com.tw 1 NVIDIA GeForce4 MX4408X User’s Manual TABLE OF CONTENTS TABLE OF CONTENTS.....................................................................................................1 1. NVIDIA GeForce4 MX4408X Features......................................................................2 2. Hardware installation...................................................................................................3 3. Resolutions and colors supported:..............................................................................4 4. Smart Installation..........................................................................................................4 5. Manually install Windows XP drivers...........................................................................8 5.1 Remove old Drivers: (only if you have old nVIDIA drivers)................................8 5.2 Installation and Setup..........................................................................................8 5.3 How to Change Color Depth and Resolution in Windows XP.............................9 5.4 How to Change Refresh Rate in Windows XP.................................................10 5.5 NVIDIA Utility in Windows System....................................................................12 5.5.1 GeForce4 MX4408X (NVIDIA)..............................................................12 5.5.2 nView.....................................................................................................13 5.5.2.1 Standard mode:............................................................................14 5.5.2.2 Color correction.............................................................................15 5.5.2.3 Screen Adjustment........................................................................16 5.5.2.4 Display Timing................................................................................16 5.5.2.5 nView enable mode......................................................................17 6. Manually install Windows 98 and Windows ME drivers............................................18 6.1 Remove old Drivers: (only if you have old nVIDIA drivers)..............................18 6.2 Installation and Setup........................................................................................18 6.3 How to Change Color Depth and Resolution.....................................................20 6.4 How to Change Refresh Rate...........................................................................20 7. Manually install Windows 2000 drivers.....................................................................21 FCC Statement...............................................................................................................22 Warning:..................................................................................................................22 Trademark Acknowledgments.......................................................................................23 2 1. NVIDIA GeForce4 MX4408X Features GeForce4 MX4408X AGP bus, with 64MB DDR SDRAM on Board Graphics core 256-BIT Fill rate (AA samples/sec.) 1.2 BILLION Triangles/sec 37 MILLION Memory bandwidth 8.0 GB/SEC nView Display Technology Provides unprecedented flexibility and control for using multiple displays. nView boosts productivity by enabling the user to have two simultaneous displays for every GPU. Multiple graphics cards can be used if more than two displays are required. Lightspeed Memory Architecture (LMA) II Technology LMA II boosts effective memory bandwidth by up to 300% Radical new technologies – including Z occlusion culling, fast Z clear, and auto precharge – effectively multiplies the memory bandwidth to ensure fluid frame rates for the latest 3D and 2D games and applications MX Memory Crossbar Dual memory controllers allow more efficient utilization of memory bandwidth Integrated Dual 350MHz DACs Drivers two independent CRT display with crisp and clear image quality at 2048x1536 resolution @ 75Hz (2 CRT output is optional function) Integrated TV Encoder supporting 1024x768 Resolution Provides best-in-class TV-out functionality (optional) Accuview Antialiasing Delivers unprecedented AA performance and quality to the mainstream market and enables high resolution, high frame rate, full-scene antialiasing for the first time ever in this market segment Video Processing Engine (VPE) Enables the highest quality, full-frame rate, full-screen HDTV and DVD without requiring a high performance CPU AGP 8X/4X/2X with AGP Texturing and Fast Writes AGP 8X is the highest performance connection between the CPU and graphics processor. Taking advantage of new methods for transferring information more efficiently allows content developers to use high-quality 32-bit color textures and high-polygon count scenes. Other Features 2 dual-rendering pipelines 4 texels per clock cycle Cube environment mapping 64MB/128MB high-speed 128-bit DDR RAM memory High-performance 2D rendering engine NVIDIA Shading Rasterizer AGP Fast write and AGP Texturing Support Integrated hardware transform engine Integrated hardware lighting engine 3 True-color hardware cursor High-quality HDTV/DVD playback True, reflective bump mapping Multibuffering (double, triple, quad) for smooth animation and video playback Support for AGP 3.0 signaling at 0.8 V AGP3.0 support for 8X and 4X and AGP2.0 support for 4X, 2X, 1X AGP 8X data and sideband address (SBA) transfers at rates up to 533MT/s, resulting in a theoretical data transfer rate of 2.1 GB/s Operating systems support Windows XP, Windows 2000, Windows Me, Windows 98, Linux Compatible API Suppor…

Text truncated - open the document above for the full version.

SPARKLE SP7300M4 Block diagram: SP7300M4 AGP BUS Memory BIOS Nvidia GeForce4 MX440-8X CRT Monitor X’TAL 27.0MHZ TV X’TAL 24.5MHZ SAA7114H DVI

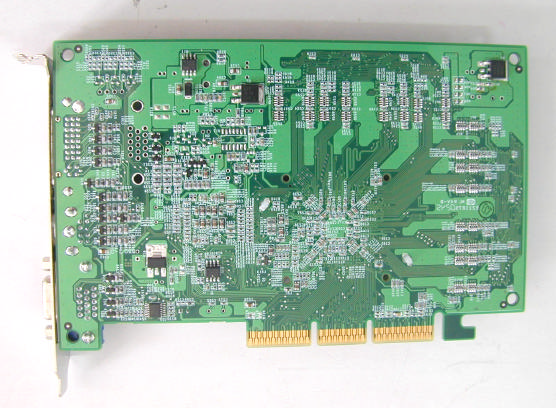

NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 35/46 Photo # 1 Front View/Rear View Model NO.:SP7300M4A1V128DV NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 37/46 Photo # 3 Front View/Rear View Model NO.:SP7300M4A1X064DV NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 38/46 Photo # 4 Front View/Rear View Model NO.:SP7300M4A1X064DT NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 39/46 Photo # 5 Front View/Rear View Model NO.:SP7300M4A1X064TV NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 40/46 Photo # 6 Front View/Rear View Model NO.:SP7300M4A1X064PU NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 41/46 Photo # 7 Front View/Rear View Model NO.:SP7300M4A1V128DT NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 42/46 Photo # 8 Front View/Rear View Model NO.:SP7300M4A1V128TV NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 43/46 Photo #9 Front View/Rear View Model NO.:SP7300M4A1V128PU

NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 46/46 n FCC ID label – FCC ID:M697300M4 0.5 cm The remained portion of label statement required by FCC is attached in the user’s manual. -- Location of Label on EUT -- 4cm

NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 36/46 Photo # 2 Side View

NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 2/46 Declaration Neutron represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with the standards traceable to National Measurement Laboratory (NML) of R.O.C., or National Institute of Standards and Technology (NIST) of U.S.A. Neutron's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. Neutron shall have no liability for any declarations , inferences or generalizations drawn by the client or others from Neutron issued reports. Neutron’s reports must not be used by the client to claim product endorsement by the authorities or any agency of the Government. This report is the confidential property of the client. As a mutual protection to the clients, the public and Neutron-self, extracts from the test report shall not be reproduced except in full with Neutron’s authorized written approval. Neutron’s laboratory quality assurance procedures are in compliance with the ISO Guide 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Assessment Authorities Test Standard/Scope/Item Acceptance FCC Part 15 Subpart B IEC/CISPR22 AS/NZS 3548 CNS 13438 FCC Part 15 Subpart B CISPR 22/EN 55022 AS/NZS 3548 VCCI -Technical Requirement CNS 13438 SS IEC/CISPR 22 IEC/EN 61000-3-2 IEC/EN 61000-4-5 IEC/EN 61000-3-3 IEC/EN 61000-4-6 IEC/EN 61000-4-2 IEC/EN 61000-4-8 IEC/EN 61000-4-3 IEC/EN 61000-4-11 IEC/EN 61000-4-4 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 3/46 Table of Contents Page 1 General Information 5 1.1 Applicant 5 1.2 Manufacturer 5 1.3 Equipment Under Tested 5 1.4 OEM Brand/Model 5 1.5 Product Description 5 1.6 Connecting I/O Port(s) 5 1.7 Power Supplied 5 1.8 Products Covered 6 1.9 Model Difference (Series, Versions, if any) 6 1.10 EUT Modifications 6 1.11 Electric Block Diagram 6 1.12 Photos of EUT 6 2 RFI Emissions Measurement 7 2.1 Test Facility 7 2.2 Standard Compliance 7 2.3 Test Methodology 7 2.4 Deviations from Standard Test Method 7 2.5 Sample(s) Tested 7 2.6 Measurement Instrument 7 2.7 Measurement Uncertainty 7 2.8 Tested System Set-Up/Configuration Details 7 Table -1 Equipments Used in Tested System 8 Diagram -1 Block diagram showing the configuration of system tested 9 Table - 2 Equipments Used in Tested System 10 Table - 3 Information of Interface Cable 10 2.9 Max.(Worst Case) RF Emission Evaluation 11 2.10 EUT Operation 11 3 Justification 12 3.1 Limitations 12 3.1.1 Power Line Conducted Emission 12 3.1.2 Radiated Emission Limits 12 3.2 Measurement Justification 13 3.2.1 Conducted Emission 13 3.2.2 Radiated Emission 13 3.3 Measurement Data 13 Table 4 Conducted Emission Data 14 Table 5 Radiated Emission Data 19 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 4/46 Table of Contents Page 4 Attachment 24 A. Electric Block Diagram 25 B. EUT Modification Description 26 C. EUT Test Photos 27 D. EUT Photos 34 E. User’s Manual 45 F. Product Labeling 46 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 5/46 1. General Information 1.1 Applicant Name Sparkle Computer Co., Ltd. Address 13F, No. 2, Sec. 1, Fu Hsing S. Rd., Taipei, Taiwan, R.O.C. 1.2 Manufacturer Name N/A Address N/A 1.3 Equipment Under Tested Name: VGA Card Trade Name: SPARKLE Model No.: SP7300M4A1X064DV; SP7300M4A1X064DT; SP7300M4A1X064TV; SP7300M4A1X064PU; SP7300M4A1V128DV; SP7300M4A1V128DT; SP7300M4A1V128TV; SP7300M4A1V128PU 1.4 OEM Brand/Model (if applicable) OEM Brand(s)/Model(s) except the basic model in sub-clause 1.3 is(are) the follows: OEM Brand: N/A Model No.: N/A 1.5 Product Descriptions(Application/Features/Specification) The EUT is a VGA Card. The summarized features of EUT are described as following: l GeForce4 TI 4200-8X AGP Bus, with 64/128MB DDR SDRAM on Brand l 2 Dual-rendering pipelines l 4 texels per clock cycle l Cube environment mapping l 64MB/128MB high-speed 128-bit DDR RAM memory l High-performance 2D rendering engine l AGP Fast write and AGP Texturing Support Based on the application, features, or specification exhibited in User's Manual, the EUT is considered as an ITE/Computing Device. More details of EUT technical specification, please refer to the User's Manual (Attachment - E.) 1.6 Connecting I/O Port(s) Please refer to the User's Manual ( Attachment - E.) 1.7 Power Supplied Power Source: Supplied from PC. Power Cord: N/A Power Rating: N/A NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 6/46 1.8 Products Covered (if applicable) The sample tested including the following sub-system/module/accessory : Sub-system/ Module/ Accessory Model/Type No. Int. Inst./ Ext. Cont. N/A N/A N/A 1.9 Model Difference (Series, Versions, if any) Except the basic model no. (model designation of the sample tested in this test report), additional model no. covered is(are) : There are eight models based on similar electrical circuit except the difference of list below: Brand Model NO. Difference(Memory & I/O Prts) SPARKLE SP7300M4A1X064DV 4MX16X8PCS,CRT+VIVO+DVI SPARKLE SP7300M4A1X064DT 4MX16X8PCS,CRT+TV+DVI SPARKLE SP7300M4A1X064TV 4MX16X8PCS,CRT+TV SPARKLE SP7300M4A1X064PU 4MX16X8PCS,Only CRT SPARKLE SP7300M4A1V128DV 8MX16X8PCS,CRT+VIVO+DVI SPARKLE SP7300M4A1V128DT 8MX16X8PCS,CRT+TV+DVI SPARKLE SP7300M4A1V128TV 8MX16X8PCS,CRT+TV SPARKLE SP7300M4A1V128PU 8MX16X8PCS,Only CRT All the above models were tested and the model: SP7300M4A1V128DV was found to be the worst case during the pr-scanning test. This mode of the worst case was used for final testing and collecting test data included in this report. 1.10 EUT Modifications (if applicable) No any modificatio…

Text truncated - open the document above for the full version.

NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 28/46 1. Conducted Measurement Photos Test mode:Mode 1 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 29/46 1. Conducted Measurement Photos Test mode:Mode 2/3 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 30/46 1. Conducted Measurement Photos Test mode:Mode 4/5 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 31/46 2. Radiated Measurement Photos Test mode:Mode 1 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 32/46 2. Radiated Measurement Photos Test mode:Mode 2/3 NEUTRON EMC LAB. Report No.NEI-FCCB-ID-02256 33/46 2. Radiated Measurement Photos Test mode:Mode 4/5
