M74TGUHFTable Genie UHF

Installation, Warranty and Service Information Long Range Systems, Inc. 4550 Excel Parkway, Suite 200 Addison, TX 75001 800.437.4996 • www.pager.net Table Genie UHF USER MANUAL Table Of Contents Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 S oftware Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3 C onnecting the Programming Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 U sing the Programming Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 Global Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 Table Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 Pager Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9 Programming and Reading Table Genie Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11 Cleaning Instructions For LRS Paging Equipment . . . . . . . . . . . . . . . . . . . . . . .14 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15 Long Range Systems1Table Genie UHF User Manual Long Range Systems2Table Genie UHF User Manual GETTING STARTED Software Installation Insert the software disk into the disk drive on your computer. The installation should auto-run. If not, navi- gate to the Installer.msi file located on the installation disk and run it manually. Step 1 – Once the installation wizard begins, you will see the screen shown below. Click 'Next' to continue. Step 2 – In this step of the installation wizard you can select where the file is to be installed at on your com- puter as well as which users on this machine will have access to the program. It is recommended that you leave the file location at its default setting. Once the location is selected, click ‘Next’ to continue. Step 3 – This is the confirmation screen indicating that you are about to install the software. Click ‘Next’ to con- tinue Step 4 – Once you begin the installation process, you will see a completion bar indicating how far along you are into the installation process Long Range Systems3Table Genie UHF User Manual Step 5 – This is the final step in the installation wizard. Click ‘Close’ to complete the installation process. Connecting the Programming Cable Included in your software kit, is a mini USB cable with an LRS programming adapter. Connect the LRS programming adapter to the mini USB cable. Connect the complete programming cable to an available USB port on your computer. Long Range Systems4Table Genie UHF User Manual USING THE PROGRAMMING SOFTWARE Global Configuration T he Global Configuration Settings are settings that will be programmed into all Table Genie units once the specific table information is uploaded to them. These settings should be configured before creating any ta- bles under the Table Configuration tab. System Id In order to prevent other LRS paging systems in the area from conflicting with your LRS paging system, your pagers and Table Genies may be on a system ID other than the default of zero. To determine if the system ID on your programming software should be set to something other than zero, look on the right hand side of the packing slip included with your order for the field marked ‘System ID’. If you do not have your packing slip for reference, contact LRS Customer Support at 1-800-437-4996 for fur- ther instruction. Repage Enable Marking the repage enable field will cause the Table Genies to repage the pager up to three times. The Table Genie will only repage if the request has not been cleared within the time you specify as the repage interval. Cancel Acknowledge When the repage field is enabled, you will have the option for your Table Genies to send out a cancel ac- knowledgement page. With this feature enabled, a page will be sent to the corresponding pagers when the page has been cleared and assistance is no longer needed. In the example screen shown on the next page,, the repage function has been enabled at 120 second inter- vals and will send a ‘Late Table xx’ message to the manager pager designated for this particular unit (man- ager pager assignment is covered in the table configuration section) after the third re-page interval has expired. If a page is cleared at the table unit at any point, the Table Genie will send a “Table Cleared xx” mes- sage. Long Range Systems5Table Genie UHF User Manual Long Range Systems6Table Genie UHF User Manual Low Battery Alert Enable When enabled, this feature will notify the pager of your choice when a Table Genie’s battery level drops below the specified threshold (threshold is in percent value). Group Page Enable Enabling this feature will allow pagers that have been previously programmed into groups to be called by their group number simultaneously. Enabling this feature will not allow you to page any individual pager numbers that have been programmed below number 100. To program a Table Genie to page groups: • Enable group paging on the ‘Global Configuration’ tab. • When creating a new table (see programming Table Genies in the next section). • On the ‘Table Configuration’ tab, enter the group number into the pager number field that a par- ticular Table Genie or button on a Table Genie is supposed to page when a button is pressed. Table Configuration The table configuration tab allows for the individual programming of each Table Genie unit used with your system. The individual pager or group numbers that are to respond to a button press as well as the message that each pager receives when a particular button is pressed are configured in this tab. To begin configuring your tables, click on ‘New Table’. Once you click on new table, you will see the config- uration fields…

Text truncated - open the document above for the full version.

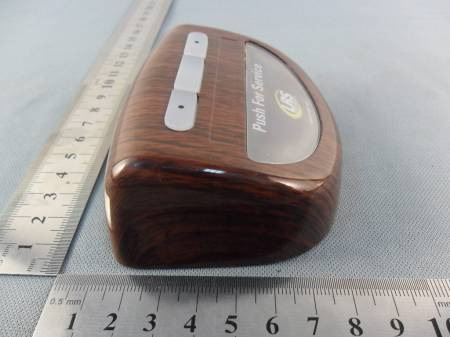

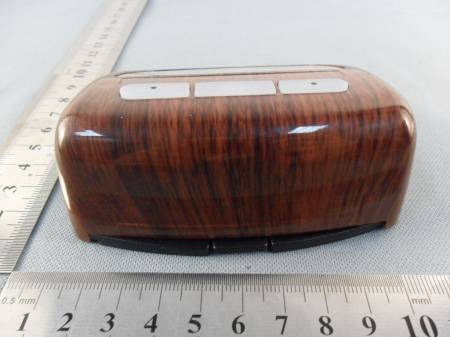

1 Photographs - EUT Constructional Details

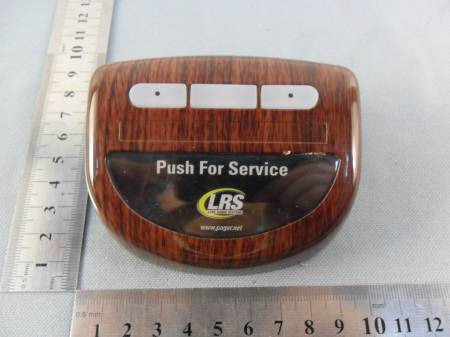

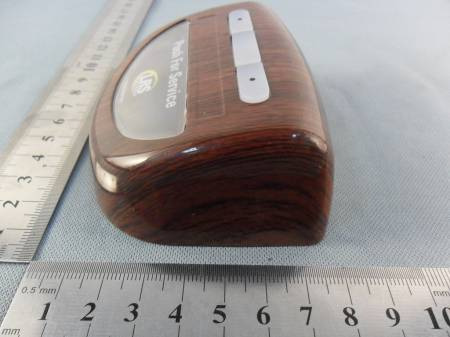

1 Photographs - EUT Constructional Details

Authorized Signature: Jack Zhang EMC Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. The report must not be used by the client to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government. All test results in this report can be traceable to National or International Standards. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm . Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” SGS-CSTC Standards Technical Services Ltd. No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong, China 518057 Telephone: +86 (0) 755 2601 2053 Fax: +86 (0) 755 2671 0594 Email: [email protected] Report No.: SZEMO11040172501 Page : 1 of 17 1 Cover Page FCC REPORT Application No.: SZEMO110401725RF Applicant: Long Range Systems, lnc Product Name: Table Genie UHF Model No.: TX-GENIE Operation Frequency : 467.75MHz FCC ID: M74TGUHF Standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231: 2010 Date of Receipt: 2011-04-15 Date of Test: 2011-04-19 to 2011-04-21 Date of Issue: 2011-07-06 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. “This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at www.sgs.com/terms_and_conditions.htm and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at www.sgs.com/terms_e-document.htm. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only.” Report No.: SZEMO11040172501 Page : 2 of 17 SGS-CSTC Standards Technical Services Ltd. 2 Contents Page 1 COVER PAGE.......................................................................................................................................................... 1 2 CONTENTS.............................................................................................................................................................. 2 3 TEST SUMMARY.................................................................................................................................................... 3 4 GENERAL INFORMATION.................................................................................................................................... 4 4.1 CLIENT INFORMATION....................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T................................................................................................................... 4 4.3 E.U.T OPERATION MODE.................................................................................................................................. 4 4.4 TEST FACILITY.................................................................................................................................................. 5 4.5 TEST LOCATION................................................................................................................................................ 5 4.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER.................................................................................. 5 4.7 TEST INSTRUMENTS LIST.................................................................................................................................. 6 5 TEST RESULTS AND MEASUREMENT DATA...................…

Text truncated - open the document above for the full version.

1 Photographs-test setup photo (Test model No.: TX-GENIE) Radiated Emission
