M82-ADAM-2017PZWireless Sensor Network Data Acquisistion Modules

User Manual ADAM-2000 Series Wireless Sensor Network Data Acquisition Modules ADAM-2000 Series User Manualii Copyright The documentation and the software included with this product are copyrighted 2012 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of pur- chase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1.Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2.Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3.If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4.Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5.Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Part No. 2003D01111Edition 2 Printed in TaiwanMay 2013 iiiADAM-2000 Series User Manual Declaration of Conformity FCC This equipment has been tested and found to comply with the limits for a Class B dig- ital device, pursuant to part 15 of the FCC Rules. These limits are designed to pro- vide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interfer- ence to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. CE This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. CE This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclo- sure products. Technical Support and Assistance 1.Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. 2.Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: –Product name and serial number –Description of your peripheral attachments –Description of your software (operating system, version, application software, etc.) –A complete description of the problem –The exact wording of any error messages ADAM-2000 Series User Manualiv Warnings, Cautions and Notes Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: support@advan- tech.com Packing List Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. 1x ADAM-2000 Series Device 1x 2dBi Antenna (ADAM-2520Z, ADAM-2510Z, ADAM-2051PZ only) 2 x Mounting Kits 1x CD Safety Instructions 1.Read these safety instructions carefully. 2.Keep this User Manual for later r…

Text truncated - open the document above for the full version.

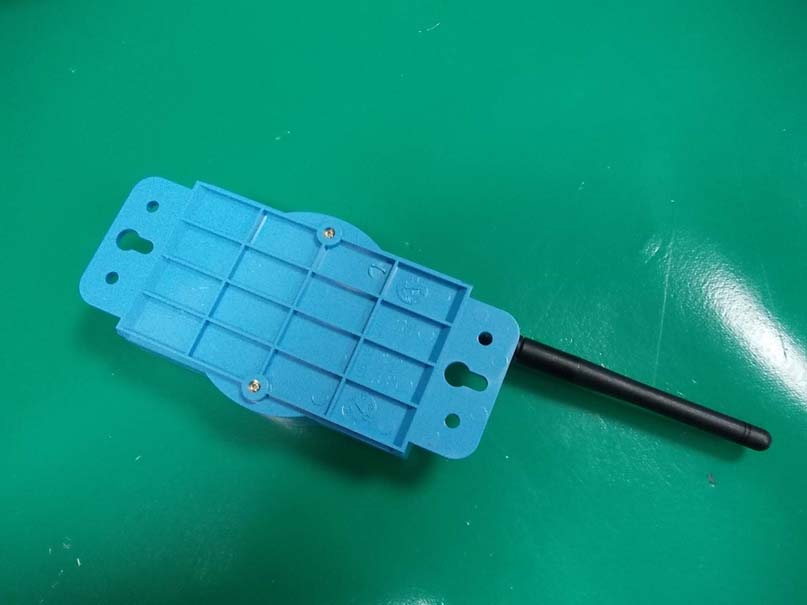

FCC ID: M82-ADAM-2017PZ ETC Report No.: 14-01-MAS-220-01 Page A1 of A1 ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT

FCC Label location

FCC ID: M82-ADAM-2017PZ ETC Report No.: 14-01-MAS-220-01 Page B1 of B3 ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID: M82-ADAM-2017PZ ETC Report No.: 14-01-MAS-220-01 Page B2 of B3 3. Inside View 3 of EUT 4. Module+Antenna FCC ID: M82-ADAM-2017PZ ETC Report No.: 14-01-MAS-220-01 Page B3 of B3 5. Front view of PCB 6. Rear view of PCB

ETC Report No. : 14-01-MAS-220-02 Sheet 1 of 2 Sheets FCC ID. : M82-ADAM-2017PZ Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (nW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 1 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 20 cm is meet the limit of MPE. ETC Report No. : 14-01-MAS-220-02 Sheet 2 of 2 Sheets FCC ID. : M82-ADAM-2017PZ Rev. No 1.0 Result (Worse case mode) Radio Technology Operation Frequency (GHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Zigbee 2.405 20 16 2 0.0126 1 The P d at 20 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 1 mW/cm 2 or 10W/m 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 20 cm from persons to comply with the FCC's requirements. This separation of 20 cm more than meets the FCC's and Industry Canada RF exposure requirements.

FCC ID: M82-ADAM-2017PZ Sheet 1 of 51 Sheets ETC Report No. : 14-01-MAS-220-01 Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 14-01-MAS-220-01 Client: Advantech Co Ltd Product: Wireless Sensor Network Data Acquisition Modules Model: ADAM-2017PZ FCC ID: M82-ADAM-2017PZ Manufacturer/supplier: Advantech Co Ltd Date test item received: 2013/12/09 Date test campaign completed: 2014/01/14 Date of issue: 2014/01/27 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 51 pages Total number of pages of photos: External photos 1 pages Internal photos 3 pages Setup photos 3 pages Test Engineer Checked By Approved By Hsin-Pei Perry Lin James Cheng ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: M82-ADAM-2017PZ Sheet 2 of 51 Sheets ETC Report No. : 14-01-MAS-220-01 Rev. No 1.0 Client : Advantech Co Ltd Address : No. 1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei, Taiwan Manufacturer : Advantech Co Ltd Address : No. 1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei, Taiwan EUT : Wireless Sensor Network Data Acquisition Modules Trade name : Advantech Model No. : ADAM-2017PZ Power Source : DC : 24V Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following:  ISO9001: TüV Product Service  ISO/IEC 17025: BSMI, TAF, NCC, NVLAP, ILAC MRA, UL, Compliance  Filing: FCC, Industry Canada, VCCI  MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF  FCC Registration Number: 91095, 392735, 278818  Industry Canada Site Registration Number: IC 2949A-2 NVLAP Lab Code 200133-0 FCC ID: M82-ADAM-2017PZ Sheet 3 of 51 Sheets ETC Report No. : 14-01-MAS-220-01 Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION....................................................................................................... 5 1.1 Product Description ..................................................................................................................... 5 1.2 Characteristics of Device ............................................................................................................. 5 1.3 Test Methodology ........................................................................................................................ 5 1.4 Test Facility ................................................................................................................................. 5 1.5 Test Summary .............................................................................................................................. 6 2 PROVISIONS APPLICABLE...................................................................................................... 7 2.1 Definition ..................................................................................................................................... 7 2.2 Requirement for Compliance ....................................................................................................... 8 2.3 Restricted Bands of Operation ................................................................................................... 10 2.4 Labeling Requirement................................................................................................................ 10 2.5 User Information ........................................................................................................................ 11 3. SYSTEM TEST CONFIGURATION........................................................................................ 12 3.1 Devices for Tested System......................................................................................................... 12 3.2 Dscription of Test modes ........................................................................................................... 12 4 CONDUCTED EMISSION MEASUREMENT........................................................................ 14 4.1 Standard Applicable................................................................................................................... 14 4.2 Measurement Procedure............................................................................................................. 14 4.3 Conducted Emission Data .......................................................................................................... 15 4.4 Result Data Calculation ............................................................................................................. 17 4.5 Conducted Measurement EquiPMent ........................................................................................ 17 5 ANTENNA REQUIREMENT .................................................................................................... 18 5.1 Standard Applicable.........................................…

Text truncated - open the document above for the full version.

FCC ID: M82-ADAM-2017PZ ETC Report No. : 14-01-MAS-220-01 Sheet 1 of 3 Sheets Photos of Radiation Measuring Setup x-axis FCC ID: M82-ADAM-2017PZ ETC Report No. : 14-01-MAS-220-01 Sheet 2 of 3 Sheets y-axis FCC ID: M82-ADAM-2017PZ ETC Report No. : 14-01-MAS-220-01 Sheet 3 of 3 Sheets Photos of Conduction Measuring Setup
