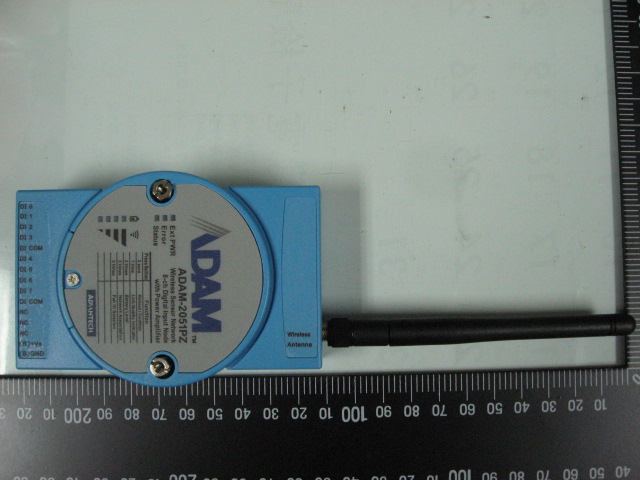

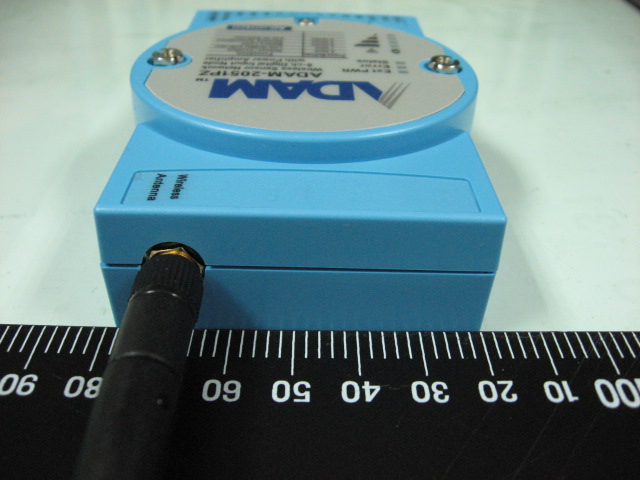

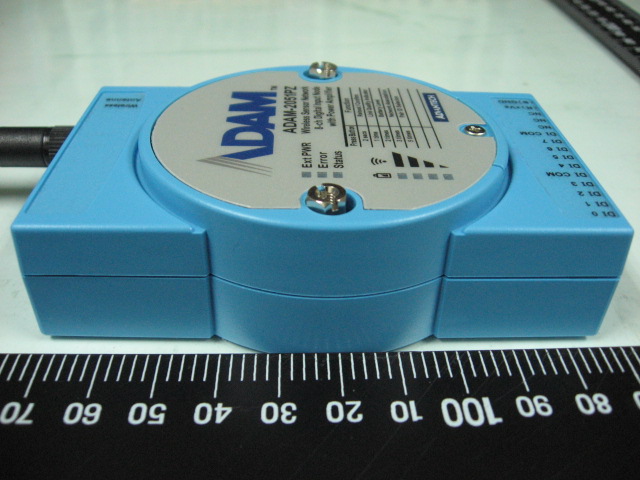

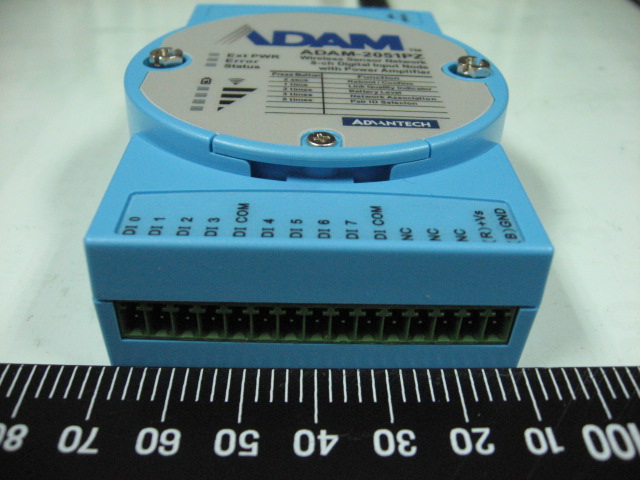

ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 1 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. SideView of EUT ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 2 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Top View of EUT 4. SideView of EUT ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 3 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. RearView of EUT 6. BottomView of EUT

ADVANTECH CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, 4.8 cm 4.0 cm

FCC Label ADVANTECH CO., LTD. Wireless Sensor Network 8-ch Digital Input Node with Power Amplifier Model No.: ADAM-20 5 1 P Z Input: 24 Vdc FCC ID: M82-ADAM-20 5 1 P Z This device complies with Part 15 of the FCC rule. O peration is subject to th e following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, in cluding interference that may cause undesired operation. Warning: Improper or prolonged keyboard use may result in injury. Made in Taiwan

ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 4 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 5 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Solder View of PCB

FCC ID: M82-ADAM-2051PZ RF Exposure Evaluation of E.U.T. : Wireless Sensor Network 8-ch Digital Input Node with Power Amplifier FCC ID. : M82-ADAM-2051PZ MODEL : ADAM-2051PZ for APPLICANT : Advantech Co., Ltd. ADDRESS : No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-03-RBF-182-MPE FCC ID: M82-ADAM-2051PZ Product Information: Type of EUT: Wireless Sensor Network 8-ch Digital Input Node with Power Amplifier FCC ID: M82-ADAM-2051PZ Manufacturer: Advantech Co., Ltd. Model: ADAM-2051PZ Description: Modulation Type: DSSS (OQPSK) Frequency Band: ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) Channels: 16 channels RF Data Rate: 250 Kbps Transmit Power: Typ. 19 ± 1 dBm Maximum conducted output power (measured): 19.61 dBm or 91.411mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric --- Omni-directional type antennas 2 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: M82-ADAM-2051PZ Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: M82-ADAM-2051PZ RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 91.411mW G = 1.58 R = 20 cm S = (91.411 * 1.58) / (4*π*20 2 ) = 0.0287 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Sensor Network 8-ch Digital Input Node with Power Amplifier FCC ID. : M82-ADAM-2051PZ Model No. : ADAM-2051PZ for APPLICANT : Advantech Co., Ltd. ADDRESS : No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-03-RBF-182-01 ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Advantech Co., Ltd. No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Manufacturer : Advantech Co., Ltd. No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Description of EUT a) Type of EUT Wireless Sensor Network 8-ch Digital Input Node with Power Amplifier b) Trade Name Advantech c) Model No. ADAM-2051PZ d) Power Supply : : : : DC 24V e) Frequency Range : 2405.000-2480.000 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Rev. No 1.0 Date Test Item Received : Mar 21, 2012 Date Test Campaign Completed : Mar 21, 2012 Date of Issue : Mar 23, 2012 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 17 4.6 Photos of Radiation Measuring Setup........................................................................................ 18 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 19 5.1 Description ................................................................................................................................. 19 6 ANTENNA REQUIREMENT .................................................................................................... 20 6.1 Standard Applicable ................................................................................................................... 20 6.2 Antenna Construction and Directional Gain .............................................................................. 20 7 EMISSION BANDWIDTH MEASUREMENT ......................................................................... 21 7.1 Standard Applicable ................................................................................................................... 21 7.2 Measurement Procedure............................................................................................................. 21 7.3 Measurement Equipment .................................…

Text truncated - open the document above for the full version.

ETC Report No. : 12-03-RBF-182-01 FCC ID.: M82-ADAM-2051PZ Sheet 18 of 44Sheets Rev. No 2.0 4.6 Photos of Radiation Measuring Setup
