M82-ADAM-2520ZWireless Sensor Network Modbus RTU Gateway

User Manual ADAM-2000 Series Wireless Sensor Network Data Acquisition Modules ADAM-2000 Series User Manualii Copyright The documentation and the software included with this product are copyrighted 2006 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of pur- chase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1.Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2.Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3.If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4.Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5.Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Part No. 2003D01100Edition 1 Printed in TaiwanJanuary 2012 Declaration of Conformity FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●  Reorient or relocate the receiving antenna.  ● Increase the separation between the equipment and receiver.  ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  ● Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. CE This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. CE This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products. Technical Support and Assistance 1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: – Product name and serial number – Description of your peripheral attachments – Description of your software (operating system, version, application software, etc.) – A complete description of the problem – The exact wording of any error messages iii ADAM-2000 Series User Manual ADAM-2000 Series User Manualiv Warnings, Cautions and Notes Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructive criticism. Please send all such - in writing to: support@advan- tech.com Packing List Before setting up the system, check that the items listed below are included and in good condition. If any item does not accord with the table, please contact your dealer immediately. 1x ADAM-2000 Series Device 1x 2dBi A…

Text truncated - open the document above for the full version.

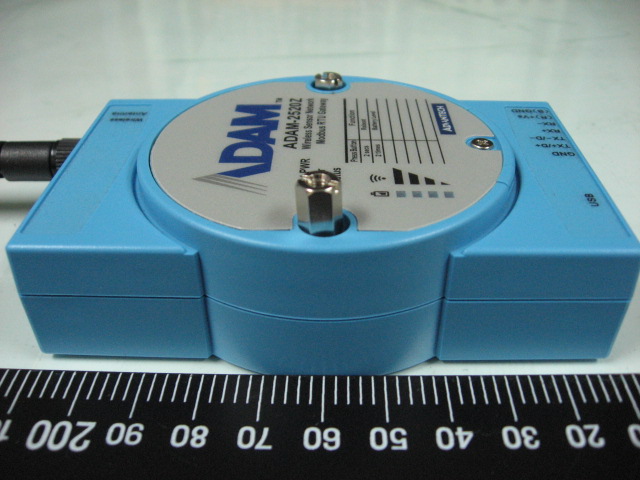

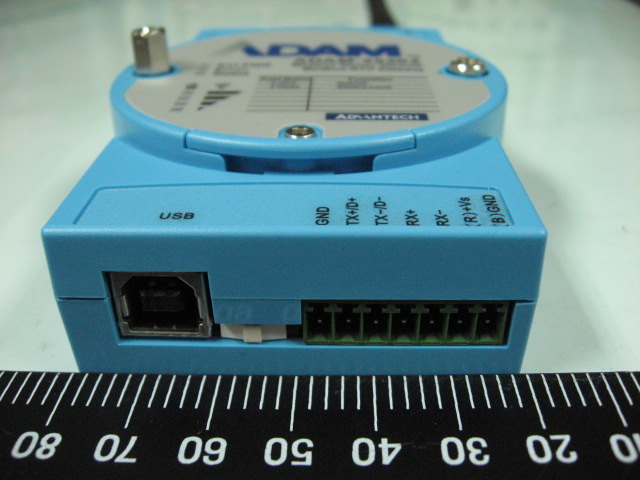

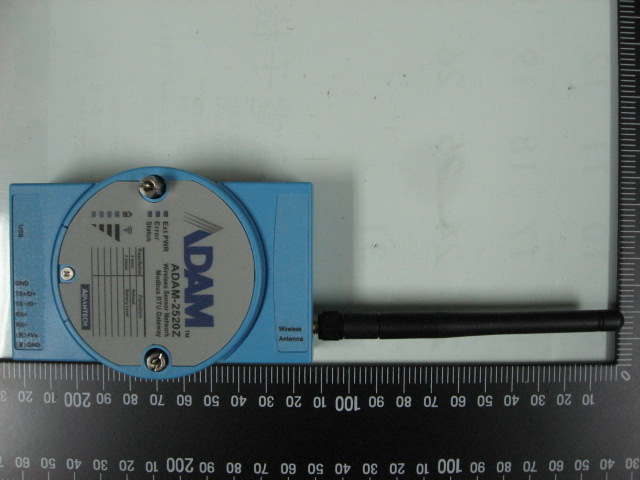

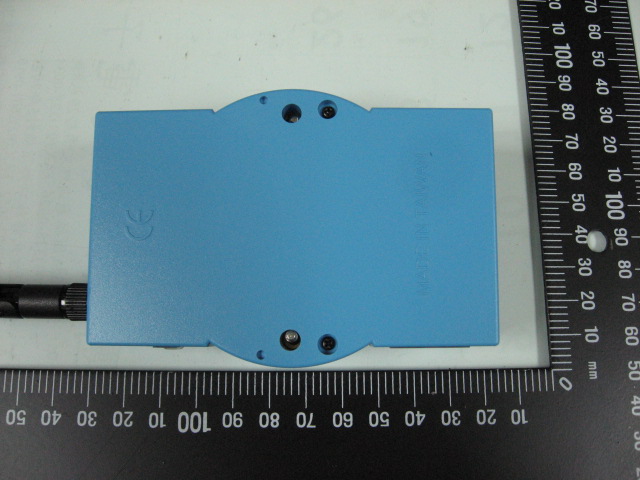

ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 1 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 1. Top View of EUT 2. SideView of EUT ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 2 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 3. Front View of EUT 4. SideView of EUT ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 3 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 5. RearView of EUT 6. BottomView of EUT

ADVANTECH CO., LTD. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, 4.8 cm 4.0 cm

FCC Label ADVANTECH CO., LTD. Wireless Sensor Network Modbus RTU Gateway Model No.: ADAM-2 520 Z Input: 24 Vdc FCC ID: M82-ADAM-2 520 Z This device complies with Part 15 of the FCC rule. O peration is subject to th e following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, in cluding interference that may cause undesired operation. Warning: Improper or prolonged keyboard use may result in injury. Made in Taiwan

ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 4 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 7. Internal View of EUT 8. Internal View of EUT ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 5 of 5Sheets Rev. No 1.0 CONSTRUCTED PHOTOS of EUT 9. Component View of PCB 10. Solder View of PCB

FCC ID: M82-ADAM-2520Z RF Exposure Evaluation of E.U.T. : Wireless Sensor Network Modbus RTU Gateway FCC ID. : M82-ADAM-2520Z MODEL : ADAM-2520Z for APPLICANT : Advantech Co., Ltd. ADDRESS : No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Prepared by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C Tel:(02)26023052 Fax:(02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-03-RBF-184-MPE FCC ID: M82-ADAM-2520Z Product Information: Type of EUT: Wireless Sensor Network Modbus RTU Gateway FCC ID: M82-ADAM-2520Z Manufacturer: Advantech Co., Ltd. Model: ADAM-2520Z Description: Modulation Type: DSSS (OQPSK) Frequency Band: ISM 2.4 GHz (2.4 GHz ~ 2.4835 GHz) Channels: 16 channels RF Data Rate: 250 Kbps Transmit Power: Typ. 19 ± 1 dBm Maximum conducted output power (measured): 19.74 dBm or 94.188mW The following table lists the provided authorized antennas: Antenna Gain Model Antenna Type (dBi) Numeric --- Omni-directional type antennas 2 1.58 Below is an example of the RF Exposure Statement: IMPORTANT NOTE: To comply with the FCC RF exposure compliance requirements, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. No change to the antenna or the device is permitted. Any change to the antenna or the device could result in the device exceeding the RF exposure requirements and void user’s authority to operate the device. FCC ID: M82-ADAM-2520Z Relative Requirement for Compliance According to section 1.1310 of FCC 47 CFR Part 1, limits for maximum permissible exposure (MPE) are as following: TABLE 1 – LIMITS FOR MAXIMUN PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3-3.0 .................. 6141.63*(100) 6 3-30 ..................... 1842/f4.89/f *(900/f 2 ) 6 30-300 .................. 61.40.1631.0 6 300-1500 ............... ...................... ......................f/300 6 1500-100,000 ......... ...................... ......................5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3-1.34 ............... 6141.63*(100) 30 1.34-30 ............... 824/f2.19/f*(180/f2) 30 30-300 .................. 27.50.0730.2 30 300-1500 ............... ...................... ......................f/1500 30 1500-100,000 ......... ...................... ......................1.0 30 f = frequency in MHz * = Plane-wave equivalent power density NOTE 1 TO TABLE 1: Occupational/controlled limits apply in situations in which persons are exposed as a consequence of their employment provided those persons are fully aware of the potential for exposure and can exercise control over their exposure. Limits for occupational/controlled exposure also apply in situations when an individual is transient through a location where occupational / controlled limits apply provided he or she is made aware of the potential for exposure. NOTE 2 TO TABLE 1: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or can not exercise control over their exposure. FCC ID: M82-ADAM-2520Z RF Exposure Calculations: The following information provides the minimum separation distance for the highest gain antenna provided. This calculation is based on the highest EIRP possible from the system, considering maximum power and antenna gain, and considering a 1.0 mW/cm 2 uncontrolled exposure limit. The formula shown in OET Bulletin 65 is used in the calculation. Equation from page 19 of OET Bulletin 65, Edition 97-01 is: S= PG / 4πR 2 where: S = power density (in appropriate units, e.g. mW/cm 2 ) P = power input to the antenna (in appropriate units, e.g., mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) hence R= (PG / 4πS) 1/2 For our device P = 94.188mW G = 1.58 R = 20 cm S = (94.188 * 1.58) / (4*π*20 2 ) = 0.0296 mW/cm 2 < 1.0 mW/cm 2 For complying the FCC limits for general population/uncontrolled exposure, the power density limit is 1.0 mW/cm 2 . The calculation result of the power density at a distance of 20 cm of our device is less than the limit. This means that according to OET Bulletin 65 (Edition 97-01), Supplement C (Edition 01-01), the equipment fulfills the requirements on power density for general population/uncontrolled exposure and therefore fulfills the requirements of 47 CFR Part 15.247 (b)(5).

Rev. No 2.0 FCC Part 15 EMI TEST REPORT of E.U.T. : Wireless Sensor Network Modbus RTU Gateway FCC ID. : M82-ADAM-2520Z Model No. : ADAM-2520Z for APPLICANT : Advantech Co., Ltd. ADDRESS : No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Test Performed by ELECTRONICS TESTING CENTER, TAIWAN NO. 34. LIN 5. DINGFU, LINKOU DIST., NEW TAIPEI CITY, TAIWAN, 24442, R.O.C. Tel : (02)26023052 Fax : (02)26010910 http://www.etc.org.tw ; e-mail: [email protected] Report Number : 12-03-RBF-184-01 ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Rev. No 1.0 TEST REPORT CERTIFICATION Applicant : Advantech Co., Ltd. No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Manufacturer : Advantech Co., Ltd. No.1, Aly. 20, Ln. 26, Ruiguang Rd., Neihu Dist., Taipei City Description of EUT a) Type of EUT Wireless Sensor Network Modbus RTU Gateway b) Trade Name Advantech c) Model No. ADAM-2520Z d) Power Supply : : : : DC 24V e) Frequency Range : 2405.000-2480.000 MHz Regulation Applied : FCC Rules and Regulations Part 15 Subpart C I HEREBY CERTIFY THAT: The data shown in this report were made in accordance with the procedures given in ANSI C63.4, and the energy emitted by the device was founded to be within the limits applicable. I assume full responsibility for accuracy and completeness of these data. Note: 1. The result of the testing report relate only to the item tested. 2. The testing report shall not be reproduced expect in full, without the written approval of ETC. ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Rev. No 1.0 Date Test Item Received : Mar 21, 2012 Date Test Campaign Completed : Mar 21, 2012 Date of Issue : Mar 23, 2012 Test Engineer : ( Vincent Chang, Engineer ) Approve & Authorized Signer : S. S. Liou, Section Manager EMC Dept. II of ELECTRONICS TESTING CENTER, TAIWAN ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 1 1.1 Product Description...................................................................................................................... 1 1.2 Characteristics of Device ............................................................................................................. 1 1.3 Test Methodology ........................................................................................................................ 1 1.4 Test Facility.................................................................................................................................. 1 2 PROVISIONS APPLICABLE...................................................................................................... 2 2.1 Definition ..................................................................................................................................... 2 2.2 Requirement for Compliance ....................................................................................................... 3 2.3 Restricted Bands of Operation ..................................................................................................... 5 2.4 Labeling Requirement .................................................................................................................. 5 2.5 User Information .......................................................................................................................... 6 3. SYSTEM TEST CONFIGURATION .......................................................................................... 7 3.1 Justification .................................................................................................................................. 7 3.2 Devices for Tested System........................................................................................................... 7 4 RADIATED EMISSION MEASUREMENT .............................................................................. 8 4.1 Applicable Standard ..................................................................................................................... 8 4.2 Measurement Procedure............................................................................................................... 8 4.3 Measuring Instrument ................................................................................................................ 10 4.4 Radiated Emission Data ............................................................................................................. 11 4.5 Field Strength Calculation ......................................................................................................... 17 4.6 Photos of Radiation Measuring Setup........................................................................................ 18 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 19 5.1 Description ................................................................................................................................. 19 6 ANTENNA REQUIREMENT .................................................................................................... 20 6.1 Standard Applicable ................................................................................................................... 20 6.2 Antenna Construction and Directional Gain .............................................................................. 20 7 EMISSION BANDWIDTH MEASUREMENT ......................................................................... 21 7.1 Standard Applicable ................................................................................................................... 21 7.2 Measurement Procedure............................................................................................................. 21 7.3 Measurement Equipment ...........................................................................................…

Text truncated - open the document above for the full version.

ETC Report No. : 12-03-RBF-184-01 FCC ID.: M82-ADAM-2520Z Sheet 18 of 44Sheets Rev. No 2.0 4.6 Photos of Radiation Measuring Setup
