M82-ART-310UHF RFID ART-310 module Tracer

Advantech Co Ltd
UHF RFID ART-310 module Tracer - FCC ID M82-ART-310 - Advantech Co Ltd
Click to zoom

Application Details

Equipment Class
DSS - Part 15 Spread Spectrum Transmitter
Date of Grant
Dec 19, 2011
Application Purpose
Original Equipment
Date of Application
Dec 19, 2011
Equipment Note
UHF RFID ART-310 module Tracer
Frequency Range
902.75000000 - 927.25000000
Company
Advantech Co Ltd
Country
Taiwan

Documents & Files

Select a file to view

Users Manual

β†—

Cover Letter(s)

β†—
β†—
β†—

External Photos

β†—

ID Label/Location Info

β†—

Internal Photos

β†—

Parts List/Tune Up Info

β†—

Test Report

β†—
β†—

Test Setup Photos

β†—

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

External Photos

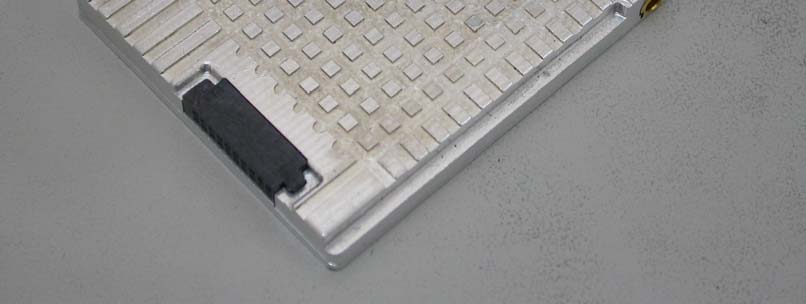

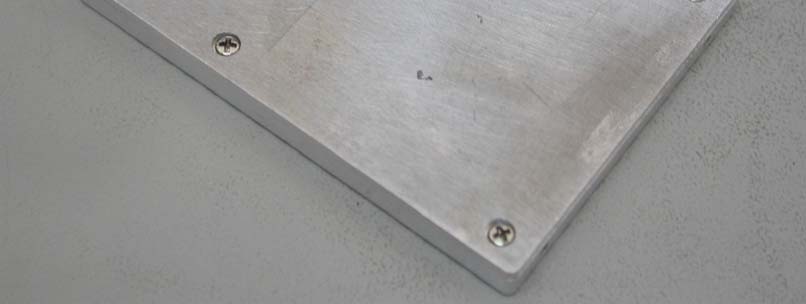

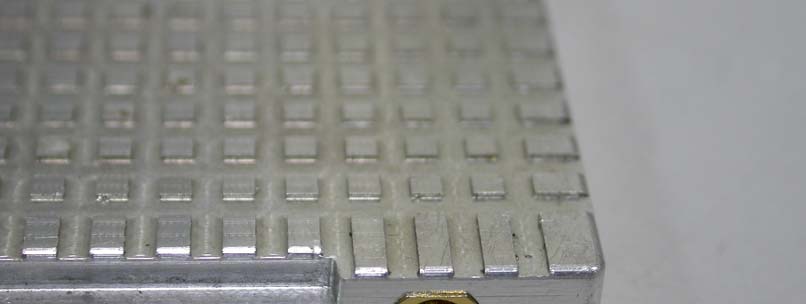

FCC ID. : M82-ART-310 Page A1 of A3 ETC Report No.: 11-06-MAS-125-02(R) ANNEX A: EXTERNAL CONSTRUCTION PHOTOS OF EUT 1. Outside view 1 of EUT 2. Outside view 2 of EUT FCC ID. : M82-ART-310 Page A2 of A3 ETC Report No.: 11-06-MAS-125-02(R) 3. Module connect 4. Antenna FCC ID. : M82-ART-310 Page A3 of A3 ETC Report No.: 11-06-MAS-125-02(R) 5. Antenna 6. Antenna connect

ID Label/Location Info

FCC ID & location 3.5 cm Model: ART-310 This device complies with Part 15 of FCC Rules. Operation is subject to the following two conditions: (1)this device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation. FCC ID: M82-ART-310 2.0 cm

Internal Photos

FCC ID. : M82-ART-310 Page B1 of B4 ETC Report No.: 11-06-MAS-125-02(R) ANNEX B: INTERNAL CONSTRUCTION PHOTOS OF EUT 1. Inside View 1 of EUT 2. Inside View 2 of EUT FCC ID. : M82-ART-310 Page B2 of B4 ETC Report No.: 11-06-MAS-125-02(R) 3. Inside View 1 of Antenna 4. Inside View 2 of Antenna FCC ID. : M82-ART-310 Page B3 of B4 ETC Report No.: 11-06-MAS-125-02(R) 5. Inside View 3 of Antenna 6. Inside View 4 of Antenna FCC ID. : M82-ART-310 Page B4 of B4 ETC Report No.: 11-06-MAS-125-02(R) 7. Front view of PCB 8. Rear view of PCB

Parts List/Tune Up Info

Specifications Device name Handfree Mini Reader Module Model No. ISTC01 Intended use/ Purpose of the equipment RFID Reader Equipment type Transmitter Receiver Transceiver Frequency of operation 902.75-927.25MHz Type of modulation PR-ASK channel number 50 CH Transmit power Less than 30dBm Duty cycle N/A Channel access protocol N/A Mode of operation Simplex Duplex Antenna brand ARA Antenna model RFID-11-2 Antenna type Circular Polarization Antenna gain 6dbi Antenna connector type MMCS Method of frequency generation Crystal Synthesizer Other (Resonator) Operating voltage DC 3.3V Operating temperature -40~80 Antenna model: RFID-11-2 The typical high quality circular Azimuth and Elevation radiation pattern could look like below:

Test Report

FCC ID: M82-ART-310 Sheet 1 of 2 Sheets ETC Report No. : 11-06-MAS-125-02(R) Rev. No 1.0 MAXIMUM PERMISSIBLE EXPOSURE Standard Applicable Section 15.247 (b)(5) : Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this Chapter. Section 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency radiation as specified in 1.1307(b) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (Minutes) (A) Limits for Occupational/control Exposures 300-1500 -- -- F/300 6 1500-100,000 -- -- 5 6 (B) Limits for General Population/Uncontrolled Exposures 300-1500 -- -- F/1500 30 1500-100,000 -- -- 1.0 30 F = Frequency in MHz Calculations Friis transmission formula: P d = ( P out * G ) / ( 4 * pi * r 2 ) Where P d = power density in mW/cm 2 P out = output power to antenna in mW G = gain of antenna in linear scale pi = 3.1416 r = distance between observation point and center of the radiator in cm The limit of P d is 0.6 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance where the P d at 23 cm is meet the limit of MPE. FCC ID: M82-ART-310 Sheet 2 of 2 Sheets ETC Report No. : 11-06-MAS-125-02(R) Rev. No 1.0 Result : (Worse case mode) Operation Frequency (MHz) Distance (cm) Maximum Peak Output Power (dBm) Antenna Gain (dBi) Power Density (mW/cm 2 ) Limit (mW/cm 2 ) 902.75 23 29.64 6.0 0.5512 0.6 The P d at 23 cm distance calculated from the Friis transmission formula is mush smaller than the limit requirement 0.6 mW/cm 2 . The Installation Manual instructs the user to install the device such that it has a separation of at least 23 cm from persons to comply with the FCC's requirements. This separation of 23 cm more than meets the FCC's and Industry Canada RF exposure requirements.

Test Report

FCC ID: M82-ART-310 Sheet 1 of 56 Sheets ETC Report No. : 11-06-MAS-125-02(R) Rev. No 1.0 CONFORMANCE TEST REPORT FOR FCC 47 CFR, Part 15 Subpart C Report No.: 11-06-MAS-125-02(R) Client: Advantech Co., Ltd. Product: UHF RFID ART-310 Module Tracer Model: ART-310 FCC ID: M82-ART-310 Manufacturer/supplier: ---- Issue date of the origin report 09-09-MAS-189: 2009/10/06 Issue date of the revision report : 2011/12/07 The test result onl y corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Total number of pages of this test report: 56 pages Total number of pages of photos: External photos 3 pages Internal photos 4 pages Setup photos 3 pages Test Engineer Checked By Approved By Perry Lin James Cheng Joe Hsieh ELECTRONICS TESTING CENTER, TAIWAN NO.8, LANE 29, WENMING RD., LESHAN TSUEN, GUISHAN SHIANG, TAOYUAN COUNTY, TAIWAN 33383, R.O.C.TAIWAN, R.O.C. TEL: (03) 3276170~4 INT: +886-3-3276170~4 FAX: (03) 3276188 INT: +886-3-3276188 FCC ID: M82-ART-310 Sheet 2 of 56 Sheets ETC Report No. : 11-06-MAS-125-02(R) Rev. No 1.0 Client : Advantech Co., Ltd. Address : No. 1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei 114, Taiwan, R.O.C Manufacturer : ---- Address : ---- EUT : UHF RFID ART-310 Module Tracer Trade name : ADVANTECH Model No. : ART-310 Power Source : DC 3.3V Regulations applied : FCC 47 CFR, Part 15 Subpart C The testing described in this report has been carried out to the best of our knowledge and ability, and our responsibility is limited to the exercise of reasonable care. This certification is not intended to believe the sellers from their legal and/or contractual obligations. The compliance test is only certified for the test equipment and the results of the testing report relate only to the item tested. The compliance test of this report was conducted in accordance with the appropriate standards. It’s not intention to assure the quality and performance of the product. This report shall not be reproduced except in full, without the approval of ETC. This report must not be used by the client to claim product endorsement by NVLAP or any agency of the U.S. Government. Laboratory Introduction: Electronics Testing Center, Taiwan is recognized, filed and mutual recognition arrangement as following: 1 ISO9001: TΓΌV Product Service 2 ISO/IEC 17025: BSMI, CNLA, NCC, NVLAP, CCIBLAC, UL, Compliance 3 Filing: FCC, Industry Canada, VCCI 4 MRA: Australia, Hong Kong, New Zealand, Singapore, USA, Japan, Korea, China, APLAC through TAF 5 FCC Registration Number: 90588, 91094, 91095 h Industry Canada Site Regisitation number: IC 2949A NVLAP Lab Code 200133-0 FCC ID: M82-ART-310 Sheet 3 of 56 Sheets ETC Report No. : 11-06-MAS-125-02(R) Rev. No 1.0 Table of Contents Page 1 GENERAL INFORMATION ....................................................................................................... 5 1.1 Product Description...................................................................................................................... 5 1.2 Characteristics of Device ............................................................................................................. 5 1.3 Test Methodology ........................................................................................................................ 5 1.4 Modifiction List of EUT .............................................................................................................. 5 1.5 Test Facility.................................................................................................................................. 5 1.6 Test Summary .............................................................................................................................. 5 2 PROVISIONS APPLICABLE...................................................................................................... 6 2.1 Definition ..................................................................................................................................... 6 2.2 Requirement for Compliance ....................................................................................................... 7 2.3 Restricted Bands of Operation ..................................................................................................... 9 2.4 Labeling Requirement .................................................................................................................. 9 2.5 User Information ........................................................................................................................ 10 3. SYSTEM TEST CONFIGURATION ........................................................................................ 11 3.1 Justification ................................................................................................................................ 11 3.2 Devices for Tested System......................................................................................................... 11 4 RADIATED EMISSION MEASUREMENT ............................................................................ 12 4.1 Applicable Standard ................................................................................................................... 12 4.2 Measurement Procedure............................................................................................................. 12 4.3 Measuring Instrument ................................................................................................................ 14 4.4 Radiated Emission Data ............................................................................................................. 15 4.5 Field Strength Calculation ......................................................................................................... 25 5 CONDUCTED EMISSION MEASUREMENT ........................................................................ 26 5.1 Standard Applicable ......…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID. : M82-ART-310 Page 1 of 3 ETC Report No.: 11-06-MAS-125-02(R) Photos of Radiation Measuring Setup x-axis FCC ID. : M82-ART-310 Page 2 of 3 ETC Report No.: 11-06-MAS-125-02(R) y-axis FCC ID. : M82-ART-310 Page 3 of 3 ETC Report No.: 11-06-MAS-125-02(R) Photos of Conduction Measuring Setup

Contact Information

Applicant

Lily Huang(Manager)
[email protected]886-2-77323399Fax: 886-2-2794-7334

Test Firm

Electronics Testing Center, TaiwanWinpo Tsai
[email protected]886-3-3280026Fax: 886-3-3276188

Technical Specifications

#Rule PartsFrequency RangePower Output
115C902.75 MHz - 927.25 MHz920.00 mW
Modular Type
Single Modular Approval
Confidentiality
Long Term
Grant Notes
Modular approval. Output power listed is conducted. This module may only be installed by the OEM or an OEM integrator. Only antenna(s) documented in this filings may be used with this transmitter. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 23 cm from all persons and must not be collocated or operating in conjunction with any other antenna or transmitter within a host device, except in accordance with FCC multi-transmitter product procedures. OEM integrators and End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
