M82-DVS-350Embedded/Mobile Digital Video System

DVS-350 4~16 Channels Embedded/ Mobile Digital Video System User Manual Copyright and Disclaims The documentation and the software included with this product are copyrighted 2005 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. While Advantech has sought to ensure the accuracy of all information in this manual, Advantech assumes no liability to any party for any damage caused by any error or omission contained in this manual, its updates or supplements, whether such errors or omissions result from negligence, accident, or any other cause. In addition, Advantech assumes no liability with respect to the application or use of any product or system in accordance with the descriptions or instructions contained herein; including any liability for incidental or consequential damages arising therefrom. ADVANTECH DISCLAIMS ALL WARRANTIES REGARDING THE INFORMATION CONTAINED HEREIN, WHETHER EXPRESSED, IMPLIED, OR STATUTORY. Advantech reserves the right to make changes to any products described herein without further notice and without obligation. The contents of this manual may be revised without prior notice. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Part No. 2002S35000 May 2006 1st Edition Printed in Taiwan Product Warranty (1 year) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Declaration of Conformity CE This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products. FCC Class A Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. Technical Support and Assistance Step 1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number - Description of your peripheral attachments - Description of your software (operating system, version, application software, etc.) - A complete description of the problem - The exact wording of any error messages DVS-350 Series Model There are 6 sub-models in DVS-350 series listed below: Part Number Video Channel CPU L2 Cache DVS-350-18M0 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-18S4 4~16 CH Intel LV Pentium® M 1.4GHz 2MB DVS-350-25M0 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-25S4 4~16 CH Intel LV Pentium® M 1.4GHz 2MB DVS-350-35M0 * 4~16 CH Intel ULV Celeron® M 600MHz 512KB DVS-350-35S4 * 4~16 CH Intel LV Pentium® M 1.4GHz 2MB * The swappable …

Text truncated - open the document above for the full version.

June 13, 2006 Federal Communications Commission Authorization and Evaluation Division FCC ID: M82-DVS-350 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

Helen Zhao Subject: FW: FW: Advantech Co. Ltd. , FCC ID: M82-DVS-350, Assessment NO.: AN06T6005, Notice#1 8/4/2006 From: amanda.wu [mailto:[email protected]]On Behalf Of application Sent: Thursday, August 03, 2006 6:56 PM To: Helen Zhao Subject: Re:FW: Advantech Co. Ltd. , FCC ID: M82-DVS-350, Assessment NO.: AN06T6005, Notice#1 Dear Helen, Please see my reply, thank you. Best Regards, Gina -----Original Message----- Sent: Thursday, July 27, 2006 5:37 PM Subject: Advantech Co. Ltd. , FCC ID: M82-DVS-350, Assessment NO.: AN06T6005, Notice#1 Question #1: The block diagram and schematic diagram provided in the filing are for the system, please submit the block diagram and schematic diagram for the module. Ans: The Applicant requests confidential. Thank you. Question #2: The antenna specification show peak gain 2.0dBi (max.) - see page 3. Although page 20 shows 1.28dBi peak gain, please explain why MPE calculation was not based on 2.0 dBi antenna gain. Ans: Because peak gain is the typical gain, MPE calculation was based on 1.28 dBi antenna gain. Question #3: Test report section 2 has inapplicable model discrepancy description. You may need to remove it. Ans:We revsied remove the model discrepancy description on page 4, please see the revised test report. Question #4: The user manual does not contain user information as specified in FCC 15. 21. Please revise the user manual. Ans: We added the warming statment (FCC 15.21) into the user manual on p159. Best Regards, Helen Zhao The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

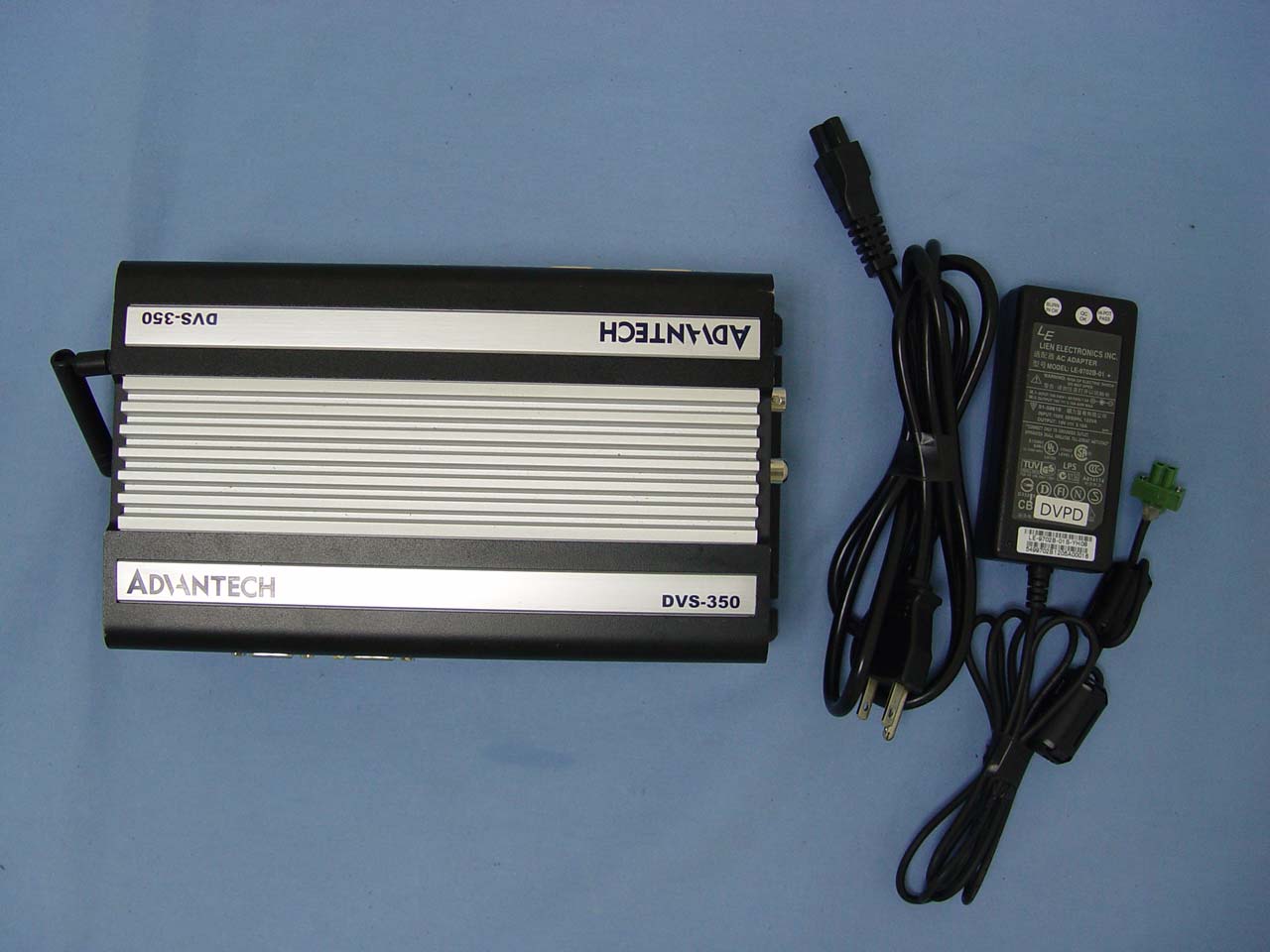

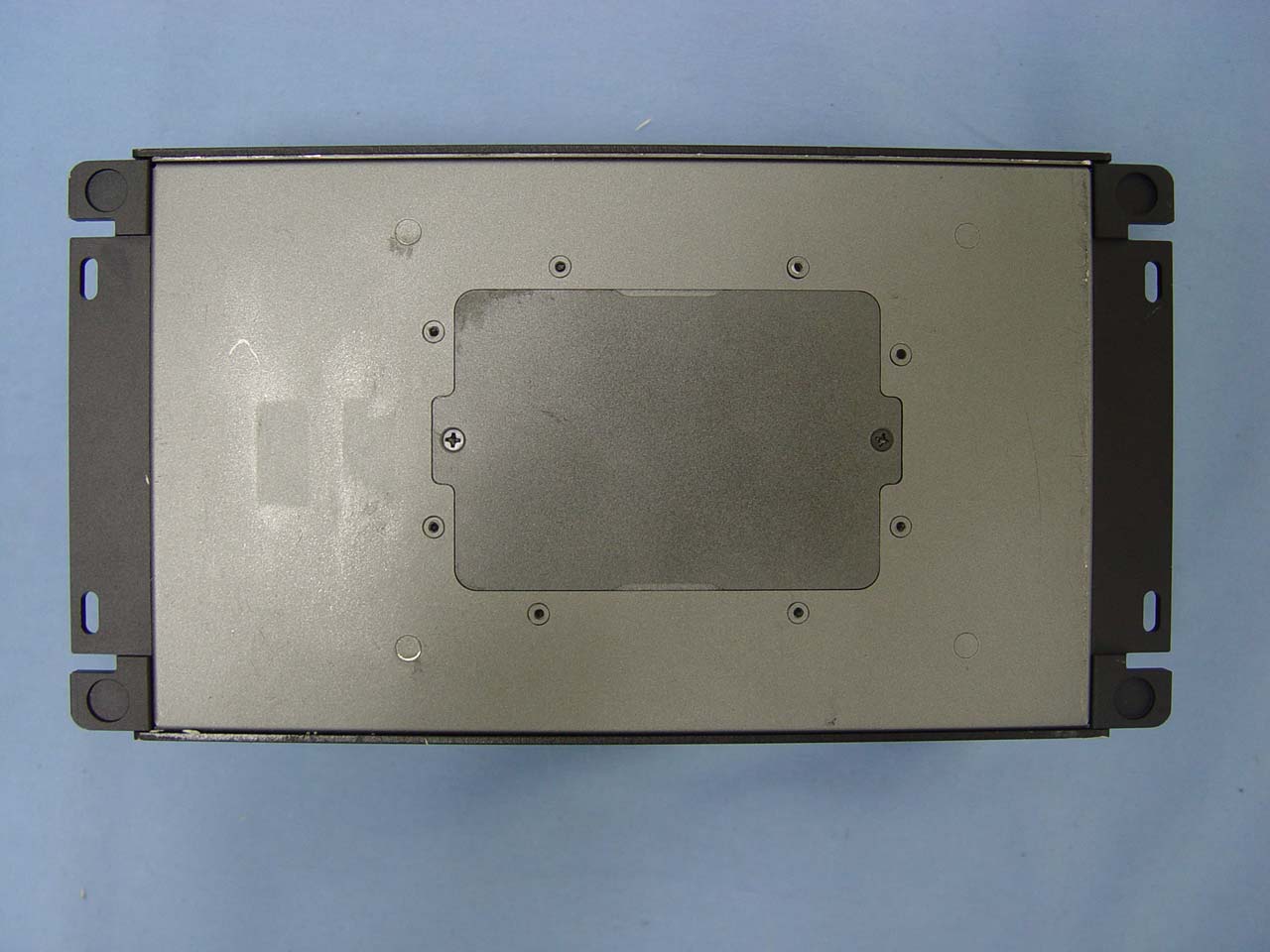

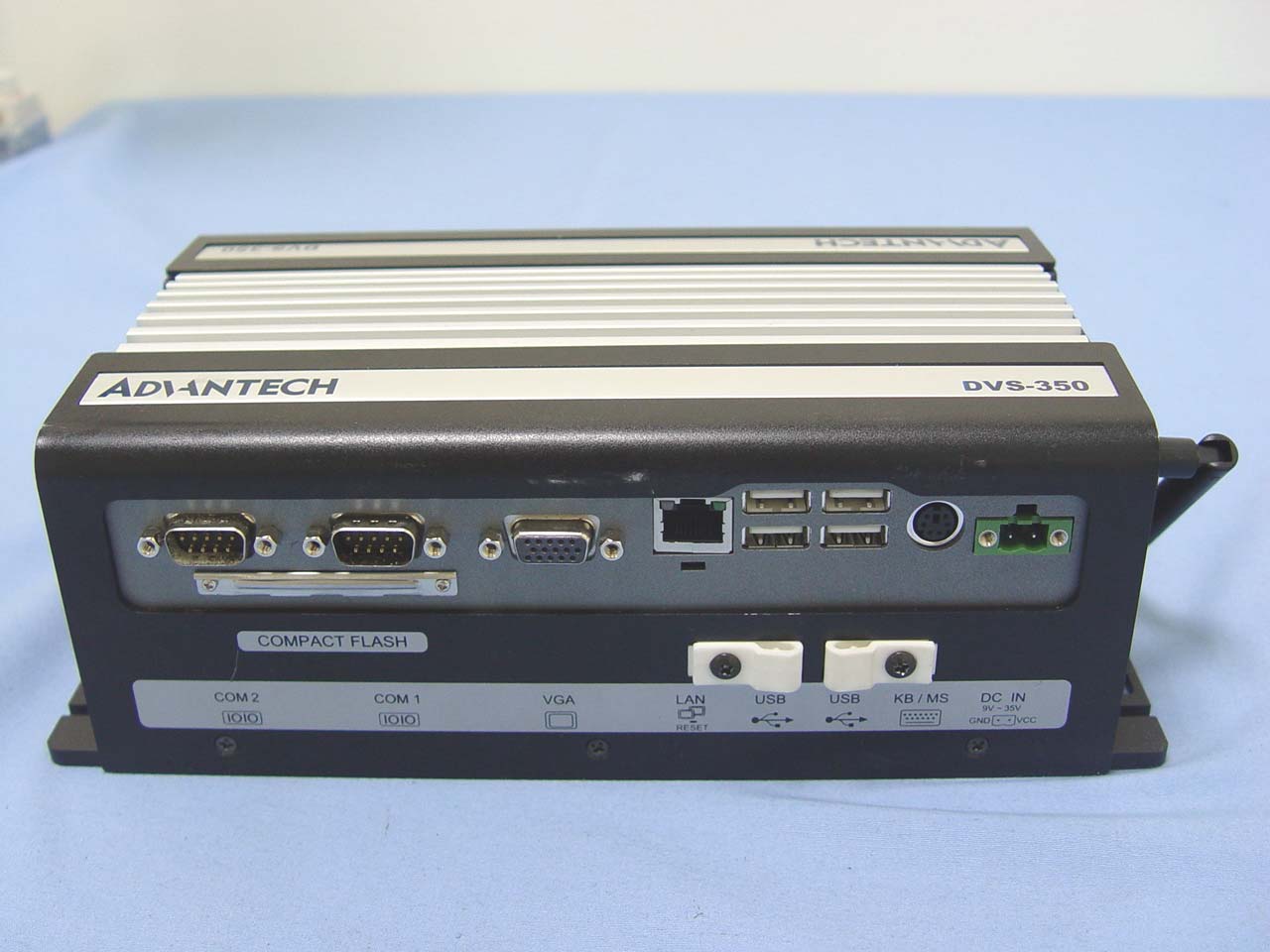

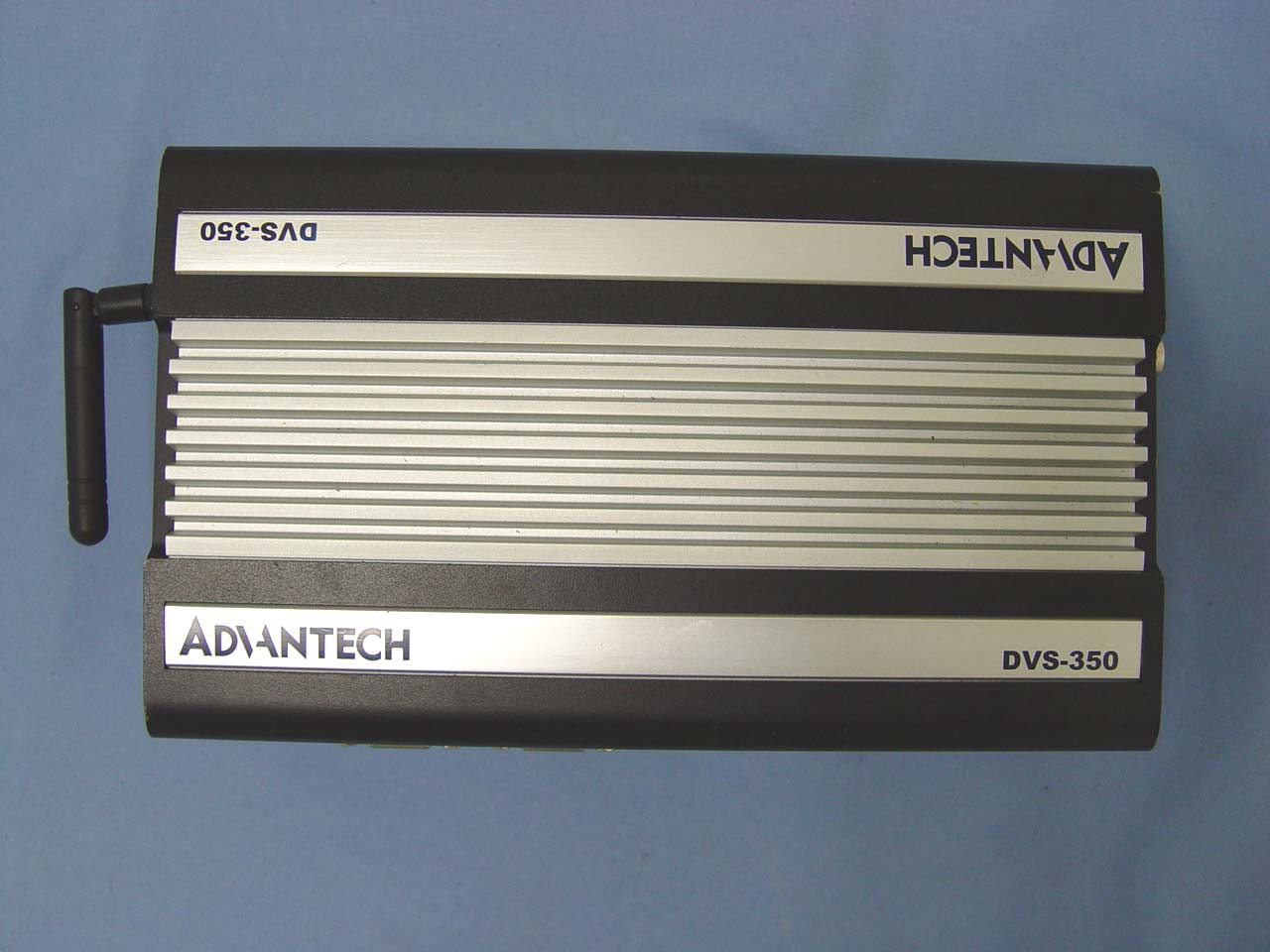

Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 1 Total Page: 13 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 4 Rev. 00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 5 Rev. 00 Appearance 2 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 6 Rev. 00 Appearance 3 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 7 Rev. 00 Appearance 4

1. 底色:PANTONE 877C 2. 其餘文字及圖案-黑色 3. Material : PC T=0.25mm(含背膠-3M 467) THESEDRAWINGSANDSPECIFICATIONSARETHEPROPERTYOFADVANTECHCo.,Ltd.,THESETHESEDRAWINGSDRAWINGSANDANDSPECIFICATIONSSPECIFICATIONSAREARETHETHEPROPERTYPROPERTYOFOFADVANTECHADVANTECHCo.,Co.,Ltd.,Ltd., ANDSHALLNOTBEREPRODUCEDORUSEDASTHEBASISFORTHEMANUFACTUREANDANDSHALLSHALLNOTNOTBEBEREPRODUCEDREPRODUCEDORORUSEDUSEDASASTHETHEBASISBASISFORFORTHETHEMANUFACTUREMANUFACTURE ORDEVICESWITHOUTPERMISSION.ORORDEVICESDEVICESWITHOUTWITHOUTPERMISSION.PERMISSION. 444 A1A1 DVS-350 EH-6150G Label 78 mm 2000XXXXXX JEFFREY Li JEFFREY Li PC July 04 2005 DVS-350-18M0 MADE IN TAIWAN http://www.advantech.com.tw INPUT : 19-35V DC - - - 5.5-1.42A MODEL No.: DVS-350 4 2 m m DVS-350-25M0 DVS-350-35M0 DVS-350-18S4 DVS-350-25S4 DVS-350-35S4 ADVANTECH Co., Ltd SERIAL No.: FACTORY : T1 P/N: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device mat not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 8 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 9 Rev.00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 10 Rev.00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 11 Rev.00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 12 Rev.00 Compliance Certification Services Inc. Report No: 60515202 Date of Issue: July 8, 2006 Page 13 Rev.00

SPECIFICATION FOR APPROVAL CUSTOMER DATE DESCRIPTION 9680001060 CUSTOMER P/N Part No. WANSHIH ELECTRONIC CO., LTD. 723 3F 72 WU KONG 6TH RD., WU KU INDUSTRIAL DISTRICT TAIPEI HSIEN, TAIWAN,R.O.C. TEL(02) 22988066 (5 LINE) FAX(02)22981102 2006 / 05 / 04 SWIVEL TYPE1/4λ DIPOLE ANTENNA RP-SMA (M) CONNECTOR (Black) TQW0804A1 1 Table of Contents Table of Contents ......... 1 Specification ......... 2 Antenna Drawing ......... 3 Connector/Rivet ......... 4-16 Electrical Properties Return Loss ......... 17 V. S . W. R ......... 18 Radiation Pattern ......... 19-20 Material Data Sheet Coaxial Cable ......... 21-28 Housing ......... 29-33 Hinge ......... 34-39 PCB ......... 40-41 Rivet ......... 42-43 2 SPECIFICATION 1. Description SWIVEL TYPE1/4λ DIPOLE ANTENNA RP-SMA (M) 2. Customer 3. Model No. WSS015 4. Part No. TQW0804A1 5. Standard IEEE 802.11b/g Wireless LAN 6. Antenna Profile 83.3 mm length (see Drawing) 7. Color black 8. Electrical Characteristics Operating Frequency 2.4~2.5 GHz Antenna Type PCB Polarization Type Linear Type of Radiation Toroidal Peak Gain 2.0 dBi Max Impedance 50 Ohm nominal V.S.W.R. 2.0:1 Max. 9. Mechanical Characteristics Action Swivel Type Connector RP-SMA (M) Core N/A 10. Raw Material Coaxial Cable MIL-C-17 RG-178 B/U Housing TPU Hinge PC+ALLOY 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 Electrical Properties Return Loss 18 Electrical Properties V. S . W. R 19 Electrical Properties Radiation Pattern – H Plane 20 Electrical Properties Radiation Pattern – E Plane 21 Coaxial Cable Data Sheet RG-178 22 23 24 25 26 27 28 29 Housing Material Data Sheet z Housing - TPU z 30 31 32 33 34 z Hinge(/) - PC+ALLOY 35 36 37 38 39 40 PCB 41 42 Rivet 43

Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 59 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Embedded/Mobile Digital Video System Model: DVS-350 Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No.1, Alley 20,Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................7 4. INSTRUMENT CALIBRATION........................................................................................................8 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................8 4.2 MEASUREMENT EQUIPMENT USED.........................................................................................8 5. FACILITIES AND ACCREDITATIONS ..........................................................................................9 5.1 FACILITIES .........................................................................................................................................9 5.2 EQUIPMENT........................................................................................................................................9 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................10 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................11 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................11 6.2 SUPPORT EQUIPMENT ...............................................................................................................11 7. FCC PART 15.247 REQUIREMENTS.............................................................................................12 7.1 6DB BANDWIDTH.............................................................................................................................12 7.2 PEAK POWER....................................................................................................................................16 7.3 AVERAGE POWER............................................................................................................................20 7.4 BAND EDGES MEASUREMENT ................................................................................................24 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................33 7.6 SPURIOUS EMISSIONS ................................................................................................................38 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................52 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................55 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................57 Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 4 Rev. 00 2. EUT DESCRIPTION Product Embedded/Mobile Digital Video System Trade Name ADVANTECH Model Number DVS-350 Model Discrepancy N/A Power Supply Trade name / Model number: LE / LE-9702B-01 I/P: AC 100-240V, 1.5A, 50-60Hz O/P: DC 19V, 3.16A 60W Max Frequency Range 2412 ~ 2462 MHz Transmit Power IEEE 802.11b: 18.95 dBm IEEE 802.11g: 15.75 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) IEEE 802.11g: DSSS (CCK, DQPSK, DBPSK) + OFDM (QPSK, BPSK, 16-QAM, 64-QAM) Transmit Data Rate IEEE 802.11b: 11, 5.5, 2, 1 Mbps IEEE 802.11g: 54, 48, 36, 24, 18, 12, 11, 9, 6 Mbps Number of Channels 11 Channels Antenna Specification Gain: 1.28 dBi Antenna Designation Dipole Antenna Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: M82-DVS-350 filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 5 Rev. 00 3. TEST METHODOLOGY The tests doc…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 57 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 58 Rev. 00 Radiated Emissions Setup Photos Compliance Certification Services Inc. Report No.: 60515202-RP1 FCC ID: M82-DVS-350 Date of Issue: July 8, 2006 Page 59 Rev. 00 Powerline Conducted Emissions Setup Photos
