M82-EKI-1352WLAN Serial Device Server

User Manual EKI-1351/1352/EKI-1521/1522/1524 1/2/4-port RS-232/422/485 Serial Device Servers EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual ii Copyright The documentation and the software included with this product are copyrighted 2006 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of pur- chase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1.Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2.Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3.If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4.Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5.Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Part No. 2003152100Edition 1 Printed in TaiwanJanuary 2008 iii EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Declaration of Conformity CE This product has passed the CE test for environmental specifications when shielded cables are used for external wiring. We recommend the use of shielded cables. This kind of cable is available from Advantech. Please contact your local supplier for ordering information. CE This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE- compliant industrial enclosure products. FCC This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. Technical Support and Assistance 1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: – Product name and serial number – Description of your peripheral attachments – Description of your software (operating system, version, application software, etc.) – A complete description of the problem – The exact wording of any error messages EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual iv Saf…

Text truncated - open the document above for the full version.

25 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 2 Getting Started 2.3.5Serial Connection EKI serial device servers provide 1port, 2port and 4port DB9 connectors. RS-232/ 422/485 pin assignment as below: 2.4Configuration Utility installation Advantech EKI serial device server Utility integrates device server management and virtual COM port configuration. After installation, this utility not only configures the EKI series device servers, but also connects and configures the ADAM series and EDG series device servers. Virtual COM port configuration and management was also integrated in this utility. The best improvement, you don’t restart the host while you setup new virtual COM ports. When you map the virtual COM port, the COM port will enable immediately and show in Windows Device Manager. In order to use a PC and an Ethernet network to control serial devices connected to the EKI serial device server, you must first have a host running Windows NT/2000/ XP. This type of application also requires the host to have an Ethernet card and the TCP/IP protocol installed. The following are the required steps for EKI serial device server 1.Insert the Advantech industrial communication CD-ROM into the drive (e.g. D:\) on the host PC. Change the host computer's default drive from C: to D: 2.Use your Windows Explorer or the Windows Run command to execute the Setup program (the path for the Setup program on the CD-ROM should be on the CD-ROM should be: 3.Upon executing the setup program, the Welcome Dialog Box will popup. Press the "Next" button to continue. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 26 4.If there is an existed COM port mapping utility on host, you have to remove this to go on installing. 5.Carefully read the Software License Agreement, and press "Yes" to continue. 27 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 2 Getting Started 6.The Setup program will specify a default installation path, C:\Program- Files\Advantech\EDG COMPort Utility. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 28 7.In this step, you may select a specific program folder or just use the default set- ting and press "Next". 8.After setup has copied all program files to your computer, click the <Finish> but- ton to finish the installation. 29 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 2 Getting Started EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 30 Chapter3 3Configuring Serial Device Server EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 32 3.1Configuration Utility Overview EKI serial device servers provide an easy-to-use configuration utility to configure your Serial Device Server through an Ethernet connection. For secure administration, it can also restrict the access rights for configuration to only one host PC to enhance network security. With this secure function enabled, other PCs will not have permis- sion for configuration. After the installation program on the Advantech INet CD is finished, the serial device servers will be ready for use and configure. Advantech Serial Device Server utility is excellent device server management tools. You can connect and configure the local and remote Advantech serial device servers easily, moreover, Virtual COM port will be enabled in the same utility. Using this utility, you can „Configure the network settings (you can set the IP address, Gateway address, and Subnet mask) „Configure Wi-Fi encryption settings „View and set the serial port parameters ( configure operating mode, baud rate, serial port settings and operating mode settings) „Perform diagnostic tests (virtual COM port testing, port status list) „Perform administrative functions (export and import the serial device server setting, manage access IP, set user account, a descriptive name, upgrade firmware) „Configure COM port redirector(virtual COM port) There are 4 major areas in this new serial device server utility. „Device Server List Area: All devices will be searched and listed in this view. You can arrange different favorite group and virtual COM ports „Device Server Information Area: Click on the server or move cursor to the device, the related information will be shown on this view. „Configuration Area: Click on the item on the Device Server List Area, the configuration page will display on this view. „Quick Tool Area: Useful management functions shortcut. 33 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 3 Configuring Serial Device Server There are five useful management functions shortcut on Quick Tool Area. „Utility Setting: Show the configuration utility window „Clear Device List and Search Again: Click on the button, utility will clear all list device servers in the Device Server List Area and re-search again. Don’t use this function frequently. The warning message will be pop-up when you double click this button. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 34 „Search Again: This function will search serial device servers on local LAN. „Add IP address to Favorite: You add the device to Favorite group manually. This function is especially suitable to find and locate the device which is situated other network domain or Internet. While you can ping the device IP and firewall is configured, input the IP and the device will be added in favorite group. If there isn’t favorite group in the EDG Devices Favorites, you have to create at least one favorite group firstly. „Search for a range of IP addresses: You also use this function to search a range of IP addresses. The found devices will be inserted to favorite group. Move the cursor to Device Server list area, right click the model name in EDG Device server tree. You can add all devices in this subtree to favorite group. 35 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 3 Configuring Serial Device Server Right click on Device name on the mode name subtree, you can export and import serial port setting, locate the device, lock the device, restart the device, and move the device to fav…

Text truncated - open the document above for the full version.

45 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 3 Configuring Serial Device Server „Authentication Type: There are three kinds of types in this drop-down menu –Open system: No encryption for network communication. You can neglect the key setting on the right side. –WEP Share Key: Both communication devices use the same key as encryp- tion. –Automatic: Detect the WEP situation of the access point automatically. EKI- 1351 and EKI-1352 will use the current key for encryption. If EKI-1351/1352’s key does not coincide with the access point’s key, the user should reset the same key and reboot to connect. „Encryption: If the system needs WEP encryption, the user has to set the key type. There are two kinds of encryption keys: 64 bits and 128 bits. For an open system, the encryption function is disabled. „Set the key format. The table shows the allowed characters and length of the different key index and key formats. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 46 „Index: This lists the supported encryption keys that you can choose from 3.3.2.4Wireless Advanced The tab identifies several parameters that are related to the 802.11b/g wireless net- work. We strongly suggested the default settings are not changed unless necessary. If you want to recovery to factory value, you click the “Reset to factory default value”. 3.3.2.5Beacon Interval In infrastructure networks, the access point periodically sends beacons. You can set the beacon interval with the access point configuration screen. In general, the bea- con interval is set to 100 ms, which provides good performance for most applications. In ad hoc networks, there are no access points. As a result, one of the peer stations assumes the responsibility for sending the beacon. After receiving a beacon frame, each station waits for the beacon interval and then sends a beacon if no other station does so after a random time delay. This ensures that at least one station will send a beacon, and the random delay rotates the responsibility for sending beacons. AlphanumericHexadecimal 64 bitsUp to 5 random characters on the keyboard Up to 10 random hexadecimal characters (0 ~ 9, a ~ f) 128 bitsUp to 13 random characters on the keyboard Up to 26 random hexadecimal characters (0 ~ 9, a ~ f) ParametersDefault ValueRange Beacon Interval1000~65535 RTS Threshold23470~2347 Fragment Threshold2346256~2346 PreambleLongLong/Short 47 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 3 Configuring Serial Device Server By increasing the beacon interval, you can reduce the number of beacons and asso- ciated overhead, but that will likely delay the association and roaming process because stations scanning for available access points may miss the beacons. You can decrease the beacon interval, which increases the rate of beacons. This will make the association and roaming process very responsive; however, the network will incur additional overhead and throughput will go down. In addition, stations using power save mode will need to consume more power because they’ll need to awaken more often, which reduces power saving mode benefits. 3.3.2.6RTS Threshold RTS Threshold is the frame size above that an RTS/CTS handshake will be per- formed before attempting to transmit. RTS/CTS ask for permission to transmit to reduce collisions, but adds considerable overhead. Disabling RTS/CTS can reduce overhead and latency in WLANs where all stations are close together, but can increase collisions and degrade performance in WLANs where stations are far apart and unable to sense each other to avoid collisions. If you are experiencing excessive collisions, you can try turning RTS/CTS on or (if already on) reduce RTS/CTS Threshold on the affected stations. 3.3.2.7Fragmentation Threshold Fragmentation Threshold is the maximum length of the frame, beyond which payload must be broken up into two or more frames. Collisions occur more often for long frames because sending them occupies the channel for a longer period of time, increasing the chance that another station will transmit and cause a collision. Reduc- ing Fragmentation Threshold results in shorter frames that "busy" the channel for shorter periods, reducing packet error rate and resulting retransmissions. However, shorter frames also increase overhead, degrading maximum possible throughput, so adjusting this parameter means striking a good balance between error rate and throughput. 3.3.2.8Preamble A preamble is a signal used in network communications to synchronize the transmis- sion timing between two or more systems. Proper timing ensures that all systems are interpreting the start of the information transfer correctly. 3.43.4 Setting serial parameters This section explains how to configure Advantech serial device server serial communication parameter using this utility. There are various operation modes that are suitable for different application. Click on the "+" before the model name (e.g. EKI-1522), and the utility will expand the tree structure to show the individual device name. And click on the “+” before the device name, and the utility will expand the interfaces on this device server. Select the serial interface. EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual 48 3.4.1Setting serial port parameters Click on the “+” before the device name, and the utility will expand the interfaces on this device server. Select the one serial interface. „Description: You can give a more detailed description on the function of the port for easier management and maintenance. Descriptions have a limit of 128 char- acters. 49 EKI-1351/EKI-1352/EKI-1521/1522/1524 User Manual Chapter 3 Configuring Serial Device Server „Type: The EKI serial device servers offer three kinds of serial protocols, RS- 232, RS-422 and RS-485. You can use any of the three serial protocols accord- ing to your requirements. „Baud Rate: The EKI serial device servers support baud rates from 50 to 921.6Kbps. Total throughput up to 1.2M bps „Parity: The EKI…

Text truncated - open the document above for the full version.

1 Lucy Tsai From:jill.shiau [[email protected]] on behalf of spencer.ying [[email protected]] Sent:Monday, January 21, 2008 2:23 AM To:Lucy Tsai Subject: RE: FW: Advantech Co. Ltd. , FCC ID: M82-EKI-1352, Assessment NO.: AN08T7488, Notice# 1 Attachments:EKI-1352 TestReport0121.pdf; EKI-1352 TestReport0121.pdf Hi Lucy, See my reply, Thank you very much. Ans#3: About the Class A statement, it has been removed from User Manual, see attached file. Ans#4: The test report has been revised, they was one test mode. Thank you very much. Jill "Lucy Tsai" <[email protected]> 2008/01/21 12:13 AM "application" <[email protected]>, <[email protected]> RE: FW: Advantech Co. Ltd. , FCC ID: M82-EKI-1352, Assessment NO.: AN08T7488, Notice#1 Hi Jill, Regarding Q#3, thought you have changed wording from Class A to Class B, but the related statement still included the Class A statement, please check again and revise. And as for Q#4, you didn’t reply my second question regarding the Bluetooth portion as follows. Test report indicates two conditions were tested: Condition A for WLAN operation and Condition B for Bluetooth operation, which doesn't agree with the application. Please clarify. Best Regards, Lucy From: jill.shiau [mailto:[email protected]] On Behalf Of spencer.ying Sent: Friday, January 18, 2008 2:02 AM To: Lucy Tsai Subject: Re:FW: Advantech Co. Ltd. , FCC ID: M82-EKI-1352, Assessment NO.: AN08T7488, Notice#1 2 Hi Lucy, "Lucy Tsai" <[email protected]> 2008/01/11 01:58 AM "application" <[email protected]> Hi Jill, Please address following issues. Q#1: According to the operational description, the operating frequency range for b mode and g mode are 2400-2497MHz and 2400-2483.6MHz which outside the band allowed in US. Please address. Q#2: Operational description also indicates that the output power for b and g modes are 13+-1dBm and 12.5+-1.5dBm which are about 2dB less than the test result. Please explain. Q#3: User manual has covered Class A and Class B statement, please explain which one is applicable and remove another one accordingly. Also, if Class A is applicable, then please remove FCC DOC logo from the label since Class A device is subject to verification rule. Q#4: According to test report, EKI-1352 had been tested under operating condition; however, test setup photos indicate that EKI-1351 was tested. Please explain if both models have been investigated and the worst case submitted is done by which model. Also, test report indicates two conditions were tested: Condition A for WLAN operation and Condition B for Bluetooth operation, which doesn't agree with the application. Please clarify. 3 Please check with me if you have any question. Best Regards, Lucy Tsai CCS-TCB The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender.

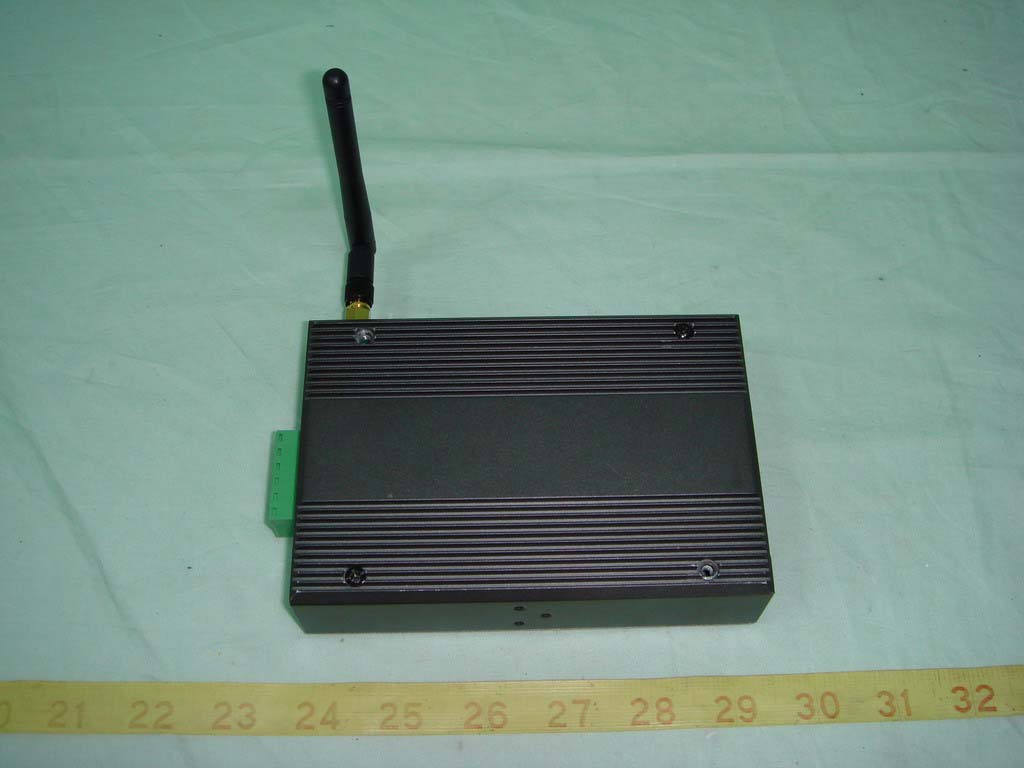

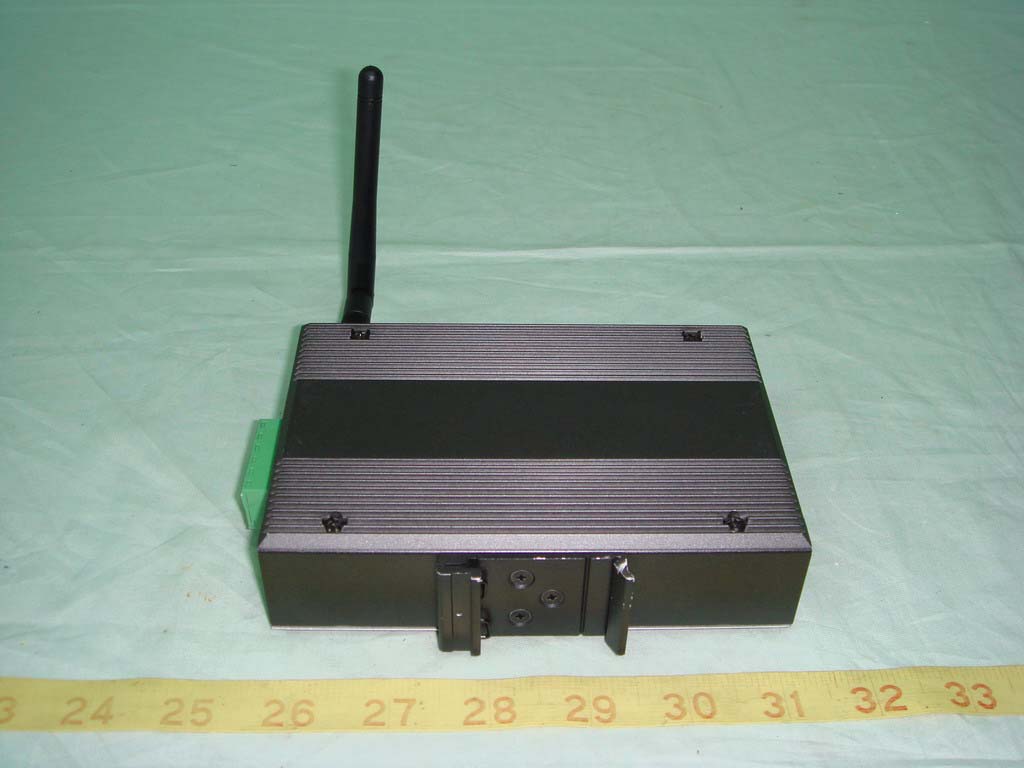

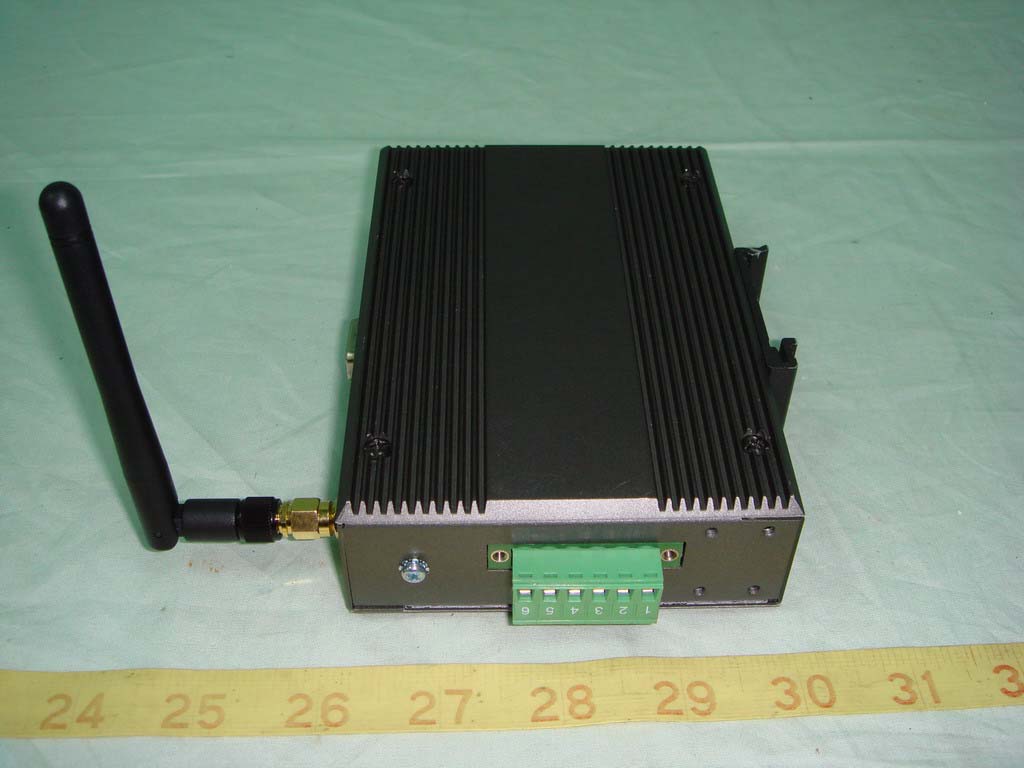

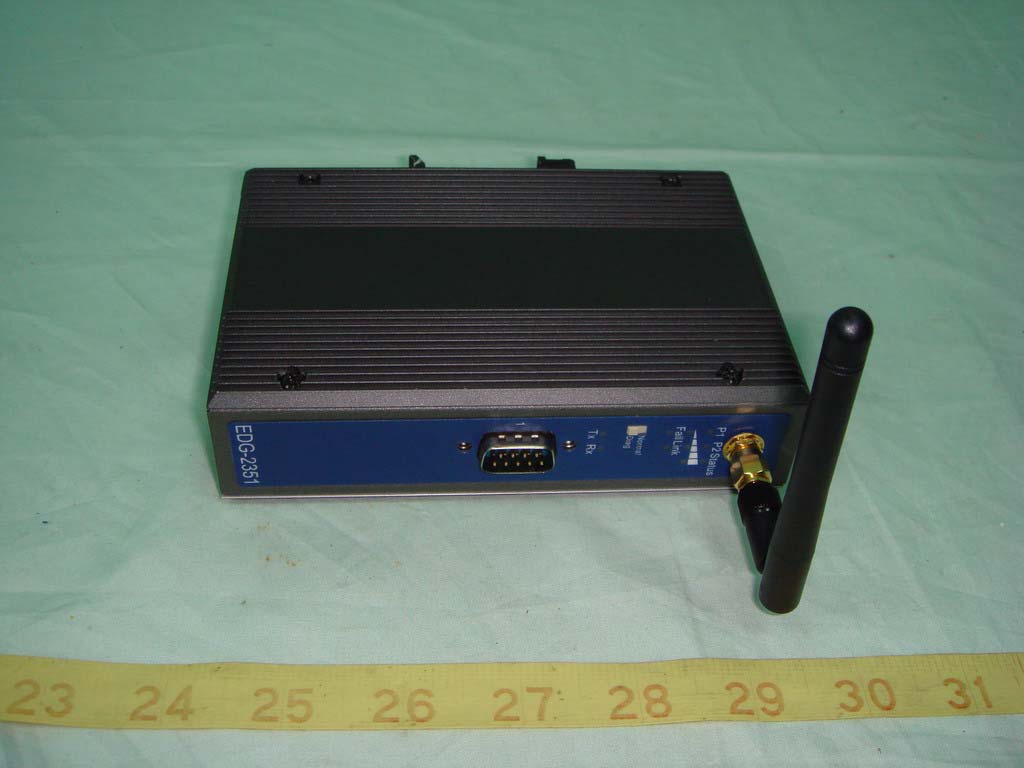

Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 1 Total Page: 12 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT EKI-1352 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 4 Rev. 00 EKI-1351 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 6 Rev. 00

Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT EKI-1352 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 9 Rev. 00 EKI-1351 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 11 Rev. 00 RF Module Compliance Certification Services Inc. Report No.: 70814101 Date of Issue: October 19, 2007 Page 12 Rev. 00

Compliance Certification Services Inc. Report No: 70814101-RP1 FCC ID: M82-EKI-1352 Date of Issue: Oct. 19, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 51 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For WLAN Serial Device Server Model: EKI-1352; EKI-1351 Trade Name: Advantech Issued to Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No: 70814101-RP1 FCC ID: M82-EKI-1352 Date of Issue: Oct. 19, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION .............................................................................................................................. 3 2. EUT DESCRIPTION ...................................................................................................................................................... 4 3. TEST METHODOLOGY............................................................................................................................................... 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ............................................. 6 3.5 DESCRIPTION OF TEST MODES................................................................................................. 6 4. INSTRUMENT CALIBRATION ...................................................................................................................................... 7 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 7 5. FACILITIES AND ACCREDITATIONS ..................................................................................................................... 8 5.1 FACILTIES................................................................................................................................8 5.2 EQUIPMENT............................................................................................................................. 8 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................. 9 6. SETUP OF EQUIPMENT UNDER TEST .................................................................................................................. 10 6.1 SETUP CONFIGURATION OF EUT.................................................................................................. 10 6.2SUPPORT EQUIPMENT ...........................................................................................................10 7. FCC PART 15.247 REQUIREMENTS ....................................................................................................................... 11 7.1 6DB BANDWIDTH.................................................................................................................. 11 7.2 PEAK POWER......................................................................................................................... 15 7.3 BAND EDGES MEASUREMENT ..................................................................................... 19 7.4 PEAK POWER SPECTRAL DENSITY......................................................................................... 28 7.5 SPURIOUS EMISSIONS ...................................................................................................... 32 7.15 POWER LINE CONDUCTED EMISSIONS.............................................................................................................. 47 APPENDIX I RADIO FREQUENCY EXPOSURE ........................................................................................................... 48 APPENDIX II PHOTOGRAPHS OF TEST SETUP ......................................................................................................... 50 Compliance Certification Services Inc. Report No: 70814101-RP1 FCC ID: M82-EKI-1352 Date of Issue: Oct. 19, 2007 Page 3 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test: WLAN Serial Device Server Trade Name: Advantech Model Number: EKI-1352; EKI-1351 Date of Test: August 24 ~ October 15, 2007 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC Rules Part 15.207, 15.209 and 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: S.C. Wang Miller Lee Executive Vice President Deputy Manager of Linkou Laboratory Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: 70814101-…

Text truncated - open the document above for the full version.
