M82-EKI6323AGWLAN 802.11a/b/g mini-PCI Module

WLAN a+b+g mini-PCI Module CM9 OEM Installation Manual (The module is sold only to the OEM integrators & the manual is valid only for the OEM manufactures) Version: 1.0 March 2004 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 1 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: This module is restricted to mobile configuration. To comply with FCC RF exposure compliance requirements, the antenna used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co- located or operating in conjunction with any other antenna or transmitter. This transmittermodule must not be co-located or operating in conjunction with any other antenna or transmitter 2 1. Introduction 1.1 The WLAN 802.11a+b+g mini-PCI Module Thank you forpurchasing the WLAN a+b+g mini-PCI Module that provides the easiest way to wireless networking. This User Manual contains detailed instructions in the operation of this product. Please keep this manual for future reference. System Requirements  A laptop PC contains: -32 MB memory or greater -300 MHz processor or higher  Microsoft ® Win ™ 2000/ME/98 Second Edition/XP 1.2 Hardware Installation & Antenna Information  Module is installed in the Personal Computer, located on the bottom side of the Personal Computer or installed in the router. (see the following diagrams). 4 *Caution !! (1). This module cannot be bound in a tablet computer for RF exposure issues. (See label 1) (2). Due to the RF exposure issues, this module can be used in a laptop computer in normal operation, but cannot be used when it is put above the lap and the LCD screen is in the closed position. (See label 2) The device can’t be operated above the lap when the LCD is closed Label 1 Label 2 7 Driver/Utility Installation / Uninstallation Antenna 1: PIFA (˗ˠ˔ʿ̀˴˷˸˵̌Wistron NeWebʼ Antenna 2: Dipole (GA30038-YMSEʿ̀˴˷˸˵̌ ̊˼˺˴˔́̇˖̂ˁʼ When using antenna1, 2, 4, 8, the install driver is“cm9_V1.0_20040312-SA.exe”. When using antenna3, 5, 6 , 7, the install driver is“cm9_V1.0_20040312-SB.exe”. Important!! Antenna 3:Dipole ( ̇˖ ̇ˀ˃˃ˇʿ̀˴˷˸˵̌Long-Chu Co.ʼ Antenna 4:Dipole (˗˕˔ˀ ̃ˣ ̆˫ˀ˃˄ʿ̀˴˷˸˵̌Long-Chu Co.ʼ Antenna 5 : Dipole (˦˥˦ˠˈ˄ˈ˃ˠ˥˔ˎ˦˥˦ˠ˅ˇ˃˃ˠ˥˔ʿ̀˴˷˸˵̌˖˨˦˟ ̃˖˥˔ ̇˧ʼ Antenna 6: Dipole (˗˕˔ˀ˕˦ˠ˔ˀ˃˄ʿ̀˴˷˸˵̌Long-Chu Co.ʼ Antenna 7:Dipole (˗˕˔ˀ˦˦ˠ˔ˀ˃˄ʿ̀˴˷˸˵̌Long-Chu Co.ʼ ʼ Long-Chu Co.˗˕˔ˀ ̃ˣ ̆˫ˀ˃˅ʿ̀˴˷˸˵̌Antenna 8: Dipole ( 2.1 Installation Note!The Installation Section in this User Manual describes the first-time installation for Windows. To re-install the driver, please first uninstall the previously installed driver. See Chapter 2.3 “Uninstallation” in this User Manual. Follow the steps below to complete the driver/utility installation: 1. Insert the Installation Software CD into the CD-Rom Drive. 2. Click“Next”. 3. Read the License Agreement and click “Yes”. 8 9 4. Click“Next” to continue or click “Browse” to choose a destination folder. 5. Click“Next”. 6. Click“Yes” to create a shortcut icon on your desktop. 10 7. Click“Finish”. 8. You should now see a shortcut icon on your desktop. 11 2.2 Additional Setup Processes During software installation procedure, each operating system may prompt different specific options: 1.Windows 98SE: The system will request the original Windows CD during the installation process. When the installation is finished,you’ll have to restart your computer. 2.Windows Me: Please restart your computer when the installation is finished. 3.Windows 2000/XP: Select “Install the software automatically” when the window with this option appears, and then click “Next” to continue installation. 12 2.3 Uninstallation Note!Before uninstallation, please close all running programs. 1. ClickStart>Programs>WLAN a+b+g mini-PCI Module >UnInstall WLAN a+b+g mini-PCI Module. 2. Choose“Remove”. Click “Next”. 3. Click “OK” to start Uninstall. 4. Click“Finish”.Uninstall is now completed. 13 3. Connecting to an Existing Network 1. Double click the shortcut icon of WLAN a+b+g mini-PCI Module on the desktop, and the C…

Text truncated - open the document above for the full version.

Date:23/07/2010 Subject: Ad Hoc Mode Function Declaration FCC ID: M82-EKI6323AG To Whom it may concern, This device is acting as master and operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, 研華科技股份有限公司 Advantech Co., Ltd. 台北市內湖區瑞光路26巷20弄1號 No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei 114, Taiwan, R.O.C. Tel:886-2-2792-7818 Fax:886-2-2794-7334 WWW.advantech.co m

Date:23/07/2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: Only 5745-5825 Mhz of 802.11a can be operated in USA, 5150-5350、5470-5725Mhz will disable by firmware. Channel selection is not available. And, only one antenna is designed to be use with this module. The other antenna connector was cover by metal case, and it can’t be removed. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Applicant/Grantee Advantech Co., Ltd. FCC ID: FCC ID: M82-EKI6323AG Section 15.212 Modular Transmitters Request for Modular Approval Request for Limited Modular Approval Requirements EUT Conditions Comply (Y/N) Single Modular Approval Requirements 1 The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Device is equipped with shielding to cover RF module. YES 2 The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. All inputs to the modules are buffered through logic or microprocessor inputs. YES 3 The modular transmitter must have its own power supply regulation. Internal and 3.3VDC power. YES 4 The modular transmitter must comply with the antenna and transmission system requirements of Sections 15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of Section 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. The antenna connector is R SMAwith cable. Refer to antenna specification and RF Cable specification. YES 5 The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with Part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and su pporting Device was tested stand-alone. Refer to setup photo. YES equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see Section 15.31(i)). 6 The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. (A) If using a permanently affixed label, the modular transmitter must be labeled with its own FCC identification number, and, if the FCC identification number is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. (B) If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. Label is to be placed on the module and user’s manual. YES 7 The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Comply with FCC rules. YES 8 The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Comply with FCC rules. YES A limited modular approval may be granted for single or split modular transmitters that do not comply with all of the above requirements, e.g., shielding, minimum signaling amplitude, buffered modulation/data inputs, or power supply regulation, if the manufacturer can demonstrate by alternative means in the application for equipment authorization that the modular transmitter meets all the applicable Part 15 requirements under the operating conditions in which the transmitter will be used. Limited modular approval also may be granted in those instances where compliance with RF exposure rules is demonstrated only for particular product configurations. The applicant for certification must state how control of the end product into which the module will be installed will be maintained such that full compliance of the end product is always ensured. Signature

Date:28/06/2010 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. James Lee / Section Manager of Compliance Certification Services Inc. and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Steven Wang / Section Manager of Compliance Certification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; 研華科技股份有限公司 Advantech Co., Ltd. 台北市內湖區瑞光路26巷20弄1號 No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei 114, Taiwan, R.O.C. Tel:886-2-2792-7818 Fax:886-2-2794-7334 WWW.advantech.co m f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: June 28, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: M82-EKI6323AG Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, 研華科技股份有限公司 Advantech Co., Ltd. 台北市內湖區瑞光路26巷20弄1號 No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei 114, Taiwan, R.O.C. Tel:886-2-2792-7818

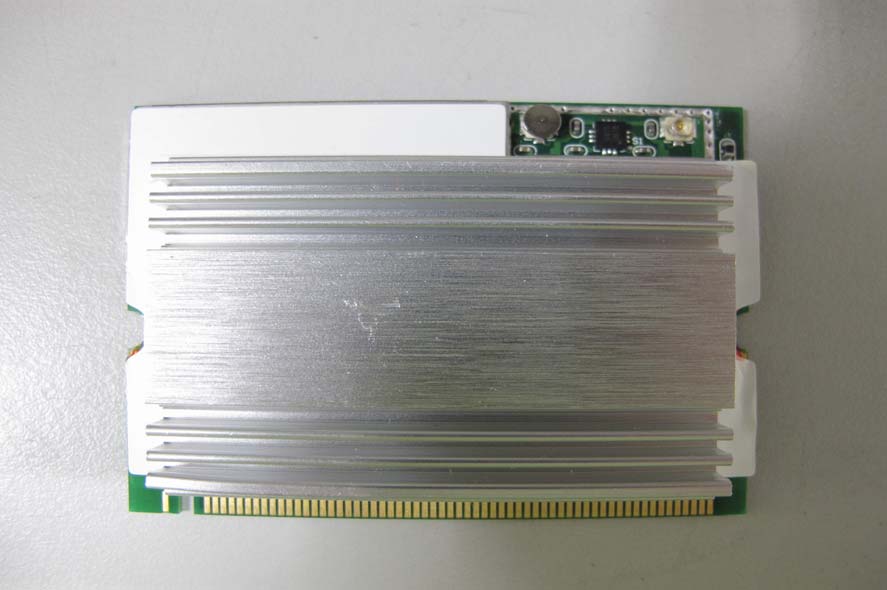

Report No.: T100713102 Date of Issue: July 22, 2010 Page 1 Total Page: 2 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Report No.: T100713102 Date of Issue: July 22, 2010 Page 2 Rev. 00

Report No.: T100713102 Date of Issue: July 22, 2010 Page 1 Total Page: 3 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Report No.: T100713102 Date of Issue: July 22, 2010 Page 2 Rev. 00 Report No.: T100713102 Date of Issue: July 22, 2010 Page 3 Rev. 00

Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 1 / 78 FCC 47 CFR PART 15 SUBPART C TEST REPORT For WLAN 802.11a/b/g mini-PCI Module Model: CM9 Trade Name: ADVANTECH Issued to Advantech Co., Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 22, 2010 Initial Issue ALL Celine Chou Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION .................................................................................................... 6 3.2. EUT EXERCISE ................................................................................................................ 6 3.3. GENERAL TEST PROCEDURES ..................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................... 7 3.5. DESCRIPTION OF TEST MODES .................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASUREMENT EQUIPMENT USED ............................................................................. 9 4.2. MEASUREMENT UNCERTAINTY .................................................................................. 10 4.3. MEASUREMENT UNCERTAINTY .................................................................................. 10 5 FACILITIES AND ACCREDITATIONS................................................................................. 11 5.1. FACILITIES...................................................................................................................... 11 5.2. EQUIPMENT ................................................................................................................... 11 5.3. TABLE OF ACCREDITATIONS AND LISTINGS............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 13 6.1. SETUP CONFIGURATION OF EUT ............................................................................... 13 6.2. SUPPORT EQUIPMENT ................................................................................................. 13 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1. 6D B BANDWIDTH................................................................................................................ 14 7.2. PEAK POWER................................................................................................................. 21 7.3. AVERAGE POWER ......................................................................................................... 28 7.4. BAND EDGES MEASUREMENT .................................................................................... 34 7.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 44 7.6. SPURIOUS EMISSIONS ................................................................................................. 51 7.7. POWERLINE CONDUCTED EMISSIONS ...................................................................... 70 8 APPENDIX I RADIO FREQUENCY EXPOSURE................................................................. 73 9 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................. 75 Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Advantech Co., Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test: WLAN 802.11a/b/g mini-PCI Module Trade Name: ADVANTECH Model: CM9 Date of Test: July 14 ~ 16, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of thi…

Text truncated - open the document above for the full version.

Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 75 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 9 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 76 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Radiated Emission Setup Photos Below 1 GHz Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 77 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1 GHz Report No.: T100713102-RP1 FCC ID: M82-EKI6323AG Date of Issue: July 22, 2010 Page 78 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Line Conducted Emissions Setup Photos
