M82-EKI6340PCI-RF module

PCI-RF module DNMA-92 User Manual Version: 1.0 April 2009 1 Copyright Statement No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, whether electronic, mechanical, photocopying, recording or otherwise without the prior writing of the publisher. Windows ™ 98SE/2000/ME/XP are trademarks of Microsoft ® Corp. Pentium is trademark of Intel. All copyright reserved. 2 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. For product available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is not possible. This device and its antenna(s) must not be co-located or operation in conjunction with any other antenna or transmitter. This device is going to be operated in 5.15~5.25GHz frequency range, it is restricted in indoor environment only. Devices will not permit operations on channels 120-132 for 11a and 11n/a which overlap the 5600 - 5650 MHz band. 3 IMPORTANT NOTE: This module is intended for OEM integrator. The OEM integrator is still responsible for the FCC compliance requirement of the end product, which integrates this module. 20cm minimum distance has to be able to be maintained between the antenna and the users for the host this module is integrated into. Under such configuration, the FCC radiation exposure limits set forth for an population/uncontrolled environment can be satisfied. Any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. USERS MANUAL OF THE END PRODUCT: In the users manual of the end product, the end user has to be informed to keep at least 20cm separation with the antenna while this end product is installed and operated. The end user has to be informed that the FCC radio-frequency exposure guidelines for an uncontrolled environment can be satisfied. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the users manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following " Contains TX FCC ID: M82-EKI6430 ". If the size of the end product is larger than 8x10cm, then the following FCC part 15.19 statement has to also be available on the label: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Approved antenna for the End product. The above approved antenna is only allowed to use for the module. It will be necessary to keep 20cm away from human body. Other antenna type or same antenna type but higher antenna gain is not allowed to use. IMPORTANT NOTE: In the event that these conditions can not be met (for example used within 20cm or higher antenna gain), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. 4 5 Table of Contents 1. INTRODUCTION 6 2. DRIVER/UTILITY INSTALLATION / UNINSTALLATION 7 2.1 INSTALLATION.........................................................................................................7 2.2 ADDITIONAL SETUP PROCESSES............................................................................10 2.3 UNINSTALLATION................................................................................................... 11 3. CONNECTING TO AN EXISTING NETWORK 12 4. CREATING AN AD HOC NEW NETWORK 17 5. MODIFYING A WIRELESS NETWORK 21 5.1 INFRASTRUCTURE MODE AND AD HOC MODE.....................................................21 5.2 MODIFYING A WIRELESS NETWORK.....................................................................22 5.3 DEFAULT SETTINGS WINDOWS XP ZERO-CONFIGURATION...........................…

Text truncated - open the document above for the full version.

RF_160, Issue 03 Declaration of Authorization We Name: Advantech Co., Ltd. Address: No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, City: Taipei Country: Taiwan Declare that: Name Representative of agent: Kelly Tsai Agent Company name: Compliance Certification Services Inc. Address: NO. 989-1 Wen Shan Rd., Shang Shan Village,Qionglin Shiang, City: Hsinchu County 30741 Country Taiwan, R.O.C is authorized to apply for Certification of the following product(s): Product description: PCI-RF module. Type designation: MB92-EKI6340 . Trademark: ADVANTECH . on our behalf. Date:2012/4/28.. City: Taipei .. Name: Lily.Huang .. (2) Function: Supervisor............................ Signature: Notes: (1): Required for FCC application (2): For FCC it must be the Grantee Code “owner” or the authorized agent.

FCC, Request for non-disclosure Date: 16-Jul-10 RF_501, Issue 6 Page 1 of 1 Company Name: Advantech Co., Ltd. Address : No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. City: Taipei Country: Taiwan To: Telefication B.V., Dept. FCC TCB Edisonstraat 12A 6902 PK ZEVENAAR The Netherlands Subject: Request for confidentiality FCC ID: M82-EKI6340 Reference number: ###### Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, a pplicant hereby requests Short-Term Confidential treatment of the following materials (note 1): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: Planned Release Date STC: (notes 2, 3, 4, 5) Date: 2012-04-28 Name and signature of applicant: Lily.Huang Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) Equipment:PCI-RF module Trademark(s) and Model(s):ADVANTECH / MB92-EKI6340 Manufacturer:Advantech Co., Ltd. FCC ID in case other parts of this equipment are subject to certification: M82-EKI6340 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The following test reports are subject to this declaration: Test report number: T120315033-D Issue date: 2012-05-02 Test Lab: CCS The following manufacturer/importer/entity (located in the USA) is responsible for this declaration: Company name: Advantech Co., Ltd. Name/Title (legal representative): Lily.Huang / Supervisor Address: No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Phone: 886-2-2792-7818*1412 Fax: 886-2-2794-7334 E-mail: [email protected] Date: 2012-04-28 Signature: FCC

RF_734_00, Issue 1 Modular Approval Request FCC (per DA 00-1407) FCC ID: M82-EKI6340 Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Y 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. Y 3. The modular transmitter must have its own power supply regulation. Y 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable).. Y 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Y 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: M82-EKI6340” or “Contains FCC ID: M82-EKI6340.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Y 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. Y 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. Y Note: If compliance with one or more of the numbered requirements, listed above, cannot be demonstrated, it may be possible to obtain a “Limited Modular Approval” (LMA). Name and surname of applicant (or authorized representative): __________________

Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C.. Date: April 30, 2012 Subject: Ad Hoc Mode Function Declaration FCC ID: M82-EKI6340 To Whom it may concern, This device is acting as operating on 2.4GHz band. Ad Hoc function is available on client mode and not able to work on non-US frequencies. Please contact the one signed below or the authorized agent for this filing. Thank you. Regards, ( Signature Here) Name: Lily.Huang Title: Supervisor Tel: 886-2-2792-7818*1412 E-mail: [email protected] Date: 2012/5/3

Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C.. Date: April 30, 2012 Subject: Declaration for Channel Issue FCC ID: M82-EKI6340 To Whom it may concern, We, the undersigned, hereby certify that we responsible to comply with the FCC relevant provisions. The FCC ID: M82-EKI6340, model: MB92-EKI6340 The frequency of this model can up to 13 channels, but only 1-11 channels are available in USA and in Canada, other channels will be disabled by software. Best Regards, Date:2012/4/30 City: Taipei Name: Lily.Huang Function: Supervisor

Report No.T120315033 Page 1 of 11 External Photo

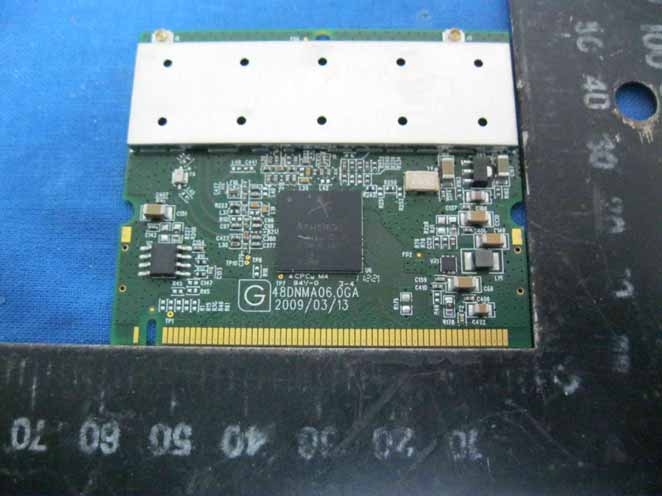

Report No.T120315033 Page 2 of 11 Internal Photo Report No.T120315033 Page 3 of 11 Report No.T120315033 Page 4 of 11 Report No.T120315033 Page 5 of 11 Antenna (1) Photo (Model : AN2450-57B01RS) Report No.T120315033 Page 6 of 11 Report No.T120315033 Page 7 of 11 Antenna (2) Photo (Model : SAA04-050280) Report No.T120315033 Page 8 of 11 Report No.T120315033 Page 9 of 11 Report No.T120315033 Page 10 of 11 Antenna (3) Photo (Model : SAA04-22008A) Report No.T120315033 Page 11 of 11

FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 143 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 144 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS DTS / Peak Output Power Mode Antenna Gain (dBi) Minimum separation distance (cm) Peak Output Power (dBm) Total Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 7 20.0 21.6021.605.01 1.00 0.144119 7 20.0 20.565.01 1.00 IEEE 802.11n HT20 7 20.0 20.73 23.66 5.01 1.00 0.231384 7 20.0 21.435.01 1.00 IEEE 802.11n HT40 7 20.0 21.03 24.24 5.01 1.00 0.264978 IEEE 802.11b 8 20.0 18.6118.616.31 1.00 0.091142 IEEE 802.11g 8 20.0 23.2023.206.31 1.00 0.262253 8 20.0 23.096.31 1.00 IEEE 802.11n HT20 8 20.0 23.53 26.33 6.31 1.00 0.538650 8 20.0 22.496.31 1.00 IEEE 802.11n HT40 8 20.0 22.92 25.72 6.31 1.00 0.468578 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. UNII / Peak Output Power Mode Antenna Gain (dBi) Minimum separation distance (cm) Peak Output Power (dBm) Total Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 1 20.0 23.0523.051.26 1.00 0.050550 1 20.0 22.49 1.26 IEEE 802.11n HT20 1 20.0 22.85 25.68 1.26 1.00 0.092709 1 20.0 22.14 1.26 1.00 IEEE 802.11n HT40 1 20.0 21.98 25.07 1.26 1.00 0.080505 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 1 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For PCI-RF module Model : MB92-EKI6340 Trade Name : ADVANTECH Issued for Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: May 07, 2012 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 2 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 04/19/2012 Initial Issue All Page 150 Winnie Chen 01 05/07/2012 Revised Maximum Permissible Exposure. Page 144 Winnie Chen FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 3 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5-6 3. DESCRIPTION OF TEST MODES ............................................................................... 7-8 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 11-12 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 13 7.1 6dB BANDWIDTH .................................................................................................. 13-35 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 36-39 7.3 POWER SPECTRAL DENSITY............................................................................. 40-63 7.4 CONDUCTED SPURIOUS EMISSION .................................................................. 64-95 7.5 RADIATED EMISSION........................................................................................... 96-137 7.6 CONDUCTED EMISSION ...................................................................................... 138-142 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 143-144 APPENDIX II SETUP PHOTOS .......................................................................................145-150 FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 4 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Advantech Co., Ltd. Address No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test PCI-RF module Model MB92-EKI6340 Trade Name ADVANTECH Tested Date March 15 ~ April 18, 2012 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Rex Liao Sb Lu Deputy Section Manager Sr. Engineer FCC IDM82-EKI6340 Report No.T120315033-RP1 Page 5 / 150 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name PCI-RF module Model Number MB92-EKI6340 Identify Number T120315033 Received Date March 15, 2012 IEEE 802.11a, IEEE 802.11n HT20 : 5745MHz ~ 5825MHz IEEE 802.11n HT40 : 5755MHz ~ 5815MHz IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11a : 21.60dBm (0.1445W) IEEE 802.11n HT20 : 23.66dBm (0.2321W) IEEE 802.11n HT40 : 24.24dBm (0.2658W) IEEE 802.11b : 18.61dBm (0.0726W) IEEE 802.11g : 23.20dBm (0.2089W) IEEE 802.11n HT20 : 26.33dBm (0.4291W) Transmit Power IEEE 802.11n HT40 : 25.72dBm (0.3733W) IEEE 802.11a, 802.11n HT20 : 20MHz IEEE 802.11n HT40 : 60MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11a, 802.11n HT20 : 5 Channels IEEE 802.11n HT40 : 2 Channels IEEE 802.11b/g, 802.11n HT20 : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11a : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : 11, 5.5, 2, 1 Mbps IEEE 802.11g : 54, 48, 36, 24, 18, 12, 9, 6 Mbps…
