M82-HIT-W121Computer

User Manual HIT-W121 Computer Copyright The documentation and the software included with this product are copyrighted 2011 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Declaration of Conformity FCC Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: f Reorient or relocate the receiving antenna. f Increase the separation between the equipment and receiver. f Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. f Consult the dealer or an experienced radio/TV technician for help. Warning! Any changes or modifications made to the equipment which are not expressly approved by the relevant standards authority could void your authority to operate the equipment. Caution! Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dis- pose of used batteries according to the manufacturer’s instructions. Part No. 2008W15100 Edition 1 Printed in Taiwan March 2011 HIT-W121 User Manual ii Technical Support and Assistance 1. Visit the Advantech web site at www.advantech.com/support where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: - Product name and serial number - Description of your peripheral attachments - Description of your software (operating system, version, application software, etc) - A complete description of the problem - The exact wording of any error messages Warning! 1. Packing: Please carry the unit with both hands; handle with care. 2. Maintenance: to properly maintain and clean the surfaces, use only approved products or clean with a dry applicator. iii HIT-W121 User Manual Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible. 5. Keep this equipment away from humidity. 6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. 8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. 9. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. 14. If one of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work according to the user's manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage. 15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 60° C (140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT. 16. If your computer clock loses a significant amount of time or the BIOS configura- tion resets to default, the battery has no power. Caution! 1. 2. 3. 4. HIT-W121 User Manual Do not replace power adaptor yourself. Please contact a qualified technician or your retail. The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recom- mended by the manufacture. Discard used batteries according to the manufacturer’s instructions Cleaning: During normal use of the HIT-W121 may become soiled and should, therefore, be cleaned regularly. Agents: Alcohol or water. End of Product: for Environmental protection, please follow na…

Text truncated - open the document above for the full version.

2 1. Specifications 1.1 Specification of WLAN Antenna Frequency Range (GHz) 2.40 ~ 2.50 for Main 2.40 ~ 2.50 for Aux VSWR 2.0 : 1 max Peak Gain 1.30 dBi for 2.40~2.50GHz band Radio Connector Hirose U.FL , IPex MHF , Technova or equivalent Coaxial Cable Nissei , Kurabe , HL Tech. or equivalent Impedance 50Ω Nominal. Cable Diameter 1.13mm Cable Color Black for Main / WLAN White for Aux / WLAN Operating Temperature -40~90°C Maximum Power 1W Polarization Linear Radiation Pattern Omni-directional 4 2. Test Methodology 2.1 Test Equipment The equipment for the antenna measurement we used is as follows: A. Network Analyzer, support up to 8GHz, to measure the VSWR and input impedance of antenna. B. Three-dimensional anechoic chamber to measure antenna gain and radiation pattern (Standard horn antenna was used to calibrate the chamber) C. Digital caliper to measure the dimensions. D. Climatic chamber for mechanical tests. 2.2 Test Setup 2.2.1 Frequency Range 2 2 . . 4 4 0 0 ~ ~ 2 2 . . 5 5 0 0 G G H H z z , , G G H H z z f f o o r r W W L L A A N N a a p p p p l l i i c c a a t t i i o o n n . . 2.2.2 Antenna Configuration The antenna basically has two parts; the stamping and the cable assembly with the connector on one side. The detailed drawing is attached. 2.2.3 VSWR The VSWR is measured with network analyzer that support up to 8GHz. All the measurements are performed with the customer provided fixture. Figure 1 shows the typical schematic diagram for measuring VSWR. Test port cable Figure 1. The schematic diagram for measuring VSWR D.U.T Network Analyzer 5 2.2.4 Radiation Pattern and Gain The radiation pattern of antenna is measured in both horizontal polarization and vertical polarization. The radiation pattern measurements are performed in the three-dimensional anechoic chamber. The chamber provides less than –30dB reflectivity from 800MHz through 8GHz. The chamber is calibrated using both standard dipole antenna and horn antenna. The Gain here is expressed as dBi that standardizes the isotropic antenna. The Gain measurements and antenna radiation pattern are also performed in the same chamber described previously. Figure 2 shows the schematic diagram for measuring radiation pattern and Gain. Figure 2. The schematic diagram for measuring radiation pattern and Gain 3D Anechoic Chamber Probe array Controller RF Unit (0.4 ~ 8GHz) Primary Synthesizer Frontiliary Synthesizer Motion Controller Data Acquisition & Processing PC 6 3. Performance Data 3.1 VSWR of Antenna in the Fixture 3.1.1 VSWR of Main WLAN Antenna 3.1.2 VSWR of Aux WLAN Antenna 7 3.2 Radiation Pattern and Gain /2D DATA 3.2.1 Low Frequency (2.40GHz~2.50GHz) of Main WLAN Antenna 2.40GHz 2.45GHz 2.50GHz 8 3.2.2 Low Frequency (2.40GHz~2.50GHz) of Aux WLAN Antenna 2.40GHz 2.45GHz 2.50GHz 9 3.2.3 Average Gain (dBi) Summary Main Antenna Aux Antenna H-polV-polTotalH-polV-polTotal 2400(MHz) -0.38-2.650.75-5.95-8.84-4.15 2450(MHz) 1.30-2.032.11-4.44-7.23-2.61 2500(MHz) -0.46-2.340.61-5.68-8.11-3.71 Main / Right Side Antenna Gain Average (dBi) Frequency Max Value (dBi) H-polV-polTotalH-polV-polTotal 2400(MHz) -1.56-3.22-0.62-6.58-8.61-4.47 2450(MHz) 1.02-0.521.82-4.19-6.93-2.34 2500(MHz) -0.20-2.130.59-4.56-9.21-3.28 Aux / Left Side Antenna Gain Average (dBi) Frequency Max Value (dBi) 10 4.Antenna Drawing 4.1 Drawing of Main Antenna 4.2 Drawing of Aux Antenna 11 5. Reliability Data For Antenna Patch (Reference To IEC) IEC 384-10/ CECC 32 100 CLAUSE IEC 60068-2 TEST METHOD TEST PROCEDURE REQUIREMENTS 4.12 4(Na) Rapid change of temperature -40 °C (30 minutes) to +90 °C (30 minutes); 5 cycles No visible damage Central Freq. Change ± 6% 4.14 3(Ca) Damp heat 500 ± 12 hours at 40 °C; 90 to 95 % RH No visible damage 2 hours recovery Central Freq. Change ± 6% 4.15 Endurance 500 ± 12 hours at 90 °C; No visible damage 2 hours recovery Central Freq. Change ± 6% 12 6. Ordering Information: Yageo Ordering P/N Code The antennas may be ordered by using the Yageo P/N ordering code. These code numbers can be determined by the following rules: CAN43 13 7 43 01 250 1B F C M S T A P F. Family Code CAN43 = Antenna C. Packing Type Code 13 = Carton M. Materials Code 7 = Coaxial Cable S. Size/Series Code 43 = PIT 1701 T. Left Antenna/Right Antenna 01 = Main Antenna 02 = Aux Antenna A. Working Frequency 250 = WLAN P. Packing 1B = 1000 pcs packing 13 7. Revision Control Revision Date Content Remark R01 May.28, 2008 New issued N/A 14 8. UL Card Cable 15 I-Pex Connector 16 17 Protective Tube

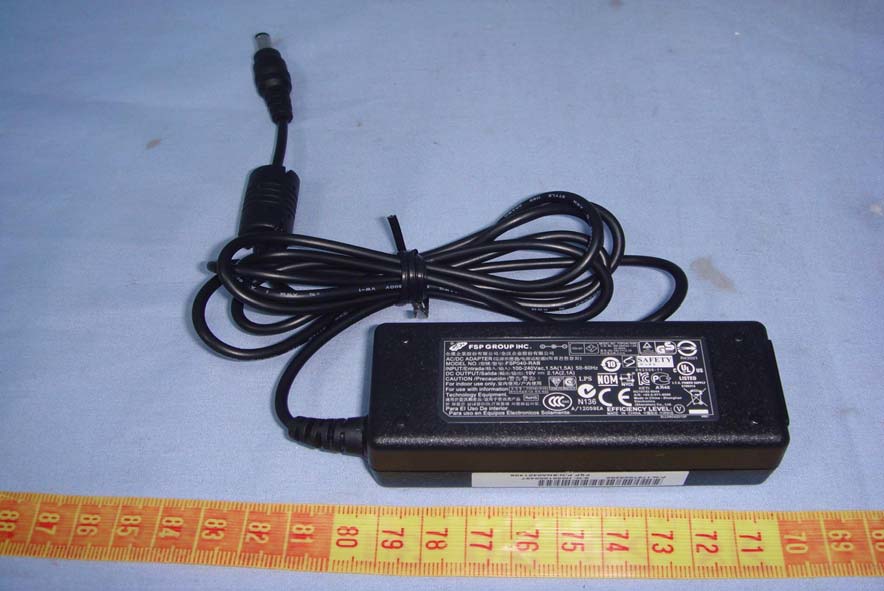

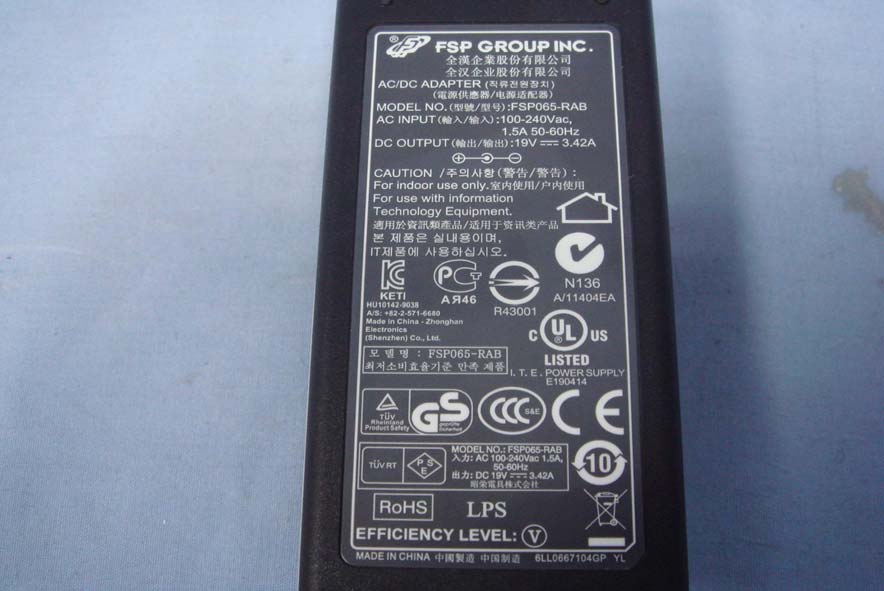

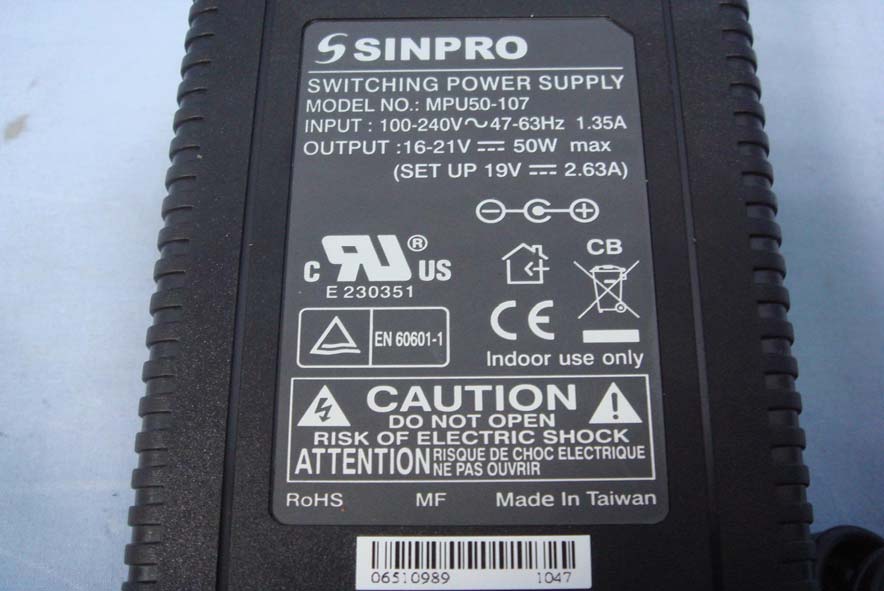

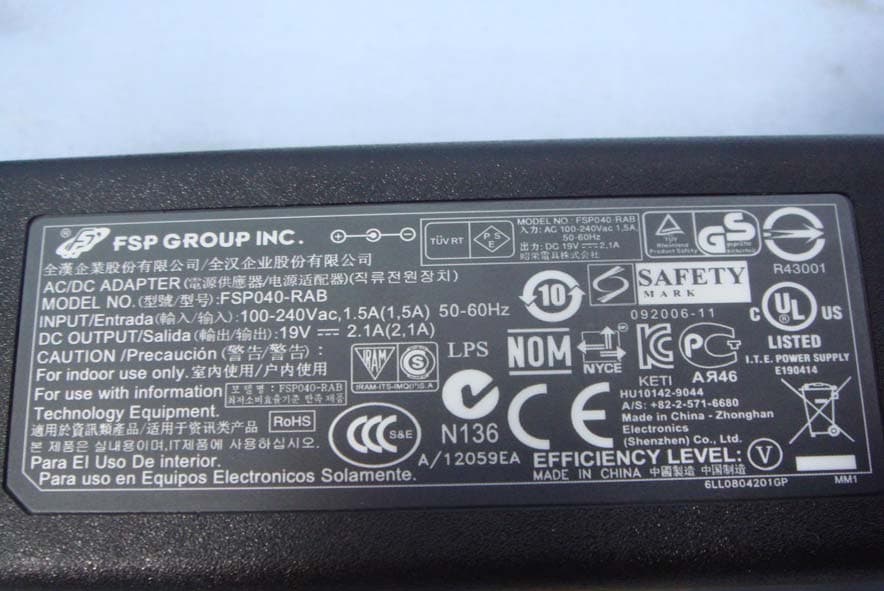

Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 For FSP040-RAB Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 For FSP065-RAB Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 For MPU50-107 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 10 / 35

Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 11 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 12 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 13 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 14 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 15 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 16 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 17 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 18 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 19 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 20 For PANEL Model: B116XW03 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 21 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 22 For PANEL Model: N116B6-L02 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 23 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 24 WLAN Module Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 25 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 26 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 27 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 28 RFID Module Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 29 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 30 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 31 RFID Antenna Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 32 WLAN Antenna Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 33 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 34 Compliance Certification Services Inc. Report No.: T110221103 Date of Issue: June 17, 2011 A1 - 35

Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 96 APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Computer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 17.69 dBm (58.74 mW) IEEE 802.11g mode: 14.40dBm 27.54 mW) IEEE 802.11n HT 20 MHz mode: 14.52 dBm (28.31 mW) IEEE 802.11n HT 40 MHz mode: 14.29 dBm (26.85 mW) Antenna gain (Max) 1.30dBi (Numeric gain: 1.34) Evaluation applied MPE Evaluation* SAR Evaluation N/A Remark: The maximum output power is 17.69dBm (58.74mW) at 2442MHz (with 1.34 numeric antenna gain.) TEST RESULTS No non-compliance noted. MPE EVALUATION No non-compliance noted. Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 97 Calculation Given d GP E ×× = 30 & 3770 2 E S = Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 98 IEEE 802.11b mode: EUT output power = 58.75mW Numeric Antenna gain = 1.34 Æ Power density = 0.01567 mW / cm2 IEEE 802.11g mode: EUT output power = 27.54 mW Numeric Antenna gain = 1.34 Æ Power density = 0.00734 mW / cm2 IEEE 802.11n HT 20 MHz mode: EUT output power =28.31 mW Numeric Antenna gain = 1.34 Æ Power density = 0.0075mW / cm2 IEEE 802.11n HT 40 MHz mode: EUT output power = 26.85mW Numeric Antenna gain = 1.34 Æ Power density = 0.00716 mW / cm2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.)

Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 / 101 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Computer Model: HIT-W121 Trade Name: ADVANTECH Issued to Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 11, Wu-Gong 6 th Rd., Wugu Industrial Park, Taipei Hsien 248, Taiwan (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: June 20, 2012 Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 2 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 June 20, 2012 Initial Issue ALL Angel Cheng Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 3 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................4 2. EUT DESCRIPTION ...........................................................................................................................5 3. TEST METHODOLOGY ....................................................................................................................6 3.1 EUT CONFIGURATION........................................................................................................................6 3.2 EUT EXERCISE....................................................................................................................................6 3.3 GENERAL TEST PROCEDURES.............................................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS.........................................................7 3.5 DESCRIPTION OF TEST MODES...........................................................................................................8 4. INSTRUMENT CALIBRATION........................................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION......................................................................................9 4.2 MEASUREMENT EQUIPMENT USED .........................................................................................9 4.3 MEASUREMENT UNCERTAINTY .............................................................................................10 5. FACILITIES AND ACCREDITATIONS ........................................................................................11 5.1 FACILITIES .......................................................................................................................................11 5.2 EQUIPMENT......................................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS.....................................................................................12 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................13 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................13 6.2 SUPPORT EQUIPMENT ...............................................................................................................13 7. FCC PART 15.247 REQUIREMENTS.............................................................................................14 7.1 6DB BANDWIDTH.............................................................................................................................14 7.2 PEAK POWER....................................................................................................................................22 7.3 AVERAGE POWER............................................................................................................................30 7.4 BAND EDGES MEASUREMENT ................................................................................................38 7.5 PEAK POWER SPECTRAL DENSITY....................................................................................................61 7.6 SPURIOUS EMISSIONS.................................................................................................................69 7.7 RADIATED EMISSIONS ..............................................................................................................76 7.8 POWERLINE CONDUCTED EMISSIONS...............................................................................................93 APPENDIX I RADIO FREQUENCY EXPOSURE ...............................................................................96 APPENDIX II PHOTOGRAPHS OF TEST SETUP .............................................................................99 APPENDIX 1 - PHOTOGRAPHS OF EUT Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 4 1. TEST RESULT CERTIFICATION Applicant: Advantech Co., Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test: Computer Tr a d e N a m e : ADVANTECH Model: HIT-W121 Date of Test: March 9, 2011 ~ June 12, 2012 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 99 APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emissions Setup Photos Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 100 Radiated Emissions Setup Photos Compliance Certification Services Inc. FCC ID: M82-HIT-W121 Report No.: T110221103-RP2 Page 101 Powerline Conducted Emissions Setup Photos
