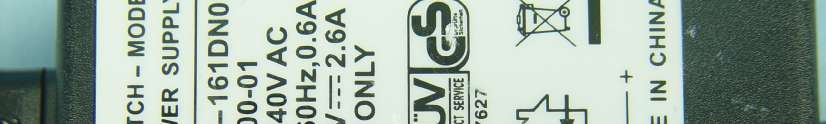

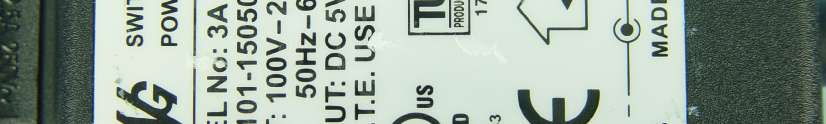

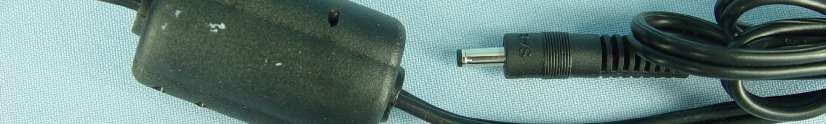

M82-MARS-1030FPortable Data Terminal

MARS-1030F WinCE. NET Rugged Portable Data Terminal User Manual MARS-1030F User Manualii Copyright The documentation and the software included with this product are copy- righted 2006 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use. Acknowledgements Intel is a trademark of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Part No. 2006103011Edition 2 Printed in TaiwanJanuary 2007 iiiTable of Contents Contents Chapter1 Introduction ..................................................... 2 1.1About this Manual ............................................................. 2 1.2User and Product Safety .................................................... 3 1.3Declaration of conformity ................................................. 5 1.4Product Labeling ............................................................... 7 1.5System Specifications ....................................................... 9 1.6Environment Standard..................................................... 11 1.7Warranty and after service .............................................. 12 1.8Technical Support and Assistance................................... 12 1.9Document Feedback ........................................................ 12 Chapter2 Getting Started .............................................. 14 2.1Check the package........................................................... 14 2.2General View of the PDT................................................ 15 2.2.1PDT front side view ..................................................... 15 2.2.2PDT back side view ..................................................... 15 2.3Charging the Battery Pack............................................... 17 2.3.1Installing the battery pack ............................................ 17 2.3.2Charging the battery pack with a Power Adapter ........ 21 2.3.3Charging the battery pack with a Single Dock ............ 22 2.4Handling the PDT............................................................ 24 2.4.1Starting the PDT .......................................................... 24 2.4.2Power on/off ................................................................ 25 2.4.3Calibration of the touch Screen ................................... 25 2.4.4Adjusting the brightness .............................................. 26 2.4.5To mute the Sound ....................................................... 26 2.4.6Using the Stylus ........................................................... 26 2.4.7Using the SC620 Keypad ............................................. 27 2.4.8Using Earphones and a Microphone ............................ 38 2.5Navigating the Display.................................................... 39 2.5.1Setting Time and Date ................................................. 39 2.5.2Entering the Data ......................................................... 40 2.5.3The Command Bar ....................................................... 40 2.5.4The Taskbar ................................................................. 41 2.5.5The Soft Keypad .......................................................... 41 2.5.6Setting Up a Wireless LAN ......................................... 42 2.5.7Scanning Barcode, 1D laser version ............................ 44 2.5.8Reading barcodes, 2D CMOS version ......................... 46 2.5.9Help .............................................................................. 47 2.6Power Management......................................................... 48 2.6.1Suspend Mode .............................................................. 48 2.6.2Resuming ..................................................................... 49 2.7Resetting the PDT ........................................................... 50 2.7.1Software (Warm) Reset ............................................... 50 MARS-1030F User Manualiv 2.7.2Cold Reset .................................................................... 50 Chapter3 Setting............................................................. 52 3.1Introduction ..................................................................... 52 3.2Control Panel................................................................... 52 3.2.1Barcode Setting ............................................................ 53 3.2.2Symbologies List ......................................................... 62 3.2.3Bluetooth Device Properties ........................................ 81 3.2.4Certificates ................................................................... 85 3.2.5Control Center .............................................................. 87 3.2.6Date/Time .................................................................... 92 3.2.7Dialing Properties ........................................................ 92 3.2.8Display Properties ........................................................ 94 3.2.9Input Panel ................................................................... 96 3.2.10 Internet Options ........................................................... 97 3.2.11 Keyboard ...................................................................... 99 3.2.12 Network and Dial-up Connections ............................ 100 3.2.13 Owner ......................................................................... 105 3.2.14 Password ..................…

Text truncated - open the document above for the full version.

101Chapter 3 IconIcon and function Once you have established an account, create a new connection on your device. When creating this connec- tion, you should be able to use all of the default TCP/IP settings provided in the Make New Connection Wizard. If you canít connect using the default settings, contact your ISP or access your ISPís Web site for specific TCP/IP information such as primary and secondary DNS addresses. * To modify connection settings: -Select Start > Settings > Network and Dialup Connections - Select the icon for connection settings you want to modify. -Select File > Properties, or double- tap the appropri- ate icon. - Select desired options. There may be additional set- tings that depend on the connection. To modify, select the icon and then select Advanced Set- tingsÖ from the menu. Figure 3.60: Network and Dial-up Connections Figure 3.61: Network and Dial-up Connections MARS-1030F User Manual102 Figure 3.62: Network and Dial-up Connections Figure 3.63: Network and Dial-up Connections Figure 3.64: Network and Dial-up Connections Figure 3.65: Network and Dial-up Connections 103Chapter 3 Figure 3.66: Network and Dial-up Connections Figure 3.67: Network and Dial-up Connections Figure 3.68: Network and Dial-up Connections Figure 3.69: Network and Dial-up Connections MARS-1030F User Manual104 Figure 3.70: Network and Dial-up Connections Figure 3.71: Network and Dial-up Connections 105Chapter 3 3.2.13 Owner Table 3.31: Owner IconIcon and function ï ìIdentificationî Tab: (Figure 3-74) * Fill in or edit the data as desired. * To have this information displayed when you start your device, select ìDisplay Owner Identificationî at Power On. * To set up identification for remote networks, see Setting up identification for remote networks. ï ìNetwork IDî Tab: (Figure 3-75) * Enter the user name, password, and domain name you use to log on to remote network. Figure 3.72: Owner PropertiesFigure 3.73: Owner Properties MARS-1030F User Manual106 3.2.14 Password Table 3.32: Password IconIcon and function ï ìPassword Settingî Tab: (Figure 3-76) * Enter the password * In the ìConfirm passwordì box, enter the password again. * To require the password on startup, select ìEnable password protection at power-onì and/or select ìEnable password protection for screen saverî . * To exit the Password control panel, press ìOKî from the control bar, or press the <Enter> key on the key- pad. Figure 3.74: Password Properties 107Chapter 3 3.2.15 PC Connection Table 3.33: PC Connection IconIcon and function ï ìPC Connectionî Tab: (Figure 3-77) * Select the first checkbox to enable direct connections to the desktop computer. (Figure 3-77) * Tap the ìChange ConnectionÖî button to modify the connection method to USB or Serial. (Figure 3-78) * To exit the ìChange Connectionî dialog, press ìOKî on the control bar, or press the <Enter> key on the key- pad. * To exit the ìPC Connectionî properties control panel, press ìOKî on the control bar, or press the <Enter> key on the keypad. Figure 3.75: PC ConnectionFigure 3.76: PC Connection MARS-1030F User Manual108 3.2.16 Power Table 3.34: Power IconIcon and function ï ìBatteryî Tab: (Figure 3-79) * Provide change level indicators for the Main battery and the Backup battery. * Show the remaining power capacity of the main battery. * If a ìMain Batteries Very Lowî warning message shows, the MARS-1030F will shut down in 30 minutes. (Figure 3-83) * The PDT will shutdown when the main batteryís capac- ity is around 0% . * To exit the battery control panel, press ìOKî from the command bar, or press <Enter> key on keypad. ï ìSchemesî Tab: (Figure 3-80) * The Scheme tab allows you to determine when to switch to suspend mode when using either Battery Power or AC Power. *Select Battery Power or AC Power as the power scheme from the pull-down list. (Figure 3-80) * Select the time to suspend mode from the pull-down list. (Figure 3-81) ï ìDevice Statusî Tab: (Figure 3-82) Show the power level of device. The power level ranges from ìHigh(D0)î which means the device is at the highest power level to ìOff(D4)î which means the device is at the lowest power level. Note: This icon on the taskbar shows that the AC adapter pro- vides power to the PDT. The icon on the taskbar shows that Main Batteries pro- vide power to the PDT. The icon on the taskbar shows that the AC adapter pro- vides power to the PDT while charging the main batteries. 109Chapter 3 Figure 3.77: PowerFigure 3.78: Power Figure 3.79: PowerFigure 3.80: Power Figure 3.81:Power MARS-1030F User Manual110 3.2.17 Regional Settings Table 3.35: Regional Settings IconIcon and function ï ìRegionî Tab: (Figure 3-84) * Select the desired location/language. * Review the Appearance samples in the bottom half of the screen. * Select the tab at the top for any settings you wish to change. Settings to modify include Number, Currency, Time, and Date. Figure 3.82: Regional Settings 111Chapter 3 3.2.18 Remove Programs Table 3.36: Remove Programs IconIcon and function ï ìRemove Programsî Tab: * Only user installed programs can be removed. - Select the program you wish to remove from the list and press the ìremoveî button. MARS-1030F User Manual112 3.2.19 Storage Manager Table 3.37: Storage Manager IconIcon and function ï ìStorage Managerî Tab: (Figure 3-83) * To change storage properties control panel default set- tings: - Insert a Compact Flash (CF) or Secure digital (SD) storage card into the unit. -Select Start > Settings > Control Panel > Storage Properties - From the ìStorage Infoî pull-down list, select the desired storage device. - You can also format, dismount, and create parti- tions on storage devices using this control panel. - To save and exit the Storage Properties control panel, press ìOKî from the control bar, or press the <Enter> key on the keypad. -Caution: Dismounting or formatting the DiskOnChip will erase all files and programs stored in flash mem- ory. Figure 3.83: Storage Manager 113Chapter 3 3.2.20 Stylus Table 3.38: …

Text truncated - open the document above for the full version.
