M82-PIT-1501Patient Infotainment Terminal/Computer

User Manual PIT-1501W Patient Infotainment Terminal/Computer Copyright The documentation and the software included with this product are copyrighted 2009 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Pentium are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Declarationof Conformity FCC ClassB Note: Thisequipment hasbeentestedandfoundtocomplywith the limits foraClass B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installa- tion. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful inter- ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interfer- ence to radio or television reception, which can be determined by turning the equip- ment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ! Reorient or relocate the receiving antenna. ! Increase the separation between the equipment and receiver. ! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ! Consult the dealer or an experienced radio/TV technician for help. Warning! Any changesormodificationsmadetotheequipment which arenot expressly approved by the relevant standards authority could void your authority to operate the equipment. Caution! Danger of explosionifbatteryisincorrectlyreplaced. Replace onlywith the same or equivalent type recommended by the manufacturer. Dis- pose of used batteries according to the manufacturerís instructions. PartNo.2008170200Edition 1 Printed in Ta i w a n April 2009 PIT-1501W User Manual ii Technical Support andAssistance 1. Visit the Advantech web site at www.advantech.com/support where you can find th latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: ñ Product name and serial number ñ Description of your peripheral attachments ñ Description of your software (operating system, version, application software, etc) ñ A complete description of the problem ñ The exact wording of any error messages Warning! 1. Input voltage is rated 19 VDC,2.63A(DCMode). 2. Packing: Please carry the unit with both hands; handle with care. 3. Maintenance: to properly maintain and clean the surfaces, use only approved products o clean with a dry applicator. iiiPIT-1501W User Manual Safety Instructions 1. Read these safety instructions carefully. 2. Keep this User Manual for later reference. 3. Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for cleaning. 4. For plug-in equipment, the power outlet socket must be located near the equip- ment and must be easily accessible. 5. Keep this equipment away from humidity. 6. Put this equipment on a reliable surface during installation. Dropping it or letting it fall may cause damage. 7. The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. 8. Make sure the voltage of the power source is correct before connecting the equipment to the power outlet. 9. Position the power cord so that people cannot step on it. Do not place anything over the power cord. 10. All cautions and warnings on the equipment should be noted. 11. If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 12. Never pour any liquid into an opening. This may cause fire or electrical shock. 13. Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. 14. If one of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work according to the user's manual. e. The equipment has been dropped and damaged. f. The equipment has obvious signs of breakage. 15. DO NOT LEAVE THIS EQUIPMENT IN AN ENVIRONMENT WHERE THE STORAGE TEMPERATURE MAY GO BELOW -20° C (-4° F) OR ABOVE 60° C (140° F). THIS COULD DAMAGE THE EQUIPMENT. THE EQUIPMENT SHOULD BE IN A CONTROLLED ENVIRONMENT. 16. If your computer clock loses a significant amount of time or the BIOS configura- tion resets to default,thebatteryhasnopower. Caution! 1. Do not replacepoweradaptoryourself.Please contact a qualified technician or your retail. 2. The computer is provided with a battery-powered real-time clock circuit. There is a danger of explosion if battery is incorrectly replaced. Replace only with same or equivalent type recom- mended by the manufacture. Discard used batteries according to the manufacturerís instructions PIT-1501W User Manual iv 17. CLASSIFICATION: ñ Supplied by Class I adapter ñ No applied parts ñ Continuous operation ñ No AP or APG category 18. Follow national requirements to d…

Text truncated - open the document above for the full version.

V e n d o r I n f o r m a t i o n : 1 . A d d r e s s : Y a g e o ( T a i w a n ) L t d . / 1 6 , w e s t 3 r d S t r e e t , N . E . P . Z K a o h s i u n g , 8 1 1 T a i w a n , R . O . C 2 . P r o d u c t N a m e ( I n t e n d e d U s e ) : R F A n t e n n a / C a b l e A s s e m b l y N o t e : 1 . I - P E X G O L D R F C O N N * 1 ( I - P E X 2 0 2 7 8 - 1 1 1 ) ; 2 . C O A X I A L C A B L E O D = 1 . 1 3 , C O L O R : W h i t e 3 . A L L M A T E R I A L M E E T G R E E N P R O D U C T C R I T E R I O N . * E L E C T R I C A L P E R F O R M A N C E : 1 . I M P E D A N C E : 5 0 o h m 2 . F R E Q U E N C Y R A N G E : 2 . 4 ~ 2 . 5 G H Z f o r W L / 5 . 1 5 ~ 5 . 8 5 G H z f o r 8 0 2 . 1 1 a 3 . W O R K V O L T A G E : N / A 4 . D I E L E C T R I C W I T H S T A N D I N G V O L T A G E : A C 1 5 0 0 V f o r 1 M I N 5 . I N S U L A T O R R E S I S T A N C E : 1 5 0 0 M E G O H M S . M I N 6 . V S M R : 2 . 5 M A X ( 2 . 4 ~ 2 . 5 G H Z ) 2 . 5 M A X ( 5 . 1 5 ~ 5 . 8 5 G H z ) M i n i P c i P r o t e c t i o n T u b e A N T E N N A - L e f t / A u x / L C D A n t e n n a Y a g e o P / N F o r W L : C A N 4 3 1 3 7 4 3 0 2 2 5 0 1 B Y A G E O

V e n d o r I n f o r m a t i o n : 1 . A d d r e s s : Y a g e o ( T a i w a n ) L t d . / 1 6 , w e s t 3 r d S t r e e t , N . E . P . Z K a o h s i u n g , 8 1 1 T a i w a n , R . O . C 2 . P r o d u c t N a m e ( I n t e n d e d U s e ) : R F A n t e n n a / C a b l e A s s e m b l y P r o t e c t i o n T u b e M i n i P c i A N T E N N A - R i g h t / M a i n / L C D A n t e n n a N o t e : 1 . I - P E X G O L D R F C O N N * 1 ( I - P E X 2 0 2 7 8 - 1 1 1 ) ; 2 . C O A X I A L C A B L E O D = 1 . 1 3 , C O L O R : B l a c k 3 . A L L M A T E R I A L M E E T G R E E N P R O D U C T C R I T E R I O N . * E L E C T R I C A L P E R F O R M A N C E : 1 . I M P E D A N C E : 5 0 o h m 2 . F R E Q U E N C Y R A N G E : 2 . 4 ~ 2 . 5 G H Z f o r W L / 5 . 1 5 ~ 5 . 8 5 G H z f o r 8 0 2 . 1 1 a 3 . W O R K V O L T A G E : N / A 4 . D I E L E C T R I C W I T H S T A N D I N G V O L T A G E : A C 1 5 0 0 V f o r 1 M I N 5 . I N S U L A T O R R E S I S T A N C E : 1 5 0 0 M E G O H M S . M I N 6 . V S M R : 2 . 5 0 M A X ( 2 . 4 ~ 2 . 5 G H Z ) 2 . 5 0 M A X ( 5 . 1 5 ~ 5 . 8 5 G H Z ) Y a g e o P / N F o r W L : C A N 4 3 1 3 7 4 3 0 1 2 5 0 1 B Y A G E O

Date: 2/9/2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: M82-PIT-1501, would like to declare that the composite portion catagorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards,

Date:4/02/2010 FCC ID: M82-PIT-1501 Model: PIT-1501W; PIT-15XXXXXXXXXXXX (X = 0 ~ 9 or A ~ Z or blank) To whom it may concern: Only 802.11g/bn can be operated in USA, 802.11a will disable by firmware. Channel selection is not available. Sincerely Yours, REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Date: February 3, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID: M82-PIT-1501 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

2/8/2010 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 11, Wugong 6 th Rd., Wugu Towership, Taipei County 24891, Taiwan Mr. Steven Wang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: ADVANTECH (Brand Name) / PIT-1501W (Model Name) FCC ID: M82-PIT-1501W Product Name: Patient Infotainment Terminal/Computer Signature,

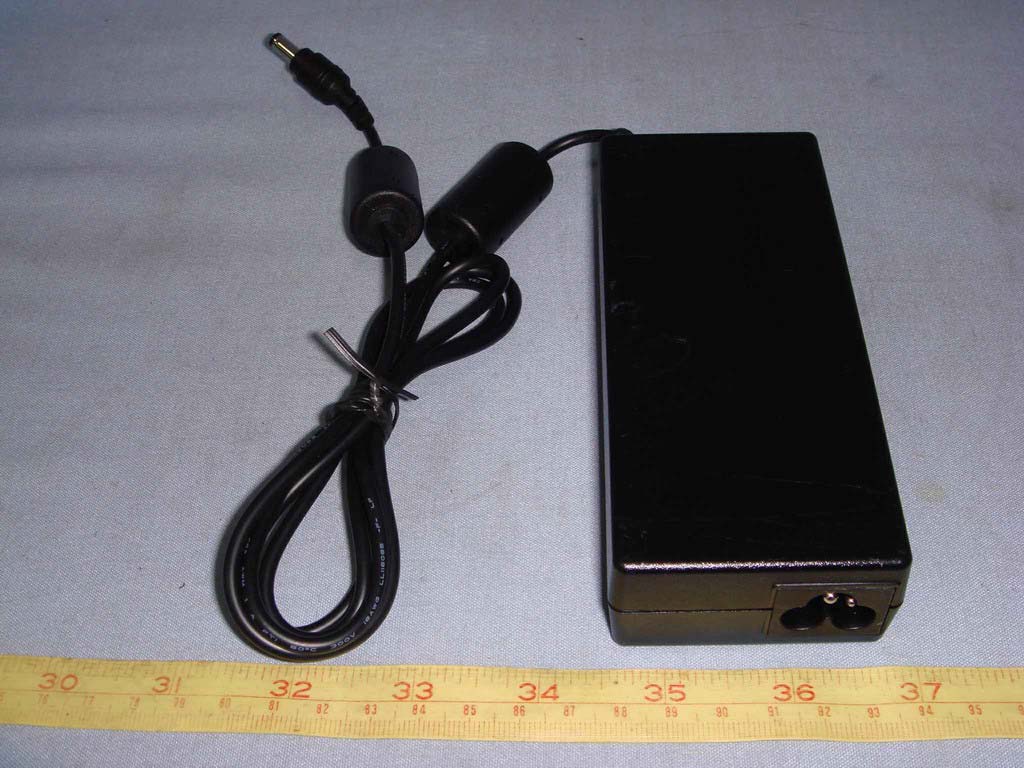

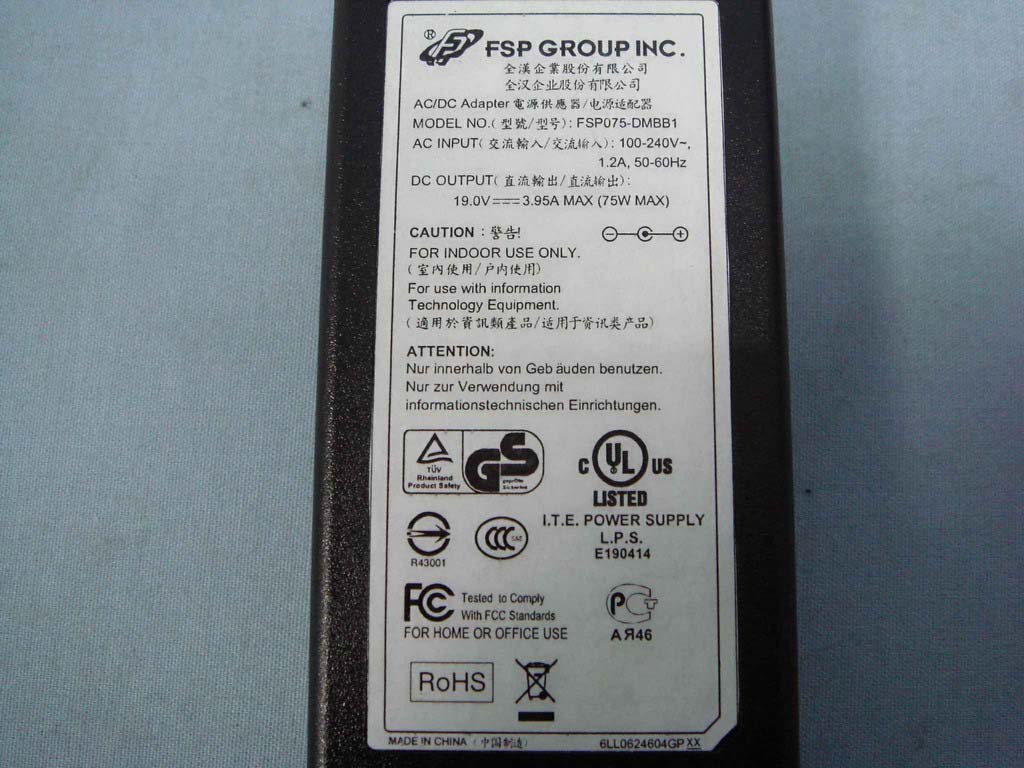

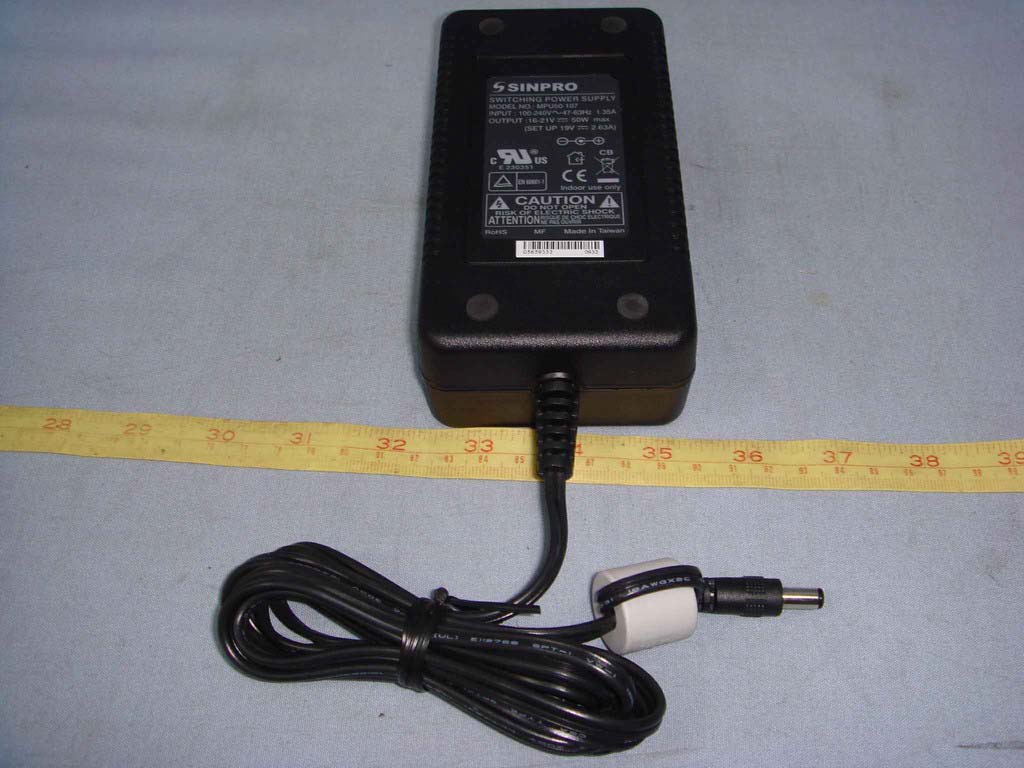

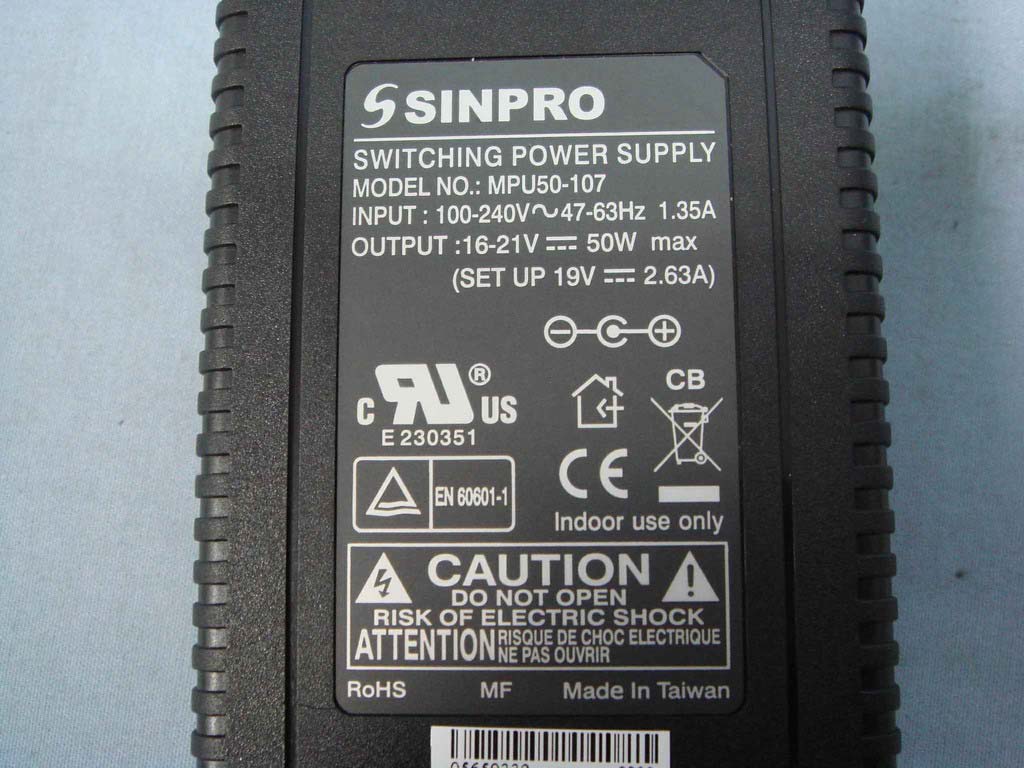

Report No: 91221106 Page 1 / 9 EXTERNAL PHOTOGRAPHS OF EUT Report No: 91221106 Page 2 Report No: 91221106 Page 3 Report No: 91221106 Page 4 Wired Remote Control: ADVANTECH / PIT-1702-RCKE Report No: 91221106 Page 5 Handset: ADVANTECH / PIT-1702-HSKE Report No: 91221106 Page 6 Power Adapter: FSP / FSP075-DMBB1 Report No: 91221106 Page 7 Power Adapter: FSP / FSP075-DMBB1 Report No: 91221106 Page 8 Power Adapter: SINPRO / MPU50-107 Report No: 91221106 Page 9 Power Adapter: SINPRO / MPU50-107

Label Location

Report No: 91221106 Page 1 / 14 INTERNAL PHOTOGRAPHS OF EUT Report No: 91221106 Page 2 Report No: 91221106 Page 3 Report No: 91221106 Page 4 Report No: 91221106 Page 5 Report No: 91221106 Page 6 Report No: 91221106 Page 7 Report No: 91221106 Page 8 Report No: 91221106 Page 9 Wired Remote Control: ADVANTECH / PIT-1702-RCKE Report No: 91221106 Page 10 Handset: ADVANTECH / PIT-1702-HSKE Report No: 91221106 Page 11 Power Adapter: FSP / FSP075-DMBB1 Report No: 91221106 Page 12 Power Adapter: FSP / FSP075-DMBB1 Report No: 91221106 Page 13 Power Adapter: SINPRO / MPU50-107 Report No: 91221106 Page 14 Power Adapter: SINPRO / MPU50-107

程智科技股份有限公司 Compliance Certification Services Inc. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Patient Infotainment Terminal/Computer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm2) General Population/Uncontrolled exposure (S=1mW/cm2) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 20.69 dBm IEEE 802.11g mode: 24.30 dBm draft 802.11n 20 MHz Channel mode: 27.27 dBm draft 802.11n 40 MHz Channel mode: 26.07 dBm Antenna gain (Max) 2.11 dBi (Numeric gain: 1.63) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 27.27dBm (533.33mW) at 2437 MHz (with 1.63 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm2 even if the calculation indicates that the power density would be larger. TEST RESULTS No non-compliance noted. 程智科技股份有限公司 Compliance Certification Services Inc. Calculation Given d GP E ×× = 30 & 3770 2 E S= Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 3770 30 d GP S ×× = Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 2 2 0796.0 100/3770 1000/30 d GP d GP S × ×= × ×× = Equation 1 Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Maximum Permissible Exposure EUT output power = 533.3mW Numeric Antenna gain = 1.63 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.173 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) 程智科技股份有限公司 Compliance Certification Services Inc. For RFID Antenna Gain is 0dBi or 1 (numeric) Output power into Antenna & RF Exposure value at distance 20cm: RFID Max out power: 0.00000057(mW) (0.0000000011mW/cm 2 ) CONCULSION: Both of eh modules can transmit simultaneously, the formula of calculated the MIP is CPD1/LPD1+CPD2/LPD2+ etc.<1 CPD= Caleulation Power density LPD= limit of power density Therefore, the worst-cast situationis 0.173/1+0.0000000011/1= 0.1730000011, which is less than “1”. This confirmed that the device comply with FCC 1.1310 MPE limit.

Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 1 / 102 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Patient Infotainment Terminal/Computer Model: PIT-1501W; PIT-15XXXXXXXXXXXX (X = 0 ~ 9 or A ~ Z or blank) Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 2 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 January 29, 2010 Initial Issue All Sabrina Wang Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 3 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION .................................................................................................... 6 3.2. EUT EXERCISE ................................................................................................................ 6 3.3. GENERAL TEST PROCEDURES ..................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ......................................... 7 3.5. DESCRIPTION OF TEST MODES .................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................... 9 4.2. MEASUREMENT EQUIPMENT USED ............................................................................. 9 4.3. MEASUREMENT UNCERTAINTY .................................................................................. 10 5 FACILITIES AND ACCREDITATIONS................................................................................. 11 5.1 FACILTIES....................................................................................................................... 11 5.2 EQUIPMENT ................................................................................................................... 11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 13 6.1. SETUP CONFIGURATION OF EUT ............................................................................... 13 6.2. SUPPORT EQUIPMENT ................................................................................................. 13 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1. 6 DB BANDWIDTH ........................................................................................................... 14 7.2. PEAK POWER................................................................................................................. 24 7.3. AVERAGE POWER ......................................................................................................... 34 7.4. BAND EDGES MEASUREMENT .................................................................................... 44 7.5. PEAK POWER SPECTRAL DENSITY ............................................................................ 61 7.6. SPURIOUS EMISSIONS ................................................................................................. 71 7.7. RADIATED EMISSIONS.................................................................................................. 80 7.8. POWERLINE CONDUCTED EMISSIONS ...................................................................... 96 APPENDIX II PHOTOGRAPHS OF TEST SETUP..................................................................... 99 Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 4 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Advantech Co. Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Manufacturer: Advantech Co. Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test: Patient Infotainment Terminal/Computer Trade Name: ADVANTECH Model: PIT-1501W; PIT-15XXXXXXXXXXXX (X = 0 ~ 9 or A ~ Z or blank) Date of Test: December 31, 2009 ~ January 26, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown i…

Text truncated - open the document above for the full version.

Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 99 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I PHOTOGRAPHS OF TEST SETUP Radiated Emission Set up Photos Below 1GHz Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 100 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 101 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Set Up Photos Report No: 9122106-RP1 FCC ID: M82-PIT-1501 Date of Issue: January 29, 2010 Page 102 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Powerline Conducted Emissions Setup Photos
