M82-TPC-61S5.7� QVGA STN LCD Display Touch Panel Computer

TPC-61S Series ARM9 Touch Panel Computers with 5.7î QVGA STN LCD Dis- play User Manual TPC-60S Series User Manualii Copyright The documentation and the software included with this product are copy- righted 2005 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this man- ual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reli- able. However, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use. Acknowledgements IBM, PC/AT, PS/2 and VGA are trademarks of International Business Machines Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. This Manual Covers the Following Models: ï TPC-60S ï TPC-61S Part No. 20030060034th Edition Printed in TaiwanOctober 2005 iii Product Warranty (1 year) Advantech warrants to you, the original purchaser, that each of its prod- ucts will be free from defects in materials and workmanship for one year from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper instal- lation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantechís high quality-control standards and rigorous test- ing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out-of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1.Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2.Call your dealer and describe the problem. Please have your man- ual, product, and any helpful information readily available. 3.If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4.Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for war- ranty service. 5.Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. TPC-60S Series User Manualiv CE This product has passed the CE test for environmental specifications. FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interfer- ence in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accorance with the instructions, may cause harmful interference to radio communi- cations. However, there is no gurarantee that interference not occur in a paricular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to connect the inter- ference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the eauipment and receiver. -Conncect the dealer or an experienced radio/TV technician for help. -This Transmitter must not be co-located or operating inconjunction with any other antenna or transmitter. -Any changes or modifications (including the antennas) made to this device that are not expressly approved by the manufacturer may void the userís authority to operate the equipment. Safety Instructions 1.Read these safety instructions carefully. 2.Keep this User's Manual for later reference. 3.Disconnect this equipment from any AC outlet before cleaning. Use a damp cloth. Do not use liquid or spray detergents for clean- ing. 4.For plug-in equipment, the power outlet socket must be located near the equipment and must be easily accessible. 5.Put this equipment on a reliable surface during installation. Drop- ping it or letting it fall may cause damage. 6.The openings on the enclosure are for air convection. Protect the equipment from overheating. DO NOT COVER THE OPENINGS. v 7.Make sure the voltage of the power source is correct before con- necting the equipment to the power outlet. 8.Position the power cord so that people cannot step on it. Do not place anything over the power cord. 9.All cautions and warnings on the equipment should be noted. 10.If the equipment is not used for a long time, disconnect it from the power source to avoid damage by transient overvoltage. 11.Never pour any liquid into an opening. This may cause fire or elec- trical shock. 12.Never open the equipment. For safety reasons, the equipment should be opened only by qualified service personnel. 13.If one of the following situations arises, get the equipment checked by service personnel: a. The power cord or plug is damaged. b. Liquid has penetrated into the equipment. c. The equipment has been exposed to moisture. d. The equipment does not work well, or you cannot get it to work according to the user's manual. e. The equipm…

Text truncated - open the document above for the full version.

Advantech Co. Ltd. October 25, 2005 Federal Communications Commission Authorization and Evaluation Division FCC ID: M82-TPC-61S Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below: 1. Schematics 2. Operational Description 3. Block Diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Advantech Co. Ltd.

Advantech Co. Ltd. Date: 2005. 11.18 Compliance Certification Services Certification Division 561F Monterey Road Morgan Hill, CA 95037 To whom it may concern: We, the undersigned, hereby authorize the Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by CCS TW on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS TW as our agent, we still recognize that we are responsible to: a) Comply with the relevant provisions of the certification program; b) Make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) Make claims regarding certification only in respect of the scope for which certification has been granted; d) Do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) Upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) Use certification only to indicate the products are certified as being in conformity with specified standards; g) Endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) Ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) Keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) Take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) Document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Advantech Co. Ltd. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us.

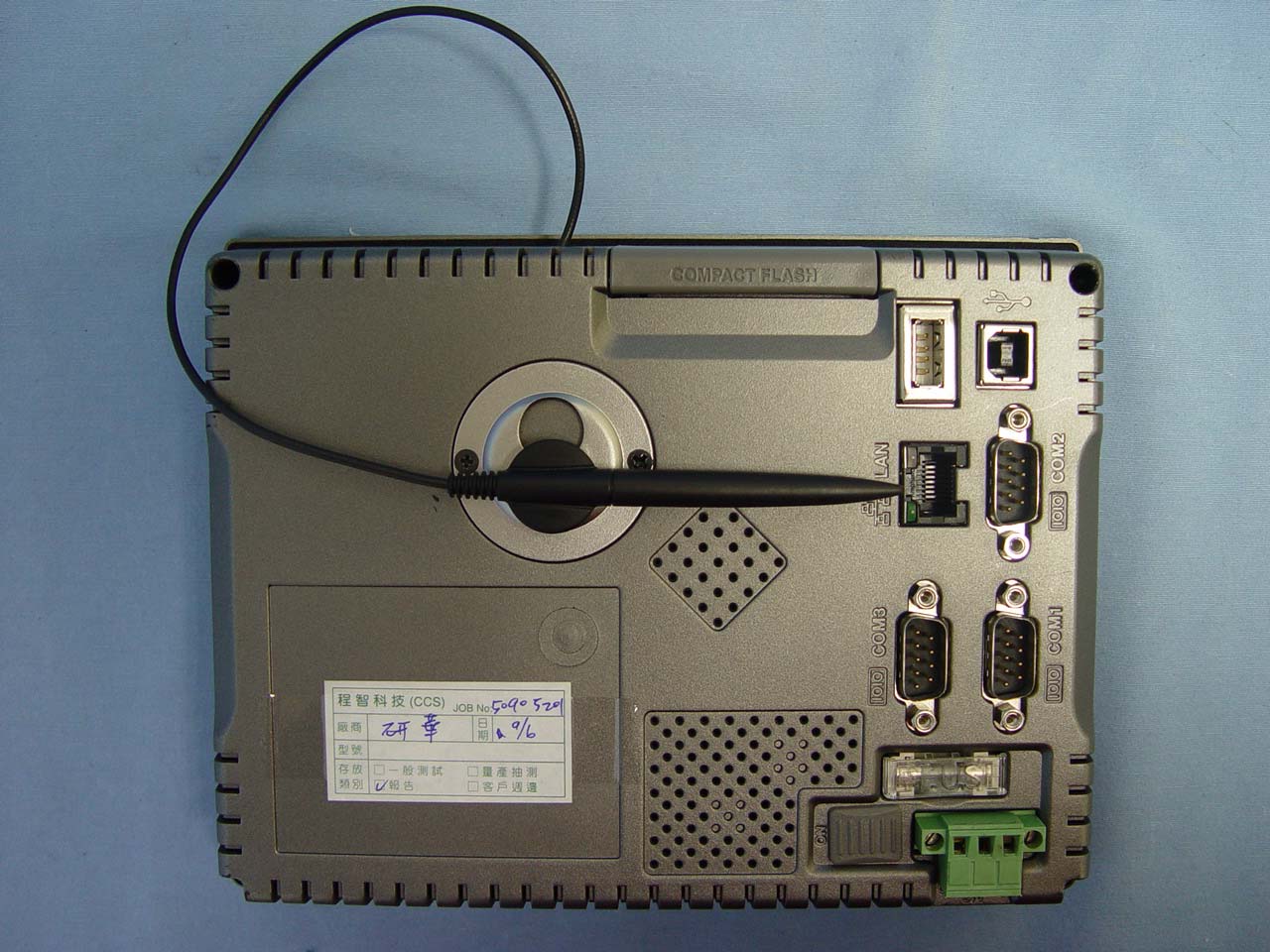

Compliance Certification Services Inc. Report No: 50905201 Date of Issue: September 22, 2005 Page 1 Total Page: 11 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No: 50905201 Date of Issue: September 22, 2005 Page 2 Rev. 00 Compliance Certification Services Inc. Report No: 50905201 Date of Issue: September 22, 2005 Page 3 Rev. 00 Compliance Certification Services Inc. Report No: 50905201 Date of Issue: September 22, 2005 Page 4 Rev. 00

Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 41 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For 5.7” QVGA STN LCD Display Touch Panel Computer with IEEE802.11b Wireless LAN support Model: TPC-61SN-x1 Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No.1, Alley 20,Lane 26, Rueiguang Road, Neihu District, Taipei 114, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION....................................................................................................3 2. EUT DESCRIPTION ...........................................................................................................................4 3. TEST METHODOLOGY ....................................................................................................................5 3.1 EUT CONFIGURATION........................................................................................................................5 3.2 EUT EXERCISE....................................................................................................................................5 3.3 GENERAL TEST PROCEDURES.............................................................................................................5 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS........................................................6 3.5 DESCRIPTION OF TEST MODES...........................................................................................................6 4. INSTRUMENT CALIBRATION........................................................................................................7 4.1 MEASUREMENT EQUIPMENT USED.........................................................................................7 5. FACILITIES AND ACCREDITATIONS ..........................................................................................8 5.1 FACILITIES 8 5.2 EQUIPMENT........................................................................................................................................8 5.3 LABORATORY ACCREDITATIONS AND LISTING..................................................................................8 5.4 TABLE OF ACCREDITATIONS AND LISTINGS.......................................................................................9 6. SETUP OF EQUIPMENT UNDER TEST .......................................................................................10 6.1 SETUP CONFIGURATION OF EUT.......................................................................................................10 6.2 SUPPORT EQUIPMENT ...............................................................................................................10 7. FCC PART 15.247 REQUIREMENTS.............................................................................................11 7.1 6DB BANDWIDTH.............................................................................................................................11 7.2 PEAK POWER....................................................................................................................................14 7.3 BAND EDGES MEASUREMENT ................................................................................................17 7.4 PEAK POWER SPECTRAL DENSITY....................................................................................................22 7.5 RADIO FREQUENCY EXPOSURE........................................................................................................25 7.6 SPURIOUS EMISSIONS ................................................................................................................26 7.7 POWERLINE CONDUCTED EMISSIONS...............................................................................................36 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP ..............................................................................39 Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 4 Rev. 00 2. EUT DESCRIPTION Product 5.7” QVGA STN LCD Display Touch Panel Computer with IEEE802.11b Wireless LAN support Trade Name ADVANTECH Model Number TPC-61SN-x1 Model Discrepancy N/A Power Supply Model Number: HEC-AP065-19V I/P: 100-240V, 50-60Hz, 1.5A O/P: 19V, 3.42A Frequency Range 2412 ~ 2462 MHz Transmit Power 8.00 dBm Modulation Technique IEEE 802.11b: DSSS (CCK, DQPSK, DBPSK) Transmit Data Rate IEEE 802.11b Mode: 11, 5.5, 2, 1 Mbps Number of Channels 11 Channels Antenna Specification FLEX Antenna / Gain: 2.2 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: M82-TPC-61S filing to comply with Section 15.207, 15.209 and 15.247 of the FCC Part 15, Subpart C Rules. 3. The suffix of TPC-61SN-x1, (x=windows CE language version) on model number is just for marketing purpose only. 4. Client consigns only one sample to test (model number: TPC-61SN-x1). Therefore, the testing Lab. just guarantees the unit, which has been tested. Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 5 Rev. 00 3. TEST METHODOLOGY The tests documented in this report were performed in accordance with ANSI C63.4 and FCC CFR 47 2.1046, 2.1047,…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 40 Rev. 00 APPENDIX 1 PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photos Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 41 Rev. 00 Radiated Emission Setup Photos Compliance Certification Services Inc. Report No.: 50905201-RP1 FCC ID: M82-TPC-61S Date of Issue: September 22, 2005 Page 42 Rev. 00 Powerline Conducted Emissions Setup Photos
