M82-TREK-550-CDMAComputer

User Manual TREK-550 Computing Box Copyright The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use. Acknowledgements Intel and Atom are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly. 4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Part No. 2010055001 Edition 1 Printed in Ta i w a n May 2010 TREK-550 User Manual ii Declaration of Conformity This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products. FCC Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ! Reorient or relocate the receiving antenna. ! Increase the separation between the equipment and receiver. ! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ! Consult the dealer or an experienced radio/TV technician for help. FM This equipment has passed the FM certification. According to the National Fire Protection Association, work sites are classified into different classes, divisions and groups, based on hazard considerations. This equipment is compliant with the specifications of Class I, Division 2, Groups A, B, C and D indoor hazards. Technical Support and Assistance 1. Visit the Advantech web site at www.advantech.com/support for the latest information about the product. 2. Contact the distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: – Product name and serial number – Description of your peripheral attachments – Description of your software (operating system, version, application software, etc.) – A complete description of the problem – The exact wording of any error messages iii TREK-550 User Manual Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal Injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer's instructions. Note! Notes provide optional additional information. Document Feedback To assist us in making improvements to this manual, we would welcome comments and constructiv…

Text truncated - open the document above for the full version.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY (DoC) The following equipment: Computer ( Product Name ) TREK-550 ; TREK-550XXXXXXXXXXXX(("x" can be 0-9 or A-Z or blank or any alphanumeric character ) / ADVANTECH ( Model Designation / Trade Name ) Advantech Co., Ltd. ( Manufacturer Name ) No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. ( Manufacturer Address ) is hereby confirmed to comply with the requirements set out in ANSI C63.4 & FCC Part 15B DoC Regulations. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND, (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. The following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration: Advantech Co., Ltd. ( Company Name ) No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. ( Company Address ) Person responsible for making this declaration: Lily , Huang ( Name, Surname ) Corporate Quolity / Super Vison ( Position / Title ) Taipei / 2012/6/28 / ( Place ) ( Date ) ( Legal Signature )

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 2.0 2206 Ringwood Avenue San Jose, CA 95131 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (current) 1.0 1.0 Nov-14-2006 Revised wording (current) 1.0 2.0 Sept–25-2007 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 2.0 2012/6/7 To: SIEMIC, INC. 2206 Ringwood Avenue, San Jose, CA 95131 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, ___ U__ ___U___hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): (Product description, model name) We affirm that between SIEMIC and _ U__ ___U_, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Advantech Co., Ltd.

Advantech Co., Ltd. 2012/6/7 Federal Communications Commission Authorization and Evaluation Division FCC ID：M82-TREK-550-CDMA Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. Tune up Procedure & BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely,

Advantech Co., Ltd. 2012/6/7 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. Mr. Stan Lin Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Advantech / TREK-550 FCC ID: M82-TREK-550-CDMA Product Name: Computer

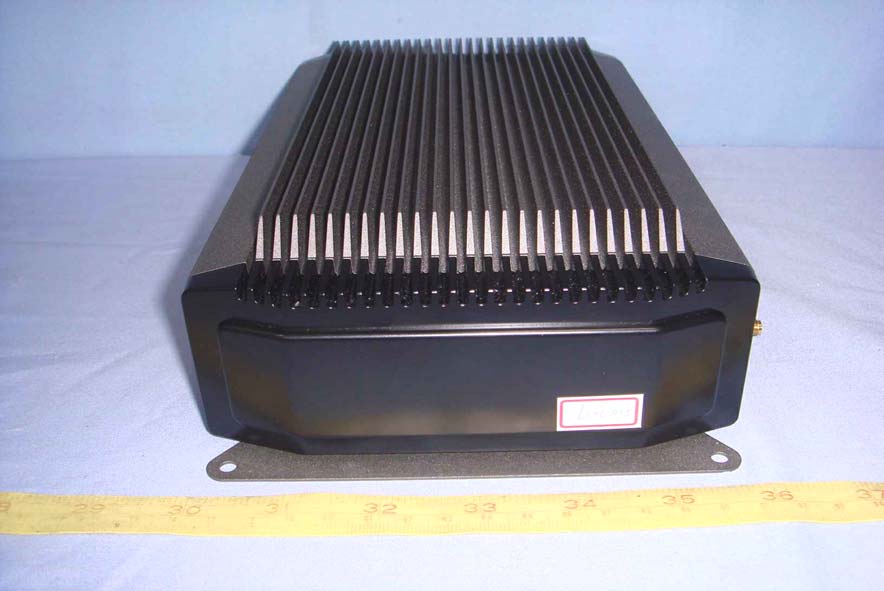

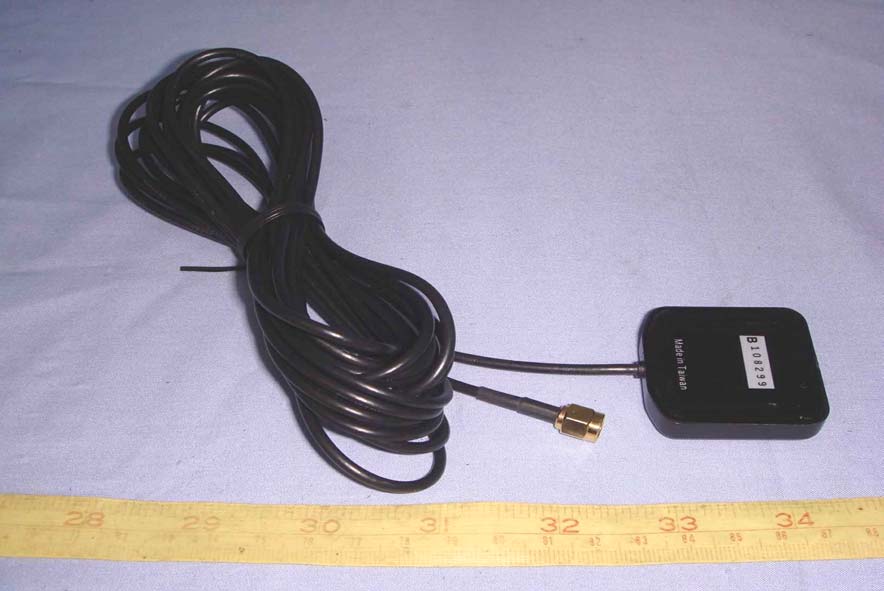

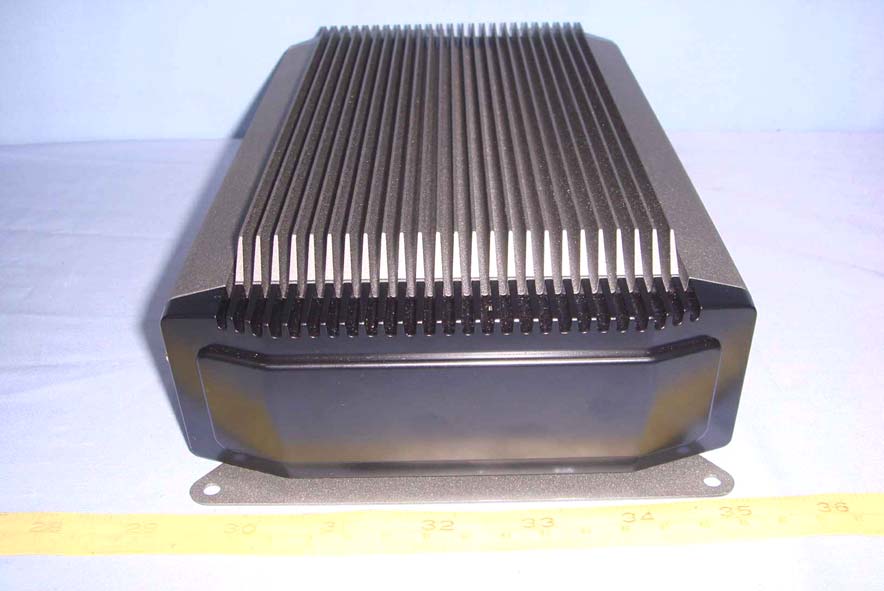

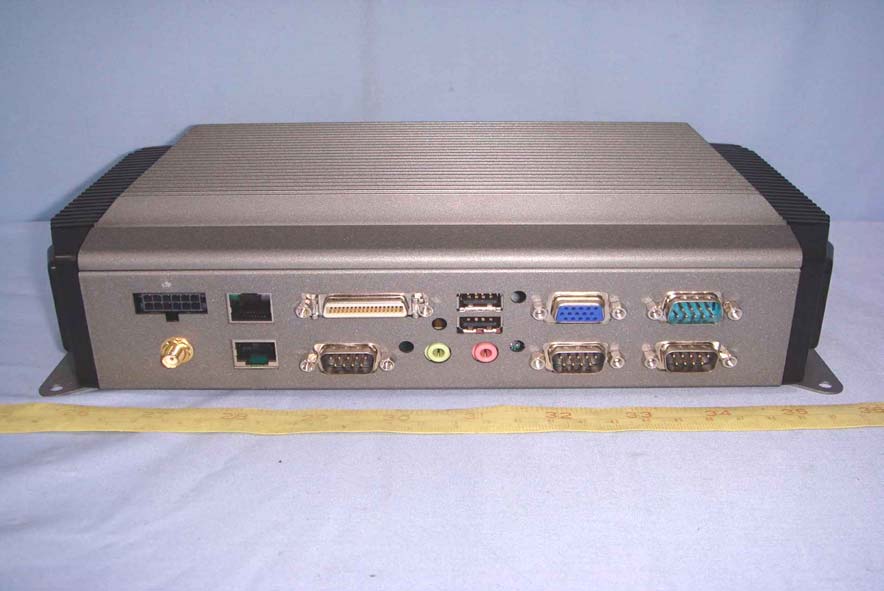

Report No: T100512112 Page 1 / 3 PHOTOGRAPHS OF EUT Report No: T100512112 Page 2 Report No: T100512112 Page 3 Antenna

Label Location

Report No: T100512112 Page 1 / 10 INTERNAL PHOTOGRAPHS OF EUT Report No: T100512112 Page 2 Report No: T100512112 Page 3 Report No: T100512112 Page 4 Report No: T100512112 Page 5 Report No: T100512112 Page 6 Report No: T100512112 Page 7 Report No: T100512112 Page 8 Report No: T100512112 Page 9 Report No: T100512112 Page 10

程智科技股份有限公司 Compliance Certification Services Inc. RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Computing Box Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz (WALN) WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power IEEE 802.11b mode: 19.13 dBm (0.08184mW) IEEE 802.11g mode: 22.07 dBm (0.16106mW) draft 802.11n 20 MHz Channel mode: 22.30 dBm (0.16982mW) draft 802.11n 40 MHz Channel mode: 21.42 dBm (0.13867mW) Antenna gain (Max) 3.8dBi (including cable loss) (Numeric gain: 2.39) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is 22.30dBm (0.16982mW) at 2412MHz (with 2.39numeric antenna gain.) 2. For mobile or fixed location transmitters, no SAR consideration applied. The maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger. 程智科技股份有限公司 Compliance Certification Services Inc. EUT Computing Box Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others Bluetooth: 2.402GHz ~ 2.480GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -3.13 dBm (0.486mW) Antenna gain (Max) PCB Antenna / -3.3 dBi (Numeric gain: 0.468) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: 1. The maximum output power is –3.13dBm (0.486mW) at 2480MHz (with 0.468 numeric antenna gain.) 2. DTS device is not subject to routine RF evaluation; MPE estimate is used to justify the compliance. 3. For mobile or fixed location transmitters, no SAR consideration applied. The minimum separation generally be used is at least 20 cm, even if the calculations indicate that the MPE distance would be lesser. 程智科技股份有限公司 Compliance Certification Services Inc. EUT Computing Box Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: CDMA: 824.7 ~ 848.31 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 27.23 dBm (528.44mW) Antenna gain (Max) Dipole Antenna / 850 MHz: -2.5dBi (Numeric gain: 0.56 ) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: The maximum output power is 27.23 dBm (528.44mW) at 1851.15MHz (with 0.56 numeric antenna gain.) 程智科技股份有限公司 Compliance Certification Services Inc. EUT Computing Box Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5.825GHz Others: CDMA: 824.7 ~ 848.31 MHz Device category Portable (<20cm separation) Mobile (>20cm separation) Others __________________________ Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power 24.94 dBm (311.89mW) Antenna gain (Max) Dipole Antenna / 850 MHz: -2.5dBi (Numeric gain: 0.56) Evaluation applied MPE Evaluation SAR Evaluation N/A Remark: The maximum output power is 24.94 dBm (311.89mW) at 848.31MHz (with 0.56 numeric antenna gain.) 程智科技股份有限公司 Compliance Certification Services Inc. WLAN Mode: Maximum Permissible Exposure Test mode: draft 802.11n 20 MHz Channel mode EUT output power = 169.8mW (Peak Power) Numeric Antenna gain = 2.4 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.081108 mW / cm 2 (For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.) Bluetooth Mode: Maximum Permissible Exposure Test mode: GFSK CH High Channel mode EUT output power = 0.4864mW (Peak Power) Numeric Antenna gain = 0.47 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0000453 mW / cm 2 程智科技股份有限公司 Compliance Certification Services Inc. CDMA Mode: Maximum Permissible Exposure For CDMA: 824.7 ~ 848.31 MHz EUT output power = 311.89mW Numeric Antenna gain = 0.56 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.0348 mW / cm 2 For CDMA: 1851.25 ~ 1908.75 MHz EUT output power = 276.69mW Numeric Antenna gain = 1.83 Substituting the MPE safe distance using d = 20 cm into Equation 1: Yields GPS××=000199.0 Where P = Power in mW G = Numeric antenna gain S = Power density in mW / cm 2 Æ Power density = 0.1008 mW / cm 2 CONCULSION: Both of eh modules can transmit simultaneously, the formula of calculated the MIP is CPD1/LPD1+CPD2/LPD2+ etc.<1 CPD= Calculation Power density LPD= limit of power density Therefore…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 89 Rev. 00 FCC 47 CFR PART 15 SUBPART C TEST REPORT For Computing Box Model: TREK-550; TREK-550XXXXXXXXXXXX ("X" can be 0-9 or A-Z or blank or any alphanumeric character) Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No. 1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Pa-De 2nd Rd., Luchu Hsiang, Taoyuan Shien, (338) Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 2 Rev. 00 Revision History Rev. Issue Date Revisions Effect Page Revised By 00 July 6, 2010 Initial Is sue All Angel Hu Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 3 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION ...........................................................................................4 2. EUT DESCRIPTION................................................................................................................5 3. TEST METHODOLOGY..........................................................................................................6 3.1 EUT CONFIGURATION .....................................................................................................6 3.2 EUT EXERCISE .................................................................................................................6 3.3 GENERAL TEST PROCEDURES......................................................................................6 3.4 FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS ..........................................7 3.5 DESCRIPTION OF TEST MODES.....................................................................................8 4. INSTRUMENT CALIBRATION ...............................................................................................9 4.1 MEASURING INSTRUMENT CALIBRATION ....................................................................9 4.2 MEASUREMENT EQUIPMENT USED ..............................................................................9 4.3 MEASUREMENT UNCERTAINTY...................................................................................10 5. FACILITIES AND ACCREDITATIONS .................................................................................11 5.1 FACILTIES .......................................................................................................................11 5.2 EQUIPMENT....................................................................................................................11 5.3 TABLE OF ACCREDITATIONS AND LISTINGS..............................................................12 6. SETUP OF EQUIPMENT UNDER TEST ..............................................................................13 6.1 SETUP CONFIGURATION OF EUT ................................................................................13 6.2 SUPPORT EQUIPMENT..................................................................................................13 7. FCC PART 15.247 REQUIREMENTS ..................................................................................14 7.1 6DB BANDWIDTH ............................................................................................................14 7.2 PEAK POWER .................................................................................................................22 7.3 AVERAGE POWER .........................................................................................................30 7.4 BAND EDGES MEASUREMENT .....................................................................................38 7.5 PEAK POWER SPECTRAL DENSITY .............................................................................55 7.6 SPURIOUS EMISSIONS..................................................................................................63 7.7 POWERLINE CONDUCTED EMISSIONS .......................................................................86 8. APPENDIX I PHOTOGRAPHS OF TEST SETUP................................................................87 Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 4 Rev. 00 1. TEST RESULT CERTIFICATION Applicant: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Manufacturer: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test: Computing Box Trade Name: ADVANTECH Model: TREK-550; TREK-550XXXXXXXXXXXX ("X" can be 0-9 or A-Z or blank or any alphanumeric character) Date of Test: June 26 ~29, 2010 APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 15 Subpart C No non-compliance noted We hereby certify that: The above equipment was tested by Compliance Certification Services Inc. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.4: 2003 and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 15.207, 15.209, 15.247. The test results of this report relate only to the tested sample EUT identified in this report. Approved by: Reviewed by: Stan Lin Supervisor Alonso Lu Engineer Compliance Certification Services Inc. Report No.: T100512112-RP3 …

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 91 Rev. 00 9. APPENDIX II PHOTOGRAPHS OF TEST SETUP Conducted Emission Setup Photo Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 92 Rev. 00 Radiated Emission Setup Photos 30 ~ 1000 MHz Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 93 Rev. 00 Above 1GHz Compliance Certification Services Inc. Report No.: T100512112-RP3 FCC ID: M82-TREK-550-CDMA Date of Issue: July 6, 2010 Page 94 Rev. 00 Powerline Conducted Emissions Setup Photos
