M82-TREK520Computer

User Manual TREK-520 Computer Copyright The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringements of the rights of third parties, which may result from its use. Acknowledgements Intel and Atom are trademarks of Intel Corporation. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of purchase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defective, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3. If your product is diagnosed as defective, obtain an RMA (return merchandise authorization) number from your dealer. This allows us to process your return more quickly. 4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. TREK-520 User Manual ii Declaration of Conformity This product has passed the CE test for environmental specifications. Test conditions for passing included the equipment being operated within an industrial enclosure. In order to protect the product from being damaged by ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the use of CE-compliant industrial enclosure products. FCC Class B Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ! Reorient or relocate the receiving antenna. ! Increase the separation between the equipment and receiver. ! Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ! Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. “Complies with CANADA RSS-210 FCC Part 15.21 information for user You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation Notes and Warnings to the User and Installer: Caution: This Installation Guide is intended for use by the professional wireless LAN system installer. The device cannot be sold retail, to the general public or by mail order. It must be sold to dealers or have strict marketing control. Warning: It is the responsibility of the professional installer to ensure that the system is used exclusively for fixed, point-to-point operations. Warning: When using the device in the United States (or where FCC rules apply), it is the responsibility of the professional installer to ensure to control the output power not greater then the application. Who Should Use this Guide: Installation of this device should be accomplished only by a qualified wireless LAN system installer who is: -Knowledgeable of the use, installation and configuration procedures and associated networking components. -Knowledgeable …

Text truncated - open the document above for the full version.

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Revision History Reason for Amendment (current / obsolete) From To Approved Date Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 2014.08.25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: We hereby request confidential treatment of information accompanying this application as outlined below: 1. Block Diagram 2. Schematics 3.Operational Description 4. BOM 5. Antenna specs 6. tune up procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely,

VERIFICATION OF COMPLIANCE This Verification of Compliance is hereby issued to the product designated below. Product: Computer Model: TREK-520; TREK-520XXXXXXXXXXXXXXXXX (where “X” may be any alphanumeric character, “-”, “_” or blank) Brand: ADVANTECH Applicant: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Applicable Standard(s) FCC 47 CFR PART 15 SUBPART B (Class B), ICES-003 Issue 5: 2012 Report No. T130822L04-D Test Laboratory Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. Tel: +886-3-3240332/ Fax: +886-3-3245235 This device has been tested and found to comply with the stated standard(s), which is(are) required by the Federal Communications Commission. The test results are indicated in the test report and are applicable only to the tested sample identified in the report. ___________________________________ Bill Cheng / Section Manager of Linkou Laboratory Date: September 24, 2013

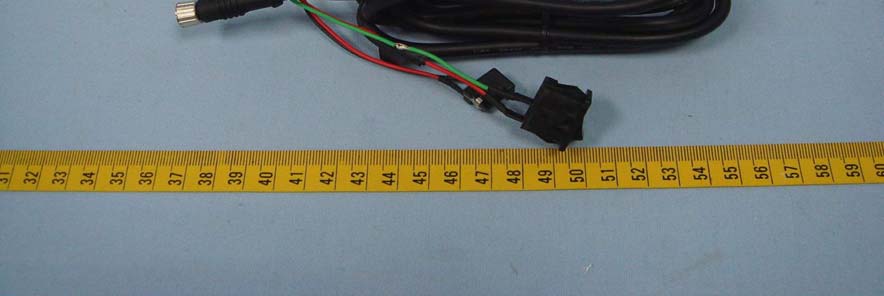

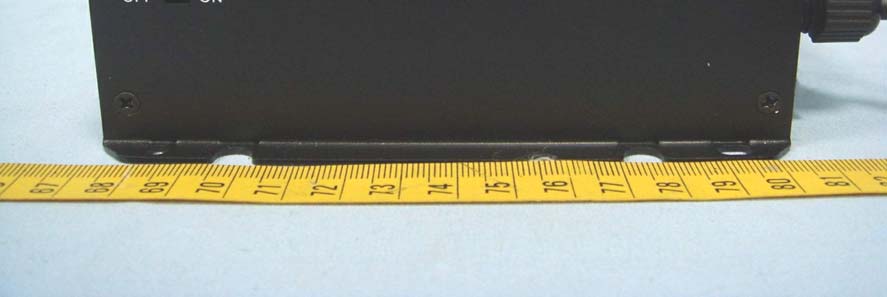

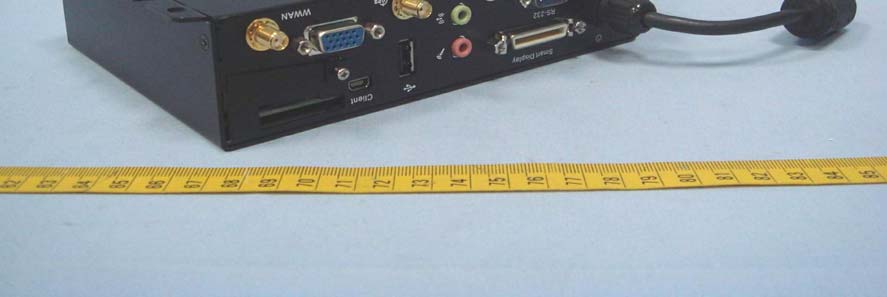

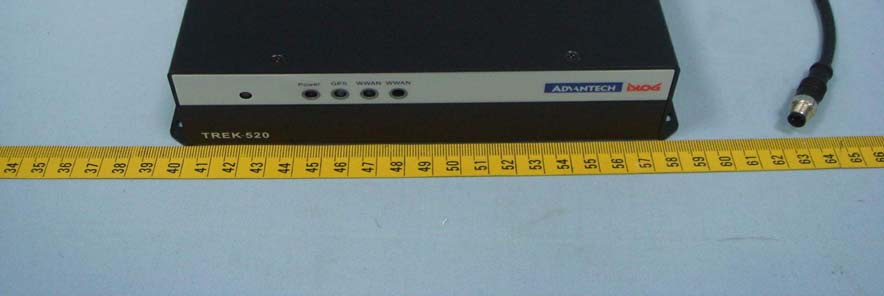

Report No: T130822L04 Page 1 / 15 Rev.00 EXTERNAL PHOTOGRAPHS OF EUT Report No: T130822L04 Page 2 Rev.00 Report No: T130822L04 Page 3 Rev.00 Report No: T130822L04 Page 4 Rev.00 Antenna (WIFI) Antenna (GPS/2G/3G) Report No: T130822L04 Page 5 Rev.00

60x30mmTREK-520 2014.07.17A 字色: black 底色: PMS877C MADE IN TAIWAN http://www.advantech.com ADVANTECH.Co., Ltd Model No ( ): TREK-520 FCC ID: M82-TREK520 Factory: T1 Input ( ): 12-32Vdc 3A Computer CAUTION!! To prevent shock. Do not remove cover. No user serviceable parts inside Refer servicing to qualified personnel. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Cet appareil est conforme à la section 15 des réglementations de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d'interférences nuisibles, et (2) cet appareil doit accepter toute autre interférence reçue, y compris les interférences pouvant entraîner un fonctionnement non désiré. ATTENTION !! Pour réduire le risque de décharge électrique, ne démontez pas l'appareil. Aucune pièce interne n’est réparable par l'utilisateur. Référez-vous à une personne qualifiée.

Report No: T130822L04 Page 6 Rev.00 INTERNAL PHOTOGRAPHS OF EUT Report No: T130822L04 Page 7 Rev.00 Report No: T130822L04 Page 8 Rev.00 Report No: T130822L04 Page 9 Rev.00 Report No: T130822L04 Page 10 Rev.00 Report No: T130822L04 Page 11 Rev.00 Report No: T130822L04 Page 12 Rev.00 Report No: T130822L04 Page 13 Rev.00 Report No: T130822L04 Page 14 Rev.00 Report No: T130822L04 Page 15 Rev.00

Compliance Certification Services Inc. Report No.: T130822L04-MF Date of Issue: May 23, 2014 Page 1 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. APPENDIX I RADIO FREQUENCY EXPOSURE LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. EUT Specification EUT Computer Model TREK-520 ; TREK-520XXXXXXXXXXXXXXXXX; TREK520XXXXXXXXXXXXXXXX (where "X" may be any alphanumeric character, "-", "_" or blank) Frequency band (Operating) GSM 850MHz: 824.2MHz ~ 848.8MHz GSM 1900MHz: 1850.2MHz ~ 1909.8MHz WCDMA Band II: 1852.4MHz ~ 1907.6MHz WCDMA Band IV: 1712.4MHz ~ 1752.6MHz WCDMA Band V: 826.4MHz ~ 846.6MHz Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2.412GHz ~ 2.462GHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification GSM 850: Antenna Gain :1.00 dBi (Numeric gain:1.26) GSM 1900: Antenna Gain :2.50 dBi (Numeric gain:1.78) WCDMA Band II: Antenna Gain :2.50 dBi (Numeric gain:1.78) WCDMA Band IV: Antenna Gain :2.00 dBi (Numeric gain:1.58) WCDMA Band V: Antenna Gain :1.00 dBi (Numeric gain:1.26) 2.4GHz: Antenna1 Gain : -3.03 dBi (Numeric gain: 0.50) Compliance Certification Services Inc. Report No.: T130822L04-MF Date of Issue: May 23, 2014 Page 2 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Measurement Average output power SystemPower GSM850 32.50 dBm (1778.28 mW) GPRS850_1Slot 32.80 dBm (1905.46 mW) GPRS850_2Slot 32.30 dBm (1698.24 mW) GPRS850_3Slot 31.70 dBm (1479.11 mW) GPRS850_4Slot 30.60 dBm (1148.15 mW) EDGE850_1Slot 27.40 dBm (549.54 mW) EDGE850_2Slot 26.90 dBm (489.78 mW) EDGE850_3Slot 26.20 dBm (416.87 mW) EDGE850_4Slot 25.50 dBm (354.81 mW) GSM1900 29.50 dBm (891.25 mW) GPRS1900_1Slot 29.70 dBm (933.25 mW) GPRS1900_2Slot 29.20 dBm (831.76 mW) GPRS1900_3Slot 28.80 dBm (758.58 mW) GPRS1900_4Slot 27.70 dBm (588.84 mW) EDGE1900 _1Slot 25.80 dBm (380.19 mW) EDGE1900 _2Slot 25.60 dBm (363.08 mW) EDGE1900 _3Slot 25.00 dBm (316.23 mW) EDGE1900 _4Slot 24.40 dBm (275.42 mW) WCDMA Band II 23.85 dBm (242.66 mW) WCDMA Band IV 23.54 dBm (225.94 mW) WCDMA Band V 23.82 dBm (240.99 mW) Bluetooth 7.50 dBm (5.62 mW) IEEE 802.11b Mode 17.07 dBm (50.93 mW) IEEE 802.11g Mode 15.00 dBm (31.62 mW) IEEE 802.11n HT 20 Mode 14.66 dBm (29.24 mW) Compliance Certification Services Inc. Report No.: T130822L04-MF Date of Issue: May 23, 2014 Page 3 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Power Target / Tolerance System Target Power Tolerance GSM850 32.5 dBm -1 / +0.5 dB GPRS850_1Slot 32.5 dBm -1 / +0.5 dB GPRS850_2Slot 32.5 dBm -1 / +0.5 dB GPRS850_3Slot 32.5 dBm -1 / +0.5 dB GPRS850_4Slot 32.5 dBm -1 / +0.5 dB EGPRS850_1Slot 27.5 dBm -1 / +0.5 dB EGPRS850_2Slot 27.5 dBm -1 / +0.5 dB EGPRS850_3Slot 27.5 dBm -1 / +0.5 dB EGPRS850_4Slot 27.5 dBm -1 / +0.5 dB GSM1900 29.5 dBm -1 / +0.5 dB GPRS1900_1Slot 29.5 dBm -1 / +0.5 dB GPRS1900_2Slot 29.5 dBm -1 / +0.5 dB GPRS1900_3Slot 29.5 dBm -1 / +0.5 dB GPRS1900_4Slot 29.5 dBm -1 / +0.5 dB EGPRS1900_1Slot 25.5 dBm -1 / +0.5 dB EGPRS1900_2Slot 25.5 dBm -1 / +0.5 dB EGPRS1900_3Slot 25.5 dBm -1 / +0.5 dB EGPRS1900_4Slot 25.5 dBm -1 / +0.5 dB WCDMA Band II 23.0 dBm ± 0.5 dB WCDMA Band IV 23.0 dBm ± 0.5 dB WCDMA Band V 23.0 dBm ± 0.5 dB Bluetooth 6.0 dBm ± 1.5 dB IEEE 802.11b Mode 16.0 dBm ± 1.5 dB IEEE 802.11g Mode 13.5 dBm ± 1.5 dB IEEE 802.11n HT 20 Mode 13.5 dBm ± 1.5 dB Compliance Certification Services Inc. Report No.: T130822L04-MF Date of Issue: May 23, 2014 Page 4 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Max tune up Power / Max time Average Power System GSM850 33.0dBm (1995.262mW) 24.0dBm (251.189mW) GPRS850_1Slot 33.0dBm (1995.262mW) 24.0dBm (251.189mW) GPRS850_2Slot 33.0dBm (1995.262mW) 27.0dBm (501.187mW) GPRS850_3Slot 33.0dBm (1995.262mW) 28.7dBm (741.310mW) GPRS850_4Slot 33.0dBm (1995.262mW) 30.0dBm (1000.000mW) EGPRS850_1Slot 28.0dBm (630.957mW) 19.0dBm (79.433mW) EGPRS850_2Slot 28.0dBm (630.957mW) 22.0dBm (158.489mW) EGPRS850_3Slot 28.0dBm (630.957mW) 23.7dBm (234.423mW) EGPRS850_4Slot 28.0dBm (630.957mW) 25.0dBm (316.228mW) GSM1900 30.0dBm (1000.000mW) 21.0dBm (125.893mW) GPRS1900_1Slot 30.0dBm (1000.000mW) 21.0dBm (125.893mW) GPRS1900_2Slot 30.0dBm (1000.000mW) 24.0dBm (251.189mW) GPRS1900_3Slot 30.0dBm (1000.000mW) 25.7dBm (371.535mW) GPRS1900_4Slot 30.0dBm (1000.000mW) 27.0dBm (501.187mW) EGPRS1900_1Slot 26.0dBm (398.107mW) 17.0dBm (50.119mW) EGPRS1900_2Slot 26.0dBm (398.107mW) 20.0dBm (100.000mW) EGPRS1900_3Slot 26.0dBm (398.107mW) 21.7dBm (147.911mW) EGPRS1900_4Slot 26.0dBm (398.107mW) 23.0dBm (199.526mW) WCDMA Band II 23.5dBm (223.872mW) 23.5dBm (223.872mW) WCDMA Band IV 23.5dBm (223.872mW) 23.5dBm (223.872mW) WCDMA Band V 23.5dBm (223.872mW) 23.5dBm (223.872mW) Bluetooth 7.5dBm (5.623mW) 7.5dBm (5.623mW) IEEE 802.11b 17.5dBm (56.234mW) 17.5dBm (56.234mW) IEEE 802.11g 15.0dBm (31.623mW) 15.0dBm (31.623mW) IEEE 802.11n HT 20 15.0dBm (31.623mW) 15.0dBm (31.623mW) Time Average Power Max Tune up Power Evaluation applied MPE Evaluation* SAR Evaluation N/A Compliance Certification Services Inc. Report No.: T130822L04-MF Date of Issue: May 23, 2014 Page 5 Rev.01 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 2014/05/23 Initial Issue ALL Scott Hsu 01 2014/07/16 Add other slot for GPRS and EGPRS, Bluet…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. FCC 47 CFR PART 15 SUBPART C TEST REPORT For Computer Model: TREK-520; TREK-520XXXXXXXXXXXXXXXXX; TREK520XXXXXXXXXXXXXXXX (where "X" may be any alphanumeric character, "-", "_" or blank) Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.81-1, Lane 210, Bade 2nd Rd., Lujhu Township, Taoyuan County 33841,Taiwan, R.O.C. TEL: 886-3-324-0332 FAX: 886-3-324-5235 http://www.ccsrf.com [email protected] Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF, A2LA, NIST or any government agencies. The test results in the report only apply to the tested sample. Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 October 30, 2013 Initial Issue All Iren Wang Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1 TEST RESULT CERTIFICATION........................................................................................... 4 2 EUT DESCRIPTION ............................................................................................................... 5 3 TEST METHODOLOGY ......................................................................................................... 6 3.1. EUT CONFIGURATION..................................................................................................... 6 3.2. EUT EXERCISE................................................................................................................. 6 3.3. GENERAL TEST PROCEDURES ..................................................................................... 6 3.4. FCC PART 15.205 RESTRICTED BANDS OF OPERATIONS .......................................... 7 3.5. DESCRIPTION OF TEST MODES .................................................................................... 8 4 INSTRUMENT CALIBRATION............................................................................................... 9 4.1. MEASUREMENT EQUIPMENT USED .............................................................................. 9 4.2. MEASUREMENT UNCERTAINTY .................................................................................. 10 5 FACILITIES AND ACCREDITATIONS................................................................................. 11 5.1. FACILITIES......................................................................................................................11 5.2. EQUIPMENT ................................................................................................................... 11 5.3. TABLE OF ACCREDITATIONS AND LISTINGS ............................................................. 12 6 SETUP OF EQUIPMENT UNDER TEST.............................................................................. 13 6.1. SETUP CONFIGURATION OF EUT ................................................................................ 13 6.2. SUPPORT EQUIPMENT ................................................................................................. 13 7 FCC PART 15.247 REQUIREMENTS .................................................................................. 14 7.1. 20DB BANDWIDTH ......................................................................................................... 14 7.2. PEAK POWER................................................................................................................. 18 7.3. AVERAGE POWER ......................................................................................................... 20 7.4. BAND EDGES MEASUREMENT..................................................................................... 21 7.5. FREQUENCY SEPARATION .......................................................................................... 35 7.6. NUMBER OF HOPPING FREQUENCY........................................................................... 37 7.7. TIME OF OCCUPANCY (DWELL TIME).......................................................................... 40 7.8. SPURIOUS EMISSIONS ................................................................................................. 52 7.9. POWERLINE CONDUCTED EMISSIONS....................................................................... 66 8 PHOTOGRAPHS OF TEST SETUP..................................................................................... 67 APPENDIX 1: PHOTOGRAPHS OF EUT................................................................................... 70 Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1 TEST RESULT CERTIFICATION Applicant: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Manufacturer: Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Unde…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 67 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 8 PHOTOGRAPHS OF TEST SETUP Radiated Emission Setup Photos Below 1GHz Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 68 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Above 1GHz Compliance Certification Services Inc. Report No.: T130822L04-RP2 FCC ID: M82-TREK520 Date of Issue: October 30, 2013 Page 69 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Conducted Emission Setup Photo
