M82-TREK572PTCRBComputer

User Manual TREK-572 Computer TREK-572/303 User Manual 2 Copyright The documentation and the software included with this product are copyrighted 2010 by Advantech Co., Ltd. All rights are reserved. Advantech Co., Ltd. reserves the right to make improvements in the products described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmitted in any form or by any means without the prior written permission of Advantech Co., Ltd. Information provided in this manual is intended to be accurate and reliable. How- ever, Advantech Co., Ltd. assumes no responsibility for its use, nor for any infringe- ments of the rights of third parties, which may result from its use. Acknowledgements Intel and Atom are trademarks of Intel Corporation. Microsoft Windows. Product Warranty (2 years) Advantech warrants to you, the original purchaser, that each of its products will be free from defects in materials and workmanship for two years from the date of pur- chase. This warranty does not apply to any products which have been repaired or altered by persons other than repair personnel authorized by Advantech, or which have been subject to misuse, abuse, accident or improper installation. Advantech assumes no liability under the terms of this warranty as a consequence of such events. Because of Advantech’s high quality-control standards and rigorous testing, most of our customers never need to use our repair service. If an Advantech product is defec- tive, it will be repaired or replaced at no charge during the warranty period. For out- of-warranty repairs, you will be billed according to the cost of replacement materials, service time and freight. Please consult your dealer for more details. If you think you have a defective product, follow these steps: 1. Collect all the information about the problem encountered. (For example, CPU speed, Advantech products used, other hardware and software used, etc.) Note anything abnormal and list any onscreen messages you get when the problem occurs. 2. Call your dealer and describe the problem. Please have your manual, product, and any helpful information readily available. 3. If your product is diagnosed as defective, obtain an RMA (return merchandize authorization) number from your dealer. This allows us to process your return more quickly. 4. Carefully pack the defective product, a fully-completed Repair and Replacement Order Card and a photocopy proof of purchase date (such as your sales receipt) in a shippable container. A product returned without proof of the purchase date is not eligible for warranty service. 5. Write the RMA number visibly on the outside of the package and ship it prepaid to your dealer. Part No. Edition 1 Printed in Taiwan Q1 2015 3TREK-572 User Manual Declaration of Conformity FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. FCC RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. According to FCC 15.407(e), the device is intended to operate in the frequency band of 5.15GHz to 5.25GHz under all conditions of normal operation. Normal operation of this device is restricted to indoor used only to reduce any potential for harmful interference to co-channel MSS operations. TREK-572/303 User Manual 4 Technical Support and Assistance 1. Visit the Advantech web site at http://support.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: – Product name and serial number – Description of your peripheral attachments – Description of your software (operating system, version, application software, etc.) – A complete description of the problem – The exact wording of any error messages 5TREK-572 User Manual Warnings, Cautions and Notes Warning! Warnings indicate conditions, which if not observed, can cause personal injury! Caution! Cautions are included to help you avoid damaging hardware or losing data. e.g. There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the man- ufacturer. Discard used batteries according to the manufacturer's instructions. Note! Notes provide optional additional information. Document Feedback To assist us in ma…

Text truncated - open the document above for the full version.

Date: 2015/12/07 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD FCC ID: M82-TREK572PTCRB To Whom It May Concern: This letter is to ascertain that Advantech Co. Ltd. Product Computer, has been the units used for conducting FCC compliance testing, the DoC part will be tested by FCC recognized test lab. If you have any question or concerns, pls. contact us. Sincerely, Name / Title : Lily Huang /Assistant Manager Address : No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Phone No./ Email : 886-2-2792-7818#1412 / [email protected]

研華科技股份有限公司 Advantech Co., Ltd. 台北市內湖區瑞光路26巷20弄1號 No.1, Alley 20, Lane 26, Rueiguang Road Neihu District, Taipei 114, Taiwan, R.O.C. Tel:886-2-2792-7818 Fax:886-2-2794-7334 WWW.advantech.com 2015/12/14 Dear Sir, I would like to clarify the operating frequency range and intended operating purpose for below equipment: Model Name: TREK-572; TREK-572XXXXXXXXXXXXXXXX(where "X" may be any alphanumeric character , “-＂ or blank) FCC ID: M82-TREK572PTCRB Product Name: Computer Computer is only 3 antenna’s , one port is for WWAN user 2/3/LTE antenna. Other is for GPS & WLAN antenna port user. WLAN module WPEA-251N is for 2T2R , But the computer is only for 1T1R, Name/Title: Lily Huang / Supervisor Company Name: Advantech Co., Ltd. Address: No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. TEL: 886-2-2792-7818#1412 FAX: 886-2-2794-7334 Email: [email protected]

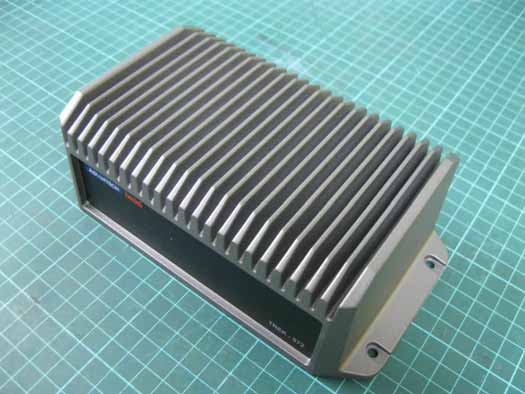

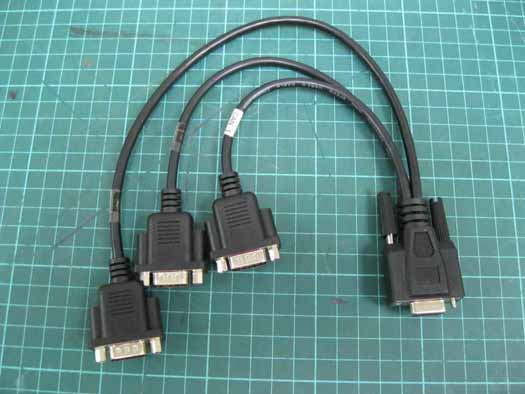

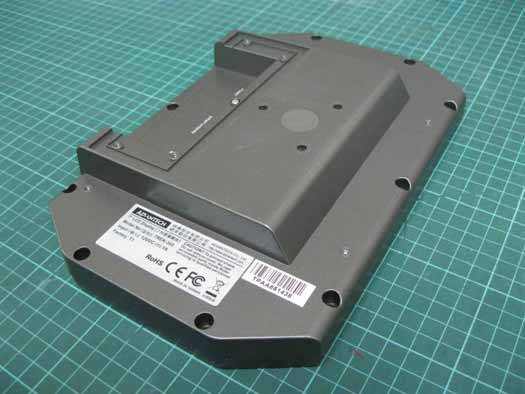

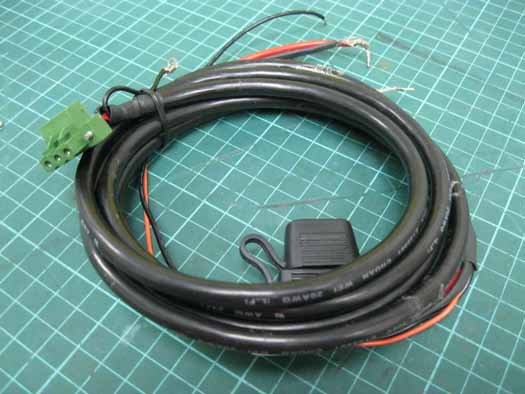

Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 78 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. EXTERNAL PHOTO Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 79 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 80 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Panel Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 81 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 82 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Cable Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 83 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc.

Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 1 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. IEEE C95.1 KDB 447498 D03 47 C.F.R. Part 1, Subpart I, Section 1.1310 47 C.F.R. Part 2, Subpart J, Section 2.1091 RF EXPOSURE REPORT For Computer Model: TREK-572, TREK-572XXXXXXXXXXXXXXXX (where "X" may be any alphanumeric character , “-” or blank) Trade Name: ADVANTECH Issued to Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No.11, Wugong 6th Rd., Wugu Dist., New Taipei City 24891, Taiwan. (R.O.C.) http://www.ccsrf.com [email protected] Issued Date: November 9, 2015 Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 2 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 November 9, 2015 Initial Issue ALL Doris Chu Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 3 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. TABLE OF CONTENTS 1. LIMIT .................................................................................................................... 4 2. EUT SPECIFICATION .......................................................................................... 4 3. TEST RESULTS ................................................................................................... 7 4. MAXIMUM PERMISSIBLE EXPOSURE .............................................................. 8 Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 4 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. 1. LIMIT According to §15.247(i), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission's guidelines. See § 1.1307(b)(1) of this chapter. 2. EUT SPECIFICATION EUT Computer Model TREK-572, TREK-572XXXXXXXXXXXXXXXX (where "X" may be any alphanumeric character , “-” or blank) Trade Name ADVANTECH Model Discrepancy All the above models are identical except for the designation of model numbers. The suffix of (where "X" may be any alphanumeric character , “-” or blank) on model number is just for marketing purpose only. Frequency band (Operating) Bluetooth 2.1 + EDR / 4.0: 2402 ~ 2480 MHz 802.11b/g/n HT20: 2412MHz ~ 2462MHz 802.11n HT40: 2422MHz ~ 2452MHz 802.11a/n HT20: 5180MHz ~ 5700MHz / 5745MHz ~ 5825MHz 802.11n HT40: 5190MHz ~ 5670MHz / 5755MHz ~ 5795MHz GPRS / EDGE 850MHz: 824.2MHz ~ 848.8MHz GPRS / EDGE 1900MHz: 1850.2MHz ~ 1909.8MHz WCDMA / HSDPA / HSUPA Band II: 1852.4MHz ~ 1907.6MHz WCDMA / HSDPA / HSUPA Band V: 826.4MHz ~ 846.6MHz Others Device category Portable (<20cm separation) Mobile (>20cm separation) Others Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna Specification BT 3.97 dBi (Numeric gain: 2.49) 2.4GHz 3.97 dBi (Numeric gain: 2.49) 5GHz 2.75 dBi (Numeric gain: 1.88) GPRS / EDGE 850MHz: 2.22 dBi (Numeric gain: 1.67) GPRS / EDGE 1900MHz: 1.42 dBi (Numeric gain: 1.39) WCDMA / HSDPA / HSUPA Band II: 1.42 dBi (Numeric gain: 1.39) WCDMA / HSDPA / HSUPA Band V: 2.22 dBi (Numeric gain: 1.67) Type: PIFA Antenna Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 5 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Measurement Average output power SystemPower Bluetooth 2.1 + EDR:2.65 dBm(1.841 mW) Bluetooth 4.0:2.39 dBm(1.734 mW) IEEE 802.11b Mode: 21.94 dBm(156.315 mW) IEEE 802.11g Mode: 20.88 dBm(122.462 mW) IEEE 802.11n HT 20 Mode: 19.95 dBm(98.855 mW) IEEE 802.11n HT 40 Mode: 17.41 dBm(55.081 mW) IEEE 802.11a Mode: 21.10 dBm(128.825 mW) IEEE 802.11n HT 20 Mode: 21.03 dBm(126.765 mW) IEEE 802.11n HT 40 Mode: 20.64 dBm(115.878 mW) GPRS850 32.70 dBm(1862.09 mW) EDGE850 26.00 dBm(398.11 mW) GPRS1900 30.10 dBm(1023.29 mW) EDGE1900 26.60 dBm(457.09 mW) WCDMA Band II 22.55 dBm(179.89 mW) WCDMA Band V 22.96 dBm(197.70 mW) Power Target / Tolerance SystemTarget PowerTolerance Bluetooth 2.1 + EDR:1.5 dBm ± 1.5 dB Bluetooth 4.0:1.0 dBm ± 1.5 dB IEEE 802.11b Mode: 20.5 dBm ± 1.5 dB IEEE 802.11g Mode: 19.5 dBm ± 1.5 dB IEEE 802.11n HT 20 Mode: 18.5 dBm ± 1.5 dB IEEE 802.11n HT 40 Mode: 16.0 dBm ± 1.5 dB IEEE 802.11a Mode: 20.0 dBm ± 1.5 dB IEEE 802.11n HT 20 Mode: 20.0 dBm ± 1.5 dB IEEE 802.11n HT 40 Mode: 19.5 dBm ± 1.5 dB GPRS850 32.0 dBm ± 1 dB EGPRS850 25.5 dBm ± 1 dB GPRS1900 29.5 dBm ± 1 dB EGPRS1900 26.0 dBm ± 1 dB WCDMA Band II 22.0 dBm ± 1 dB WCDMA Band V 22.0 dBm ± 1 dB Compliance Certification Services Inc. FCC ID: M82-TREK572PTCRB Report No.: T150806L08-MF Page 6 Rev.00 This report shall not be reproduced except in full, without the written approval of Compliance Certification Services. Max tune up Power / Max time Average Power Bluetooth 2.1 + EDR:3.00 dBm(1.995 mW) Bluetooth 4.0:2.50 dBm(1.778 mW) IEEE 802.11b Mode: 22.00 dBm(158.489 mW) IEEE 802.11g Mode: 21.00 dBm(125.893 mW) IEEE 802.11n HT 20 Mode: 20.00 dBm(100.000 mW) IEEE 802.11n HT 40 Mode: 17.50 dBm(56.234 mW) IEEE 802.11a Mode: 21.50 dBm(141.254 mW) IEEE 802.11n HT 20 Mode: 21.50 dBm(141.254 mW) IEEE 802.11n HT 40 Mode: 21.00 dBm(125.893 mW) System GPRS850 33.0dBm (1995.262mW) 24.0dBm (251.189mW) EGPRS850 26.5dBm (446.684mW) 17.5dBm (56.234mW) GPRS1900 30.5dBm (1122.018mW) 21.5dBm (141.254mW) EGPRS1900 27.0dBm (501.187mW) 18.0dBm (63.096mW) WCDMA Band II 23.0dBm (1…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 1 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.10:2009 TEST REPORT For Computer Model : TREK-572 ; TREK-572XXXXXXXXXXXXXXXX (where “X” may be any alphanumeric character , “-” or blank) Trade Name : ADVANTECH Issued for Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1, Wenshan Rd., Shangshan Village, Qionglin Township, Hsinchu County 30741, Taiwan (R.O.C.) TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: October 21, 2015 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 2 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 10/21/2015 Initial Issue All Page 123 Gloria Chang Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 3 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5 3. DESCRIPTION OF TEST MODES ............................................................................... 6 4. TEST METHODOLOGY ............................................................................................... 8 5. FACILITIES AND ACCREDITATION ........................................................................... 8 5.1 FACILITIES ............................................................................................................ 8 5.2 ACCREDITATIONS ................................................................................................ 8 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 9 6. SETUP OF EQUIPMENT UNDER TEST ...................................................................... 10 7. FCC PART 15.247 REQUIREMENTS .......................................................................... 11 7.1 20dB BANDWIDTH FOR HOPPING ...................................................................... 11 7.2 MAXIMUM PEAK OUTPUT POWER ..................................................................... 17 7.3 AVERAGE POWER ............................................................................................... 19 7.4 HOPPING CHANNEL SEPARATION ..................................................................... 21 7.5 NUMBER OF HOPPING FREQUENCY USED ...................................................... 27 7.6 DWELL TIME ON EACH CHANNEL ...................................................................... 30 7.7 CONDUCTED SPURIOUS EMISSION .................................................................. 45 7.8 RADIATED EMISSION ........................................................................................... 53 7.9 CONDUCTED EMISSION ...................................................................................... 72 APPENDIX SETUP PHOTOS .......................................................................................... 75 EXTERNAL PHOTO ......................................................................................................... 78 INTERNAL PHOTO .......................................................................................................... 84 Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 4 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Advantech Co. Ltd. Address No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Equipment Under Test Computer Model TREK-572 ; TREK-572XXXXXXXXXXXXXXXX (where “X” may be any alphanumeric character , “-” or blank) Trade Name ADVANTECH Tested Date September 11, 2014 ~ October 15, 2015 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.10:2009 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb. Lu Gundam Lin Sr. Engineer Sr. Engineer Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 5 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name Computer Model Number TREK-572 ; TREK-572XXXXXXXXXXXXXXXX (where “X” may be any alphanumeric character , “-” or blank) Identify Number T150806L08 Received Date September 11, 2014 Frequency Range 2402MHz t…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 75 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX SETUP PHOTOS RADIATED EMISSION SETUP Below 1GHz Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 76 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Above 1GHz Compliance Certification Services Inc. FCC ID : M82-TREK572PTCRB Report No.T150806L08-RP1-1 Page 77 / 123 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP
