M82-VITA-350Automated Vehicle Location Device

VITA-350 GPS, GPRS, DI/O, RS232 Automatic Vehicle Location Device User Manual VITA-350 User Manualii Copyright This document is copyrighted, © 2007. All rights are reserved. The orig- inal manufacturer reserves the right to make improvements to the prod- ucts described in this manual at any time without notice. No part of this manual may be reproduced, copied, translated or transmit- ted in any form or by any means without the prior written permission of the original manufacturer. Information provided in this manual is intended to be accurate and reliable. However, the original manufacturer assumes no responsibility for its use, nor for any infringements upon the rights of third parties that may result from such use. Acknowlegement Microsoft Windows® is a registered trademark of Microsoft Corp. All other product names or trademarks are properties of their respective owners. For more information on this and other Advantech products, please visit our websites at:http://www.advantech.com http://www.advantech.com/eplatform For technical support and service, please visit our support website at: http://www.advantech.com/support This manual is for the VITA-350. Part No. 2006A35000 1st Edition, May 2007 iii Packing List Before you begin installing your device, please make sure that the follow- ing materials have been shipped: • VITA-350 device • 1 CD-ROM with User's manual, Advantech Utility • 1 User’s Manual • 1 GPS antenna • 1 GPRS antenna • 1 Power cable • 4 Mounting screws If any of these items are missing or damaged, contact your distributor or sales representative immediately. Model No. List Description VITA-350 GPS, GPRS, DI/O and RS232 VITA-350 User Manualiv 根據交通部低功率管理辦法規定： 第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不 得擅自變更頻率、加大功率或變更原設計之特性及功能。 第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾 現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信， 指依電信規定作業之無線電信。低功率射頻電機須忍受合法通信或工業、 科學及醫療用電波輻射性電機設備之干擾。 FCC This device complies with the requirements in part 15 of the FCC rules: Operation is subject to the following two condi- tions: 1.This device may not cause harmful interference, and 2. This device must accept any interference received, includ- ing interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruc- tion manual, may cause harmful interference to radio commu- nications. Operation of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his/her own expense. The user is advised that any equipment changes or modifications not expressly approved by the party responsi- ble for compliance would void the compliance to FCC regula- tions and therefore, the user's authority to operate the equipment. Caution!There is a danger of a new battery exploding if it is incorrectly installed. Do not attempt to recharge, force open, or heat the battery. Replace the battery only with the same or equivalent type recommended by the manufacturer. Discard used batter- ies according to the manufacturer’s instructions. v Additional Information and Assistance 1. Visit the Advantech web site at www.advantech.com where you can find the latest information about the product. 2. Contact your distributor, sales representative, or Advantech's customer service center for technical support if you need additional assistance. Please have the following information ready before you call: • Product name and serial number • Description of your peripheral attachments • Description of your software (operating system, version, application software, etc.) • A complete description of the problem • The exact wording of any error message VITA-350 User Manualvi vii Contents Chapter1 Introduction ......................................................2 1.1Introduction ....................................................................... 2 1.2Features ............................................................................. 2 1.3Quick Installation Guide ................................................... 2 1.4GPS Antenna Installation .................................................. 3 1.5GPRS Antenna Installation ............................................... 5 1.6Specifications .................................................................... 6 1.6.1GPRS Module Siemens Power Modes ........................... 6 1.6.2GPS Specifications ......................................................... 6 1.6.3GSM/GPRS Specifications of Siemens MC55 module .. 7 1.6.4Programmable Digital I/O .............................................. 7 1.6.5Enviromental Specifications ........................................... 7 1.6.6Serial Connectivity ......................................................... 8 1.6.7LED Definition ...............................................................8 1.7System Dimensions ........................................................... 9 Figure 1.1:System Outlook Dimensions ....................... 10 Chapter2 Connector Table .............................................12 2.1Connector Table .............................................................. 12 2.1.1COM port connector (CN2) .......................................... 12 2.1.2GPS antenna connector (CN3)...................................... 13 2.1.3SIM Holder (Subscriber Identification Module) (CN5) 14 2.1.4GPRS antenna connector (CN6) ................................... 15 2.1.5Battery Connector (CN9)...................... 16 2.1.6GPIO (General Purpose Input Output) (CN11) ............ 17 2.1.7Power Connectors (CN14)............................................ 18 2.1.8Power Reset button (SW1) .............…

Text truncated - open the document above for the full version.

Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. TEL: 886-2-2218-4567 FAX: 886-2-2794-7305 Date: February 4, 2008 Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Kevin Wang /V.P. of Taiwan office of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS TW, and hereafter referred to as CCS TW, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Kevin Wang of CCS TW on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Name: John.Chow Position: Engineer Advantech Co. Ltd. Tel: 02-2218-4567 Fax: 02-2794-7305 E-Mail: [email protected] REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Information and Communication Mobile Division: Wireless Modules President: Jose Costa e Silva Group Executive Management Information and Communication Mobile: Rudi Lamprecht, Group President Joe Kaeser Lothar Pauly Postal address: Siemens AG ICM WM RD D-13623 Berlin Office address: Siemensdamm 50 D-13629 Berlin Telephone +49 30 386 - 0 Siemens Aktiengesellschaft · Chairman of the Supervisory Board: Karl-Hermann Baumann · Managing Board: Heinrich v. Pierer, Chairman, President and Chief Executive Officer · Members: Johannes Feldmayer, Thomas Ganswindt, Volker Jung, Klaus Kleinfeld, Edward G. Krubasik, Rudi Lamprecht, Heinz-Joachim Neubürger, Peter Pribilla, Jürgen Radomski, Erich R. Reinhardt, Uriel J. Sharef, Claus Weyrich, Klaus Wucherer Registered Offices: Berlin and München · Commercial Registries: Berlin-Charlottenburg, HRB 12300; München, HRB 6684 Page 1 of 1 . Name Hussein Halawi Department ICM WM RD Telephone +49 30 386 - 30211 Fax +49 30 386 - 36665 E-mail [email protected] Your letter dated Our reference Date 07.01.04 CETECOM GmbH TCB Frau Silberhorn Im Teelbruch 122 45219 Essen - Germany Fon: +49 (0) 2054 9519-942 Fax: +49 (0) 2054 9519-902 GSM: +49 (0) 163 204 66 38 Subject: Request for Confidentiality FCC ID: QIPMC55 QIPMC56 To Whom It May Concern: In accordance with §0.459 of CFR 47, Siemens AG requests confidentiality for the following items 1. Wiring Diagram 2. Schematic 3. Part List 4. HID 5. Block diagram These items contain detailed system and equipment description and related information about the product which Siemens AG considers to be proprietary, confidential and a custom design which otherwise would not be released to the general public. Since this design is a basis from which future technological products will evolve, Siemens AG also feels that this information would be of benefit to its competitors, and that the disclosure of the information in these exhibits would give our competitors an unfair advantage in the market. Best Regards, 12.01.04 On behalf of Siemens Ag

Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. TEL: 886-2-2218-4567 FAX: 886-2-2794-7305 Date: March 10, 2008 Federal Communications Commission Authorization and Evaluation Division FCC ID: M82-VITA-350 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commissions Rules, the Applicant hereby requests confidential treatment of information accompanying this Application as outlined below. We request Confidentiality of the following exhibits, which were provided by Siemens, the Module manufacturer directly to the TCB for review. These exhibits should not be disclosed to any persons, including this Grantee Advantech, except at the specific written request of Siemens. Provide by Advantech 1. Schematics 2. Operational Description 3. Block Diagram Provide by Siemen 4. MC55 Schematics, 5. MC55 Block Diagram, 6. Parts List 7. Tune-up Procedure The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Name: Position: Engineer Advantech Co. Ltd. Tel: 02-2218-4567 E-Mail: [email protected] Fax: 02-2794-7305

Chris Harvey From: amanda.wu [[email protected]] on behalf of application [[email protected]] Sent: Monday, February 11, 2008 9:54 PM To: [email protected] Cc: application.2008 Subject: Re:Advantech Co. Ltd. , FCC ID: M82-VITA-350, Assessment NO.: AN07T7405, Notice#1 Attachments: VITA-350 Test Report Revisd 1211.pdf; VITA-350 Power of attorney Revised 0204.pdf 2/12/2008 Dear Sir, Plz see my reply, thank you. Best Regards, Amanda Dear Gina Lo, You are listed as the Technical Contact for the above referenced TCB application. The following item(s) need(s) to be resolved before the review can be continued: 1. This Mobile device uses a module (previously approved under FCC ID: QIPMC55). This application for a new FCC ID must contain all required information, including the detailed information for the included module. Please provide the Block Diagram, Schematic Diagram, Parts List and Tune-Up Procedure for the RF portion of this device. Ans: Client already mail to Sir directly. 2. Please note that the address for CCS has changed to 47173 Benicia Street, Fremont, CA 94538, USA, Tel +1-510-771-1000. Please update your future letters (such as Authorizations, and confidentiality) with this address. Ans: Sorry for the mistake, plz have the revised documents. 3. The Theory of Operation and Users Manual exhibits indicate in the Table for "GPRS Module Siemens Power Modes", that there is a GSM850 mode of operation with 1Tx, but this application is only being filed as a GPRS PCS1900 Class 10 (2Tx) operation device. Please confirm the operational band and GPRS class and update the exhibit(s) as needed. Ans:This device doesn't have GSM 850. 4. The conducted power was measured to be 30.26dBm, with a stated antenna gain of -2.76. This would calculate to an EIRP of (30.26 - 2.76) 27.5dBm. The Measured EIRP is 22.16dBm. Please explain the discrepancy between these EIRP <[email protected]> 2007/12/06 12:14 AM ¦¬¥ó¤H¡G <[email protected]> °Æ¥»§Û°e¡G <[email protected]> ¥D¦®¡G Advantech Co. Ltd. , FCC ID: M82-VITA-350, Assessment NO.: AN07T7405, Notice#1 numbers. Please note that the Antenna Specification exhibit indicates an antenna gain of -6dBi in the 1900 band. Ans: Please see the revised test report(page4, 34, 35). The items indicated above must be submitted before processing can continue on the above referenced application. Failure to provide the requested information within 30 days of the original e-mail date may result in application dismissal and forfeiture of the filing fee. Also, please note that partial responses increase processing time and should not be submitted. Any questions about the content of this correspondence should be directed to the e-mail address listed below the name of the sender. Best regards, Chris Harvey [email protected] 2/12/2008

Chris Harvey From: Junge, Lars [[email protected]] Sent: Monday, February 11, 2008 2:44 AM To: [email protected] Subject: FCC filing: Advantech with Siemens Module MC55 Attachments: MC55_CE_filing.ZIP 2/12/2008 To whom it concerns, Find attached the requested documents for FCC filing: zBlock Diagram zCircuit Diagram Please note that these documents are confidential and need not to be revealed to third parties. <<MC55_CE_filing.ZIP>> With best regards Lars Junge Siemens AG Automation and Drives Sensors and Communication Wireless Modules Application Engineering A&D SC WM AE TS Siemensdamm 50 13629 Berlin, Germany Phone: +49 30 386-36334 Fax: +49 30 386-30000 Mobile: +49 175 2655411 mailto: [email protected] Internet: www.siemens.com/wireless-modules Siemens Aktiengesellschaft: Chairman of the Supervisory Board: Gerhard Cromme; Managing Board: Peter Loescher, Chairman, President and Chief Executive Officer; Wolfgang Dehen, Heinrich Hiesinger, Joe Kaeser, Erich R. Reinhardt, Hermann Requardt, Siegfried Russwurm, Peter Y. Solmssen; Registered offices: Berlin and Munich; Commercial registries: Berlin Charlottenburg, HRB 12300, Munich, HRB 6684; WEEE-Reg.-No. DE 23691322 Important notice: This e-mail and any attachment thereof contains corporate proprietary information. If you have received it by mistake, please notify us immediatel y by reply e-mail and delete this e-mail and its attachments from your system. Thank you.

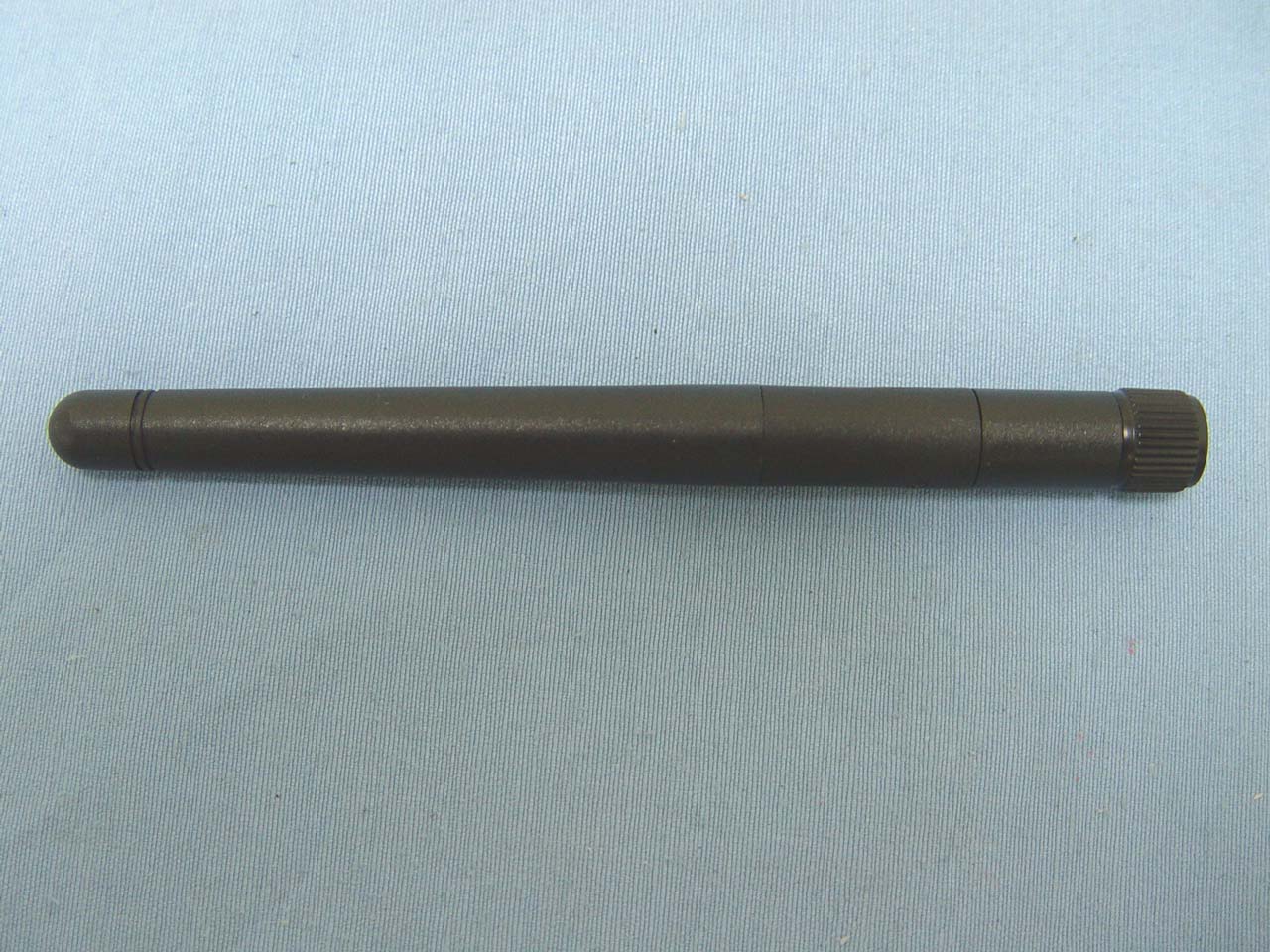

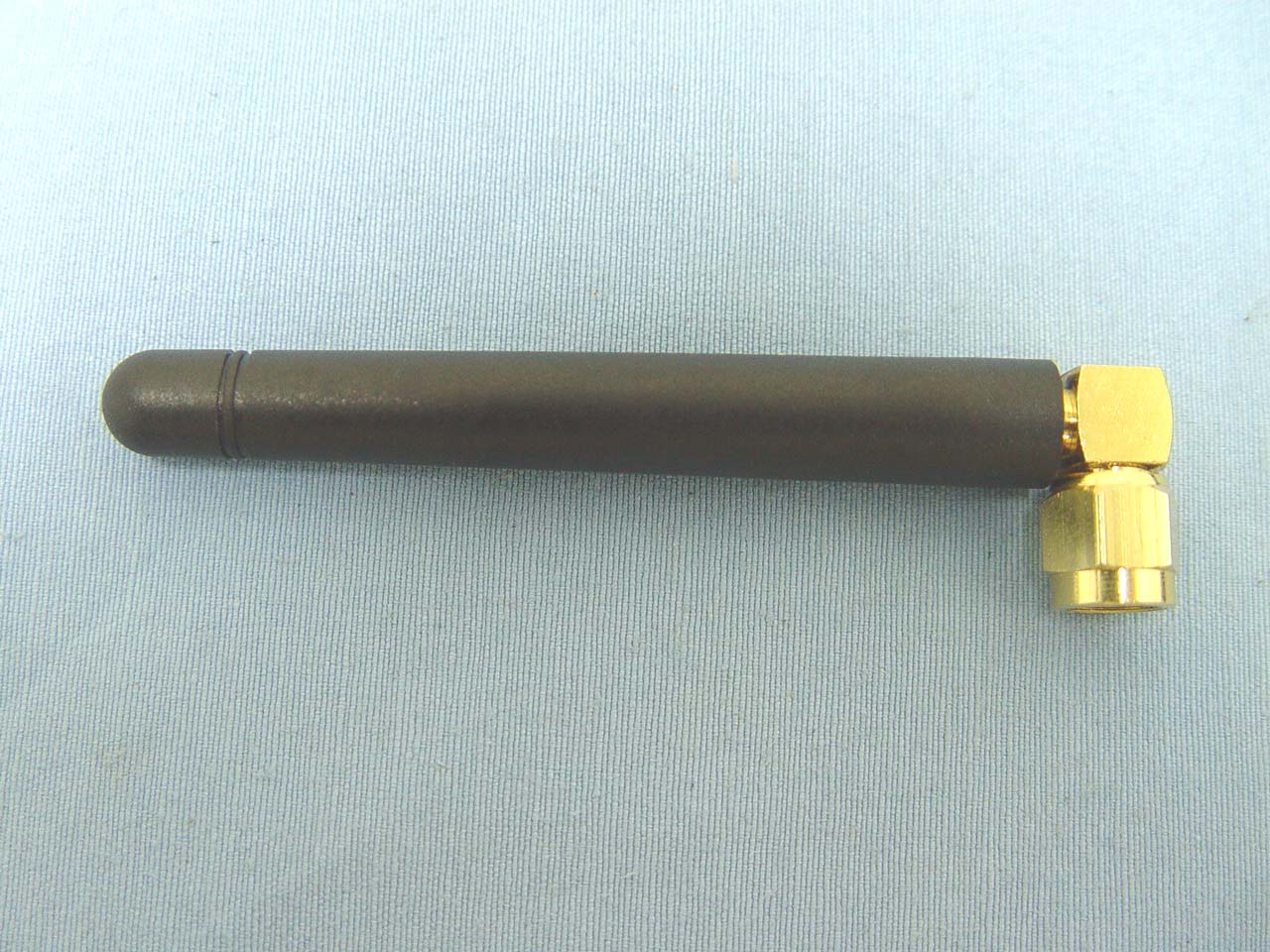

Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 1 Total Page: 14 Rev. 00 EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 2 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 3 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 4 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 5 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 6 Rev.00

Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 7 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 8 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 9 Rev. 00 GPRS & GSM module Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 10 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 11 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 12 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 13 Rev. 00 Compliance Certification Services Inc. Report No.: 70927109 Date of Issue: November 30, 2007 Page 14 Rev.00

Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 37 Rev. 00 FCC 47 CFR PART 24 SUBPART E TEST REPORT For Automated Vehicle Location Device Model: VITA-350 Trade Name: Advantech Issued to Advantech Co. Ltd. No.1, Alley 20, Lane 26, Rueiguang Road, Neihu District, Taipei 114, Taiwan, R.O.C. Issued by Compliance Certification Services Inc. No. 81-1, Lane 210, Bade Rd. 2, Luchu Hsiang, Taoyuan Hsien, (338) Taiwan, R.O.C. http://www.ccsemc.com.tw [email protected] Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Page 2 Rev. 00 TABLE OF CONTENTS 1. TEST RESULT CERTIFICATION................................................................................................. 3 2. EUT DESCRIPTION....................................................................................................................... 4 3. TEST METHODOLOGY................................................................................................................ 5 3.1 EUT CONFIGURATION.............................................................................................................. 5 3.2 EUT EXERCISE......................................................................................................................... 5 3.3 GENERAL TEST PROCEDURES.................................................................................................. 5 3.4 DESCRIPTION OF TEST MODES................................................................................................. 5 4. INSTRUMENT CALIBRATION.................................................................................................... 6 4.1 MEASURING INSTRUMENT CALIBRATION........................................................................... 6 4.2 MEASUREMENT EQUIPMENT USED .............................................................................. 6 5. FACILITIES AND ACCREDITATIONS ....................................................................................... 7 5.1 FACILITIES.............................................................................................................................. 7 5.2 EQUIPMENT............................................................................................................................. 7 5.3 TABLE OF ACCREDITATIONS AND LISTINGS............................................................................ 8 6. SETUP OF EQUIPMENT UNDER TEST...................................................................................... 9 6.1 SETUP CONFIGURATION OF EUT.............................................................................................. 9 6.2 SUPPORT EQUIPMENT ...................................................................................................... 9 7. FCC PART 24 REQUIREMENTS................................................................................................ 10 7.1 AVERAGE POWER.............................................................................................................. 10 7.2 ERP & EIRP MEASUREMENT ......................................................................................... 11 7.3 OCCUPIED BANDWIDTH MEASUREMENT ................................................................. 13 7.4 OUT OF BAND EMISSION AT ANTENNA TERMINALS ............................................. 16 7.5 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ............................ 21 7.6 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ........................... 29 7.7 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ..................................... 31 7.8 POWERLINE CONDUCTED EMISSIONS.................................................................................... 33 APPENDIX I RADIO FREQUENCY EXPOSURE............................................................................. 34 Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Page 4 Rev. 00 2. EUT DESCRIPTION Product Automated Vehicle Location Device Trade Name Advantech Model Number VITA-350 Model Discrepancy N/A Power Supply DC 12V / DC 24 V Frequency Range TX: 1850.2 ~ 1909.8 MHz RX: 1930 ~ 1989.8 MHz Transmit Power (ERP & EIRP Power) 22.16 dBm Modulation Technique GMSK Cellular Phone Protocol GPRS Type of Emission 252KGXW-- Antenna Type Dual Band External Antenna Antenna Specification -6 dBi Remark: 1. The sample selected for test was engineering sample that approximated to production product and was provided by manufacturer. 2. This submittal(s) (test report) is intended for FCC ID: M82-VITA-350 filing to comply with Part 24 of the FCC 47 CFR Rules. Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Page 5 Rev. 00 3. TEST METHODOLOGY Both conducted and radiated testing were performed according to the procedures document on chapter 13 of ANSI C63.4 and FCC CFR 47, 2.1046, 2.1047, 2.1049, 2.1051, 2.1053, 2.1055 and 2.1057. 3.1 EUT CONFIGURATION The EUT configuration for testing is installed on RF field strength measurement to meet the Commissions requirement and operating in a manner that intends to maximize its emission characteristics in a continuous normal application. 3.2 EUT EXERCISE The EUT was operated in the engineering mode to fix the TX frequency that was for the purpose of the measurements. 3.3 GENERAL TEST PROCEDURES Conducted Emissions The EUT is placed on the turntable, which is 0.8 m above ground plane. According to the requirements in Section 13.1.4.1 of ANSI C63.4.Conducted emissions fr…

Text truncated - open the document above for the full version.

Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Page 36 Rev. 00 APPENDIX II PHOTOGRAPHS OF TEST SETUP CONDUCTED EMISSION SET UP PHOTO Compliance Certification Services Inc. Report No.: 70927109-RP1 FCC ID: M82-VITA-350 Date of Issue: November 30, 2007 Page 37 Rev. 00 RADIATED EMISSION SET UP PHOTOS
