Circuit Description of Receiver(RX) (Ultra-e-2040) 1. RF Receiving Circuit A. Unnecessary signal and noise in the signal received from transmitter is filtered in the Resonance Circuit(L1,C1) and Transistor(Q1) makes the filtered signal clearer. The cleared signal enters into Oscillation & Detection Circuit through Condenser(C4). B. Oscillation & Detection Circuit The signal from Transistor(Q1) is mixed up and detected in Oscillation & Detection Circuit(Q2). The high frequency signal and noise in detected signal are filtered in Coil(L3) and enters in Amplification Circuit. C. Amplification Circuit The detected signal is amplified and converted into square-wave pulse in Amplification Circuit and goes into MPU(U4) 2. MPU(Micom) MPU analyzes the data signal received from transmitter. When this pulse coded signal is the same as the data stored in Memory Chip(U2), the following functions are performed. A. Vibration Function When the pulse coded signal from the transmitter is the same as vibration signal stored in Memory Chip(U4), this signal is transferred into Transistor(Q6) and Vibration motor is operated. B. Beep Function When the pulse coded signal from the transmitter is the same as beep signal stored in Memory Chip(U4), this signal is sent to Transistor(Q5) and Beeper is operated. 3. Power Circuit A. When magnet on the buckle of receiver belt touches Reed Switch in receiver unit, power is supplied to main circuit by Transistor(Q3). And then MPU(Micom) starts operation, power is supplied continuously after removing the magnet from Reed Switch. B. Voltage Regulation Circuit Voltage Regulation IC(U5) converts 6volt into constant-voltage regulated power(4volt).

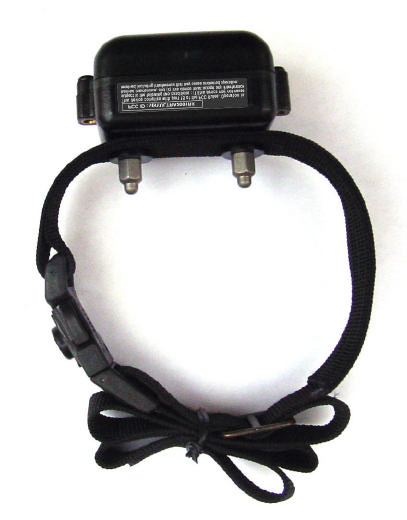

KTL Korea Testing Laboratory Page 1 of 9 TEST REPORT This test report only responds to the tested sample and shall not be reproduced except in full without written approval of the Korea Testing Laboratory. Tested and reported by Reviewed by Jeong-Min Kim , Senior Engineer Won-Seo Cho , EMC Team Leader KOREA TESTING LABORATORY FG101-01-02-00 222-13, Guro-Dong Guro-Gu Seoul Korea 152-053 http://www.ktl.re.kr Ref. Report No. 01-341-026-02 Name and address of the applicant D.T. Systems, Inc. 2872, Walnut Hill Lane, Dallas, TX 75229, USA Standard / Test regulation FCC Part 15, Subpart B Test result Pass Incoming date : May 17, 2001 Test item(s) ; Superregenerative Receiver (Dog Collars) Model/type ref. ; Ultra-e2040 Manufacturer ; EUN KI Trading Co., Ltd. Additional information ; -Required Authorization : Certification -FCC ID. : M8YULTRA2001RX Test date : May 29, 2001 Issue date : June 7, 2001 Ref. Report No. 01-341-026-02 Page 2 of 9 TABLE OF CONTENTS I. GENERAL INFORMATION ............................................................................................................ 3 1. Grantee’s Name and Mailing Address 2. Manufacturer's Name and Mailing Address 3. Equipment Descriptions 4. Rules and Regulations 5. Measuring Procedure 6. Date of Measurement •±. GENERAL REQUIREMENTS OF THE EUT .................................................................4 1. Labelling Requirement (Section 15.19) 2. Information to User (Sections 15.21) 3. Special Accessories (Section 15.27) •≤. RADIATED EMISSION MEASUREMENT (Section 15.109) .......................................................5-8 1. Test Procedure 2. Photograph for the test configuration 3. Sample Calculation 4. Measurement Data 5. Reference Data •≥. TEST EQUIPMENTS USED FOR MEASUREMENT..................................................................9 Ref. Report No. 01-341-026-02 Page 3 of 9 •∞. GENERAL INFORMATION 1. Grantee’s Name and : D.T. Systems, Inc. Mailing Address 2872, Walnut Hill Lane, Dallas, TX 75229 U.S.A. 2. Manufacturer's Name and : EUN KI Trading Co., Ltd. Mailing Address 212-31, Anyang-dong, Manan-ku, Anyang-si, Kyungki-do, 430-817, Korea 3. Equipment Descriptions 3.1 Tunning Frequency : 308 MHz 3.2 Detect Method : Superregenerative Detector 3.3 Power Supply : DC 6 V(Battery) 4. Rules and Regulations : FCC Part 15, Subpart B 5. Measuring Procedure : ANSI C63.4-1992 6. Date of Measurement 6.1 Line Conducted : Not Applicable 6.2 Radiated Emission : May 29, 2001 Ref. Report No. 01-341-026-02 Page 4 of 9 •±. GENERAL REQUIREMENTS OF THE EUT 1. Labelling Requirement (Section 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interface, and (2) this device must accept any interference received, including interference that may cause undesired operation. 1.1 Location of Label : Bottom side of EUT 1.2 How Applied : By Ink-Printing on Adhesive Label 2. Information to User (Section 15.21) The following or similar statements were provided in the manual for user instruction. Please refer page 15 of the attached manual for details. CAUTION : Any changes or modifications in construction of this device which are not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3. Special Accessories (Section 15.27) 3.1 Were the special Accessories provided? [ ] yes, [ x ] no 3.2 If yes, details for the special accessories are as follows : 3.3 If yes, were the appropriate instructions provided on the first page of the text concerned with the device? [ ] yes, [ ] no 3.4 Are these accessories provided of the type which can be readily obtained from multiple retail outlets ? [ ] yes, [ ] no And therefore does the manual specify what additional components or accessories are required to used in order to comply with the Rules? [ ] yes, [ ] no Ref. Report No. 01-341-026-02 Page 5 of 9 •≤. RADIATED EMISSION MEASUREMENT (Section 15.109) 1. Test Procedure 1.1 Preliminary Testing for Reference Preliminary testing was performed in a KTL absorber-lined room to determine the emission characteristics of the EUT. The EUT was placed on the wooden table which has dimensions of 0.8 meters in height, 1 meter in length and 1.5 meters in width. Receiving antenna (Biconical antenna : 30 to 300 MHz, Log-periodic antenna : 200 to 1000 MHz or Horn Antenna : 1 to 18 GHz) was placed at the distance of 1 meter from the EUT. In order to cohere the individual components of the characteristic broadband emission from the receiver(EUT), a RF generator(CW signal) and a log-periodic antenna were used. The frequency and output level of the generator were adjusted for highest observed coherent receiver emissions on the spectrum analyzer with RF amplifier. An attempt was made to maximize the emission level with the various configurations of the EUT. The effect of changing the position of the cable was observed to find the worst case configuration while rotating the table and varying antenna height and it’s polarization. Radiated and spurious emissions were checked from 30 MHz to 3000 MHz according to section 15.33. 1.2 Final Radiated Emission Test at an Absorber-Lined Room The final measurement of radiated field strength was carried out in a KTL Absorber-Lined Room that was listed up at FCC according to the "Radiated Emissions Testing" procedure specified by ANSI C63.4. Based on the test results in preliminary test, measurement was made in same test set up and configuration which produced maximum emission level. Receiving antenna was installed at 3-meter distance from the EUT, and was connected to an EMI receiver or spectrum analyzer(for above 1 GHz) with a RF amplifier. Turntable was rotated through 360 degrees and receiving antenna height was varied from 1 to 4 meters above the ground plane to read maximum emission level. The maximum emission level from the EUT occurred in such configuration as shown in the following ph…
