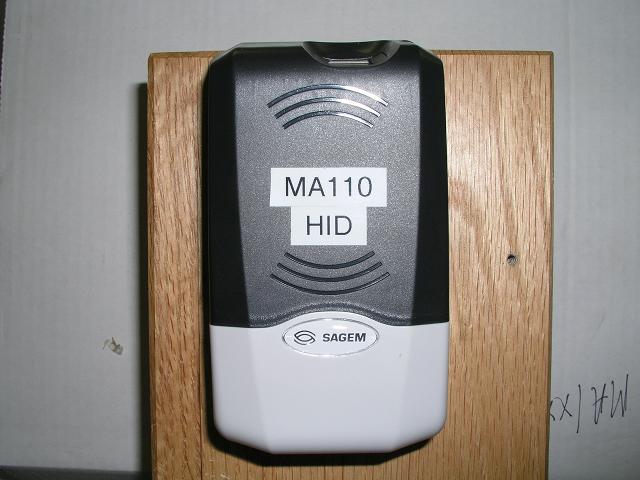

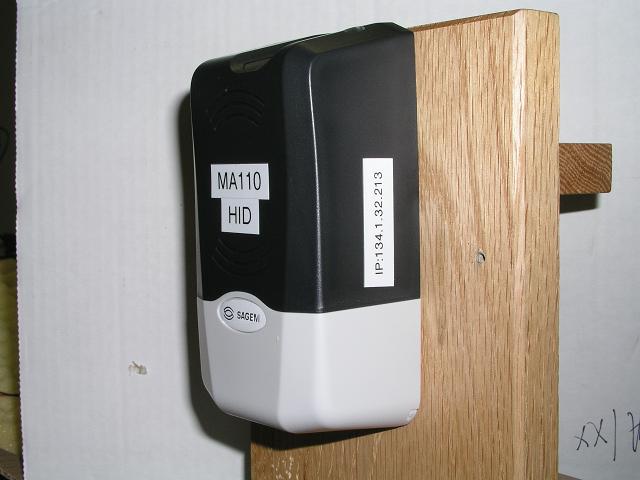

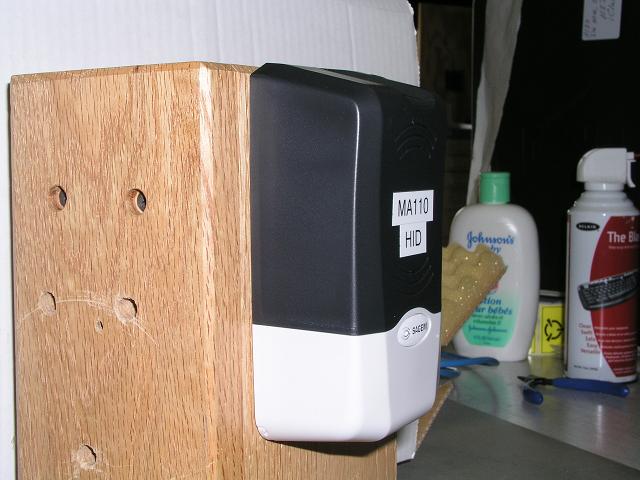

M9H-MA110MA110

MORPHOACCESS TM Installation Guide MA1xx series MorphoAccess TM 100/110/120 November 2005 SK 0000034370 - 01 2 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. SK-0000034370-01 SK-0000034370-01 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. 3 CONTENTS INTRODUCTION 5 SAFETY INSTRUCTIONS 6 GENERAL DESCRIPTION 7 INSTALLATION PROCEDURE 10 STAGE 1 : DRILLING THE CHASSIS MOUNTING HOLES 10 STAGE 2 : CABLE ENTRY HOLE LOCATION AND CHASSIS FIXATION 11 S TAGE 3 : CONNECTING THE COVER ASSEMBLY TO THE CHASSIS 12 S TAGE 4: CLOSING MORPHOACCESS™ 13 ELECTRICAL INTERFACE 14 TERMINAL BLOCK BOARD WIRING 14 POWER SUPPLY CABLE 16 WIEGAND OUTPUT WIRING 16 D ATA CLOCK OUTPUT WIRING 17 COM RS485 SERIAL PORT 17 ETHERNET WIRING 18 OUTPUT RELAY 19 TAMPER SWITCH 19 USER INTERFACE 20 RECOMMENDATIONS 21 APPENDIX 1 - FINGERPRINT PLACEMENT RULES 23 APPENDIX 2 - BIBLIOGRAPHY 24 APPENDIX 3 - DRILLING TEMPLATE 25 4 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. SK-0000034370-01 SK-0000034370-01 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. 5 I I N N T T R R O O D D U U C C T T I I O O N N Congratulations for choosing the SAGEM MorphoAccess™ 1 Automatic Fingerprint Recognition Terminal. MorphoAccess™ provides an innovative and effective solution for access control applications using Fingerprint Verification or/ and Identification. Among a range of alternative biometric techniques, the use of finger imaging has significant advantages : each finger constitutes an unalterable physical signature which develops before birth and is preserved until death. Unlike DNA, a finger image is unique to each individual - even identical twins. The MorphoAccess™ terminal integrates SAGEM image processing and feature matching algorithms (MorphoSoft™ and MorphoImaging™). This technology is based on lessons learned during more than 20 years of experience in the field of biometric identification and the creation of literally millions of individual fingerprint identification records. We believe you will find the SAGEM MorphoAccess™ fast, accurate, easy to use and suitable for physical access control. The SAGEM MorphoAccess™ offers the following advantages: • High quality optical sensor. • Supports multiple input/output interfaces used in the physical access control industry. • Local area network interface for easy interaction with other host systems. • Very compact size for easy installation and integration into your available office space. • Open architecture, with dedicated applications implemented via MA1xx Software Development Kit. To ensure the most effective use of your SAGEM MorphoAccess™, we recommend that you read this Installation Guide totally. 1 The SAGEM logo and trademark are the property of SAGEM Défense Sécurité. All other trademarks or product names are trademarks or product names of the respective title holders. 6 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. SK-0000034370-01 S S A A F F E E T T Y Y I I N N S S T T R R U U C C T T I I O O N N S S The installation of this product should be made by a qualified service Person and should conform to all local codes. It is strongly recommended to use a class II power supply at 12 V ±5% and 0.5 A. min according with Safety Electrical Low Voltage (SELV). The 12 V power supply cable length should not exceed 5 meters. This product is intended to be installed with a power supply conformed to EN60950, in accordance with the NEC Class 2 requirements ; or supplied by a listed EN60950 external Power Unit marked Class 2 , Limited Power source, or LPS and rated 12 V DC, 0.5 A minimum. In case of building to building connection it is recommended to connect 0V to ground. Ground cable must be connected with the terminal block 0V GND. Europe information’s : SAGEM hereby declares that the SAGEM MorphoAccess™ has been tested and found compliant with the below listed standards as required by the EMC Directive 89/336/EEC: EN55022 (1994) / EN55024 (1998) , EN300-330 (1999) and by the low voltage Directive 73/23/EEC amended by 93/68/EEC: EN60950 (2000). USA information’s : This equipment has been tested and found compliant with Class B digital device requirements, pursuant to part 15 of the FCC Rules. These requirements are designed to ensure reasonable protection against harmful RF interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may interfere with radio communications. If this equipment interferes with radio or television reception - which can be determined by disconnecting and re- connecting the unit – the user is encouraged to try to correct the interference by one or more of the following measures : • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. SK-0000034370-01 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. 7 G G E E N N E E R R A A L L D D E E S S C C R R I I P P T T I I O O N N Contactless Card reader ( depending of the versions) Optical Sensor Cable entry Mounting keyholes Tamper switch Power supply cable Trap door Terminal Block 8 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. SK-0000034370-01 MorphoAccess™ supplies : 1 Cover assembly 1 Chassis 1 Trap door 2 screws for cover fixation 1 secured screwdriver Torx 20 1 secured screw for trap door fixation Qty 1 Cover assembly 1 Chassis SK-0000034370-01 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden. 9 1 Trap door 2 Screws for cover fixation into the chassis. 1 Secured screw for trap door fixation 1 Secured screwdriver Torx 20 In order to proceed to MorphoAccess installation , you’ll need a…

Text truncated - open the document above for the full version.

MorphoAccess TM 100 Series User Guide Produced by SAGEM Défense Sécurité Copyright ©2006 SAGEM Défense Sécurité www.sagem.com MorphoAccessTM 100 Series User Guide May 2006 SK-0000038480-02 2 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden Table of content INTRODUCTION 6 INTERFACES PRESENTATION 7 MAN-MACHINE INTERFACE 7 ELECTRICAL INTERFACES 8 SETTING UP THE TERMINAL IP ADDRESS 9 ACCESS CONTROL PRESENTATION 10 IDENTIFICATION - AUTHENTICATION 10 “HIT OR NO HIT” RESULT COMMUNICATION 12 “PROXY” MODE 13 CONFIGURING A “CONNECTED” MORPHOACCESS 14 INTRODUCTION 14 NETWORK FACTORY SETTINGS 15 CONFIGURING A STANDALONE MORPHOACCESS 16 “USB” KEY ADMINISTRATION 16 PRINCIPLE 17 CHANGING A PARAMETER 18 CONFIGURATION INTERFACE 18 CONFIGURATION ORGANIZATION 18 “CONFIGURATION TOOL” 19 UPGRADING THE FIRMWARE 20 ACCESS CONTROL BY IDENTIFICATION 21 ACCESS CONTROL BY AUTHENTICATION (MA120 / MA110 ONLY) 22 CONTACTLESS AUTHENTICATION WITH TEMPLATES ON A CONTACTLESS CARD 23 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden 3 CONTACTLESS AUTHENTICATION WITH TEMPLATES ON LOCAL DATABASE 24 CONTACTLESS AUTHENTICATION BASED ON CARD MODE 25 BYPASSING THE BIOMETRIC CONTROL IN AUTHENTICATION 26 MERGED MODE 27 MORPHOACCESS 220 320 COMPATIBILITY 28 PROXY MODE 29 RECOGNITION MODE SYNTHESIS 30 SETTING UP RECOGNITION MODE 31 TWO ATTEMPTS MODE 31 PARAMETERS 31 SETTING UP MATCHING PARAMETERS 32 RELAY ACTIVATION 33 LED IN ACTIVATION 34 LOG FILE 35 REMOTE MESSAGES 36 PRESENTATION 36 SUPPORTED PROTOCOLS 36 TAMPER SWITCH MANAGEMENT 37 ALARM ACTIVATION 37 EXAMPLES 38 MAN MACHINE INTERFACE 39 CONVENTION 39 IDENTIFICATION – WAITING FOR A FINGER 39 AUTHENTICATION – WAITING FOR A BADGE 39 FUSION - WAITING FOR A FINGER OR A BADGE 40 CONTROL OK 40 CONTROL FAILED 40 NO DATABASE OR EMPTY DATABASE 40 BIOMETRIC ACQUISITION, BAD PLACEMENT 41 USB KEY CAN BE REMOVED 41 SENSOR FAILED 41 4 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden NETWORK PARAMETERS 42 SECTION [BOOT PROTO] 42 SECTION [PARAMETERS] 42 TERMINAL INFORMATION 43 SECTION [INFO] (READ ONLY) 43 ADMINISTRATION PARAMETERS 44 SECTION [REMOTE MANAGEMENT TCP] 44 SECTION [TERMINAL] 44 ANNEX: CONTACTLESS MODES TABLE 45 ANNEX: REQUIRED TAGS ON CONTACTLESS CARD 46 FAQ 47 TERMINAL IP ADDRESS IS UNKNOWN OR TERMINAL IS NOT REACHABLE 47 SENSOR IS OFF 47 TERMINAL RETURNS ERRATIC ANSWERS TO PING REQUESTS 47 BIBLIOGRAPHY 48 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden 5 I I N N T T R R O O D D U U C C T T I I O O N N Congratulations for choosing the SAGEM MorphoAccess™ 1XX Automatic Fingerprint Recognition Terminal. MorphoAccess™ provides an innovative and effective solution for access control or time and attendance applications using Fingerprint Verification or/ and Identification. Among a range of alternative biometric techniques, the use of finger imaging has significant advantages: each finger constitutes an unalterable physical signature which develops before birth and is preserved until death. Unlike DNA, a finger image is unique to each individual - even identical twins. The MorphoAccess™ terminal integrates SAGEM image processing and feature matching algorithms. This technology is based on lessons learned during 20 years of experience in the field of biometric identification and the creation of literally millions of individual fingerprint identification records. We believe you will find the SAGEM MorphoAccess™ fast, accurate, easy to use and suitable for physical access control or time and attendance. To ensure the most effective use of your SAGEM MorphoAccess™, we recommend that you read this User Guide totally. 6 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden I I N N T T E E R R F F A A C C E E S S P P R R E E S S E E N N T T A A T T I I O O N N M M a a n n - - m m a a c c h h i i n n e e i i n n t t e e r r f f a a c c e e The MorphoAccess™ 1XX offers a simple and ergonomic man-machine interface dedicated to access control based on fingerprint recognition: A high quality optical scanner to capture fingerprints (1). A multicolor led (8 colors) (2). A multi-toned buzzer (3). A Mifare TM contactless reader on MA12X, to read reference templates from a contactless card (4). SAGEM Défense Sécurité document. Reproduction and disclosure forbidden 7 E E l l e e c c t t r r i i c c a a l l i i n n t t e e r r f f a a c c e e s s The terminal offers multiple interfaces dedicated to administration and control information: A multiplexed Wiegand / Dataclock / RS485 output (5). Two LED IN inputs to improve integration in an access control system (6). A relay to directly command an access (7). A tamper switch (8). An Ethernet interface (LAN 10 Mbps), allowing remote management through TCP and sending control result through UDP (9). A USB Host port dedicated to local configuration (10). The MA1XX Installation Guide describes precisely each interface and connection procedure. 8 SAGEM Défense Sécurité document. Reproduction and disclosure forbidden S S E E T T T T I I N N G G U U P P T T H H E E T T E E R R M M I I N N A A L L I I P P A A D D D D R R E E S S S S The MorphoAccess™ can run in stand alone mode but a TCP/IP connection is required to download records in the terminal and to configure its recognition mode. It is possible to specify standard TCP parameters: terminal network address, network gateway and mask. These parameters can be set using a USB mass storage key. The complete procedure is described in section Configuring a “standalone” MA1XX. Once connected on the network, the MorphoAccess™ can be configured using (for example) the.Configuration Tool. SAGEM Défense Sécurité document. Reproduction and disclosure forbidden 9 A A C C C C E E S S S S C C O O N N T T R R O O L L P P R R E E S S E E N N T T A A T T I I O O N N I I d d e e n n t t i i f f i i c c a a t t i i o o n n - - a a u u t t h h e e n n t t i i c c a a t t i i o o n n The MorphoAccess™ works according two biometric…

Text truncated - open the document above for the full version.

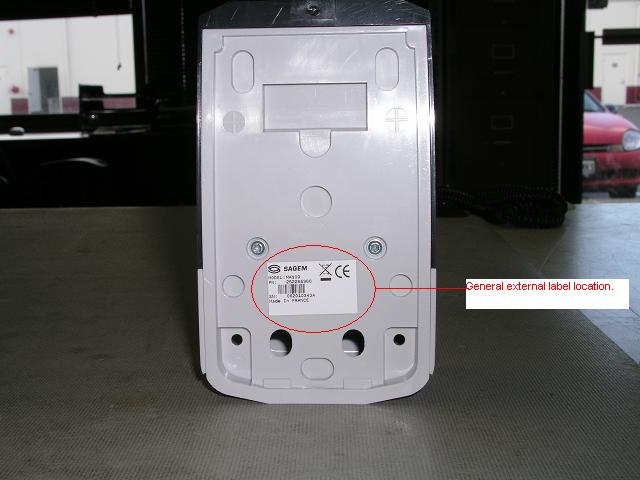

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 SAGM0007 Information about the Applicant Company Name SAGEM Morpho, Inc. Grantee Scott DeWitt Address 1145 Broadway Plaza, Suite 200 City, State, Zip Tacoma, WA 98402 Job Number SAGM0007 Model MA110 FCC ID M9H-MA110 Agent Northwest EMC, Inc. Approval Type Original Equipment Class DXT Part 15, Low Power Transceiver, Rx Verified Rule Part 15.225 Industry Canada Information Model Industry Canada ID Rule Part Overview See applicant provided letter. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. Signature Dean Ghizzone, TCB Committee 9/9/2006

SAGEM Morpho, Inc. MA110 September 06, 2006 Report No. SAGM0007 Report Prepared By www.nwemc.com 1-888-EMI-CERT © 2006 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: September 06, 2006 SAGEM Morpho, Inc. Model: MA110 Emissions Test Description Specification Test Method Pass Fail Frequency Stability FCC 15.225:2006 ANSI C63.4:2003 Field Strength of Fundamental FCC 15.225:2006 ANSI C63.4:2003 Field Strength of Spurious Emissions FCC 15.225:2006 ANSI C63.4:2003 Conducted Emissions FCC 15.107:2006 ANSI C63.4:2003 Radiated Emissions FCC 15.109:2006 ANSI C63.4:2003 Modifications made to the product See the Modifications section of this report Test Facility The measurement facility used to collect the data is located at: Northwest EMC, Inc. 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with and accepted by the FCC (Federal Communications Commission) and Industry Canada. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 03/18/05 FCC: Accredited by NVLAP for performance of FCC radio, digital, and ISM device testing. Our Open Area Test Sites, certification chambers, and conducted measurement facilities have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Northwest EMC, Inc. is accredited under the United States Department of Commerce, National Institute of Standards and Technology, and National Voluntary Laboratory Accreditation Program for satisfactory compliance with the requirements of ISO/IEC 17025 for Testing Laboratories. The NVLAP accreditation encompasses Electromagnetic Compatibility Testing in accordance with the European Union EMC Directive 89/336/EEC, ANSI C63.4, MIL- STD 461E, DO-160D and SAE J1113. Additionally, Northwest EMC is accredited by NVLAP to perform radio testing in accordance with the European Union R&TTE Directive 1999/5/EEC, the requirements of FCC, and the RSS radio standards for Industry Canada. NVLAP LAB CODE 200629-0 NVLAP LAB CODE 200630-0 NVLAP LAB CODE 200676-0 Industry Canada: Accredited by NVLAP for performance of Industry Canada RSS and ICES testing. Our Open Area Test Sites and certification chambers comply with RSS 212, Issue 1 (Provisional) and have been filed with Industry Canada and accepted. Northwest EMC has been accredited by ANSI to ISO / IEC Guide 65 as a product certifier. We have been designated by NIST and recognized by Industry Canada as a Certification Body (CB) per the APEC Mutual Recognition Arrangement (MRA). This allows Northwest EMC to certify transmitters to Industry Canada technical requirements. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement. TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories, available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0401C. TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 03/18/05 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body (NVLAP). VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Numbers. - Hillsboro: C-1071, R-1025, and R-2318, Irvine: C-2094 and R-1943, Sultan: R-871, C-1784 and R-1761). BSMI…

Text truncated - open the document above for the full version.

NORTHWEST EMC FIELD STRENGTH OF THE FUNDAMENTAL PSA 2006.05.30 NORTHWEST EMC FIELD STRENGTH OF THE FUNDAMENTAL PSA 2006.05.30 NORTHWEST EMC FREQUENCY STABILITY XMit 2006.08.25 NORTHWEST EMC FREQUENCY STABILITY XMit 2006.08.25 NORTHWEST EMC FIELD STRENGTH OF SPURIOUS EMISSIONS PSA 2006.05.30 NORTHWEST EMC FIELD STRENGTH OF SPURIOUS EMISSIONS PSA 2006.05.30
