M9H-MA220EMA220E

i i CONTENTS Welcome to SAGEM SA MorphoAccess™ 1 Safety instructions 2 General description 4 Installation instructions 6 Pre-Installation Checklist for the MorphoAccess 6 Initial Installation Procedure 7 Stage 1: Preparing the MorphoAccess cables/wires for installation 7 Stage 2: Positioning and preparing the MorphoAccess for final installation against the mounting surface 8 Final installation procedure 10 Stage 1: Wiring the MorphoAccess to the building 10 Stage 2. Fastening the MorphoAccess to the building 11 Stage 3. Installing the MorphoAccess protective visor 12 Stage 4: Testing the MorphoAccess functionality 12 How to upgrade MorphoAccess 200E to 300E 14 Pre-Installation checklist 14 Performing the upgrade 14 Configuring Wiegand vs. Data clock 17 Performing the Configuration 17 Outdoor MorphoAccess Technical characteristics 20 Recommendations 22 Areas containing combustibles 22 General precautions 22 Appendix 1 - Cable configuration tables 23 Appendix 2 - Wall fastener specs 26 Product Warranty, Limitations and Software License 27 Contents ii 1 ii 1 Welcome to SAGEM SA MorphoAccess™ 200E / 300E Congratulations for choosing the SAGEM SA MorphoAccess™ Automatic Fingerprint Recognition Terminal. The MorphoAccess provides an innovative and effective solution for access control or time and attendance applications using fingerprint verification and/or identification. The MorphoAccess terminal integrates SAGEM image processing and feature matching algorithms (MorphoSoft™ and MorphoImaging™). This technology is based on lessons learned during 18 years of experience in the field of biometric identification and the creation of literally millions of individual fingerprint identification records. We believe you will find the SAGEM SA MorphoAccess fast, accurate, easy to use, and suitable for physical access control or time and attendance. The SAGEM SA MorphoAccess offers the following advantages: - Has been designed for use in outdoor environments, is protected against water jets and is dust tight - Has a high quality optical scanner - Supports multiple input/output interfaces used in the physical access control industry - Has a local area network interface for easy interaction with other host systems - Is easily installed and integrated into your available office space - Has an interface that is easy to use in both setup and operational modes - Has extensive, flexible flash memory for data storage (user data, biometric templates, etc.) To ensure proper installation of your SAGEM SA MorphoAccess, we recommend that you read this Installation Guide in its entirety. Introduction The SAGEM logo and trademark are the property of E. All other trademarks or product names are trademarks or product names of the respective title holders. 2 3 Safety instructions - Please Read Before Installation WARNING: INSTALLATION TO BE PERFORMED BY PROFESSIONAL INSTALLERS ONLY Note: These instructions for the installation of the MorphoAccess assume the installer is properly qualified as a professional, familiar with applicable industry standards, local building/zoning codes, and proper installation practices. Installation should not be attempted by non-professionals. You are required to use a National Electric Code Class 2 power supply at 12 V DC ± 5% and 2.5A minimum. This product is intended to be installed in accordance with the NEC Class 2 r equirements. Europe: SAGEM SA hereby declares that the SAGEM SA MorphoAccess™ has been tested and found compliant with the below listed standards as required by the EMC Directive 89/336/EEC: EN55022 (1994) / EN55024 (1998) and by the low voltage Directive 73/23/EEC amended by 93/68/EEC: EN60950 (2000). USA: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. If this equipment interferes with radio or television reception (which can be determined by disconnecting and re-connecting the unit), the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer for help. Safety instructions 2 3 CAUTION RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE RECOMMENDED BY THE MANUFACTURER. MUST BE DISPOSED OF PROPERLY. Safety instructions ATTENTION IL Y A DANGER D'EXPLOSION S'IL Y A REMPLACEMENT INCORRECT DE LA BATTERIE. REMPLACER UNIQUEMENT AVEC UNE BATTERIE DU MÊME TYPE OU D'UN TYPE ÉQUIVALENT RECOMMANDÉ PAR LE CONSTRUCTEUR. ELIMINER DE FAÇON APPROPRIÉE. WARNING: Failure to properly seal the MorphoAccess against the mounting surface may result in accident or injury. Due to the many types of building materials that exist, ensuring adequate sealing against the mounting surface is the sole responsibility of the installer. The mounting gasket provided with the MorphoAccess is only for the convenience of the installer. For some applications with rough mounting surfaces, a bead of silicone sealant can be placed around the entire perimeter of the gasket before placing the MorphoAccess against the mounting surface. WARNING: As an additional precaution, take all steps necessary (in accordance with the National Electric Code) to ensure that if water leaks into the mounting surface, that no high voltage or other potentially dangerous wiring, power sources, transformers, or electronics will become wet. This may include installing high voltage wiring or electronics above the hole in which MorphoAccess is mounted and waterproofing connections as needed. Providing for safety outside the MorphoAccess packaging is the sole responsibility of the installer. 4 5…

Text truncated - open the document above for the full version.

August 25, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern, We, the undersigned, hereby authorize Northwest EMC, Inc., to act on our behalf, as our agent, in the following matters related to the FCC approval of our products: report submittal, related correspondence, the signing of all documents relating to these matters, and any other lawful activity necessary to obtain such certification. Any act carried out by Northwest EMC, Inc. within the scope of this authorization shall have the same effect as our own. This authorization shall expire 12 months from original date. Sincerely, Michael C. Anderson Corporate Counsel SAGEM Morpho, Inc. 1145 Broadway Plaza, Suite 200 Tacoma, WA 98402 Phone: (253) 597-8243 Fax: (253) 591-8856 Email: [email protected]

Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Information about the Applicant Company Name Sagem Morpho, Inc. Address 1145 Broadway Plaza, Suite 200 City, State, Zip Tacoma, WA 98402 Requested By Eric L. Vogel Job Number PLEX0348 Model MA220E FCC ID M9H-MA220E Agent Northwest EMC, Inc. Approval Type Original Equipment Class DXT Part 15, Low Power Transceiver, Rx Verified Rule Part 15.225 Overview The radio is an ISO/IEC 14443 type Mifare remote RFID card reader. It is a seeking certification under FCC 15.225. The device uses a single antenna, integral to the circuit board. Recommendation All items have been resolved and completed to my satisfaction; therefore I recommend this application for approval. 9/26/03 _______________________________ ________________ Name, Title Date PLEX0348 Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Findings Finding 15.21 The user warning against modifications to the product was not found in the user manual. Resolution The client provided a new installation guide as a part of the user manual, which contains the required warning. Requirements and Opinion Specification Requirements Description 47 CFR 2.1033(b)(3) Installation, operating instructions, user information Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference Operational User Manual.pdf Specification Requirements Description 47 CFR 2.1033(b)(4) Operational description Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference Operational description.pdf Specification Requirements Description 47 CFR 2.1033(b)(5) Block diagram showing frequency of oscillators. Signal path and frequency at each block. Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference Block Diagram.pdf Specification Requirements Description 47 CFR 2.1033(b)(5) Schematic diagram Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference Schematics.pdf, PLEX0348 Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Specification Requirements Description 47 CFR 2.1033(b)(7) Internal and external photos Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference User Manual.pdf, Schematics.pdf, Operational description.pdf Specification Requirements Description 47 CFR 15.19 Label requirements Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference User Manual.pdf Specification Requirements Description 47 CFR 15.21 User Information Opinion The device complies with the requirements. Discussion The client has submitted the required information. Reference User Manual.pdf Specification Requirements Description 47 CFR 15.27 Special Accessories (Shielded cables, etc.) Opinion The device complies with the requirements Discussion The manufacturer supplies required ferrite beads.. Reference User Manual.pdf. Specification Requirements Description 47 CFR 15.33 Frequency range Opinion The data complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.35 Measurement Detectors Opinion The data complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf PLEX0348 Northwest EMC TCB Compliance Opinion Rev. 9/15/03 Specification Requirements Description 47 CFR 15.205 Restricted band(s) requirements Opinion The data complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.207 Powerline Conducted Emissions Opinion The device complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.209 Spurious Emissions Opinion The device complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.225(a) Field Strength of Fundamental Opinion The device complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.225(b) Field Strength of Spurious Emissions Opinion The device complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf Specification Requirements Description 47 CFR 15.225(c) Frequency Stability Opinion The device complies with the requirements. Discussion The client has submitted a test report. Reference Report-PLEX0348.pdf PLEX0348

NORTHWEST EMC, INC. 22975 NW Evergreen Parkway, Suite 400 Hillsboro, OR 97124 September 24, 2003 Dear Application Examiner: On behalf of SAGEM Morpho, Inc., Northwest EMC Inc is submitting this application for the certification of SAGEM Morpho’s MA220E outdoor biometric access control terminal, FCC ID: M9H-MA220E. The radio is an ISO/IEC 14443 type Mifare contactless RFID card reader. It is a seeking certification under FCC 15.225. The EUT utilizes a single antenna integral to the unit. The technical reports and exhibits demonstrate compliance with FCC rules 47 CFR 15.225. Your efforts in reviewing this application are greatly appreciated. Best regards, Greg Kiemel, Director of Engineering Northwest EMC, Inc.

September 2, 2003 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern, We hereby respectfully request that under the provision of 47 CFR 0.459, the documents listed below and attached with this application for certification be provided with confidential status. • Schematics • Operational Description • Block Diagram Any exhibit / information for which we have requested confidentiality, but which may not be accorded such treatment by the FCC, should be returned to us. The documents listed above contain trade secrets that are treated as confidential by us and our suppliers. Substantial competitive harm to us or our suppliers could result should they be made available to the public. Sincerely, Michael C. Anderson Corporate Counsel SAGEM Morpho, Inc. 1145 Broadway Plaza, Suite 200 Tacoma, WA 98402 Phone: (253) 597-8243 Fax: (253) 591-8856 Email: [email protected]

Plexus MA220E August 05, 2003 Report No. PLEX0348 Report Prepared By: 1-888-EMI-CERT © 2003 Northwest EMC, Inc 22975 NW Evergreen Parkway Suite 400 Hillsboro, Oregon 97124 Certificate of Test Issue Date: August 05, 2003 Plexus Model: MA220E Emissions Description Pass Fail FCC Part 15.109 Class B:2000 Radiated Emissions FCC Part 15.107 Class B:2003 Conducted Emissions FCC Part 15.225 Field Strength of Fundamental FCC Part 15.225 Field Strength of Spurious Emissions FCC Part 15.225 Frequency Stability FCC Part 15.207 AC Powerline Conducted Emissions Modifications made to the product • See the modifications page of the report Test Facility • The measurement facility used to collect the data is located at: Northwest EMC, Inc.; 22975 NW Evergreen Parkway, Suite 400; Hillsboro, OR 97124 Phone: (503) 844-4066 Fax: 844-3826 This site has been fully described in a report filed with the FCC (Federal Communications Commission), and accepted by the FCC in a letter maintained in our files. Approved By: Greg Kiemel, Director of Engineering This report must not be used to claim product certification, approval, or endorsement by NVLAP, NIST, or any agency of the federal government of the United States of America. Product compliance is the responsibility of the client, therefore the tests and equipment modes of operation represented in this report were agreed upon by the client, prior to testing. This Report may only be duplicated in its entirety. The results of this test pertain only to the sample(s) tested, the specific description is noted in each of the individual sections of the test report supporting this certificate of test. Northwest EMC Revision History Revision 05/05/03 Revision Number Description Date Page Number 00 None Northwest EMC Accreditations and Authorizations Revision 07/31/03 FCC: The Open Area Test Sites, and conducted measurement facilities, have been fully described in reports filed with the FCC and accepted by the FCC in letters maintained in our files. TCB: Northwest EMC has been accredited by ANSI to ISO/IEC Guide 65 as a product certifier. We have been designated by the FCC as a Telecommunications Certification Body (TCB). This allows Northwest EMC to certify transmitters to FCC specifications in accordance with 47 CFR 2.960 and 2.962. NVLAP: Accreditation has been granted to Northwest EMC, Inc. to perform the Electromagnetic Compatibility (EMC) tests described in the Scope of Accreditation. Assessment performed to ISO/IEC 17025. Certificate Number: 200629-0, Certificate Number: 200630-0. Australia/New Zealand: The National Association of Testing Authorities (NATA), Australia has been appointed by the ACA as an accreditation body to accredit test laboratories and competent bodies for EMC standards. Accredited test reports or assessments by competent bodies must carry the NATA logo. Test reports made by an overseas laboratory that has been accredited for the relevant standards by an overseas accreditation body that has a Mutual Recognition Agreement (MRA) with NATA are also accepted as technical grounds for product conformity. The report should be endorsed with the respective logo of the accreditation body. (A2LA) TÜV Product Service: Included in TUV Product Service Group's Listing of Recognized Laboratories. It qualifies in connection with the TUV Certification after Recognition of Agent's Testing Program for the product categories and/or standards shown in TUV's current Listing of CARAT Laboratories available from TUV. A certificate was issued to represent that this laboratory continues to meet TUV's CARAT Program requirements. Certificate No. USA0302C TÜV Rheinland: Authorized to carryout EMC tests by order and under supervision of TÜV Rheinland. This authorization is based on "Conditions for EMC-Subcontractors" of November 1992. Northwest EMC Accreditations and Authorizations Revision 07/31/03 NEMKO: Assessed and accredited by NEMKO (Norwegian testing and certification body) for European emissions and immunity testing. As a result of NEMKO's laboratory assessment, they will accept test results from Northwest EMC, Inc. for product certification (Authorization No. ELA 119). Technology International: Assessed in accordance with ISO Guide 25 defining the general international requirements for the competence of calibration and testing laboratories and with ITI assessment criteria LACO196. Based upon that assessment Interference Technology International, Ltd., has granted approval for specifications implementing the EU Directive on EMC (89/336/EEC and amendments). The scope of the approval was provided on a Schedule of Assessment supplied with the certificate and is available upon request. Industry Canada: Accredited by Industry Canada for performance of radiated measurements. Our open area test sites comply with RSP 100, Issue 7, section 3.3. VCCI: Accepted as an Associate Member to the VCCI, Acceptance No. 564. Conducted and radiated measurement facilities have been registered in accordance with Regulations for Voluntary Control Measures, Article 8. (Registration Nos. - Evergreen: C-1071 and R-1025, Trails End: C-694 and R-677, Sultan: C-905, R-871 and R-1172, North Sioux City C-1246, R-1185 and R-1217) BSMI: Northwest EMC has been designated by NIST and validated by C- Taipei (BSMI) as a CAB to conduct tests as described in the APEC Mutual Recognition Agreement. License No.SL2-IN-E-1017. CAB: Designated by NIST and validated by the European Commission as a Conformity Assessment Body (CAB) to conduct tests and approve products to the EMC directive and transmitters to the R&TTE directive, as described in the U.S. - EU Mutual Recognition Agreement GOST: Northwest EMC, Inc. has been assessed and accredited by the Russian Certification bodies Certinform VNIINMASH, CERTINFO, SAMTES, and Federal CHEC, to perform EMC and Hygienic testing for Information Technology Products. As a result of their laboratory assessment, they will accept test results from Northwest EMC, Inc. for product c…

Text truncated - open the document above for the full version.

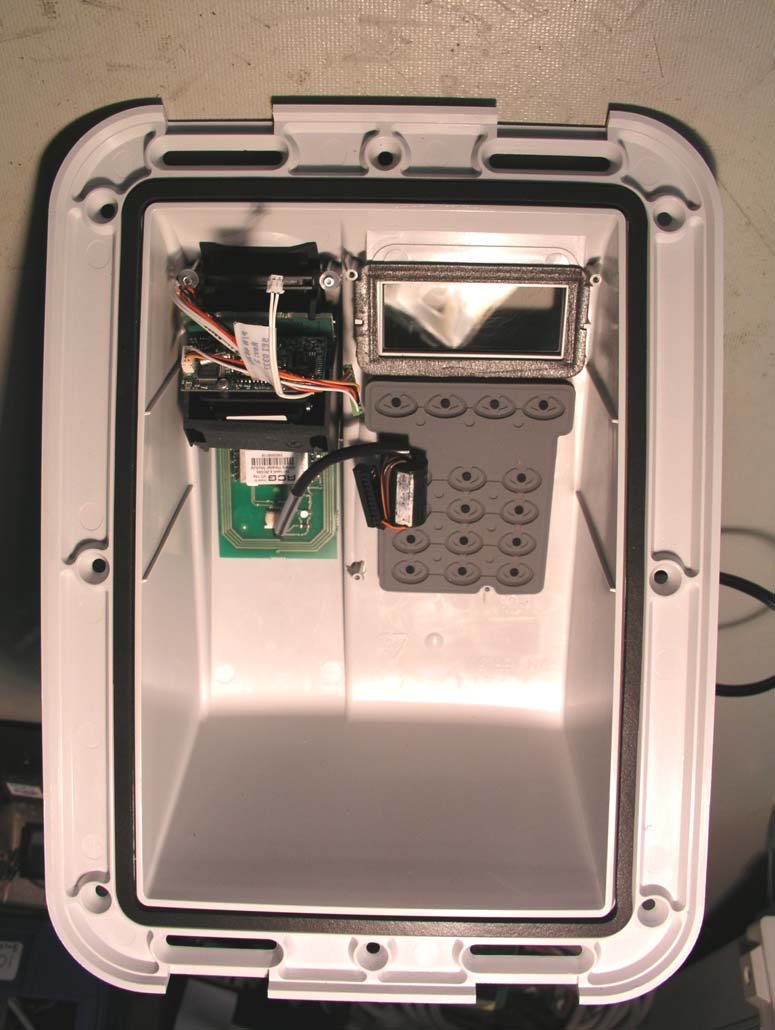

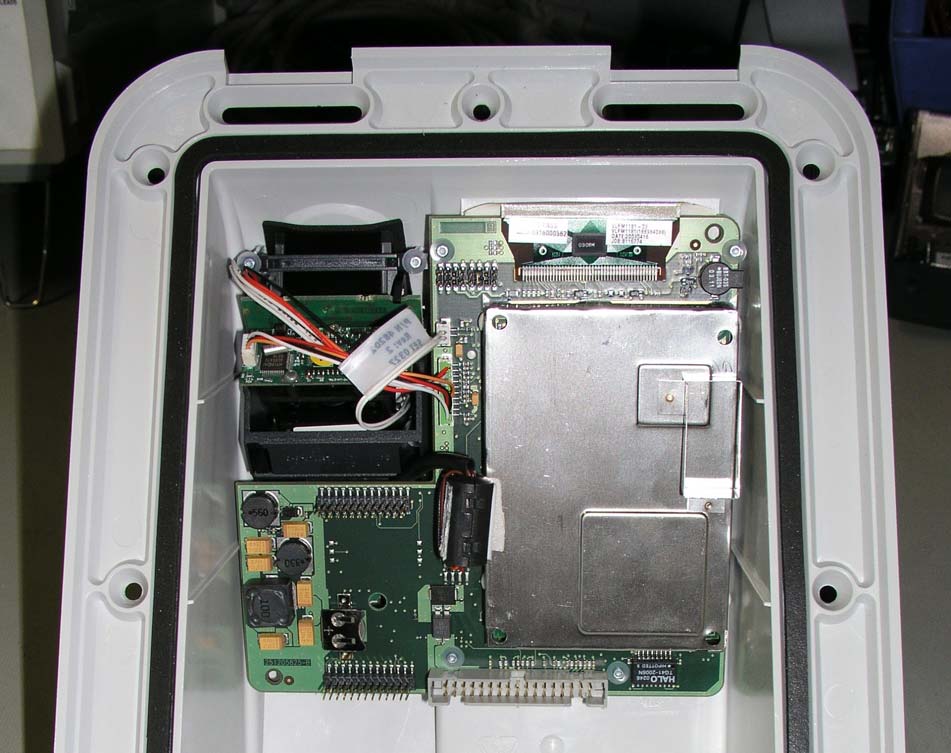

The antenna design consists of a permanently attached, integral, non-interchangeable radiating element and is therefore compliant with paragraph 15.203 of the FCC rules. The device operates at 13.56 MHz ± 7 kHz and this is not a Part 15.247 transmitter. The unit operates only with the integral PCB loop-type antenna (internal SAGEM part number 3000015331).

Type of equipment tested: Pre-production Modifications made during testing that are required for FCC compliance and will be incoporated into all production units: A single one-turn ferrite was added to all the external I/O cables together. This ferrite was later mounted internally on the portion of the cables that normally reside within the device enclosure. The small two-turn ferrite was removed from the cable connecting the card reader to the motherboard, and replaced by a larger two-turn ferrite at the opposite end of the cable. Description of the software and firmware used to operate the radio, including name and revision level: MorphoAccess firmware version 4.42, consisting of the following files: dbiorom_4.42.edb static_kernel_4.42.edb spilv_4.42.edb maccess_4.42.edb langue0.bin langue1.bin langue2.bin ACG H102014BC firmware version 0.14e
