M9H189033747BT HEADSET SAGEM H2

www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 12 of 27 1.5 User Manual (Cover) BT HEADSET SAGEM H2 User Guide www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 13 of 27 (Page 0) Contents BT HEADSET SAGEM H2..................................................................2 Getting Started..................................................................................3 Charging Your Headset......................................................................4-5 Nominal Charging Time..................................................................5 Talk & Standby Time...................................................................5 Low Battery.................................................................................5 Turning Your Headset On and Off.............................................................6 Pairing Your Headset..........................................................................7-8 Using Your Headset........................................................................9-10 Answering a Call...........................................................................9 Ending a Call................................................................................9 Rejecting a Call.............................................................................9 Dialing from Your Mobile Handset......................................................9 Voice Dialing from Your Headset.........................................................9 Last Number Redialing from Your Headset............................................9 Adjusting the Volume...........................................................................10 Resetting / Removing the Pairing ............................................................10 Care and Maintenance.....................................................................11-12 Safety Information..............................................................................13 Troubleshooting..................................................................................14 Product Specifications..........................................................................15 www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 14 of 27 (Page 1) BT HEADSET SAGEM H2 Fig. 1 Multifunction Button(MFB) Earpiece Volume + / - Dual LED Ear Hook Microphone www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 15 of 27 Getting Started To use your BT HEADSET SAGEM H2 (“the headset”), please follow these simple steps: — Charge your headset — Pair your headset with a Bluetooth-enabled mobile handset www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 16 of 27 Page 3 Charging Your Headset Fig. 4 The Headset comes with a built-in rechargeable battery. Prior to using the headset, it is recommendable to charge the battery fully for the first time. Page 5 Charging Your Headset Connect the charger to an AC wall outlet then plug into the Charger Adaptor and then go to the headset’s charging socket (fig.4). The LED will be red while charging. IMPORTANT Charging indication will be delayed for a few seconds if the headset has not been used for a long time or the battery is drained. Nominal Charging Time Charging the battery fully is normally within 3 hours. When the battery is fully charged, the LED will turn blue and remains on for 30 minutes. Disconnect the charger from AC wall outlet and the headset. Press and hold the MFB (fig.1) for 2 seconds to turn the headset on, please refer to “Turning Your Headset On and Off” on the next page. Talk & Standby Time The fully charged battery offers up to 6 hours talk time and up to 150 hours standby time. When no calls are in progress, the headset remains turned on in standby mode. Low Battery When the headset is on and the battery becomes low, the LED flashes red and the headset emits a beep every 1 minute. Please recharge the battery as described above. www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 17 of 27 Page 6 Turning Your Headset On and Off Turning On the Headset Press and hold the MFB for 2 seconds until you hear a short beep. The LED will flash blue. IMPORTANT Press the MFB again each time you turn on the headset to reactivate pairing so that the connection between the headset and the mobile handset is resumed. For pairing, please refer to “Pairing Your Headset” on page 7-8. Turning Off the Headset Press and hold the MFB for 3 seconds until you hear a long beep. The LED flash stops. IMPORTANT To disconnect the Bluetooth connection, please firstly turn of your headset by pressing the MFB key. www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 18 of 27 Page 7 Pairing Your Headset Prior to using your Headset for the first time, you must pair it with a Bluetooth-enabled mobile handset. The information on the next page describes pairing instruction for typical Bluetooth-enabled mobile handset. Headset pairing procedure is subject to different models of mobile handsets. www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 19 of 27 Page 8 Pairing Your Headset 1. Place the headset and the mobile handset where they are easily viewable by no more than 1 meter apart. 2. Ensure the headset is OFF. 3. Press and hold the MFB until the headset LED alternately flashes blue and red. 4. Activate your mobile handset’s Bluetooth function by referring to your mobile handset user guide for details. 5. Set the mobile handset to search for Bluetooth devices within about 1 meter as instructed in the mobile handset user guide and select “BT HEADSET SAGEM H2” from the list. 6. Enter the preprogrammed passkey “0000” and press “OK” to pair your headset and mobile handset. When the pairing is complete, the headset LED will flash blue rapidly for 5 times followed by a long beep. 7. Go back to your mobile handset’s main menu. For certain mobile handset models, a headset icon will be shown on the screen. You should now be able to make and receive calls using your headset. IMPORTANT If the …

Text truncated - open the document above for the full version.

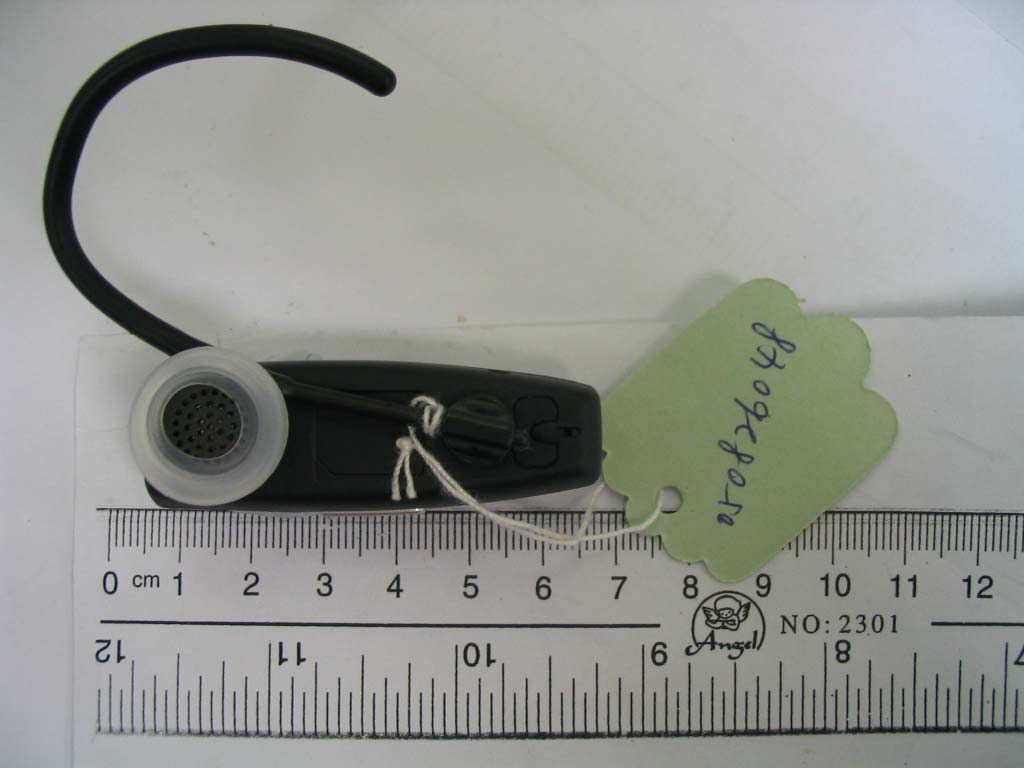

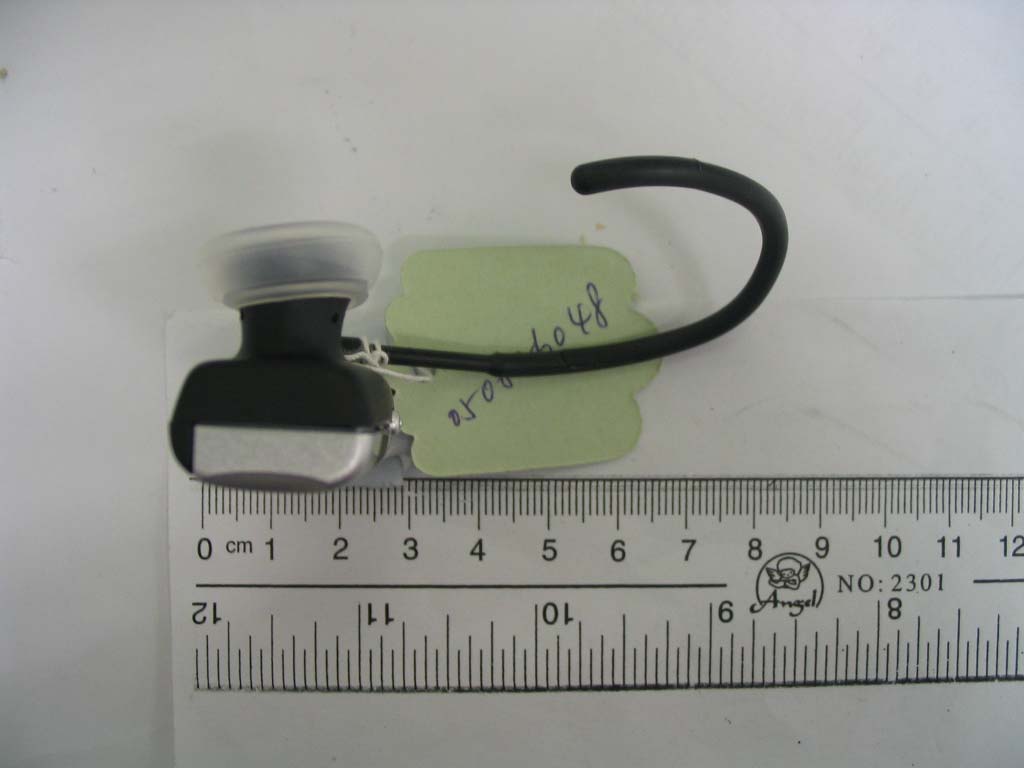

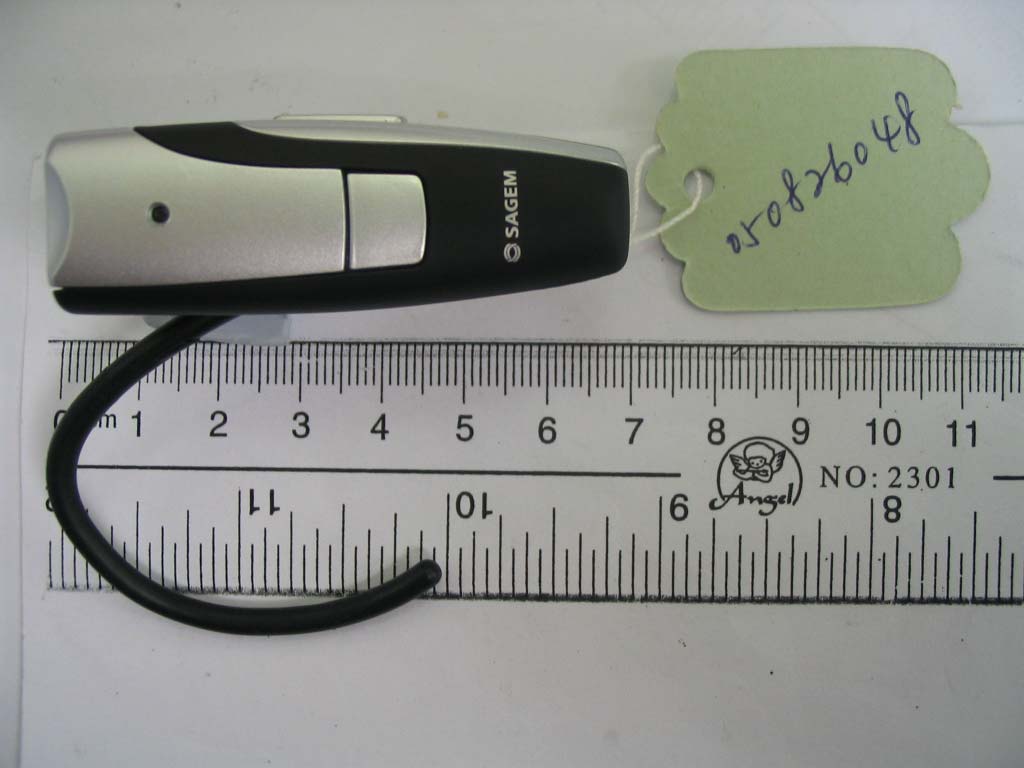

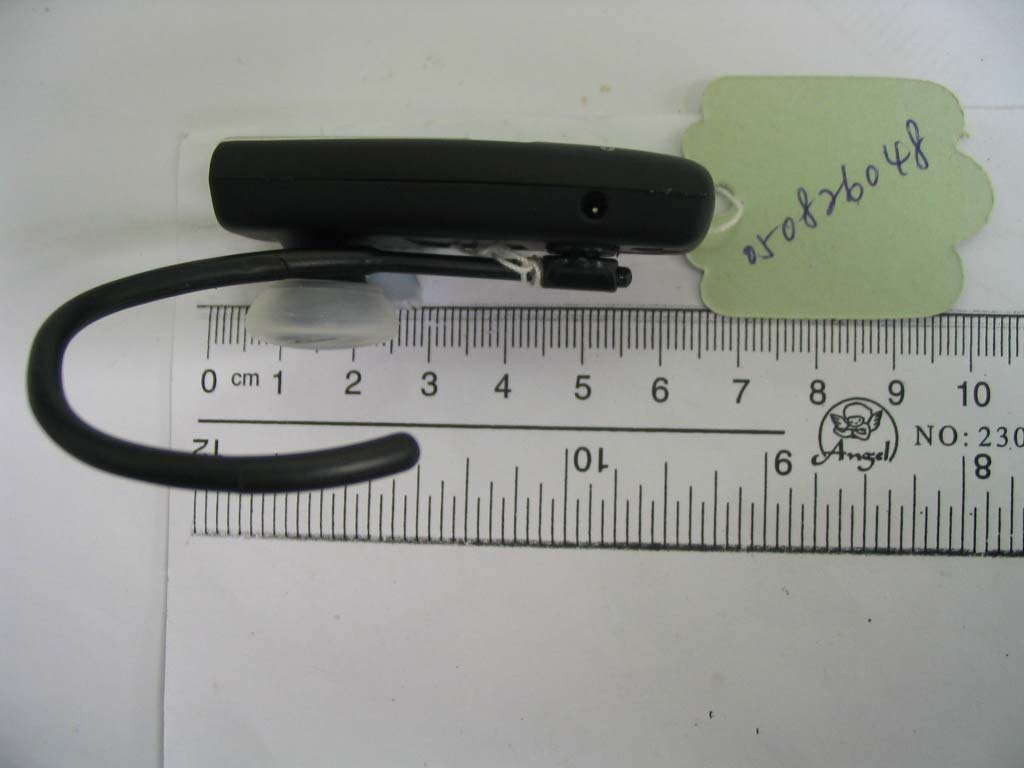

www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 1 of 9 Appendix 3 Construction Photos www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 2 of 9 1.1 External view 1.1.1 Front view 1.1.2 Rear view www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 3 of 9 1.1.3 Side view 1 1.1.4 Side view 2 www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 4 of 9 1.1.5 Side view 3

www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 1 of 26 Appendix 4 Technical Documents www.tuv.com Test Report No.: 14010504 001 Appendix 4 page 2 of 26 1.1 FCCID Label Artwork FCC Rating Label The yellow oval shows the location of the Rating Label.

www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 5 of 9 Internal view 1.1.6 Front side 1 www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 6 of 9 1.1.7 Module Picture (Front) www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 7 of 9 1.1.8 Module Picture (back) 1.1.9 Front side 2 www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 8 of 9 1.1.10 Front side 3 www.tuv.com Test Report No.: 14010504 001 Appendix 3 page 9 of 9 1.1.11 Front side 4 The yellow circle indicates the location of the antenna.

www.tuv.com Test Report No.: 14010504 001 Date: 20.09.2005 page 2 of 14 Table of Content Page Cover Page .................................................................................1 Table of Content ..........................................................................2 Product information.......................................................................................................3 Manufacturers declarations ....................................................................................................................... 3 Product function and intended use........................................................................................................... 3 Submitted documents ................................................................................................................................ 3 Special accessories and auxiliary equipment.......................................................................................... 4 List of Test and Measurement Instruments.................................................................5 Result FCC Part 15 – Subpart C ...................................................................................6 Subclause 15.203 – Antenna Information....................................................................... Pass................. 6 Subclause 15.204 – Antenna Information....................................................................... Pass................. 6 Subclause 15.207 – Disturbance Voltage on AC Mains ................................................ Pass................. 6 Subclause 15.247 (a) – Carrier Frequency Separation.................................................. Pass................. 7 Subclause 15.247 (a) – Time of Occupancy (Dwell Time) ............................................. Pass................. 8 Subclause 15.247 (a) – 20 dB Bandwidth ....................................................................... Pass................. 9 Subclause 15.247 (a) – Hopping Sequence .................................................................... Pass.................9 Subclause 15.247 (a) – Equal Hopping Frequency Use ................................................ Pass............... 10 Subclause 15.247 (a) – Receiver Input Bandwidth ........................................................ Pass............... 11 Subclause 15.247 (a) – Receiver Hopping Capability.................................................... Pass............... 11 Subclause 15.247 (b) – Peak Output Power ................................................................... Pass............... 11 Subclause 15.247 (b) – Band edge compliance ............................................................. Pass............... 12 Subclause 15.247 (c) – Spurious Conducted Emissions .............................................. Pass............... 12 Subclause 15.247 (c) – Spurious Radiated Emissions.................................................. Pass............... 13 Appendix 1 – Test protocols 26 pages Appendix 2 – Test setup 4 pages Appendix 3 – Photo documentation 9 pages Appendix 4 – Product documentation 27 pages www.tuv.com Test Report No.: 14010504 001 Date: 20.09.2005 page 3 of 14 Product information Manufacturers declarations Transmitter Receiver Operating frequency range 2402 - 2480 MHz 2402 - 2480 MHz Type of modulation FHSS modulation FHSS modulation Number of channels 79 79 Channel separation 1 MHz 1 MHz Type of antenna On-board Chip Antenna On-board Chip Antenna Antenna gain (dBi) 1.2 1.2 Power level fix fix Type of equipment stand alone device stand alone device Connection to public utility power line No Nominal voltage V nor : 3.7 V V nor : 3.7 V Independent Operation Modes Standby Standby Product function and intended use The test item is a Bluetooth Headset based on the Bluetooth technology. Bluetooth is a short-range radio link intended to be a cable replacement between portable and/or fixed electronic devices. Bluetooth operates in the unlicensed ISM Band at 2.4 GHz. In the US a band of 83.5 MHz width is available. In this band, 79 RF channels spaced 1 MHz apart are defined. The channel is represented by a pseudo-random hopping sequence through the 79 channels. The channel is divided into time slots, with a nominal slot length of 625 μs, where each slot corresponds to different RF hop frequencies. The nominal hop rate is 1600 hops/s. The symbol rate on the channel is 1 Ms/s. Submitted documents Circuit Diagram Block Diagram Bill of material User manual www.tuv.com Test Report No.: 14010504 001 Date: 20.09.2005 page 4 of 14 Special accessories and auxiliary equipment The product has been tested together with the following additional accessory: 1. Model Name: My X : CHARGEUR / DC ADAPTOR: BT Model Number: 189063068 2. Model Name: My C: CHARGEUR / DC ADAPTOR: BT Model Number: 189063047 N.B My X and My C adaptor are identical adaptor, only difference is the port connected to the mobile. For the test Voltage Disturbance on AC main, the adaptor My X will be test with the reference charger 3. Reference Charger (N.B it is not sale within the package) SAGEM 185982340 Input: 120VAC / 60 Hz/ 60 mA/ 6.6VA Output: 4.5V - /400mA Model No: DTC3515 045E040U www.tuv.com Test Report No.: 14010504 001 Date: 20.09.2005 page 5 of 14 List of Test and Measurement Instruments Kind of Equipment Manufacturer Type S/N Test Receiver Rohde & Schwarz ESH-3 890173/033 L/I/S/N Rohde & Schwarz ESH 3-Z5 849876/026 Oscilloscope HP 54713B US34510455 Test Receiver Rohde & Schwarz ESVP 882402/033 Absorbing Clamp Rohde & Schwarz MDS-21 979 3/4 Test Receiver Rohde & Schwarz ESVS30 842807/009 Biconical Antenna Rohde & Schwarz HK116 841489/015 Log.-Periodic Antenna Rohde & Schwarz HL223 841516/017 Universal Power Analyzer Voltech PM3000A 9915 Reference Impedance Network Voltech IEC 555 Standard 9946 AC Power Source California Instr. 4500L HK51895 Trip-Loop Antenna Chase LLA6142 1019 Double Ridge Horn Antenna EMCO 3115 9002-3351 Do…

Text truncated - open the document above for the full version.

www.tuv.com Test Report No.: 14010504 001 Appendix 2 page 1 of 4 Appendix 2 Test Setup Photos www.tuv.com Test Report No.: 14010504 001 Appendix 2 page 2 of 4 Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14010504 001 Appendix 2 page 3 of 4 Set-up for Radiation Emission (Transceiver) www.tuv.com Test Report No.: 14010504 001 Appendix 2 page 4 of 4 Set-up for Radiation Emission (Transceiver)
