M9H95M2004GSM 900/1800/1900 Mobile Phone

Sagem Wireless
GSM 900/1800/1900 Mobile Phone - FCC ID M9H95M2004 - Sagem Wireless
Click to zoom

Application Details

Equipment Class
PCE - PCS Licensed Transmitter held to ear
Date of Grant
Jul 11, 2004
Application Purpose
Original Equipment
Date of Application
Jul 11, 2004
Equipment Note
GSM 900/1800/1900 Mobile Phone
Frequency Range
1850.20000000 - 1909.80000000
Company
Sagem Wireless
Country
France

Documents & Files

Select a file to view

Users Manual

↗
↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗
↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ADDENDA FOR myX5-2 THIS MODEL PHONE MEETS THE GOVERNMENT'S REQUIREMENTS FOR EXPOSURE TO RADIO WAVES. Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg * . Tests for SAR are conducted using standard operating positions accepted by the FCC with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government-adopted requirement for safe exposure. The tests are performed in positions and locations (i.e., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone as reported to the FCC when tested for use at the ear is 0.742 W/kg and when worn on the body is 0.535 W/kg. *. In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 Watts/kilogram (W/kg) averaged over one gram of tissue. The standard incorporates a substantial margin of safety to give additional protection for the public and to account for any variations in measurements. 251656720_addenda SAR_myX5-2_En.fm Page 1 Mercredi, 7. juillet 2004 9:40 09 While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID M9H95M2004. E MOBILE PHONES DIVISION Le Ponant de Paris 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE Société Anonyme à Directoire et Conseil de Surveillance Capital 36 405 229 € - 562 082 909 RCS PARIS 251656720_addenda SAR_myX5-2_En.fm Page 2 Mercredi, 7. juillet 2004 9:40 09

Users Manual

ENGLISH *251496749* SAGEM SA Mobile Phones Division Tel. +33 1 40 70 88 44 - Fax +33 1 40 70 66 40 - www.sagem.com Le Ponant de Paris - 27, rue Leblanc - 75512 PARIS CEDEX 15 - FRANCE SAGEM SA - Société anonyme à directoire et conseil de surveillance capital : 36 405 229 € - 562 082 909 RCS PARIS 251496749_myX-5.2_LU-en.qxd 18/03/04 17:02 Page 1 You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions. Your phone can be used internationally in the various networks (GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz, depending on model) depending on the roaming arrangements with your operator. We remind you that this phone is approved to meet European standards. WARNING Depending on the model, network configuration and associated subscription cards, certain functions may not be available. Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicated by a message when your phone is switched on. Contact your operator. Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card. In order to display the IMEI on your phone's screen, type: *#06#. SAGEM is a trademark of SAGEM SA. AT is a registered trademark of Hayes Microcomputer Products Inc. Hayes is a registered trademark of Hayes Microcomputer Products Inc. T9 is protected by one or more of the following US patents: 5,818,437, 5,953,541, 5,187,480, 5,945,928, 6,011,554 and other patents are being applied for worldwide. Java and all Java based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries. The WAP navigator and some message softwares (i-mode) are under licence Openwave. The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares. © 2003 GAMELOFT - All rights reserved - GAMELOFT is a registered trademark of GAMELOFT S.A. - All rights reserved. Wellphone™ and SmartCom™ are registered trademarks owned by SmartCom SARL France. 251496749_myX5-2_lu_2e-3ecouv_en.fm Page 1 Vendredi, 30. avril 2004 11:19 11 Weight: 96 g Size: 107 x 46 x 19 mm Original battery: Lithium ion 920 mAh Battery life calls/standby: up to 4 h 45 mn/370 h (see page 17 how to increase the efficiency of your phone) Multimedia objects supported: Audio formats: iMelody, Midi, wave Graphic formats: wbmp, bmp, png, gif, animated gif, jpeg, .3gp Size of memory available for messages: 100 SMS 300 Kb for MMS (inbox, outbox and drafts together; MMS depending on option) Size of memory available for the phonenook and the multimedia objects: 4 MB Maximum size of each message: SMS < 160 characters MMS < 100 Kb for outgoing, 100 Kb for incoming messages (depends on the phone configuration and on the operator reservations) Using temperature: from - 10°C to + 55°C 251496749_myX5-2_lu_2e-3ecouv_en.fm Page 2 Vendredi, 30. avril 2004 11:19 11 1 Conformance Document 251496749_myX-5-2_lu_en.book Page 1 Vendredi, 30. avril 2004 11:01 11 2 FCC Conformance Document FCC Part 24 Network NAPRD03.ver 2.11.2 HealthDraft IEEE Std 1528-200x Exposure to Radio Frequency Signals - Your wireless handheld portable phone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out frequency (RF) signals. - In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992)* NCPR Report 86 (1986)* ICNIRP (1996)* (*) American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission and Non-Ionizing Radiation Protection. - Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universities, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). - The design of your phone complies with the FCC guidelines (and those standards). - For body worn operation, this phone has been tested and meets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. 251496749_myX-5-2_lu_en.book Page 2 Vendredi, 30. avril 2004 11:01 11 3 Menus Games WAP Applications ToDo Calculator Converter Alarm Timer Messages Compose Inbox Outbox Sentbox Drafts Options Memory Local info. Call Voice Mail Mailing Lists Camera Multimedia My Pictures My Sounds Memory Help Organizer See month See week See today See date Calendar menu Help Phonebook Contacts menu Settings Sounds Display Camera Languages Calls Security Networks Short cuts Date/Time Connectivity Help 251496749_myX-5-2_lu_en.book Page 3 Vendredi, 30. avril 2004 11:01 11 4 Contents Page 3MENUS Page 9YOUR PHONE PACKAGE - ACCESSORIES Page 10DESCRIPTION Programmable keys and Short cut keys Necklace attachment Page 12NAVIGATION PRINCIPLES Page 13INITIAL SCREEN Page 14ACTIVATING YOUR PHONE Information on the SIM card Installing the SIM card and the battery Getting started Page 17USING YOUR PHONE Freeing the antenna Increase the efficiency of your phone Hands-free mode Charging the battery Page 19PHONEBOOK Using the phonebook Storing a new contact Contacts menu Options from a contact saved Sending a vCard Receiving a vCard 251496749_myX-5-2_lu_en.book Page 4 Vendredi, 30. avril 20…

Text truncated - open the document above for the full version.

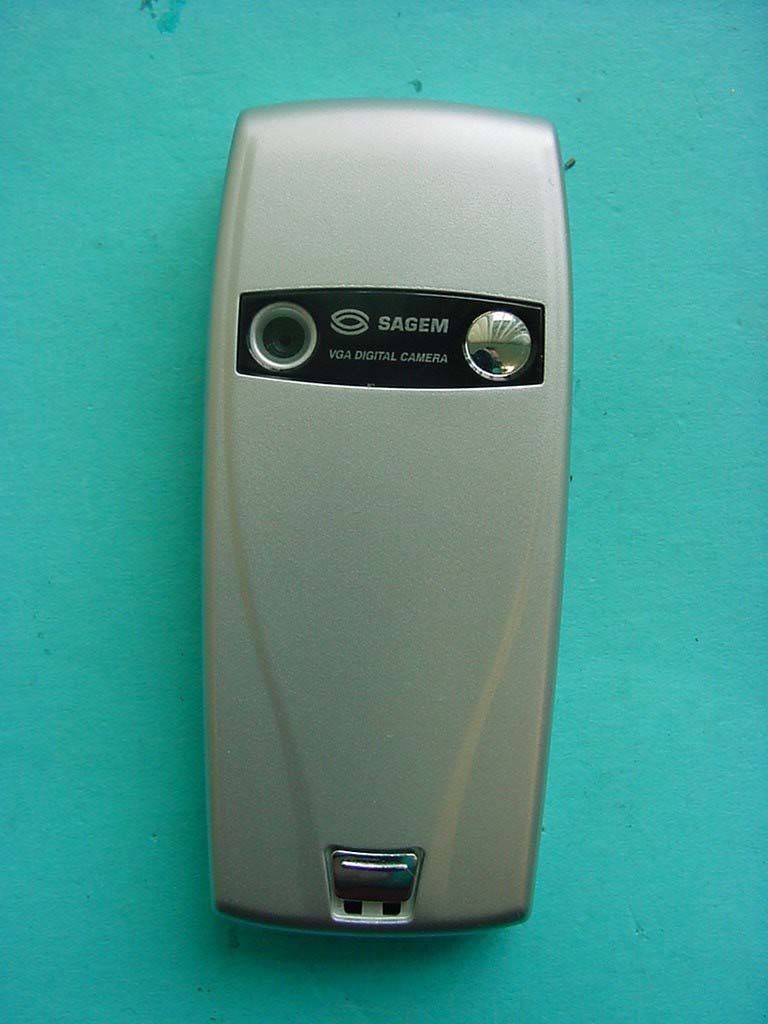

External Photos

CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 58 (66) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 59 (66) Photographs of the equipment

ID Label/Location Info

Label information

Internal Photos

CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 60 (66) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 61 (66) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 62 (66) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 63 (66) Photographs of the equipment CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 64 (66) Photographs of the equipment

RF Exposure Info

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2004-05-18 Page 1 of 29 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to the Report 4-1220-01-02/04 Calibration Data, Phantom Certificate and detail Information of the DASY4 System Test specification : CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 2 of 29 Table of Content 1 Calibration report “Probe ET3DV6” .....................................................................................................................................3 2 Calibration report “1900 MHz System validation dipole”..................................................................................................11 3 Calibration certificate of Data Aquisition Unit (DAE)........................................................................................................21 4 Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C”...........................................................................................22 5 Application Note System Performance Check.....................................................................................................................24 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 3 of 29 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 4 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 5 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 6 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 7 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 8 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 9 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 10 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 11 of 29 2 Calibration report “1900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 12 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 13 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 14 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 15 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 16 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 17 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 18 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 19 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 20 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 21 of 29 3 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 22 of 29 4 Certificate of Conformity “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 23 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information; Report No.: 4-1220-01-02/04 As of 2003-05-18 Page 24 of 29 5 Application Note System Performance Check 5.1.1.1 Purpose of system performance check The system performance check verifies that the system operates within its specifica-tions. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many param-eters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the at section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple s…

Text truncated - open the document above for the full version.

RF Exposure Info

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2004-06-04 Page 1 of 55 Accredited testing laboratory DAR registration number: TTI-P-G 081/94-D0 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 4-1220-01-02/04 Type identification : M2004 (DK) (MyX5-2) Test specification : IEEE P1528/D1.2 FCC-ID : M9H95M2004 Test specification : CETECOM ICT Services GmbH Test report no.: 4-1220-01-02/04 As of 2004-06-04 Page 2 of 55 Table of Contents 1 General Information...............................................................................................................................................................3 1.1 Notes...............................................................................................................................................................................3 1.1.1 Statement of Compliance.......................................................................................................................................3 1.2 Testing laboratory............................................................................................................................................................4 1.3 Details of applicant..........................................................................................................................................................4 1.4 Application details...........................................................................................................................................................4 1.5 Test item..........................................................................................................................................................................5 1.6 Test specification(s)........................................................................................................................................................6 1.6.1 RF exposure limits.................................................................................................................................................6 2 Technical test.........................................................................................................................................................................7 2.1 Summary of test results...................................................................................................................................................7 2.2 Test environment.............................................................................................................................................................7 2.3 Measurement and test set-up...........................................................................................................................................7 2.4 Measurement system.......................................................................................................................................................8 2.4.1 System Description................................................................................................................................................8 2.4.2 Test environment...................................................................................................................................................9 2.4.3 Probe description ...................................................................................................................................................9 2.4.4 Phantom description............................................................................................................................................10 2.4.5 Device holder description....................................................................................................................................10 2.4.6 Scanning procedure..............................................................................................................................................11 2.4.7 Spatial Peak SAR Evaluation...............................................................................................................................12 2.4.8 Data Storage and Evaluation................................................................................................................................13 2.4.9 Test equipment utilized........................................................................................................................................15 2.4.10 Tissue simulating liquids : dielectric properties...................................................................................................16 2.4.11 Tissue simulating liquids : parameters.................................................................................................................17 2.4.12 Measurement uncertainty evaluation for SAR test..............................................................................................18 2.4.13 Measurement uncertainty evaluation for system validation.................................................................................19 2.4.14 System validation.................................................................................................................................................20 2.4.15 Validation procedure............................................................................................................................................21 2.5 Test results (Head and Body SAR)................................................................................................................................22 2.5.1 Description of test procedures.............................................................................................................................22 2.6 Test results (conducted power measurement)...............................................…

Text truncated - open the document above for the full version.

Test Report

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-9100 Telefax: -9075 RSC11 Issued test report consists of 66 pages Page 1 (66) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 084/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 4_1220-01-04/04 FCC Part 24/15 M2004 (DK) FCC ID: M9H95M2004 CETECOM – ICT Services GmbH Untertürkheimerstr. 6-10 66117 Saarbrücken, Germany Telephone: + 49 (0) 681 / 598-0 Fax: + 49 (0) 681 / 598-9075 CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 2 (66) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by : Federal Communications Commission (FCC) Identification/Registration No : 90462 Anechoic chamber registration no.: 3463 (IC) Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 3 (66) 1.3 Details of applicant Name : SAGEM SA Street : 2-4, rue du Petit Albi City : F-95800 Cergy Saint-Christophe Country : France Telephone : +33 1 30 73 37 37 Telefax : +33 1 34 25 74 16 Contact : Mr. Jean Marquet Telephone : +33 1 30 73 37 37 e-mail : [email protected] 1.4 Application details Date of receipt of application : 2004-01-05 Date of receipt of test item : 2004-03-08 Date of test : 2004-03-08 –2004-04-20 1.5 Test item Type of equipment : Triple Band PCS Mobile Phone (PCS 900/1800/1900 MHz) Type designation : M2004 (DK) (myX5-2) Manufacturer : Sagem SA Street : City : Country : Serial numbers : IMEI : 353056.00000129-2 (conducted tests) IMEI : 353056.00000802-4 (radiated tests) Additional information : Frequency : 1850.2 – 1909.8 MHz Type of modulation : 300KGXW / 300KG7W Number of channels : 300 (PCS1900) Antenna : Integral antenna Power supply : 3,9V DC Li-ion Battery Output power GSM 1900 : cond : 29.2 dBm Peak , ERP: 25.8 dBm (Burst); EIRP: 27.9 dBm (Burst) Type of equipment : Temperature range : -30°C - +60°C FCC – ID : M9H95M2004 IC : Hardware : V64xx Software : K 3,M0 1.6 Test standards: FCC Part 24 FCC Part 15 CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 4 (66) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). Remarks: For AC-conducted measurements the AC chargers Type: Universal PS53/1640 (HW: certificate no: 1883730, SN: 188248106) was used. No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2004-04-21 RSC 8411 Berg M. Date Section Name Signature Technical responsibility for area of testing : 2004-04-21 RSC8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 5 (66) 2.2 Test report TEST REPORT Test report no. : 4_1220-01-04/04 CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 6 (66) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE Part PCS 1900 POWER OUTPUT SUBCLAUSE § 24.232 7 FREQUENCY STABILITY SUBCLAUSE § 24.235 10 AFC FREQ ERROR vs. VOLTAGE 11 AFC FREQ ERROR vs. TEMPERATURE 11 EMISSIONS LIMITS §24.238 13 CONDUCTED SPURIOUS EMISSIONS 30 BLOCK EDGE COMPLIANCE FOR BLOCK A AND C 39 OCCUPIED BANDWIDTH §2.989 41 CONDUCTED EMISSIONS § 15.107/207 48 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 52 Test site 54 Photographs of the equipment 58 CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 7 (66) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 POWER OUTPUT SUBCLAUSE § 24.232 Summary: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this mask is specified in the JTC standards, TIA PN3389 Vol. 1 Chap 7, and is no FCC requirement). Method of Measurements: The mobile was set up for the max. output power with pseudo random data modulation. The power was measured with R&S Signal Analyzer FSIQ 26 ( peak and average) This measure…

Text truncated - open the document above for the full version.

Test Setup Photos

CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 54 (66) Test site CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 55 (66) Test site CETECOM ICT Services GmbH Test report no..: 4_1220-01-04/04 Issue Date: 2004-04-20 Page 56 (66) Test site

Contact Information

Applicant

Francois CHAMBON(GM)
[email protected]86-574-2796-0448Fax: 86-574-2796-0997

Test Firm

Cetecom ICT Services GmbHRalf Hoehn
[email protected]49-681-598-8455Fax: 49-681-598-8475

Technical Specifications

#Rule PartsFrequency RangePower OutputEmissionTolerance
124E1.85 GHz - 1.91 GHz708.00 mW300KGXW0.0154000000
Confidentiality
Long Term
Grant Notes
Power listed is EIRP. This filing is only applicable for GSM 1900 operations. SAR compliance for body-worn operating configurations is limited to the specific configuration tested for filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic and a minimum distance of 15 mm to the body. End-users must be provided with the appropriate information for satisfying RF exposure compliance. Highest reported SAR values are: Head: 0.742 W/kg, Body: 0.535 W/kg. This mobile contains 900 MHz and 1800 MHz function that is not operational in U.S. Territories.
