M9H95V3GSM 850/900/1800/1900 MHz Module

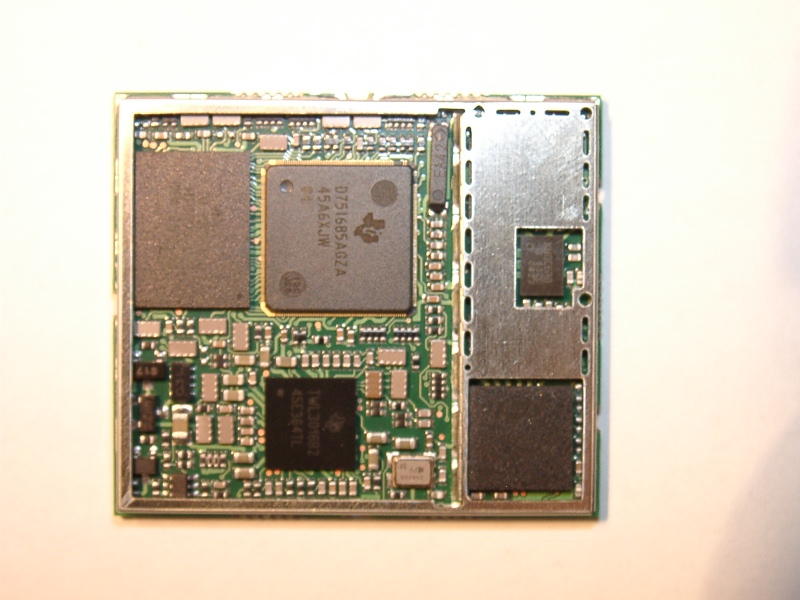

SCT TMO MASV3 SPEC 030 I spec agrément Quadband.doc Document . All rights of reproduction and disclosure reserved. This document contains information on a product under development. SAGEM reserves the right to change or discontinue this product without notice.    Unit of Saint Christophe TMO +$5':$5( 0$69 &24XDGEDQG  Réf. : SCT TMO MASV3 SPEC 30 Revision: I Réf. sec. : 2x xxx xxx – x Date : 02/11/04 Page 1 sur 48 &2VSHFLILFDWLRQ  Type of document : SPECIFICATIONS  Document . All rights of reproduction and disclosure reserved. This document contains information on a product under development. SAGEM reserves the right to change or discontinue this product without notice. &RQFOXVLRQRUVXPPDU\ : This document gives an overview of the CO230 module: a miniature, single-side, BGA board, quad-band GSM/GPRS module, ready for integration in mobile application like vehicle-mounted or vending machines ... It describes the main functionalities of this module as well as the electrical interfaces, the mechanical specification (dimension, form...) and the electrical specification of the module. +$5':$5(  &2VSHFLILFDWLRQ )RUPRELOHDSSOLFDWLRQV  Ref. : SCT TMO MASV3 SPEC 30 Rev : I 02/11/04 Ref. Sec. : 2x xxx xxx – x  Réf. : SCT TMO MASV3 SPEC 30 Rev. : H Réf. sec. : 2x xxx xxx – x Date : 14/09/04 Document . All rights of reproduction and disclosure reserved. Page 1 This document contains information on a product under development. SAGEM reserves the right to change or discontinue this product without notice. &2 *60*35648$'%$1'%&(02'8/( )2502%,/($33/,&$7,216  Réf. : SCT TMO MASV3 SPEC 30 Rev. : H Réf. sec. : 2x xxx xxx – x Date : 14/09/04 Document . All rights of reproduction and disclosure reserved. Page 2 This document contains information on a product under development. SAGEM reserves the right to change or discontinue this product without notice. &+$1*(+,6725< 5HY 'DWH5HDVRQIRUFKDQJH A 12/07/03 First document B 15/07/03 LCD addressable, electrical specification, vibrating device interface description, LED interface, audio interface, keyboard interface modification, melody chip interface description, Blue tooth interface description C 07/10/03 Pinout modification, electrical specification, LED and backlight capability D 14/11/03 Pinout Modification, LCD and Keyboard Backlight suppression E 27/01/04 Charge precision, VBAT limitation, OEMEM* signal F 06/04/04 End of preliminary specification G 07/05/04 Power consumption H I 14/09/04 02/11/04 Pull up / Pull down, certification clarifications certification clarifications  7$%/(2)&217(176   6&23(  ,QWURGXFWLRQ  5HIHUHQFH  6WDQGDUGVFRPSOLDQFH  FRPSOLDQFHZLWKIFFJXLGHOLQHV  7HUPVDQGDEEUHYLDWLRQ  3URGXFWIHDWXUHV  %/2&',$*5$0  )81&7,21$/'(6&5,37,21  6,0  $XGLR  'LVSOD\ 3.3.1 Serial interface ........................................................................................................................... 13 3.3.2 Parallel interface to LCD ............................................................................................................ 14  'DWD 3.4.1 Data services.............................................................................................................................. 15 3.4.2 IrDA ............................................................................................................................................ 15 3.4.3 UART 2....................................................................................................................................... 15 3.4.4 V24 ............................................................................................................................................. 15 3.4.5 USB ............................................................................................................................................ 16  $QWHQQD  .H\SDG  9LGHRVHQVRU…

Text truncated - open the document above for the full version.

Application: M9H95V3 Prediction of MPE limit at given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S = PG / 4 π R 2 where: S = Power density P = Power input to the antenna G = Antenna gain R = Distance to the center of radiation of the antenna Solving this equation for G G = S (4 π R 2 ) / P The table below is excerpted from Table 1B of 47 CFR 1.1310 titled “Limits for Maximum Permissible Exposure (MPE), Limits for General Population/Uncontrolled Exposure” Frequency Range (MHz) Power Density (mW/cm 2 ) Averaging Time (minutes) 300 -1500 f/1500 30 1500 - 100000 1.0 30 where f = Frequency (MHz) Based on the above table the limits are for Part 24 device: 1 mW/cm 2 Part 22 device: 0.567 mW/cm 2 Prediction for Part 24: P Max power input to the antenna: 30.0 dBm / 1000 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 1 mW/cm 2 G Antenna gain: 5.0256 numerical G Antenna gain: 7.01 dBi Prediction for Part 22: P Max power input to the antenna: 32.8 dBm / 1905.5 mW R Distance: 20 cm S MPE limit for uncontrolled exposure: 0.567 mW/cm 2 G Antenna gain: 1.4957 numerical G Antenna gain: 1.75 dBi This prediction demonstrates the following: The antenna gain where the limit would be reached at 20 cm distance is 7.01 dBi for Part 24 and 1.75 dBi for Part 22.

CETECOM ICT Services GmbH Radio Satellite Communication Untertürkheimer Straße 6-10 . D-66117 Saarbrücken Telefon: +49 (0)681 598-0 Telefax: - 9075 Test report No.: 4-1220-12-05/04-2 This test report consists of 96 pages Page 1 (96) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth™ Test Facility (BQTF) Test report no.: 4-1220-12-05/04 - 2 Applicant: Sagem S.A. Type MASV3-16 FCC Part 24 / 22 / 15 FCC ID: M9H95V3 CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 2 (96) Table of Contents 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of applicant 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test report CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 3 (96) 1 General information 1.1 Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. 1.2 Testing laboratory CETECOM ICT Services GmbH Untertürkheimer Straße 6 - 10 66117 Saarbrücken Germany Telephone : + 49 681 598 - 9100 Telefax : + 49 681 598 - 9075 E-mail : [email protected] Internet : www.cetecom-ict.de Accredited testing laboratory The test laboratory (area of testing) is accredited according to DIN EN ISO/IEC 17025. DAR registration number: TTI-P-G-081/94-D0 Listed by : Federal Communications Commission (FCC) Identification/Registration No : 90462 Accredited Bluetooth TM Test Facility (BQTF) BLUETOOTH TM is a trademark owned by Bluetooth SIG, Inc. and licensed to CETECOM 1.3 Details of applicant Name : Sagem SA Street : 2-4, rue du Petit Albi City : 95800 Cergy Saint – Christophe Country : France Telephone : + 33 1 34 25 37 37 Telefax : + 33 1 34 25 74 16 Contact : Jean Marquet Telephone : + 33 1 34 25 37 37 e-mail : [email protected] 1.4 Application details Date of test : 2004-10-27 to 2004-10-28 CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 4 (96) 1.5 Test item Type of equipment : GSM / PCS Module GSM850/900/1800/1900 Type designation : MASV3-16 Manufacturer : applicant Street : City : Country : Serial numbers : Additional information : Frequency : 1850.2 – 1909.8 MHz and 824.2 – 848.8 MHz Type of modulation : 300KGXW Number of channels : 300 (PCS1900) and 125 (PCS850) Antenna : Car roof top antenna Power supply (normal) : 3,8 V DC Power supply (extreme) : 3.4 V to 4.4 V Output power GSM 850 : conducted: 32.8 dBm Peak, ERP: 26.3 dBm (Burst); Output power GSM 1900 : conducted 30.0 dBm Peak, EIRP: 30.5 dBm (Burst) Type of equipment : Temperature range : -30°C - +60°C FCC – ID : M9H95V3 Hardware : V641x Software : K 3, RA Test set up IMEI: 352865.95.990378.02 (conducted measurements) IMEI: 352865.95.990361.01 (radiated measurements) 1.6 Test standards: FCC Part 24, 22 FCC Part 15 CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 5 (96) 2 Technical test For Part 24/22 we use the substitution method ( TIA/EIA 603). All measurements in this report are done in GSM mode. Device is able to transmit data in GPRS mode also. But because the current measurements are performed in PEAK mode no other results from GPRS mode are possible. The only different is the modulation average power, which is 3 dB higher (by using 2 timeslots in the Up-link ). Remarks: No deviations from the technical specification(s) were ascertained in the course of the tests performed. FINAL VERDICT: PASS Technical responsibility for area of testing : 2004-10-28 RSC 8431 Gillmann Date Section Name Signature Technical responsibility for area of testing : 2004-10-28 RSC 8412 Hausknecht D. Date Section Name Signature CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 6 (96) TEST REPORT REFERENCE LIST OF MEASUREMENTS PARAMETER TO BE MEASURED PAGE PART PCS 1900 POWER OUTPUT SUBCLAUSE § 24.232 7 FREQUENCY STABILITY SUBCLAUSE § 24.235 10 AFC FREQ ERROR VS. VOLTAGE 11 AFC FREQ ERROR VS. TEMPERATURE 11 EMISSIONS LIMITS SUBCLAUSE §24.238 13 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.109 24 CONDUCTED SPURIOUS EMISSIONS 28 BLOCK EDGE COMPLIANCE FOR BLOCK A AND C 37 OCCUPIED BANDWIDTH SUBCLAUSE §2.989 39 CONDUCTED EMISSIONS SUBCLAUSE § 15.107/207 48 PART PCS 850 POWER OUTPUT SUBCLAUSE § 22.913 46 FREQUENCY STABILITY SUBCLAUSE § 22.355 49 AFC FREQ ERROR VS. VOLTAGE 63 AFC FREQ ERROR VS. TEMPERATURE 64 EMISSIONS LIMITS SUBCLAUSE §22.917 52 RECEIVER SPURIOUS RADIATION SUBCLAUSE § 15.109 63 CONDUCTED SPURIOUS EMISSIONS 67 BLOCK EDGE REQUIREMENTS 76 OCCUPIED BANDWIDTH SUBCLAUSE §2.989 78 EMISSION LIMITATIONS FOR CELLULAR SUBCLAUSE §22.917(F) 84 RADIATED EMISSIONS SUBCLAUSE § 15.209 101 ADDITIONAL MEASUREMENT WITH ACCORIESES ACC. SUCLAUSE § 15.205 85 TEST EQUIPMENT AND ANCILLARIES USED FOR TESTS 107 TEST SITE AND PHOTOS OF EQUIPMENT 109 CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 7 (96) REFERENCE NUMBER(S) OF TEST EQUIPMENT USED (for reference numbers see test equipment listing) 64 PART PCS 1900 POWER OUTPUT SUBCLAUSE § 24.232 Summary: This paragraph contains both average , peak output powers and EIRP measurements for the mobile station. In all cases, the peak output power is within the required mask (this ma…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 89 (96) CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 90 (96) Test platform CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 91 (96) Test platform CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 95 (96) CETECOM ICT Services GmbH Test report No..: 4-1220-12-05/04-2 Date: 2004.10.28 Page 96 (96)
