M9HA5SCPE2GSM Dual Band Phone

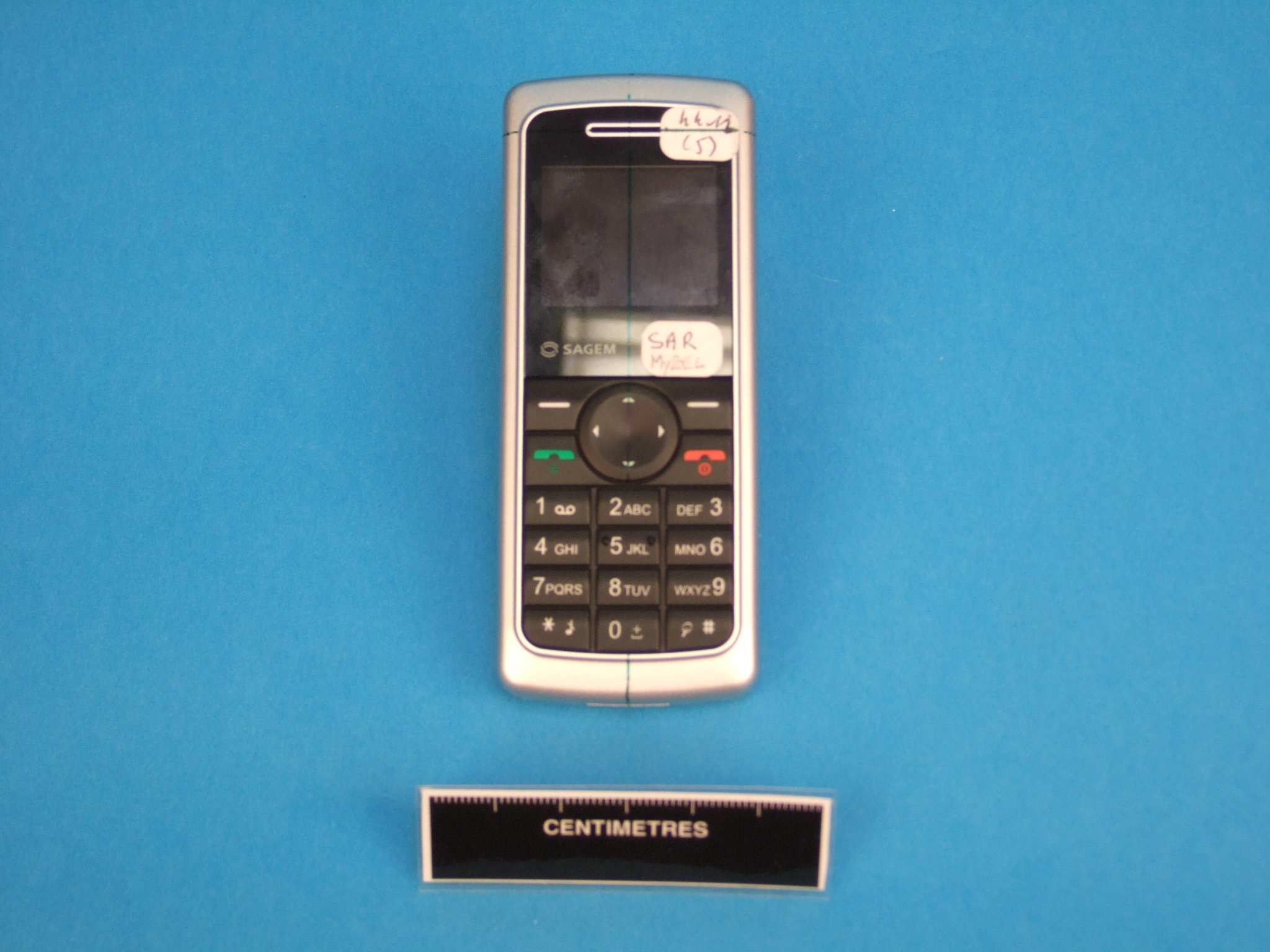

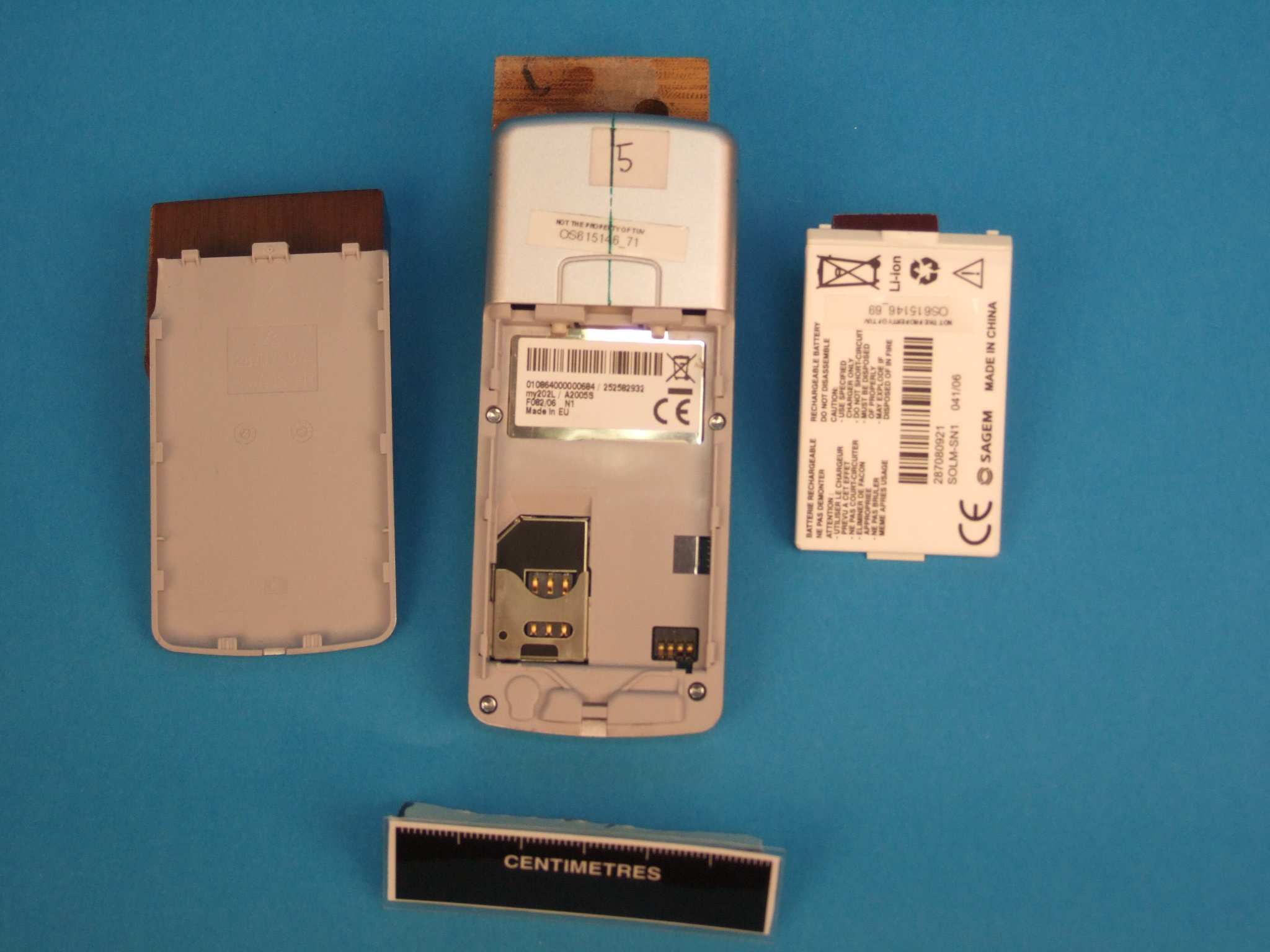

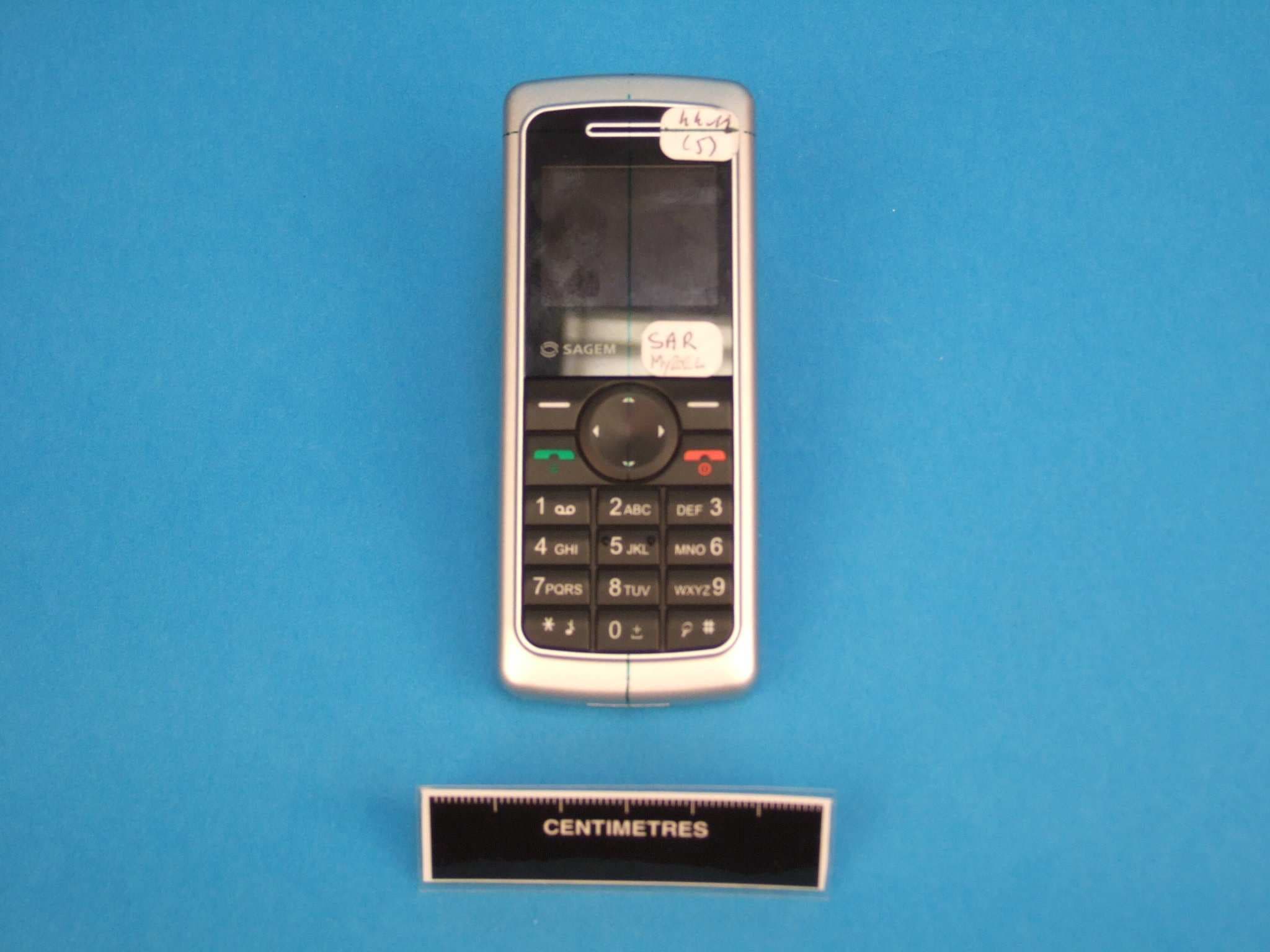

FCC ID: M9HA5SCPE2 Page 1 of 3 PHOTOGRAPHS OF EQUIPMENT FOR SAGEM A2005sca+ PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ - Front View FCC ID: M9HA5SCPE2 Page 2 of 3 PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Rear View FCC ID: M9HA5SCPE2 Page 3 of 3 PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Rear View (Battery removed)

SAGEM A2005sca+ - Label Information FCC ID: M9HA5SCPE2 1: Label Information 2: Label Position

FCC ID: M9HA5SCPE2 Page 1 of 5 PHOTOGRAPHS OF EQUIPMENT FOR SAGEM A2005sca+ INTERNAL PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Rear View (Cover Removed) FCC ID: M9HA5SCPE2 Page 2 of 5 INTERNAL PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ - Rear PCB View 1 FCC ID: M9HA5SCPE2 Page 3 of 5 INTERNAL PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ - Rear PCB (Can Removed) FCC ID: M9HA5SCPE2 Page 4 of 5 INTERNAL PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ - Rear PCB FCC ID: M9HA5SCPE2 Page 5 of 5 INTERNAL PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ - Inside Casing

REPORT ON Specific Absorption Rate Testing of the Sagem A2005sca+ (‘my202L’) GSM Dual Band Mobile Handset FCC ID: M9HA5SCPE2 Hardware Version: V0x Software Version: J 3, U4 Report No WS615146/01 Issue 2 June 2006 Competence. Certainty. Quality. TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report Number WS615146/01 Issue 2 Page 1 of 48 REPORT ON: Specific Absorption Rate Testing of the Sagem A2005sca+ (‘my202L’) GSM Dual Band Mobile Handset FCC ID: M9HA5SCPE2 Report No: WS615146/01 Issue 2 PREPARED FOR: SAGEM Communication (SAFRAN Group) 2, rue du Petit Albi - BP 28250 95801 Cergy pontoise Cedex France SAGEM CONTACT: Mr Jean Marquet Telephone: +33 1 58 11 91 72 ATTESTATION: The wireless portable device described within this report has been shown to be capable of compliance for localised specific absorption rate (SAR) for OET Bulletin 65 (Edition 97-01) of 1.6 W/kg. The measurements shown in this report were made in accordance with the procedures specified in OET Bulletin 65 (Edition 97-01) for SAR assessment.. All reported testing was carried out on a sample of equipment to demonstrate compliance with the above standards. The sample tested was found to comply with the requirements in the applied rules. V. Kerai SAR Test Engineer APPROVED BY: M Jenkins Authorised Signatory DATED: 29 th June 2006 Note: The test results reported herein relate only to the item tested as identified above and on the Status Page. FCC ID: M9HA5SCPE2 Report Number WS615146/01 Issue 2 Page 2 of 48 CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .............................................................................................................................. 4 1.2 Summary .......................................................................................................................... 5 1.3 Test Results Summary ..................................................................................................... 6 1.4 Radiated Output Power Measurements ........................................................................... 8 2 TEST DETAILS 2.1 SAR Measurement System ............................................................................................ 10 2.1.1 Robot System Specification 2.1.2 Probe and Amplifier Specification 2.1.3 SAR Measurement Procedure 2.2 Test Positions ................................................................................................................. 15 2.3 SAR Distributions (Area Scans – 2D)............................................................................. 16 3 TEST EQUIPMENT USED 3.1 Table of Test Equipment Used ...................................................................................... 37 3.2 Test Software ................................................................................................................. 38 3.3 Dielectric Properties of Simulant Liquids........................................................................ 39 3.4 Test Conditions............................................................................................................... 40 3.5 Measurement Uncertainty .............................................................................................. 41 4 PHOTOGRAPHS 4.1 Test Positional Photographs .......................................................................................... 43 4.2 Photographs of Test Samples... ..................................................................................... 45 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1 Accreditation, Disclaimers and Copyright....................................................................... 48 ANNEX A Probe Calibration Information........................................................................................ A.2 FCC ID: M9HA5SCPE2 Report Number WS615146/01 Issue 2 Page 3 of 48 SECTION 1 REPORT SUMMARY Specific Absorption Rate Testing of the Sagem A2005sca+ (‘my202L’) GSM Dual Band Mobile Handset Max 1g SAR (W/kg) 1.247 The maximum 1g volume averaged SAR level measured for all the tests performed did not exceed the limits for General Population/Uncontrolled Exposure (W/kg) Partial Body of 1.6 W/kg. Level defined in Supplement C (Edition 01-01) to OET Bulletin 65 (97-01). FCC ID: M9HA5SCPE2 Report Number WS615146/01 Issue 2 Page 4 of 48 1.1 STATUS MANUFACTURING DESCRIPTION GSM Dual Band Mobile Handset STATUS OF TEST Specific Absorption Rate Testing APPLICANT Sagem POWER CLASS GSM 850 Class 4 GSM 1900 Class 1 GRPS CLASS B GPRS MULTI-SLOT CLASS 8 (4Dn;1Up;Sum5) MANUFACTURER Sagem TYPE OR MODEL NUMBER Sagem A2005sca+ (‘my202L’) HARDWARE VERSION V0x SOFTWARE VERSION J 3, U4 SERIAL NUMBER 010864000000684 BATTERY MANUFACTURER Sagem MODEL NUMBER US383450 A7T(Type: Li-ion 3.7V / 780mAh) TEST SPECIFICATIONS: 1. FCC Publication Supplement C (Edition 01-01) to OET Bulletin 65 (Edition 97-01): Evaluating Compliance with FCC Guidelines for Human Exposure to Radiofrequency Electromagnetic Fields – Additional Information for evaluating Compliance of Mobile and Portable Devices with FCC Limits for Human Exposure to Radiofrequency Emissions REFERENCES: 2. IEEE 1528 – 2003: Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques BABT REGISTRATION NUMBER: WS615146 RECEIPT OF TEST SAMPLES: 24 th April 2006 START OF TEST: 24 th April 2006 FINISH OF TEST: 25 th April 2006 FCC ID: M9HA5SCPE2 Report Number WS615146/01 Issue 2 Page 5 of 48 1.2 SUMMARY The Sagem A2005sca+ (‘my202L’) handset supplied for Specific Absorption Rate (SAR) testing is a Dual Band GSM Mobile Handset with GPRS functionality. The testing was performed with batteries supplied and manufactured by Sagem. Each battery was fully charged before each measurement and there were no external connections.…

Text truncated - open the document above for the full version.

REPORT ON Limited FCC CFR 47: Parts 15, 22 and 24 and Industry Canada RSS-132 and 133 Testing of a SAGEM Communication A2005sca+ Dual Band GSM850 / GSM1900 handset COMMERCIAL-IN-CONFIDENCE FCC ID: M9HA5SCPE2 Report No OR615146/01 Issue 4 June 2006 Competence. Certainty. Quality COMMERCIAL-IN-CONFIDENCE TUV Product Service Ltd, Octagon House, Concorde Way, Segensworth North, Fareham, Hampshire, United Kingdom, PO15 5RL Tel: +44 (0) 1489 558100. Website: www.tuvps.co.uk ; www.babt.com Report Number OR615146/01 Issue 4 Page 1 of 111 COMMERCIAL-IN-CONFIDENCE REPORT ON Limited FCC CFR 47: Parts 15, 22 and 24 and Industry Canada RSS-132 and 133 Testing of a SAGEM Communication A2005sca+ Dual Band GSM850 / GSM1900 handset Report No OR615146/01 Issue 4 FCC ID: M9HA5SCPE2 June 2006 PREPARED FOR SAGEM Communication 2, rue du Petit Albi BP 28250 95801 Cergy Pontoise Cedex France PREPARED BY J Plummer Technical Author APPROVED BY K Adsetts M Jenkins Authorised Signatory Authorised Signatory DATED 29 th June 2006 This report has been Up-issued to Issue 4 due to typographical errors. ENGINEERING STATEMENT The measurements shown in this report were made in accordance with the procedures described on test pages. All reported testing was carried out on a sample equipment to demonstrate limited compliance with FCC CFR 47: Parts 15, 22 and 24. The sample tested was found to comply with the requirements defined in the applied rules. Test Engineers; S Bennett T Guy P Harrison S Hartley FCC ID: M9HA5SCPE2 COMMERCIAL-IN-CONFIDENCE Report Number OR615146/01 Issue 4 Page 2 of 111 COMMERCIAL-IN-CONFIDENCE CONTENTS Section Page No 1 REPORT SUMMARY 1.1 Status .................................................................................................................................. 4 1.2 Introduction.......................................................................................................................... 5 1.3 Brief Summary of Results ................................................................................................... 7 1.4 Product Information............................................................................................................. 11 1.5 Test Conditions ................................................................................................................... 13 1.6 Deviations from the Standard............................................................................................. 13 1.7 Modification Record ............................................................................................................ 13 1.8 Alternative Test Site ............................................................................................................ 13 2 TEST DETAILS FCC Part 15 B, Industry Canada RSS-132 and RSS-133 2.1 Spurious Radiated Emissions (Enclosure Port).................................................................. 15 2.2 Conducted Emissions ......................................................................................................... 24 FCC Part 22 and Industry Canada RSS-132 2.3 Effective Radiated Power (Conducted)............................................................................... 37 2.4 Effective Radiated Power (Radiated).................................................................................. 38 2.5 Modulation Characteristics.................................................................................................. 39 2.6 Occupied Bandwidth ........................................................................................................... 44 2.7 Spurious Emissions At Antenna Terminals (+/- 1MHz)...................................................... 46 2.8 Radiated Spurious Emissions ............................................................................................. 49 2.9 Conducted Spurious Emissions .......................................................................................... 52 2.10 Frequency Stability Under Temperature Variations............................................................ 60 2.11 Frequency Stability Under Voltage Variations .................................................................... 62 FCC Part 24 and Industry Canada RSS-133 2.12 Maximum Peak Output Power (Radiated) .......................................................................... 64 2.13 Maximum Peak Output Power (Conducted) ....................................................................... 65 2.14 Modulation Characteristics.................................................................................................. 66 2.15 Occupied Bandwidth ........................................................................................................... 71 2.16 Spurious Emissions At Antenna Terminals (+/- 1MHz)...................................................... 73 2.17 Radiated Spurious Emissions ............................................................................................. 77 2.18 Conducted Spurious Emissions .......................................................................................... 80 2.19 Frequency Stability Under Temperature Variations............................................................ 90 2.20 Frequency Stability Under Voltage Variations .................................................................... 92 3 TEST EQUIPMENT 3.1 Test Equipment ................................................................................................................... 94 3.2 Measurement Uncertainty ................................................................................................... 96 4 PHOTOGRAPHS 4.1 Photographs of Equipment Under Test (EUT).................................................................... 98 5 ACCREDITATION, DISCLAIMERS AND COPYRIGHT 5.1 Accreditation, Disclaimers and Copyright ........................................................................... 111 FCC ID: M9HA5SCPE2 COMMERCIAL-IN-CONFI…

Text truncated - open the document above for the full version.

FCC ID: M9HA5SCPE2 Page 1 of 3 PHOTOGRAPHS OF TEST SET UP FOR SAGEM A2005sca+ PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Test Set Up Photo 1 FCC ID: M9HA5SCPE2 Page 2 of 3 PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Test Set Up Photo 2 FCC ID: M9HA5SCPE2 Page 3 of 3 PHOTOGRAPHS OF EQUIPMENT Sagem A2005sca+ – Test Set Up Photo 3
