M9HA6CAE6PGSM 850/1900 Mobile Phone

ENGLISH 252897461_my212L_en.book Page 1 Mercredi, 14. mars 2007 9:25 09 252897461_my212L_en.book Page 2 Mercredi, 14. mars 2007 9:25 09 3 You have just purchased a SAGEM phone. We congratulate you! In order to use your phone efficiently and safely, we recommend that you read this handbook carefully. Your phone can be used internationally in the various networks ((GSM 850 MHz and PCS 1900 MHz) depending on the roaming arrangements with your operator. Some services described in this guide may not be available from the network or when roaming, or may require a specific subscription. Remember to back up your data and programs frequently, and before sending the mobile phone for repair. This phone, like any other wireless phone, operates using radio signals and networks. Connection in all locations and conditions cannot be guaranteed. Therefore you should never rely solely on any wireless phone for essential communications (for example, medical emergencies). In some jurisdictions it may be unlawful to take a picture without notice to or the consent of all participants. WARNING Depending on the model, network configuration and associated subscription cards, certain functions may not be available. Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card. In order to display the IMEI on your phone's screen, type: *#06#. SAGEM is a trademark of Sagem Communication SAFRAN Group. T9® Text Input is a trademark of ©Tegic Communications Inc. The WAP navigator and some message softwares (i-mode™) are under licence Openwave. The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares. 252897461_my212L_en.book Page 3 Mercredi, 14. mars 2007 9:25 09 4Contents Contents Description............................................................................. 7 Installing the SIM card and the battery .................................... 10 Idle screen............................................................................ 11 Quick start............................................................................ 12 Information on the SIM card..................................................... 12 Getting started ......................................................................... 13 Switching ON/OFF ...................................................................13 Network....................................................................................14 First call....................................................................................14 Receiving a call........................................................................ 15 Using your phone ................................................................ 16 Improving antenna performance ..............................................16 Increase the battery life of your phone..................................... 16 Charging the battery ................................................................ 16 Phonebook ........................................................................... 18 Using the phonebook ............................................................... 18 Storing a new contact .............................................................. 18 Calling a contact ...................................................................... 19 Contact options ........................................................................ 19 Mailing lists .............................................................................. 20 Messages ............................................................................. 21 Compose SMS......................................................................... 21 Saving the message ................................................................ 23 Sending the message .............................................................. 23 Receiving messages ................................................................ 24 Messages menu....................................................................... 24 Multimedia............................................................................ 27 Pictures ....................................................................................27 Sounds..................................................................................... 28 252897461_my212L_en.book Page 4 Mercredi, 14. mars 2007 9:25 09 Contents5 WAP.......................................................................................29 The WAP Menu ....................................................................... 29 WAP Logging on...................................................................... 30 Downloading objects................................................................ 30 WAP Logging off...................................................................... 30 GPRS ...................................................................................... 30 Games ...................................................................................31 Applications .........................................................................32 Calendar .................................................................................. 32 Alarm ....................................................................................... 32 Timer........................................................................................ 32 Calculator................................................................................. 32 ToDo ........................................................................................ 33 Services ................................................................................... 34 Calendar.........................…

Text truncated - open the document above for the full version.

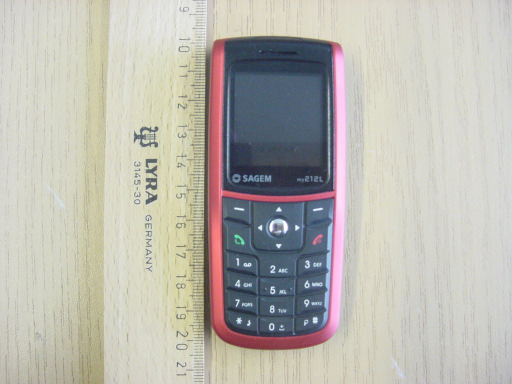

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 41 of 48 7 Annex C: External Photographs of the Equipment Photo 1: Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 42 of 48 Photo 3

Sagem Communication Centre de Saint Christophe - DTM TELEPHONIE MOBILE MOBILE PHONES Date :15/01/2007 Document SAGEM Communication Reproduction et divulgation interdites 1/1

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 43 of 48 8 Annex D: Internal Photographs of the Equipment Photo 1: Photo 2 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 44 of 48 Photo 3 Photo 4 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 45 of 48 Photo 5 Photo 6 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 46 of 48 Photo 7 Photo 8 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 47 of 48 Photo 9 Photo 10 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 48 of 48 Photo 11

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2007-03-01 Page 1 of 38 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to test report 4-2380-07-03/07 Calibration data, Phantom certificate and detail information of the DASY4 System CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 2 of 38 Table of Content 1 Calibration report “Probe ET3DV6” .................................................................................................................................... 3 2 Calibration report “900 MHz System validation dipole” ................................................................................................... 12 3 Calibration report “1900 MHz System validation dipole” ................................................................................................. 21 4 Calibration certificate of Data Aquisition Unit (DAE) ...................................................................................................... 30 5 Certificate of “SAM Twin Phantom V4.0/V4.0C” ........................................................................................................... 31 6 Application Note System Performance Check ................................................................................................................... 33 2007-03-01 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 3 of 38 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 4 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 5 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 6 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 7 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 8 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 9 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 10 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 11 of 38

CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 12 of 38 2 Calibration report “900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 13 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 14 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 15 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 16 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 17 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 18 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 19 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 20 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 21 of 38 3 Calibration report “1900 MHz System validation dipole” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 22 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 23 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 24 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 25 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 26 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 27 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 28 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 29 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 30 of 38 4 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 31 of 38 5 Certificate of “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 32 of 38 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 33 of 38 6 Application Note System Performance Check 6.1.1.1 Purpose of system performance check The system performance check verifies that the system operates within its specifica-tions. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many param-eters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the at section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possible to calculate the field quite accurately in this simple setup; however, due to the open field situation some factors (e.g., laboratory re ections) cannot be accounted for. Calibrations in the at phantom are possible with transfer calibration methods, using either temperature probes or calibrated E-field probes. The system performance check also does not test the system performance for arbitrary field sit-uations encountered during real measurements of mobile phones. These checks are performed at SPEAG by testing the components under various conditions (e.g., spherical isotropy measurements in liquid, linearity measurements, temperature variations, etc.), the results of which are used for an error estimation of the system. The system performance check will indicate situations where the system uncertainty is exceeded due to drift or failure. 6.1.1.2 System Performance check procedure Preparation The conductivity should be measured before the validation and the measured liquid parameters must be entered in the software. If the measured values differ from targeted values in the dipole document, the liquid composition should be adjusted. If the validation is performed with slightly different (measured) liquid parameters, the expected SAR will also be different. See the application note about SAR sensit…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2007-03-01 Page 1 of 62 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Test report no. : 4-2380-07-03/07 Type identification : A2006ca+ E6 Test specification : IEEE P1528/D1.2 FCC-ID : M9HA6CAE6P CETECOM ICT Services GmbH Test report no.: 4-2380-07-03/07 As of 2007-03-01 Page 2 of 62 Table of Contents 1 General Information............................................................................................................................................................... 3 1.1 Notes ............................................................................................................................................................................... 3 1.1.1 Statement of Compliance ....................................................................................................................................... 3 1.2 Testing laboratory............................................................................................................................................................ 4 1.3 Details of applicant.......................................................................................................................................................... 4 1.4 Application details........................................................................................................................................................... 4 1.5 Test item .......................................................................................................................................................................... 5 1.6 Test specification(s) ........................................................................................................................................................ 6 1.6.1 RF exposure limits ................................................................................................................................................. 6 2 Technical test ......................................................................................................................................................................... 7 2.1 Summary of test results ................................................................................................................................................... 7 2.2 Test environment ............................................................................................................................................................. 7 2.3 Measurement and test set-up ........................................................................................................................................... 7 2.4 Measurement system ....................................................................................................................................................... 8 2.4.1 System Description ................................................................................................................................................ 8 2.4.2 Test environment ................................................................................................................................................... 9 2.4.3 Probe description ................................................................................................................................................... 9 2.4.4 Phantom description ............................................................................................................................................ 10 2.4.5 Device holder description .................................................................................................................................... 10 2.4.6 Scanning procedure.............................................................................................................................................. 11 2.4.7 Spatial Peak SAR Evaluation............................................................................................................................... 12 2.4.8 Data Storage and Evaluation................................................................................................................................ 13 2.4.9 Test equipment utilized........................................................................................................................................ 15 2.4.10 Tissue simulating liquids: dielectric properties.................................................................................................... 16 2.4.11 Tissue simulating liquids: parameters.................................................................................................................. 17 2.4.12 Measurement uncertainty evaluation for SAR test .............................................................................................. 18 2.4.13 Measurement uncertainty evaluation for system validation................................................................................. 19 2.4.14 System validation................................................................................................................................................. 20 2.4.15 Validation procedure............................................................................................................................................ 21 2.5 Test results (Head and Body SAR)................................................................................................................................ 22 2.5.1 General description of test procedures................................................................................................................. 23 2.6 Test results (conducted power measurement)................................................................................................................ 24 …

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 4-2380-07-05/07 Date: 2007-02-21 Page 1 of 63 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: IC 3463A-1 TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report No. : 4-2380-07-05/07 Applicant : Sagem Communication Type : A2006ca+ E6 Test Standard : FCC Part 22, 24 RSS-132, -133 FCC ID : M9HA6CAE6P The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Cetecom ICT is under license CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report No.: 4-2380-07-05/07 Date: 2007-02-21 Page 2 of 63 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 2.1.2 GSM 850 ....................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 22 3.1.5 Conducted Spurious Emissions ................................................................................................................... 25 3.1.6 Block Edge Compliance .............................................................................................................................. 30 3.1.7 Occupied Bandwidth................................................................................................................................... 32 3.2 PART GSM 850 .................................................................................................................................................. 36 3.2.1 RF Power Output ........................................................................................................................................ 36 3.2.2 Frequency Stability..................................................................................................................................... 39 3.2.3 Radiated Emissions..................................................................................................................................... 42 3.2.4 Receiver Radiated Emissions ...................................................................................................................... 49 3.2.5 Conducted Spurious Emissions ................................................................................................................... 52 3.2.6 Block Edge Compliance .............................................................................................................................. 55 3.2.7 Occupied Bandwidth................................................................................................................................... 57 4 USED TESTEQUIPMENT ................................................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 38 of 48 6 Annex B: Photographs of Test site Photo 1 (Radiated Emissions): Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 39 of 48 Photo 3 (Radiated Emissions): Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-2380-07-05/07 Date: 2007-02-02 Page 40 of 48 Photo 5 (Conducted Emissions):
