M9HE2006LMobile phone

ENGLISH 25xxxxxx_my500X_my501X_FCC_en.book Page 1 Vendredi, 23. juin 2006 9:19 09 25xxxxxx_my500X_my501X_FCC_en.book Page 2 Vendredi, 23. juin 2006 9:19 09 3 You have just purchased a SAGEM phone. We congratulate you! In order to use your phone efficiently and safely, we recommend that you read this handbook carefully.Your phone can be used internationally in the various networks (GSM 900 MHz, DCS 1800 MHz or PCS 1900 MHz) depending on the roaming arrangements with your operator.Some services described in this guide may not be available from the network or when roaming, or may require a specific subscription.Remember to back up your data and programs frequently, and before sending the mobile phone for repair.This phone, like any other wireless phone, operates using radio signals and networks. Connection in all locations and conditions cannot be guaranteed. Therefore you should never rely solely on any wireless phone for essential communications (for example, medical emergencies).In some jurisdictions it may be unlawful to take a picture without notice to or the consent of all participants.WARNINGDepending on the model, network configuration and associated subscription cards, certain functions may not be available.Ensure that your SIM card is a 3 V SIM type that is compat ible with your phone. Inserting an incompatible card will be indicated by a message when your phone is switched on. Contact your operator.Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card . In order to display the IMEI on your phone's screen, type: *#06#.SAGEM™ is a trademark of Sagem Communication SAFRAN Group.T9™ Text Input is a trademark of ©Tegic Communications Inc.Java™ and all Java™ based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the U.S. and other countries.The WAP navigator and some message softwares (i-mode) are under licence Openwave.The WAP navigator and the softwares included are the exclusive property of Openwave. For this reason, it is forbidden to modify, translate, disassemble or even decompile all or part of these softwares.The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.microSD™ is a trade mark of SD Card Association. 25xxxxxx_my500X_my501X_FCC_en.book Page 3 Vendredi, 23. juin 2006 9:19 09 4 Contents ContentsDescription .................................................. 6 Installing the SIM card and the battery ........... 8Inserting the memory card .............................. 9 Idle screen ................................................. 10Quick start ................................................. 11 Information on the SIM card ......................... 11Getting started .............................................. 11Switching ON/OFF ........................................ 12Network......................................................... 12First call ........................................................ 13Receiving a call............................................. 13 Using your phone...................................... 14 Improving antenna performance................... 14Increase the battery life of your phone ......... 14Charging the battery ..................................... 15 Phonebook................................................. 16 Using the phonebook.................................... 16Storing a new contact ................................... 16Calling a contact ........................................... 16Contact options ............................................. 17Mailing lists ................................................... 18 Messages ................................................... 19 Compose SMS.............................................. 19Saving the message ..................................... 20Sending the message ................................... 20Receiving messages..................................... 21Messages menu ........................................... 21 Camera ....................................................... 24 Taking and saving a photo............................ 24 Video........................................................... 26 Taking a video .............................................. 26 Multimedia.................................................. 27Music Player .............................................. 28 Creating a playlist ......................................... 28Playing your music ....................................... 28 WAP ............................................................ 29 The WAP Menu ............................................ 29WAP Logging on........................................... 29Downloading objects .................................... 29WAP Logging off........................................... 30GPRS ........................................................... 30 Games ........................................................ 31Applications............................................... 32 Applications .................................................. 32Alarm ............................................................ 32Timer ............................................................ 32Calculator ..................................................... 32ToDo............................................................. 33Services........................................................ 33 Calendar ..................................................... 34 Calendar menu ............................................. 34 Settings ...................................................... 35 Phone settings.............................................. 35Display.......................................................... 36Calls.............................................................. 38Networks.........................…

Text truncated - open the document above for the full version.

SAGEM Communication - SA au capital de 300 272 00 Tél : +33 1 40 70 63 63 Siège Social : 27, rue Leblanc – 75512 PARIS Cedex 15 – France Fax : +33 1 40 70 66 40 www.sagem.com     (WDEOLVVHPHQWGH5 '6DLQW&KULVWRSKH 2, rue du Petit Albi BP 28250 Cergy Saint-Christophe 95801 CERGY PONTOISE CEDEX France Tél. : +33 1 58 11 90 90 Fax : +33 1 30 73 16 60 &21),'(17,$/,7<5(48(67  Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 -XQH 72:+20,70$<&21&(51 Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, 6$*(0&RPPXQLFDWLRQ requests confidentiality for the following products: FCC ID Number Product Title/Model 0+(( 0+(/(/ For the product stated above, we request that the following information be held confidential: 6FKHPDWLFV%ORFN'LDJUDP/D\RXWV2SHUDWLRQ'HVFULSWLRQDQG7XQH8S,QIR The above exhibits contain 6$*(0&RPPXQLFDWLRQ trade secrets and proprietary information that could be of benefit to our competitors regarding the design of our mobile handset. This material is not customarily available to the general public and we request that it be withheld from public inspection. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Christophe CIGLIC Company: SAGEM Communication Address: 2, rue du Petit Albi, BP8250 Phone: +33 1 58 11 93 95 Email: [email protected]

Dear Konerig: Below please find our SAR engineer’s answer to your question. If there is any question, please feel free to let me known. Thanks Best Regards, Miles Xu ********************************************************************************** Wireless Communications Laboratory SGS-CSTC Standards Technical Services Co., Ltd. Tel: + 86 (0)21 6140 2689 Fax: + 86 (0)21 5450 0149 Email: [email protected] Website: www.cn.sgs.com 3 please consider the environment before printing this email From: Xue, Peter (Shanghai) Sent: 2006年6月30日 10:46 To: Xu, Miles (Shanghai) Cc: Yuan, Zhiang (Shanghai); Xie, Alpha (Shanghai); Ni, Will (Shanghai); Ruan, Roger (Shanghai) Subject: RE: FCC Application for Sagem Communication - FCC ID: M9HE2006 Dear Miles, There is just one timeslot transmission for GSM mode, and 2 timeslots transmission for GPRS Class 10. But the output power for one GSM timeslot is higher than one GPRS timeslot. The output power for multi-slot GPRS mode is equal to or just a little higher than GSM mode, in order to achieve power control. For example, the output power should not exceed 33dBm+/-3dB for GSM900 Power Class4 at PCL5, and same limit for GPRS900 Power Class4 at PCL5. By our experience, the SAR value for multi-slot GPRS is a little higher than GSM mode usually. But sometimes, the SAR value of multi-slot GPRS and GSM are almost same, even a little small. Please refer to the enclosed screen capture for GSM output power and GPRS multi-slot output power on CMU200. Regards Peter Xue From: Xu, Miles (Shanghai) Sent: Friday, June 30, 2006 8:54 AM To: Xue, Peter (Shanghai); Ni, Will (Shanghai); Ruan, Roger (Shanghai) Cc: Yuan, Zhiang (Shanghai); Xie, Alpha (Shanghai) Subject: FW: FCC Application for Sagem Communication - FCC ID: M9HE2006 Dear Will and Peter; Please help in the EMCC questions. Best Regards, Miles Xu ********************************************************************************** Wireless Communications Laboratory SGS-CSTC Standards Technical Services Co., Ltd. Tel: + 86 (0)21 6140 2689 Fax: + 86 (0)21 5450 0149 Email: [email protected] Website: www.cn.sgs.com 3 please consider the environment before printing this email From: Klaus Knoerig [mailto:[email protected]] Sent: 2006年6月30日 0:19 To: Xu, Miles (Shanghai) Subject: FCC Application for Sagem Communication - FCC ID: M9HE2006 Dear Miles I have one comment regarding the SAR report for this project. The measured SAR values for GPRS in body-worn configuration are almost the same as in GSM mode. But what I expect is an increase of SAR values by a factor of 2. GPRS Class 10 uses 2 time slots for uplink. So theoretically the average power would be twice as high as for normal GSM mode and also the SAR values should increase by a factor of 2. Can you please explain? Maybe testing was performed at the wrong distance? Or maybe the device was not in GPRS mode while testing? Please check! Best regards, Klaus Knoerig

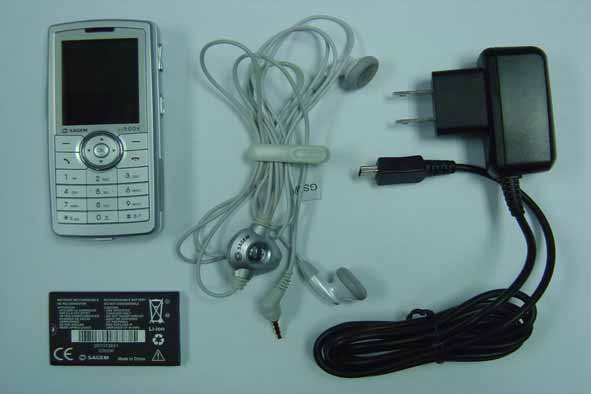

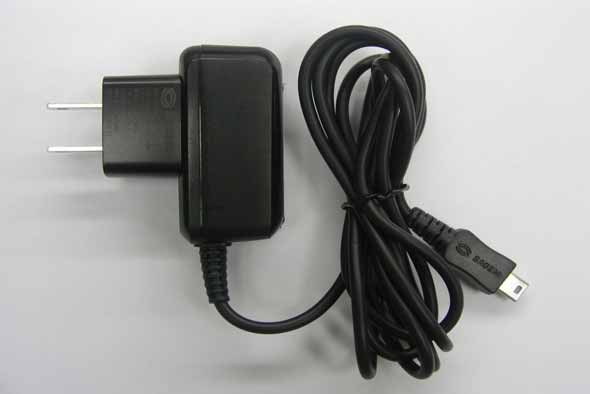

Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 54 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw All View of EUT Adaptor- SN Number: 189195229 Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 55 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Earphone (18916164-5) Battery (287073851) Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 56 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Front View of EUT Back View of EUT Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 57 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Right View of EUT Left View of EUT Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 58 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Top View of EUT Bottom View of EUT

General Tolerances & /A ou B; ; ; Sizes : 0,1mm 2870xxxxx E2006L IMEI LABEL PRINT DECO SPEC A01 06-04-25 MAO LINGZHI06-04-25 4 000 00x xxx R46 000 01 1 / 1 - A David Bersoult A B 3.4 SCALE 1:1 13.4 359999000000011

 352-(&7 '2&80(17 NBBSE RD E2006l PROJ 06-078A FOLIO: 5 / 9 (O DATE: 2006-07-26 JV BIRD/SAGEM Document - Do not copy or reproduce without authorisation Page 5 / 9 /$%(/326,7,211,1*

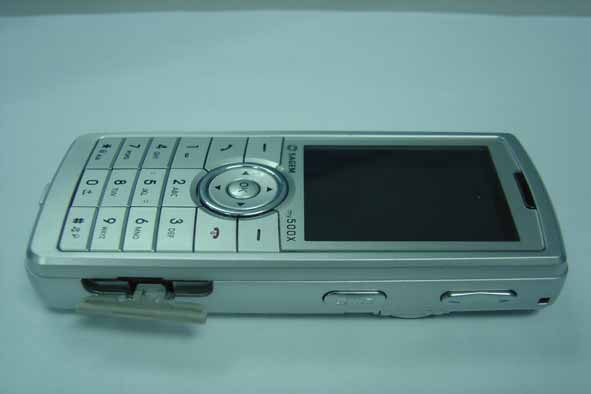

Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 59 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT – 1 Open View of EUT – 2 Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 60 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Open View of EUT – 3 Open View of EUT – 4 Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 61 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT-1 Internal of EUT-2 Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 62 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Internal of EUT-3 Internal of EUT-4

Order No: SHGLO060400064GSM-2 Date: May. 31, 2006 Page: 1 of 66 SAR TEST REPORT Eequipment Under Test : GSM900&DCS1800&PCS1900MHz MOBILE PHONE Model No. : E2006L FCC ID M9HE2006L Applicant : SAGEM Communication Address of Applicant : 2,rue du Petit Albi BP 28250 95801 CERGY PONTOISE Cedex Date of Receipt : 2006.05.12 Date of Test : 2006.05.17– 2006.05.29 Date of Issue : 2006.05.31 Standards: FCC OET Bulletin 65 supplement C, ANSI/IEEE C95.1, C95.3, IEEE 1528-2002 In the configuration tested, the EUT complied with the standards specified above. Remarks: This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS-CSTC Shanghai GSM Lab or testing done by SGS-CSTC Shanghai GSM Lab must approve SGS Shanghai GSM Lab in connection with distribution or use of the product described in this report in writing. Tested by : Date : 2006.05.31 Approved by : Date : 2006.05.31 Order No: SHGLO060400064GSM-2 Date: May. 31, 2006 Page: 2 of 66 Contents 1. General Information........................................................................4 1.1 Test Laboratory..........................................................................................................4 1.2 Details of Applicant...................................................................................................4 1.3 Description of EUT(s)................................................................................................4 1.4 Test Environment......................................................................................................5 1.5 Operation Configuration...........................................................................................5 1.6 The SAR Measurement System................................................................................5 1.7 SAR System Verification...........................................................................................7 1.8 Tissue Simulant Fluid for the Frequency Band 1900MHZ......................................8 1.9 Test Standards and Limits........................................................................................8 2. Summary of Results......................................................................10 3. Instruments List............................................................................12 4. Measurements...............................................................................13 4.1 FCC-OET65-LeftHandSide-Cheek-PCS1900-Low..................................................13 LeftHandSide-Cheek-PCS1900-Low.......................................................................................13 4.2 FCC-OET65-LeftHandSide-Cheek-PCS1900-Mid...................................................15 LeftHandSide-Cheek-PCS1900-Mid.......................................................................................15 4.3 FCC-OET65-LeftHandSide-Cheek-PCS1900-High.................................................16 LeftHandSide-Cheek-PCS1900-High......................................................................................17 4.4 FCC-OET65-LeftHandSide-Tilt-PCS1900-Low.......................................................18 LeftHandSide-Tilt-PCS1900-Low...........................................................................................19 4.5 FCC-OET65-LeftHandSide-Tilt-PCS1900-Mid........................................................20 LeftHandSide-Tilt-PCS1900-Mid............................................................................................21 4.6 FCC-OET65-LeftHandSide-Tilt-PCS1900-High......................................................22 LeftHandSide-Tilt-PCS1900-High..........................................................................................23 4.7 FCC-OET65-RightHandSide-Cheek-PCS1900-Low...............................................24 RightHandSide-Cheek-PCS1900-Low....................................................................................25 4.8 FCC-OET65-RightHandSide-Cheek-PCS1900-Mid................................................26 RightHandSide-Cheek-PCS1900-Mid.....................................................................................27 4.9 FCC-OET65-RightHandSide-Cheek-PCS1900-High..............................................28 RightHandSide-Cheek-PCS1900-High....................................................................................29 4.10 FCC-OET65-RightHandSide-Tilt-PCS1900-Low..................................................30 Order No: SHGLO060400064GSM-2 Date: May. 31, 2006 Page: 3 of 66 RightHandSide-Tilt-PCS1900-Low.........................................................................................31 4.11 FCC-OET65-RightHandSide-Tilt-PCS1900-Mid....................................................32 RightHandSide-Tilt-PCS1900-Mid.........................................................................................33 4.12 FCC-OET65-RightHandSide-Tilt-PCS1900-High..................................................34 RightHandSide-Tilt-PCS1900-High........................................................................................35 4.13 FCC-OET65-Body-Worn-PCS1900-GSM-Low......................................................36 Body-Worn-PCS1900-Headset-Low........................................................................................37 4.14 FCC-OET65-Body-Worn-PCS1900-GSM-Mid.......................................................38 Body-Worn-PCS1900-Headset-Mid...........................................................…

Text truncated - open the document above for the full version.

Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 1 of 62 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw ELECTROMAGNETIC EMISSIONS COMPLIANCE REPORT INTENTIONAL RADIATOR CERTIFICATION TO FCC PART 24 SUBPART E REQUIREMENT OF Product Name: Triband 900/1800/1900 handset Brand Name: SAGEM Model Name: E2006L Market Name: N/A FCC ID: M9HE2006L Report No.: EH/2006/40006-01 Issue Date: May. 15, 2006 Rule Part: 2 & 24E Prepared for Sagem Communication 2, rue du Petit Albi, 95800 Cergy Saint-Christophe, France Prepared by SGS Taiwan Ltd. No. 134, Wu Kun g Rd., Wuku Industrial Zone, Taipei County, Taiwan. Note: This report shall not be reproduced except in full, without the written approval of SGS Taiwan Ltd. This document may be altered or revised by SGS Taiwan Ltd. personnel only, and shall be noted in the revision section of the document. Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 2 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw VERIFICATION OF COMPLIANCE Applicant: Sagem Communication 2, rue du Petit Albi, 95800 Cergy Saint-Christophe, France Equipment Under Test: Triband 900/1800/1900 handset FCC ID Number: M9HE2006L Brand Name: SAGEM Market Name: N/A Model No.: E2006L Model Difference: N/A File Number: EH/2006/40006-01 Date of test: Apr. 29, 2006 ~ May. 12, 2006 Date of EUT Received: Apr. 28, 2006 We hereby certify that: The above equipment was tested by SGS Taiwan Ltd. The test data, data evaluation, test proce- dures, and equipment configurations shown in this report were made in accordance with the procedures given in TIA/EIA-603-1-1998 and the energy emitted by the sample EUT tested as described in this report is in compliance with conducted and radiated emission limits of FCC PART 24 subpart E. The test results of this report relate only to the tested sample identified in this report. Test By: Date May. 15, 2006 Sky Wang Prepared By: Date May. 15, 2006 Cathy Kuo Approved By Date May. 15, 2006 Vincent Su Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 3 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Version Version No. Date 00 May. 15, 2006 Report No.: EH/2006/40006-01 FCC ID: M9HE2006L Issue Date: May. 15, 2006 Page: 4 This Test Report is issued by the Company subject to its General Conditions of Service printed overleaf. Attention is drawn to the limitations of liability, indemnification, and Jurisdictional issued defined therein. The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced, except in full, without prior written permission of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this report is unlawful and offenders may be prosecuted to the fullest extent of the law.列 說不 更 SGS Taiwan Ltd. No. 134, Wu Kung Rd., Wuku Industrial Zone, Taipei Country, Taiwan. / 北路134 t (886-2) 2299-3939 f (886-2) 2298-2698 www.sgs.com.tw Table of Contents 1. GENERAL INFORMATION ...................................................................................................... 6 1.1 Product Description ............…

Text truncated - open the document above for the full version.
