M9HMU2005PGSM 900/1800/1900 and UMTS Mobile Phone with BT

ENGLISH FCC LU_myW-7_FCC_en.book Page 1 Lu ndi, 7. novembre 2005 10:11 10 You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions.Your phone can be used internationally in the various networks (UMTS, GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz) depending on the roaming arrangements with your operator.We remind you that this phone is approved to meet European standards.Technical featuresWeight: 119 gSize: 112 x 46 x 20 mmOriginal battery: Li-ion 1100 mAhMultimedia objects supported: Audio formats : iMelody, Midi, wave, MP3, AAC, AMR Graphic formats: wbmp, bmp, png, gif, gif animés, jpeg, 3gp, mpeg4 depending on model Size of memory available for messages: 100 SMS Size of memory available for MMS, the phonenook and the multimedia objects: up to 6 MbMaximum size of each message: SMS: < 160 charactersMMS: the phone supports MMS sizes up to 300 Kb both for outgoing and incoming messages ( depending on the phone configuration and on the operator reservations ) Using temperature: from - 10 °C to + 55 °C LU_myW-7_FCC_en.book Page 2 Lu ndi, 7. novembre 2005 10:11 10 FCC Conformance Document 3 FCC Conformance DocumentFCC Part 24, FCC Part 22, FCC Part 15FCC Part 15.247Network NAPRD03.ver 3.2.1 Health Draft IEEE Std 1528-200x LU_myW-7_FCC_en.book Page 3 Lu ndi, 7. novembre 2005 10:11 10 4 Safety Information for Wireless handled phones Safety Information for Wireless handled phonesUse of your phone is subject to safety rules designed to protect the user and his or her environment.Exposure to Radio Frequency Signals- Your wireless handheld portable phone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out frequency (RF) signals. - In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992) (*) NCPR Report 86 (1986) (*) ICNIRP (1996) (*). - Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universit ies, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). - The design of your phone complies with the FCC guidelines (and those standards). - For body worn operation, this phone has been tested and m eets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Phone Operation- Normal position: hold the phone as you would any other phone with the upper zone (back of the LCD display) pointed up and over your shoulder. - Tips on efficient operation: for your phone to operate most efficiently: do not touch cover unnecessarily the top part of the phone with your hand. This would cover the integrated antenna and affect call quality and may cause the phone to operate at a higher power level than otherwise needed. Driving- Check the laws and regulations on the use of wireless phones in the areas where you drive. Always obey them. Also, if using your phone while driving while driving please:• Give full attention of driving, driving safely is your first responsibility • Use hands-free operation, if available • Pull off the road and park before making or answering a call if driving conditions so require. (*) American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission and Non-Ionizing Radiation Protection. LU_myW-7_FCC_en.book Page 4 Lu ndi, 7. novembre 2005 10:11 10 Safety Information for Wireless handled phones 5 Electronic Devices- Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. - Some phone accessories allow to reduce the radiation interferences of the phone. Please contact your distributor. PacemakersThe Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:- Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON - Should not carry the phone in the breast pocket - Should use the ear opposite to the pacemaker to minimize the potential for interference - If you have any reason to suspect that interference is taking place, turn your phone OFF immediately. Hearing AidsSome digital wireless phones may interfere with some hearing aids . In the event of such interference, you may want to consult your service provider.Other Medical DevicesIf you use any other personal medical device, consult the m anufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obtaining this information.Turn your phone OFF in health care facilities when any regulations posted in these areas instruct you to do so.Hospitals or health care facilities may be using equipment that could be sensitive to sensitive external RF energy.VehiclesRF signals may affect improperly installed or inadequately shielded electronic systems in motor vehicles. Check with the manufacturer or its representative regarding your vehicle. Y ou should also consult the manufacturer of any equipment that has been added to your vehicle.Posted FacilitiesTurn your phone OFF in any facility where posted notices so require.AircraftFCC re…

Text truncated - open the document above for the full version.

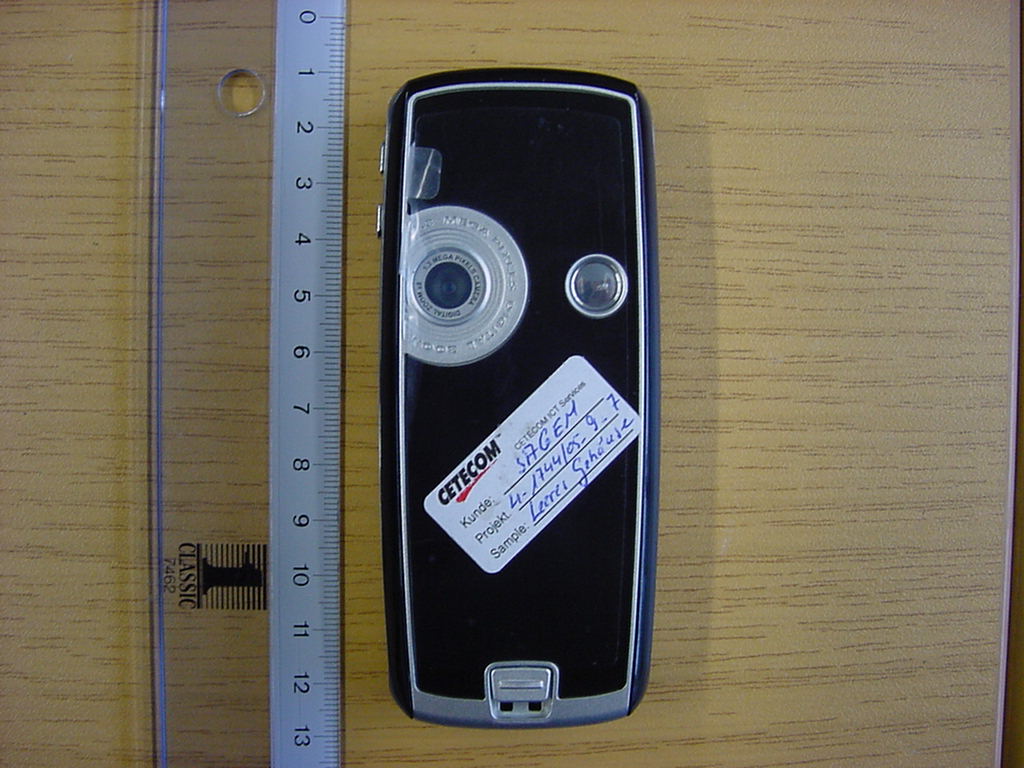

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1744-09-07/05 Date: 2005-10-21 Page 38 of 39 7 Annex C: External Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1744-09-07/05 Date: 2005-10-21 Page 39 of 39 Photo No.: 02

Sagem Communication Centre de Saint Christophe - DTM TELEPHONIE MOBILE MOBILE PHONES Date : 10/10/2005 DocumentSAGEM Communication Reproduction et divulgation interdites7/21 Photos 2.1.1.1 External Photos MU2005Lesly (MyV-85) MU2005Polly (MyW-7) 2.1.1.2 Without Housing

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 44 of 51 8 Annex D: Internal Photographs of the Equipment Photo 1: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 45 of 51 Photo 2: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 46 of 51 Photo 3: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 47 of 51 Photo 4: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 48 of 51 Photo 5: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 49 of 51 Photo 6: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 50 of 51 Photo 7: CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1567-22-12/05 Date: 2005-10-14 Page 51 of 51 Photo 8:

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-10-14 Page 1 of 29 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to test report 4-1744-09-04/05-C Calibration data, Phantom certificate and detail information of the DASY4 System CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 2 of 29 Table of Content 1 Calibration report “Probe ET3DV6” .................................................................................................................................... 3 2 Calibration report “1900 MHz System validation dipole .................................................................................................. 12 3 Calibration certificate of Data Aquisition Unit (DAE) ...................................................................................................... 21 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” ........................................................................................................... 22 5 Application Note System Performance Check ................................................................................................................... 24 2005-10-14 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 3 of 29 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 4 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 5 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 6 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 7 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 8 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 9 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 10 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 11 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 12 of 29 2 Calibration report “1900 MHz System validation dipole CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 13 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 14 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 15 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 16 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 17 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 18 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 19 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 20 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 21 of 29 3 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 22 of 29 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 23 of 29 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1744-09-04/05-C As of 2005-10-14 Page 24 of 29 5 Application Note System Performance Check 5.1.1.1 Purpose of system performance check The system performance check verifies that the system operates within its specifica-tions. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many param-eters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the at section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replac…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-10- Page 1 of 64 Accredited testing laboratory DAR registration number: DAT-P-176/94-D1 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 4-1744-09-04/05-C Type identification : MU2005 Polly Test specification : IEEE P1528/D1.2 FCC-ID : M9HMU2005P Test specification : CETECOM ICT Services GmbH Test report no.: 4-1744-09-04/05-C As of 2005-10- Page 2 of 64 Table of Contents 1 General Information............................................................................................................................................................... 3 1.1 Notes ............................................................................................................................................................................... 3 1.1.1 Statement of Compliance ....................................................................................................................................... 3 1.2 Testing laboratory............................................................................................................................................................ 4 1.3 Details of applicant.......................................................................................................................................................... 4 1.4 Application details........................................................................................................................................................... 4 1.5 Test item .......................................................................................................................................................................... 5 1.6 Test specification(s) ........................................................................................................................................................ 6 1.6.1 RF exposure limits ................................................................................................................................................. 6 2 Technical test ......................................................................................................................................................................... 7 2.1 Summary of test results ................................................................................................................................................... 7 2.2 Test environment ............................................................................................................................................................. 7 2.3 Measurement and test set-up ........................................................................................................................................... 7 2.4 Measurement system ....................................................................................................................................................... 8 2.4.1 System Description ................................................................................................................................................ 8 2.4.2 Test environment ................................................................................................................................................... 9 2.4.3 Probe description ................................................................................................................................................... 9 2.4.4 Phantom description ............................................................................................................................................ 10 2.4.5 Device holder description .................................................................................................................................... 10 2.4.6 Scanning procedure.............................................................................................................................................. 11 2.4.7 Spatial Peak SAR Evaluation............................................................................................................................... 12 2.4.8 Data Storage and Evaluation................................................................................................................................ 13 2.4.9 Test equipment utilized........................................................................................................................................ 15 2.4.10 Tissue simulating liquids: dielectric properties.................................................................................................... 16 2.4.11 Tissue simulating liquids: parameters.................................................................................................................. 17 2.4.12 Measurement uncertainty evaluation for SAR test .............................................................................................. 18 2.4.13 Measurement uncertainty evaluation for system validation................................................................................. 19 2.4.14 System validation................................................................................................................................................. 20 2.4.15 Validation procedure............................................................................................................................................ 21 2.5 Test results (Head and Body SAR)................................................................................................................................ 22 2.5.1 Description of test procedures ............................................................................................................................. 22 2.6 Test results (conducted power measurement).........…

Text truncated - open the document above for the full version.

s Ref.: Fehler! Verweisquelle konnte nicht gefunden werden. Fehler! Verweisquelle konnte nicht gefunden werden. Rev.: Fehler! Verweisquelle konnte nicht gefunden werden. Ref. sec. : Date: 22/09/2005 This document and the information contained are Sagem Communication property and shall not be copied or disclosed to any third party without Sagem Communication prior written authorization Please verify the valid document in the official documentation system Page 1/3 1. LAYOUT AND SCHEMATICS Regarding the layout, STmicroelectronics has helped SAGEM to have the more suitable layout to optimize RF performances of this function. s Ref.: Fehler! Verweisquelle konnte nicht gefunden werden. Fehler! Verweisquelle konnte nicht gefunden werden. Rev.: Fehler! Verweisquelle konnte nicht gefunden werden. Ref. sec. : Date: 22/09/2005 This document and the information contained are Sagem Communication property and shall not be copied or disclosed to any third party without Sagem Communication prior written authorization Please verify the valid document in the official documentation system Page 3/3 2. BILL OF MATERIAL QuantityDesignationLocation 1STLC2500A V757CAZ2400 1Inductor CMS 0402 39nH 5%L2400 1Capacitor CMS 0402 22pF 5%C2410 1Capacitor 1nF 50VC2409 9Capacitor 220nF C2400, C2401, C2402, C2403, C2404, C2405, C2406, C2407, C2408 1DC regulatorMA205 1Capacitor 1uF 6,3VC232 1Capacitor 10nF 16VC233 1Capcaitor 4,7uF 6,3VC234 Following elements are unfitted out: QuantityDesignationLocation 1Inductor CMS 0402 2,7nH 5%L2401 1Inductor CMS 0402 8,2nH 5%L2402

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1744-09-10/05 Date: 2005-10-20 Page 1 of 56 \\ut55\4_PROJEKTE\05\1744_9\Task10(BLU)\4-1744-09-10_05 Polly FCC.doc Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number DAT-P-176/94-D1 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 4-1744-09-10/05 Applicant : Sagem Communication Type : MU2005 Polly Test Standard : FCC Part 15.247 RSS210 FCC ID : M9HMU2005P Certification No. IC : CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1744-09-10/05 Date: 2005-10-20 Page 2 of 56 Table of contents 1. ADMINISTRATIVE DATA ...................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.1.2 Organizational items..................................................................................................................................... 3 1.1.3 Applicant ́s details ........................................................................................................................................ 4 1.2 ADMINISTRATIVE DATA OF MANUFACTURER / MEMBER........................................................................................ 4 1.3 DESCRIPTION OF THE EQUIPMENT UNDER TEST (EUT) .......................................................................................... 5 1.3.1 EUT: Type, S/N etc. ...................................................................................................................................... 5 1.3.2 If RF component testing only, describtion of additional used HW/SW ......................................................... 5 1.3.3 Additional EUT information for IC Canada (appendix 2) ............................................................................ 6 1.3.4 EUT operating modes ................................................................................................................................... 7 1.3.5 Extreme conditions testing values................................................................................................................. 7 2. TESTSTANDARD & SUMMARY LIST OF ALL PERFORMED TEST CASES .............................................. 8 3. RF MEASUREMENT TESTING ............................................................................................................................. 9 3.1 DESCRIPTION OF TEST SET-UP................................................................................................................................9 3.1.1 Radiated measurements ................................................................................................................................ 9 3.1.2 Conducted measurements ............................................................................................................................. 9 3.2 REFERENCED DOCUMENTS................................................................................................................................... 10 3.3 ADDITIONAL COMMENTS..................................................................................................................................... 10 3.4 ANTENNA GAIN................................................................................................................................................... 10 3.5 CARRIER FREQUENCY SEPARATION §15.247(A)(1) .............................................................................................. 11 3.6 NUMBER OF HOPPING CHANNELS §15.247(A)(1).................................................................................................. 12 3.7 TIME OF OCCUPANCY (DWELL TIME) §15.247(A)(1)(III)...................................................................................... 14 3.8 POWER SPECTRAL DENSITY (HYBRID SYSTEM IN INQUIRY MODE/PAGE SCAN) §15.247(E) ................................. 15 3.9 SPECTRUM BANDWIDTH OF A FHSS SYSTEM / 20DB BANDWITH §15.247(A)(1)................................................. 16 3.10 MAXIMUM OUTPUT POWER (CONDUCTED) § 15.247 (B) (1) ................................................................................. 19 3.11 MAX. PEAK OUTPUT POWER (RADIATED) § 15.247 (B) (1).................................................................................... 22 3.12 BAND-EDGE COMPLIANCE OF CONDUCTED EMISSIONS §15.247 (D) ..................................................................... 23 3.13 BAND-EDGE COMPLIANCE OF RADIATED EMISSIONS §15.205 .............................................................................. 26 3.14 SPURIOUS EMISSIONS - CONDUCTED (TRANSMITTER) § 15.247 (C) (1) ............................................................... 29 3.15 SPURIOUS EMISSIONS > 30 MHZ- RADIATED (TRANSMITTER) § 15.247 (C) (1) ................................................... 32 3.16 SPURIOUS EMISSIONS - RADIATED (RECEIVER) § 15.109 ..................................................................................... 37 3.17 SPURIOUS EMISSIONS < 30 MHZ - TRANSMITTER RADIATED § 15.209 ................................................................ 39 3.17 SPURIOUS EMISSIONS < 30 MHZ - TRANSMITTER RADIATED § 15.209 ................................................................ 39 3.18 CONDUCTED E…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1744-09-07/05 Date: 2005-10-21 Page 26 of 39 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1744-09-07/05 Date: 2005-10-21 Page 27 of 39 Photo No.: 04
