M9HMYV76GSM 900/1800/1900 Mobile Phone with Bluetooth

English FCC User Guide 252184335_myV-76_FCC_en.book Page 1 Mardi, 18. octobre 2005 11:19 11 2You have just purchased a SAGEM phone, we congratulate you; it is recommended that you read this handbook carefully in order to use your phone efficiently and in the best conditions.Your phone can be used internationally in the various networks (GSM 900 MHz and DCS 1800 MHz or PCS 1900 MHz) depending on the roaming arrangements with your operator.We remind you that this phone is approved to meet European standards.WARNINGDepending on the model, network configuration and associated subscription cards, certain functions may not be available.Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicate d by a message when your phone is switched on. Contact your operator.Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card . In order to display the IMEI on your phone's screen, type: *#06#.Technical featuresWeight: 104 gSize: 110 x 47 x 19 mmOriginal battery: Li-ion 920 mAhMultimedia objects supported: Audio formats : iMelody, Midi, wave, AAC, AAC+ AMR, MP3, M4A Graphic formats: wbmp, bmp, png, gif, gif animés, jpeg, .3gp Size of memory available for messages: 100 SMS Size of memory available for MMS, the phonenook and the multimedia objects: up to 8 MbMaximum size of each message: SMS: < 160 charactersMMS: < 100 Kb for outgoing messagezs, 300 Kb for incoming messages ( depends on the phone configuration and on Vodafone reservations ) Using temperature: from - 10 °C to + 55 °C 252184335_myV-76_FCC_en.book Page 2 Mardi, 18. octobre 2005 11:19 11 FCC Conformance Document 3 FCC Conformance DocumentFCC Part 24, FCC Part 22, FCC Part 15FCC Part 15.247Network NAPRD03.ver 3.2.1 Health Draft IEEE Std 1528-200x 252184335_myV-76_FCC_en.book Page 3 Mardi, 18. octobre 2005 11:19 11 4 Safety Information for Wireless handled phones Safety Information for Wireless handled phonesUse of your phone is subject to safety rules designed to protect the user and his or her environment.Exposure to Radio Frequency Signals- Your wireless handheld portable phone is a low power radio transmitter and receiver. When it is ON, it receives and also sends out frequency (RF) signals. - In August, 1996, the Federal Communications Commissions (FCC) adopted RF exposure guidelines with safety levels for handheld wireless phones. Those guidelines are consistent with the safety standards previously set by both U.S. and international standards bodies: ANSI C95.1 (1992) (*) NCPR Report 86 (1986) (*) ICNIRP (1996) (*). - Those standards were based on comprehensive and periodic evaluations of the relevant scientific literature. For example, over 120 scientists, engineers, and physicians from universit ies, government health agencies, and industry reviewed the available body of research to develop the ANSI Standard (C95.1). - The design of your phone complies with the FCC guidelines (and those standards). - For body worn operation, this phone has been tested and m eets FCC RF exposure guidelines when used with an accessory that contains no metal and that positions the handset a minimum of 1.5 cm from the body. Use of other accessories may not ensure compliance with FCC RF exposure guidelines. Phone Operation- Normal position: hold the phone as you would any other phone with the upper zone (back of the LCD display) pointed up and over your shoulder. - Tips on efficient operation: for your phone to operate most efficiently: do not touch cover unnecessarily the top part of the phone with your hand. This would cover the integrated antenna and affect call quality and may cause the phone to operate at a higher power level than otherwise needed. Driving- Check the laws and regulations on the use of wireless phones in the areas where you drive. Always obey them. Also, if using your phone while driving while driving please:• Give full attention of driving, driving safely is your first responsibility • Use hands-free operation, if available • Pull off the road and park before making or answering a call if driving conditions so require. (*) American National Standards Institute; National Council on Radiation Protection and Measurements; International Commission and Non-Ionizing Radiation Protection. 252184335_myV-76_FCC_en.book Page 4 Mardi, 18. octobre 2005 11:19 11 Safety Information for Wireless handled phones 5 Electronic Devices- Most modern electronic equipment is shielded from RF signals. However, certain electronic equipment may not be shielded against the RF signals from your wireless phone. - Some phone accessories allow to reduce the radiation interferences of the phone. Please contact your distributor. PacemakersThe Health Industry Manufacturers Association recommends that a minimum separation of six (6”) inches be maintained between a handheld wireless phone and a pacemaker to avoid potential interference with the pacemaker. These recommendations are consistent with the independent research by and recommendations of Wireless Technology Research. Persons with pacemakers:- Should ALWAYS keep the phone more than six inches from their pacemaker when the phone is turned ON - Should not carry the phone in the breast pocket - Should use the ear opposite to the pacemaker to minimize the potential for interference - If you have any reason to suspect that interference is taking place, turn your phone OFF immediately. Hearing AidsSome digital wireless phones may interfere with some hearing aids . In the event of such interference, you may want to consult your service provider.Other Medical DevicesIf you use any other personal medical device, consult the m anufacturer of your device to determine if they are adequately shielded from external RF energy. Your physician may be able to assist you in obt…

Text truncated - open the document above for the full version.

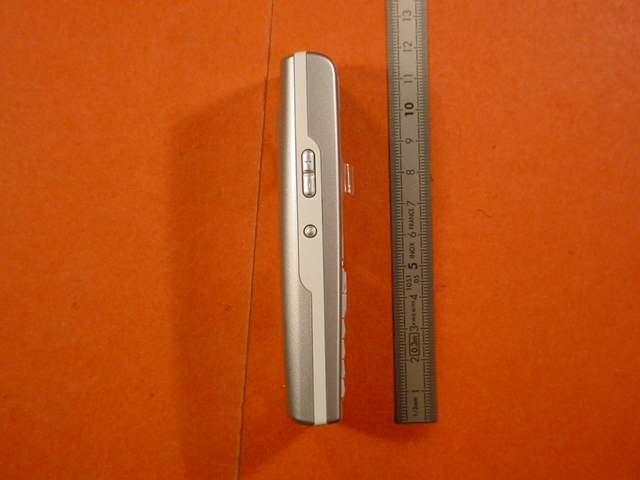

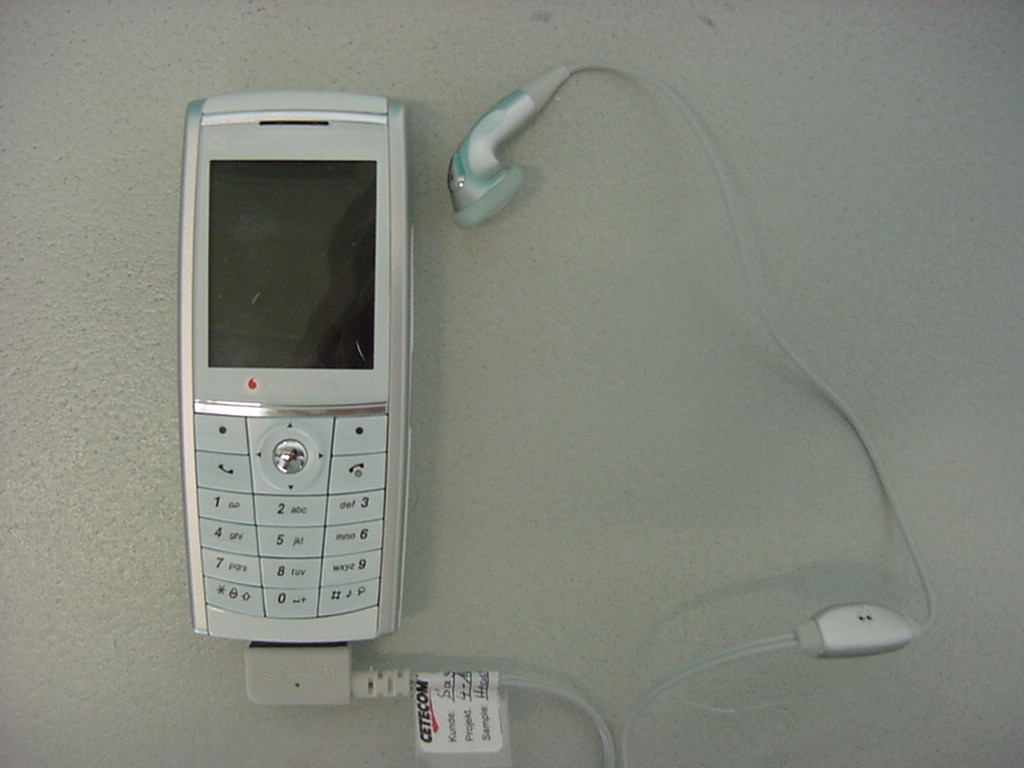

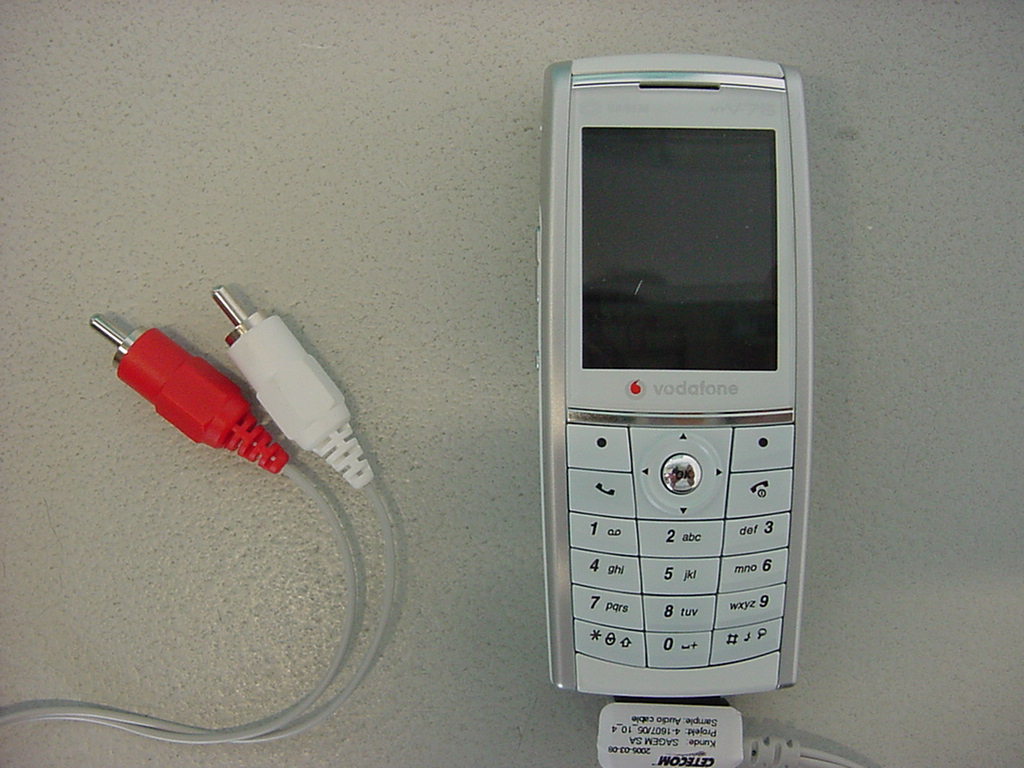

CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 36 of 62 Picture no. 2 DUT - front view CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 37 of 62 Picture no. 3 DUT - side view CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 38 of 62 Picture no. 4 DUT - side view CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 39 of 62 Picture no. 5 DUT - rear view CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 40 of 62 Picture no. 6 DUT - rear view - open CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 12 of 69 Test set – up No.: 03 * Mobile M2005 DK (myV-76) * Adaptor DA2-3102WR-S1 (US) CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 15 of 69 Test set – up No.: 06 * Mobile M2005 DK (myV-76) * Headset EM-SG529G 15KV CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 16 of 69 Test set – up No.: 07 * Mobile M2005 DK (myV-76) * Headset EM-SG627ST CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 17 of 69 Test set – up No.: 08 * Mobile M2005 DK (myV-76) * Cigar Light Adap. CLA4-3102-1784 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 18 of 69 Test set – up No.: 09 * Mobile M2005 DK (myV-76) * USBCable 115k CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 19 of 69 Test set – up No.: 10 * Mobile M2005 DK (myV-76) * USBCable 12M CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 20 of 69 Test set – up No.: 11 * Mobile M2005 DK (myV-76) * Audi Cable AC-GS 107

Made in EU SIM 3V 251192234/FCC ID:M9HMYV-76 330000000000000 myV-76 Made in EU SIM 3V 251192234/FCC ID:M9HMYV-76 330000000000000 myV-76 ECHELLE 2

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 61 of 69 7 Annex D: Internal Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 62 of 69 Photo No.: 02 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 63 of 69 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 64 of 69 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 65 of 69 Photo No.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 66 of 69 Photo No.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 67 of 69 Photo No.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 68 of 69 Photo No.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 69 of 69 Photo No.: 09

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-04-12 Page 1 of 28 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to test report 4-1607-10-03/05-C Calibration data, Phantom certificate and detail information of the DASY4 System CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 2 of 28 Table of Content 1 Calibration report “Probe ET3DV6” .................................................................................................................................... 3 2 Calibration report “1900 MHz System validation dipole .................................................................................................. 11 3 Calibration certificate of Data Aquisition Unit (DAE) ...................................................................................................... 20 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” ........................................................................................................... 21 5 Application Note System Performance Check ................................................................................................................... 23 2005-04-12 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 3 of 28 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 4 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 5 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 6 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 7 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 8 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 9 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 10 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 11 of 28 2 Calibration report “1900 MHz System validation dipole CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 12 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 13 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 14 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 15 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 16 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 17 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 18 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 19 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 20 of 28 3 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 21 of 28 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 22 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 23 of 28 5 Application Note System Performance Check 5.1.1.1 Purpose of system performance check The system performance check verifies that the system operates within its specifica-tions. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many param-eters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the at section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possi…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-04-12 Page 1 of 62 Accredited testing laboratory DAR registration number: TTI-P-G 081/94-D0 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 < Test report no. : 4-1607-10-03/05-C Type identification : M2005 DK Test specification : IEEE P1528/D1.2 FCC-ID : M9HMYV76 Test specification : CETECOM ICT Services GmbH Test report no.: 4-1607-10-03/05-C As of 2005-04-12 Page 2 of 62 Table of Contents 1General Information............................................................................................................................................................... 3 1.1Notes ............................................................................................................................................................................... 3 1.1.1Statement of Compliance ....................................................................................................................................... 3 1.2Testing laboratory............................................................................................................................................................ 4 1.3Details of applicant.......................................................................................................................................................... 4 1.4Application details........................................................................................................................................................... 4 1.5Test item .......................................................................................................................................................................... 5 1.6Test specification(s) ........................................................................................................................................................ 6 1.6.1RF exposure limits ................................................................................................................................................. 6 2Technical test ......................................................................................................................................................................... 7 2.1Summary of test results ................................................................................................................................................... 7 2.2Test environment ............................................................................................................................................................. 7 2.3Measurement and test set-up ........................................................................................................................................... 7 2.4Measurement system ....................................................................................................................................................... 8 2.4.1System Description ................................................................................................................................................ 8 2.4.2Test environment ................................................................................................................................................... 9 2.4.3Probe description ................................................................................................................................................... 9 2.4.4Phantom description ............................................................................................................................................ 10 2.4.5Device holder description .................................................................................................................................... 10 2.4.6Scanning procedure.............................................................................................................................................. 11 2.4.7Spatial Peak SAR Evaluation............................................................................................................................... 12 2.4.8Data Storage and Evaluation................................................................................................................................ 13 2.4.9Test equipment utilized........................................................................................................................................ 15 2.4.10Tissue simulating liquids : dielectric properties................................................................................................... 16 2.4.11Tissue simulating liquids : parameters................................................................................................................. 17 2.4.12Measurement uncertainty evaluation for SAR test .............................................................................................. 18 2.4.13Measurement uncertainty evaluation for system validation................................................................................. 19 2.4.14System validation................................................................................................................................................. 20 2.4.15Validation procedure............................................................................................................................................ 21 2.5Test results (Head and Body SAR)................................................................................................................................ 22 2.5.1Description of test procedures ............................................................................................................................. 22 2.6Test results (conducted power measurement).......................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 4-1607-10-05/05 Applicant : Sagem SA Type : M2005 DK Test Standard : FCC Part 22, 24 RSS132, 133 FCC ID : M9HMYV76 Certification No. IC : -- CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 4 USED TESTEQUIPMENT ...................................................................................................................................... 43 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-10-05/05 Date: 2005-04-07 Page 3 of 46 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D. / Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ............................................. / ............................................ Responsible for testing laboratory (Gillmann D. / Hausknecht D.) ............................................. / ......................…

Text truncated - open the document above for the full version.

SRD-Testreport CETECOM ICT Services GmbH Saarbruecken, Germany Test report No.: 4-1607-10-11_05 Date: 2005-04-12 Page 42 of 45 4 Photographs
