M9HMYX62GSM 900/1800/1900 Mobile Phone with Bluetooth

ENGLISH FCC 252181714_myX-6-2_US_en.book Page 1 Lundi, 22. août 2005 11:35 11 You have just purchased a SAGEM phone. We congratulate you! In order to use your phone efficiently and safely, we recommend that you read this handbook carefully.Your phone can be used internationally in the various networks (GSM 900 MHz, DCS 1800 MHz and PCS 1900 MHz) depending on the roaming arrangements with your operator.This phone is U.S. Federal Communications Commission (FCC) approved. This phone is marked CE in accordance with the RTTE directive, with adaptation of the EMC norm EN301489-7 to take account of the 900/1800/1900 MHz capability, which is not intended for use in Europe. Some services described in this guide may not be available from the network or when roaming, or may require a specific subscription. Remember to back up your data and programs frequently, and before sending the mobile phone for repair.This phone, like any other wireless phone, operates using radio signals and networks. Connection in all locations and conditions cannot be guaranteed. Therefore you should never rely solely on any wireless phone for essential communications (for example, medical emergencies).In some jurisdictions it may be unlawful to take a picture without notice to or the consent of all participants. WARNINGDepending on the model, operator network configuration and associated subscription cards, certain functions described in this handbook may not be available.Ensure that your SIM card is a 3 V SIM type that is compatible with your phone. Inserting an incompatible card will be indicated by a message when your phone is switched on. Contact your operator if this occurs.Your phone is identified by its IMEI number. Write this number down, and do not keep it with your phone, because you may be asked for it in the event of your phone being stolen, in order to prevent it from being used, even with a different SIM card .In order to display the IMEI on your phone's screen, type: *#06#. Technical featuresWeight: 104 gSize: 110 x 47 x 19 mmOriginal battery: Li-ion 920 mAhMultimedia objects supported:- Audio formats: iMelody, Midi, wave, MP3, AAC, AAC+, AMR - Graphic formats: wbmp, bmp, png, gif, gif animés, jpeg, 3gp, mpeg4 depending on model Size of memory available for messages: 100 SMSSize of memory available for MMS, the phonenook and the multimedia objects: up to 8 MbMaximum size of each message:- SMS: < 160 characters - MMS: < 100 Kb for outgoing messagezs, 300 Kb for incoming messages (depends on the phone configuration and on the operator reservations) Using temperature: from - 10 °C to + 55 °C 252181714_myX-6-2_US_en.book Page 2 Lundi, 22. août 2005 11:35 11 Contents 3 ContentsFCC statement .................................................................................................................. ............ 8 Safety Information............................................................................................................. ........... 9 Distance of operation .......................................................................................................... ................. 10 SAR............................................................................................................................ .................. 11 Your phone package - Accessories ........ .......... ........... .......... ........... .......... ........... .......... ........ 12 Description .................................................................................................................... ............. 13 Installing the SIM card and the battery ........................................................................................ ........ 14 Inserting the memory card ...................................................................................................... ............. 15 Using the memory card.......................................................................................................... .............. 15 Idle screen .................................................................................................................... .............. 16 Quick start .................................................................................................................... .............. 17 Information on the SIM card.................................................................................................... ............. 17 Getting started ................................................................................................................ ..................... 17 Switching ON/OFF ............................................................................................................... ................ 18 Network........................................................................................................................ ........................ 18 First call..................................................................................................................... ........................... 19 Receiving a call............................................................................................................... ..................... 19 Using your phone............................................................................................................... ........ 20 Improving antenna performance .................................................................................................. ........ 20 Increase the battery life of your phone........................................................................................ ......... 20 Charging the battery ........................................................................................................... ................. 21 Phonebook...................................................................................................................... ............ 22 Using the phonebook .......................................................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 37 of 59 Picture no. 3 DUT - right hand side view CETECOM ICT Services GmbH Test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 38 of 59 Picture no. 4 DUT - left hand side view CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 61 of 72 6 Annex C: External Photographs of the Equipment Photo No.: 01 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 62 of 72 Photo No.: 02

Made in EU SIM 3V 251192234/FCC ID:M9HMYX62 330000000000000 myX6-2 Made in EU SIM 3V 251192234/FCC ID:M9HMYX62 330000000000000 myX6-2 ECHELLE 2

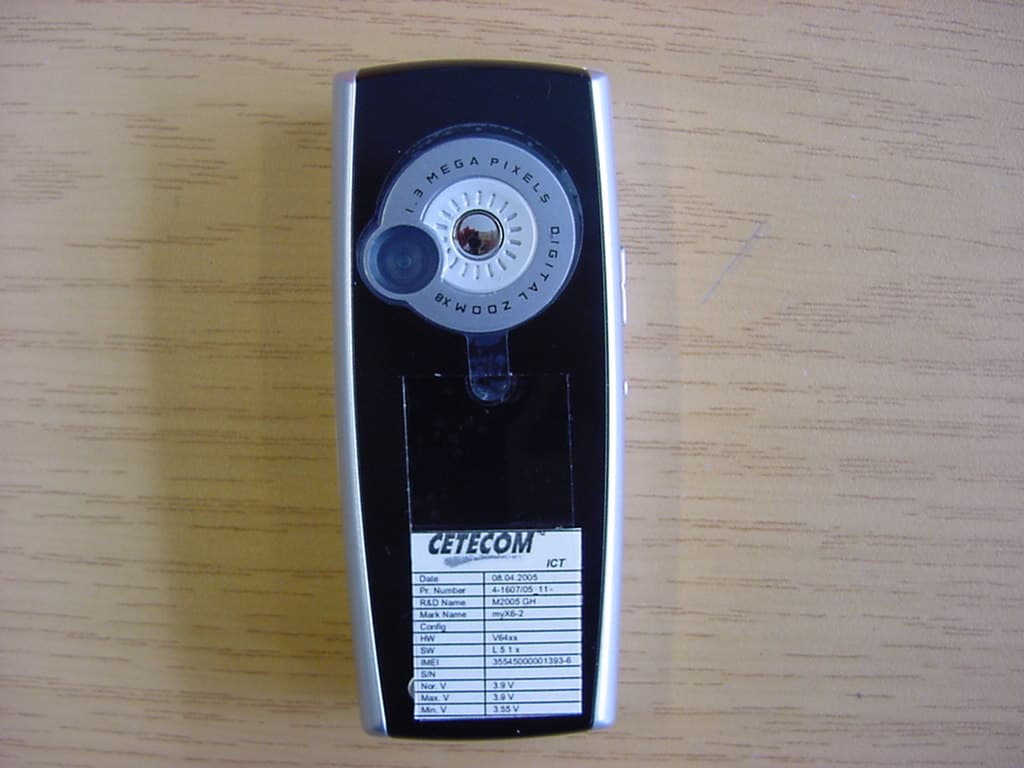

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 66 of 72 Photo No.: 03 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 67 of 72 Photo No.: 04 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 68 of 72 Photo No.: 05 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 69 of 72 Photo No.: 06 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 70 of 72 Photo No.: 07 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 71 of 72 Photo No.: 08 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 72 of 72 Photo No.: 09

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-04-22 Page 1 of 28 Accredited testing laboratory DAR registration number: TTI-P-G 166/98 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Appendix to test report 4-1607-11-03/05-C Calibration data, Phantom certificate and detail information of the DASY4 System CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 2 of 28 Table of Content 1 Calibration report “Probe ET3DV6” .................................................................................................................................... 3 2 Calibration report “1900 MHz System validation dipole .................................................................................................. 11 3 Calibration certificate of Data Aquisition Unit (DAE) ...................................................................................................... 20 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” ........................................................................................................... 21 5 Application Note System Performance Check ................................................................................................................... 23 2005-04-22 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 3 of 28 1 Calibration report “Probe ET3DV6” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 4 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 5 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 6 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 7 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 8 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 9 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 10 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 11 of 28 2 Calibration report “1900 MHz System validation dipole CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 12 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 13 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 14 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 15 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 16 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 17 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 18 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 19 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 20 of 28 3 Calibration certificate of Data Aquisition Unit (DAE) CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 21 of 28 4 Certificate of “SAM Twin Phantom V4.0/V4.0C” CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 22 of 28 CETECOM ICT Services GmbH Calibration Data and Phantom Information to test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 23 of 28 5 Application Note System Performance Check 5.1.1.1 Purpose of system performance check The system performance check verifies that the system operates within its specifica-tions. System and operator errors can be detected and corrected. It is recommended that the system performance check is performed prior to any usage of the system in order to guarantee reproducible results. The measurement of the Specific Absorption Rate (SAR) is a complicated task and the result depends on the proper functioning of many components and the correct settings of many param-eters. Faulty results due to drift, failures or incorrect parameters might not be recognized, since they often look similar in distribution to the correct ones. The Dosimetric Assessment System DASY4 incorporates a system performance check procedure to test the proper functioning of the system. The system performance check uses normal SAR measurements in a simplified setup (the at section of the SAM Twin Phantom) with a well characterized source (a matched dipole at a specified distance). This setup was selected to give a high sensitivity to all parameters that might fail or vary over time (e.g., probe, liquid parameters, and software settings) and a low sensitivity to external effects inherent in the system (e.g., positioning uncertainty of the device holder). The system performance check does not replace the calibration of the components. The accuracy of the system performance check is not sufficient for calibration purposes. It is possi…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertuerkheimer Str. 6-10, 66117 Saarbruecken, Germany Phone: +49 (0) 681 598-0 Fax: -8475 SAR-Laboratory Phone: +49 (0) 681 598-8454 . As of 2005-04-22 Page 1 of 59 Accredited testing laboratory DAR registration number: TTI-P-G 081/94-D0 Federal Motor Transport Authority (KBA) DAR registration number: KBA-P 00070-97 Test report no. : 4-1607-11-03/05-C Type identification : M2005 GH Test specification : IEEE P1528/D1.2 FCC-ID : M9HMYX62 Test specification : CETECOM ICT Services GmbH Test report no.: 4-1607-11-03/05-C As of 2005-04-22 Page 2 of 59 Table of Contents 1 General Information............................................................................................................................................................... 3 1.1 Notes ............................................................................................................................................................................... 3 1.1.1 Statement of Compliance ....................................................................................................................................... 3 1.2 Testing laboratory............................................................................................................................................................ 4 1.3 Details of applicant.......................................................................................................................................................... 4 1.4 Application details........................................................................................................................................................... 4 1.5 Test item .......................................................................................................................................................................... 5 1.6 Test specification(s) ........................................................................................................................................................ 6 1.6.1 RF exposure limits ................................................................................................................................................. 6 2 Technical test ......................................................................................................................................................................... 7 2.1 Summary of test results ................................................................................................................................................... 7 2.2 Test environment ............................................................................................................................................................. 7 2.3 Measurement and test set-up ........................................................................................................................................... 7 2.4 Measurement system ....................................................................................................................................................... 8 2.4.1 System Description ................................................................................................................................................ 8 2.4.2 Test environment ................................................................................................................................................... 9 2.4.3 Probe description ................................................................................................................................................... 9 2.4.4 Phantom description ............................................................................................................................................ 10 2.4.5 Device holder description .................................................................................................................................... 10 2.4.6 Scanning procedure.............................................................................................................................................. 11 2.4.7 Spatial Peak SAR Evaluation............................................................................................................................... 12 2.4.8 Data Storage and Evaluation................................................................................................................................ 13 2.4.9 Test equipment utilized........................................................................................................................................ 15 2.4.10 Tissue simulating liquids : dielectric properties................................................................................................... 16 2.4.11 Tissue simulating liquids : parameters................................................................................................................. 17 2.4.12 Measurement uncertainty evaluation for SAR test .............................................................................................. 18 2.4.13 Measurement uncertainty evaluation for system validation................................................................................. 19 2.4.14 System validation................................................................................................................................................. 20 2.4.15 Validation procedure............................................................................................................................................ 21 2.5 Test results (Head and Body SAR)................................................................................................................................ 22 2.5.1 Description of test procedures ............................................................................................................................. 22 2.6 Test results (conducted power measurement).........…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 1 of 46 Recognized by the Federal Communications Commission Anechoic chamber registration no.: 90462 (FCC) Anechoic chamber registration no.: 3463 (IC) TCB ID: DE 0001 Accredited by the German Accreditation Council DAR–Registration Number TTI–P–G 081/94-D0 Independent ETSI compliance test house ETSI Accredited Bluetooth ® Test Facility (BQTF) Test report no. : 4-1607-11-05/05 Applicant : Sagem SA 0ype : M2005 GH Test Standard : FCC Part 24 RSS 133 FCC ID : M9HMYX62 Certification No. IC : -- CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 2 of 46 Table of contents 1 GENERAL INFORMATION ................................................................................................................................... 3 1.1. ADMINISTRATIVE DATA OF THE TEST FACILITY..................................................................................................... 3 1.1.1 Identification of the testing laboratory ......................................................................................................... 3 1.2. NOTES................................................................................................................................................................... 3 1.3 DETAILS OF APPLICANT......................................................................................................................................... 4 1.4 APPLICATION DETAILS.......................................................................................................................................... 4 1.5 TEST ITEM............................................................................................................................................................. 5 1.6 TEST SETUP........................................................................................................................................................... 6 1.7 TEST STANDARDS.................................................................................................................................................. 6 2 STATEMENT OF COMPLIANCE .......................................................................................................................... 7 2.1 SUMMARY OF MEASUREMENT RESULTS................................................................................................................ 7 2.1.1 PCS 1900 ...................................................................................................................................................... 7 3 MEASUREMENTS AND RESULTS ....................................................................................................................... 8 3.1 PART PCS 1900 ................................................................................................................................................... 8 3.1.1 RF Power Output .......................................................................................................................................... 8 3.1.2 Frequency Stability..................................................................................................................................... 12 3.1.3 Radiated Emissions..................................................................................................................................... 15 3.1.4 Receiver Radiated Emissions ...................................................................................................................... 25 3.1.5 Conducted Spurious Emissions ................................................................................................................... 29 3.1.6 Block Edge Compliance .............................................................................................................................. 33 3.1.7 Occupied Bandwidth................................................................................................................................... 36 4 USED TESTEQUIPMENT ...................................................................................................................................... 43 CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 3 of 46 1 General information 1.1. Administrative data of the test facility 1.1.1 Identification of the testing laboratory Company name: Cetecom ICT Services GmbH Address: Untertürkheimerstr. 6-10 D-66117 Saarbruecken Germany Laboratory accreditation: DAR-Registration No. TTI-P-G081/94-D0 Bluetooth Qualification Test Facility (BQTF) Federal Communications Commission (FCC) Identification/Registration No : 90462 Responsible for testing laboratory: Gillmann D. / Hausknecht D. Phone: +49 681 598 0 Fax: +49 681 598 9075 email: [email protected] 1.2. Notes The test results of this test report relate exclusively to the test item specified in 1.5. The CETECOM ICT Services GmbH does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples of the type of the equipment represented by the test item. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the CETECOM ICT Services GmbH. ............................................. / ............................................ Responsible for testing laboratory (Gillmann D. / Hausknecht D.) ............................................. / ..............................…

Text truncated - open the document above for the full version.

CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 55 of 72 5 Annex B Photographs of Test site Photo 1 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 56 of 72 Photo 2 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 57 of 72 Photo 3 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 58 of 72 Photo 4 (Radiated Emissions): CETECOM ICT Services GmbH Untertürkheimer Str. 6-10, 66117 Saarbruecken Phone: +49 (0) 681 598-0 Fax: -9075 RSC-Laboratory Phone: +49 (0) 681 598-0 Fax: -9075 Annex to Test report no.: 4-1607-11-05/05 Date: 2005-04-12 Page 59 of 72 Photo 5 (Radiated Emissions):
