MAU031Notebook with WLAN and Bluetooth

User’s Manual Notebook Personal Computer (With Intel WM3945ABG WLAN Module & BILLIONTON GUBTCR42M Bluetooth Module ) ：W190 (February 2008) TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies. NOTE The information in this manual is subject to change without notice. ENERGY STAR ® is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations. Please reference ENERGY STAR ® related information from www.energystar.gov. As an ENERGY STAR® Partner, MiTAC Technology Corporation has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. An ENERGY STAR ® qualified computer uses 70% less electricity than computers without enabled power management features. Earning the ENERGY STAR ® z When every home office is powered by equipment that has earned the ENERGY STAR ® , the change will keep over 289 billion pounds of greenhouse gases out of the air. z If left inactive, ENERGY STAR ® qualified computers enter a low-power mode and may use 15 watts or less. New chip technologies make power management features more reliable, dependable, and user-friendly than even just a few years ago. z Spending a large portion of time in low-power mode not only saves energy, but helps equipment run cooler and last longer. z Businesses that use ENERGY STAR ® enabled office equipment may realize additional savings on air conditioning and maintenance. z Over its lifetime, ENERGY STAR ® qualified equipment in a single home office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years. z Power management (“sleep settings”) on computers and monitors can result in much savings annually. Remember, saving energy prevents pollution Because most computer equipment is left on 24 hours a day, power management features are important for saving energy and are an easy way to reduce air pollution. By using less energy, these products help lower consumers’ utility bills, and prevent greenhouse gas emissions. i Table of Contents Preface ........................................................................................ v Notational Conventions.......................................................vi Chapter 1 Getting Started ...................................................1-1 Getting the Computer Running ............................................ 1-2 Unpacking ........................................................................ 1-2 Connecting to AC Power ................................................. 1-2 Opening and Closing the Cover ....................................... 1-4 Turning On and Off the Computer ................................... 1-4 Taking a Look at the Computer............................................ 1-6 Right-Side Components ................................................... 1-6 Left-Side Components ..................................................... 1-7 Rear Components ............................................................. 1-8 Front Components ............................................................ 1-9 Bottom Components....................................................... 1-10 Top-open Components ................................................... 1-11 Where to Go from Here...................................................... 1-14 Chapter 2 Operating Your Computer .................................2-1 Starting and Stopping the Computer .................................... 2-2 Starting the Computer ...................................................... 2-2 Stopping the Computer .................................................... 2-2 Using the Keyboard.............................................................. 2-4 Typewriter Keys............................................................... 2-4 Cursor-Control Keys ........................................................ 2-4 Numeric Keypad .............................................................. 2-5 Function Keys .................................................................. 2-5 Fn Key .............................................................................. 2-5 ii Hot Keys .......................................................................... 2-5 Using the Touchpad ............................................................. 2-7 Configuring the Touchpad ............................................... 2-8 Using the Touchscreen (Optional) ....................................... 2-9 Using the Hard Disk Drive ................................................. 2-10 Using the Video Features ................................................... 2-11 Configuring the Display Modes ..................................... 2-11 Using the Audio Features ................................................... 2-13 Connecting Audio Devices ............................................ 2-13 Using the Communication Features ................................... 2-15 Using the Modem ........................................................... 2-15 Using the LAN ............................................................... 2-15 Using the Wireless LAN ................................................ 2-16 Chapter 3 Managing Power ................................................3-1 AC Adapter .......................................................................... 3-2 Battery Pack ......................................................................... 3-3 Charging the Battery Pack ............................................... 3-3 Checking the Battery Level.............................................. 3-5 Replacing the Battery Pack .............................................. 3-5 Battery Low Signals and Actions..................................... 3-9 Power Management ............................................................ 3-11 Hibernation...................................…

Text truncated - open the document above for the full version.

Mitac Technology Corp. 1st, R&D Road 2 , Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5782280 FAX : 886-3-5778270 Attestation for FCC Declaration of Conformity Date: Feb. 15th, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Applications FCC ID: MAU031 Model: W190 Please be notified that we, the undersigned, MITAC Technology Corporation declares that the product which bears the above FCC ID is also compliant with the FCC requirements for DoC. The test report number supporting the DoC is ISL-08LE001FB. Testing in regards to this report was done by International Standards Laboratory, located at No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan, which has been accredited in accordance to all of the requirements of 47CFR 2.948 (d) and (e) of the FCC rules and KDB349827. Sincerely, --------------------------- Power Shao MITAC Technology Corporation Phone No.:886-3-5782280 Fax No.: 886-3-5774034 Date: Feb. 15th, 2008

Mitac Technology Corp. 1st, R&D Road 2 , Hsinchu Science-Based Industrial Park, Hsinchu, Taiwan, R.O.C. TEL : 886-3-5782280 FAX : 886-3-5778270 Letter of Agency Date: Jan. 18th, 2008 American Telecommunications Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 RE: Certification Applications FCC ID: MAU030; MAU031 Model: W190 To Whom It May Concern: Please be advised that Mitac Technology Corporation authorizes Mr. Eddy Hsiung of International Standards Laboratory (ISL) to act on our behalf, until otherwise notified, for applications submitted to American Telecommunications Certification Body, Inc. (ATCB). We certify that we are not subject to denial of federal benefits that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse ACT of 1988, U.S.C. 862. Further, no party as defined in 47 CFR 1.2002(b), for this application is subject to denial of federal benefits that includes FCC benefits. Thank you for your attention to this matter. _______________________ Power Shao/Manager Mitac Technology Corp.

1) Ideally the authorization letter should clearly define who at ISL may act on the applicants behalf, or state that anyone at ISL may act on their behalf. Please note the following from the attached information: An authorized agent is further defined as any individual or entity designated by the applicant / grantee, or by a designated authorized agent. If a group “entity” is designated as the authorized agent, the letter of authorization must identify those individuals within the group who are authorized to take action on the application; or alternatively a statement must be provided indicating that as the authorized agent, any individual within the group “entity” is authorized to act on behalf of the applicant / grantee and take action on the application. Ans: The letter was modified. 2) The DTS block diagram should show the frequencies of all oscillators in the TX portion of the device (CFR 2.1033(a)(5)). Please update. Ans: modified 3) Kindly provide appropriate photographs or similar information of the DTS internal antennas Ans: The photo for antenna was added in the internal photo. 4) Please update 731 for lowest/highest tunable frequency for 5150 – 5350 MHz and 5725 – 5850 MHz band, and not just the band of use. Ans: modified 5) Users manual does not restrict to indoor us for United States for 5150-5250 MHz as stated in 15.407(e). Ans: modified on page 118 6) Kindly provide a higher resolution schematic for the BT portion of the device. Some components can not clearly be read. Ans: modified 7) FYI...Ideally in the future the MPE should have an added entry for worse case combined 802.11a/b/g + BT power density for simultaneous TX. Data shown is compliant, but is not provided directly for the combined simultaneous TX. Ans: Thanks for the information 8) FYI....System block diagram should only show the block diagram and not include the schematic. In the future, kindly only upload the necessary block diagram Ans: Thanks for the information RE: Mitac Technology Corp. FCC ID: MAU031 . 9) Information presented in MPE mentions TX operating continuously, but at about 87%. Please note that when the FCC uses the term continuously, they mean 100% duty factor. Therefore it appears TX did not operate continuously as the FCC would expect. Additionally, plots for power (DTS Report) do show that a duty cycle was present. Additionally, please note that the power method used (Option 2, method 1) explicitly states: a) Sweep time is < T. Plots support that sweep time is >> T b) Method #1 may be used only if it results in averaging over intervals during which the transmitter is operating at its maximum power control level; intervals during which the transmitter is off or is transmitting at a reduced power level must not be included in the average.) Plots also support this did not occur Please correct. Note that generally Option 2, method 3 would appear to apply. Note: this concern may affect previously reported 731 form and MPE results as well. Ans: Modified the output power used ( Option2, method 1) with the other spectrum, and re-evaluated with TX 802.11a / 6Mbps, 802.11b / 6Mbps, 802.11g / 6Mbps. 10) Plots for 5725 – 5850 MHz DTS power were not provided. However given the same power procedure were used, it is likely the same concern given in 11) above is applicable to this band as well. Ans: modified 11) For DTS results in the 2.4 GHz band, please note that if the TX was not on with 100% duty factor, average results for radiated emissions would normally be done with VBW > 1/Ton time and not 10 Hz. It appears that average results would need to be re-evaluated. Further evaluation may be necessary (see pages 28 & 36). However, fundamental measurements for AVG used for bandedge for 2.4 GHz may require evaluation. Please review. Ans: According with VBW > 1/Ton time , we set the VBW=100Hz for 802.11b average test, VBW=1KHz for 802.11a/g average test (802.11b/1Mbps/98% Ton time=12.5ms, 802.11ag/6Mbps/91% Ton time=2.06ms) 12)How the DFS software/firmware protected to ensure users do not have access to DFS settings. Additionally, for USA, devices may not have country selection as this would not be allowed under 15.15. Please explain and also clarify how users are prevented from disabling DFS and/or transmitting in frequencies not authorized in United States? Ans: We modified the WLAN module information on page 3,EUT description (Intel, Model: WM3945ABG MOW1 Driver: V.11.1.1.1). hardware version : MOW1 for U.S. used. It will ensure the above issue could not be occurred. 13) Testing must use NTIA approved Matlab-based program, hopping sequence file, and media file: (http://ntiacsd.ntia.doc.gov/dfs/ ) or NTIA/FCC approved alternative test software. Information is not provided to support configurations used. Ans: We modified the necessary information on page 6, “Description of Support Equipment” of report. 14) Testing must define master used for DFS testing, and it’s FCC ID. Additionally, the master must already show as approved for DFS as a master on the FCC’s database. This information could not be determined. Ans: We modified the necessary information on page 6, “Description of Support Equipment” of report. 15) FCC has recently been asking for the following additional test: Client devices - Test client devices to ensure that they comply with the 30 minute non-occupancy requirement for a channel after moving off of a channel when radar is detected. Some clients will send beacons on a channel that is supposed to be cleared for 30 minutes. This non-occupancy test was not required in the original test procedure as published. FCC is requiring the test to be conducted effectively immediately (August 14, 2007 TCB Conference Call). TCBs must check for this requirement before grant. This test does not appear to be performed. Ans: We take a image capture from spectrum for sweep time 2000 seconds (Image 1) to monitor the connection . The device was comply with the 30 minute non-occupancy requirement for a channel after m…

Text truncated - open the document above for the full version.

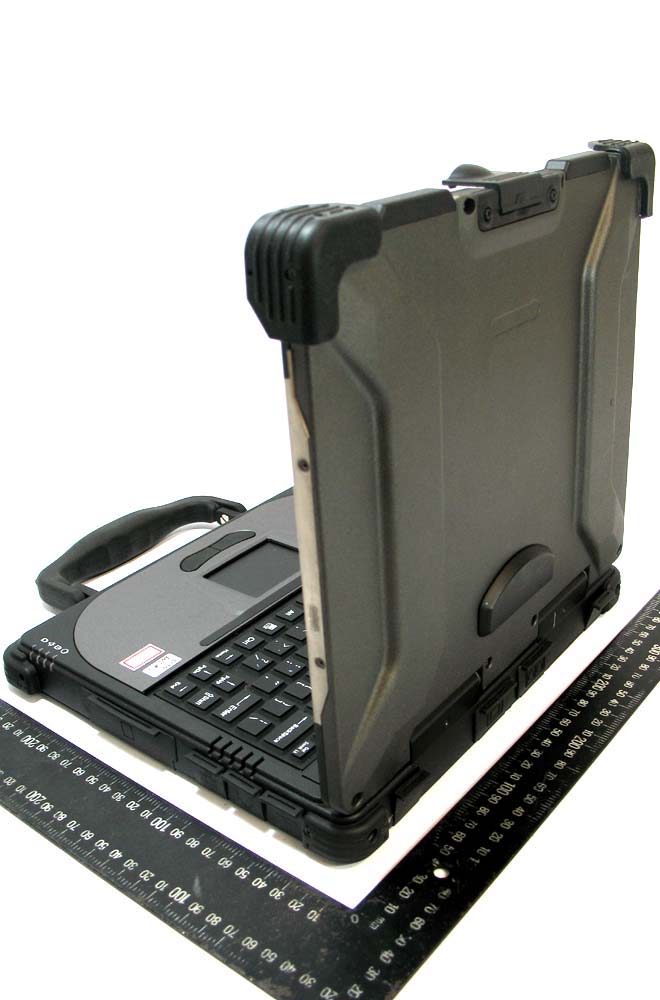

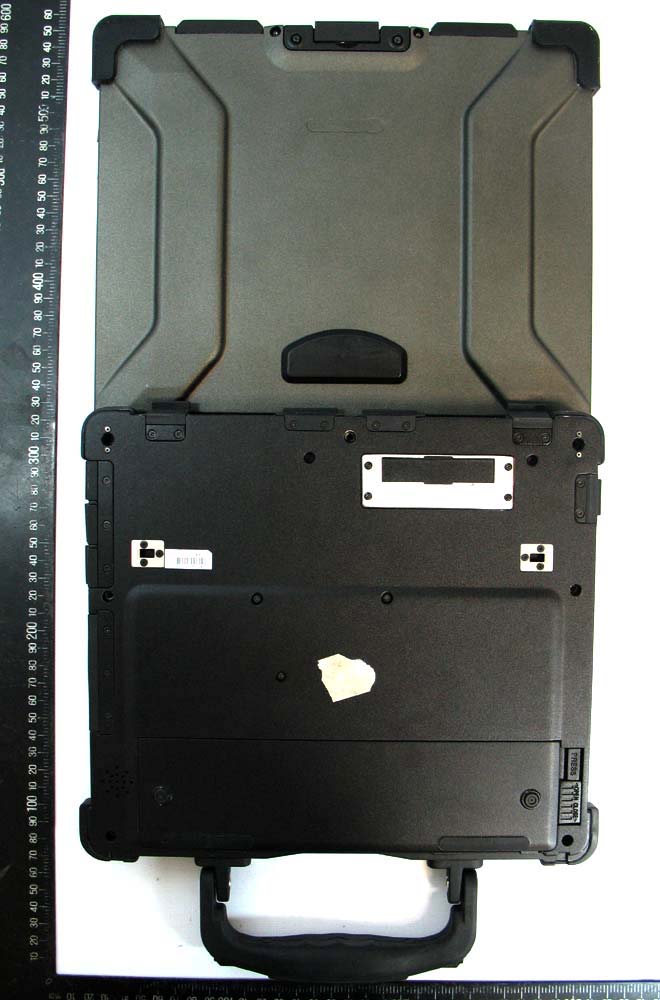

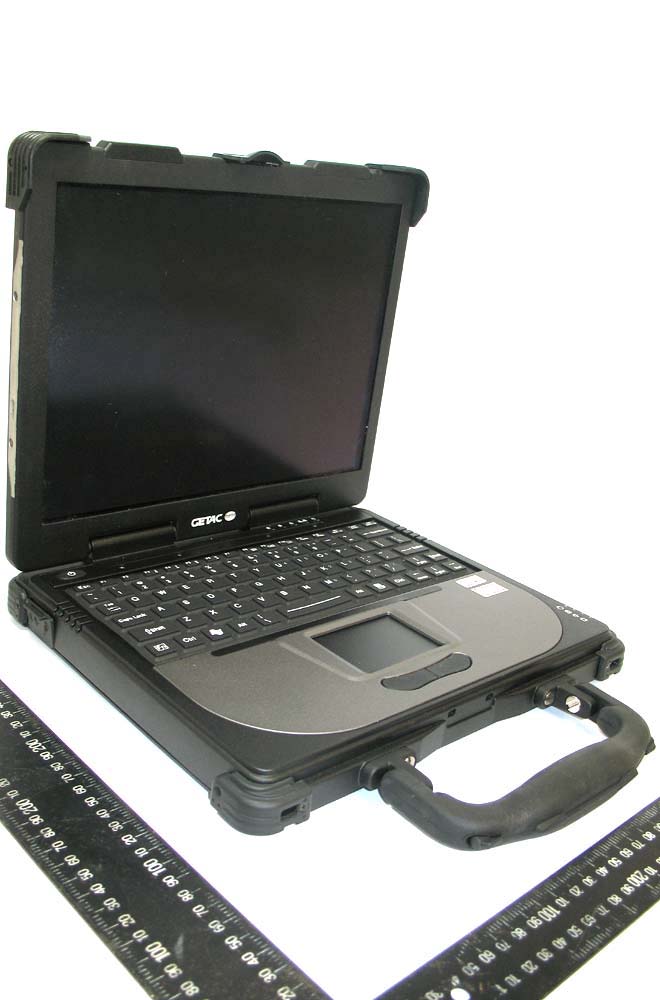

International Standards Laboratory Report Number: ISL-08LR001P Appendix Photographs of EUT of Product Name Notebook Personal Computer (with WLAN a/b/g Module, INTEL, Model:WM3945ABG) (with Bluetooth Module, BILLIONTON, Model:GUBTCR42M) Model W190 Brand: MTC; GETAC International Standards Laboratory Report Number: ISL-08LR001P -1- EUT-1. International Standards Laboratory Report Number: ISL-08LR001P -2- EUT-2. International Standards Laboratory Report Number: ISL-08LR001P -3- EUT-3. International Standards Laboratory Report Number: ISL-08LR001P -4- EUT-4. International Standards Laboratory Report Number: ISL-08LR001P -5- EUT-5. International Standards Laboratory Report Number: ISL-08LR001P -6- EUT-6.

W190 Label FCC ID: MAU031 Label Location

International Standards Laboratory Report Number: ISL-08LR001FCP -7- EUT-7. International Standards Laboratory Report Number: ISL-08LR001FCP -8- EUT-8. International Standards Laboratory Report Number: ISL-08LR001FCP -9- EUT-9. International Standards Laboratory Report Number: ISL-08LR001FCP -10- EUT-10.

Report Number: ISL-07LR033V Issue Date: 2007/11/26 ISL-T10-R5-14 MPE TEST REPORT Product : Notebook Personal Computer Model(s): W190 (with WLAN a/b/g Module, INTEL, Model:WM3945ABG) (with Bluetooth Module, BILLIONTON, Model:GUBTCR42M) Brand: MTC; GETAC Applicant: MITAC Technology Corporation Address: 4F, No.1, R&D Road 2, Hsinchu Science-Based industrial Park, Hsinchu 300 Taiwan Test Performed by: International Standards Laborator y <Lung-Tan LAB> *Site Registration No. BSMI: SL2-IN-E-0013; TAF: 0997; NVLAP: 200234-0; IC: IC4164-1; VCCI: R-1435, C-1440, T-299; NEMKO: ELA 113B *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-08LR001MPE Issue Date : 2008/01/18 -i- International Standards Laboratory Report Number: ISL-08LR001MPE Contents of Report 1. General........................................................................................................ 1 1.1. Certification of Accuracy of Test Data ...................................................................... 1 1. Description of Equipment Under Test (EUT) ............................................ 2 2. Description of Support Equipment ............................................................. 5 2.1 Description of Support Equipment ............................................................................ 5 2.1.1 Software for Controlling Support Unit ...........................................................................................5 2.1.2 I/O Cable Condition of EUT and Support Units ............................................................................. 5 2.2 General Test Conditions ............................................................................................ 6 3. RF Exposure Measurement [Section 15.247(b)(4) & 1.1307(b)] .............. 7 3.1 Applied Standards ...................................................................................................... 7 3.2 Test Procedure ........................................................................................................... 7 3.3 Test Setup................................................................................................................... 7 3.4 Calculation for Maximum Permissible Exposure (MPE) .......................................... 7 4. Appendix : Test Equipment ...................................................................... 10 4.1 Test Equipment List ................................................................................................. 10 FCC ID:MAU031 International Standards Laboratory Report Number: ISL-08LR001MPE -1- 1. General 1.1. Certification of Accuracy of Test Data Standards: CFR 47 Part 15 Subpart B Class B CFR 47 Part 15 Subpart C (Section 15.247) Test Procedure: ANSI C63.4:2003 Equipment Tested: Notebook Personal Computer Model: W190 Applied by: MITAC Technology Corporation Sample received Date: 2007/12/21 Final test Date : 2007/12/31 Test Result PASS Test Site: Chamber 12, Conduction 02 Temperature Refer to each site test data Humidity: Refer to each site test data Test Engineer: ______________________ Jerry Chiou All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Approve & Signature --------------------------------------- Roy Hsieh / Manager Test results given in this report apply only to the specific sample(s) tested under stated test conditions. This report shall not be reproduced other than in full without the explicit written consent of ISL. This report totally contains 12 pages, including 1 cover page, 1 contents page, and 10 pages for the test description. This report must not be use to claim product endorsement by NVLAP or any agency of the U.S. Government. This test data shown below is traceable to NIST or national or international standard. International Standards Laboratory certifies that no party to this application has been denied the FCC benefits pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). FCC ID:MAU031 International Standards Laboratory Report Number: ISL-08LR001MPE -2- 1. Description of Equipment Under Test (EUT) Description: Notebook Personal Computer Condition: Pre-Production Model: W190 Brand: MTC;GETAC Wireless LAN Module: Intel, Model: WM3945ABG (MOW1 Driver:V.11.1.1.1) Bluetooth Module: BILLIONTON(Model:GUBTCR42M) Frequency Range of 802.11a: 5150 - 5250 MHz 5250 - 5350 MHz 5725 - 5850 MHz Frequency Range of 802.11b/g: 2400 - 2483.5 MHz Frequency Range of Bluetooth: 2400 - 2483.5 MHz Support channel: 802.11a 13 Channels 802.11b/g 11 Channels Bluetooth 79 Channels Modulation Skill: 802.11a OFDM (6 Mbps – 54 Mbps) 802.11b DBPSK(1Mbps), DQPSK(2Mbps), CCK(5.5/11Mbps) 802.11g OFDM (6M - 54Mbps) Bluetooth GFSK (1Mbps) DQPSK(2Mbps), 8DPSK(3Mbps) Antennas Type: WLAN Main antenna: PIFA (Model: W190 WLAN Antenna) Black made by JOINSOON ELECTRONICS MFG. CO., LTD WLAN Aux antenna: PIFA (P/N: W190 WLAN Antenna) Grey made by JOINSOON ELECTRONICS MFG. CO., LTD Bluetooth antenna: Chip Antenna(Model: RFANT5220), made by Walsin Technology Corporation. Antenna Connected: Connected to RF connector on the PCB of the Bluetooth or WLAN module .The user is not possible to change the antenna without disassembling the notebook computer. Antenna peak Gain: WLAN Main antenna 0.04dBi(11b,11g), -0.1dBi(11a) WLAN Aux antenna -0.3 dBi (11b,11g), -0.54 dBi (11a) Bluetooth antenna 2.66 dBi Power Type of wireless module: 3.3V DC from Notebook PC Power Type of Bluetooth module: 3.3V DC from No…
