MAU047WWAN Module

Re: Applicant: Getac Technology Corp. FCC ID: MAU047 1) Request New Limited Modular Approval with Rugged Notebook Host PC (Model: V100-G4 and V200-G2 ) for embedded Sierra Wireless module under FCC ID: N7NMC8355. 2) Reuse OEM conducted test data of FCC ID: N7NMC8355 3) Add co-location with the WLAN/BT combo module FCC ID: PD96235ANH embedded in the same Rugged Notebook Host PC ( Model: V100-G4 and V200-G2 ). We request a new Limited Modular Approval for a licensed radio module. The radio was original certified by Qualcomm under FCC ID: J9CGOBI3000 and also certified by Sierra Wireless Inc. under FCC ID: N7NMC8355. The Getac Technology Corp. FCC ID is MAU047. The radio will be used in the Getac Rugged Notebook Host PC (Model: V100-G4 and V200-G2 ). We reference Qualcomm’s Limited Single Modular Approval test report: Part 22H, 24E, 27 Conducted Test Report: 80-N2162-203 Rev B for all of the OEM conducted test data. We also request that this certification includes co-location in the host with the above referenced certified module FCC ID: PD96235ANH. An exhibit addressing RF Exposure specific to this application in the host (Model: V100-G4 and V200-G2 ) with the FCC ID: MAU047 and FCC ID:PD96235ANH accompanies this request for Certification. The new Out of Band Emissions and Field Strength and/or ERP/EIRP measurements made by International Standards Laboratory (ISL) in test report : 12LR097 cover the integration of the FCC ID:MAU047 module into the Getac Rugged Notebook Host PC (Model: V100-G4 and V200-G2 ) with its internal PIFA antenna and the gain less than 2.84 dBi for all of band. The WWAN and WIFI/BT Module is built-in to Notebook Host PC this is can’t simultaneously transmit. Please let me know if you should require any further information. the host PC(V100-G4 and V200-G2) is only panel size different(V100 = 10" V200=12")for antenna location / device depth / module location / CPU board of Layout and component is all same and the antenna location not cover to LCD panel and shall be pretest both host and choose worst host to final test Best Regards, Vincent Hsieh Getac Technology Corp. [email protected] TEL: 886-2-27857888 FAX: 886-2-26525845

Modular Approval Request Letter Jul. 30, 2012 Dear Application Examiner, Getac Technology Corp. / FCC ID:MAU047 would like to have your authorization as a modular approval. The requirements of Public Notice DA00-1407 have been met and shown on the following statements. Items to be covered Answer from applicant 1. The modular transmitter must have its own RF shielding. Yes, The EUT provides the RF shielding. 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with Part 15 requirements under conditions of excessive data rates or over-modulation. The EUT has its buffered modulation. Please see the Schematic Diagram. 3. The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation, please see the Schematic Diagram. 4. The modular transmitter must comply with the antenna requirements of Section 15.203 and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The EUT meets the FCC antenna requirements; unique antenna connector and photo of antenna are shown in the test report. 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. No, The EUT was tested in Notebook Model V100- G4/V200-G2 Please see section photographs of test configuration in the test report. 6. The modular transmitter must be labeled with its own FCC ID number, and, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID:MAU047” or “Contains FCC ID:MAU047” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. Please see exhibition label sample for the FCC ID of this module and end product system. 7. The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. The EUT is compliant with all applicable FCC rules. Details instructions for maintaining compliance are give in the User Manual. 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Exposure to demonstrate compliance. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF Exposure compliance in accordance with Section 15.247(b)(4). Modular transmitters approved under other Sections of Part 15, when necessary, may also need to address certain RF Exposure concerns, typically by providing specific installation and operating instructions for users, installers and other interested parties to ensure compliance. The EUT is comply with 2.1091 SAR testing. RF exposure is addressed in the SAR report. Best regards, _______________________________ Vincent Hsieh Getac Technology Corp.

091010 – 5 Authority to Act as Agent Date: 07/25/2012 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: ______( International Standards Laboratory)______ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________________________ ____ Vincent Hsieh _ ___ (Signature 1 ) (Print name) Title: ____ Senior Engineer ____ On behalf of: ___ Getac Technology Corp. __ (Company Name) Telephone: __886-02-2785-7888 ________________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

091010 – 5 Request for Confidentiality Date: 07/25/2012 Subject: Confidentiality Request for: _ (MAU047)______ Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term PermanentBlock Diagrams Short Term External Photos Short Term Permanent* 2 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Tune-Up Procedure Short Term Permanent Schematics Short Term Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ ______( Getac Technology Corp.)______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180 ) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____ Vincent Hsieh ______________ (Signature/Title 4 ) (Print name) 2 - The asterisked items (*) require further justification before permanent confidentiality will be allowed. These also currently require review by the FCC under their Permit-But-Ask policy before the grant is issued and can delay completion of an application. Further justification should be added to the note above. One such example for a potted device would be: “The EUT is FULLY potted using a non-removable epoxy based material. Removal of potting material causes irreparable damage to internal circuitry. See photographs exhibits that outline the device before and after potting.” 3 - Please refer to http://atcb.com/publicdocs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate

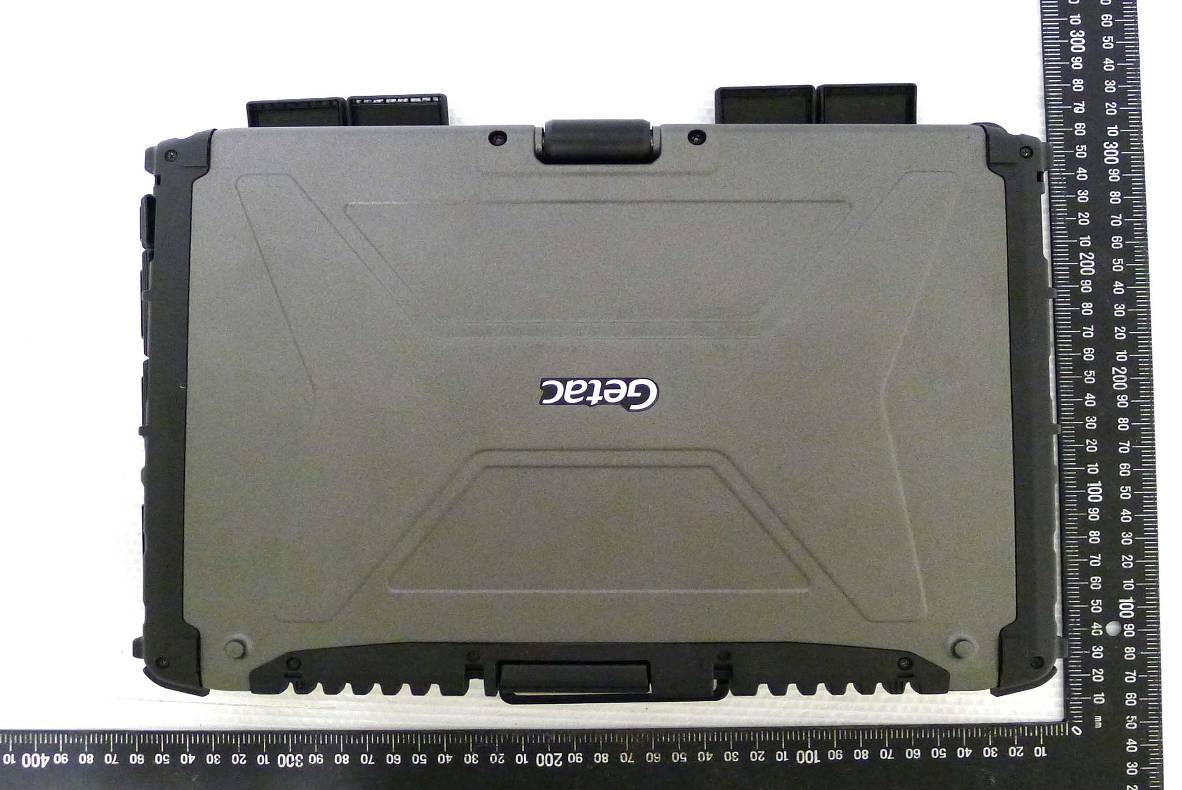

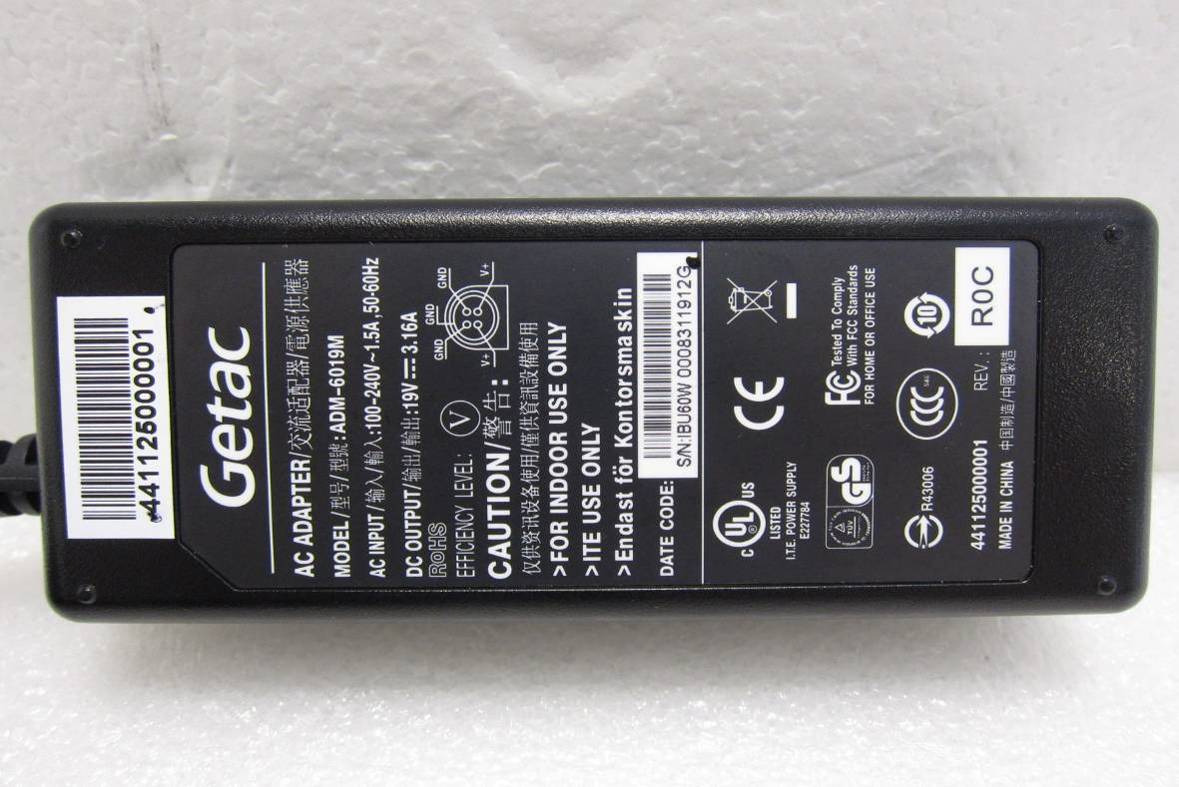

FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC EXTERNAL PHOTOGRPHS OF EUT FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC External of EUT – 1 External of EUT – 2 (V100) FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC External of EUT – 3 (V200) External of EUT – 4 FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC External of EUT – 5 External of EUT – 6 FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC External of EUT – 7 External of EUT – 8 FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC External of EUT – 9

V100/ V200 model labeling R01 • Vincent Hsieh 2012/07/26 V100 labeling P2 Copyright © Mitac Technology Corp. 2009<Presenter> <Project> <mm/dd/yyyy> V200 labeling P3 Copyright © Mitac Technology Corp. 2009<Presenter> <Project> <mm/dd/yyyy>

WWAN MODULE

FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC INTERNAL PHOTOGRPHS OF EUT FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Open View of EUT – 1 Internal View of EUT – 1 FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Internal View of EUT – 2 Internal View of EUT – 3 WWAN main WWAN aux WLAN, BT aux WLAN, BT main FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Internal View of EUT – 4 Internal View of EUT – 5 FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Internal View of EUT – 5 (V100) Internal View of EUT – 6 (V200) FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Internal View of WWAN Antenna (MAIN) Internal View of WWAN Antenna (AUX) FCC ID: MAU047 International Standards Laboratory Report Number: ISL-12LR097FC Internal View of WLAN, BT Antenna (MAIN) Internal View of WLAN, BT Antenna (AUX)

Page: 1 of 46 TEST REPORT of SAR New Application; Class I PC; Class II PC Limited Modular Approval for Notebook Model V100-G4/V200-G2 Product: WWAN Module Brand: Getac Mode: MC-8355 Model Difference: N/A FCC ID: MAU047 Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) Applicant: Getac Technology Corp . Address: 5F., Building A, No. 209, Sec. 1, Nangang Rd., Nangang Dist., Taipei City 11568, Taiwan, R.O.C. Test Performed by: International Standards Laboratory <Lung-Tan LAB> *Site Registration No.: TAF: 0997 *Address: No. 120, Lane 180, San Ho Tsuen, Hsin Ho Rd. Lung-Tan Hsiang, Tao Yuan County 325, Taiwan *Tel : 886-3-407-1718; Fax: 886-3-407-1738 Report No.: ISL-12LR097FSAR Issue Date : 2012/07/30 Test results given in this report apply only to the specific sample(s) tested and are traceable to national or international standard through calibration of the equipment and evaluating measurement uncertainty herein. This report MUST not be used to claim product endorsement by TAF or any agency of the Government. This test report shall not be reproduced except in full, without the written approval of International Standards Laboratory. -2 of 46- FCC ID:MAU047 International Standards Laboratory Report Number: ISL-12LR097FSAR VERIFICATION OF COMPLIANCE Applicant: Getac Technology Corp . Product: WWAN Module Brand Name: Getac Model No.: MC-8355 Model Difference: N/A FCC ID: MAU047 Date of Test: 2012/06/04 ~ 2012/06/28 Date of Receipt: 2012/06/04 Standard: FCC 47 CFR Part2(2.1093) IEEE C95.1-1999; IEEE 1528 FCC OET 65 Supplement C(Edition 01-10) We hereby certify that: All the tests in this report have been performed and recorded in accordance with the standards described above and performed by an independent electromagnetic compatibility consultant, International Standards Laboratory. The test results contained in this report accurately represent the measurements of the characteristics and the energy generated by sample equipment under test at the time of the test. The sample equipment tested as described in this report is in compliance with the limits of above standards. Test By: Date: 2012/07/30 Dino Chen / Engineer Prepared By: Date: 2012/07/30 Arno Hsieh / Supervisor Approved By: Date: 2012/07/30 Vincent Su / Technical Manager -3 of 46- FCC ID:MAU047 International Standards Laboratory Report Number: ISL-12LR097FSAR Version Version No. Date Description 00 2012/07/30 Initial creation of document -4 of 46- FCC ID:MAU047 International Standards Laboratory Report Number: ISL-12LR097FSAR Table of Contents 1 STATEMENT OF COMPLIANCE ................................................................................. 5 2 GENERAL INFORMATION ........................................................................................... 6 2.1 DESCRIPTION OF DEVICE UNDER TEST (DUT) ................................................................................. 6 2.2 DUT PHOTOS .................................................................................................................................... 8 2.3 APPLIED STANDARDS ....................................................................................................................... 8 2.4 DEVICE CATEGORY AND SAR LIMITS .............................................................................................. 8 2.5 TEST ENVIRONMENT ......................................................................................................................... 8 2.6 TEST CONFIGURATION ...................................................................................................................... 9 3 SPECIFIC ABSORPTION RATE (SAR) ........................................................................ 9 3.1 INTRODUCTION ................................................................................................................................. 9 3.2 SAR DEFINITION .............................................................................................................................. 9 4 SAR MEASUREMENT SYSTEM ................................................................................. 10 4.1 ALSAS-10U SYSTEM DESCRIPTION ............................................................................................... 10 4.2 E-FIELD PROBE ALS-E-020S ......................................................................................................... 11 4.3 DAQ-PAQ (ANALOG TO DIGITAL ELECTRONICS) ALS-DAQ-PAQ-3 BOUNDARY DETECTION UNIT ALS-PMDPS-3 ...................................................................................................................... 13 4.4 AXIS ARTICULATED ROBOT ALS-F3 ............................................................................................. 15 4.5 ALSAS UNIVERSAL WORKSTATION ALS-UWS ............................................................................ 15 4.6 SAM PHANTOMS ALS-P-SAM-L / ALS-P-SAM-R ....................................................................... 16 4.7 UNIVERSAL DEVICE POSITIONER ................................................................................................... 18 4.8 TEST EQUIPMENT LIST .................................................................................................................... 19 5 TISSUE SIMULATING LIQUIDS ................................................................................ 20 6 SAR MEASUREMENT EVALUATION ...................................................................... 24 7 DUT TESTING POSITION ............................................................................................ 29 8 SAR MEASUREMENT PROCEDURES ...................................................................... 32 9 SAR TEST RESULTS ..................................................................................................... 34 9.1 CONDUCTED POWER TABLE: ........................................................................................................…

Text truncated - open the document above for the full version.

-1 of 2- International Standards Laboratory Report Number: ISL-12LR097FSAR Appendix C: System Performance Check Report Date : 02-Jun-2012(worst data) By Operator : Dino Chen DUT : Dipole Frequency : 835.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 835.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 266 Last Calib. Date : 08-Aug-2011 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Separation : 1cm -2 of 2- International Standards Laboratory Report Number: ISL-12LR097FSAR 1 gram SAR value : 10.285 W/kg 10 gram SAR value : 6.521 W/kg Area Scan Peak SAR : 10.958 W/kg Zoom Scan Peak SAR : 15.213 W/kg

-1 of 2- International Standards Laboratory Report Number: ISL-12LR115ESAR Appendix C: System Performance Check Report Date :04-Jun-2012(worst data) By Operator : Dino Chen DUT : Dipole Frequency : 1800.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 1800.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 266 Last Calib. Date : 08-Aug-2011 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Separation : 1cm -2 of 2- International Standards Laboratory Report Number: ISL-12LR115ESAR 1 gram SAR value : 37.788 W/kg 10 gram SAR value : 19.142 W/kg Area Scan Peak SAR : 41.738 W/kg Zoom Scan Peak SAR : 65.958 W/kg

-1 of 2- International Standards Laboratory Report Number: ISL-12LR097FSAR Appendix C: System Performance Check Report Date : 05-Jun-2012(worst data) By Operator : Dino Chen DUT : Dipole Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W APREL ALSAS-10U System Description Phantom Data Name : Universal Phantom Type : ALS-P-UP-1 Tissue Data Type : Body Frequency : 1900.00 MHz Probe Data Name : E-field Probe Model : ALS-E-020 Serial No. : 266 Last Calib. Date : 08-Aug-2011 Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.70 °C Area Scan : 9x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 5x5x8 : Measurement x=8mm, y=8mm, z=4mm Separation : 1cm -2 of 2- International Standards Laboratory Report Number: ISL-12LR097FSAR 1 gram SAR value : 41.567 W/kg 10 gram SAR value : 20.679 W/kg Area Scan Peak SAR : 46.925 W/kg Zoom Scan Peak SAR : 72.464 W/kg

-1 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Appendix D: SAR Measurement Data Host PC V100-G4 Data No. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 1 GPRS 850 GMSK Notebook mode Bottom 0 Low 0.001 2 Tablet mode top 0 Low 0.019 3 Tablet mode top 0 Mid 0.018 4 Tablet mode top 0 High 0.018 5 Tablet mode back 0 Low 0.001 6 Tablet mode Bottom 0 Low 0.002 7 GPRS 1900 GMSK Notebook mode Bottom 0 Low 0.001 8 Tablet mode top 0 Low 0.068 9 Tablet mode top 0 Mid 0.054 10 Tablet mode top 0 High 0.060 11 Tablet mode back 0 Low 0.001 12 Tablet mode Bottom 0 Low 0.027 13 CDMA 2000 850 RC3 (SO55) Notebook mode Bottom 0 High 0.001 14 Tablet mode top 0 High 0.038 15 Tablet mode top 0 Low 0.021 16 Tablet mode top 0 Mid 0.018 17 Tablet mode back 0 High 0.026 18 Tablet mode Bottom 0 High 0.001 19 CDMA 2000 1900 RC3 (SO55) Notebook mode Bottom 0 Mid 0.001 20 Tablet mode top 0 Mid 0.111 21 Tablet mode top 0 Low 0.107 22 Tablet mode top 0 High 0.105 23 Tablet mode back 0 Mid 0.009 24 Tablet mode Bottom 0 Mid 0.022 -2 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Data No. Band Mode Test Position Separation Distance (cm) Channel SAR 1g(W/kg) 25 WCDMA Band 2 RMC 12.2K Notebook mode Bottom 0 Low 0.001 26 Tablet mode top 0 Low 0.137 27 Tablet mode top 0 Mid 0.072 28 Tablet mode top 0 High 0.060 29 Tablet mode back 0 Low 0.001 30 Tablet mode Bottom 0 Low 0.001 31 WCDMA Band 4 RMC 12.2K Notebook mode Bottom 0 Low 0.001 32 Tablet mode top 0 Low 0.142 33 Tablet mode top 0 Mid 0.071 34 Tablet mode top 0 High 0.090 35 Tablet mode back 0 Low 0.023 36 Tablet mode Bottom 0 Low 0.001 37 WCDMA Band 5 RMC 12.2K Notebook mode Bottom 0 Low 0.001 38 Tablet mode top 0 Low 0.054 39 Tablet mode top 0 Mid 0.032 40 Tablet mode top 0 High 0.030 41 Tablet mode back 0 Low 0.004 42 Tablet mode Bottom 0 Low 0.001 Host PC V200-G2 43 WCDMA Band 4 RMC 12.2K Tablet mode top 0 Low 0.030 -3 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Data No. 1: Report Date : 04-Jun-2012 By Operator : Dino Measurement Date : 04-Jun-2012 Starting Time : 04-Jun-2012 06:29:49 PM End Time : 04-Jun-2012 06:54:41 PM Scanning Time : 1492 secs Product Data Device Name : 12LR097 Serial No. : NA Type : Other Model : Notebook Frequency : 850.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 120 mm Width : 135 mm Depth : 55 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.001 W/kg Power Drift-Finish: 0.000 W/kg Power Drift (%) : 0.000 Picture : C:\alsas\bitmap\Device-1.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 835_Body Frequency : 835.00 MHz Last Calib. Date : 04-Jun-2012 Temperature : 22.00 °C Ambient Temp. : 21.50 °C Humidity : 51.00 RH% Epsilon : 54.06 F/m Sigma : 0.95 S/m Density : 1000.00 kg/cu. m -4 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 835.00 MHz Duty Cycle Factor: 1 Conversion Factor: 6.8 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.50 °C Set-up Date : 04-Jun-2012 Set-up Time : 4:54:20 PM Area Scan : 6x9x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Other Data DUT Position : Touch Separation : 0 Channel : Low -5 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR 1 gram SAR value : 0.001 W/kg 10 gram SAR value : 0.001 W/kg Area Scan Peak SAR : 0.002 W/kg Zoom Scan Peak SAR : 0.000 W/kg -6 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Data No. 2: Report Date : 14-Jun-2012 By Operator : Dino Measurement Date : 14-Jun-2012 Starting Time : 14-Jun-2012 09:47:39 AM End Time : 14-Jun-2012 10:11:46 AM Scanning Time : 1447 secs Product Data Device Name : 12LR097 Serial No. : NA Type : Other Model : 1900 Frequency : 1900.00 MHz Max. Transmit Pwr : 1 W Drift Time : 0 min(s) Length : 55 mm Width : 190 mm Depth : 225 mm Antenna Type : Internal Orientation : Touch Power Drift-Start : 0.013 W/kg Power Drift-Finish: 0.013 W/kg Power Drift (%) : 3.586 Picture : C:\alsas\bitmap\Device-4.bmp Phantom Data Name : APREL-Uni Type : Uni-Phantom Size (mm) : 280 x 280 x 200 Serial No. : User Define Location : Center Description : Unit phantom Tissue Data Type : BODY Serial No. : 835_Body Frequency : 835.00 MHz Last Calib. Date : 04-Jun-2012 Temperature : 22.00 °C Ambient Temp. : 21.50 °C Humidity : 51.00 RH% Epsilon : 54.06 F/m Sigma : 0.95 S/m Density : 1000.00 kg/cu. m -7 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Probe Data Name : E-field Probe Model : ALS-E-020 Type : E-Field Triangle Serial No. : 266 Last Calib. Date : 08-Aug-2011 Frequency : 835.00 MHz Duty Cycle Factor: 1 Conversion Factor: 6.8 Probe Sensitivity: 1.20 1.20 1.20 μV/(V/m) 2 Compression Point: 95.00 mV Offset : 1.56 mm Measurement Data Crest Factor : 1 Scan Type : Complete Tissue Temp. : 22.00 °C Ambient Temp. : 21.30 °C Set-up Date : 13-Jun-2012 Set-up Time : 11:49:11 AM Area Scan : 7x7x1 : Measurement x=10mm, y=10mm, z=4mm Zoom Scan : 7x7x7 : Measurement x=5mm, y=5mm, z=5mm Other Data DUT Position : Touch Separation : 0 Channel : Low -8 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR 1 gram SAR value : 0.019 W/kg 10 gram SAR value : 0.007 W/kg Area Scan Peak SAR : 0.017 W/kg Zoom Scan Peak SAR : 0.040 W/kg -9 of 132- International Standards Laboratory Report Number: ISL-12LR097SAR Data No. 3: Report Date : 05-Jun-2012 By Operator : Dino Measurement Date : 05-Jun-2012 Starting Time : 05-Jun-2012 10:21:31 AM End Time : 05-Jun-2012 10:45:35 AM Scanning Time : 1444 secs Product Data Device…
