MAU040WLAN Module

Intel® PROSet/Wireless WiFi Connection Utility User's Guide Supported wireless adapters: ●Intel® Centrino® Ultimate-N 6300 ●Intel® Centrino® Advanced-N + WiMAX 6250 ●Intel® Centrino® Advanced-N 6200 ●Intel® WiMAX/WiFi Link 5350 ●Intel® WiFi Link 5300 ●Intel® WiMAX/WiFi Link 5150 ●Intel® WiFi Link 5100 ●Intel® WiFi Link 1000 ●Intel® Wireless WiFi Link 4965AGN ●Intel® Wireless WiFi Link 4965AG_ ●Intel® PRO/Wireless 3945ABG ●Intel® PRO/Wireless 3945_BG With your WiFi network card, you can access WiFi networks, share files or printers, or even share your Internet connection. All of these features can be explored using a WiFi network in your home or office. This WiFi network solution is designed for both home and business use. Additional users and features can be added as your networking needs grow and change. Depending on the model of your Intel WiFi adapter, your adapter is compatible with 802.11a, 802.11b, 802.11g, and 802.11n (draft 2.0) wireless standards. Operating at 5 GHz or 2.4 GHz frequency at data rates of up to 450 Mbps, you can now connect your computer to existing high-speed networks that use multiple access points within large or small environments. Your WiFi adapter maintains automatic data rate control according to the access point location and signal strength to achieve the fastest possible connection. All of your wireless network connections are easily managed by the WiFi connection utility. Profiles that are set up through the WiFi connection utility provide enhanced security measures with 802.1X network authentication. Table of Contents ●Use the Intel® PROSet/Wireless WiFi Connection Utility ❍Connect to a Network ❍Use Wi-Fi Protected Setup* ❍Use Profiles ❍Set up Security ❍WiFi Network Overview ❍Administrator Tool ❍Create Administrator Packages ❍Create Profiles ❍Security Overview ❍Safety and Regulatory Information ❍Specifications ❍Troubleshooting ❍Glossary ❍Customer Support ❍Warranty Information in this document is subject to change without notice. © 2004–2009 Intel Corporation. All rights reserved. Intel Corporation, 5200 N.E. Elam Young Parkway, Hillsboro, OR 97124-6497 USA The copying or reproducing of any material in this document in any manner whatsoever without the written permission of Intel Corporation is strictly forbidden. Intel® is a trademark or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Intel disclaims any proprietary interest in trademarks and trade names other than its own. Microsoft and Windows are registered trademarks of Microsoft Corporation. Windows Vista is either a registered trademark or trademark of Microsoft Corporation in the United States and/or other countries. *Other names and brands may be claimed as the property of others. Intel Corporation assumes no responsibility for errors or omissions in this document. Nor does Intel make any commitment to update the information contained herein. "IMPORTANT NOTICE FOR ALL USERS OR DISTRIBUTORS: Intel wireless LAN adapters are engineered, manufactured, tested, and quality checked to ensure that they meet all necessary local and governmental regulatory agency requirements for the regions that they are designated and/or marked to ship into. Because wireless LANs are generally unlicensed devices that share spectrum with radars, satellites, and other licensed and unlicensed devices, it is sometimes necessary to dynamically detect, avoid, and limit usage to avoid interference with these devices. In many instances Intel is required to provide test data to prove regional and local compliance to regional and governmental regulations before certification or approval to use the product is granted. Intel's wireless LAN's EEPROM, firmware, and software driver are designed to carefully control parameters that affect radio operation and to ensure electromagnetic compliance (EMC). These parameters include, without limitation, RF power, spectrum usage, channel scanning, and human exposure. For these reasons Intel cannot permit any manipulation by third parties of the software provided in binary format with the wireless LAN adapters (e.g., the EEPROM and firmware). Furthermore, if you use any patches, utilities, or code with the Intel wireless LAN adapters that have been manipulated by an unauthorized party (i.e., patches, utilities, or code (including open source code modifications) which have not been validated by Intel), (i) you will be solely responsible for ensuring the regulatory compliance of the products, (ii) Intel will bear no liability, under any theory of liability for any issues associated with the modified products, including without limitation, claims under the warranty and/or issues arising from regulatory non-compliance, and (iii) Intel will not provide or be required to assist in providing support to any third parties for such modified products. Note: Many regulatory agencies consider Wireless LAN adapters to be "modules", and accordingly, condition system-level regulatory approval upon receipt and review of test data documenting that the antennas and system configuration do not cause the EMC and radio operation to be non-compliant." July 2, 2009 Back to Contents Use the Intel® PROSet/Wireless WiFi Connection Utility Use Intel® PROSet/Wireless WiFi Connection Utility as your Wireless Manager Start Intel® PROSet/Wireless WiFi Connection Utility Start Intel® PROSet/Wireless WiFi Connection Utility from the Taskbar ●Taskbar Icons ●Tool Tips and Desktop Alerts Intel® PROSet/Wireless WiFi Connection Utility Main Window ●First Time Connection ●WiFi Networks list ●Connection Status Icons ●Network Properties ●Connection Details Intel® PROSet/Wireless WiFi Software Menus ●Tools Menu ❍Application Settings ❍Intel® Wireless Troubleshooter ❍Manual Diagnostics Tool ❍Administrator Tool ●Advanced Menu ❍Adapter Settings ❍…

Text truncated - open the document above for the full version.

Date: 2010/09/13 Subject: Dynamic Frequency Selection Declaration FCC ID: MAU040 To whom it may concern, This device (Client) is without radar detection, then the manufacturer statement confirming that information regarding the parameters of the detected Radar Waveforms is not available to the end user. And the device doesn’t have Ad Hoc mode on DFS frequency band. For the main RF chipset, this application implements Intel wireless LAN module ”Intel® Centrino® Advanced-N 6200” (model numbers 622ANHMW). Regards,

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Date: Aug. 23, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: MAU040, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Aug. 23, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：MAU040 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

FCC ID: MAU040 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 The modular transmitter must have its own RF shielding. The radio portion of this module has been shielded, please see exhibition external photos. 2 The modular transmitter must have buffered Modulation / data inputs. The EUT has buffer modulation / data input. 3 The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation. 4 The modular transmitter must comply with the antenna requirement of the Section 15.203 and 15.204(c) The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the Report and Internal photos. 5 The modular transmitter must be tested in a stand-alone configuration. It was tested with host device. Please refer to test setup photos in details. 6 The modular transmitter must be labeled with its own FCC ID number. The WLAN module will be labeled with its own FCC ID. (see the label exhibit) 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The copy of the instructions will be included in the integration guide. 8 The module transmitter must comply with any applicable RF exposure requirement. This application is a Limited Module Approval for this module will be installed in below three host devices: V100-X, V100-2X, V200-X, and all the specification and layout are identical except they come with different model numbers and panel size for the marketing purpose. These three host devices were all already performed the SAR evaluation and please refer to the SAR “Report No: T100714303-SF”.

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Date: Aug. 23, 2010 FCC ID：MAU041 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712,Taiwan R.O.C. Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Getac / WiFi Link 6200 FCC ID: MAU040 Product Name: WLAN Module FCC grantee contact person information. Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

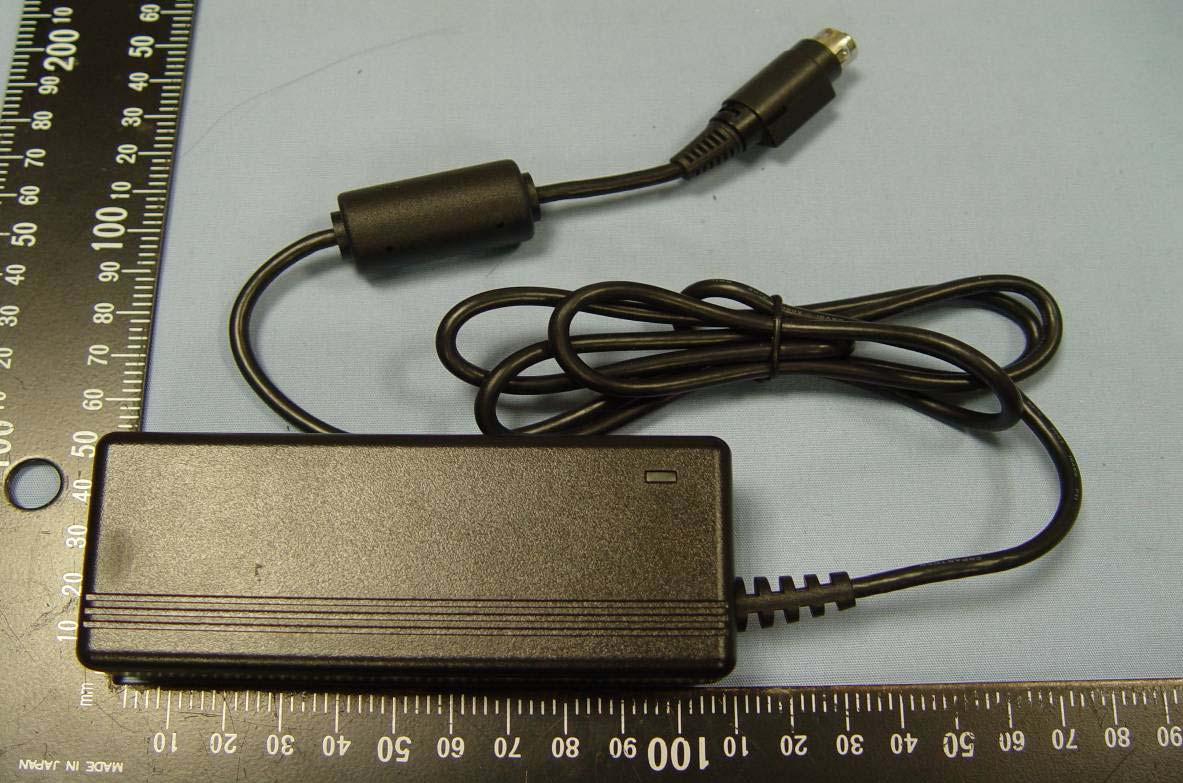

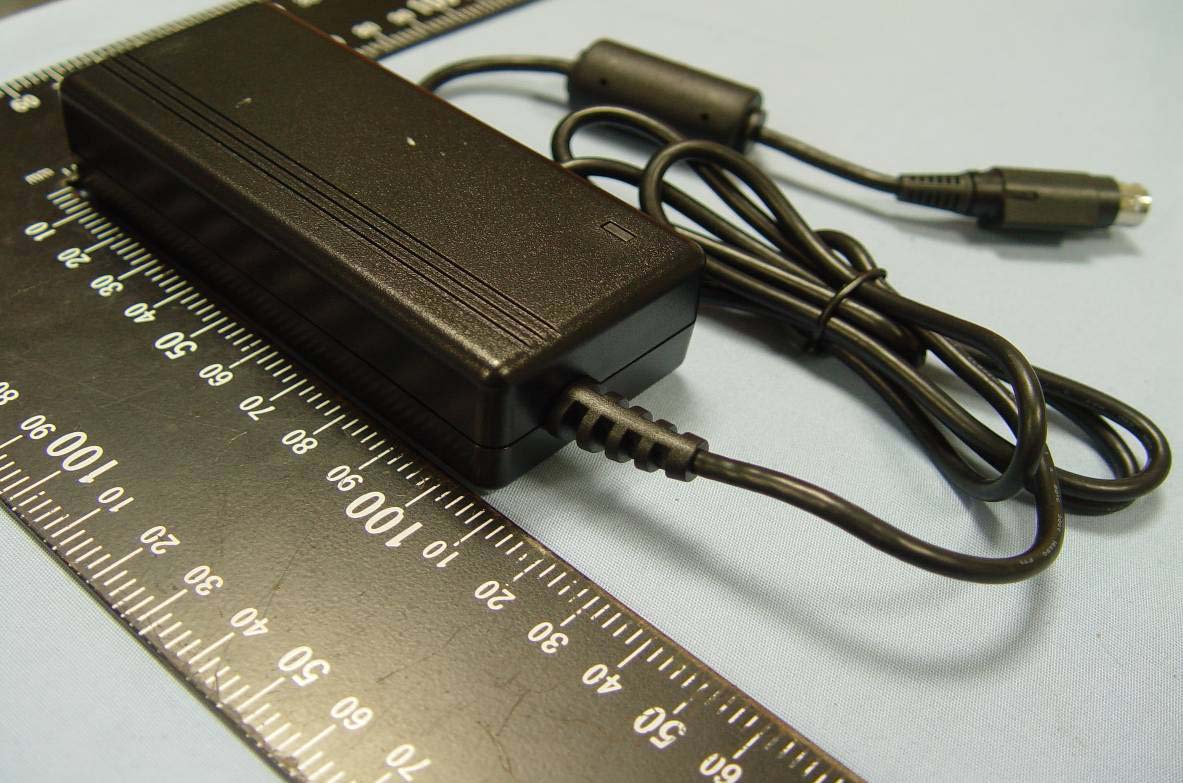

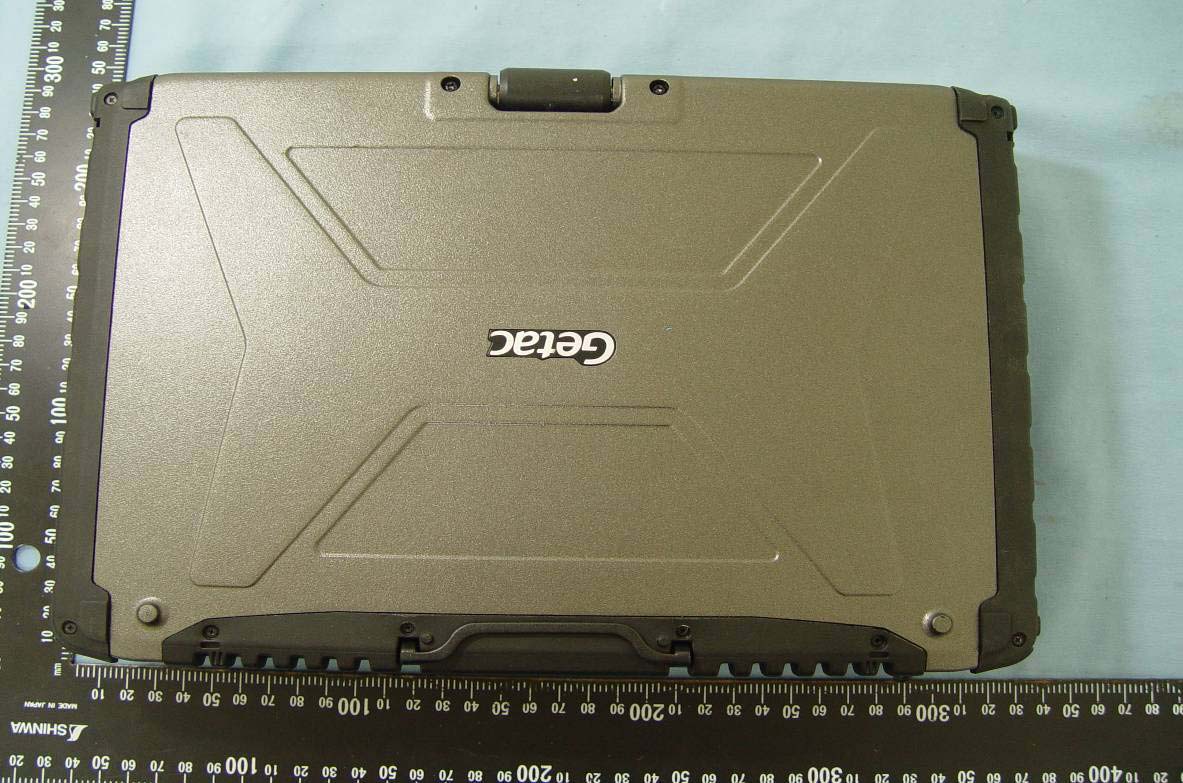

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 1 Total Page: 51 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 2 Total Page: 51 Rev. 00 EXTERNAL PHOTOGRAPHS OF SPECIFIC HOST PLATFORMS: Remark: There are three kinds of host platforms for this WLan limited module approval application. All the specification and layout between these three host platforms are identical except they come with different model numbers and panel size for marketing purposes. For these three host platforms, there are also possible to own a BT module (FCC ID: MAU041; Model Number: BTC04R), WWan module (FCC ID: MAU039; Model Number: Gobi2) and a GPS module inside these three host platforms, however, either of this BT module, WLan module, and WWan module will be not able to transmit simultaneously for any kind of situation. This application is only an application of Limited Module Approval for this WLan function. Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 3 Total Page: 51 Rev. 00 For V-100-2X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 4 Total Page: 51 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 5 Total Page: 51 Rev. 00 For V-100-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 6 Total Page: 51 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 7 Rev. 00 For V-200-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 12 Rev. 00

Getac Technology Corp. WLAN Module Model No: WiFi Link 6200 FCC ID:MAU040 Label Here NOTES: 1. MATERIAL:變色反銀龍50# +PP20. 2. COLOR:銀色底黑色字 3. 背膠類型:壓克力膠 4. 厚度:0.1mm 5. 黏性:黏著力為 1.5kg/25mm 以上 6. 表面:光滑面 7. 貼附位置:安規標籤上 8. 環測項目及條件.(判定標準follow "系統表面處理的測試規範" ) 242125600005 TF1-LABEL;FCC ID,18x6,MAU041,BT,V200X 6 18 This device complies with part 15 of the FCC rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA XF MODEL: V200 DC INPUT:19V 3.16A Contains: Label Format “Contains Transmitter Module FCC ID:MAU040” or “Contains FCC ID: MAU04 0” Label Here (Host)

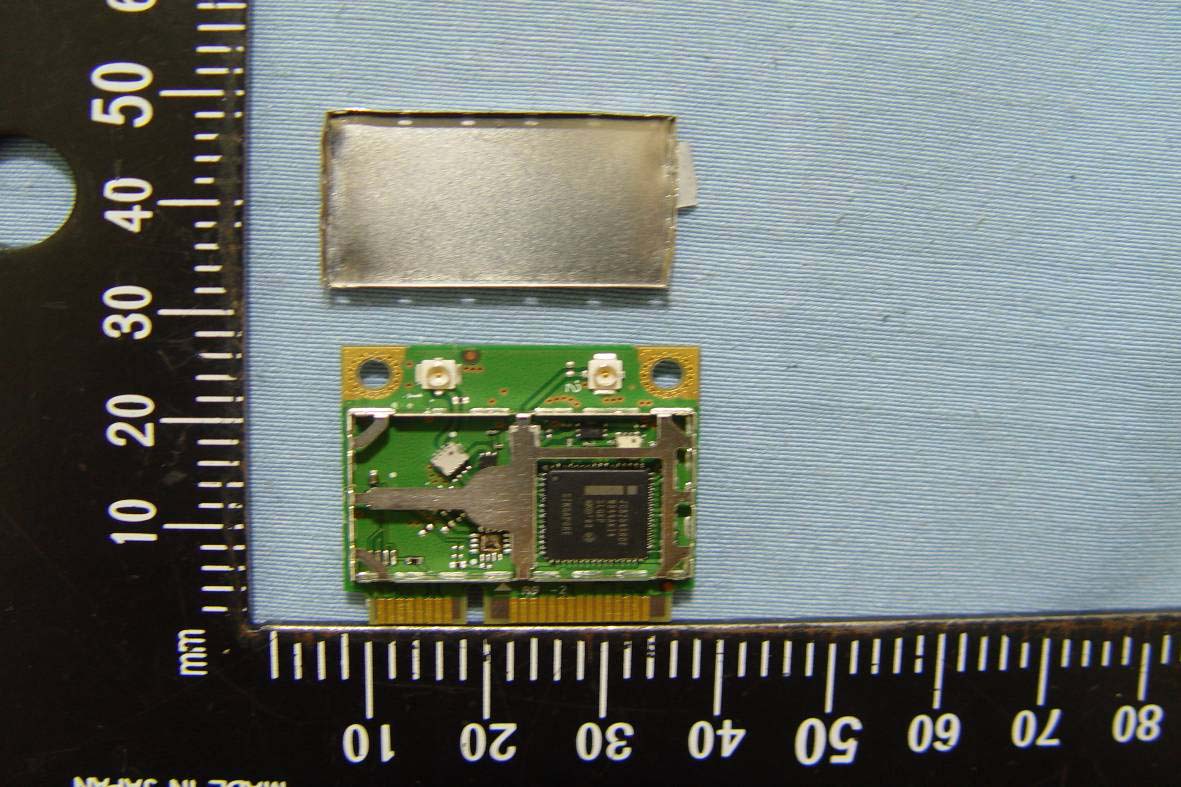

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 15 Rev. 00 Antenna Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 16 Rev. 00 INTERNAL PHOTOGRAPHS OF SPECIFIC HOST PLATFORMS: Remark: There are three kinds of host platforms for this WLan limited module approval application. All the specification and layout between these three host platforms are identical except they come with different model numbers and panel size for marketing purposes. For these three host platforms, there are also possible to own a BT module (FCC ID: MAU041; Model Number: BTC04R), WWan module (FCC ID: MAU039; Model Number: Gobi2) and a GPS module inside these three host platforms, however, either of this BT module, WLan module, and WWan module will be not able to transmit simultaneously for any kind of situation. This application is only an application of Limited Module Approval for this WLan function. Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 17 Rev. 00 For V100-2x Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 21 Rev. 00 WLAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 22 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 23 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 24 Rev. 00 BT Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 25 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 26 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 27 Rev. 00 GPS module

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 28 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 29 Rev. 00 For V100-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 30 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 31 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 32 Rev. 00 WLAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 33 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 34 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 35 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 36 Rev. 00 BT Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 37 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 38 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 39 Rev. 00 GPS Module

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 40 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 41 Rev. 00 For V200-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 42 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 43 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 44 Rev. 00 WLAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 45 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 46 Rev. 00 BT Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 47 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 48 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 49 Rev. 00 GPS Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 50 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 51 Rev. 00 WLAN antenna WWAN antenna WWAN antenna BT antenna

2 JOINSOON ELECTRONICS MFG. CO., LTD. QUICK REFERENCE DATA Antenna Dimension 46.4*9.2*3 mm Connector I-PEX Cable Length MI-113,7 00mm,BLACK Peak Gain ≦4.0 dBi Polarization Linear Impedance 50Ω Operating Temperature -40~90 °C Maximum Power 1W 3 Product Drawing NOTE: 1.The products accord with directive and edition revised of RoHS (2002/95/EC).ELECTRICAL TEST: 1.Frequency Range:2.4~ 2.5GHz,4.9-5.875 GHz. 2.Impedance:50 Ohms Nomimal. 3.Peak Gain: 4dBi @2.4GHz/5.25GHz. 4.Radiation:Linear 4 JOINSOON ELECTRONICS MFG. CO., LTD. Test results 1. Peak Gain&Ave.Gain Antenna Peak Gain (dBi) Ave. Gain (dBi) 2.4GHz 2.45GHz 2.5GHz 2.4GHz 2.45GHz 2.5GHz L SIDE 2.60 2.21 2.221.661.321.03 Antenna Peak Gain (dBi) 4.9GHz 5.15GHz 5.25GHz5.35GHz5.47GHz5.6GHz5.725GHz 5.85GHz L SIDE 2.92 2.41 1.531.860.883.34 3.48 3.97 Antenna Ave. Gain (dBi) 4.9GHz 5.15GHz 5.25GHz5.35GHz5.47GHz5.6GHz5.725GHz 5.85GHz L SIDE -0.72 -0.96 -0.87-1.49-1.85-0.16 0.00 -0.19 2. 2.VSWR 5 -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2400 MHz H V H + V JOINSOON ELECTRONICS MFG. CO., LTD. 3. Radiation Pattern -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2450 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2500 MHz H V H + V 6 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 4900 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5150 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5250 MHz H V H + V 7 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5350 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5475 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5600 MHz H V H + V 8 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5725 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5850 MHz H V H + V

2 JOINSOON ELECTRONICS MFG. CO., LTD. QUICK REFERENCE DATA Antenna Dimension 46.4*9.2*3 mm Connector I-PEX Cable Length MI-113,580mm,WHITE Peak Gain ≦4.0 dBi Polarization Linear Impedance 50Ω Operating Temperature -40~90 °C Maximum Power 1W 3 Product Drawing NOTE: 1.The products accord with directive and edition revised of RoHS (2002/95/EC).ELECTRICAL TEST: 1.Frequency Range:2.4~2.5GHz,4.9-5.875 GHz. 2.Impedance:50 Ohms Nomimal. 3.Peak Gain: 4dBi @2.4GHz/5.25GHz. 4.Radiation:Linear 4 JOINSOON ELECTRONICS MFG. CO., LTD. Test results 1. Peak Gain&Ave.Gain Antenna Peak Gain (dBi) Ave. Gain (dBi) 2.4GHz 2.45GHz 2.5GHz 2.4GHz 2.45GHz 2.5GHz R SIDE 1.61 1.10 0.75-0.61-1.10-1.43 Antenna Peak Gain (dBi) 4.9GHz 5.15GHz 5.25GHz5.35GHz5.47GHz5.6GHz 5.725GHz 5.85GHz R SIDE 1.25 2.11 1.740.420.742.43 2.450.99 Antenna Ave. Gain (dBi) 4.9GHz 5.15GHz 5.25GHz5.35GHz5.47GHz5.6GHz 5.725GHz 5.85GHz R SIDE -1.83 -2.09 -2.16-2.63-3.50-2.29 -2.33-2.85 2. 2.VSWR 5 JOINSOON ELECTRONICS MFG. CO., LTD. R Side -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2400 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2450 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2500 MHz H V H + V 6 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 4900 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5150 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5250 MHz H V H + V 7 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5350 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5475 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5600 MHz H V H + V 8 JOINSOON ELECTRONICS MFG. CO., LTD. -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5725 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 5850 MHz H V H + V

Compliance Certification Services Inc. Report No: T100714303-SF FCC ID: MAU040 Date of Issue: August 18, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For WLAN Module Model: WiFi Link 6200 Trade Name: Getac Issued to Getac Technology Corp. No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu , Taiwan Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www.ccsrf.com.tw [email protected] Compliance Certification Services Inc. Report No: T100714303-SF Date of Issue: August 18, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION)..........................................................3 2. EUT DESCRIPTION ..........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC..........................5 4. DOSIMETRIC ASSESSMENT SETUP ............................................................................................5 4.1 MEASUREMENT SYSTEM DIAGRAM.....................................................................................6 4.2 SYSTEM COMPONENTS............................................................................................................7 5. EVALUATION PROCEDURES......................................................................................................10 6. MEASUREMENT UNCERTAINTY ...............................................................................................14 7. EXPOSURE LIMIT ..........................................................................................................................15 8. EUT ARRANGEMENT ....................................................................................................................16 8.1 ANTHROPOMORPHIC HEAD PHANTOM.............................................................................16 8.2 DEFINITION OF THE “CHEEK/TOUCH” POSITION ............................................................17 8.3 DEFINITION OF THE “TILTED” POSITION...........................................................................18 9. MEASUREMENT RESULTS ..........................................................................................................19 9.1 SYSTEM PERFORMANCE CHECK .........................................................................................19 9.2 TEST LIQUIDS CONFIRMATION............................................................................................19 9.3 EUT TUNE-UP PROCEDURES .................................................................................................27 9.4 SAR MEASUREMENT RESULTS ............................................................................................33 10. EUT photos ........................................................................................................................................41 11. EQUIPMENT LIST & CALIBRATION STATUS .........................................................................44 12. FACILITIES ......................................................................................................................................45 13. REFERENCES ..................................................................................................................................45 14. ATTACHMENTS ..............................................................................................................................46 Compliance Certification Services Inc. Report No: T100714303-SF Date of Issue: August 18, 2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant Getac Technology Corp. No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu , Taiwan Equipment Under Test: WLAN Module Trade Name: Getac Model Number: WiFi Link 6200 Date of Test: August 01~10, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: T100714303-SF Date of Issue: August 18, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product WLAN Module Trade Name Getac Model Number WiFi Link 6200 Model Discrepancy N/A Frequency Range 802.11a: 5180 ~ 5240 MHz / 5260 ~ 5320 MHz / 5500 ~ 5700 MHz / 5745 ~ 5825 MHz 802.11a(HT20): 5180 ~ 5240 MHz / 5260 ~ 5320 MHz / 5500 ~ 5700 MHz / 5745 ~ 5825 MHz 802.11a(HT40): 5190~5230 MHz / 5270 ~ 5310 MHz / 5510~5670 MHz …
