CastleNet BTC04R User Guide CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 1 of 6 User Guide Bluetooth2.1+EDR Module CastleNet BTC04R User Guide CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 2 of 6 Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with FCC RF exposure compliance requirements, please follow operation instruction as documented in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. CastleNet BTC04R User Guide CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 3 of 6 This device is intended only for OEM integrators under the following conditions: TANT NOTE: In the event that these conditions can not be met (for example certain laptop configurations or co-location with another transmitter), then the FCC authorization is no longer considered valid and the FCC ID can not be used on the final product. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product (including the transmitter) and obtaining a separate FCC authorization. End Product Labeling This transmitter module is authorized only for use in device where the antenna may be installed such that 20 cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains TX FCC ID: MAU040”. Manual Information To the End User The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user’s manual of the end product which integrates this module. The users manual for OEM integrators must include the following information in a prominent location “IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements. The antenna must not be co-located or operating in conjunction with any other antenna or transmitter. CastleNet BTC04R User Guide CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 4 of 6 Canada-Industry Canada (IC) Operation is subject to the following two conditions: this device may not cause interference and this device must accept any interference, including interference that may cause undesired operation of the device. IMPORTANT NOTE: IC Radiation Exposure Statement: This equipment with IC radiation exposure limits set forth for an uncontrolled environment. To maintain compliance with IC RF exposure compliance requirements, please follow operation instruction as documented in this manual. CastleNet BTC04R User Guide 1. INTRODUCTION The BTC04R series is a embedded Bluetooth module, smallest form factor for Notebook and handheld PC. The Bluetooth function is based on CSR BlueCore4-ROM A07 single chip, which is fully compliant with Bluetooth 2.1 specification plus EDR. It has good RF performance. Lowest power consumption, piconet and scatternet capability. The interface is HCI USB compliant with USB fully speed (12Mbits). The cable connection and PIN define of “Host I/F connector” from BT module (BTC04R series) to PC system is specially customized by OEM Laptop PC. There are two models shown as below: Model A: the chip antenna is embedded on board. Model B: it requires the external antenna connection. CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 5 of 6 CastleNet BTC04R User Guide 2. INSTALLATION 2.1 Installed in Laptop PC The Mainboard of the system should provide a Host connector and Cable connection for BT module. Please follow the SOP to install & assemble it step by step. 2.2 Testing in Lab The module is embedded inside Notebook. If for testing purpose, we provide the “USB Testing Board” in order to let tester connect BTC04R via the special cable connection to PC externally. The USB Testing Board provides +5V/3.3V conversion from PC Host. Please plug into any USB port on your PC. After Hardware installation, when system find the new hardware, please install the driver / software correctly. CastleNet Technology Inc. Copyright © 2008 All Rights Reserved. 6 of 6

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Date: Aug. 23, 2010 Subject: DoC declaration To Whom it may concern, We, as the grantee of this project FCC ID: MAU04 1, would like to declare that the composite portion categorized as computer peripheral has been authorized under the Declaration of Conformity procedures. Regards, Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

FCC ID: MAU041 Request for transmitter modular approval Transmitter Module Characteristics Item Requirements EUT 1 The modular transmitter must have its own RF shielding. The radio portion of this module has been shielded, please see exhibition external photos. 2 The modular transmitter must have buffered Modulation / data inputs. The EUT has buffer modulation / data input. 3 The modular transmitter must have its own power supply regulation. The EUT has its own power supply regulation. 4 The modular transmitter must comply with the antenna requirement of the Section 15.203 and 15.204(c) The EUT meets the FCC antenna requirements. The spurious emission, unique antenna connector and photo of antennas are shown in the Report and Internal photos. 5 The modular transmitter must be tested in a stand-alone configuration. It was tested with host device. Please refer to test setup photos in details. 6 The modular transmitter must be labeled with its own FCC ID number. The BT module will be labeled with its own FCC ID. (see the label exhibit) 7 The modular transmitter must comply with any specific rule or operating requirements applicable to the transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. The copy of the instructions will be included in the integration guide. 8 The module transmitter must comply with any applicable RF exposure requirement. This application is a Limited Module Approval for this module will be installed in below three host devices: V100-X, V100-2X, V200-X, and all the specification and layout are identical except they come with different model numbers and panel size for the marketing purpose. These three host devices were all already performed the SAR evaluation and please refer to the SAR “Report No: T100714303-SFB”.

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Aug. 23, 2010 Federal Communications Commission Authorization and Evaluation Division FCC ID：MAU041 Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

Getac Technology Corp. No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan Date: Aug. 23, 2010 FCC ID：MAU041 Dear Sir, I hereby have entrusted the following person to be a proxy regarding application for Type Certification. Compliance Certification Services Inc. Address: No.8, Jiu Cheng Ling, Jiaokeng Village,Sinhua Township, Tainan Hsien 712,Taiwan R.O.C. Name: Daphne Liang Job Title: Section Manager Email: [email protected] I am therefore responsible for the contents of the application. Brand Name and Model Name of the specified radio equipment: Getac / BTC04R FCC ID: MAU041 Product Name: Bluetooth Module FCC grantee contact person information. Name/Title: Vincent.Hsieh Company Name: Getac Technology Corp. Address: No.1,R&D Road 2, Hsinchu Science Based Industrial Park ,Hsinchu , Taiwan TEL: 886-3-5782280 # 6201 FAX: 886-3-5774034 Email: [email protected]

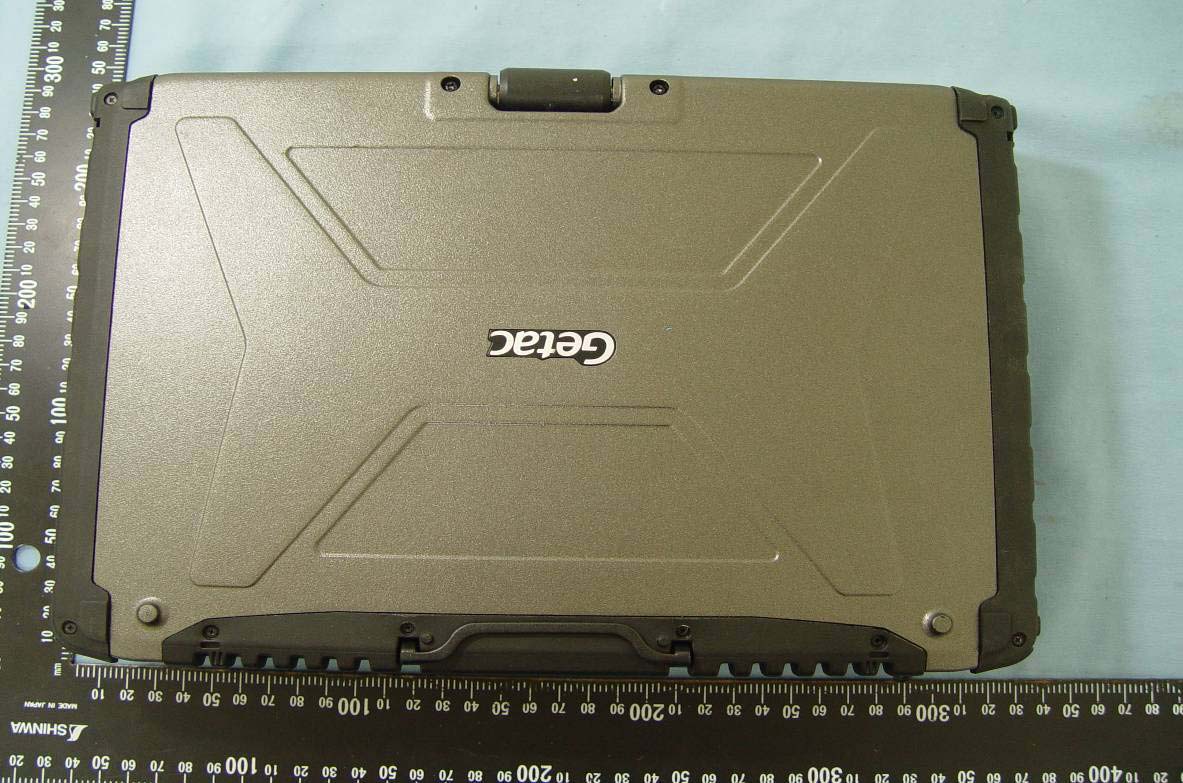

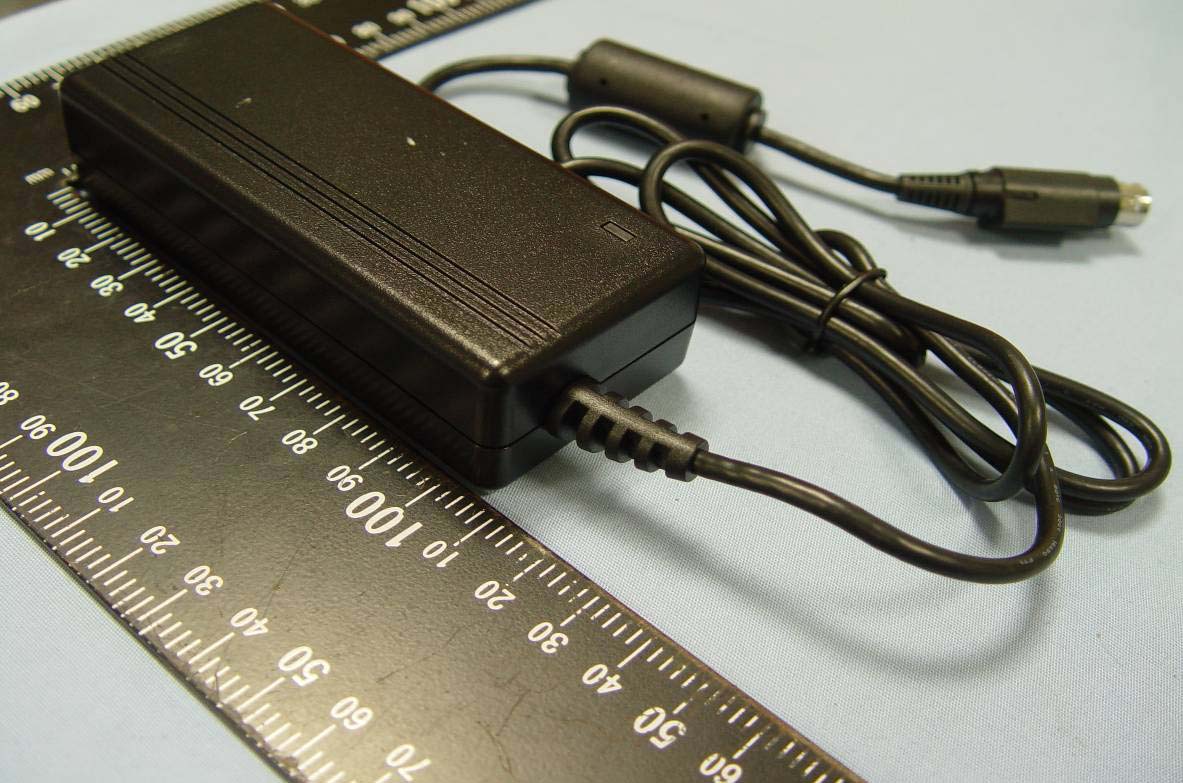

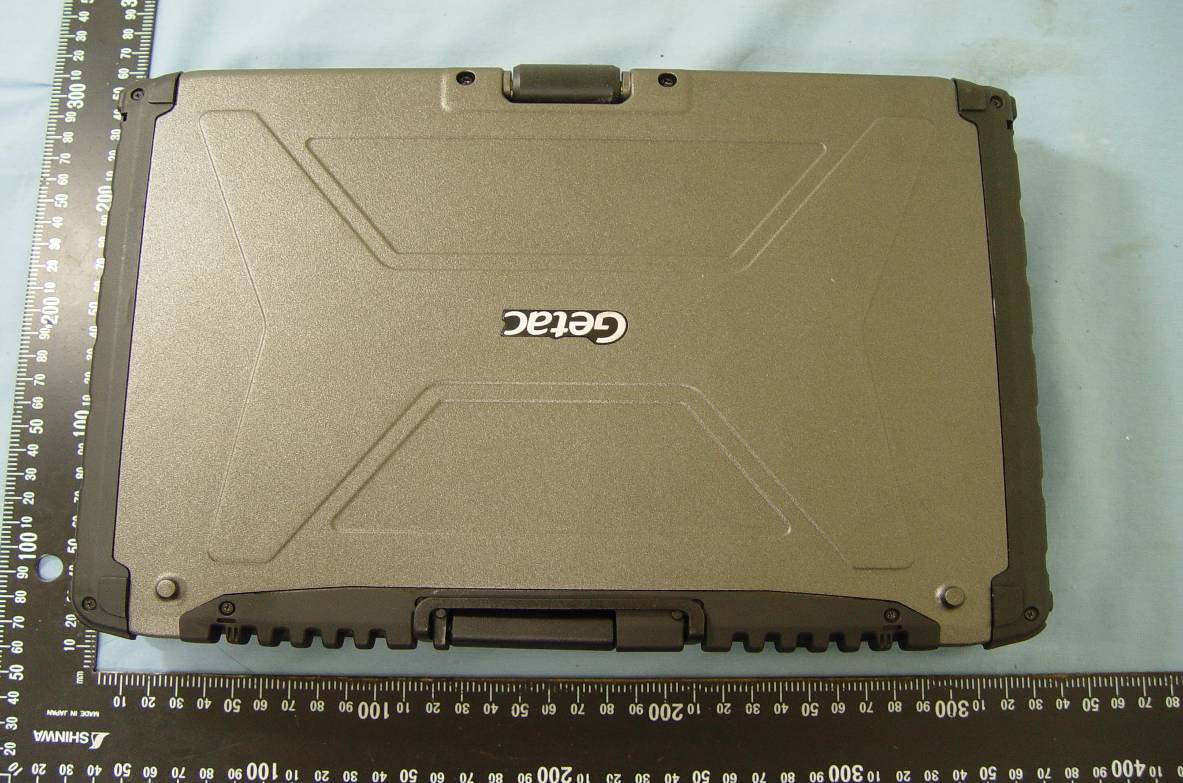

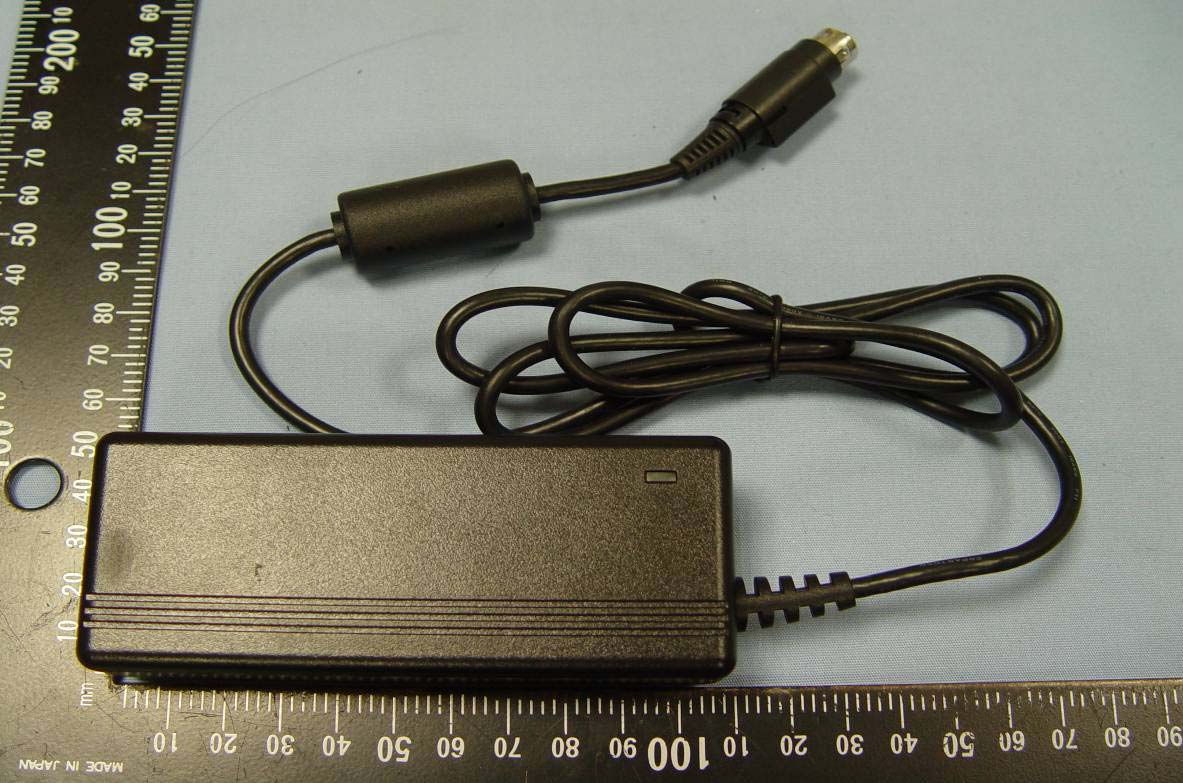

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 1 Total Page: 48 Rev. 00 APPENDIX 1 - PHOTOGRAPHS OF EUT EXTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 2 Total Page: 48 Rev. 00 EXTERNAL PHOTOGRAPHS OF SPECIFIC HOST PLATFORMS: Remark: There are three kinds of host platforms for this BT limited module approval application. All the specification and layout between these three host platforms are identical except they come with different model numbers and panel size for marketing purposes. For these three host platforms, there are also possible to own a WLan module (FCC ID: MAU040; Model Number: WiFi Link 6200), WWan module (FCC ID: MAU039; Model Number: Gobi2) and a GPS module inside these three host platforms, however, either of this BT module, WLan module, and WWan module will be not able to transmit simultaneously for any kind of situation. This application is only an application of Limited Module Approval for this BT function. Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 3 Total Page: 48 Rev. 00 For V-100-2X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 4 Total Page: 48 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 5 Total Page: 48 Rev. 00 For V-100-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 6 Total Page: 48 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 7 Rev. 00 For V-200-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 8 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 9 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 10 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 11 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 12 Rev. 00

Getac Technology Corp. Bluetooth Module Model No: BTC04R FCC ID:MAU041 Label Here NOTES: 1. MATERIAL:變色反銀龍50# +PP20. 2. COLOR:銀色底黑色字 3. 背膠類型:壓克力膠 4. 厚度:0.1mm 5. 黏性:黏著力為 1.5kg/25mm 以上 6. 表面:光滑面 7. 貼附位置:安規標籤上 8. 環測項目及條件.(判定標準follow "系統表面處理的測試規範" ) 242125600005 TF1-LABEL;FCC ID,18x6,MAU041,BT,V200X 6 18 This device complies with part 15 of the FCC rules.Operation is subject to the following two conditions:(1) this device may not cause harmful interference,and (2) this device must accept any interference received, including interference that may cause undesired operation. MADE IN CHINA XF MODEL: V200 DC INPUT:19V 3.16A Contains: Label Format “Contains Transmitter Module FCC ID:MAU041” or “Contains FCC ID: MAU041” Label Here (Host)

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 13 Rev. 00 INTERNAL PHOTOGRAPHS OF EUT Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 14 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 15 Rev. 00 BT Antenna Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 16 Rev. 00 INTERNAL PHOTOGRAPHS OF SPECIFIC HOST PLATFORMS: Remark: There are three kinds of host platforms for this BT limited module approval application. All the specification and layout between these three host platforms are identical except they come with different model numbers and panel size for marketing purposes. For these three host platforms, there are also possible to own a WLan module (FCC ID: MAU040; Model Number: WiFi Link 6200), WWan module (FCC ID: MAU039; Model Number: Gobi2) and a GPS module inside these three host platforms, however, either of this BT module, WLan module, and WWan module will be not able to transmit simultaneously for any kind of situation. This application is only an application of Limited Module Approval for this BT function. Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 17 Rev. 00 For V100-2x Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 18 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 19 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 20 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 21 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 22 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 23 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 24 Rev. 00 GPS module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 25 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 26 Rev. 00 Wireless LAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 27 Rev. 00

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 28 Rev. 00 For V100-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 29 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 30 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 31 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 32 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 33 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 34 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 35 Rev. 00 GPS module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 36 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 37 Rev. 00 Wireless LAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 38 Rev. 00

Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 39 Rev. 00 For V200-X Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 40 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 41 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 42 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 43 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 44 Rev. 00 GPS module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 45 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 46 Rev. 00 Wireless LAN Module Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 47 Rev. 00 Compliance Certification Services Inc. Report No.: T100714303 Date of Issue: September 8, 2010 A1 - 48 Rev. 00 WLAN antenna WWAN antenna WWAN antenna BT antenna

2 JOINSOON ELECTRONICS MFG. CO., LTD. QUICK REFERENCE DATA Antenna Dimension 47.5*12*8.5 mm Connector I-PEX Cable Length MI-113,100mm,BLACK Peak Gain ≦4.0 dBi Polarization Linear Impedance 50Ω Operating Temperature -40~90 °C Maximum Power 1W 3 Product Drawing NOTE: 1.The products accord with directive and edition revised of RoHS (2002/95/EC). ELECTRICAL TEST: 1.Frequency Range:2.4~2.5GHz. 2.Impedance:50 Ohms Nomimal. 3.Peak Gain: 4dBi @2.4GHz. 4.Radiation:Linear 4 Antenna Drawing PIFA-MIMO/BT-V100 5 JOINSOON ELECTRONICS MFG. CO., LTD. Test results 1. Peak Gain&Ave.Gain Antenna Peak Gain (dBi) Ave. Gain (dBi) 2.4GHz 2.45GHz 2.5GHz 2.4GHz 2.45GHz 2.5GHz BT -0.55 -0.70 -0.57-3.67-3.56-3.72 2. 2.VSWR 6 -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2500 MHz H V H + V JOINSOON ELECTRONICS MFG. CO., LTD. 3. Radiation Pattern -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2400 MHz H V H + V -40 -35 -30 -25 -20 -15 -10 -5 0 5 0 30 60 90 120 150 180 210 240 270 300 330 -40 -35 -30 -25 -20 -15 -10 -5 0 5 2450 MHz H V H + V

Compliance Certification Services Inc. Report No: T100714303-SFB FCC ID: MAU041 Date of Issue: September 16, 2010 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. Page 1 Total Page: 31 Rev. 00 ANSI/IEEE Std. C95.1-1992 In accordance with the requirements of FCC Report and Order: ET Docket 93-62, and OET Bulletin 65 Supplement C FCC SAR TEST REPORT For Bluetooth Module Model: BTC04R Trade Name: Getac Issued to Getac Technology Corp. No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu , Taiwan Issued by Compliance Certification Services Inc. No. 11, Wugong 6th Rd., Wugu Industrial Park, Taipei Hsien, 248 Taiwan. http://www.ccsrf.com.tw [email protected] Compliance Certification Services Inc. Report No: T100714303-SFB Date of Issue: September 16, 2010 Page 2 Rev. 00 TABLE OF CONTENTS 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) ..........................................................3 2. EUT DESCRIPTION ..........................................................................................................................4 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC ...........................5 4. MEASUREMENT UNCERTAINTY .................................................................................................6 5. EXPOSURE LIMIT ............................................................................................................................7 5.1 EUT TUNE-UP PROCEDURES................................................................................................................... 8 6. EUT PHOTOS........................................................................................................................................9 7. FACILITIES ......................................................................................................................................12 8. REFERENCES ..................................................................................................................................12 Compliance Certification Services Inc. Report No: T100714303-SFB Date of Issue: September 16, 2010 Page 3 Rev. 00 1. CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant Getac Technology Corp. No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu , Taiwan Equipment Under Test: Bluetooth Module Trade Name: Getac Model Number: BTC04R Date of Test: September 16, 2010 Device Category: PORTABLE DEVICES Exposure Category: GENERAL POPULATION/UNCONTROLLED EXPOSURE APPLICABLE STANDARDS STANDARD TEST RESULT FCC OET 65 Supplement C No non-compliance noted Deviation from Applicable Standard None The device was tested by Compliance Certification Services Inc. in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C(Edition 01-01). The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Tested by: Rex Lai Anson Lu Section Manager Test Engineer Compliance Certification Services Inc. Compliance Certification Services Inc. Compliance Certification Services Inc. Report No: T100714303-SFB Date of Issue: September 16, 2010 Page 4 Rev. 00 2. EUT DESCRIPTION Product Bluetooth Module Trade Name Getac Model Number BTC04R Model Discrepancy N/A Frequency Range 2402 ~ 2480 MHz Transmit Power(Average) 1.45 dBm Max. SAR (1g) Bluetooth SAR is not required, Please refer to page 8. Modulation Technique GFSK for 1Mbps; π/4-DQPSK for 2Mbps; 8DPSK for 3Mbps Number of Channels 79 Channels Antenna Specification Gain: 4 dBi Antenna Designation PIFA Antenna Notes Add portable category for the platform. The platform information is lis t as below. And the module is the same. After verification, the worst case is V1002X. Product name: Notebook Computer Model: V1002X, V100X, V200X All the specification and layout are identical except they come with different model numbers for marketing purposes. Battery Specification DC11.1V, 7800mAh; 87Wh The sample selected for test was production product and was provided by manufacturer. Compliance Certification Services Inc. Report No: T100714303-SFB Date of Issue: September 16, 2010 Page 5 Rev. 00 3. REQUIREMENTS FOR COMPLIANCE TESTING DEFINED BY THE FCC The US Federal Communications Commission has released the report and order “Guidelines for Evaluating the Environmental Effects of RF Radiation", ET Docket No. 93-62 in August 1996. The order requires routine SAR evaluation prior to equipment authorization of portable transmitter devices, including portable telephones. For consumer products, the applicable limit is 1.6 mW/g for an uncontrolled environment and 8.0 mW/g for an occupational/controlled environment as recommended by the ANSI/IEEE standard C95.1-1992. According to the Supplement C of OET Bulletin 65 “Evaluating Compliance with FCC Guide-lines for Human Exposure to Radio frequency Electromagnetic Fields", released on Jun 29, 2001 by the FCC, the device should be evaluated at maximum output power (radiated from the antenna) under “worst-case” conditions for normal or intended use, incorporating normal antenna operating positions, device peak performance frequencies and positions for maximum RF energy coupling. Compliance Certification Services Inc. Report No: T100714303-SFB Date of Issue: September 16, 2010 Page 6 Rev. 00 4. MEASUREMENT UNCERTAINTY UNCERTAINTY BUDGE ACCORDING TO IEEE P1528 Error Description Uncertainty Value ±% Probability distribution DivisorC 1 1g Standard unc.(1g/10g) ±% V 1 or V eff Measurement System Probe calibration ±4.8 normal11 ±4.8 ∞ Axial isotropy of probe ±4.6 rectangular √3 (1-Cp) 1/2 ±1.9 ∞ Sph. Isotropy of probe ±9…
