MAU045NOTEBOOK COMPUTER

X500 USER’S MANUAL Rugged Mobile Computing Solutions 2011 TRADEMARKS All other brand and product names are trademarks or registered trademarks of their respective owners. NOTE The information in this manual is subject to change without notice. Most screens and operating instructions in this manual are based on Windows 7. If you’re using a different version of Windows, the screens and related operations may not be the same. For the latest version of the manual, please visit the Getac website at www.getac.com . ENERGY STAR ® is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations. Please reference ENERGY STAR ® related information from www.energystar.gov. As an ENERGY STAR ® Partner, Getac Technology Corporation has determined that this product meets the ENERGY STAR ® guidelines for energy efficiency. An ENERGY STAR ® qualified computer uses 70 % less electricity than computers without enabled power management features. Earning the ENERGY STAR ®  When every home office is powered by equipment that has earned the ENERGY STAR ® , the change will keep over 289 billion pounds of greenhouse gases out of the air.  If left inactive, ENERGY STAR ® qualified computers enter a low-power mode and may use 15 watts or less. New chip technologies make power management features more reliable, dependable, and user-friendly than even just a few years ago.  Spending a large portion of time in low-power mode not only saves energy, but helps equipment run cooler and last longer.  Businesses that use ENERGY STAR ® enabled office equipment may realize additional savings on air conditioning and maintenance.  Over its lifetime, ENERGY STAR ® qualified equipment in a single home office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.  Power management (“sleep settings”) on computers and monitors can result in much savings annually. Remember, saving energy prevents pollution Because most computer equipment is left on 24 hours a day, power management features are important for saving energy and are an easy way to reduce air pollution. By using less energy, these products help lower consumers’ utility bills, and prevent greenhouse gas emissions. i Table of Contents Getting Started.........................................................................................................................................1-1 Getting the Computer Running ............................................ 1-2 Unpacking ............................................................................ 1-2 Connecting to AC Power .................................................. 1-3 Turning On and Off the Computer................................... 1-4 Taking a Look at the Computer ............................................ 1-6 Front Components .............................................................. 1-6 Rear Components............................................................... 1-7 Right-Side Components ..................................................... 1-8 Left-Side Components........................................................ 1-9 Top-open Components ...................................................1-10 Bottom Components ........................................................1-13 Operating Your Computer ................................................................................................................. 2-1 Using the Keyboard................................................................. 2-2 Typewriter Keys .................................................................... 2-2 Cursor-Control Keys ............................................................ 2-2 Numeric Keypad ................................................................. 2-3 Function Keys ....................................................................... 2-4 Fn Key.................................................................................... 2-4 Hot Keys ................................................................................ 2-4 Using the Touchpad ................................................................ 2-7 Configuring the Touchpad ................................................ 2-9 Using the Touchscreen (Optional) ......................................2-10 Using Multi-touch Gestures (Optional)...........................2-11 Using the Input Panel ............................................................2-13 Using the Quick Buttons ........................................................2-14 ii Using the DVD Drive ..............................................................2-16 Inserting and Removing a Disc .......................................2-16 Using the Network Features .................................................2-18 Using the LAN .....................................................................2-18 Using the Wireless LAN ......................................................2-18 Using the Fingerprint Sensor .................................................2-22 Managing Power .................................................................................................................................... 3-1 AC Adapter .............................................................................. 3-2 Battery Pack ............................................................................. 3-3 Charging the Battery Pack................................................ 3-3 Initializing the Battery Pack................................................ 3-4 Checking the Battery Level............................................... 3-4 Replacing the Battery Pack .............................................. 3-5 Battery Low Signals and Actions....................................... 3-7 Power Management .............................................................. 3-8 Hibernation....................…

Text truncated - open the document above for the full version.

Getac Technology Corp. Date:2011-08-30 Subject: Booster Declaration Compliance Letter FCC ID: MAU045 To whom it may concern, We, the undersigned, hereby certify that we responsible to comply with the FCC relevant provisions. The FCC ID: MAU045, model: X500 This device contains RF module and an internal 2.4GHz booster.We use firmware control this RF module by setting Antenna 1 to operate in 2.4GHz only and Antenna 2 for 5GHz operating. The internal booster is designated for connecting to Antenna 1 for operating in 2.4GHz only. If you have any question regarding this authorization, please do not hesitate to contact us.

Getac Technology Corp. Date:2011-08-05 Subject: WLAN Declaration Compliance Letter FCC ID: MAU045 To whom it may concern, We, the undersigned, hereby certify that we responsible to comply with the FCC relevant provisions. The FCC ID: MAU045, model: X500 1. This application of the device is only apply and limited in WLAN host device approval. In the future if it has other RF function, will apply the related certifications. 2. This device is without the 3G and Bluetooth function; and also no Ad-Hoc function for 11a mode, it only operates under control of a Master device when it operates for 11a mode. The 2.4G only have 1~11 channels, other channels will be disabled by software. If you have any question regarding this authorization, please do not hesitate to contact us.

Compliance Certification Services Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize Mr. Alex Chiu / Director of Compliance Engineering Services, Inc., d.b.a. Compliance Certification Services and hereafter referred to as CCS, to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by Mr. Alex Chiu of CCS on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing CCS as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

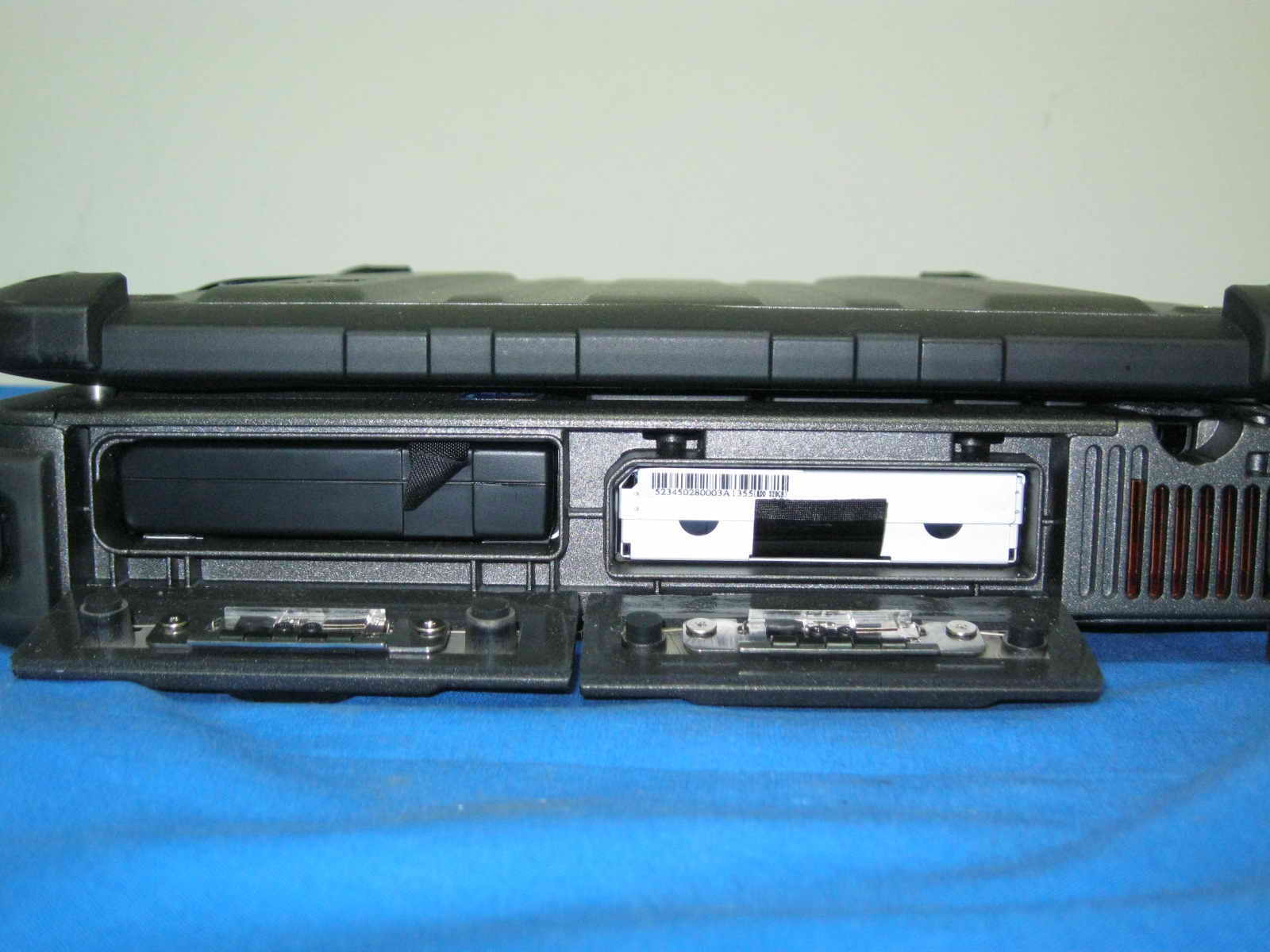

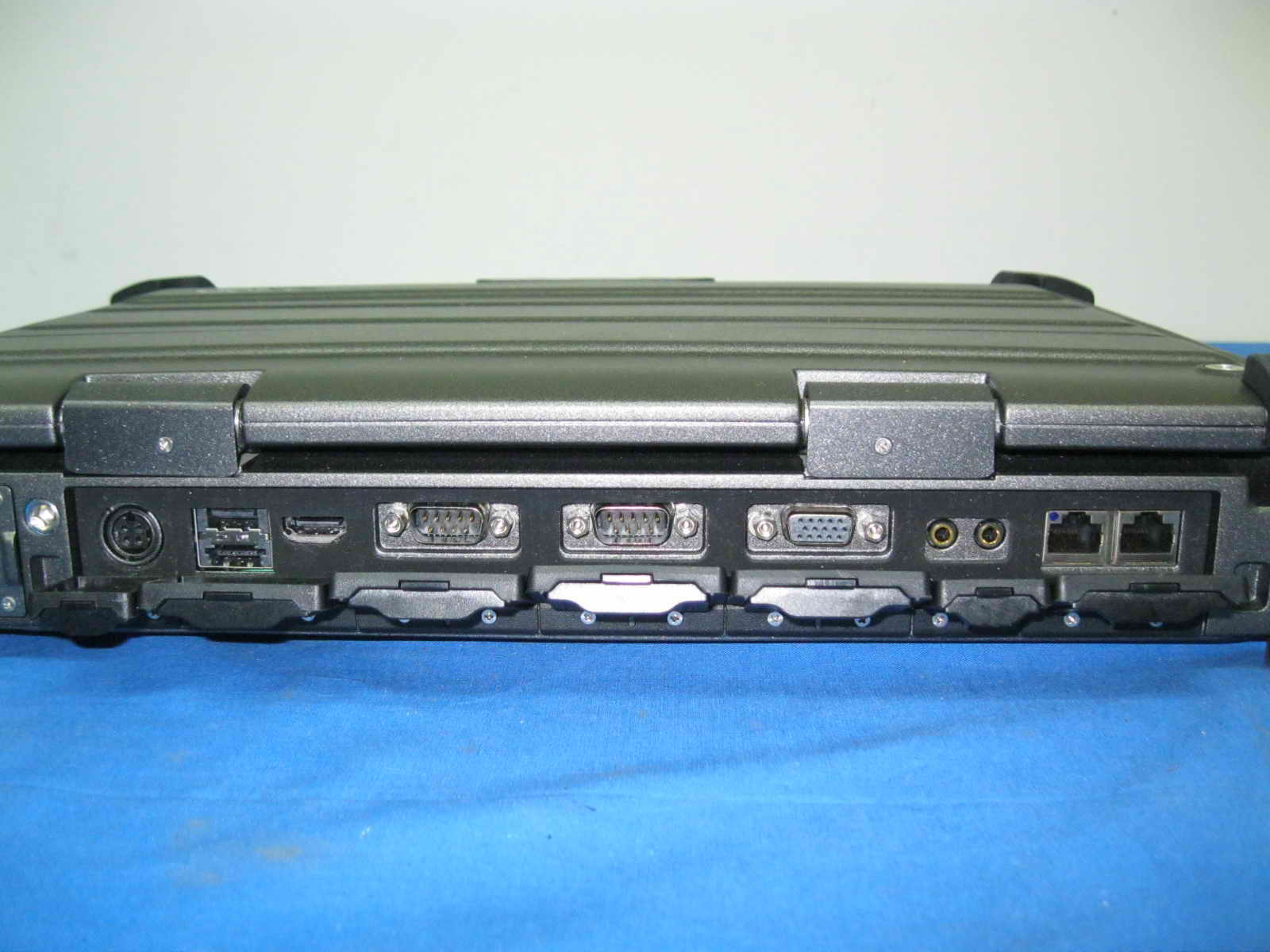

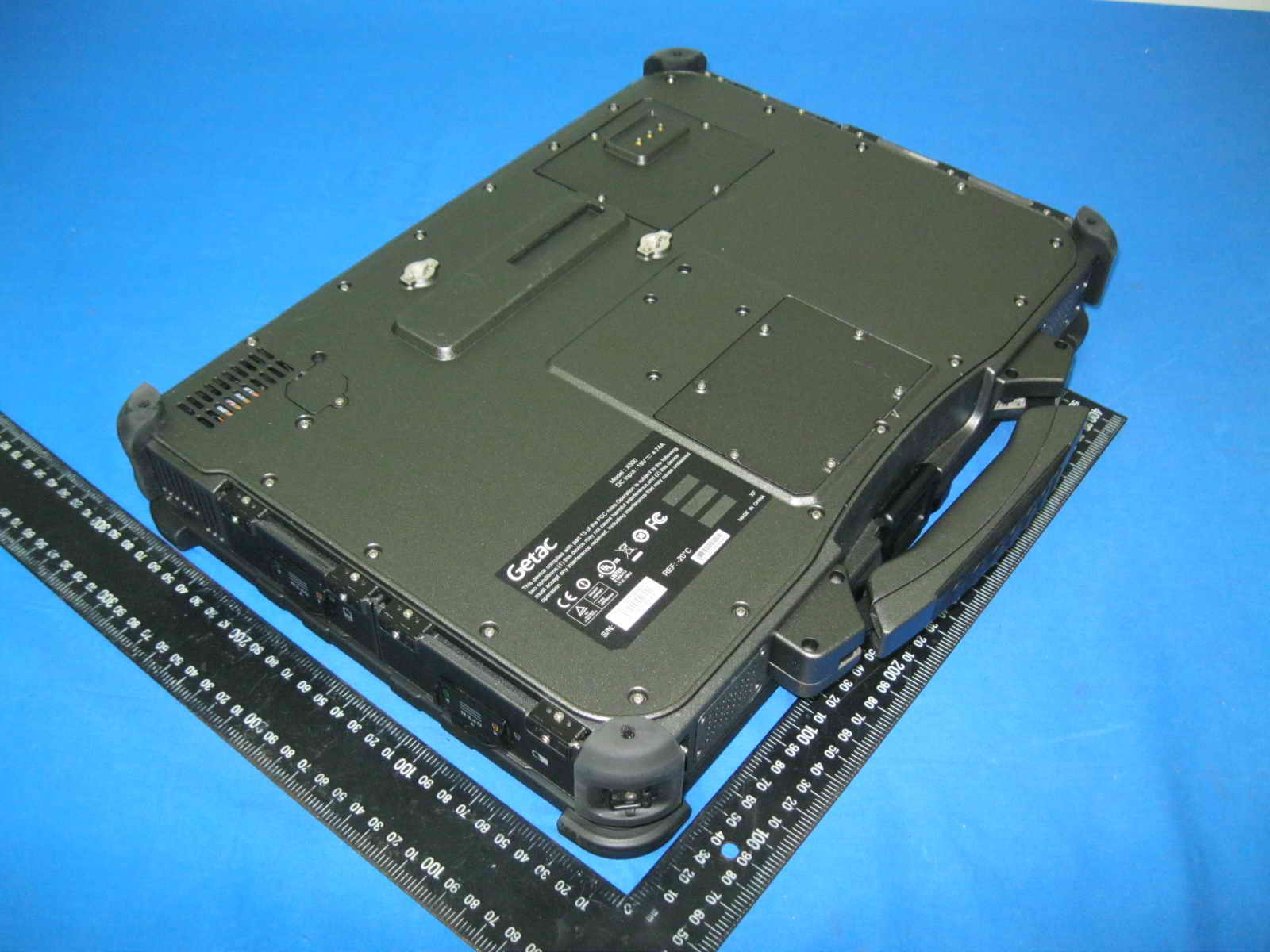

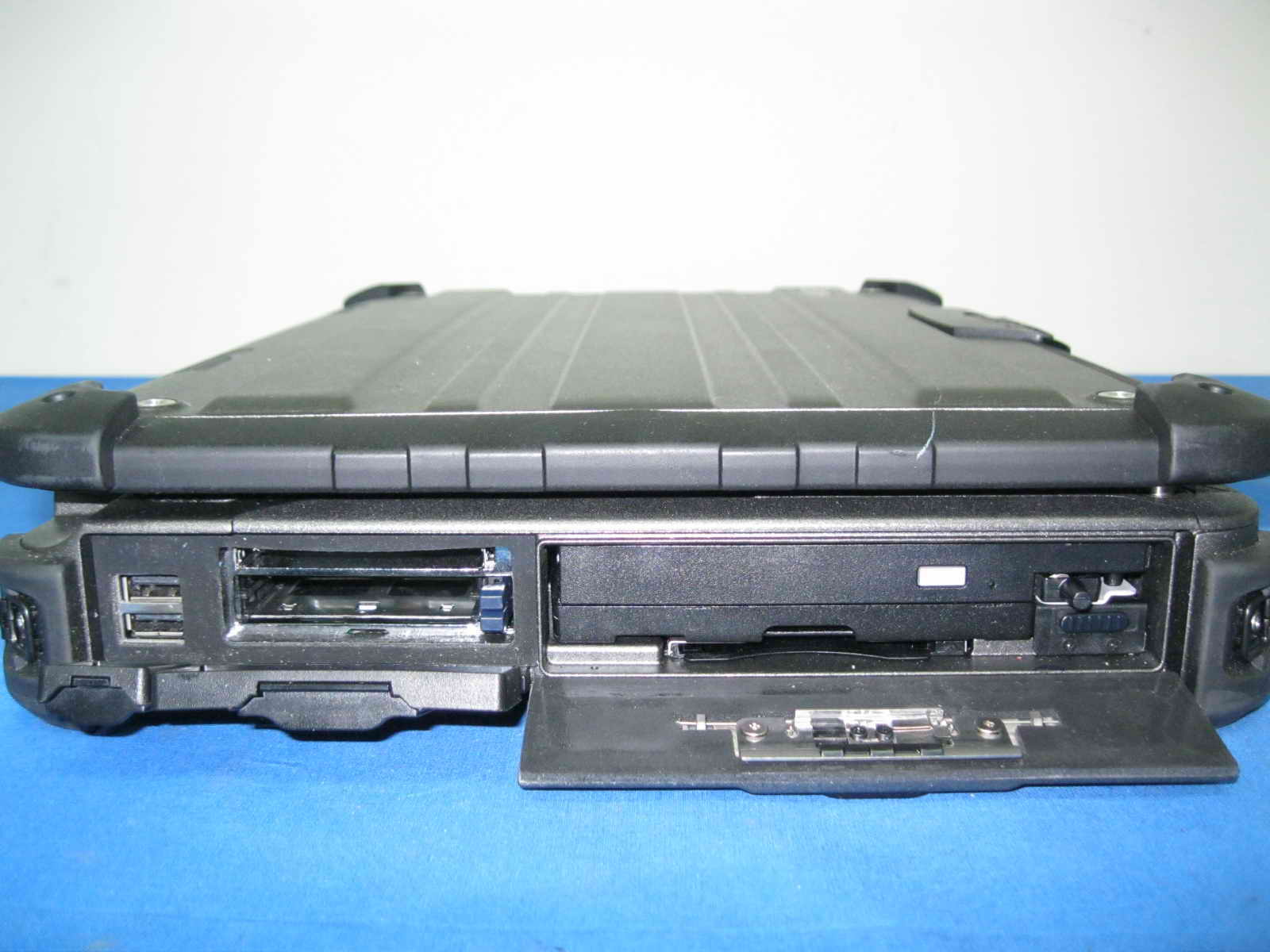

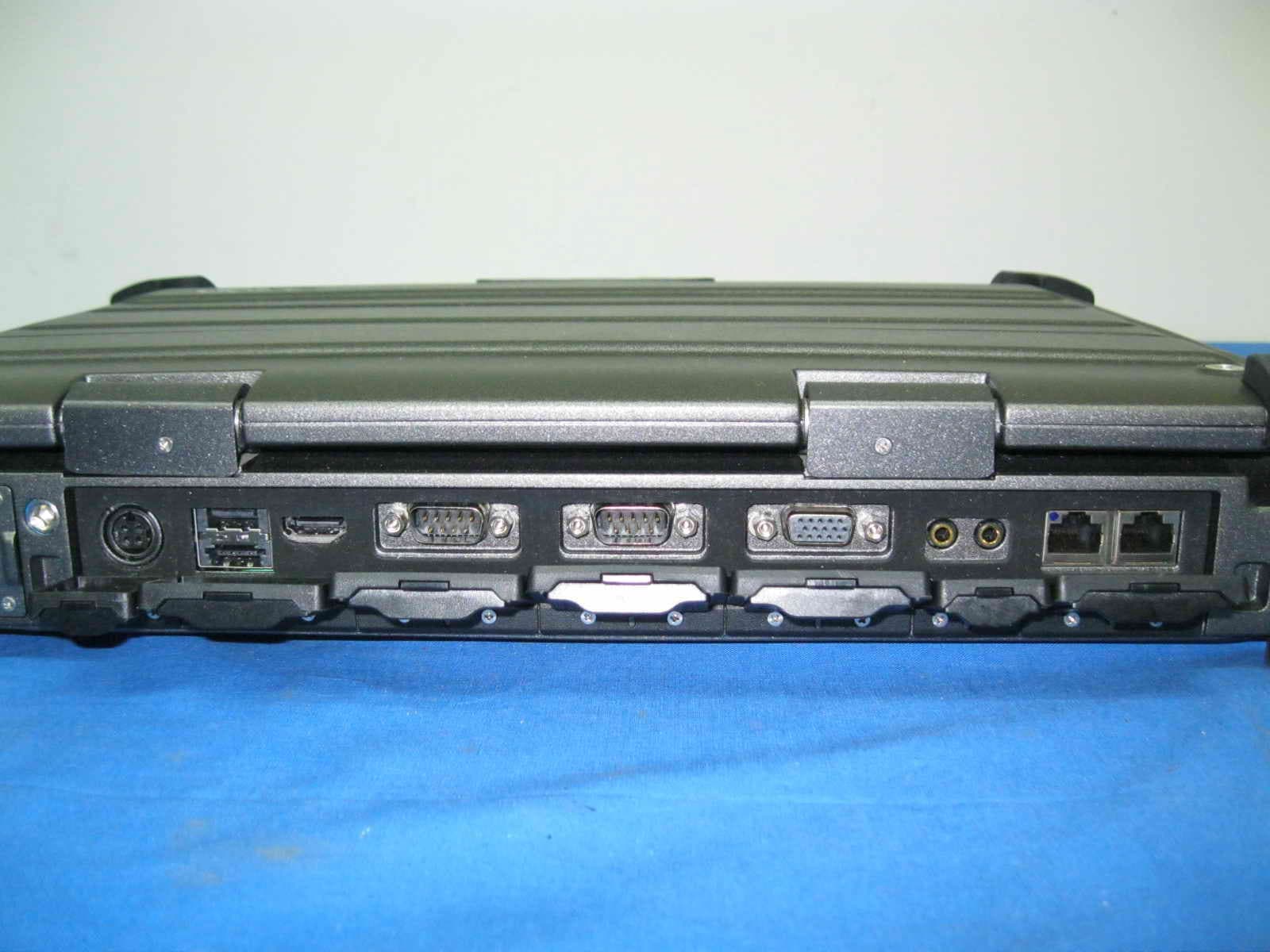

Report No.：T110602301 Page 1 of 34 External Photo Report No.：T110602301 Page 2 of 34 Report No.：T110602301 Page 3 of 34 Report No.：T110602301 Page 4 of 34 310mm 310mm Left Antenna 5G Only Right Antenna 2.4G Only

X500 Label Location

Report No.ΚT110602301 Page 5 of 34 !! Internal Photo WiFi Module Booster Report No.ΚT110602301 Page 6 of 34 !! Connect to Booster Connect to Left Connect to WiFi Module Connect to Right Antenna Report No.ΚT110602301 Page 7 of 34 !! Report No.ΚT110602301 Page 8 of 34 !! Report No.ΚT110602301 Page 9 of 34 !! Report No.ΚT110602301 Page 10 of 34 !! Report No.ΚT110602301 Page 11 of 34 !! Report No.ΚT110602301 Page 12 of 34 !! Report No.ΚT110602301 Page 13 of 34 !! Report No.ΚT110602301 Page 14 of 34 !!

Report No.ΚT110602301 Page 15 of 34 !! Report No.ΚT110602301 Page 16 of 34 !! Report No.ΚT110602301 Page 17 of 34 !! Report No.ΚT110602301 Page 18 of 34 !! Intel CPU Photo (Model : i7-620M) Report No.ΚT110602301 Page 19 of 34 !! RAM Photo Report No.ΚT110602301 Page 20 of 34 !! Report No.ΚT110602301 Page 21 of 34 !! HD Photo Report No.ΚT110602301 Page 22 of 34 !! DVD-ROM Photo Report No.ΚT110602301 Page 23 of 34 !! Battery Photo Report No.ΚT110602301 Page 24 of 34 !! Report No.ΚT110602301 Page 25 of 34 !! Booster Photo Connect to WiFi Module Connect to Right Antenna Report No.ΚT110602301 Page 26 of 34 !! Report No.ΚT110602301 Page 27 of 34 !! GPS Module Photo Report No.ΚT110602301 Page 28 of 34 !! WiFi Module Photo Report No.ΚT110602301 Page 29 of 34 !! Report No.ΚT110602301 Page 30 of 34 !! Report No.ΚT110602301 Page 31 of 34 !! Antenna Photo Left Antenna Right Antenna 21.5cm Report No.ΚT110602301 Page 32 of 34 !! 2.4G Antenna Photo 5G Antenna Photo Report No.ΚT110602301 Page 33 of 34 !! Power Adapter Photo Report No.ΚT110602301 Page 34 of 34 !!

FCC IDMAU045 Report No.T110602301-RP1 Page 108 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE According to FCC 1.1310 : The criteria listed in the following table shall be used to evaluate theenvironment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b)LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Average Time (A) Limits for Occupational / Control Exposures 300-1,500 -- -- F/300 6 1,500-100,000 -- -- 5 6 (B) Limits for General Population / Uncontrol Exposures 300-1,500 -- -- F/1500 6 1,500-100,000 -- -- 1 30 CALCULATIONS Given d G×P×30 =E & 3770 E =S 2 Where E = Field strength in Volts / meter P = Power in Watts G = Numeric antenna gain d = Distance in meters S = Power density in milliwatts / square centimeter Combining equations and re-arranging the terms to express the distance as a function of the remaining variables yields: 2 d3770 G×P×30 =S Changing to units of mW and cm, using: P (mW) = P (W) / 1000 and d (cm) = d(m) / 100 Yields () () 22 d G×P ×0796.0= 100/d×3770 G×1000/P×30 =S Where d = Distance in cm P = Power in mW G = Numeric antenna gain S = Power density in mW / cm2 FCC IDMAU045 Report No.T110602301-RP1 Page 109 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. LIMIT Power Density Limit, S=1.0mW/cm 2 TEST RESULTS Mode Antenna Gain (dBi) Minimum separation distance (cm) Output Power (dBm) Numeric antenna gain (mW) Power Density Limit (mW/cm 2 ) Power Density at 20cm (mW/cm 2 ) IEEE 802.11a 1.66 20.0 21.961.47 1.00 0.045785 IEEE 802.11n HT201.66 20.0 21.311.47 1.00 0.039420 IEEE 802.11n HT401.66 20.0 20.781.47 1.00 0.034892 IEEE 802.11b -1.61 20.0 20.720.69 1.00 0.016208 IEEE 802.11g -1.61 20.0 23.410.69 1.00 0.030111 IEEE 802.11n HT20-1.61 20.0 16.580.69 1.00 0.006248 IEEE 802.11n HT40-1.61 20.0 16.740.69 1.00 0.006482 Remark: For mobile or fixed location transmitters, the maximum power density is 1.0 mW/cm 2 even if the calculation indicates that the power density would be larger.

FCC IDMAU045 Report No.T110602301-RP1 Page 1 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. FCC 47 CFR PART 15 SUBPART C AND ANSI C63.4:2003 TEST REPORT For NOTEBOOK COMPUTER Model : X500 Trade Name : Getac Issued for Getac Technology Corp. No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu , Taiwan Issued by Compliance Certification Services Inc. Hsinchu Lab. NO. 989-1 Wen Shan Rd., Shang Shan Village, Qionglin Shiang Hsinchu County 30741, Taiwan, R.O.C TEL: +886-3-5921698 FAX: +886-3-5921108 http://www.ccsrf.com E-Mail : [email protected] Issued Date: October 03, 2011 Note: This report shall not be reproduced except in full, without the written approval of Compliance Certification Services Inc. This document may be altered or revised by Compliance Certification Services Inc. personnel only, and shall be noted in the revision section of the document. The client should not use it to claim product endorsement by TAF or any government agencies. The test results of this report relate only to the tested sample identified in this report. FCC IDMAU045 Report No.T110602301-RP1 Page 2 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. Revision History Rev. Issue Date Revisions Effect Page Revised By 00 07/18/2011 Initial Issue All Page 115 Winnie Chen 01 09/16/2011 Modified Page 1, 8, 13, 32, 49 Winnie Chen 02 10/03/2011 Modified Radiated Emission and Conducted Emission Test Mode. Page 1, 3, 7, 11, 66, 106, 107, 112 All Page 112 Winnie Chen FCC IDMAU045 Report No.T110602301-RP1 Page 3 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. TABLE OF CONTENTS TITLE PAGE NO. 1. TEST REPORT CERTIFICATION ................................................................................ 4 2. EUT DESCRIPTION ..................................................................................................... 5-6 3. DESCRIPTION OF TEST MODES ............................................................................... 7-8 4. TEST METHODOLOGY ............................................................................................... 9 5. FACILITIES AND ACCREDITATION ........................................................................... 9 5.1 FACILITIES ............................................................................................................ 9 5.2 ACCREDITATIONS................................................................................................ 9 5.3 MEASUREMENT UNCERTAINTY ......................................................................... 10 6. SETUP OF EQUIPMENT UNDER TEST...................................................................... 11 7. FCC PART 15.247 REQUIREMENTS.......................................................................... 12 7.1 6dB BANDWIDTH .................................................................................................. 12-27 7.2 MAXIMUM PEAK OUTPUT POWER..................................................................... 28-30 7.3 POWER SPECTRAL DENSITY............................................................................. 31-47 7.4 CONDUCTED SPURIOUS EMISSION .................................................................. 48-61 7.6 RADIATED EMISSION........................................................................................... 62-102 7.7 CONDUCTED EMISSION ...................................................................................... 103-107 APPENDIX I MAXIMUM PERMISSIBLE EXPOSURE..................................................... 108-109 APPENDIX II SETUP PHOTOS .......................................................................................110-112 FCC IDMAU045 Report No.T110602301-RP1 Page 4 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 1. TEST REPORT CERTIFICATION Applicant Getac Technology Corp. Address No.1, R&D Road 2, Hsinchu Science Based Industrial Park, Hsinchu, Taiwan Equipment Under Test NOTEBOOK COMPUTER Model X500 Trade Name Getac Tested Date June 02 ~ July 14, 2011 APPLICABLE STANDARD Standard Test Result FCC Part 15 Subpart C AND ANSI C63.4:2003 PASS WE HEREBY CERTIFY THAT: The above equipment has been tested by Compliance Certification Services Inc., and found compliance with the requirements set forth in the technical standards mentioned above. The results of testing in this report apply only to the product/system, which was tested. Other similar equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Approved by: Reviewed by: Sb Lu Gundam Lin Sr. Engineer Sr. Engineer FCC IDMAU045 Report No.T110602301-RP1 Page 5 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. 2. EUT DESCRIPTION Product Name NOTEBOOK COMPUTER Model Number X500 Identify Number T110602301 Received Date June 02, 2011 IEEE 802.11a, IEEE 802.11n HT20 : 5745MHz ~ 5825MHz IEEE 802.11n HT40 : 5755MHz ~ 5795MHz IEEE 802.11b/g, 802.11n HT20 : 2412MHz～2462MHz Frequency Range IEEE 802.11n HT40 : 2422MHz～2452MHz IEEE 802.11a : 21.96 dBm (0.1570W) IEEE 802.11n HT20 : 21.31 dBm (0.1352W) IEEE 802.11n HT40 : 20.78 dBm (0.1197W) IEEE 802.11b : 20.72 dBm (0.1180W) IEEE 802.11g : 23.41 dBm (0.2193W) IEEE 802.11n HT20 : 16.58 dBm (0.0455W) Transmit Power IEEE 802.11n HT40 : 16.74 dBm (0.0472W) IEEE 802.11a, 802.11n HT20 : 20MHz IEEE 802.11n HT40 : 40MHz Channel Spacing IEEE 802.11b/g, 802.11n HT20/HT40 : 5MHz IEEE 802.11a, 802.11n HT20 : 5 Channels IEEE 802.11n HT40 : 2 Channels IEEE 802.11b/g, 802.11n HT20 : 11 Channels Channel Number IEEE 802.11n HT40 : 7 Channels IEEE 802.11a : 54, 48, 36, 24, 18, 12, 9, 6 Mbps IEEE 802.11b : 11, 5.5, 2…

Text truncated - open the document above for the full version.

FCC IDMAU045 Report No.T110602301-RP1 Page 110 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. APPENDIX II SETUP PHOTOS RADIATED EMISSION SETUP FCC IDMAU045 Report No.T110602301-RP1 Page 111 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. ANTENNA PORT CONDUCTED RF MEASUREMENT SETUP FCC IDMAU045 Report No.T110602301-RP1 Page 112 / 112 This report shall not be reproduced, except in full, without the written approval of Compliance Certification Services Inc. CONDUCTED EMISSION SETUP
